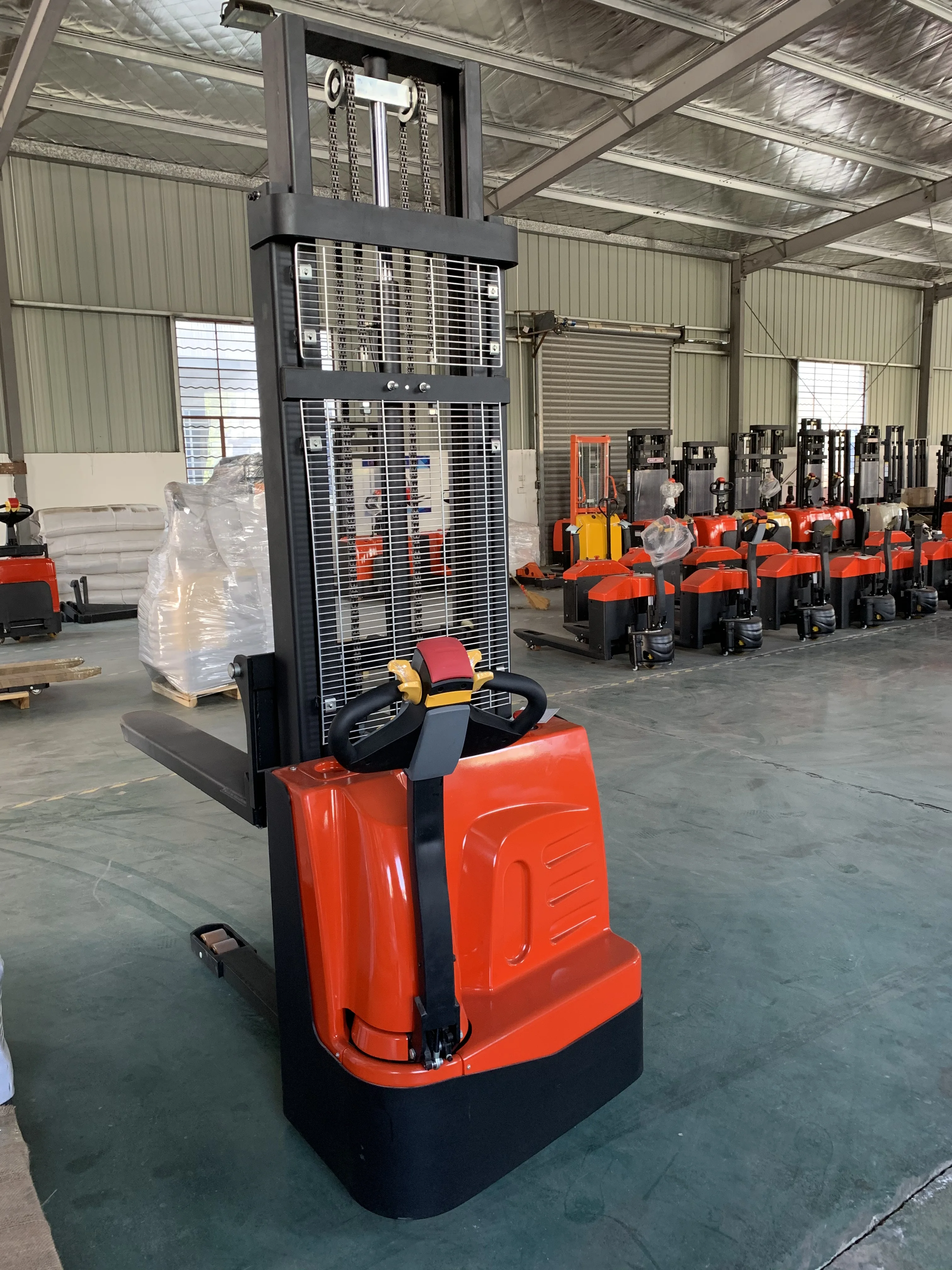

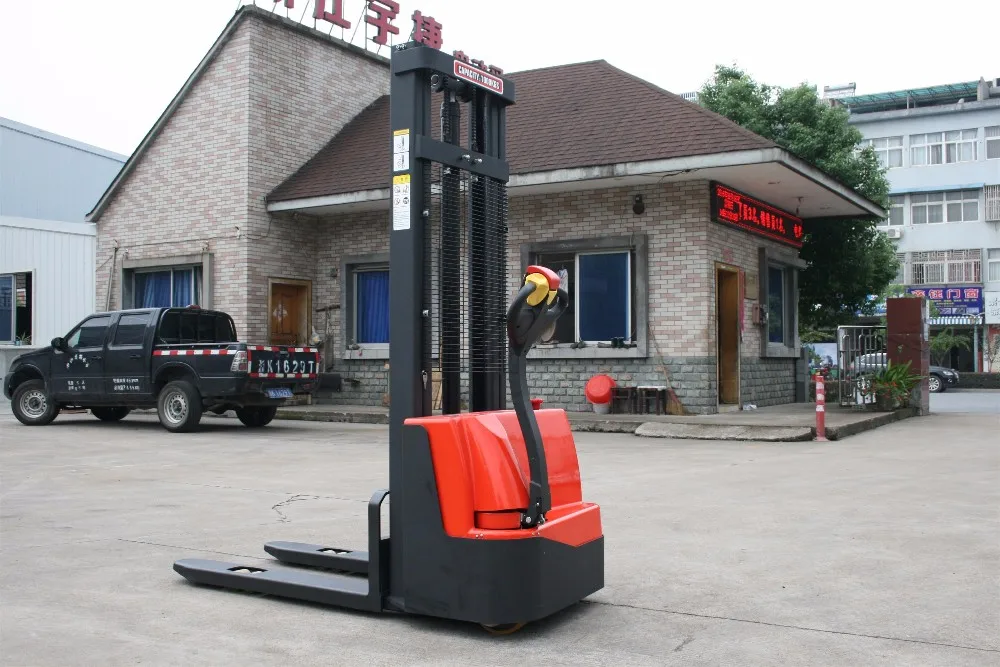

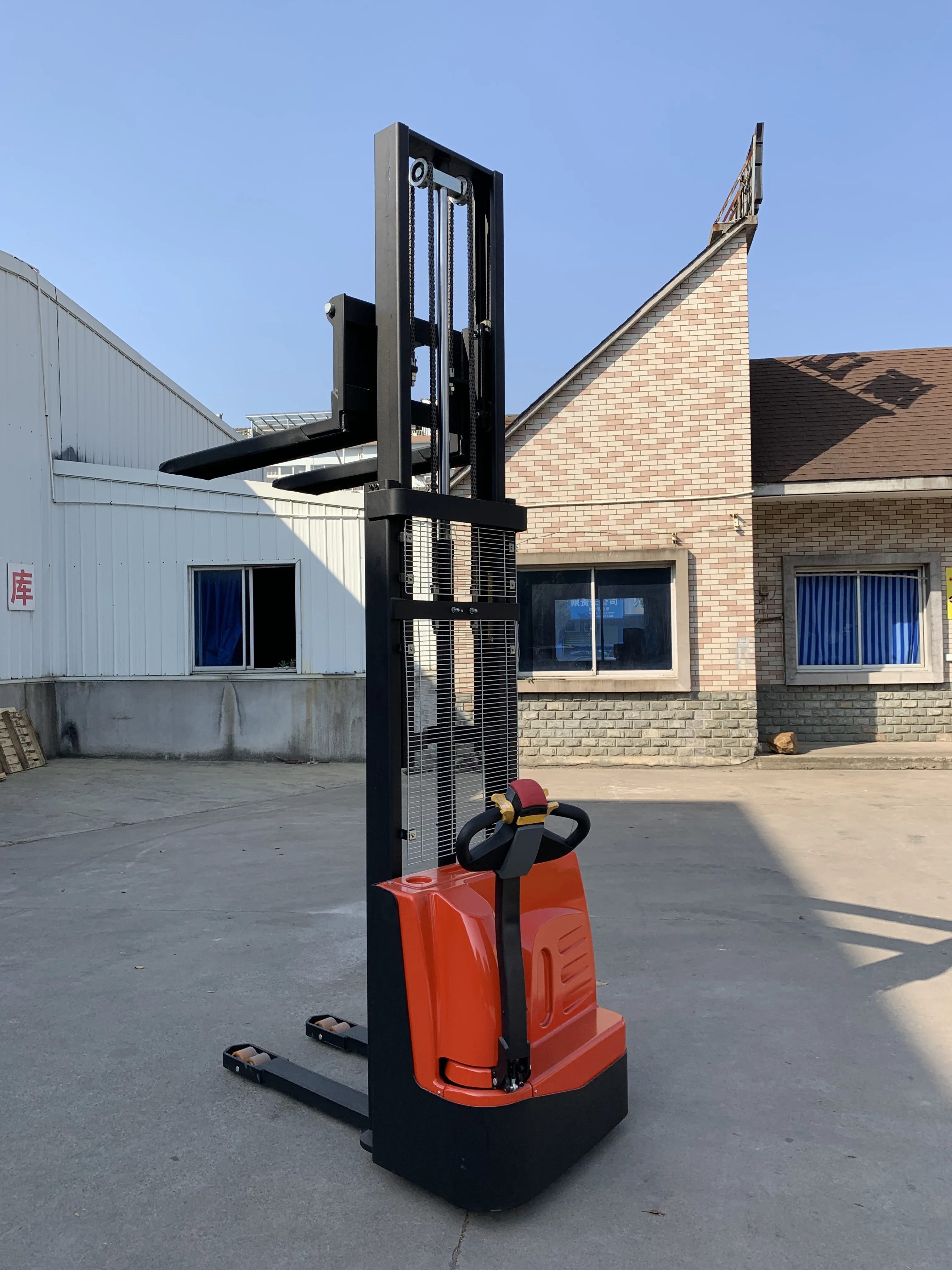

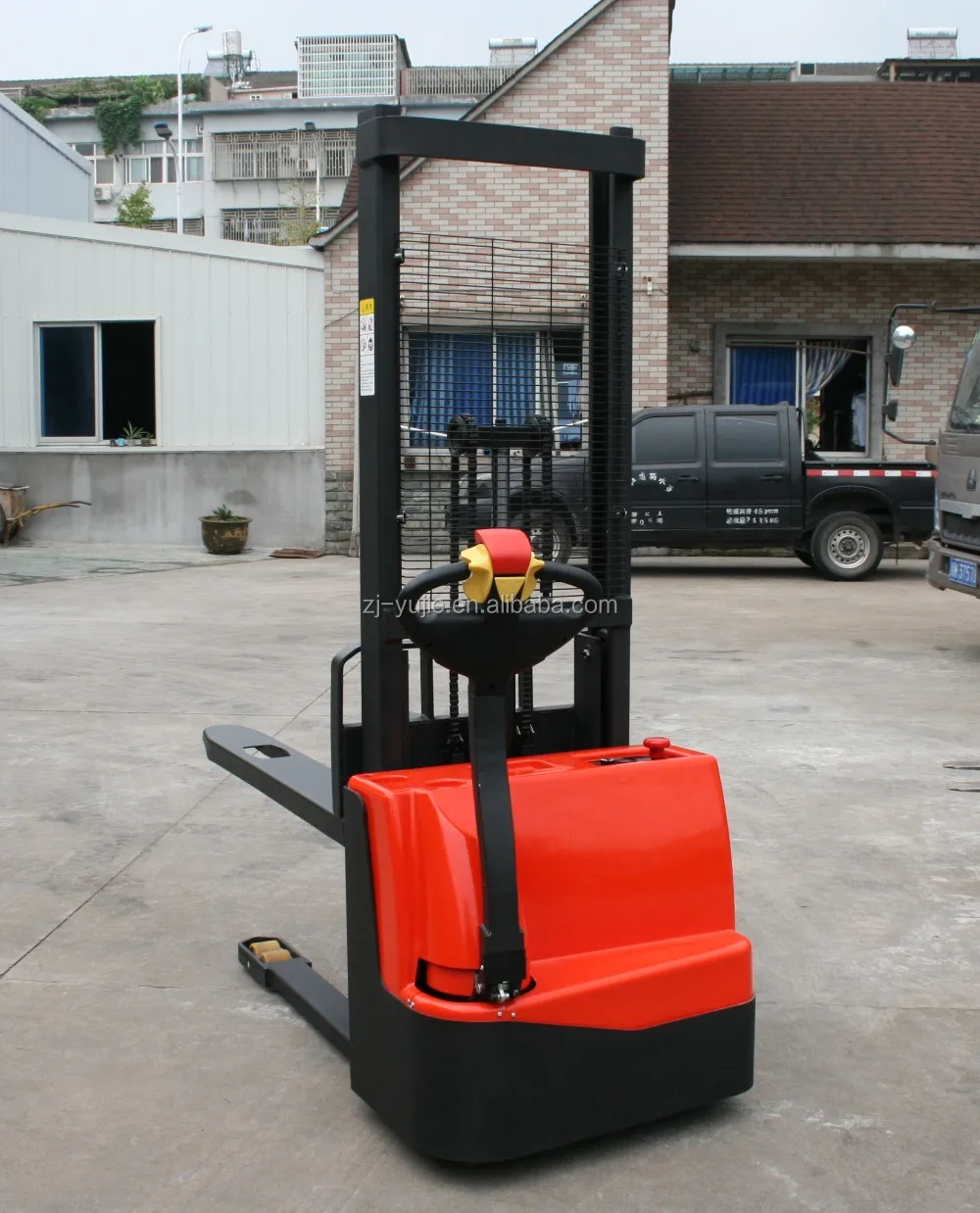

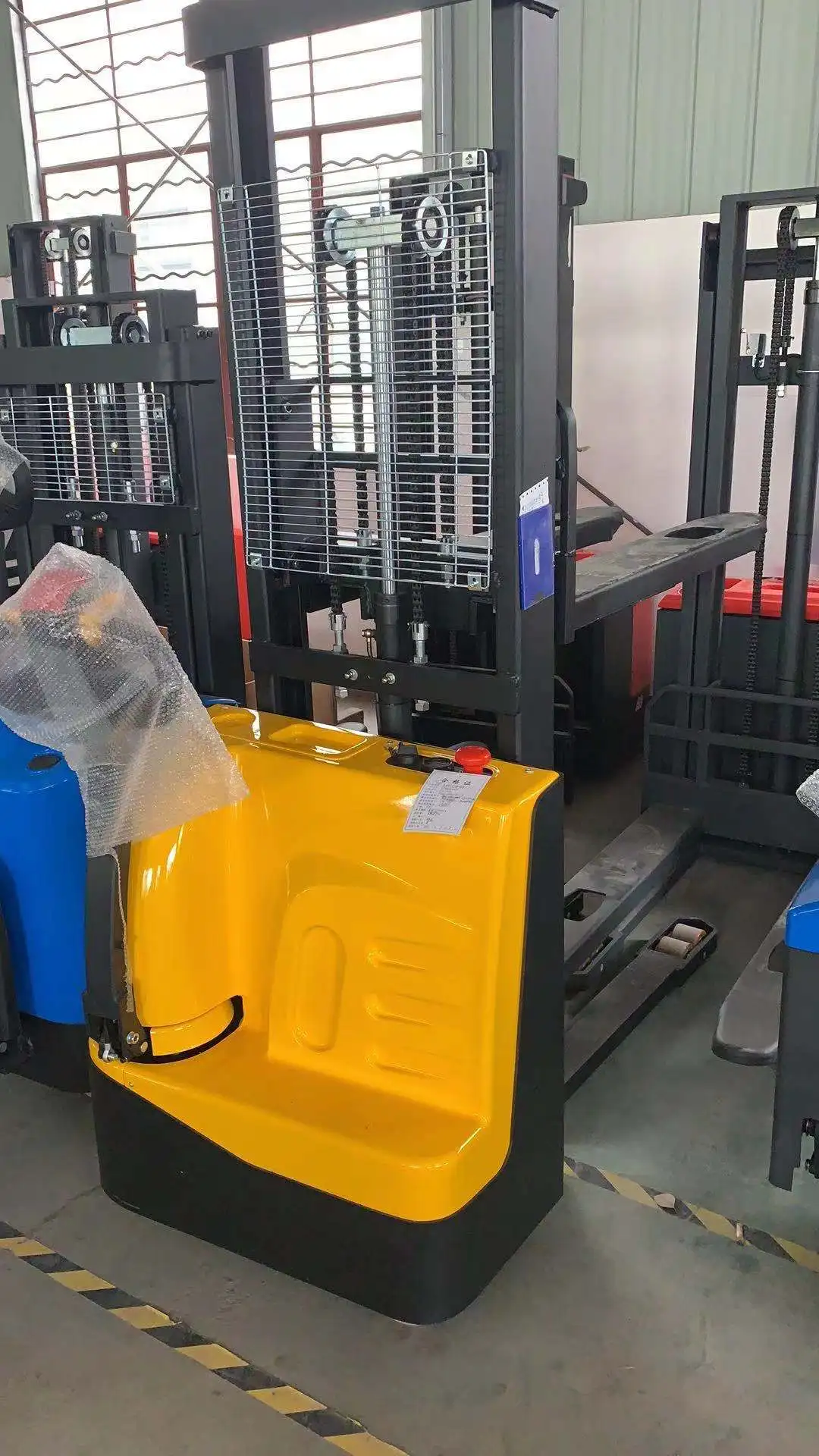

electric walkie stacker forklift electric pallet stacker
- Category: >>>
- Supplier: Zhejiang Yujie Intelligent Equipment Co. Ltd.
Share on (1600427954473):
Product Overview
Description
Characteristic | Rated Capacity | (kg) | 1000 |
Load Center | (mm) | 500 | |
Wheel Size | (mm) | 1240 | |
Wheel Size | Driving Wheel Size | (mm) | 210*70 |
Balance Wheel Size | (mm) | 115*55 | |
Size | Lifting Height | (mm) | 2500/3000 |
Lowest Fork Height | (mm) | 90 | |
Outer Width of Fork | (mm) | 550/680 | |
Single Fork Width | (mm) | 165 | |
Overall Length | (mm) | 1780 | |
Overall Width | (mm) | 800 | |
Overall Height (fork lowered) | (mm) | 1830/2080 | |
Min Turning Raduis | Wa | 1500 | |
Channel Width, with 1000*1200mm tray | (mm) | 2537 | |
Channel Width, with 800*1200mm tray | (mm) | 2468 | |
Performance | Travelling Speed With/Without Load | 4.2/5.6 | |
Lifting Speed With/Without Load | 80/100 | ||
Falling Speed With/Without Load | 150/120 | ||
Max Climbing Ability With/Without Load | % | 3/10 | |
Lifting Motor | KW | 2.2 | |
Battery Capacity | V/AH | 2*12/80 | |
Driving Motor Power | KW/H | 0.75 | |
Net Weight (Including Battery) | Ka | 480 |
