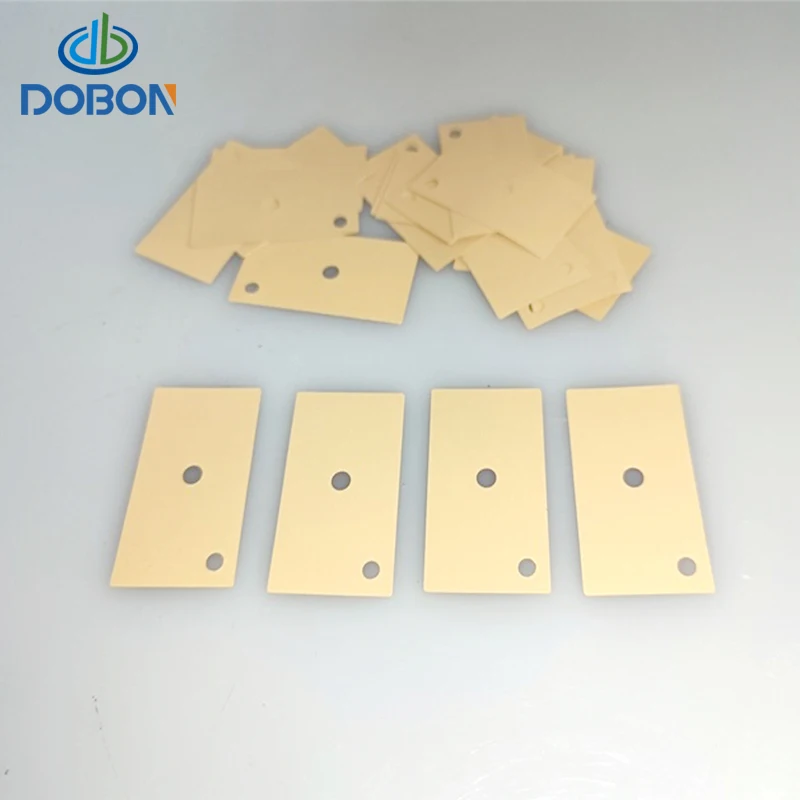

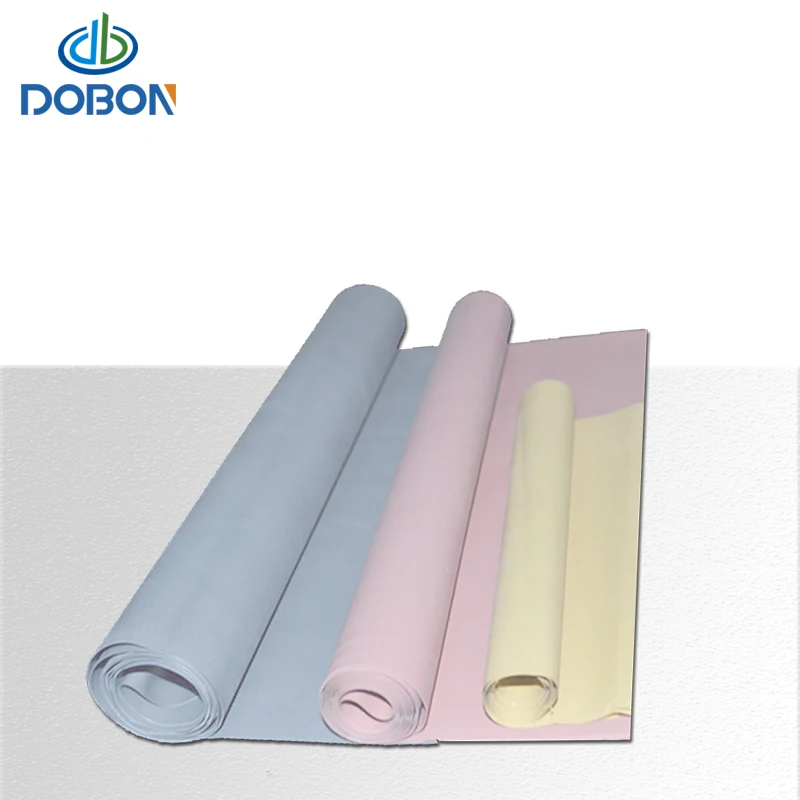

K 10 high pressure resistant thermal conductive silicon tape MOS tube heating chip thermal conductive heat dissipation pad
- Category: >>>
- Supplier: Shenzhen Dobon Technology Co. Ltd.
Share on (1600427970902):
Product Overview
Description
Silicon Coated Fireproof Thermal Insulator Fabric
3
Product Description
Product description
Physics parameter form
| Test Item | Test Method | Unit | K-10 test value |
| Color | Visual | Yellow | |
| Thickness | ASTM D374 | mm | 0.15mm |
| Specific Gravity | ASTM D792 | g/cm3 | 1.7±0.1 |
| Hardness | ASTM D2240 | Shore C | 75±5 |
| Tensile Strength | ASTM D412 | MPa | 5000 |
| Compression Ratio | ASTM D412 | % | 40 |
| Continuous use Temp | EN344 | ℃ | -50~200 |
| Volume Resistivitv | ASTM D257 | Ω-CM | 1012 |
| Breakdown Voltage | ASTM D149 | KV/mm | ≥6 |
| Flame Rating | UL-94 | V-0 | |
| Thermal Conductivity | ASTM D5470 | w/m-k | 1.3 |
K-10 silicon tape is Sil Pad K10, a high-performance elastomer insulating material based on a special film, with excellent cutting resistance and excellent thermal conductivity. It is widely used in electronic and electrical industries. When in use, heat-conducting silica gel chips of different thicknesses are selected and cut according to the size of the heating interface and the height of the gap, and placed in the gap between the heating interface and its components to act as a heat-conducting medium.

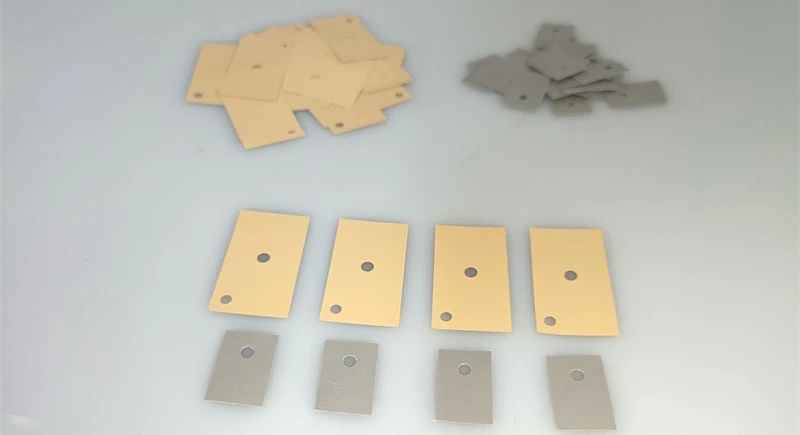

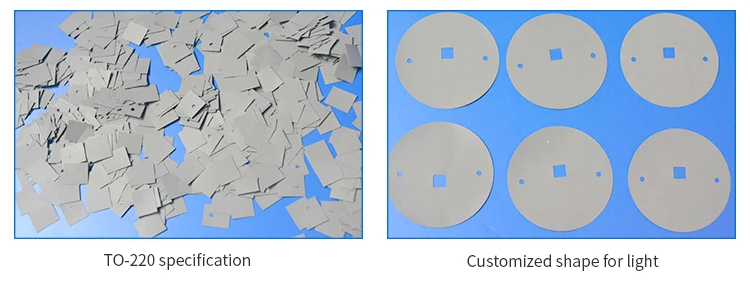

Product pictures:

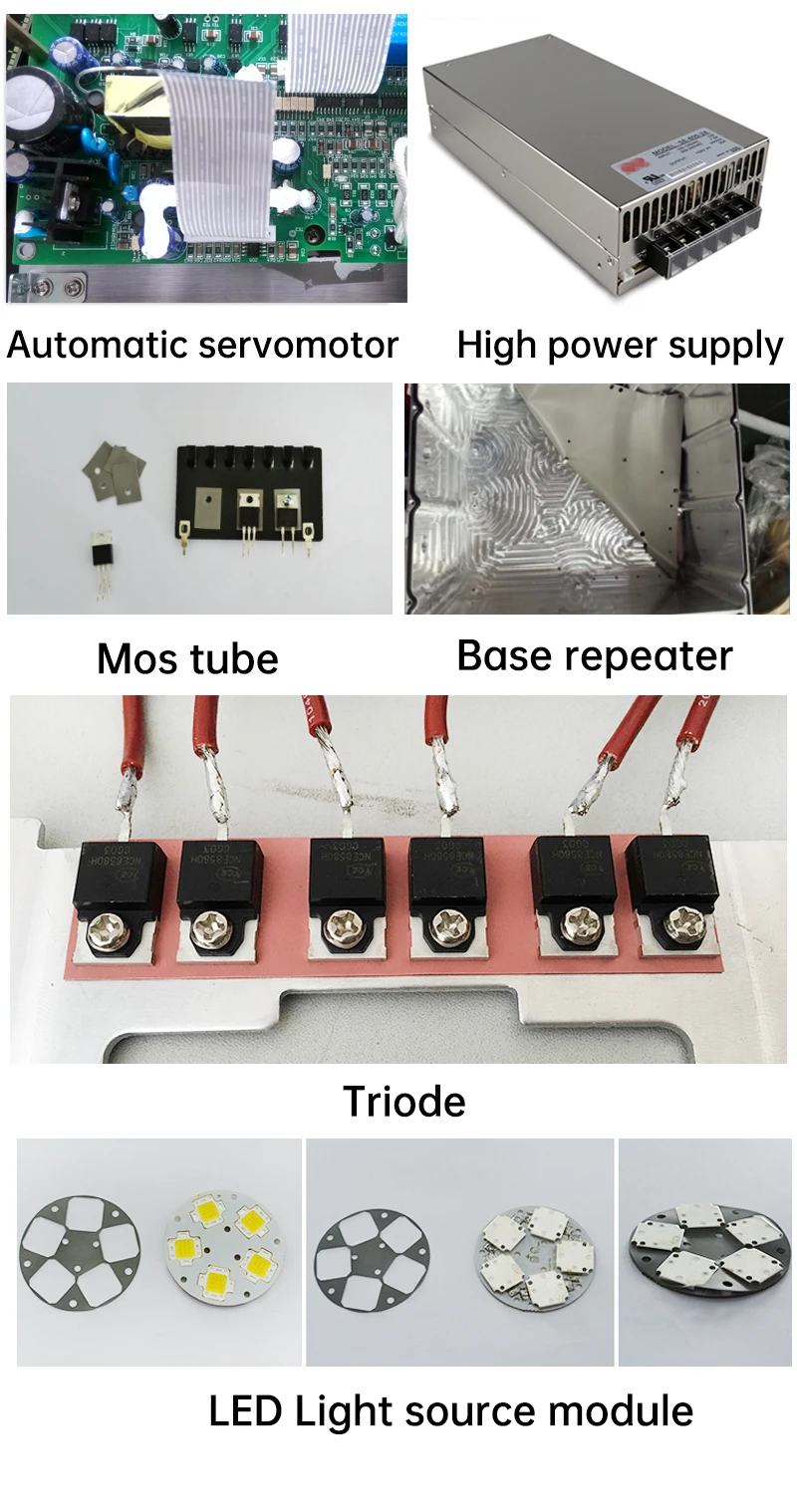

Product application:
Main characteristics:
Insulation, heat dissipation, fire protection, etc
Basic specifications:

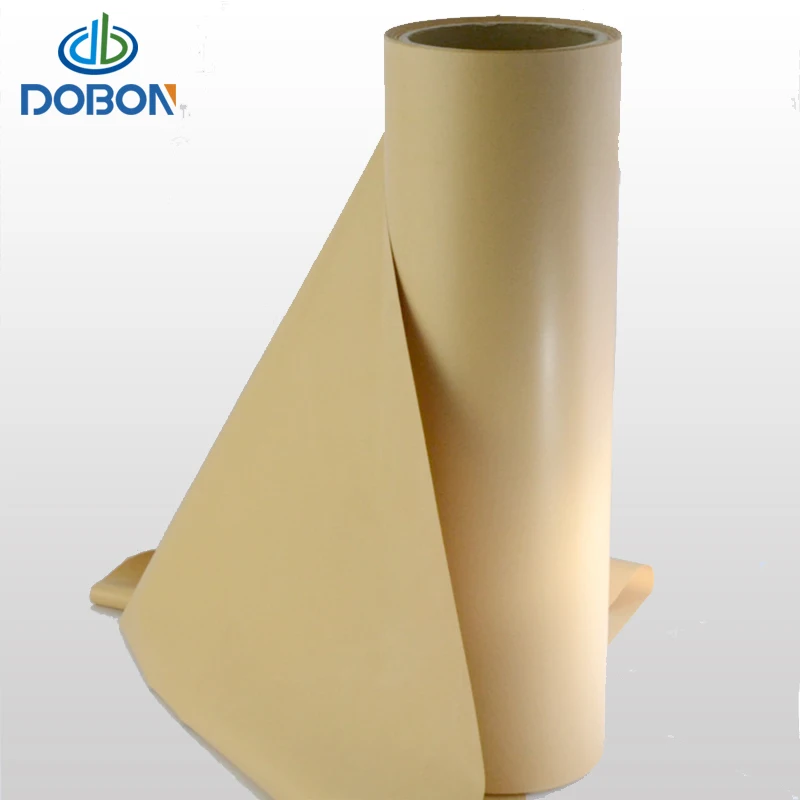

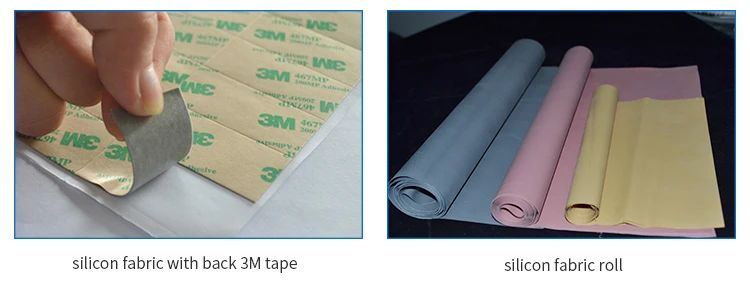

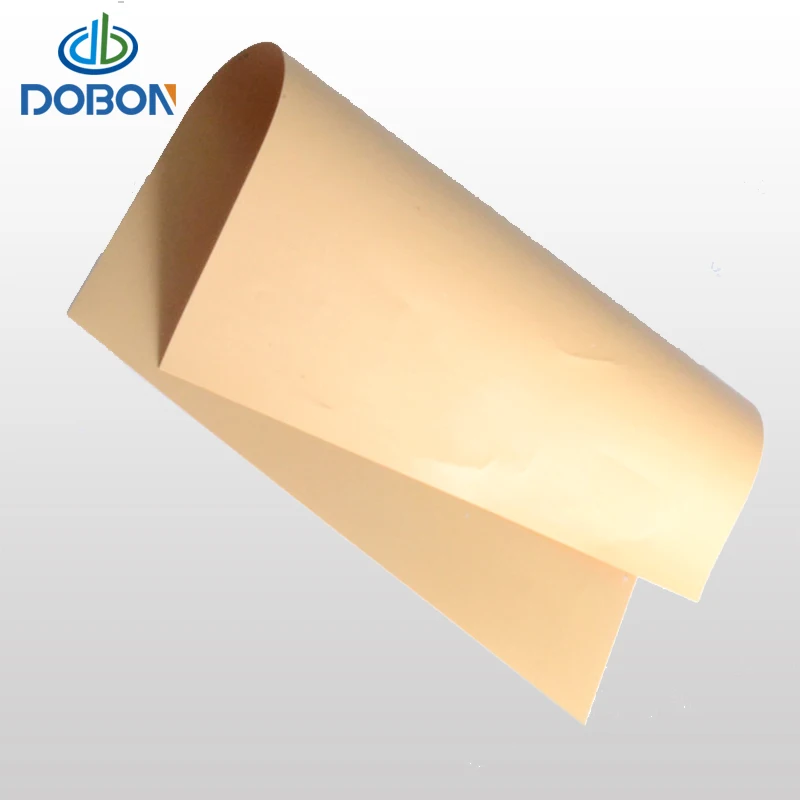

sheet, die cutting, coiled material, with glue and without glue
CP100
Founded in 2012, Shenzhen duebang Technology Co., Ltd. is headquartered in Science City, Guangming District, Shenzhen, and its production base is located in Huangjiang Town, Dongguan. It is a high-tech enterprise specializing in the R & D, production and sales of heat conduction and heat dissipation, insulating materials, heat insulation and flame retardant materials. It is a well-known domestic provider of heat conduction management solutions.
The company is mainly engaged in thermal conductive silicone sheet, thermal conductive silicone grease, thermal conductive potting adhesive, thermal conductive gel, thermal conductive insulating sheet, thermal conductive double-sided adhesive, thermal conductive graphite sheet and other products, which are widely used in automotive electronics, power supply, LED lighting, network communication, intelligent equipment, household appliances.
All products of the company have passed the testing of UL, ROHS, halogen-free, reach third-party institutions and have passed the ISO9001 certification. The company has set up branches in Suzhou, Beijing, Hong Kong and other places to meet the needs of customer service. The company not only has a perfect R & D management system, but also has excellent engineering designers and excellent professional management talents. It adopts a high-tech production form to rationalize the unit price of products, stabilize the quality, and deliver on time to meet the needs of customers.
1. RTS products can be ordered directly. The conventional size is 200 * 400mm, and cutting can be required (if not required, cutting edge materials will not be discharged). For non conventional sizes, please consult the customer service for quotation.
2. There are many types of thermal conductive silicone pads. It is suggested that the used samples can be sent to the business in the form of pictures or videos to quickly match the corresponding products. Except for conventional products.
3. If you need to customize the special-shaped thermal pad, you need to pay the mold fee to help improve the efficiency and production. Heterotypic means that shapes other than rectangles and squares belong to heterotypic customization. The knife mold fee is only charged once, and will not be charged for the next order. (if the product order amount exceeds US $760, the knife and mold fee is free. Or if all orders accumulate to US $760, it can be deducted in the next order)
4. If there are special requirements for internal and external packaging and labels, please add spare parts and explain in advance.
5. If there are special requirements on the process procedure, the cost will be increased. Such as stick handle, deviated paper, separate lamination, independent bagging, etc.
6. Since the thermal pad needs to be manually discharged, sorted and re coated, it is normal to see bubbles on the package, which will not affect the effect of the thermal pad; The heat conductive pad is soft and has certain compressibility. The thickness and size will have certain deviation within ± 0.5mm, which is normal; It is normal that there may be slight color difference due to different product batches.
7. About delivery. Due to the suspension of freight on Saturday and Sunday, the goods are usually delivered before Thursday. The production delivery period is 3-7 days.
8. Please inform us in advance of other special precautions, such as tax number, invoice declaration amount, designated express service provider, designated delivery place, etc.
9. Due to the time difference in each country, please leave your WhatsApp or wechat and I will contact you as soon as possible.
Contact us:
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, our factory in Dongguan city, China. Welcome to visit.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free , but not including the shipping cost.If it is a sample order, you can place an order directly, and we will take the initiative to contact you to confirm that we can provide the quantity and style.
Q: How to customize a sample?
A:If you are ordering a unique sample that we don't have in stock, you need to provide all the details, it will be better if you can send a sample for our evaluation. Customized samples maybe need new molding, which will cost molding fee. We will check your sampling requirements, then issue a sampling P/I. Sampling may take 3-5 days, depending on detailed samples.
Q: How to order?
A:You can place an order directly, but the freight may be inaccurate. After placing an order, our business will actively contact you to confirm the size, thickness, thermal conductivity and packaging, and then confirm the accurate price. After modifying the order, you can pay directly.
Please try your best to contact the customer service before placing an order, or provide your own contact information to facilitate the communication of details through the chat software.
