Product Overview

Description

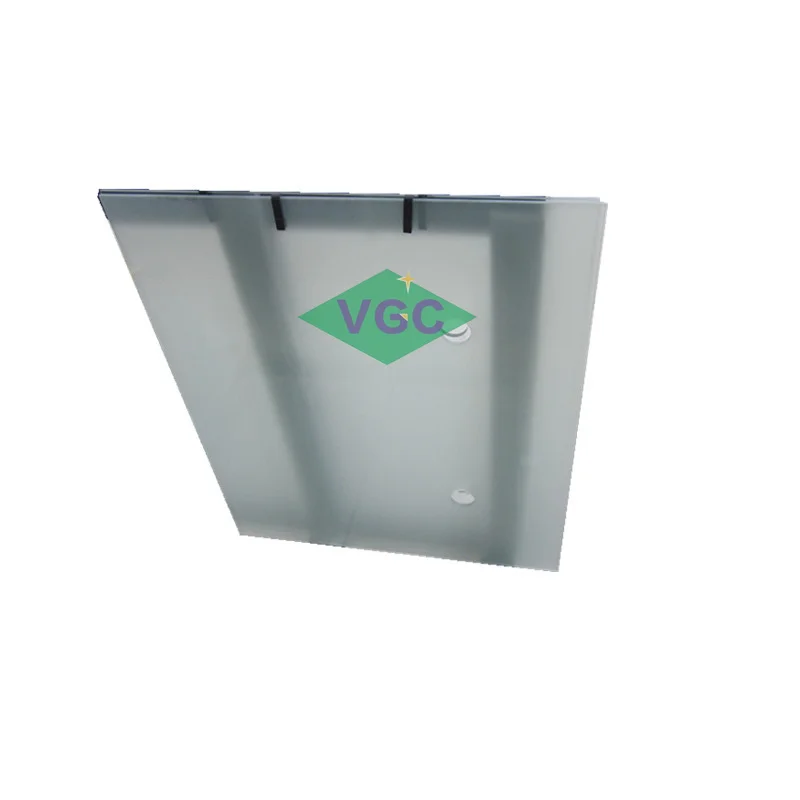

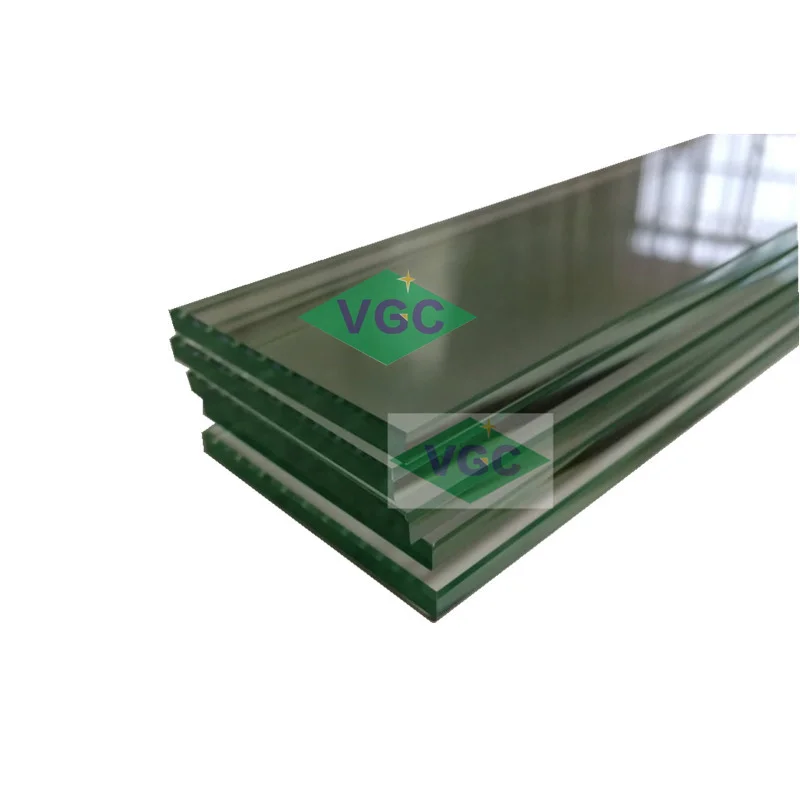

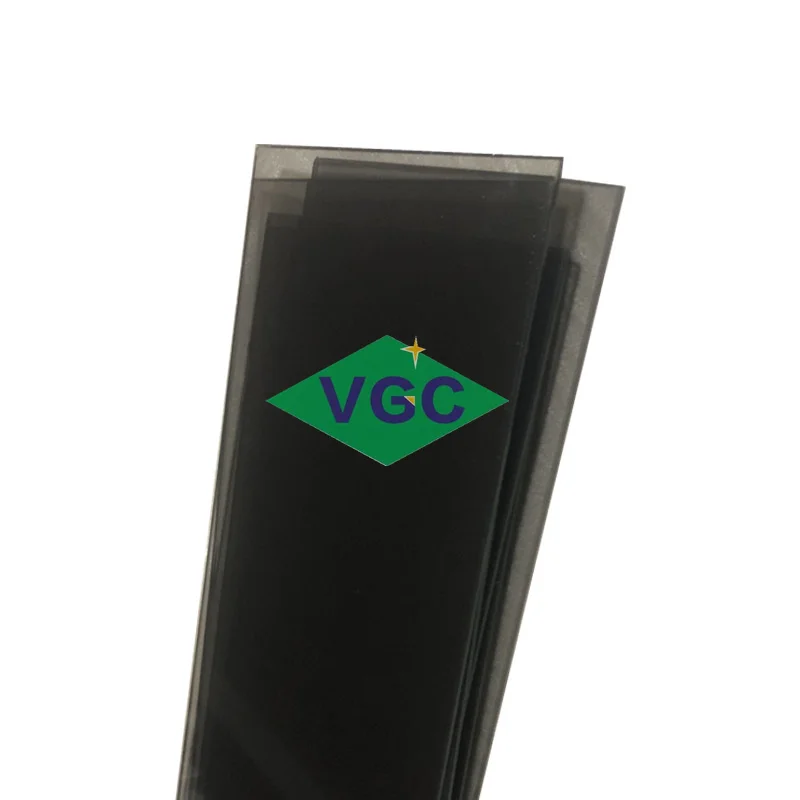

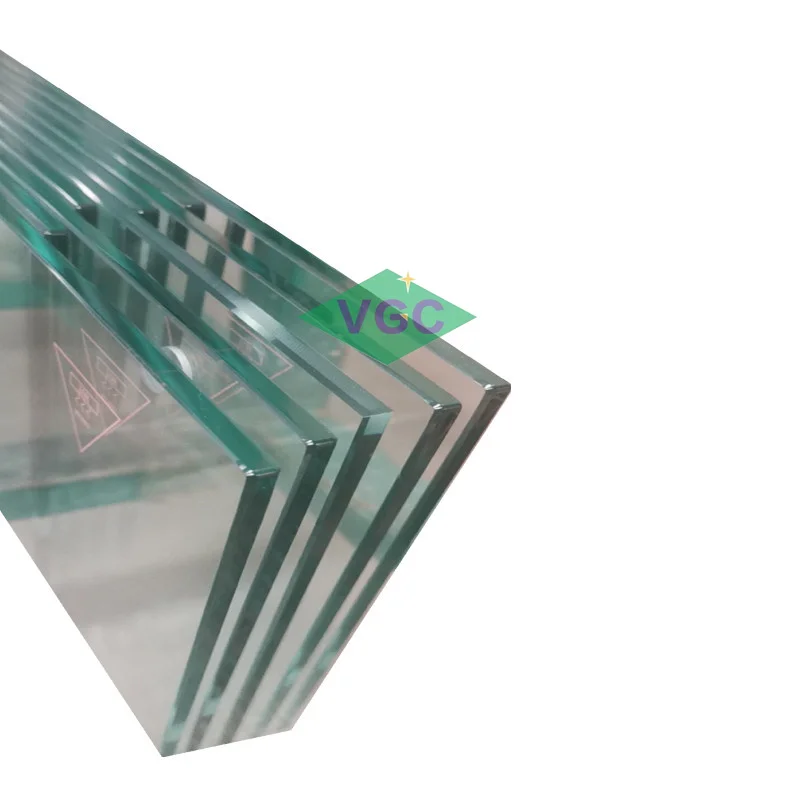

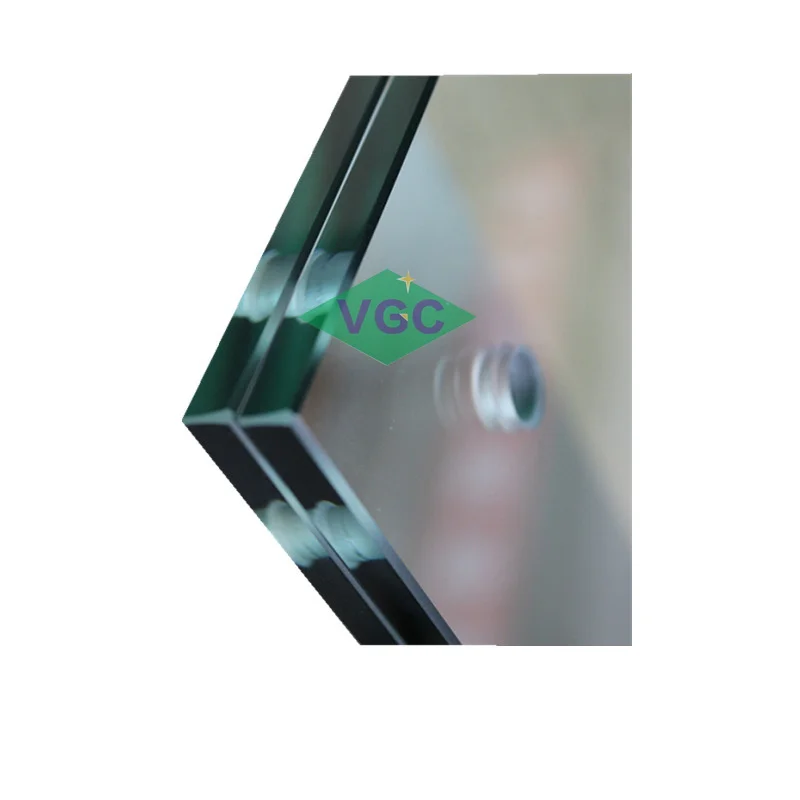

VGC Custom High Performance Laminated Safety Glass, Bulletproof Laminated Glass, Hurricane-resistant Laminated Glass



LAMINATED SAFETY GLASS is produced by laminating one or more layers of organic resin inter-layer between two or more pieces of glass at high temperature and pressure. According to different types of inter-layer, laminated glass can be made into products of different characteristics. Its application should be correctly selected based on the requirements.

Advantages of laminated glass,Cyclone resistant, superior UV blockage,excellent sound damping properties,and low Visible distortion.













SPECIFICATIONS-LAMINATED SAFETY GLASS





Laminated Safety Glass	Clear laminated laminated glass;color tempered laminated glass ;reflective Tempered laminated glass ;Tempered laminated patterned glass ;Tempered laminated glass mirror;
Glass thickness	2+0 .38PVB+2mm 3+0 .38PVB+3mm 4+0 .38PVB+4mm  5+0 .38PVB+5mm 6+0.76PVB+6mm 8+1 .52PVB+8mm 10+1 .52PVB+10mm etc
PVB Film Thickness	0.38mm ;0.76mm ; 1.14mm ;  1.52mm ;1.9mm etc
PVB Colors :	Clear;milky white ;bronze;gray;red;orange ;green,etc.
REGULAR SIZE	1000*1000mm,1500*1000mm,800*1200mm, 700*1000mm and other custom sizes
Processing options	Cut to size ;Edge working ;drilling holes ;making notches;tempering.etc.
Packing:	Sea worthy  plywood end cap ,with film inter layer









Laminated Safety Glass Vs. Tempered Safety Glass

1. Laminated glass and tempered glass, both qualify as types of safety glazing.

2. If Broken, tempered glass shatters in small pieces that are less likely to cause injury or damage, the hardness is 5times than normal glass.

3.When laminated glass is damaged due to external force, the glass fragments will not be detached and maintain the integrity. It also avoid being penetrated. It can be processed into bullet-proof glass or high-strength explosion-proof glass through specific combinations.

4.For strength and breakage-resistance, temper glasses often is the first consideration. For flexibility, UV-resistance, security and sound considerations, laminated glass is often the product of choice.

5.For Decoration effect,both Tempered and Laminated glass can be made colorful.

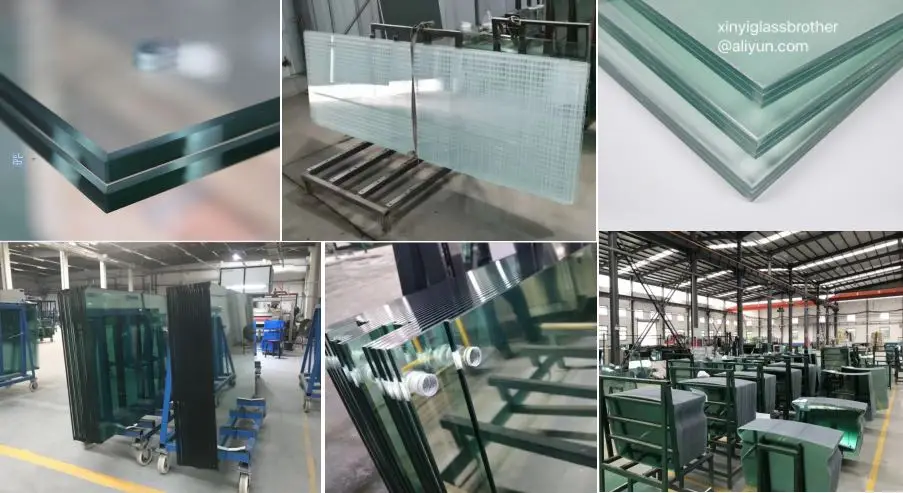

6. Usually, the laminated and tempered glass can be combined as tempered laminated glass,which is very safety for architectural use/

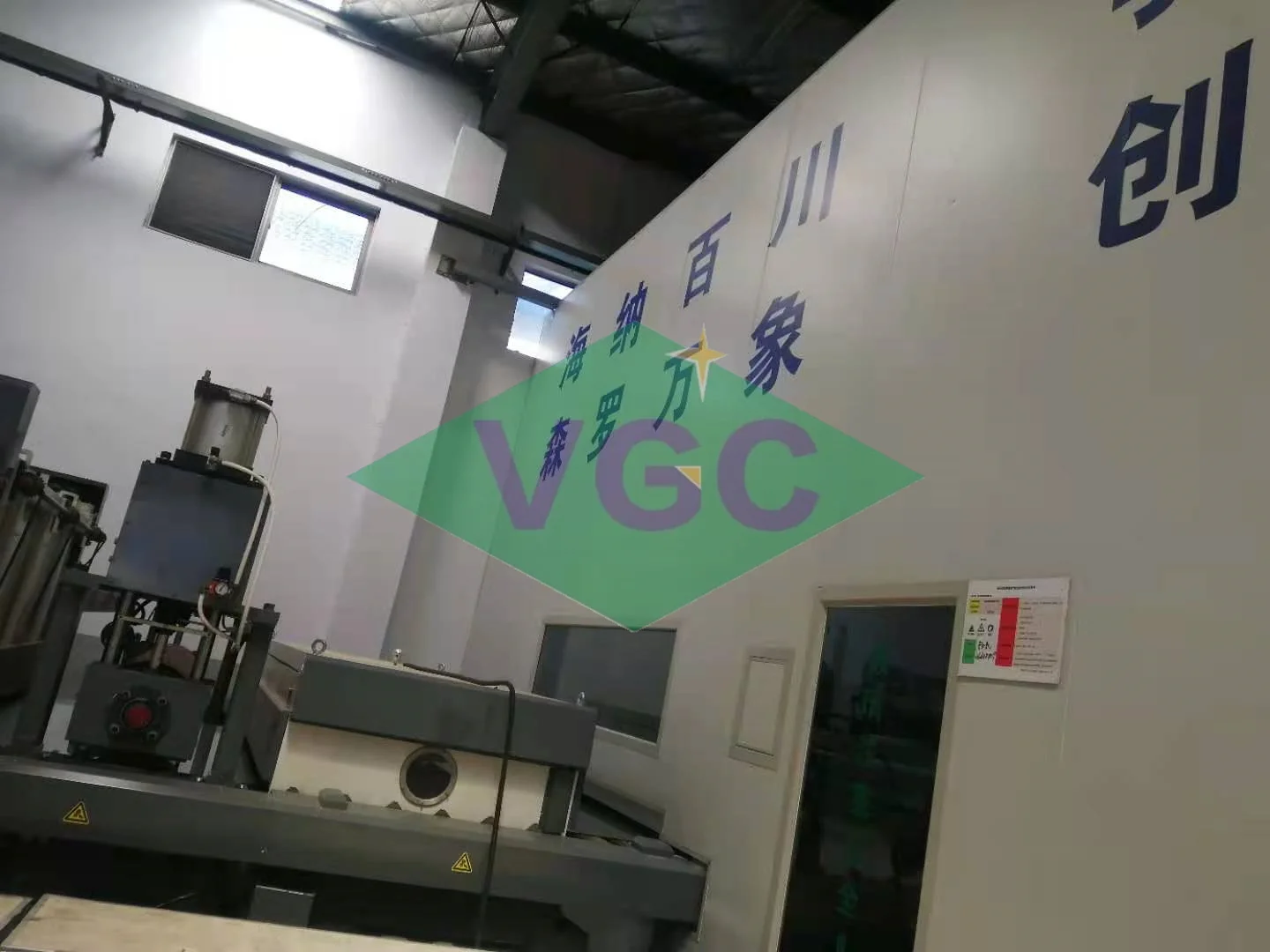

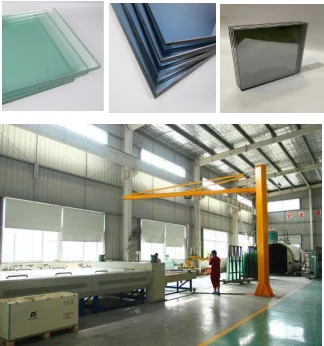

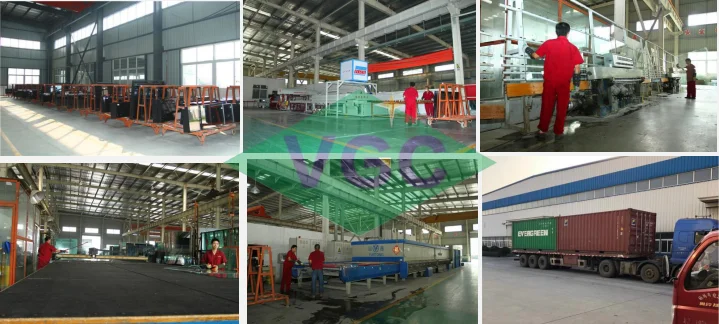

Quality-Control of China Laminated Safety Glass



1. The staff of VIRTUE GLASS are well trained, paying high attention to each procedure

each piece of products with our increasing efforts.

2. Every process in production has quality control, Accurate size and meet the glass standards, glass particle size were promise. Using professional testing tools, which were certified by certification authority. The test data of each order is recorded.

3. Incoming Quality Control---In Process Quality Control Section----Process Quality Control------Final Quality Control--Out-going Quality Control

4.our products are well feedback by domestic and overseas markets.especially in Europe , America, south America and Middle east markets.







Safety-Packing of Laminated Safety Glass

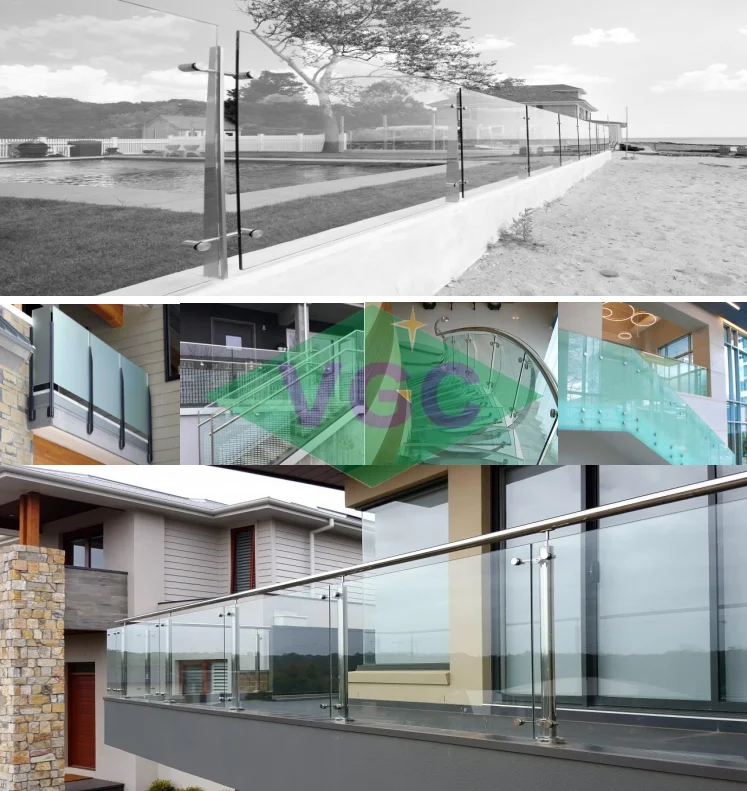

APLICATIONS - Clear Laminated Safety Glass



A. External use of glass walls ,windows ,doors ,Shop fronts .

In offices , houses and shops etc .

B. Interior glass screens , partitions ,glass railings , glass fences and glass balustrade etc .Showcases ,display shelves ,shop display windows .

Furniture ,table tops ,glass covers ,etc .
