Wholesale AISI 52100 G10 G16 G25 G40 G60 G100 22mm chrome steel balls for bearing

Product Overview

Description





Feature



Low alloy hardened chromium steel balls, they show excellent hardness, wear resistance, very good surface finishing and dimensional stability.







Specification



Material	52100
Size	0.35mm - 200mm
Hardness	60HRC - 66HRC
Grade	G10 G16 G20 G25 G40 G60 G100 G200 G500 G1000



USA	JAP	UK	CHN	RUS	GER
52100	SUJ2	534A99	GCr15	9Ch1	1.3505



Grade	Vdws(≤)	Sph(≤)	Ra(≤)	Vdwl(≤)	Tdn(≤)
10	0.25um	0.25um	0.025um	0.5um	-
16	0.4um	0.4um	0.032um	0.8um	-
20	0.5um	0.5um	0.04um	1um	-
28	0.7um	0.7um	0.05um	1.4um	-
40	1.0um	1.0um	0.08um	2um	-
60	1.5um	1.5um	0.10um	3um	-
100	2.5um	2.5um	0.125um	5um	±12.5um
200	5um	5um	0.2um	10um	±25um
500	13um	13um	-	25um	±50um
1000	13um	25um	-	50um	±125um





Application



Special bearings and pumps, aerosol pumps, gardening and household sprayers, pre compressed perfumery pumps, seams, medical application valves, agricultural backpack sprayers, recirculating balls. They are used in foodstuff, chemical, naval, aerospace and military industry.







characteristic

Low alloy martensitic chrome steel, AISI 52100 thanks to its high hardness, wear resistance, surface finishing and dimensional precision, it is widely used to manufacture mechanical components.

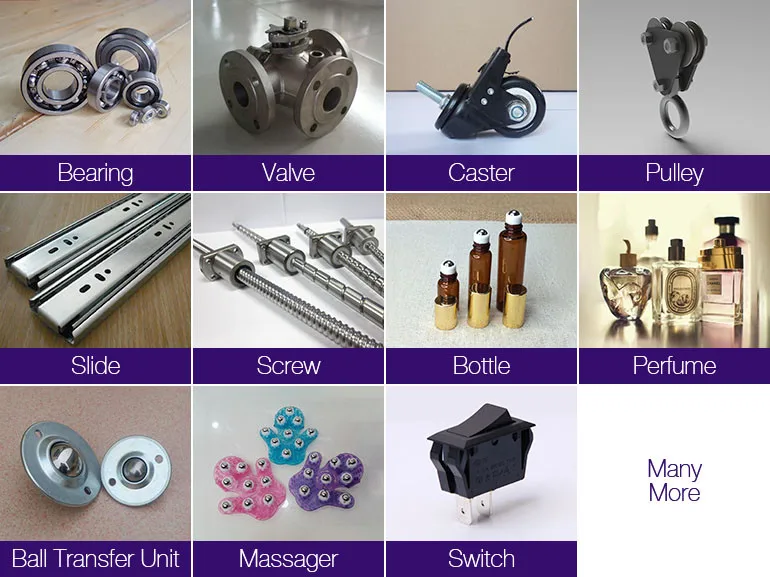

Applications
Precision bearings, automotive components (brakes, steering, line shaft), bicycle, agitators, appliances, sliders, quick couplings, machine tool, lock mechanisms, conveyor belts, skates, pens, pumps, castors, measurement instruments, valves.



Certification







Packaging & Loading









Market & Customer

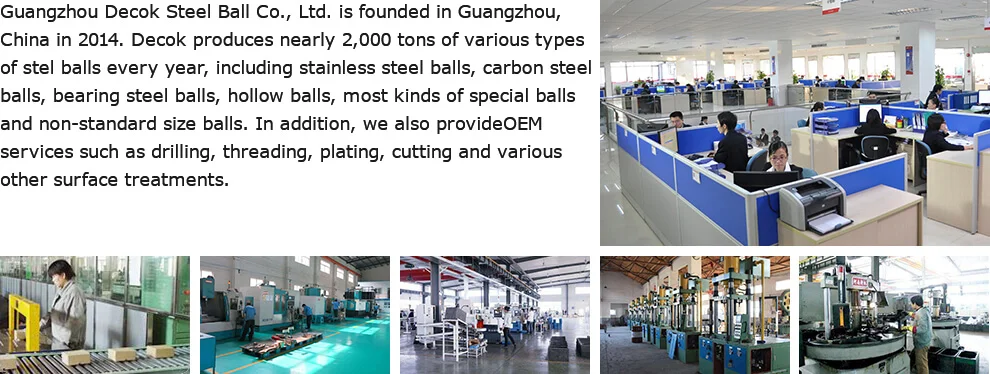

About Us
