China Manufacture Double Beaming Machine Sectional Fiberglass Warping Machine With Creels

Product Overview

Description

Fiberglass wire mesh machine warping machinery for window screen

specification:

Model	Speed	Length of beam	Power	Weight	Dimension
ZJ-400	60-90RPM	1370mm	3kw	750kg	1700x2500x1100mm
ZJ-800	60—90RPM	2920mm	4kw	1000kg	1900x4500x1100mm

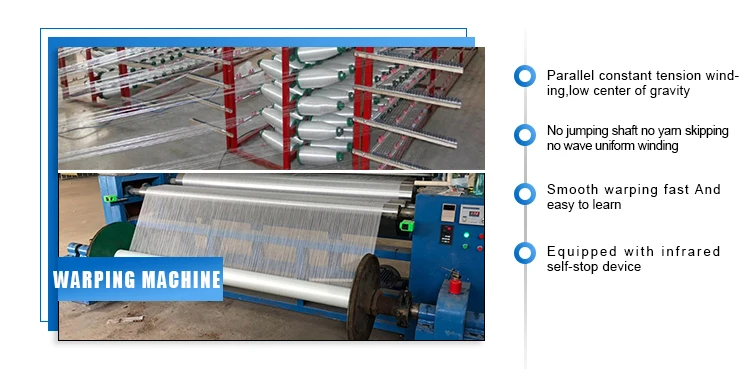

warping machine

The warping machine include the yarn shelf and main machine,which sorts the yarn to the beam for the weaving mesh.The equipment is controlled by two stages of transmission and tension. The speed is closed and the speed is controlled by constant speed. The two rolls are used to press the shaft surface synchronously, so that the surface of the disc is smoother, tighter, the tension of the single yarn is more uniform, and none yarn broken and loosened during weaving. Infrared ray control,when yarn is broken,the machine will stop automatically.Fiberglass warping machine can assure the tension identical between the beams with the help of automatic tension-control system.Using the wide breadth-warping machine, you can use the tube that can be over the 10000m and have lower end breakage rate.Improve the quality and work efficiency.

If you make the fabric with thin warping yarn, this type of warping machine is you best choose, the speed is faster, the price is lower.
