ADV 508 series metalworking sheet metal plate deburring machine for time-saving
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Anhui,Advanced,Grinding,Tools,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
In any cutting, drilling, laser, mill, and other machining processes, burrs, hot slag, and scum will be produced at the edge of the workpiece, so it is particularly important to choose the correct deburring machine.

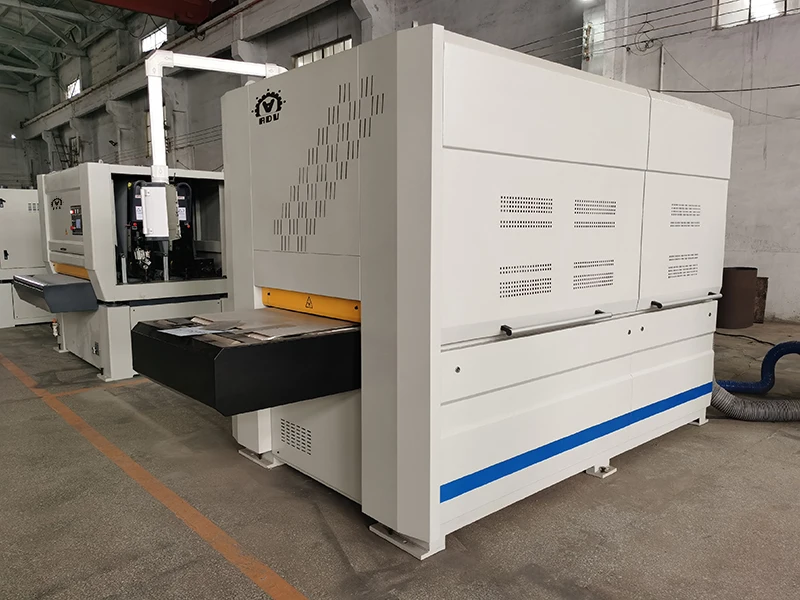

ADV-508RW Deburring machine with working width 1400mm(Abrasive belt+Rotary brush)The standard available width is 650mm,800mm, 1100mm, 1400mm, or customized.
Automatic feeding guide and machine frame：
Details Images

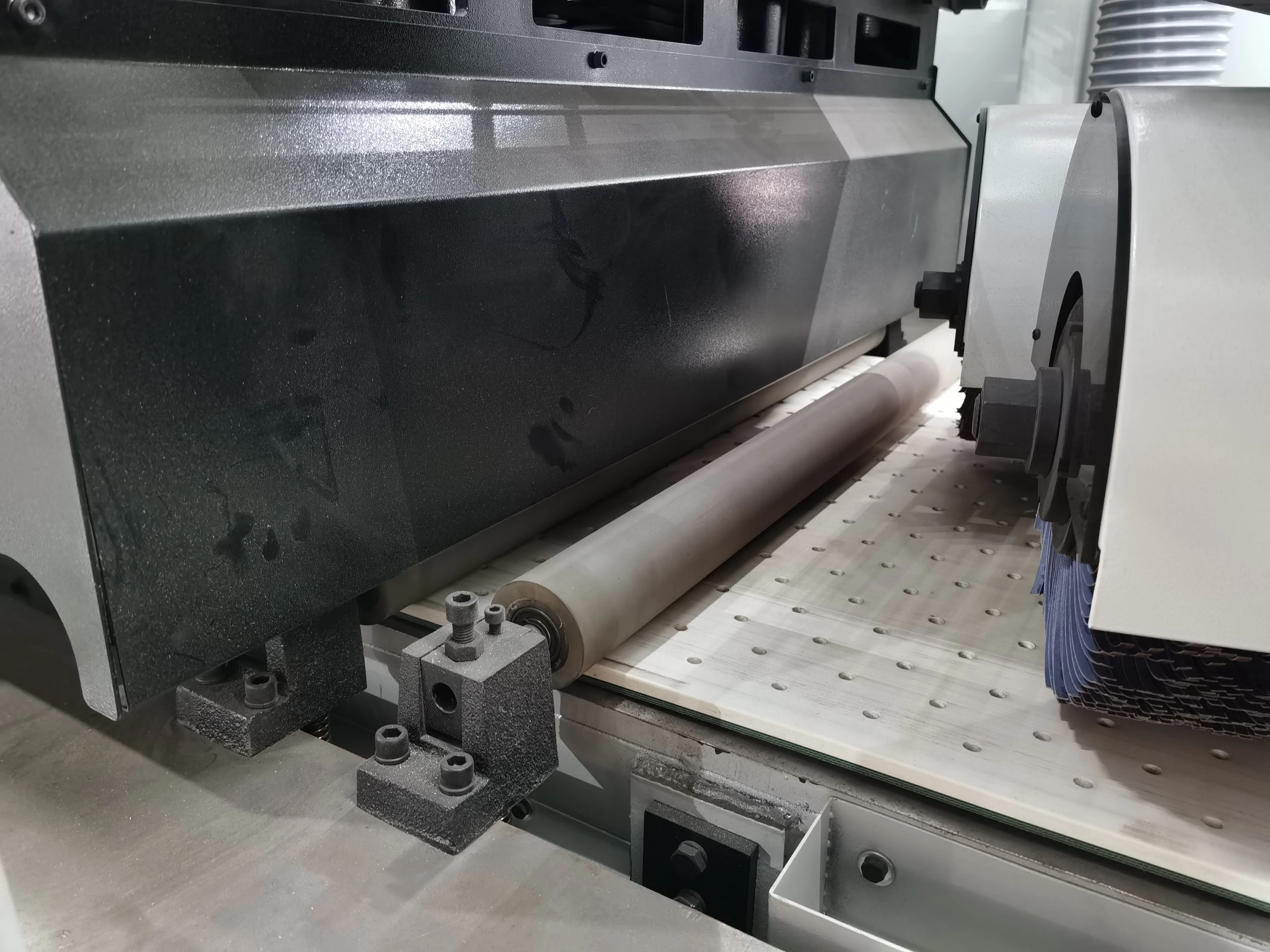

Two kinds of rotating brushes with different materials:(Number of abrasive belts optional)
Functions and advantages of deburring machine：
2.Special customized type tensioning cylinder with a large bore and high stability;
3.Independent bearing hanging plate, easy to adjust;
4.Automatic thickness measurement function, automatically locate the thickness of the plate;
5.Damping belt deviation knob, adjust the deviation of the belt, the operation is simple and convenient.
6.The deburring machine can be used in the wet process or dry process.
3.Independent bearing hanging plate, easy to adjust;
4.Automatic thickness measurement function, automatically locate the thickness of the plate;
5.Damping belt deviation knob, adjust the deviation of the belt, the operation is simple and convenient.
6.The deburring machine can be used in the wet process or dry process.
7.Convenient operation, touch screen operation panel, LED light source inside the equipment, easy to observe the processing status of the workpiece.
8. The automatic deburring machine has different combinations of grinding heads, which are for different requirements of workpieces.For laser cutting stamping parts，it can do deoxidizing, grinding, deburring, polishing and edge rounding.

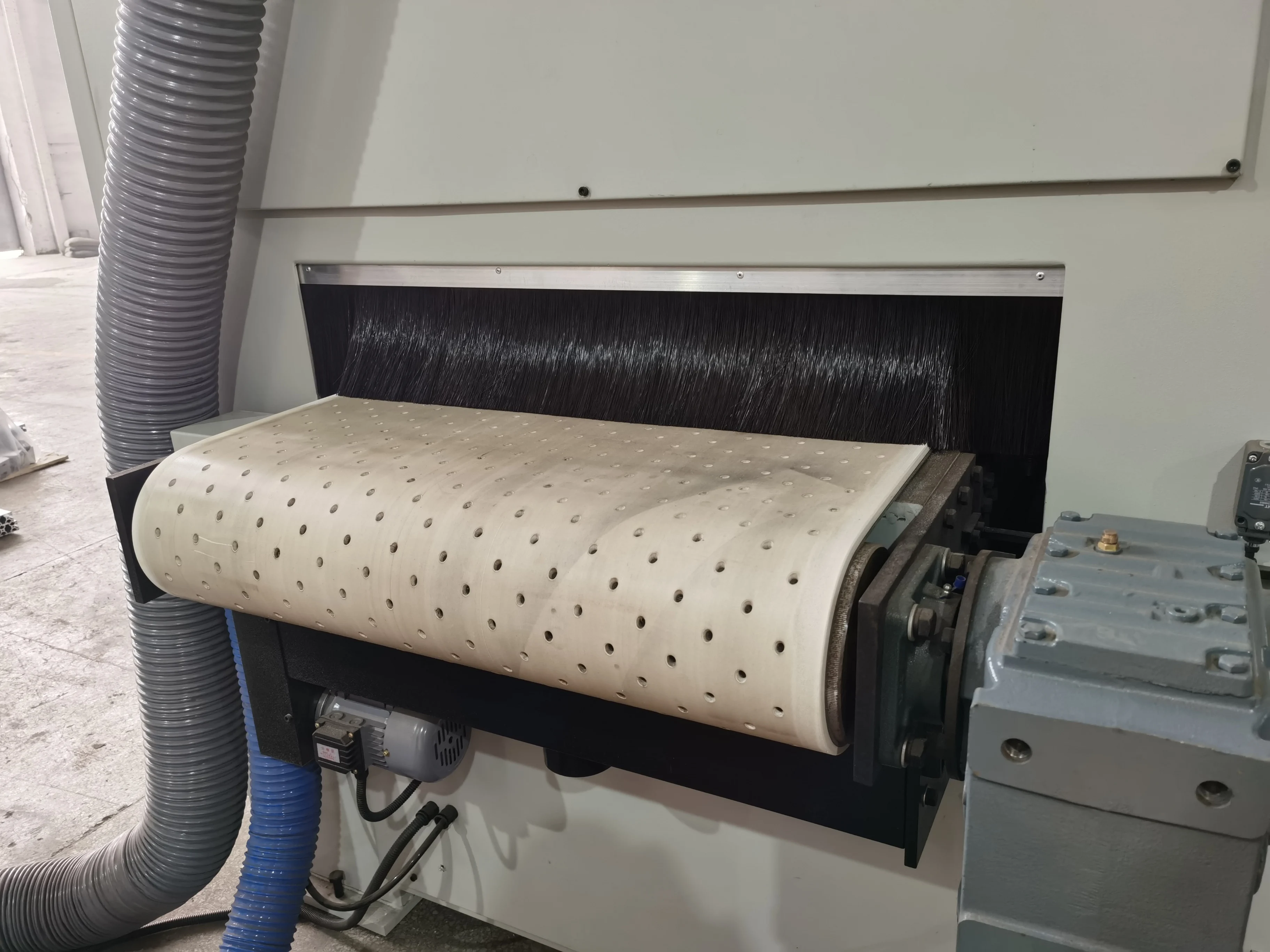

Vacuum adsorption belt and ordinary conveyor belt are optional
Before deburring and after：
PRODUCT CONFIGURATION：
Siemens or ABB high power engine
Delta PLC touch screen
NSK bearings
Specification
Spindle Speed | 2800r/min |
Feed Speed | 0.5-5m/min frequency speed |
Machine Size | 2150*2250*2400mm |
Available Width | 30-1400mm |
Available Thickness | 0.5-100mm |
Belt Size | 2200*1420 mm |
No.1 Motor Power | 22 kw(abrasive belt) |
No.2 Motor Power | 15 kw( sets of 6 rotary brushes) |
Delivery Motor Power | 4 kw |
Lift Motor Power | 0.55 kw |
Water pump power | 0.75kw(for coolant filter system,optional part) |
Warranty | 2years |
For more parameter information, please click here
Different combinations of deburring machines
