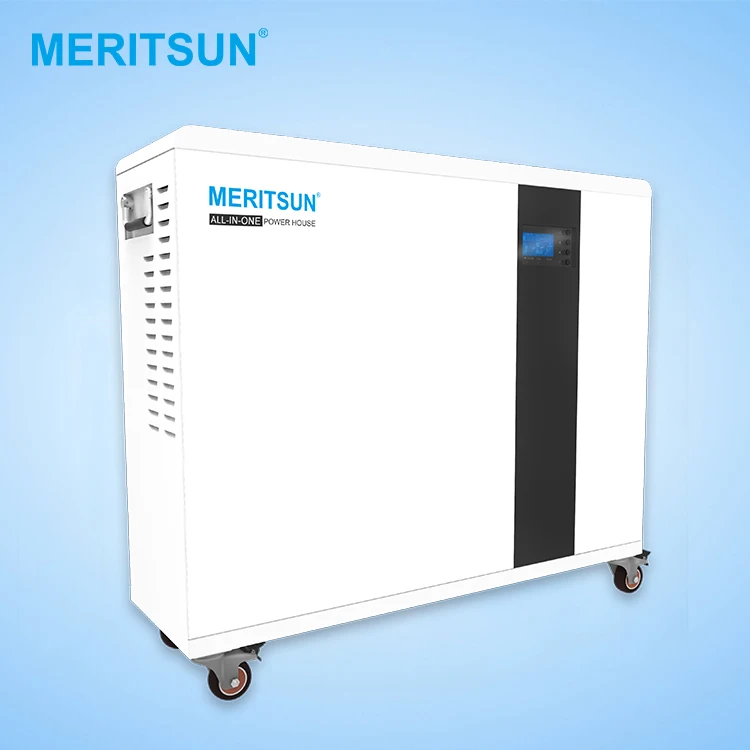

MeritSun Energy System All In One 51.2V 100Ah Solar Battery Pack Portable Power Station
- Category: >>>
- Supplier: Guangdong JYC Battery Manufacturer Co. Ltd.
Share on (1600428101502):
Product Overview
Description
5000Wh 48v solar system battery 3200W industrial solar battery for solar system Rechargeable battery for TV
Feature
1.Built in Inverter and Smart BMS.Save installation time and labor.2.WiFi App Management Optional.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.

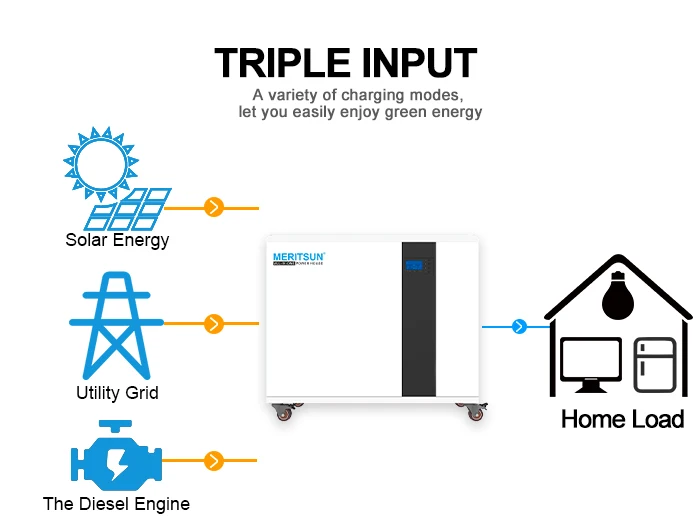

5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.
5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.
Battery Pack | Nominal Voltage | 48V | |
Nominal Capacity | 100Ah | ||
Nominal Energy | 4800Wh | ||
Cycle Life | ≥6000 cycle life | ||
Weight | 60kg | ||
Dimensions | 450*350*805 mm | ||
Operation Temperature Range | Charge: 0~45℃ | ||
Discharge: -20~55℃ | |||
Internal Impedance | ≤50mΩ | ||
Inverter | Rated Powe | 5000VA/4000W | |
Input | |||
Voltage | 230 VAC | ||
Selectable voltage range | 70-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | ||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||
Output | |||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | ||
Surge Power | 10000VA | ||
10000VA | 93% | ||
Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) | ||
Waveform | Pure sine wave | ||
Battery &AC Charge | |||
Battery Voltage | 48 VDC | ||
Floating Charge Voltage | 54 VDC | ||
Overcharge Protection | 60 VDC | ||
Maximum Charge Current | 10A/20A/30A/40A/50A/60A | ||
Solar Charge | |||
Maximum PV Array Power | 3000W/4000W | ||
MPPT Range@ Operating Voltage | MPPT Range@ Operating Voltage | ||
Maximum Charging Current | 60A/80A | ||
Maximum Efficiency | 98% | ||
Standby Power Consumption | Standby Power Consumption | ||
For More Information On The Product, Please Contact Us Now!
(click on the online customer service on the right).
