Product Overview
Description

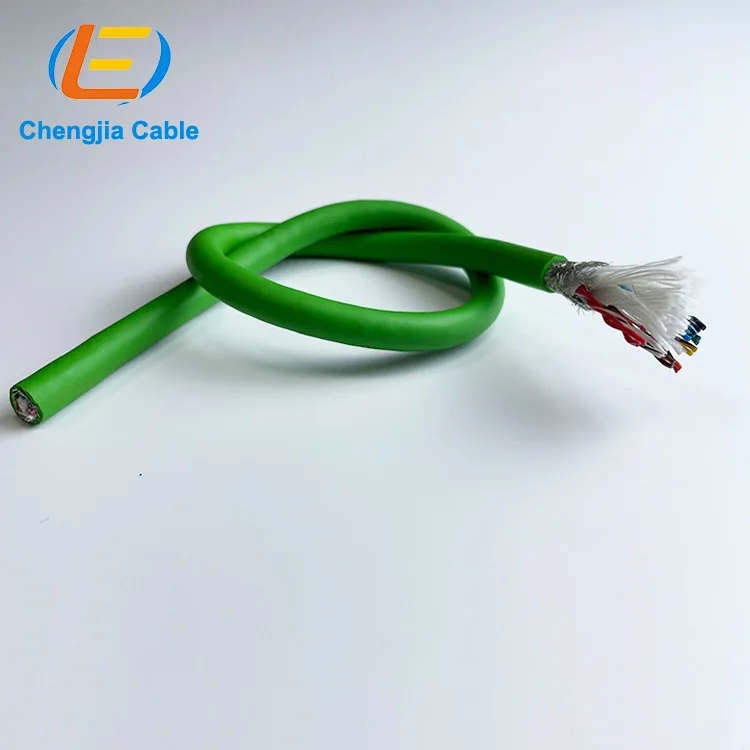

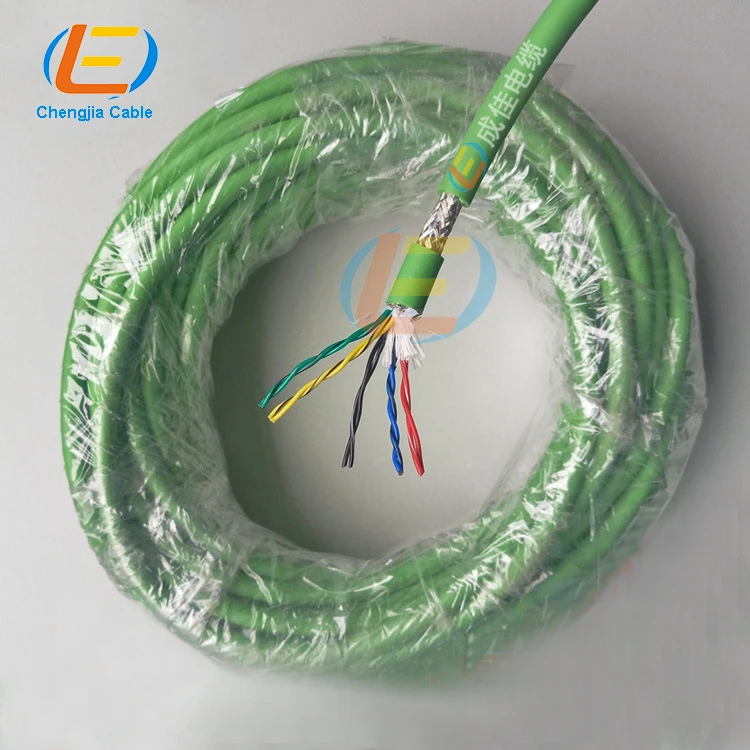

TRVSP 0.3mm2 High Flexible Cable 8 Core Computer Cable 8x2x0.3 Flexible Shielded Cable Twisted Pair Shielded Signal Cable
Products Description
Data drag chain cables are mainly used for the non-interference transmission of analog and digital signals, and are widely used in drag chain systems, sensing technology, computer and instrument control equipment and control engineering; three-core and more than three-core green/yellow protective grounding conductors, The core wire is twisted into a cable with a short twisting pitch, and the overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference. The outer sheath color is: gray; green or other colors can be customized according to needs
Product Feature
Technical Parameter
Standard | Comply with UL20276 standard, thin wire diameter design | ||||||
Conductor | adopts high-quality tinned copper stranded copper wire | ||||||
Insulation material | Modified PVC | ||||||
Core structure | Small pitch single stranding | ||||||
Core recognition | Below 0.5m㎡ is marked with colored core wires; 0.5m㎡ above, a yellow-green ground wire + black core wire with white numbers | ||||||
Outer sheath | Modified PVC mate | ||||||
Color | black (other colors can be customized) | ||||||
Bending radius | Move in is more than 7.5 x d, Fixed laying is more than 6 x d, | ||||||
Nominal voltage | Uo/U 300/300 V | ||||||
Test voltage | 1500 V | ||||||
Application: | Widely used in machinery, instruments, industrial electronic equipment computers, information transmission systems, suitable for any two-way communication occasions | ||||||

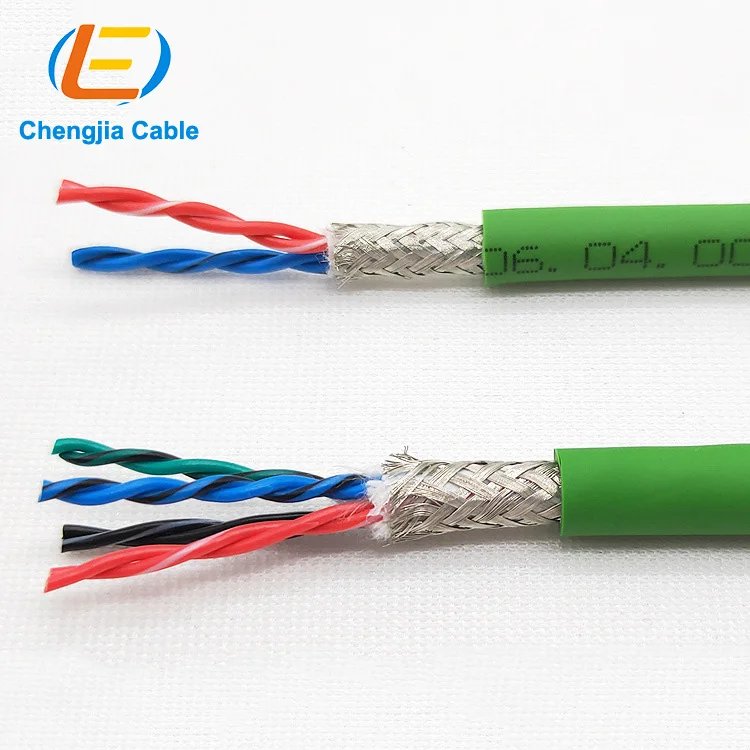

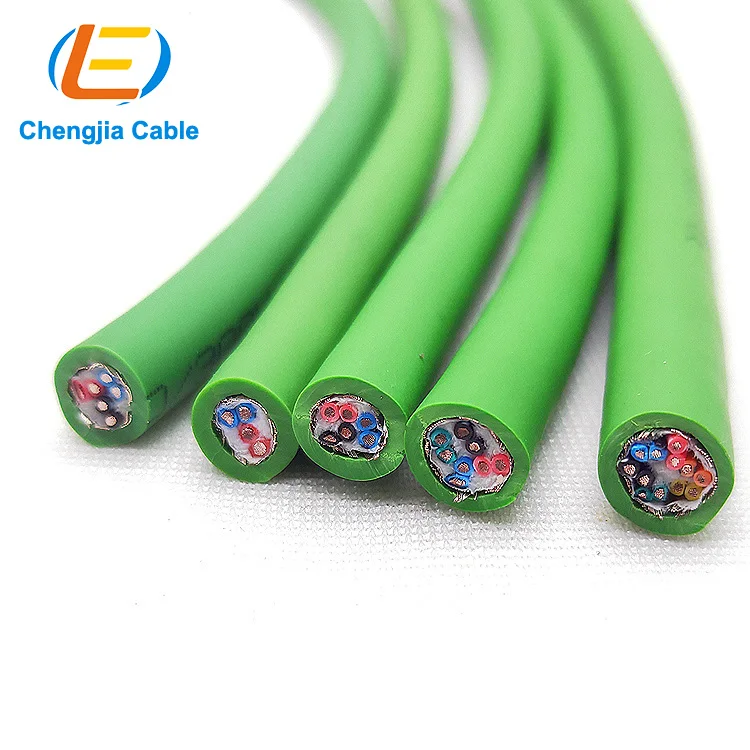

Cable Structure

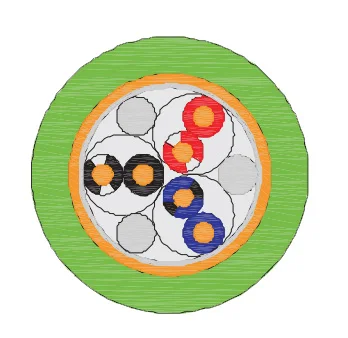

Control Cable Structure
1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor
Ultra-fine copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification (less than 0.5mm2)
4. Black core wire with continuous white digital code (0.5mm2 and above)
5. The wire core is stranded in layers with the best pitch
6. Improved tinned copper wire braided shield
7. Minimum coverage 85%
8. Special PVC outer sheath
9. Green (RAL 6018) matte
Ultra-fine copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification (less than 0.5mm2)
4. Black core wire with continuous white digital code (0.5mm2 and above)
5. The wire core is stranded in layers with the best pitch
6. Improved tinned copper wire braided shield
7. Minimum coverage 85%
8. Special PVC outer sheath
9. Green (RAL 6018) matte
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | 20℃ Conductor DC resistance Ω/km | |||||
1 | YY1006.04.0020 | 2x2x0.2 | 6.0 | Green | 95 | |||||
2 | YY1006.06.0020 | 3x2x0.2 | 6.4 | Green | 95 | |||||
3 | YY1006.08.0020 | 4x2x0.2 | 7.0 | Green | 95 | |||||
4 | YY1006.10.0020 | 5x2x0.2 | 7.5 | Green | 95 | |||||
5 | YY1006.12.0020 | 6x2x0.2 | 8.2 | Green | 95 | |||||
6 | YY1006.14.0020 | 7x2x0.2 | 8.5 | Green | 95 | |||||
7 | YY1006.04.0030 | 2x2x0.3 | 6.2 | Green | 71.2 | |||||
8 | YY1006.06.0030 | 3x2x0.3 | 6.6 | Green | 71.2 | |||||
9 | YY1006.08.0030 | 4x2x0.3 | 7.3 | Green | 71.2 | |||||
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters | ||||||||||
Company Profile

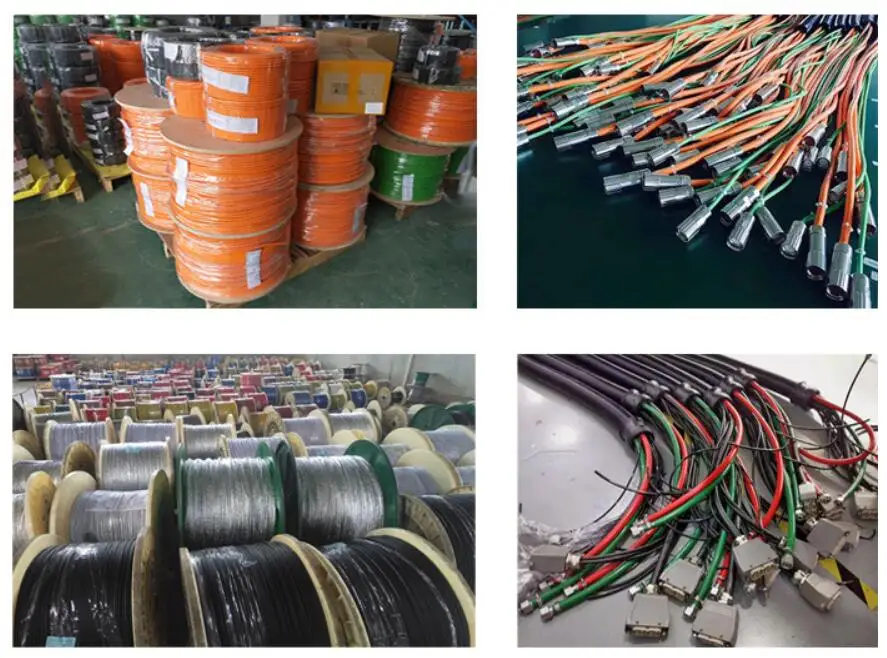

Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
