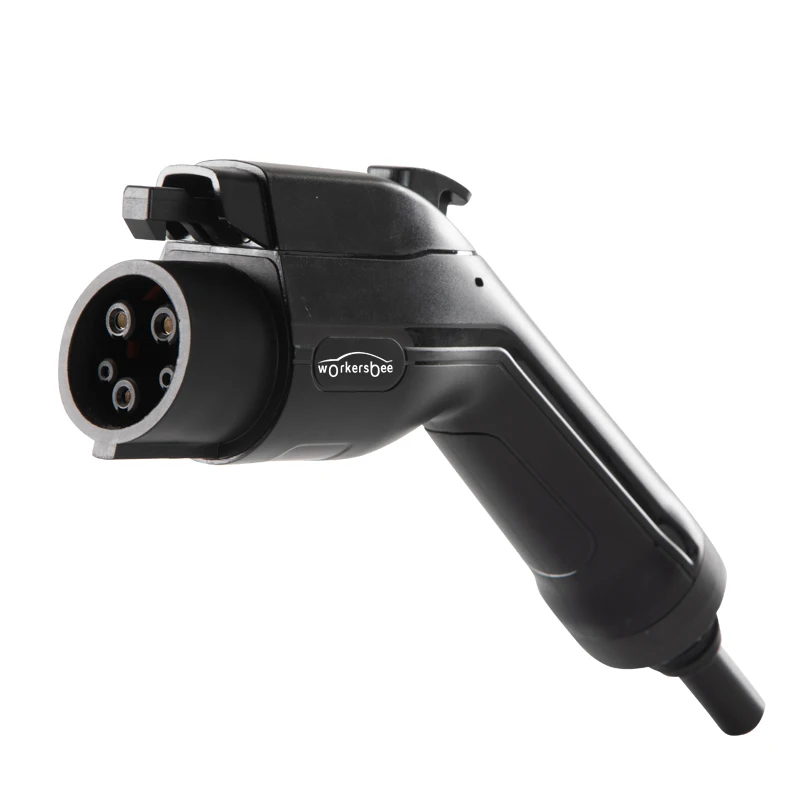

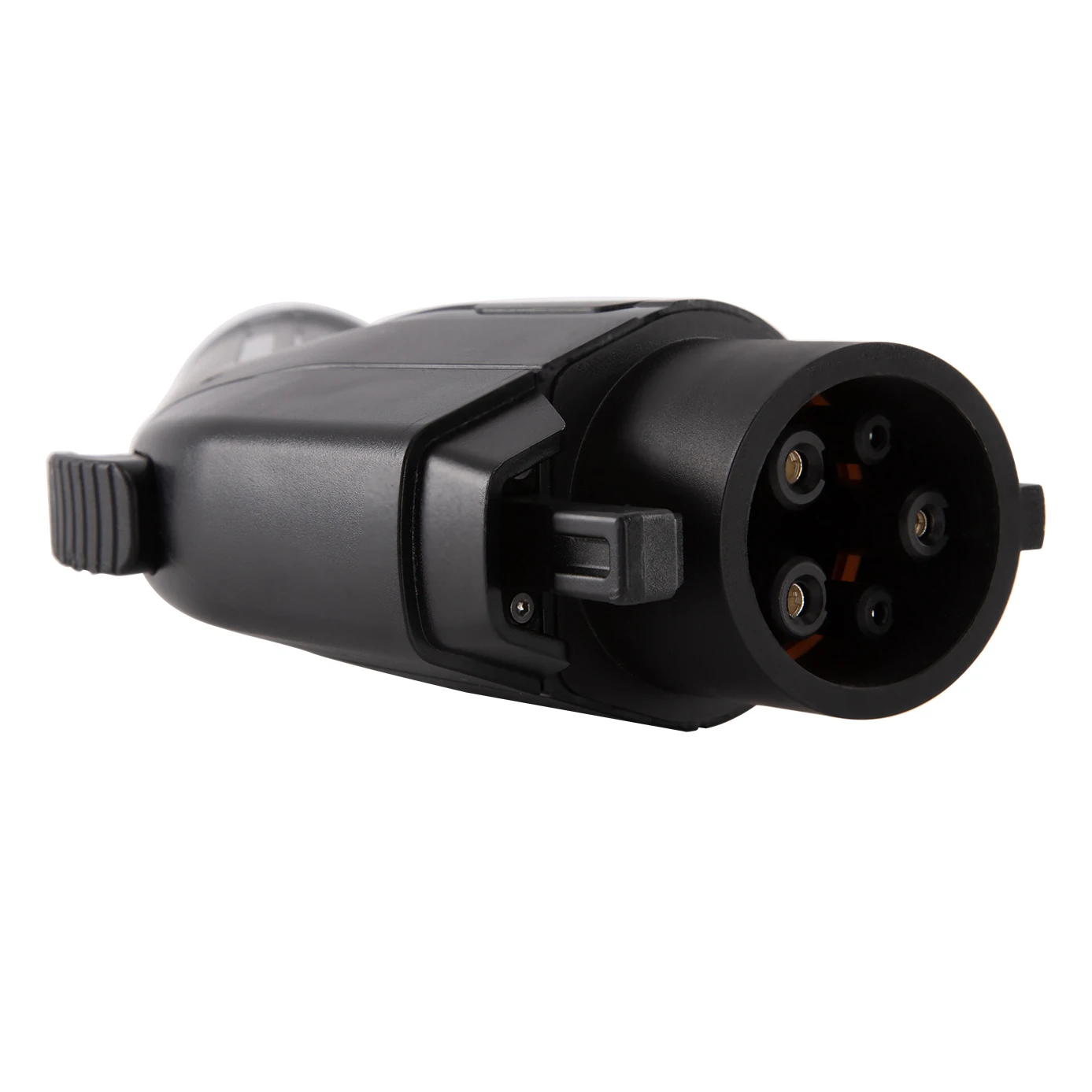

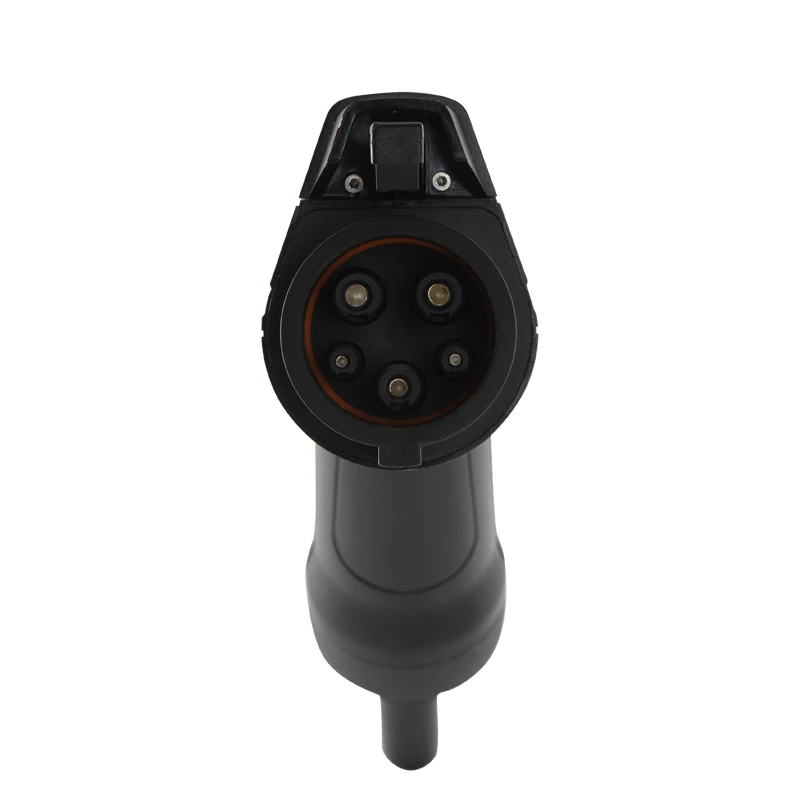

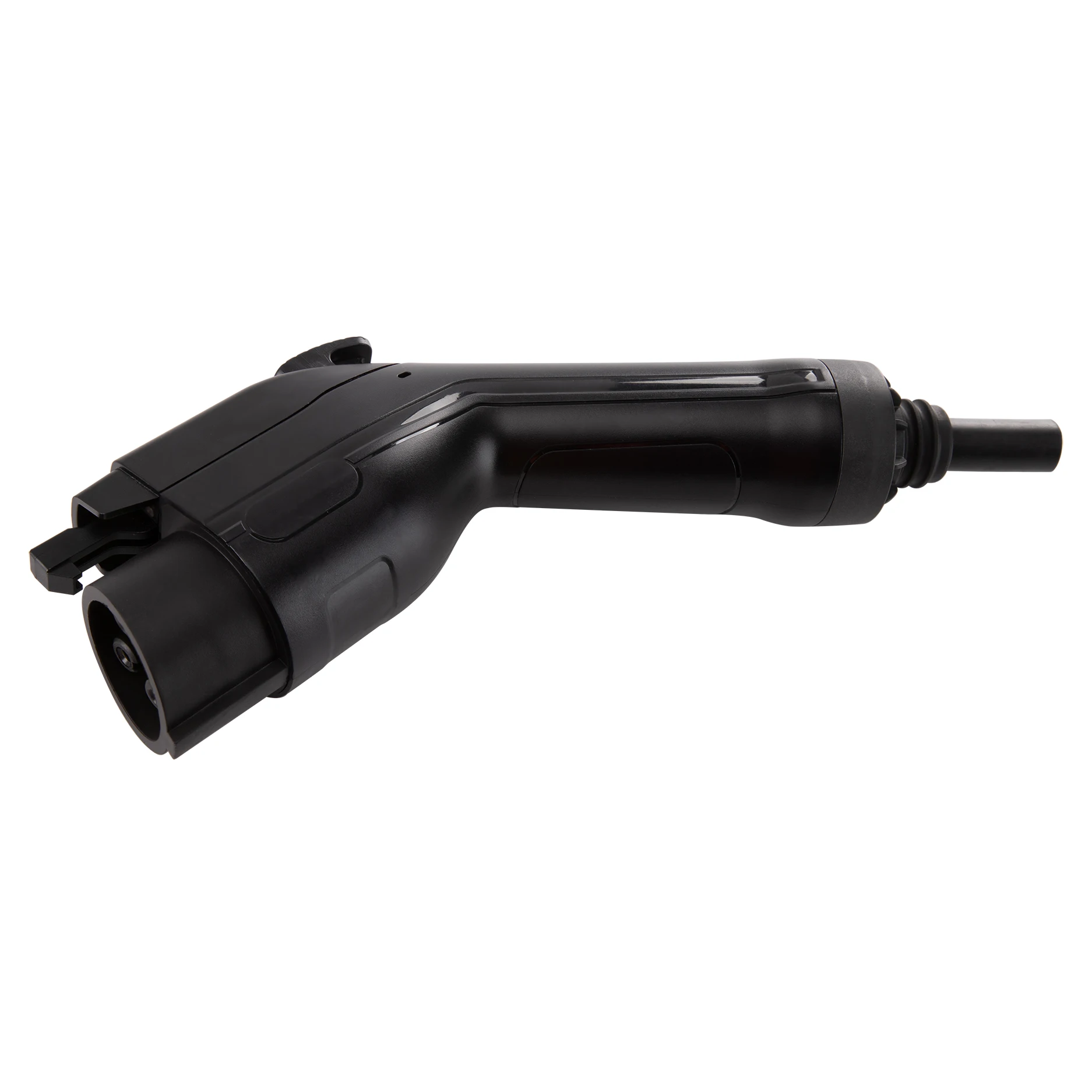

32A SAE J1772 electric car charger connector Workersbee type 1 ev connector
- Category: >>>
- Supplier: Suzhou Yihang Electronic Science And Technology Co. Ltd.
Share on (1600428113593):
Product Overview
Description
Product Description
Electrical Performance
Rated current: 16A/32A
Operation voltage: 240V
Insulation resistance: > 1000M Ω (DC500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Mechanical Properties
Mechanical life:No-load plug in /out >10000 times
Coupled insertion force: 45N<100n
Impact of external force: Can afford 1M height drop and 2T vehicle run over pressure
Environmental Performance:

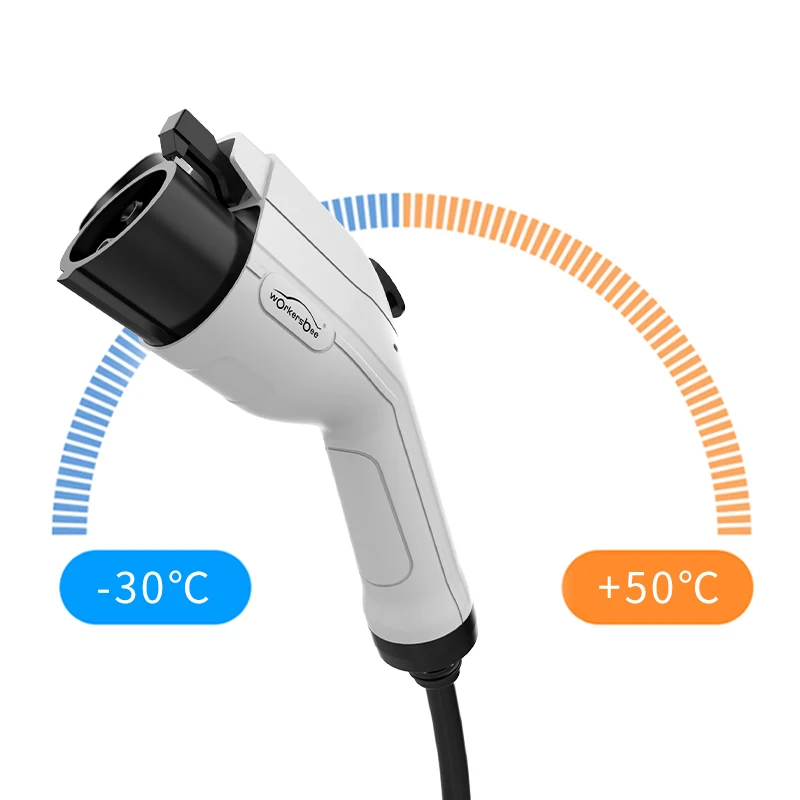

Working Temperature: -30°C ~+ 50°C
Plug Material
ABS+thermoplastic, flame retardant grade UL94 V-0
Terminal: copper alloy, silver plating
Rated current: 16A/32A
Operation voltage: 240V
Insulation resistance: > 1000M Ω (DC500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Mechanical Properties
Mechanical life:No-load plug in /out >10000 times
Coupled insertion force: 45N<100n
Impact of external force: Can afford 1M height drop and 2T vehicle run over pressure
Environmental Performance:
Working Temperature: -30°C ~+ 50°C
Plug Material
ABS+thermoplastic, flame retardant grade UL94 V-0
Terminal: copper alloy, silver plating
Specification
Product Name: | Type1 charging cable |
Application Standard: | SAE J1772 |
Certification: | CE/TUV |
Cable length: | 5 meters |

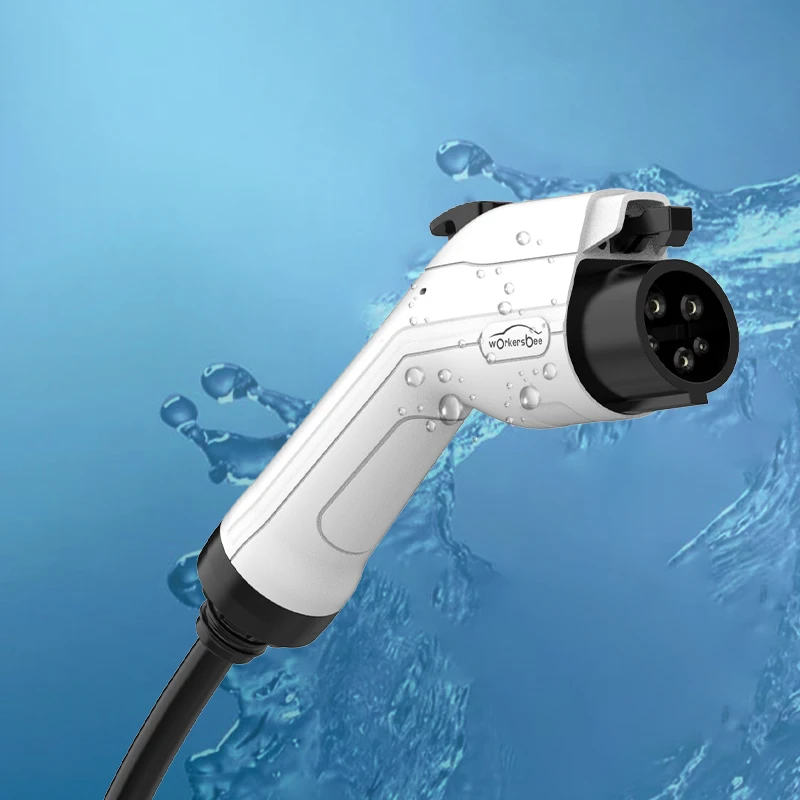

Protection Degree: | IP54 |
UV Resistant: | Yes |
Sealing gasket: | rubber or silicon rubber |
Warranty: | 12 months |
Straight cable: | TPE/TPU |
Spiral cable: | TPU |
16A single phase | 3*2.5mm2+2*0.5mm2 |
32A single phase | 3*6mm2+2*0.5mm2 |
Shell color: | black/white optional |
Cable color: | black/orange optional |

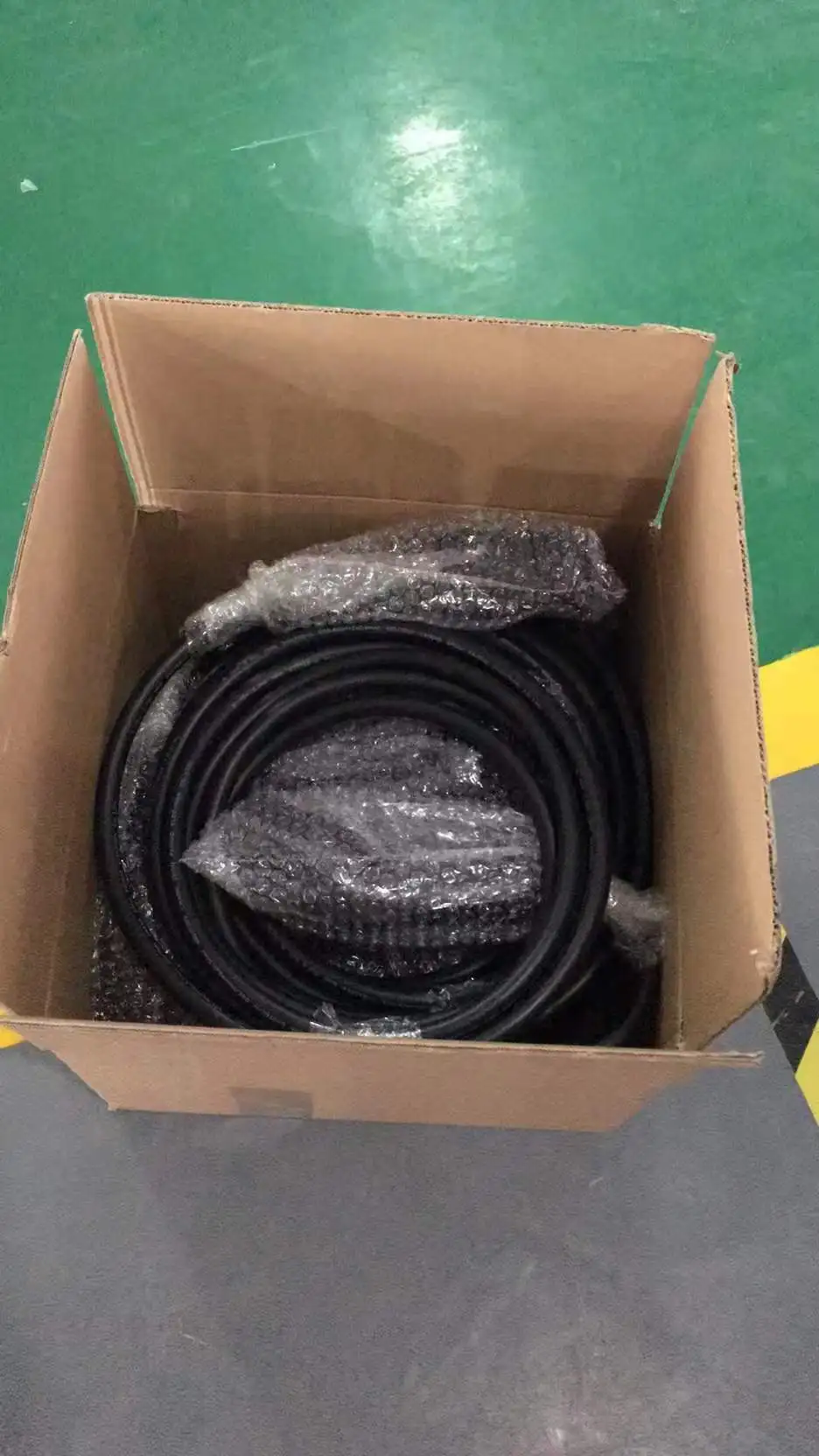

Packing & Delivery
Company Profile
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in industrial way, 5pcs per brown master carton. We also supply commercial pack, product in bag
first then in pizza box then in master carton.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: Generally, we pack our goods in industrial way, 5pcs per brown master carton. We also supply commercial pack, product in bag
first then in pizza box then in master carton.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
