Kaishan KG726 Mining Hydraulic Crawler rock quarry gold mine Blasting Hole drilling Rig
- Category: >>>
- Supplier: Zhengzhou Qugong Machinery Equipment Co. Ltd.
Share on (1600428121142):
Product Overview
Description

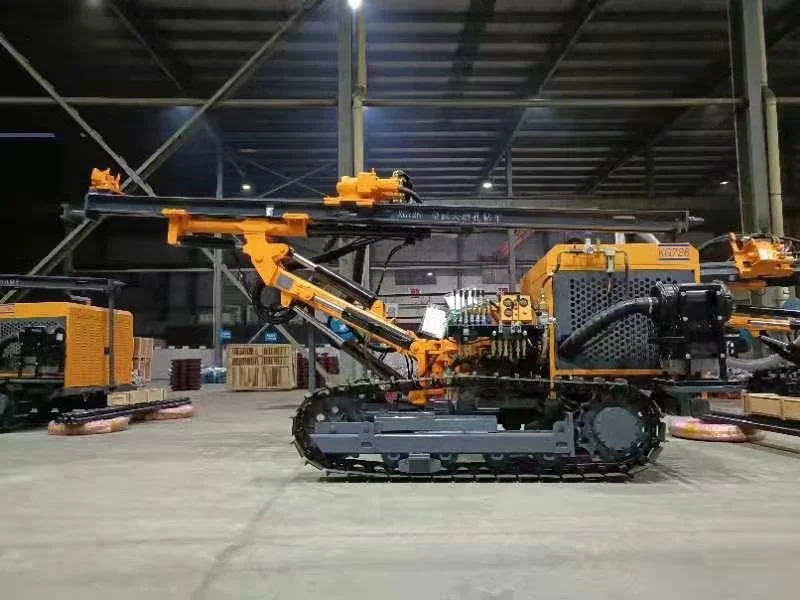

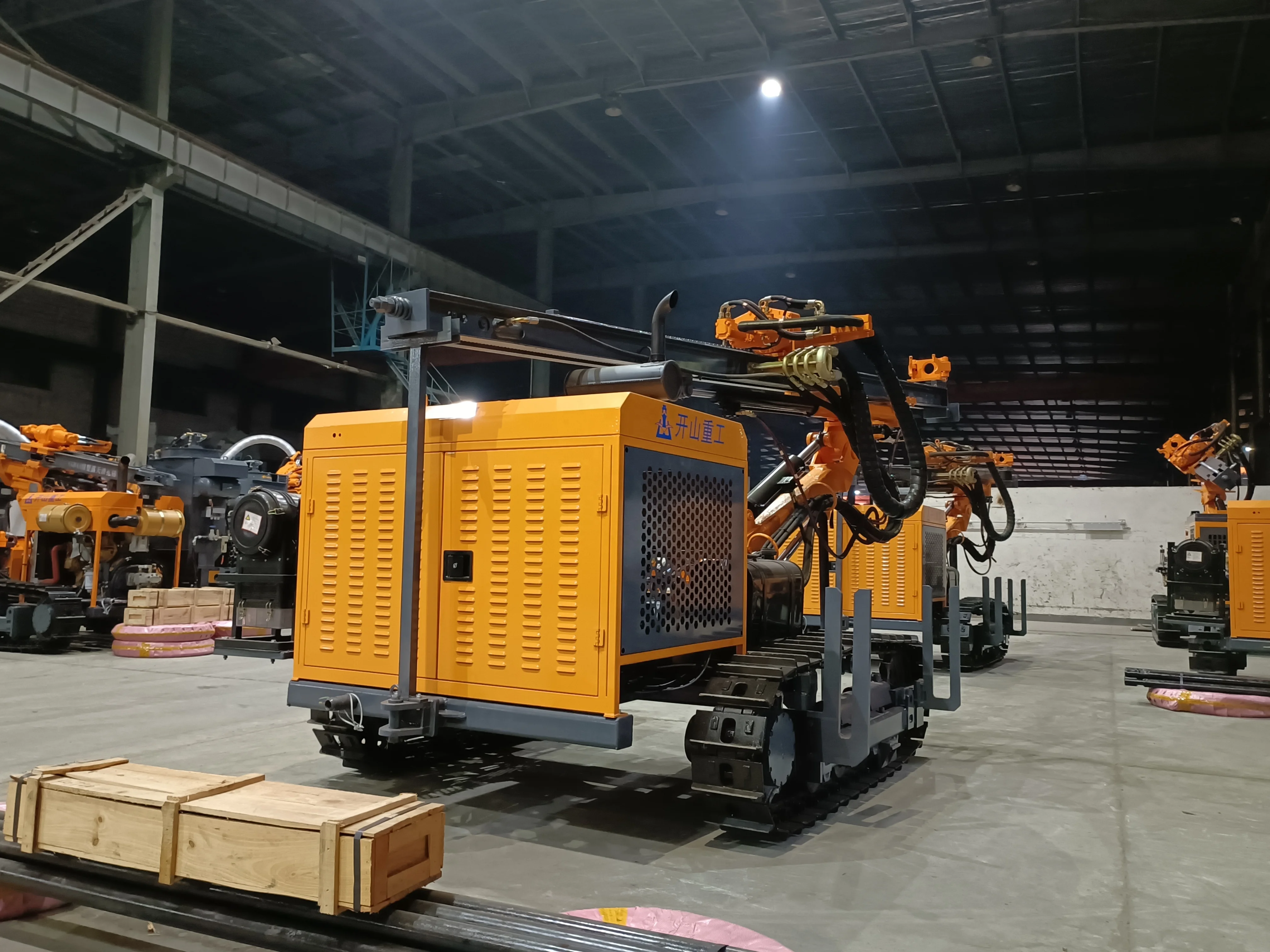

Kaishan KG726 Mining Hydraulic Crawler rock quarry gold mine Blasting Hole drilling Rig
new design

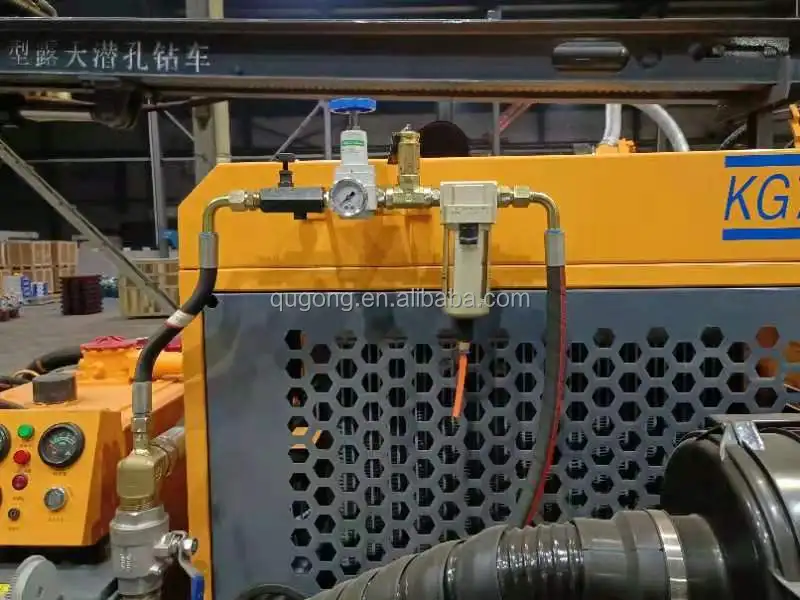

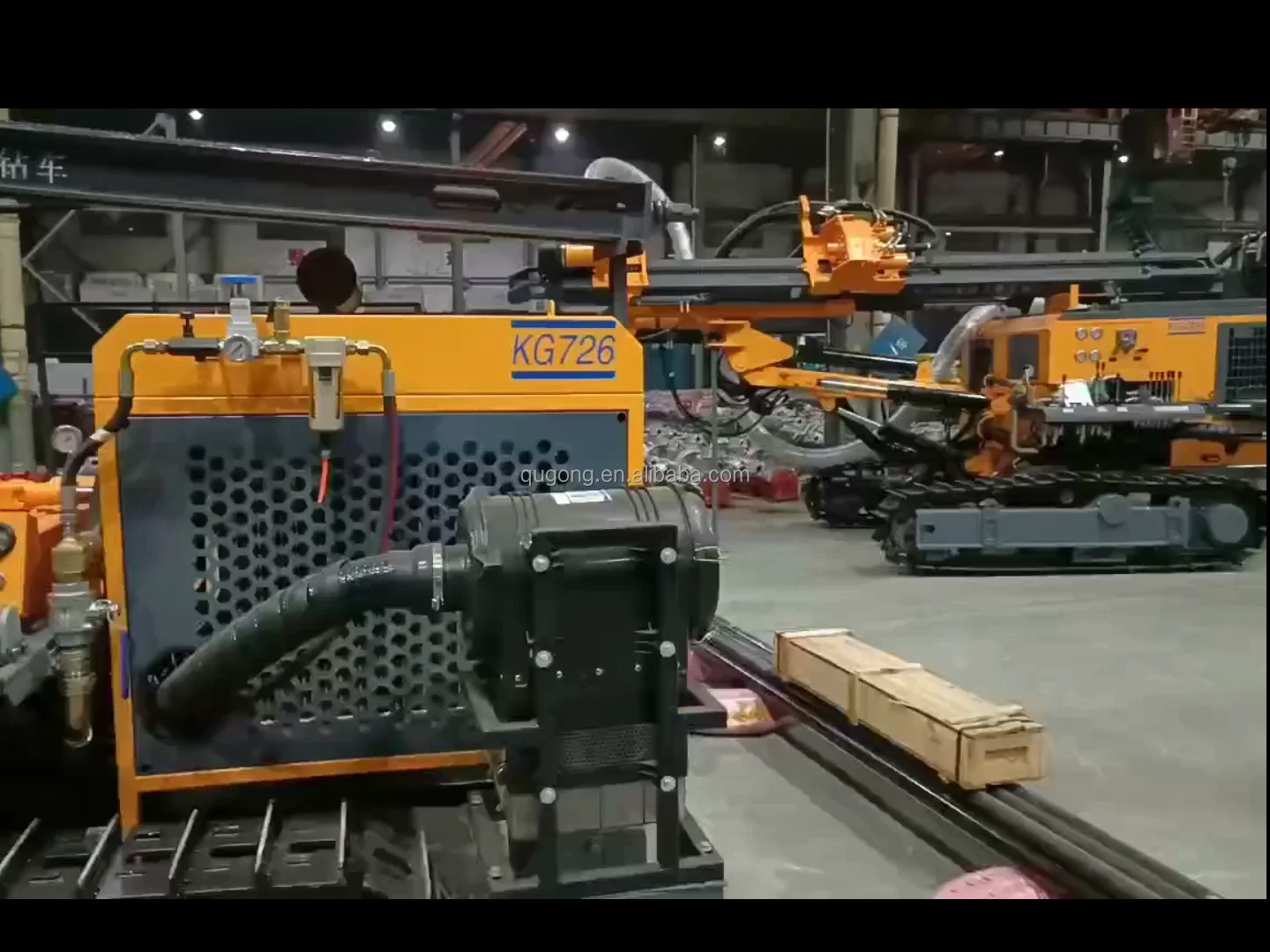

Too much dust when you drill, diesel engine easy to break down? We add one more air cleaner to protect diesel engine. Low your maintenance cost

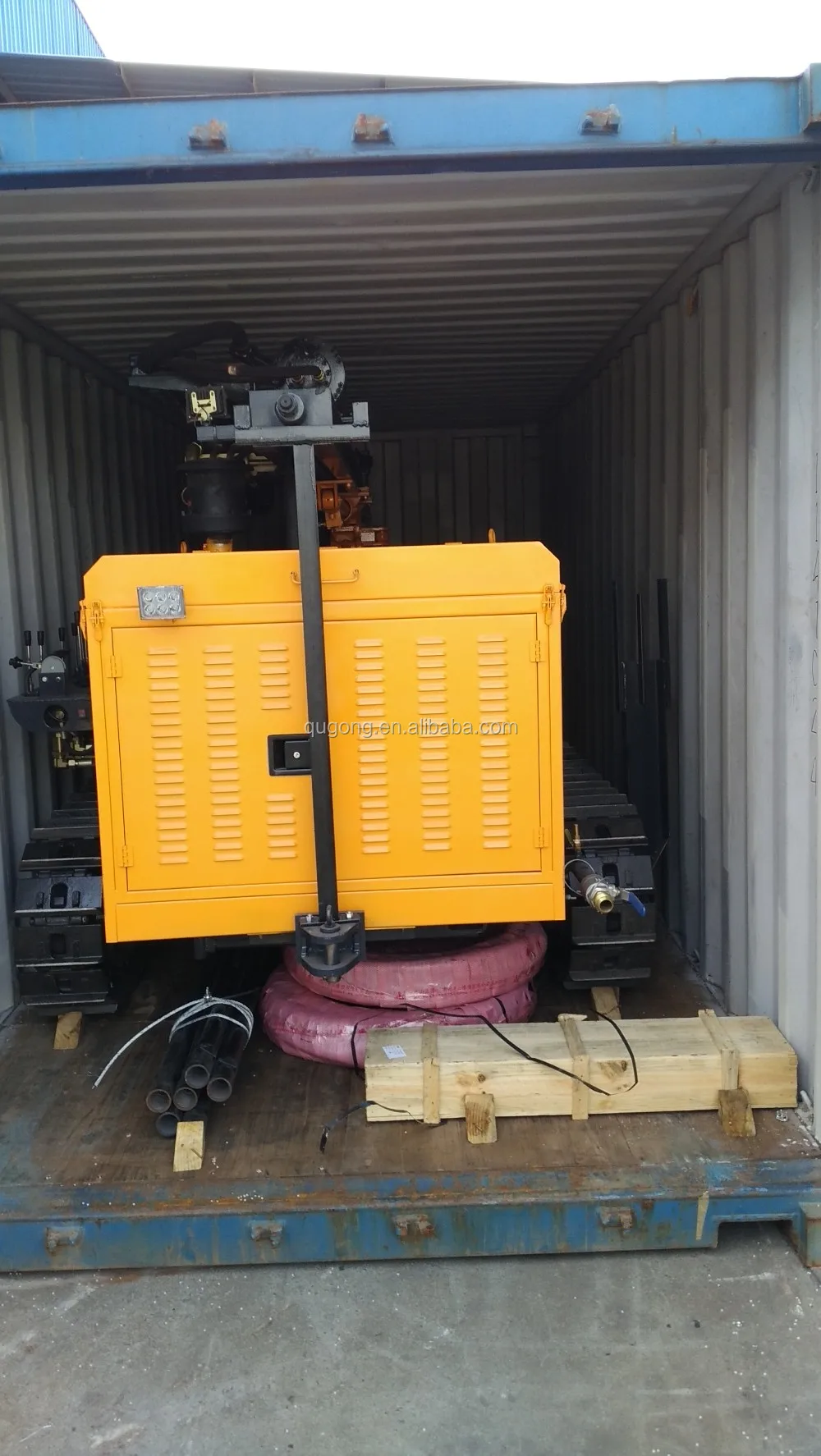

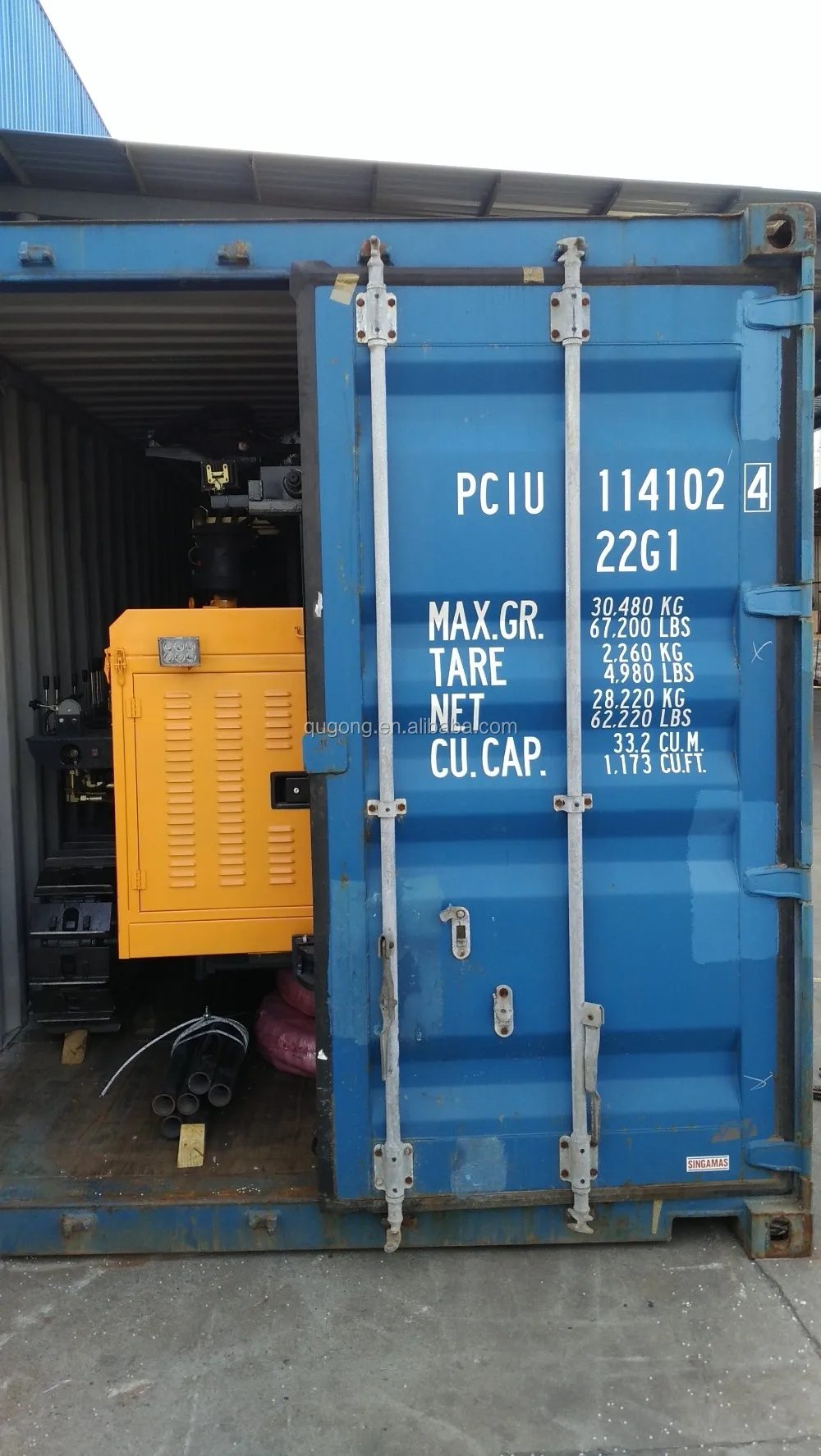

packing and shipping
1. Can drill both vertical hole and horizontal hole
2.crawler rig, easy to move
3.famous diesel engine(yuchai brand)
Usage
medium wind pressoure crawler drilling rig for blast hole drilling ;
This machine for blast hole can used for Granite,Basalt ,Marble,Quartz or other rocks and stones.
Technical parameter
Technical Details Of mine rock drill rig
Rock rigidity | F=6-20 |
Diameter of hole | Φ80-115mm |
Optium drilling depth | 25m |
Rotation speed | 107r/min |
Rotation torque | 1400N.m |
Lift power | 15 KN |
Feed way | oil cylinder-chain |
Feed distance | 3000mm |
Walk speed | 0-1.8 km/h |
gradeability | 30° |
Ground clearance | 290mm |
Weight | 4000kg |
Size of drill machine | 4400*2200*2050mm |
Sliding carriage pitch angle | Blow 135°,elevation5°, total 145° |
Sliding carriage swing angle | Left100°,right45°,total 145° |
Drill boom pitch angle | Blow 50°,elevation25°, total 75° |
Drill boom pitch swing angle | Left44°, right45°, total 89° |
Sliding carriage suppling length | 900mm |
power | YC4D80(58kw 2200r/min) |
Drill pipe | Φ64 |
Working air pressure | 1.0-1.7Mpa |
Air consumption | 9-16 m³/min |

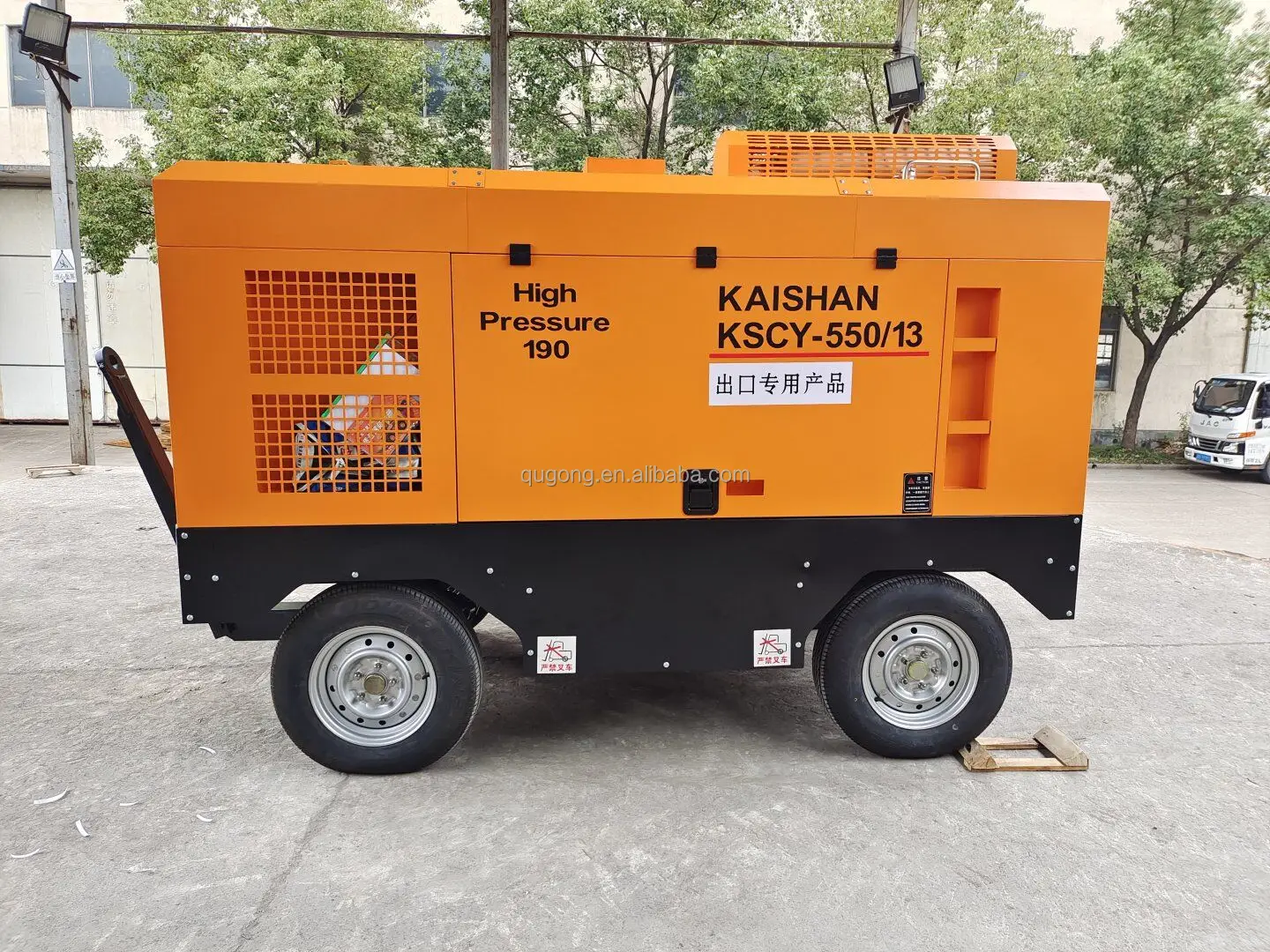

Component Air Compressor LGCY-13/13,BKCY-15/13, KSCY-550/13
Technical parameters | ||||
Model | Capacity |
|
|
|
*KSCY-550/13 | 16 | 1.3 | Yuchai brand 180HP | 3780×1980×2350 |

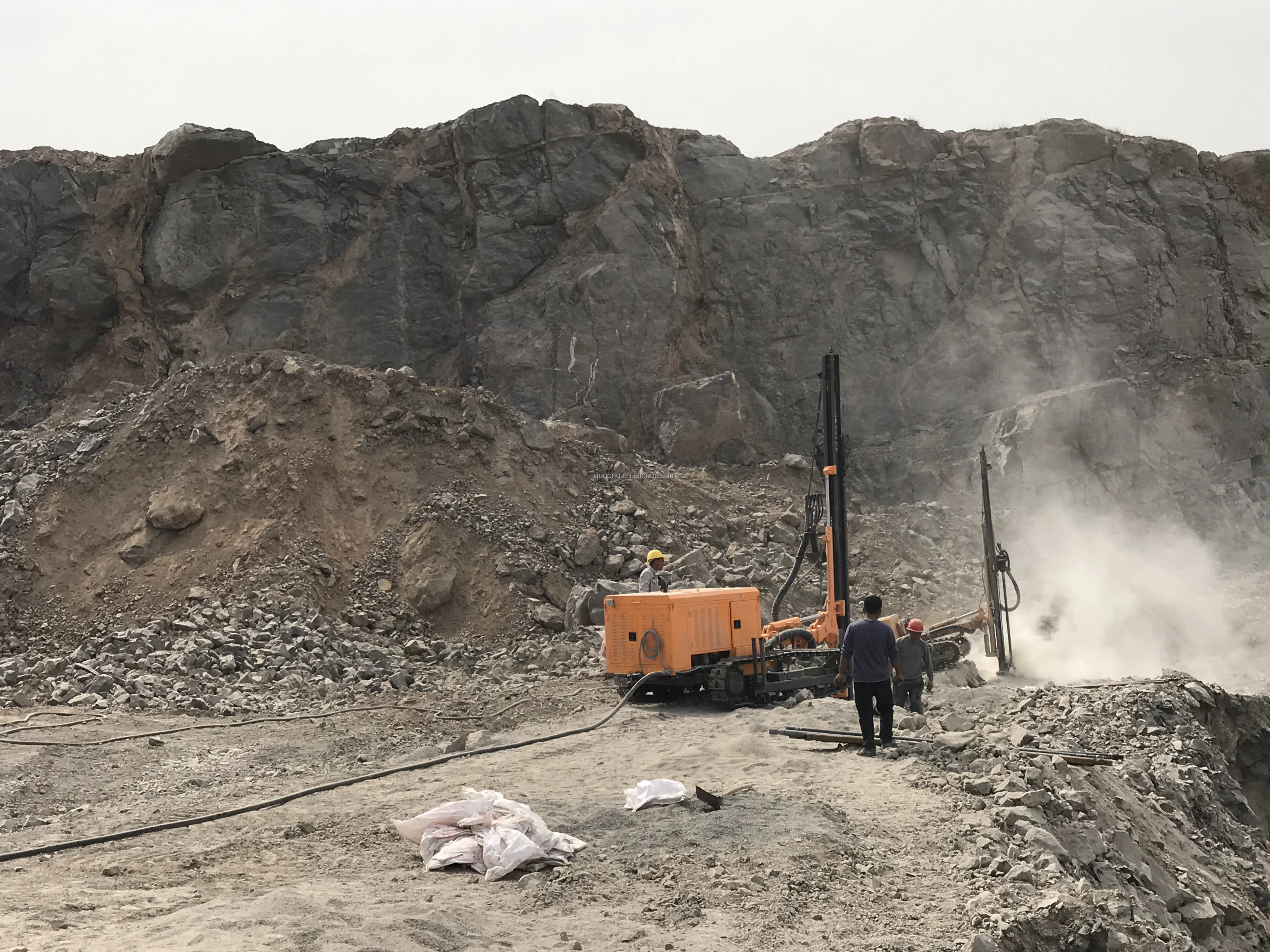

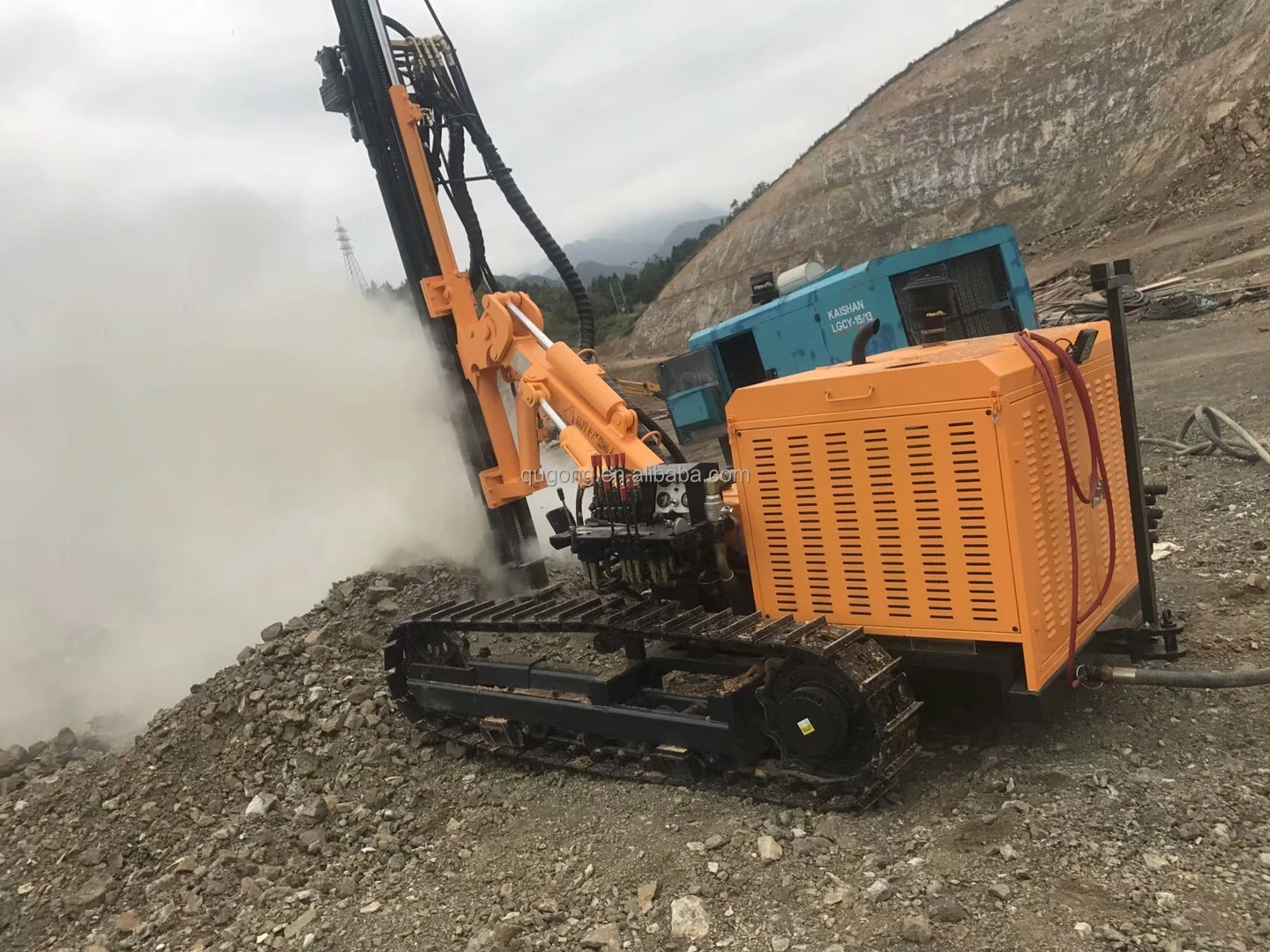

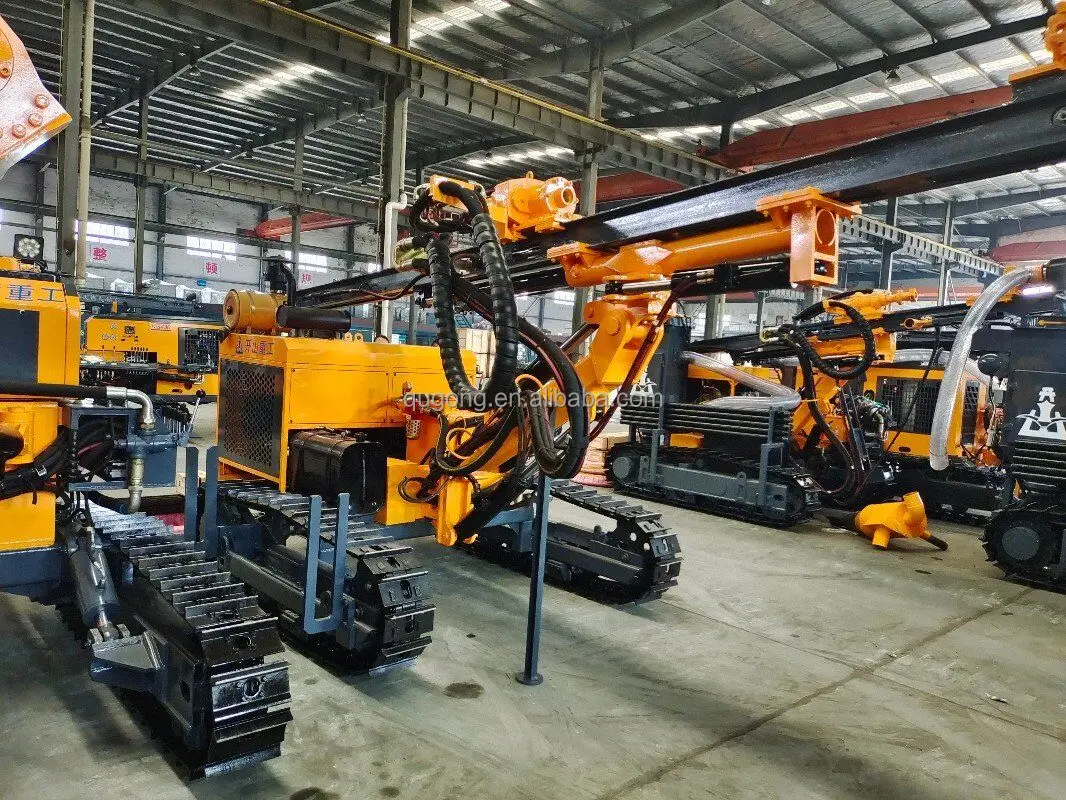

working show
