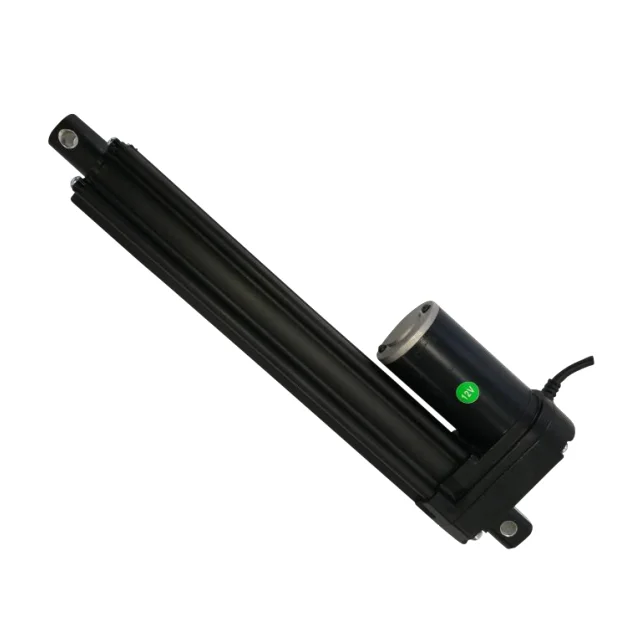

SUMMIT LA AC High energy mini electric piston dc 12v high speed mini linear actuator

Product Overview

Description









Model	LA-AC
Input Voltage	12/24/36/48VDC
Max Load Capacity	3500N/800LBS
Stroke length	40inches
Speed at No Load	3/8''(8mm/s)
Duty Cycle	20%
Limited Switch	Bulit in not movable
IP Grade	IP54/IP65

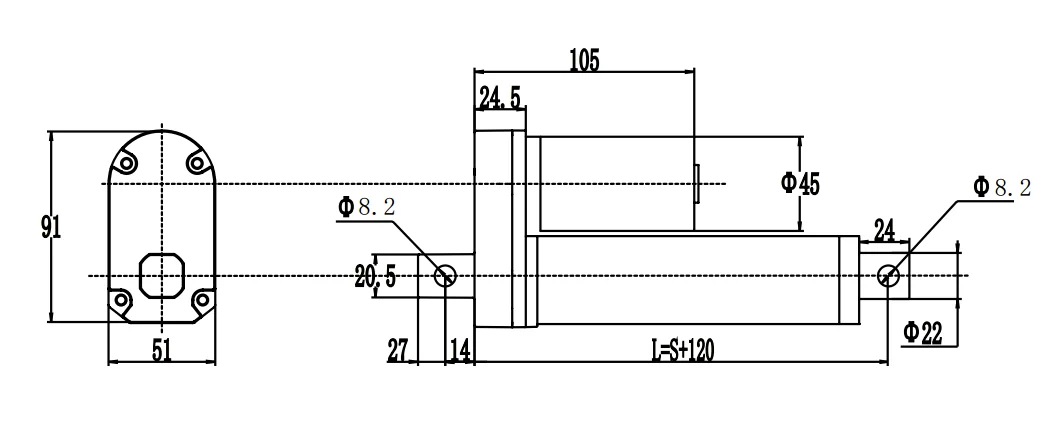

Drawing:



Q:  Are you a manufacture or trading company?
A: We are a manufacturer, and we have got permit of import and export as well.

Q: Where is your factory located? How can I visit it?
A: Our factory is located in Ningbo, China. 25 Minutes by car from Ningbo Airport.

Q: How can I get the sample? What's the lead time?
A: Samples could be sent within one week, the lead time is 35-45 days.

Q: Do you provide ODM/OEM service?
A: OEM/ODM is welcome,  From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.

Q.Warranty
A: We have warranty for our clients,we will ship out the new replacements if clients get the item with defect or broken frame

Q. What’s payment terms ?
A: Bank T/T, PayPal

Q. Which method of transport would be better?
A: enerally, we suggest to make shipment by air which is faster and riskless for transportation. We also can follow other transportation method you ask
