Autompack Factory Premade Zipper Pouch Packing Beans Coffee Rice Granule Chips Doypack Packing Machine
- Category: >>>
- Supplier: Foshan Autom Packaging Machinery Co. Ltd.
Share on (1600428198568):
Product Overview
Description
Autompack Factory Premade Zipper Pouch Packing Beans Coffee Rice Granule Chips Doypack Packing Machine
Product Description

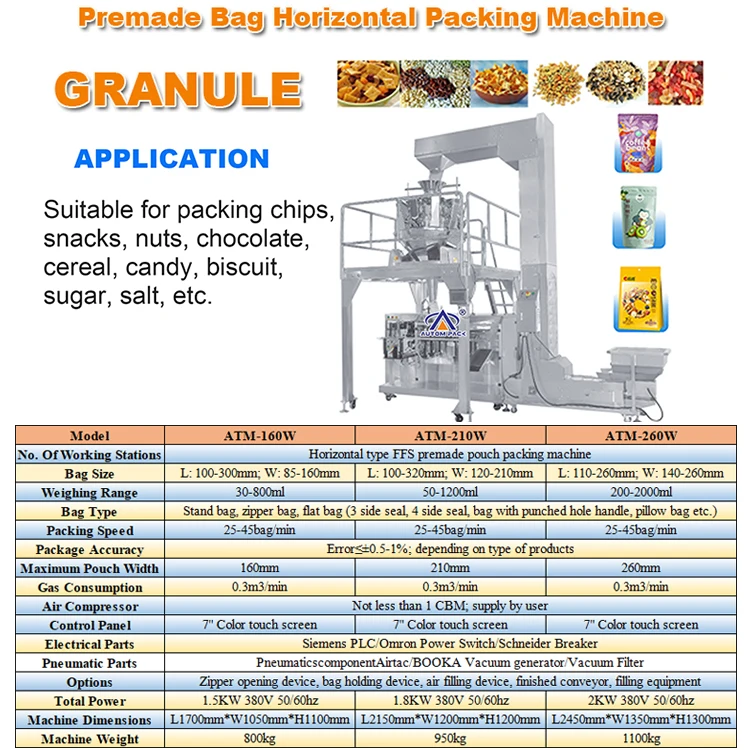

Technical Parameter
| Model | ATM-160 | ATM-210 | ATM-260 |
| No. Of Working Stations | Horizontal type FFS premade pouch packing machine | ||
| Bag Size | L: 100-300mm; W: 85-160mm | L: 100-320mm; W: 120-210mm | L: 110-260mm; W: 140-260mm |
| Weighing Range | 30-800ml | 50-1200ml | 200-2000ml |

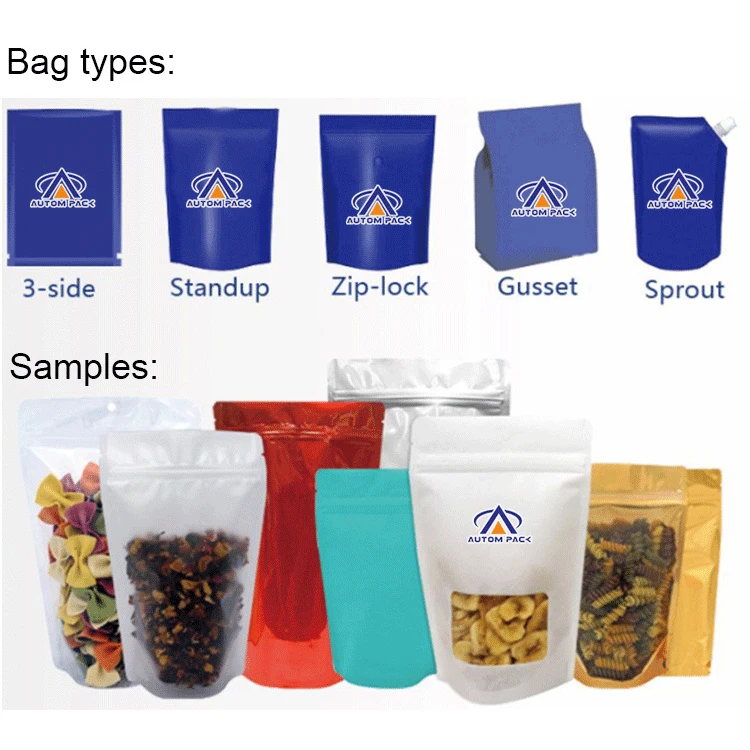

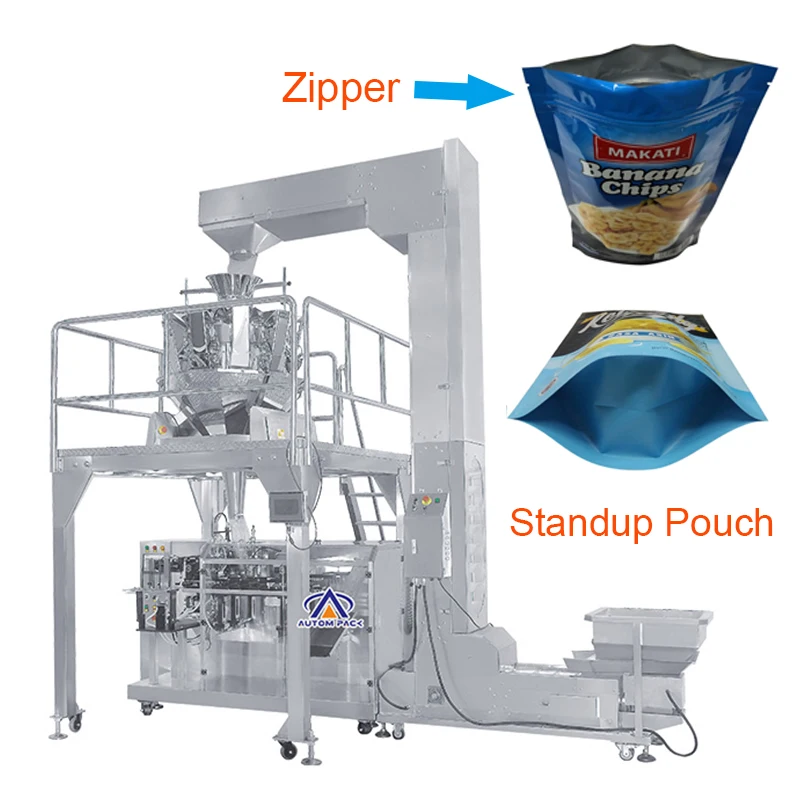

| Bag Type | Stand bag, zipper bag, flat bag, eg. 3 side seal, 4 side seal, bag with punched hole handle, pillow bag etc. | ||
| Packing Speed | 25-45bag/min | ||
| Package Accuracy | Error≤±0.5-1%; depending on type of products | ||
| Maximum Pouch Width | 160mm | 210mm | 260mm |
| Gas Consumption | 0.3m3/min | ||
| Air Compressor | Not less than 1 CBM; supply by user | ||

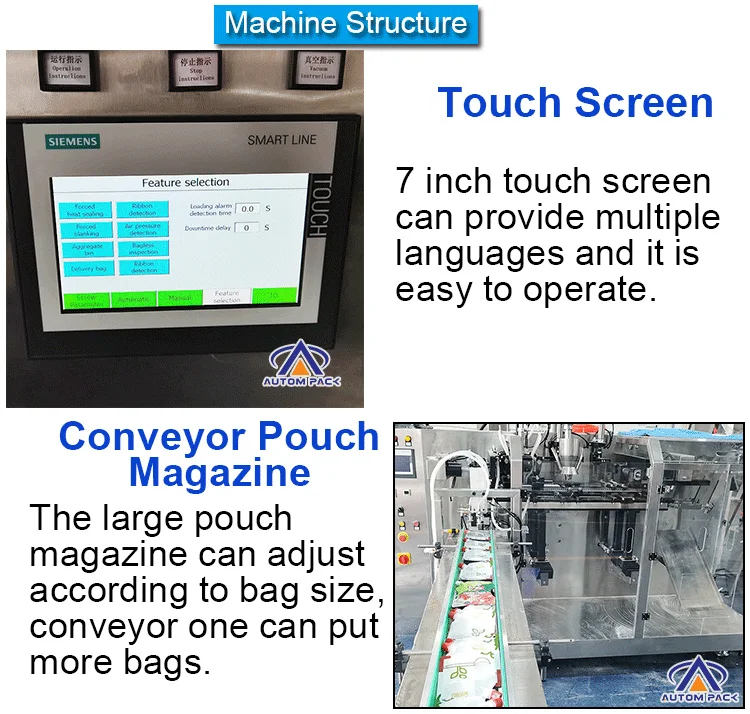

| Control Panel | 7" Color touch screen | ||
| Electrical Parts | Siemens PLC/Omron Power Switch/Schneider Breaker | ||
| Pneumatic Parts | PneumaticscomponentAirtac/BOOKA Vacuum generator/Vacuum Filter | ||
| Options | Zipper opening device, bag holding device, air filling device, finished conveyor, filling equipment | ||
| Total Power | 1.5KW 380V 50/60hz | 1.8KW 380V 50/60hz | 2KW 380V 50/60hz |
| Machine Dimensions | 1700mmx1050mmx1100mm | 2150mmx1200mmx1200mm | 2450mmx1350mmx1300mm |
| Machine Weight | 800kg | 950kg | 1100kg |
| Feature |
| 1,Rapid change of the specificationgs of th bag,bag width can be automati-cally adjusted by one button. |
| 2,Single shaft and the CAM design:packing speed faster;more stable operation;maintenance easier and reduce defective rate. |
| 3,Modular heating,temperature control more accurate,heating fault have alarm prompt. |
| 4,Advanced design idea,reduce the material loss,ensure the stability of enquipment opration,extend the operating life of the enquipment. |
| 5,Simple and convenient operation ,adopts the advanced PLC +POD(touch screen) electric control system and man-machine interface |
| 6,Machine have wide packaging range ,it can packaging :liquid,paste,gtanule,powder,solid various bagging materials only.According to the different material with different matering device. |
| 7,Machine use preformed bags &good sealing quality to improve the quality and grade of the product. |
| Applications |

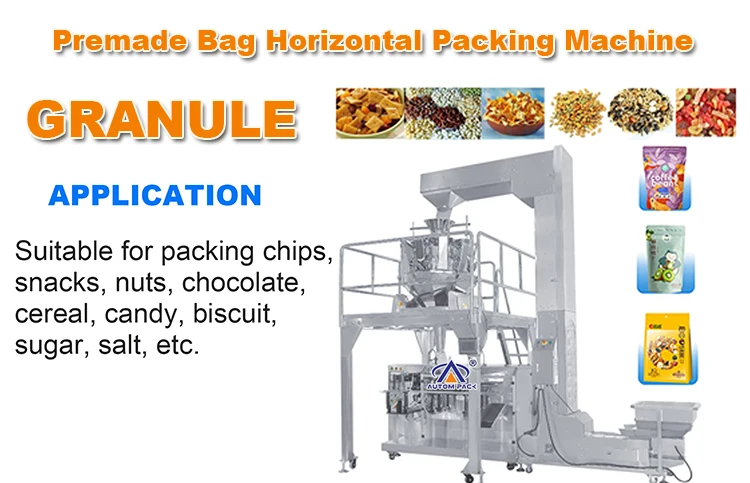

| 1,Block material:bean curd cake ,fish,eggs,candy,red jujube,cereal.chocolate,biscuit,peanut,etc. |
| 2,Granular type:crystal monosodium glutamate,granular drug,capsule,seeds,chemicals,sugar,chicken essence,melon seeds,nut,pesticide,fertlizer. |
| 3,Powder type:milk powder,glucose,monosodium glutamate,seasoning,washing powder,chemcal materials,fine white sugar ,pesticide,fertilizer,etc. |
| 4,Liquid/paster type:detergent,rice wine,soy sauce,rice vinegar,fruit juice,beverage,tomato sauce,peanut butter,jam,chili sauce,bean paste. |
| 5,Class of pickles ,pickled cabbage,kimchi,radish,etc. |
| 6,Other bagging materials. |

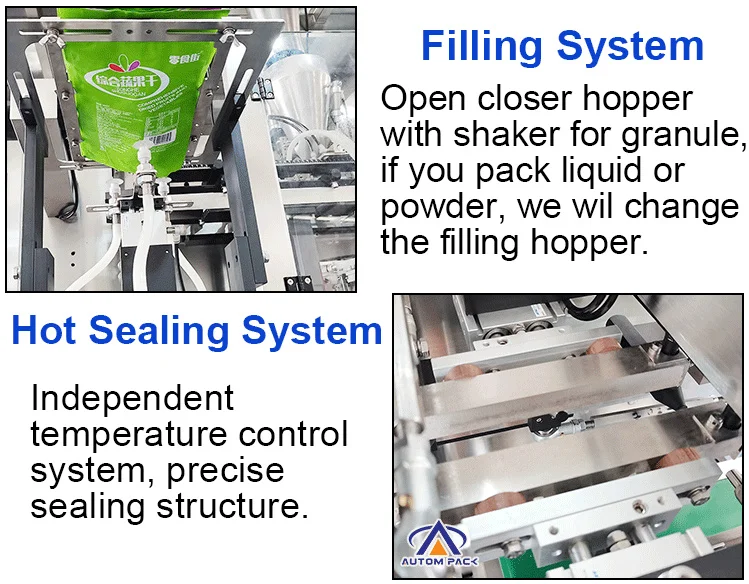

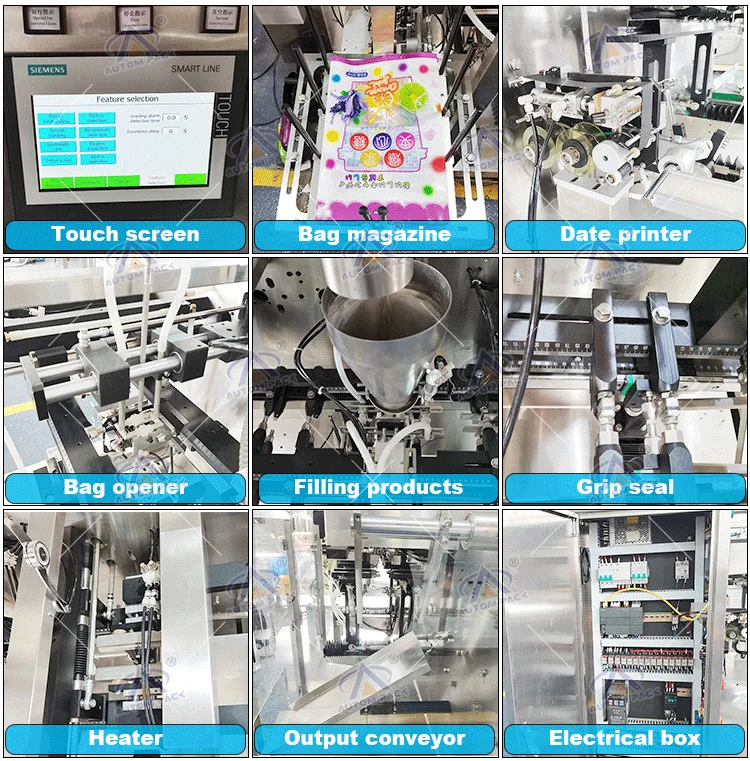

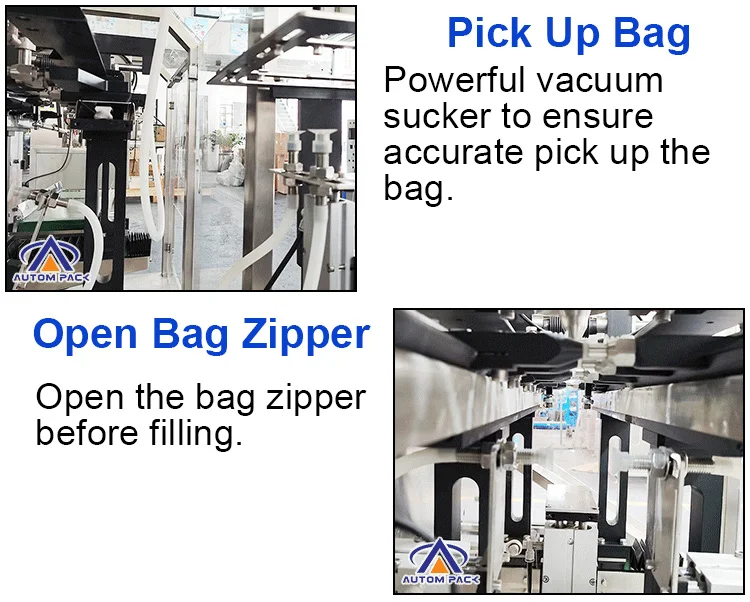

| Work flow: giving bag→coding→opening→filling1→filling2→auxiliary→exhaust→heat sealing→forming and output product |
Our Services
1.Technical support
2. Loading inform
3.Video for debugging
4.Customer's require is welcome
5. Free training, Free 1 year warranty
FAQ
Q1:How to choose a best fit packaging machine?
A1: Give us the product size, weight, size of the packaging bag, packaging style, we will make a detailed plan for your reference. Provide after service, customer problems in suing the machine,our staff will be in the first time to solve the program are given.
Q2:Why choose us ?
A2:We are professional in packing machines over 12 years, and we provide better after-sales service and high quality material and renown international brand electrical
components.Advanced control system with PLC, HMI and Servo.Simple and easy debugging and operation.Strong functionality, stable performance and easy maintenance.High cost-effective performance.
Q3:Is engineer available to serve oversea?
A3:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can I trust you for the first time business ?
A4:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q5:What’s the warranty period ?
A5:12 months after shipment.

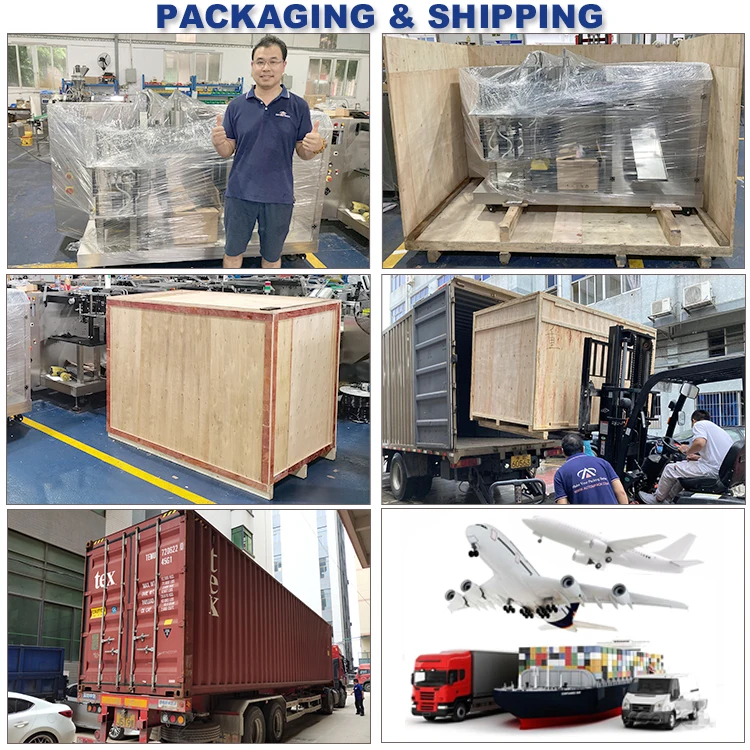

Packaging and Shipping
Packing details:
1) Dedust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
Guangzhou/Shenzhen/Foshan or we will deal with you according to your requirement.
If any special requirements, we will pack it as requested.
ABOUT AUTOMPACK

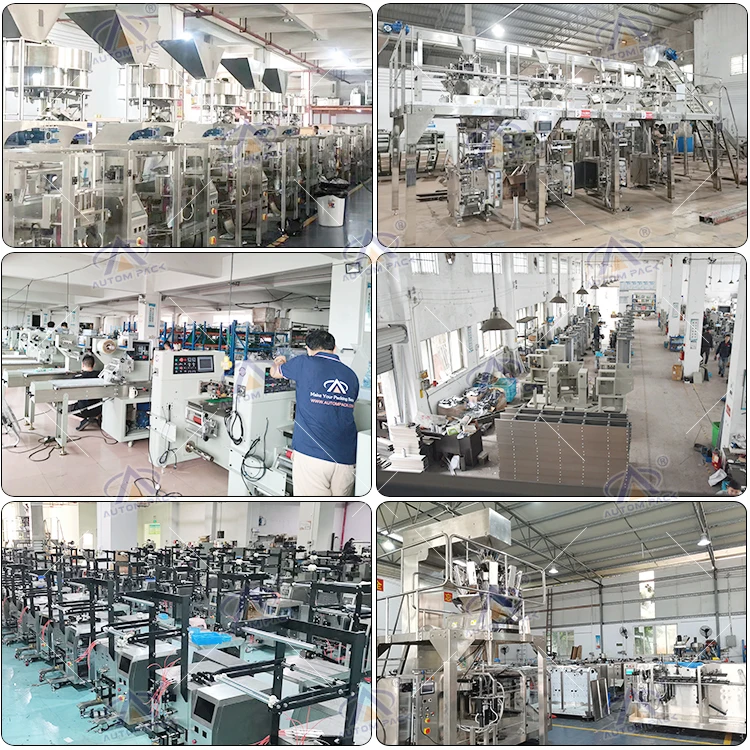

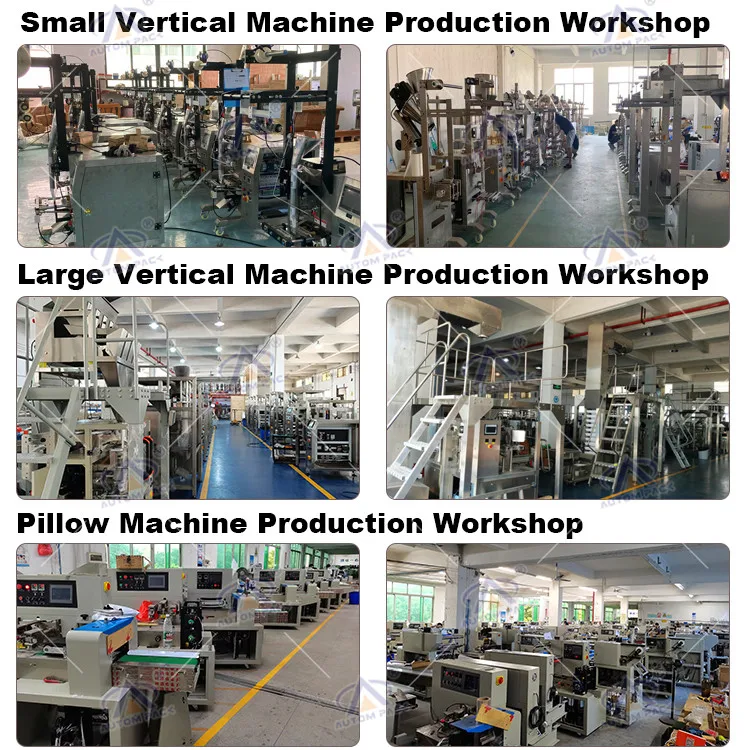

Foshan Autom Packaging Machinery Co., Ltd. (hereinafter to be referred as "AUTOMPACK") is professional in designing, producing and sales of food packing machines. One of the deeply cultivated professionals in packaging industry. We have strong R &D team, perfect production technology and strict machine inspection standard system. Our main products are doypack bag packing machine, horizontal pillow packing machines, granule packing machine, powder packing machine, liquid packing machine, filling machine, labeling machine, cartoning machine, tea bag packing machine, automatic feeding and packing line. All of such products meets GMP standard and have CE certificates. We have our own brand AUTOMPACK, but OEM and ODM is always welcomed.

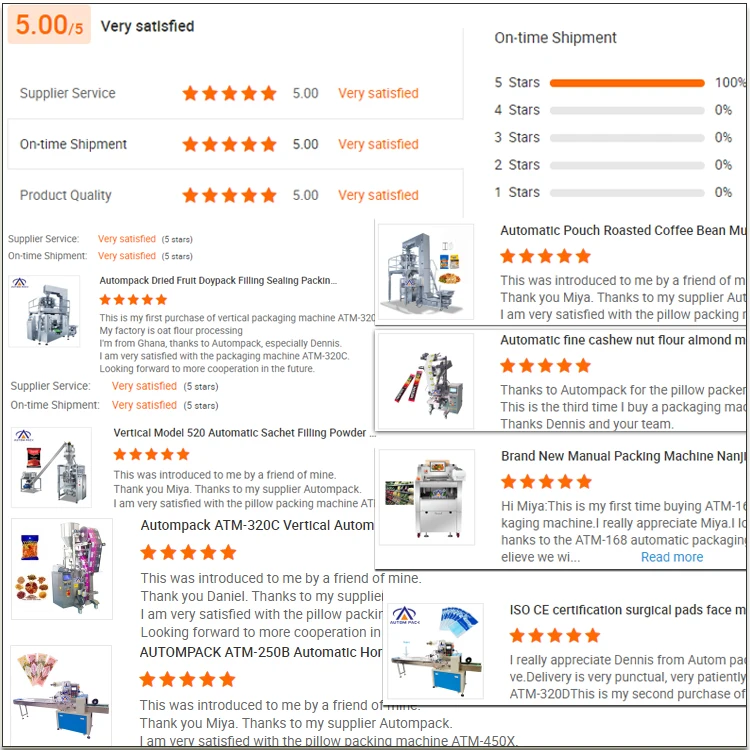

Customers Feedback
FAQ
1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
2:How can I trust you for the first time business?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
6:Are you manufacturer or trading company?
We are manufacturer, we are selling factory direct price of our packing machines. Our factory is located in Nanhai District, Foshan city, Guangdong Province, China.
