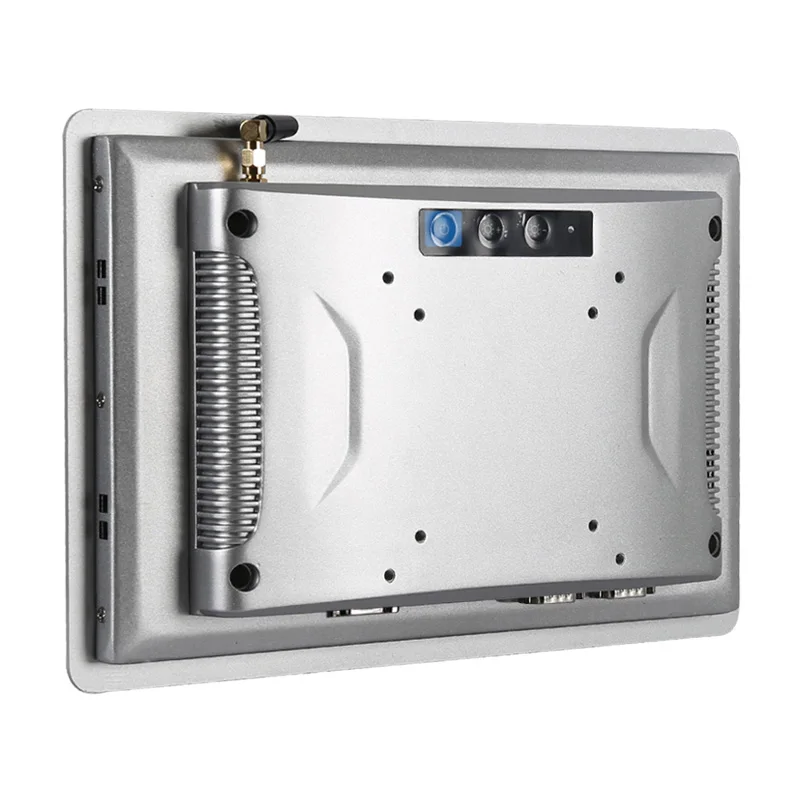

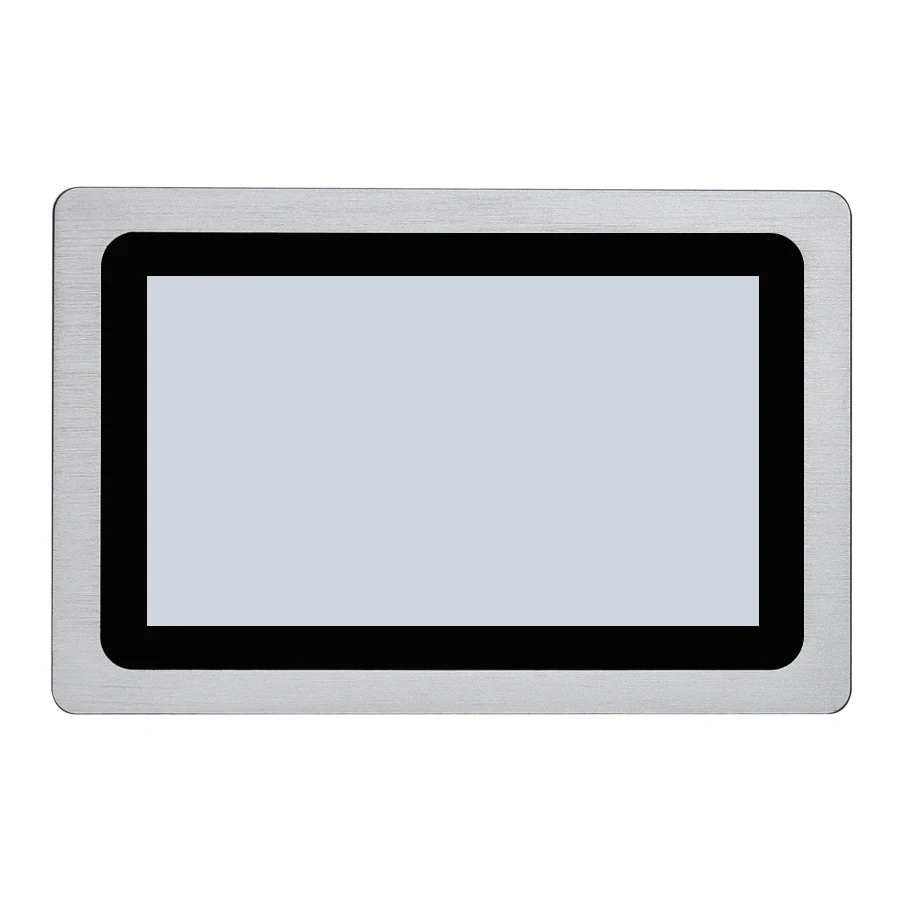

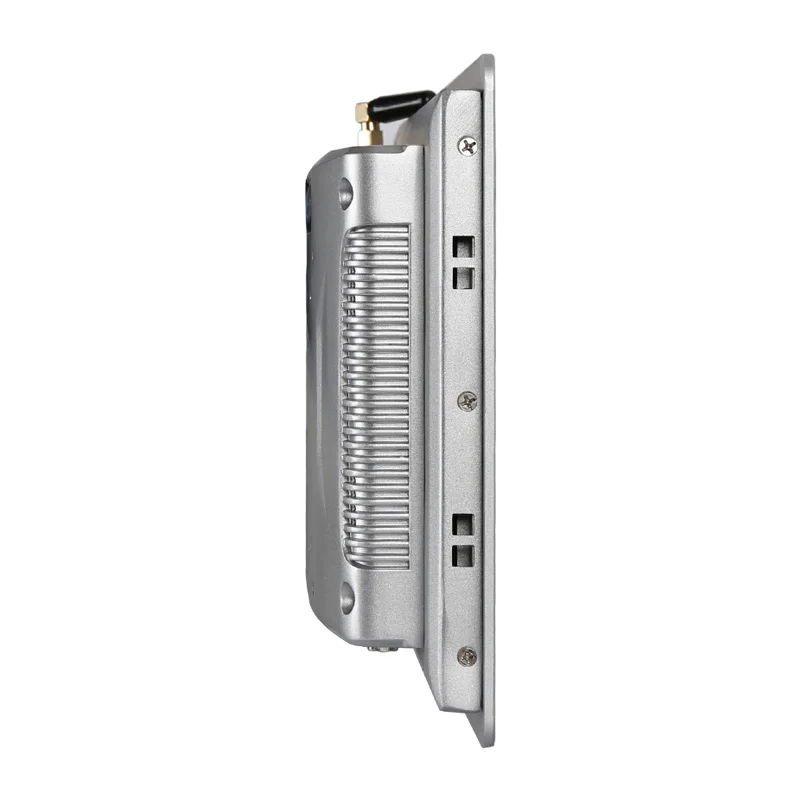

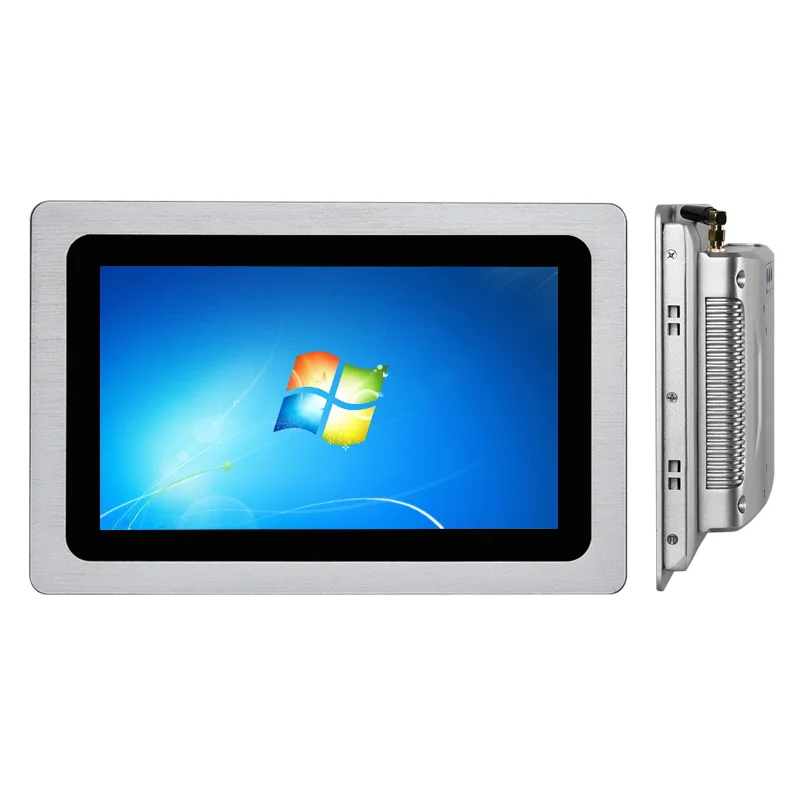

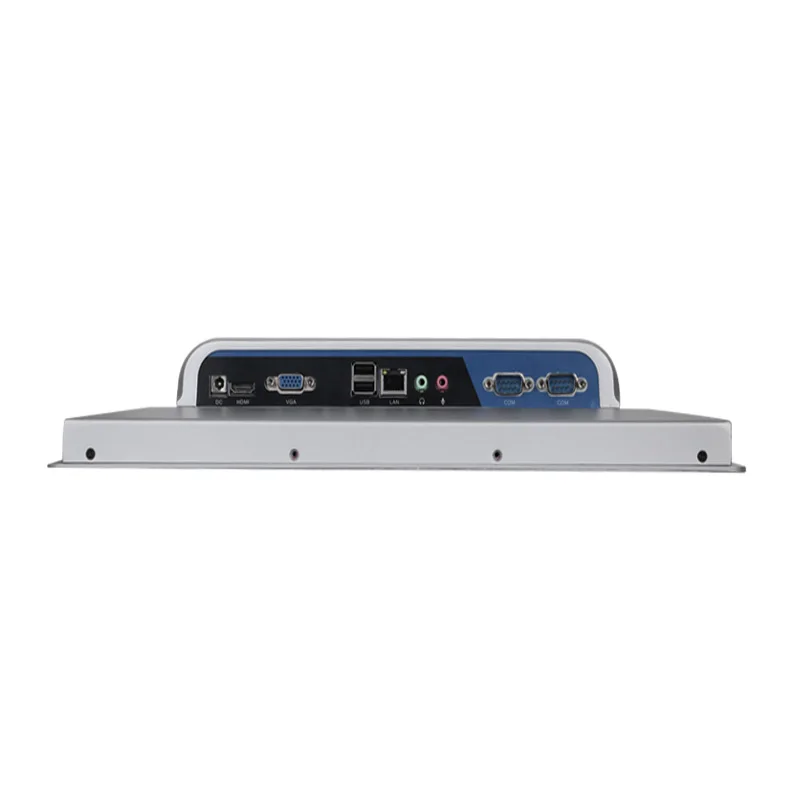

LHDE 10.1 Inch Embedded In tel J1900 4GB RAM DDR3 64GB SSD Fanless Industrial Touch Screen Panel PC
- Category: >>>
- Supplier: Shenzhen Le Hua Display Electronic Technology Co. Ltd.
Share on (1600428227043):
Product Overview
Description
Product Description

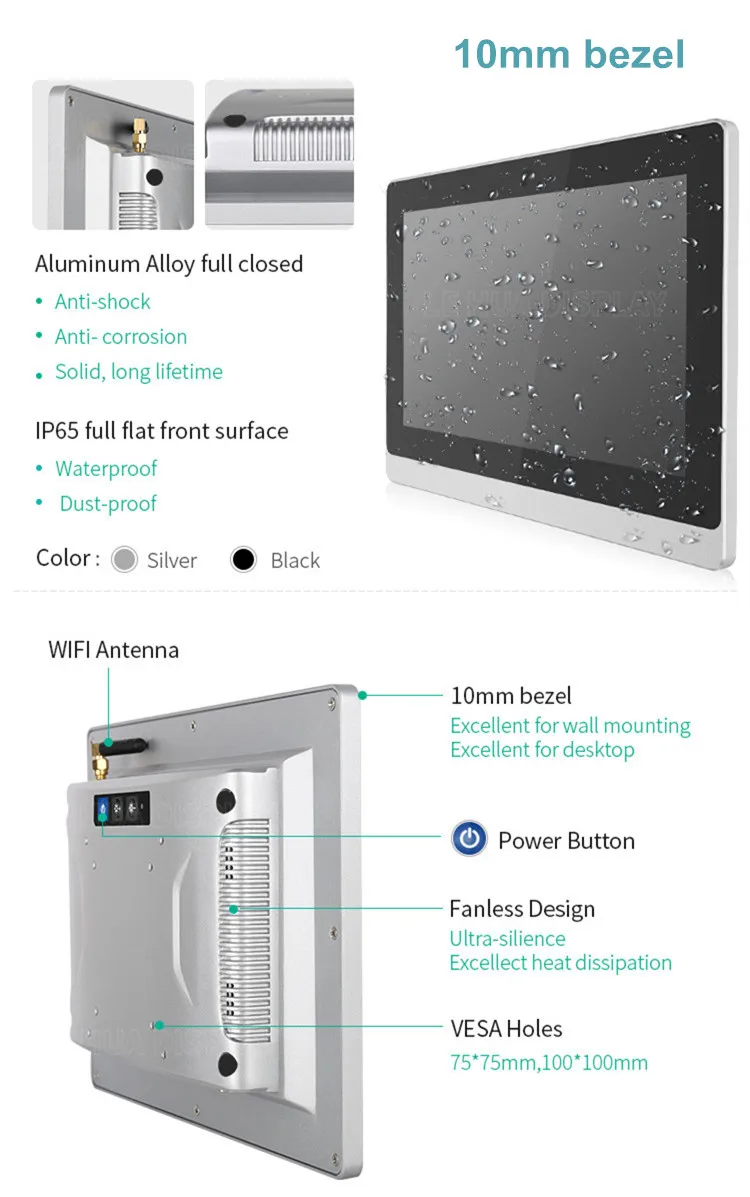

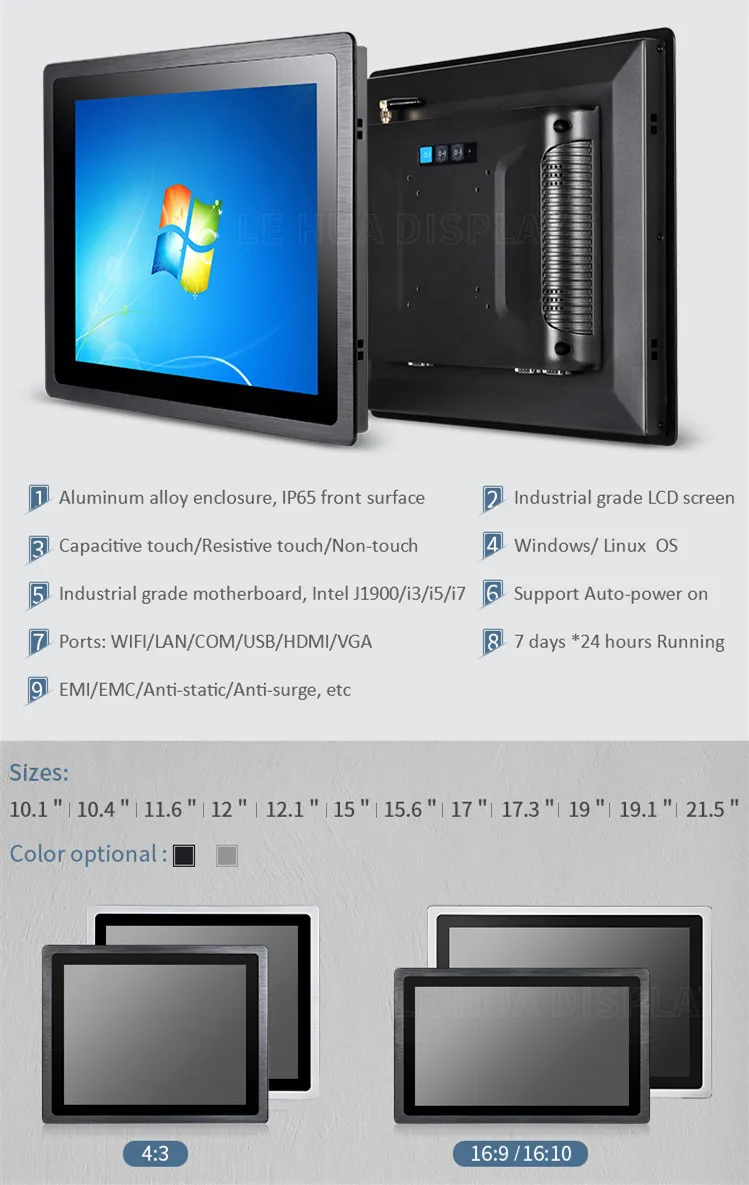

LHDE Windows industrial all in one panel PC assembled with industrial grade LCD screen.The front pure flat panel meets dust-proof and waterproof standard.The frame and back cover are made of aluminum alloy. Fanless design,with good heat dissipation and stable performance to support 7*24H running.
Certifications
Specification
Display Parameters | Screen Size | 10.1 Inch |
Bezel Thickness | 3mm | |
Aspect Ratio | 16:10 | |
Brightness | 300cd/㎡(Can be Customized) | |

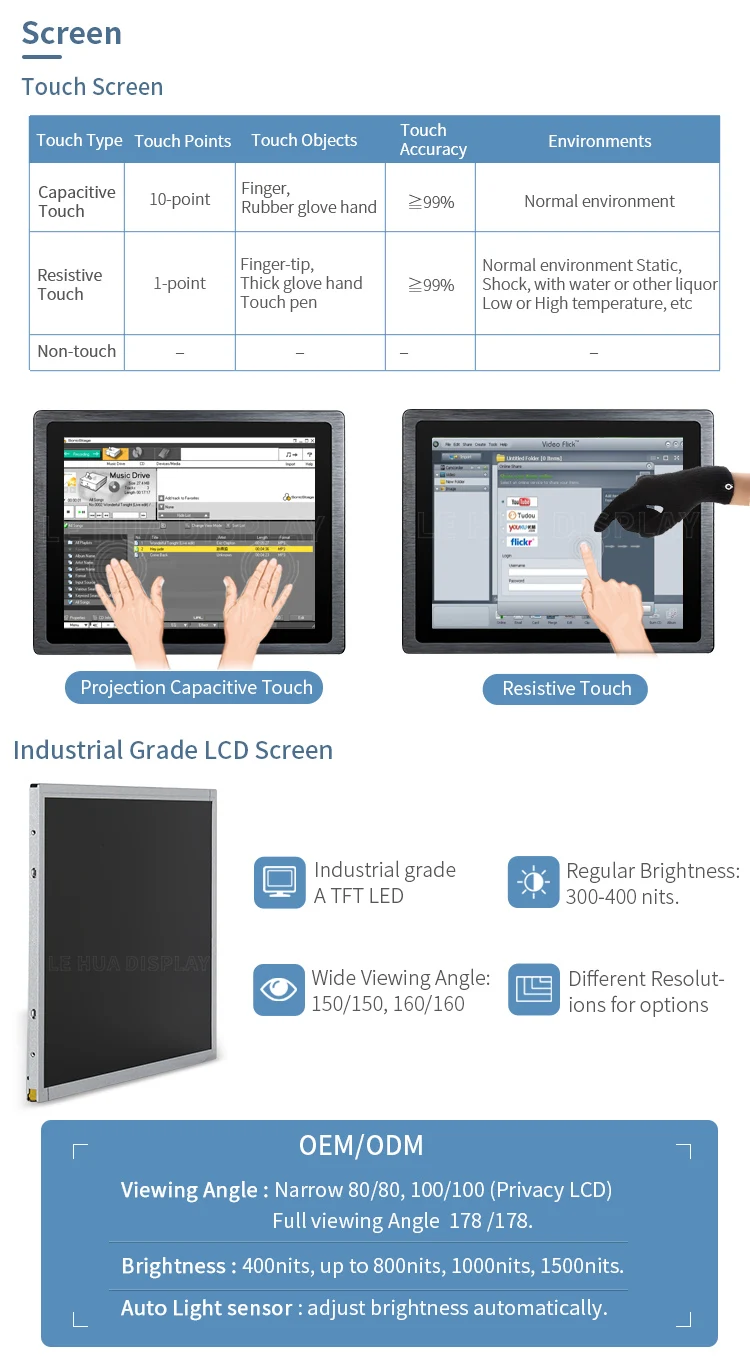

Touch Type | Capacitive Touch / Non-touch / Resistive Touch Optional | |
Hardware Configuration | CPU | Intel J1900 Fanless Quad-core 2.0 GHz(Intel J4125 / i3 / i5 / i7 Can be Customized) |
GPU | Integrated Intel HD Graphics | |
Inner memory | 2GB RAM DDR3 (4GB RAM DDR3 / 8GB RAM DDR3 Optional) | |
Storage | 64GB SSD (32GB/128GB / 256GB / 512GB SSD, 500GB / 1TB HDD Optional) | |
WIFI | Built-in Wifi Module, 802.11a/b/g/n (Dual band WIFI 2.4G+5.0G Customized) | |
Blue-tooth | Can be Customized | |
Operating System | Windows7 / Windows10 / Linux,Ubuntu,Debian, Unix Optional | |
Function | Power Supply | 12V-36V |
Working Temperature | 0°C-50°C or -10°C-60°C (Custom - 20°C-70°C) | |
Color | Black,Silver, Other Colors Can be Customized | |
Installation | Embedded, VESA mounted, Wall mounted, Desktop Optional | |

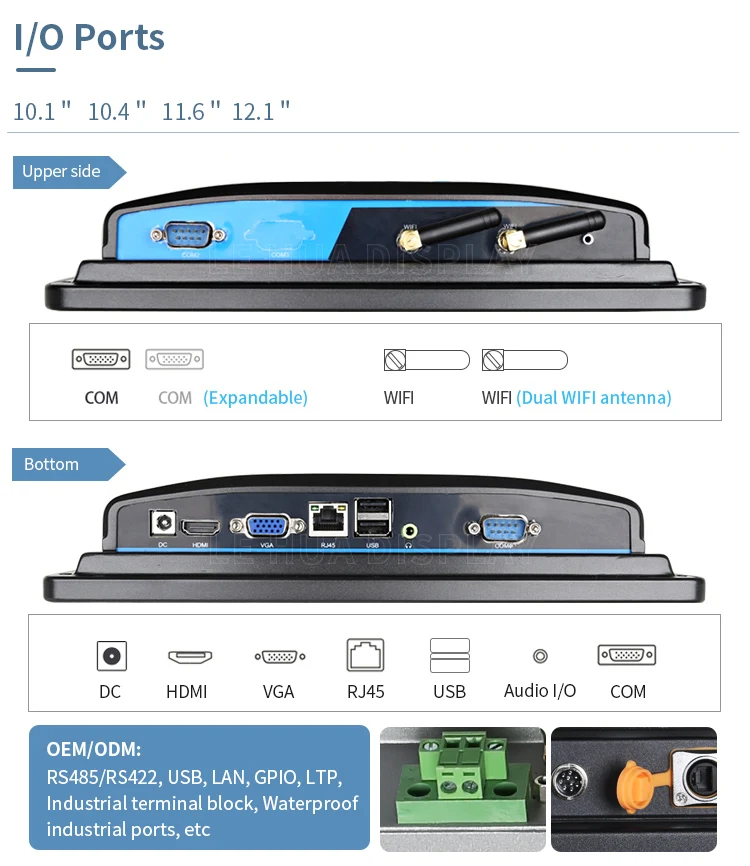

I/O Ports | DC Jack Port,1*HDMI,1*VGA,4*USB port ( More USB Ports Can be Customized) 1*LAN (or 2*LAN), 1*3.5mm Audio, 2*Serial Port (More RS232 or RS485 Can be Customized) |
10.1'' | 1280*800(16:10) | 10.4'' | 1024*768(4:3) | |
11.6'' | 1920*1080(16:9) | 12'' | 1024*768(4:3 | |
12.1'' | 1280*800(16:10) | 15'' | 1024*768(4:3) | |
15.6'' | 1920*1080(16:9) | 17'' | 1280*1024(5:4) | |
17.3'' | 1920*1080(16:9) | 19'' | 1280*1054(5:4) | |
19.1'' | 1440*900(16:10) | 21.5'' | 1920*1080(16:9) | |
23.8'' | 1920*1080(16:9) | |||

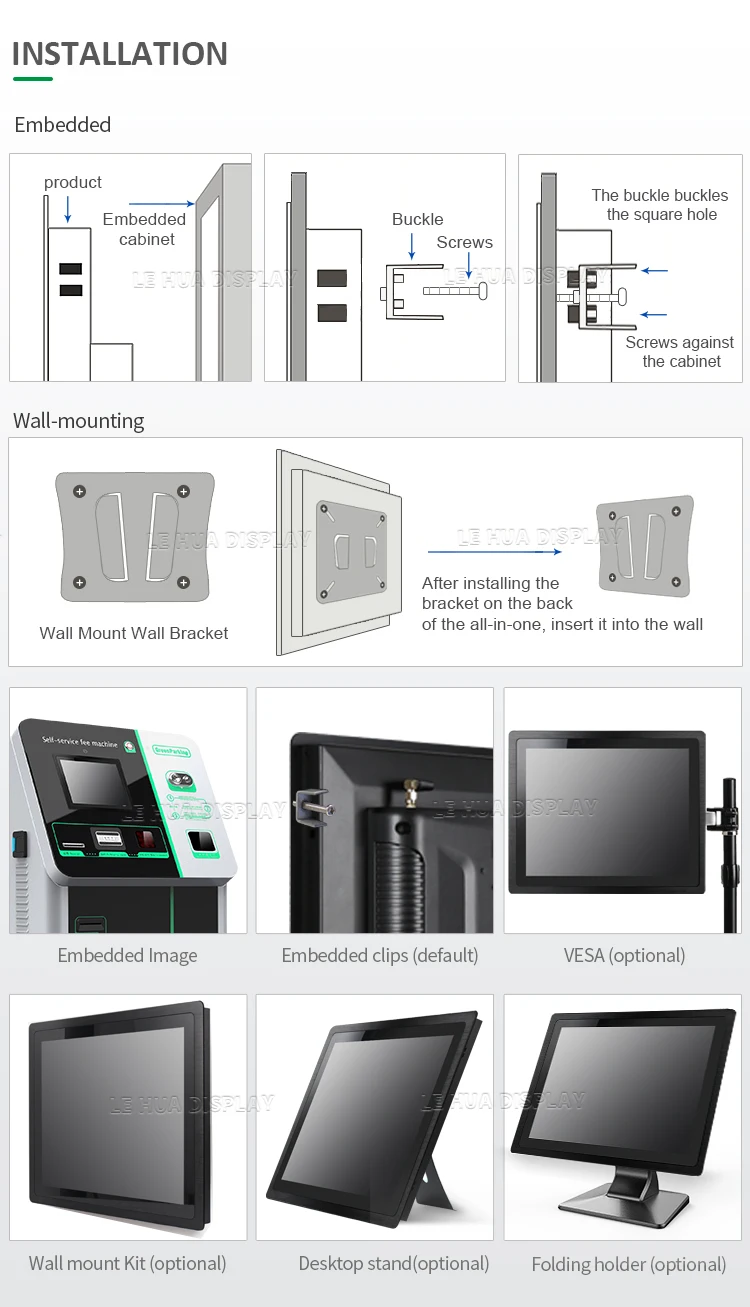

Installation Instructions
Application
Packing & Delivery
Packing: Carton with pearl bag and cushion inside,pallet and wooden crate available for mass order.
Shipping: Shipping by express, by sea, by air, by railway.
Shipping: Shipping by express, by sea, by air, by railway.
Company Profile
Shenzhen Le Hua Display Electronic Technology Co., Ltd. is a professional company engaged in independent R&D, manufacture, sale of industrial touch screen monitor, Android all in one panel PC, industrial Windows all in one panel PC, industrial mini box PC, and Android mainboard. Our company was established in 2013, our workshop covers 6000 square meters. We can offer product design,
system integration, software test, ODM/OEM service, and a complete product line. Le Hua enforces the strictest quality control to ensure complete customer satisfaction. Our manufacturing process meets ISO9001 quality assurance standards and we hold other safety certifications including CE, FCC, RoHS, and IP65. We strive to offer superior quality and reliability supports in the most cost-effective way that meets the customer’s requirements.
system integration, software test, ODM/OEM service, and a complete product line. Le Hua enforces the strictest quality control to ensure complete customer satisfaction. Our manufacturing process meets ISO9001 quality assurance standards and we hold other safety certifications including CE, FCC, RoHS, and IP65. We strive to offer superior quality and reliability supports in the most cost-effective way that meets the customer’s requirements.
FAQ
Q1: Can you accept sample order ?
A1: Yes, samples are always available for checking quality and can be dispatched to you in a short time.
Q2: What's the time of delivery ?
A2: Depends on order quantity and our production schedule. 3-7 working days for sample order of standard model.12-20 working days for custom sample order & mass production after payment receipt.
Q3: What paying methods do you accept ?
A3: Alibaba Trade Assurance, T/T, Paypal, Western Union, etc.
Q4: Whether your industrial all in one PC support the OEM/ ODM?
A4: Yes, our all in one PC support the customization with size, function, appearance, resolution, high brightness, etc.
.
Q5: What is the main size for your all in one PC?
A5: 7'', 8'', 10.1'', 10.4'', 11.6'', 12'', 12.1'', 15'', 15.6'', 17'', 17.3'', 19'', 19.1'', 21.5'', 23.8''.
Q6: Can we printing our logo on the housing? What is MOQ?
A6: We can do the silk-printing LOGO on the case with free charge.The MOQ is 2 pieces.
Q7: What is your guarantee period?
A7: We provide 3 years warranty service, free repair for the first year, you can pay to extend the warranty. In the second and third year, we only provide the quality assurance service.
A1: Yes, samples are always available for checking quality and can be dispatched to you in a short time.
Q2: What's the time of delivery ?
A2: Depends on order quantity and our production schedule. 3-7 working days for sample order of standard model.12-20 working days for custom sample order & mass production after payment receipt.
Q3: What paying methods do you accept ?
A3: Alibaba Trade Assurance, T/T, Paypal, Western Union, etc.
Q4: Whether your industrial all in one PC support the OEM/ ODM?
A4: Yes, our all in one PC support the customization with size, function, appearance, resolution, high brightness, etc.
.
Q5: What is the main size for your all in one PC?
A5: 7'', 8'', 10.1'', 10.4'', 11.6'', 12'', 12.1'', 15'', 15.6'', 17'', 17.3'', 19'', 19.1'', 21.5'', 23.8''.
Q6: Can we printing our logo on the housing? What is MOQ?
A6: We can do the silk-printing LOGO on the case with free charge.The MOQ is 2 pieces.
Q7: What is your guarantee period?
A7: We provide 3 years warranty service, free repair for the first year, you can pay to extend the warranty. In the second and third year, we only provide the quality assurance service.
