ELP UHD 4K Mini Sony IMX317 CMOS Sensor Webcam 2160P 30fps Wide Angle170 Degree Fisheye USB Camera for KIOSK ROBOT Virtual Game
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600428245029):
Product Overview
Description
Product Description
Features:
* 4K 3840*2160 High resolution wide angle fisheye USB Camera
* 1/2.5”Sony IMX317 sensor for high quality image
* With HD 170 degree fisheye lens
* With microphone for audio recording
* 1/2.5”Sony IMX317 sensor for high quality image
* With HD 170 degree fisheye lens
* With microphone for audio recording

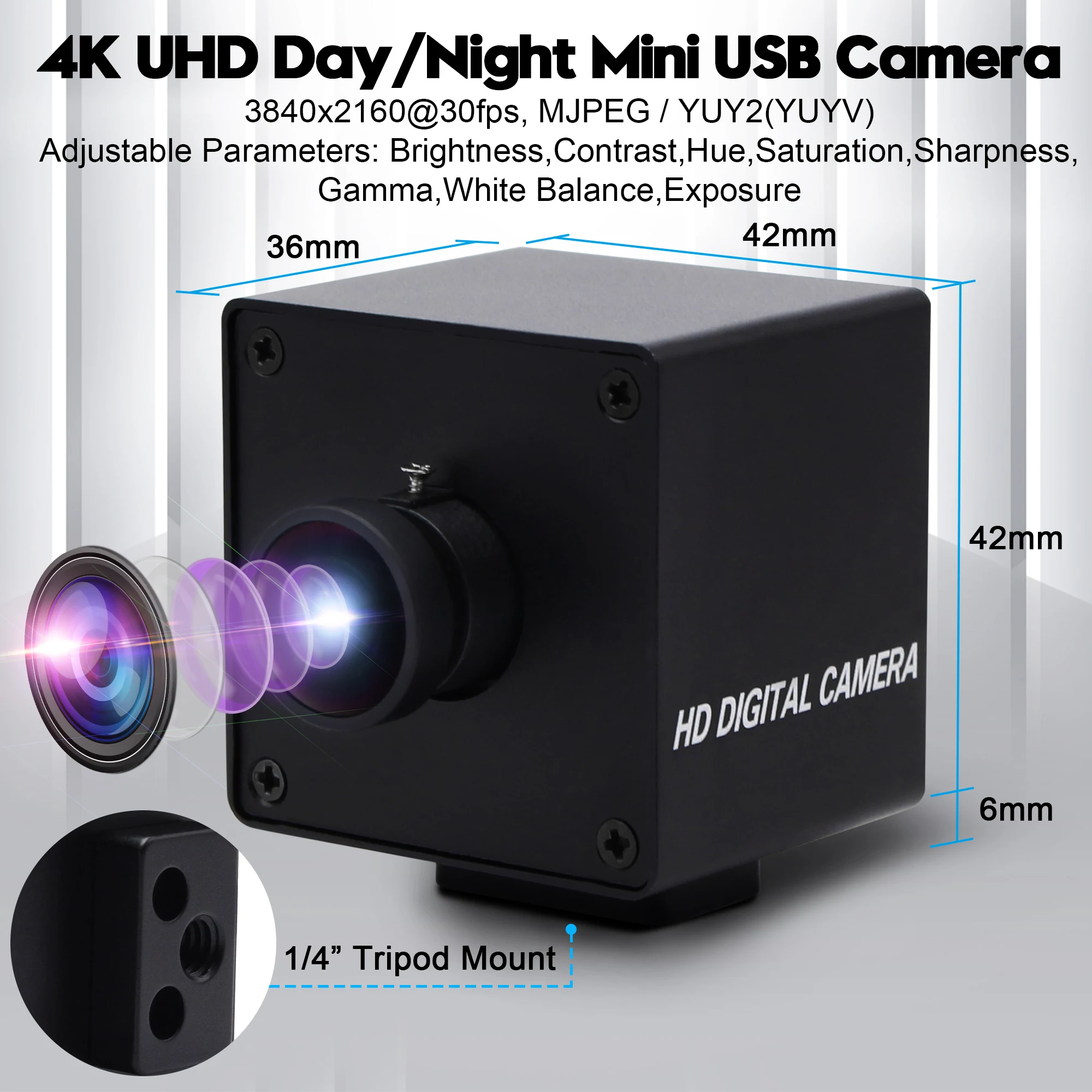

* 41*41mm Size Mini metal housing with 1/4" screw tripod hole
* High frame rate - MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual outpu format optional
* Mini board size 38x38mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* High frame rate - MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual outpu format optional
* Mini board size 38x38mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
Specification:
Model | ELP-USB4KHDR01-KL170 (HFOV 162 degree) |
Sensor | Sony IMX317 (1/2.5” ) |
Max. Resolution | 3840(H) *2160 (V) |
Sensitivity | 1000mV/Lux-sec |
Image area | 6100µmx4524µm |
Compression format | MJPEG / YUY2（YUYV） |
Resolution & Frame rate | MJPEG: 3840x2160@ 30fps / 2592x1944@ 30fps 2048x1536@ 30fps /1600x1200@ 30fps 1920x1080@ 30fps/ 1280x1024@ 30fps / 1280x960@ 30fps /1280x720@ 30fps 1024x768@ 30fps/ 800x600@/ 30fps640x480@ 30fps/ 320x240@ 30fps YUY2: 3840x2160@ 1fps / 2592x1944@ 1fps 2048x1536@ 3fps/ 1600x1200@ 3fps/ 1920x1080@ 3fps/ 1280x1024@3fps 1280x960@5fps/1280x720@ 5fps/ 1024x768@ 5fps/ 800 x 600@ 20fps 640x480@ 30fps/ 320x240@ 30fps |
Center Definition | 1000LW/PH (Center) |
S/N (Signal Noise Ratio) | 26dB |
Sensitivity | 0.65V/l@550 |
Mini illumination | 0.2Lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure |
Lens Parameter | 170 degree fisheye lens (HFOV162 degree, VFOV90 degree) |
Power Supply & Connector | USB BUS POWER 4P-2.0mm socket |
Power Voltage | DC5V |
Power Current | 200mA |
Board Size | 38*38mm |
Storage Temperature | -20～70℃ |
Working temperature | 0～60℃ |
USB Cable | Standard 1M ( 2M,3M,5M optional) |
Operating system request | Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Our Advantages
Related Products
Details Images
Sony IMX317 USB Camera module
-1/2.5”Sony IMX317 sensor for high quality image- High frame rate - MJPEG 3840X2160 4K 30fps

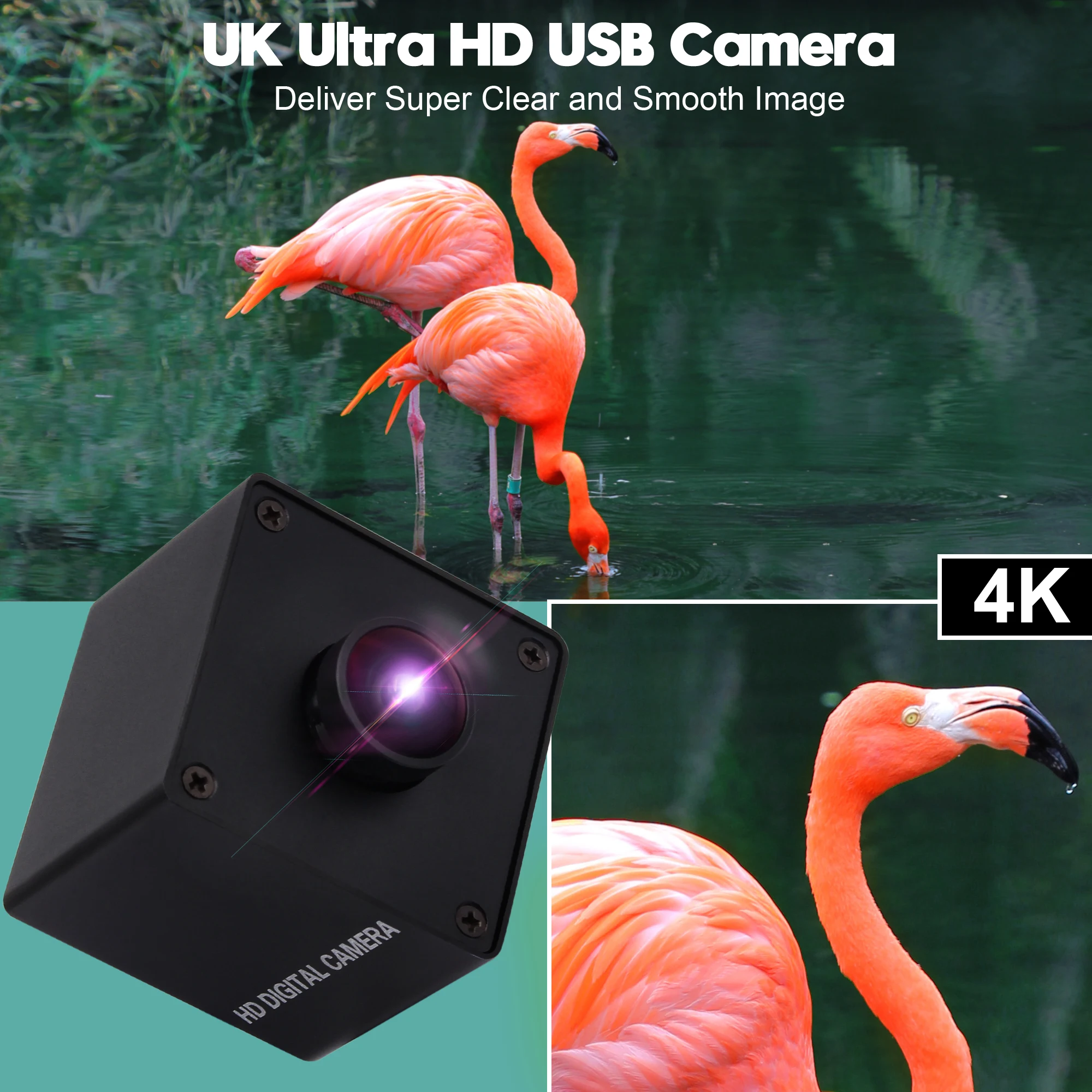

4K Ultra HD Resolution USB Webcam
-Deliver Super clear and Smooth Image than Other Normal HD Cameras

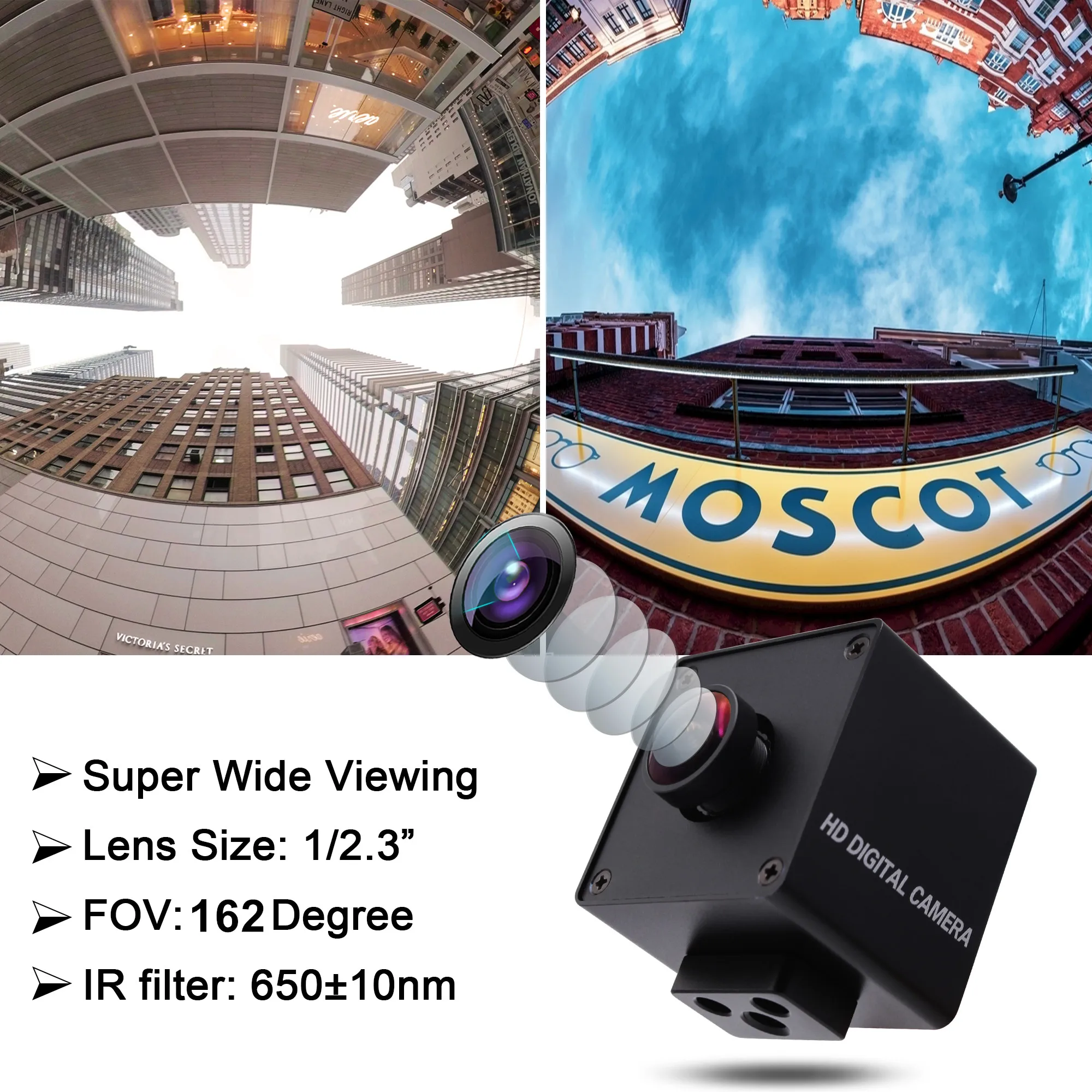

Wide angle fisheye USB Camera Module
-Super wide angle 170 degree M12 lens
-One cameras can see very wide view range

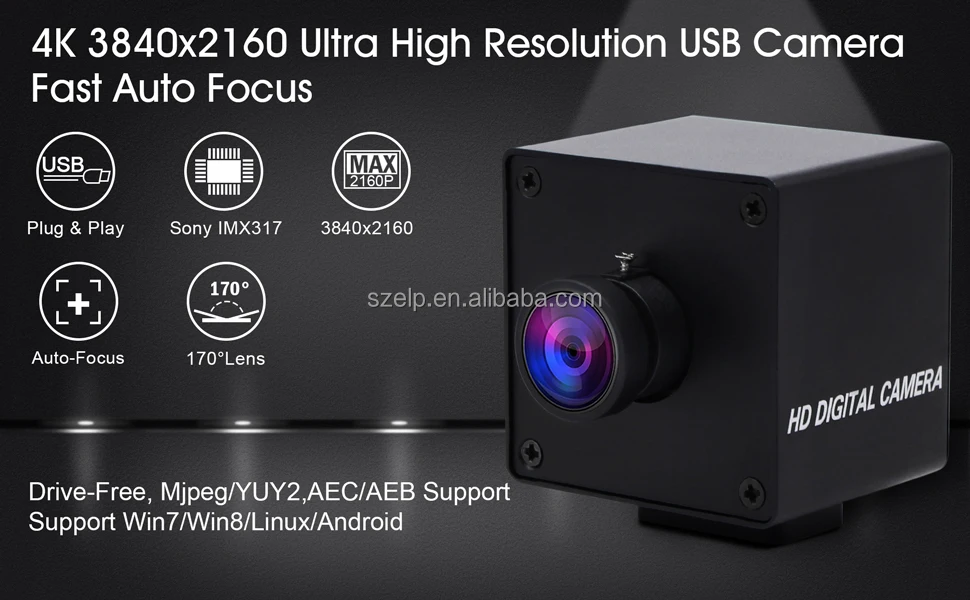

4K UHD USB Camera
-With parameter adjustale
Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure

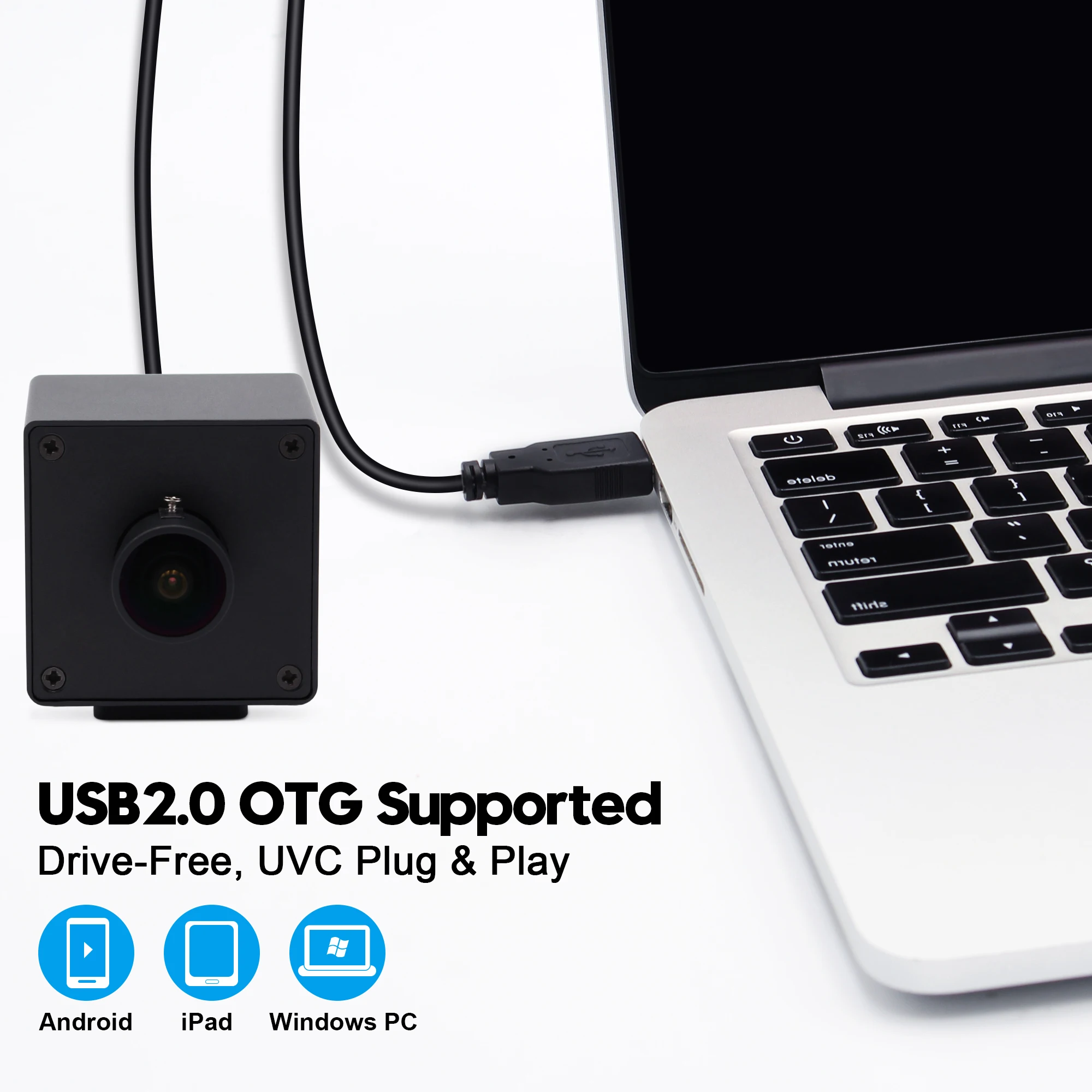

Support USB 2.0 OTG, Plug and play
Can be connected to Laptop, destop, Tablet, Mobile phone,
Mini PC
Free driver, Plug and Play
High competibility
Suppory many regularly used program, like,. skype, Youbube, Face time, PotPlayer, Twitter, Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
VLC Player
Applications
Applications:
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Packing&Shipping
Company Introduction
About US
At present, Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial, commercial vision application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3megapixel, 1 megapixel, 2 megapixel, 5 megapixel to 8 megapixel. And recently We launch new ultra HD USB cameras like Super Sharp 4K cameras,13 Megapixel cameras. We also supply special function Auto focus cameras, High frame rate cameras, Low illumination cameras, WDR Cameras, Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras. We can also provide OEM or customization service.
We always believe"Together Everybody Achieves More". We are looking forward to your choice and join.
Our Office
Our Factory & production Flow
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 16 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
Yes, we are designer and manufacturer for usb camera module for more than 16 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
