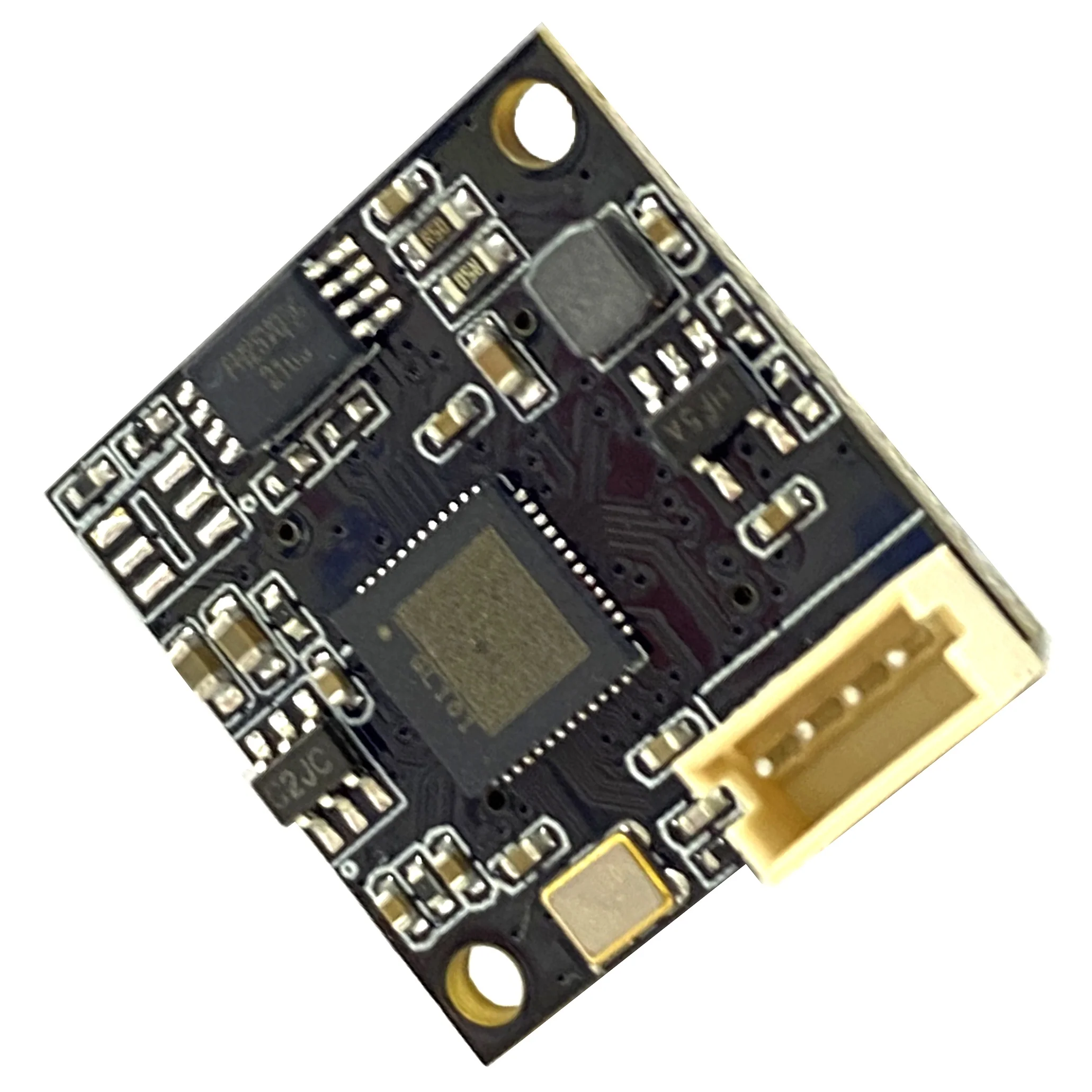

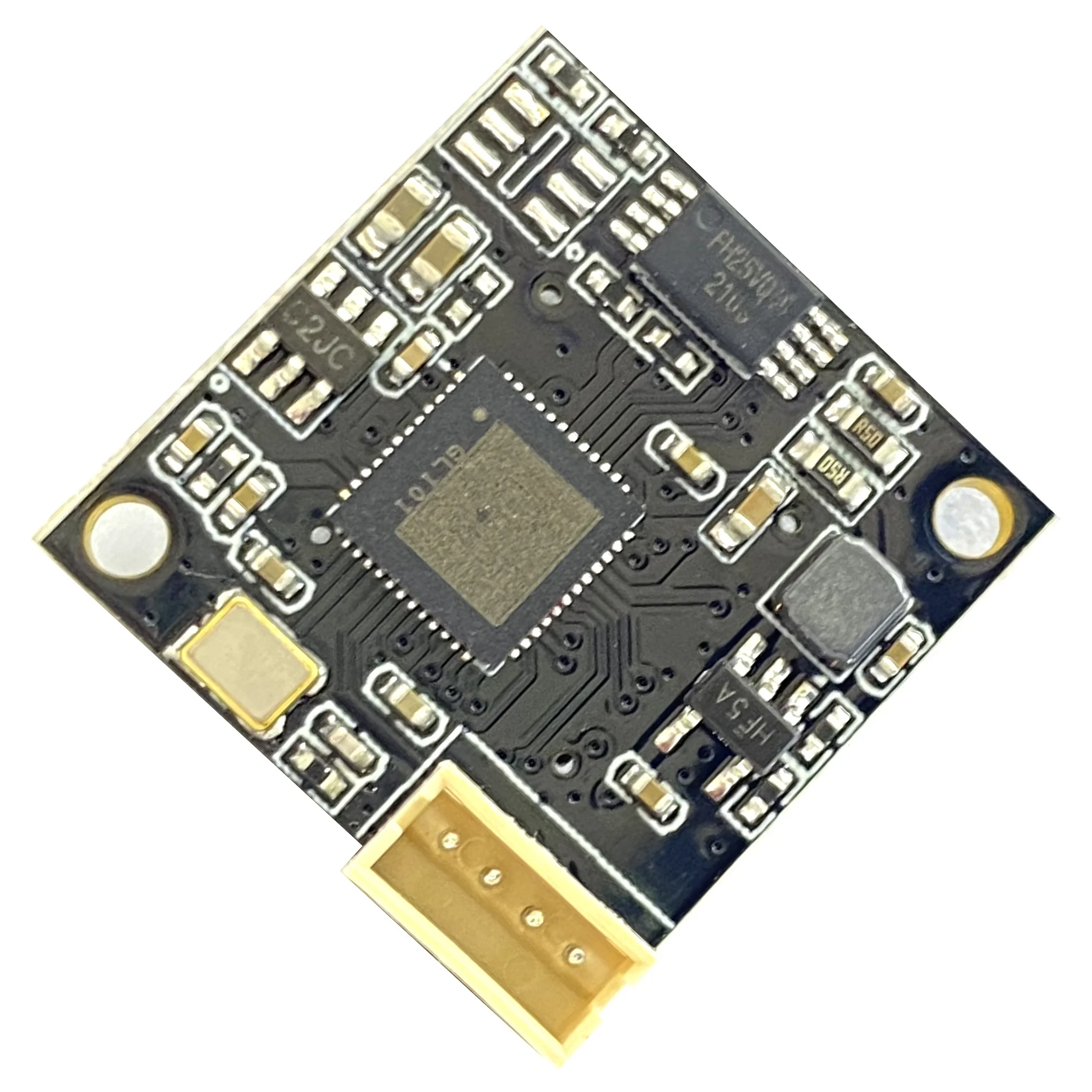

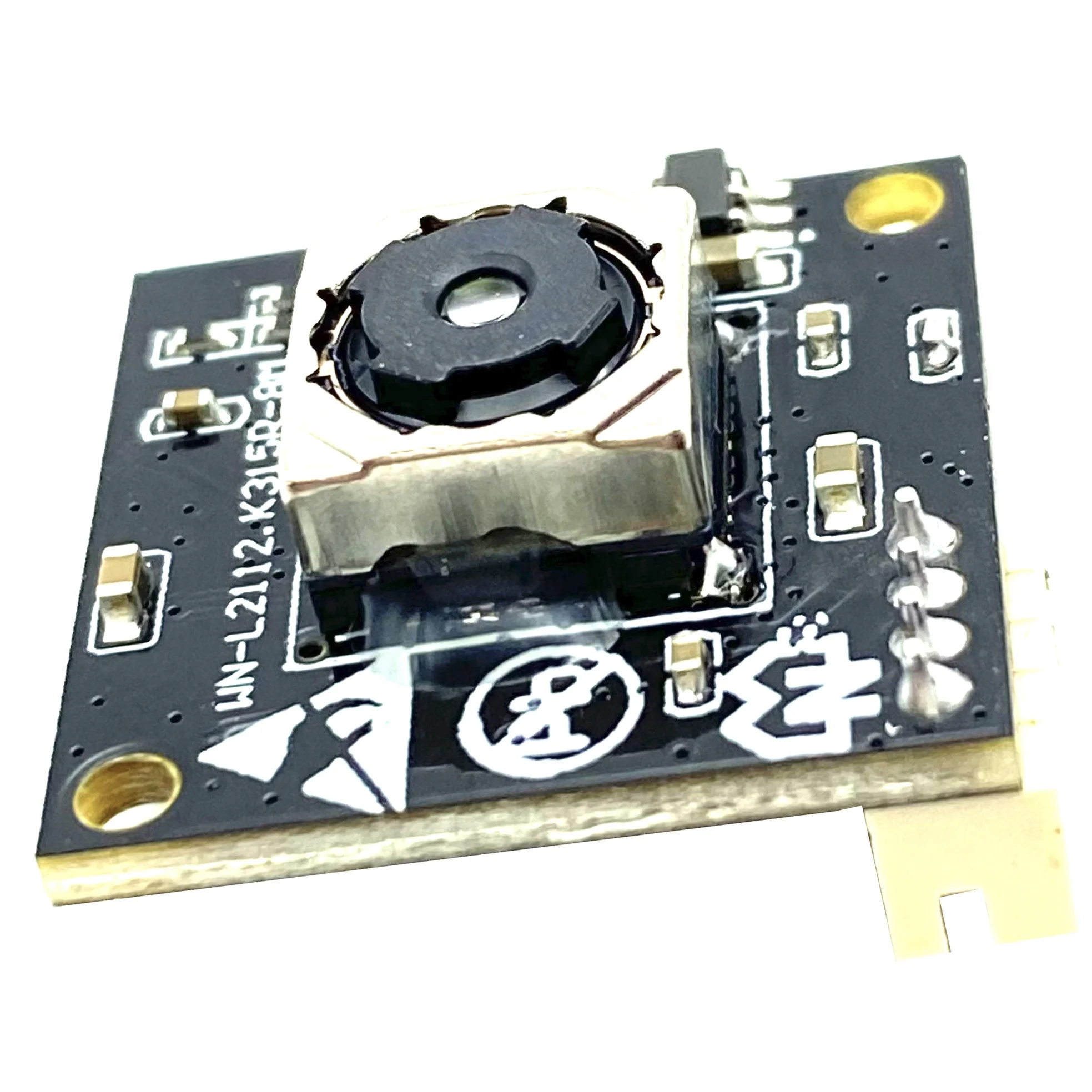

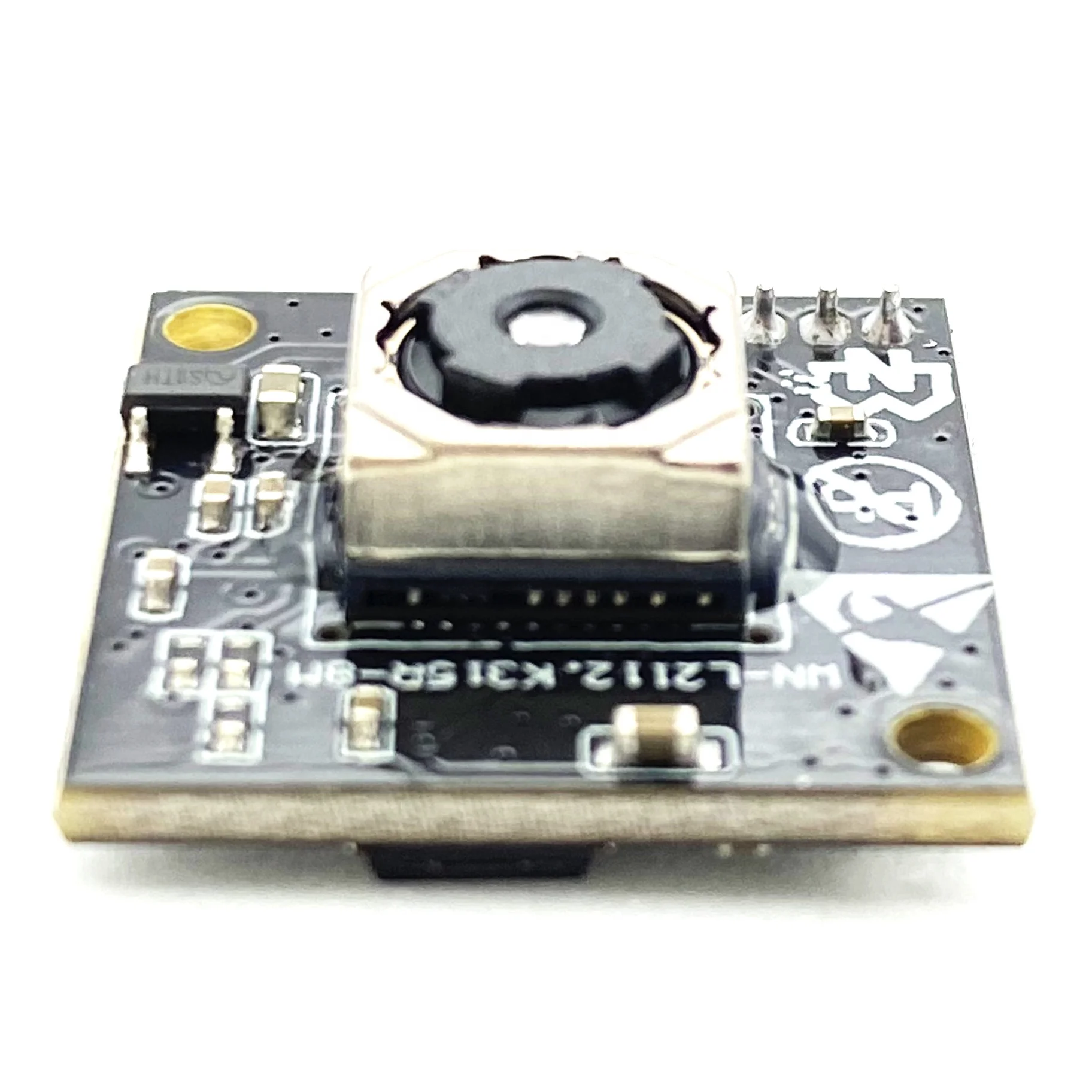

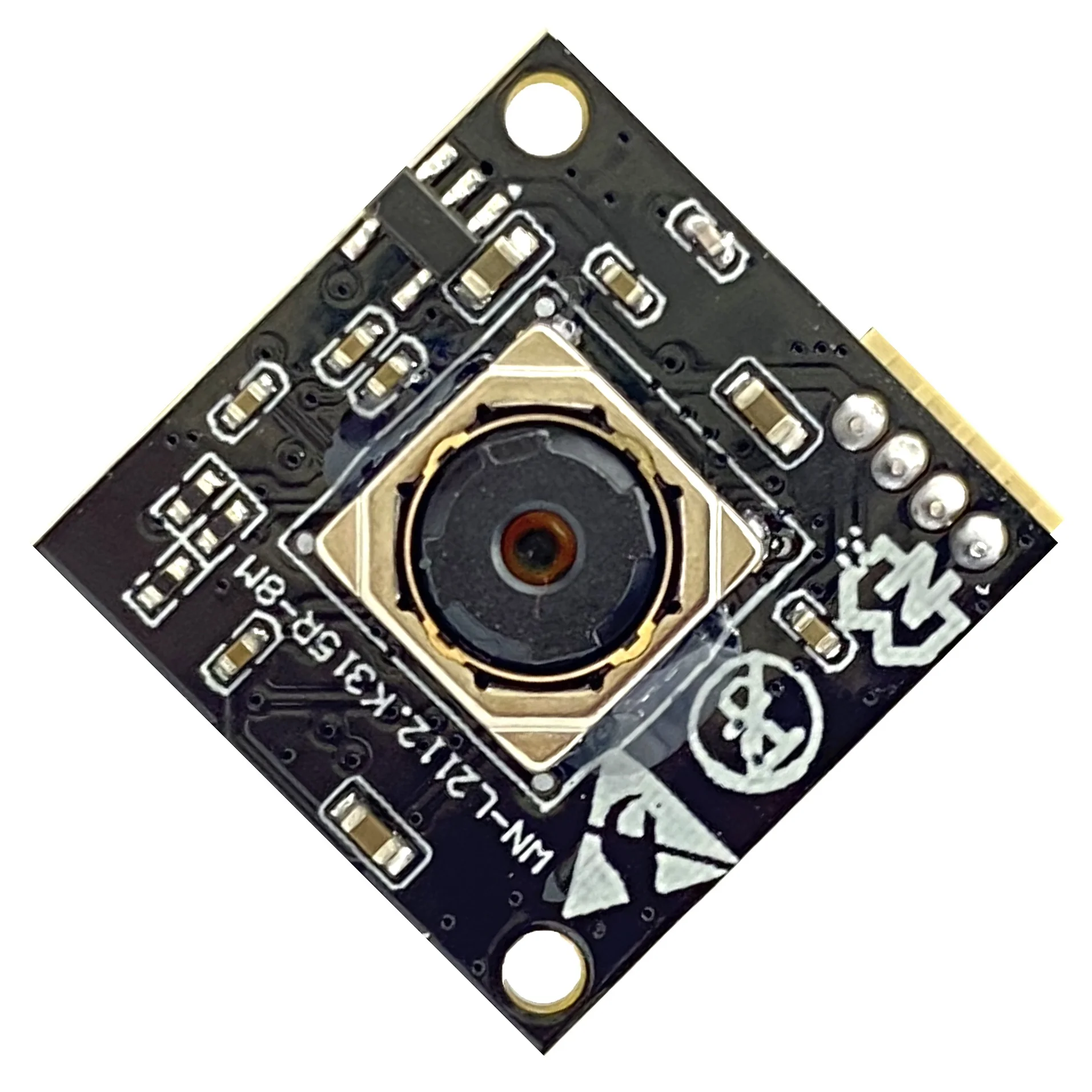

OEM CMOS IMX179 USB 8MPcamera module Mini USB Camera Module With Autofocus CE FCC RoSH for Machine Vision
- Category: >>>
- Supplier: Shenzhen Weinan Electronics Co. Ltd.
Share on (1600428291368):
Product Overview
Description

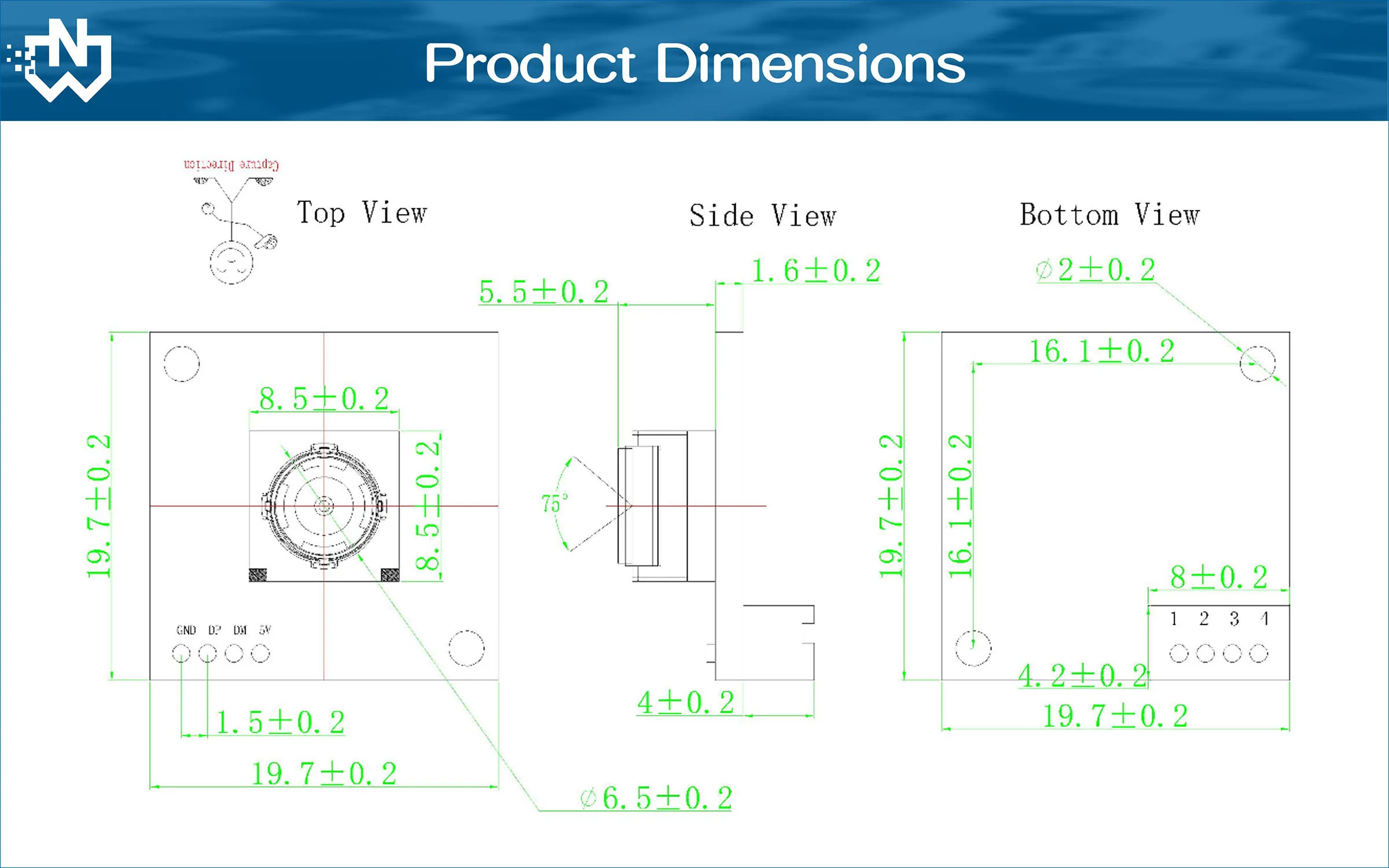

Module Size | 19.7*19.7mm |
Sensor | 1/3.2-Inch CMOS IMX179 |
Pixel Size | 1.4um x 1.4um |
Resolution | 3264 H x 2448 V |
Output Format | MJPEG |
FOV | Auto Focus: 75 Degree or 90 Degree, Manual and Fixed: TBD |
Dynamic Range | Up to 72.5dB |
Focus Type | AF/ FF/ MF |
Shutter Type | Electronic Rolling shutter |
Audio Input | Digital One-way Audio |
Output and Power Supply | High Speed USB2.0 |
Interface | 4 PIN 1.5MM Socket |
Controllable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
Supported OS | Windows, Android, Linux, Wince, Mac OS |
Cable Length | Default 1.0 Meter USB Cable |
Format | Resolution | Frame Rate (USB2.0) |
3264 x 2448 (8MP) | 15FPS | |
2592 x 1944 (5MP) | 15FPS | |
2048 x 1536 (2K) | 15FPS | |
1920 x 1080 (1080P) | 30FPS | |
1600 x 1200 (UXGA) | 30FPS | |
1280 x 720 (720P) | 30FPS | |
800 x 600 (WVGA) | 30FPS | |
640 x 480 (VGA) | 30FPS |
Pin No. | Signal Name | Description |
1 | VCC | 5V Power |
2 | DM | USB2.0 Data- |
3 | DP | USB2.0 Data+ |
4 | GND | GND |
Operating Voltage | USB DC +5V Supply |
Operating Current | 110mA |
Operating Temperature | -20℃ ~ 70℃ |
Storage Temperature | -20℃ ~ 85℃ |
Humidity | 80 ~85% |
Weinan Electronics camera modules have a wide range of applications like ATM machine, kiosk, automatic vending machine, robot, sanner, virtual reality, medical equipment, machinery equipment, POS equipment, smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, tablet external, on-the-spot law enforcement, recognition algorithm attendance machine, simple security system, teaching system, interactive system, credit card machine, attendance machine, voting system, high speed video shooting device, exam system, driving learning system, industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, medical auxiliary equipment, etc.
