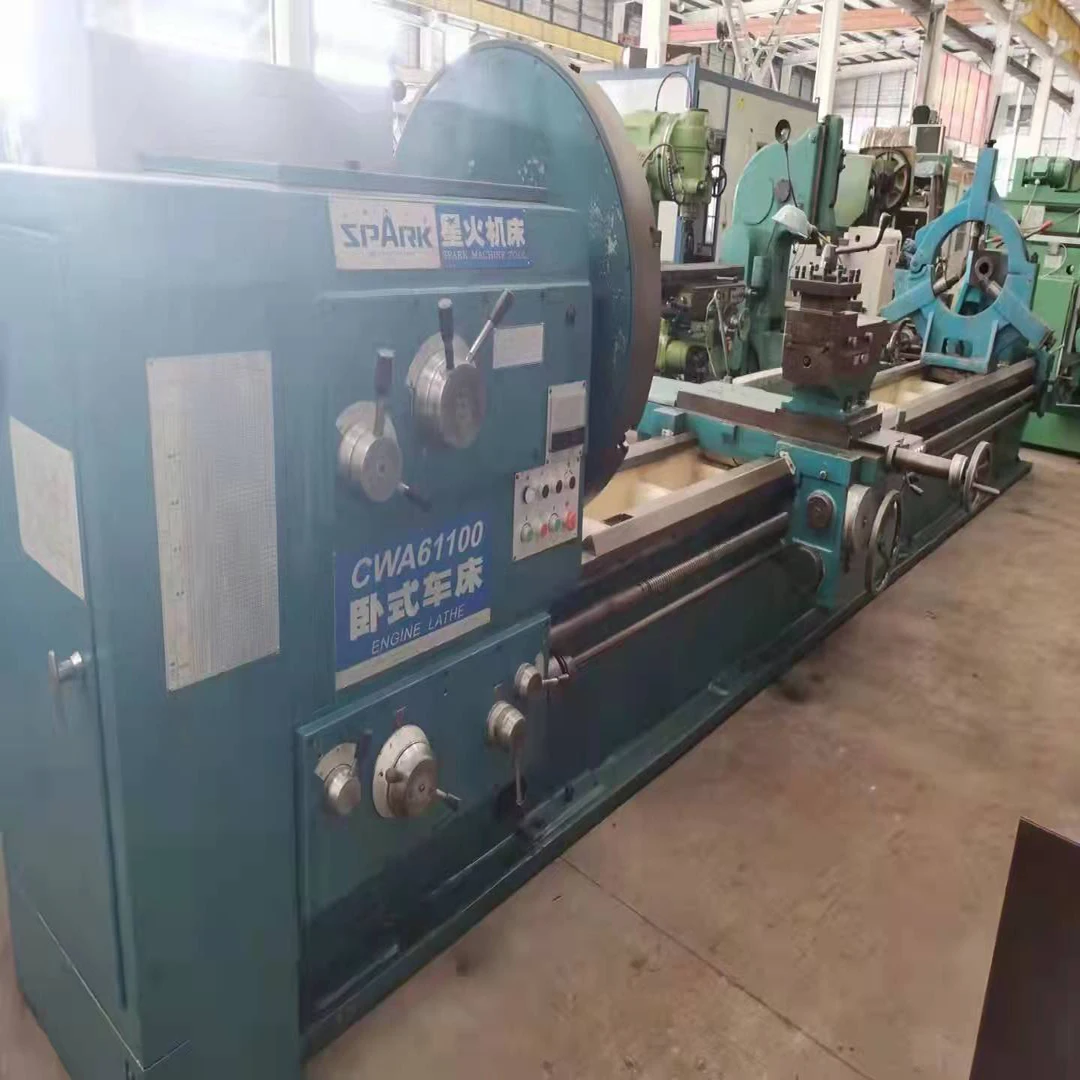

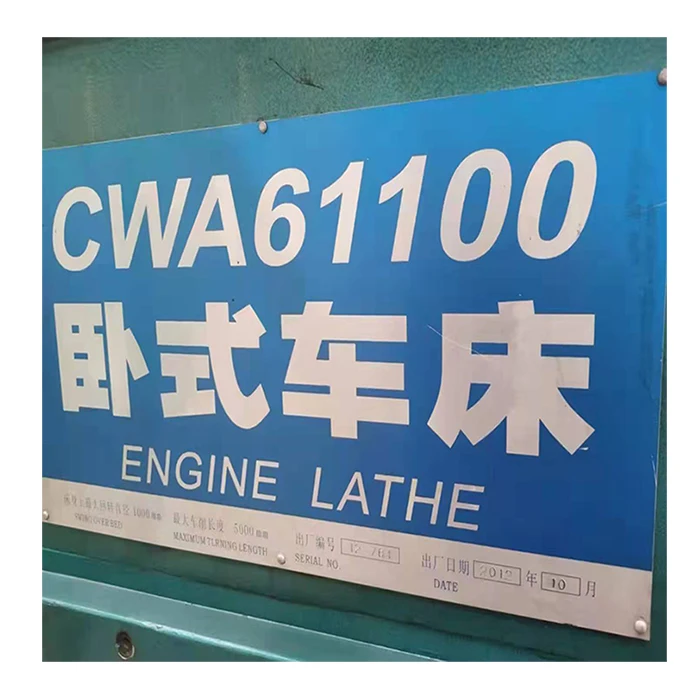

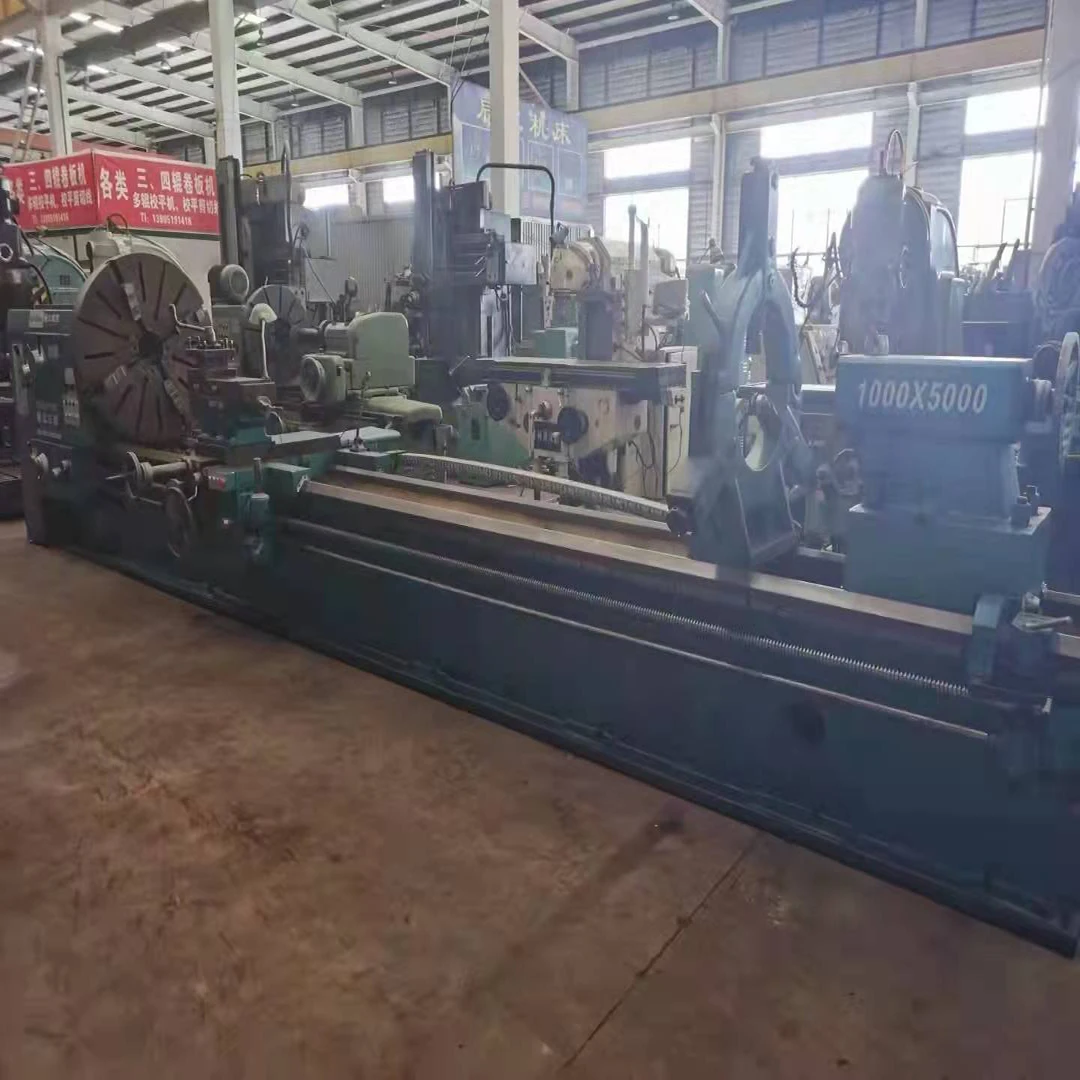

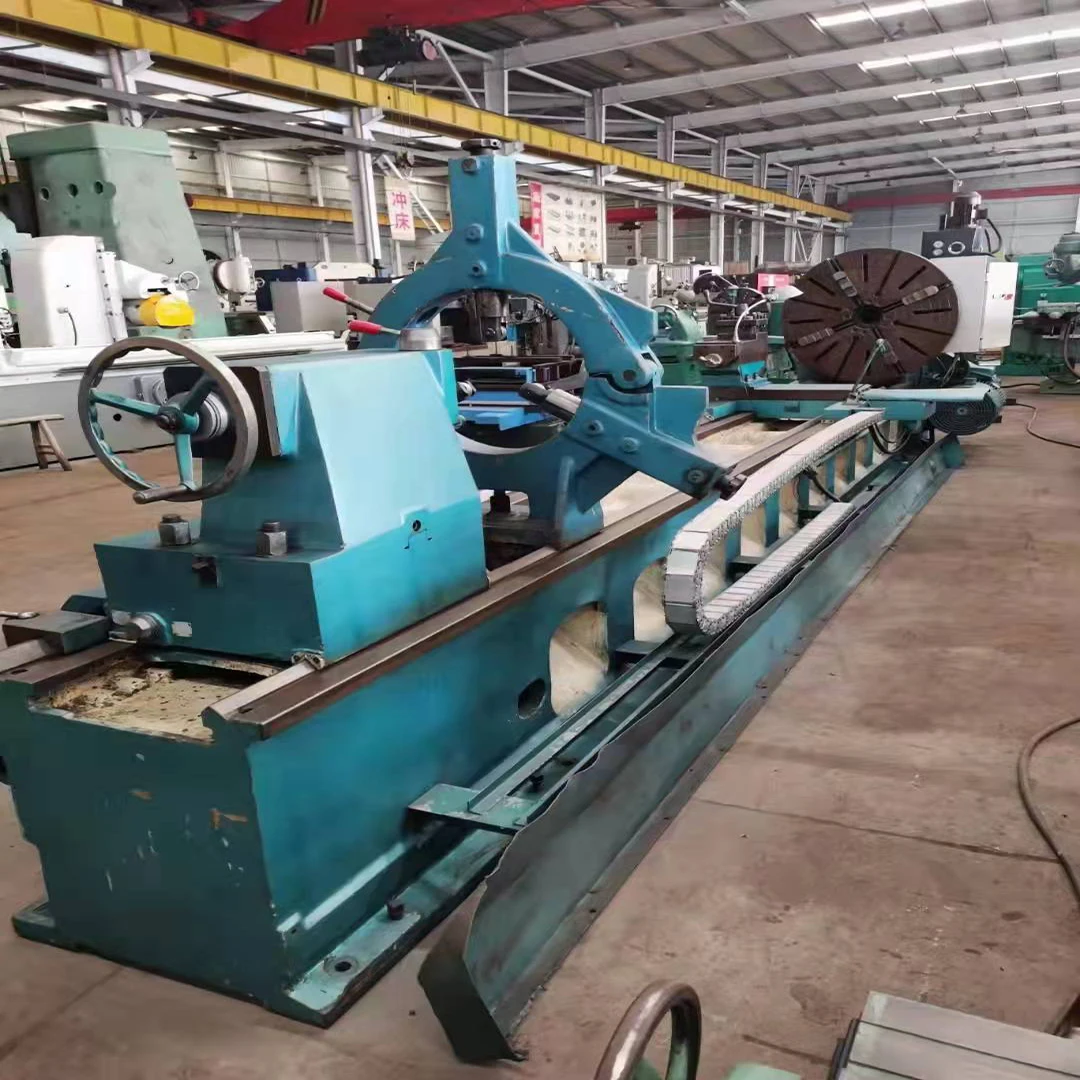

CW61100E 3 Meter Used Horizontal Lathe Machine For Metal Hotel used small tissue paper making machine toilet paper manufacturing
- Category: >>>
- Supplier: Weifang Runlian Economic And Trade Co. Ltd.
Share on (1600428310675):
Product Overview
Description
Product Description
Product Pictures for Hoston New And Used Metal Lathe Machine for Sale
Standard Accessories:
Whole casting foot stand, Foot brake, Coolant system, Work light, Three jaw chuck, Four jaw chuck, Steady rest, Follow rest, Face plate, 4-way tool post, Splash guard, Thread chasing dial,Reduction sleeves,Dead centers,Changing gears,Toolbox & tools 1set
Whole casting foot stand, Foot brake, Coolant system, Work light, Three jaw chuck, Four jaw chuck, Steady rest, Follow rest, Face plate, 4-way tool post, Splash guard, Thread chasing dial,Reduction sleeves,Dead centers,Changing gears,Toolbox & tools 1set
Specification
MODEL | C6260Y | C6266Y | C6280Y | C62100Y | ||||||
CAPACITIES | Max swing over bed | 600mm (23 3/5") | 660mm (26") | 800mm (31 1/2") | ||||||
Max swing over slide | 375mm(14 3/4" ) | 435mm(17 1/8") | 545mm(21 2/5") | |||||||
Workpiece cutting length | 1000mm, 1500mm, 2000mm. 3000mm.4000mm | |||||||||
Max swing over gap | 800mm(31 1/2") | 860mm(33 4/5") | 1000mm (39") | |||||||
Effective length of gap | 280mm (11") | |||||||||
Bed width | 400mm (15 7/10") | |||||||||
HEADST0CK | Spindle hole | 103mm(4 1/16")/ 130mm(5 1/8") | ||||||||
Spindle nose | IS0-D11 | |||||||||
Spindle taper | Metric 115mm / 140mm (1:20) | |||||||||
Spindle speeds (number) | 9-1275 rpm (18 steps)/ 9-938 rpm (12 steps) | |||||||||
FEEDS | Metric threads range (kinds) | 0. 5-112mm (72 kinds) | ||||||||
Inch threads range (kinds) | 1/4-56inch (72 kinds) | |||||||||
Module threads range (kinds) | 0. 5-7m π(36 kinds) | |||||||||
Pitch threads range (kinds) | 4-56D.P (36 kinds) | |||||||||
Longitudinal feeds range (kinds) | 0.073-4.066mm/rev (0.0028-0.16 inch/rev) (54 kinds) | |||||||||
Cross feeds range (kinds) | 0.036-2.033mm/rev (0.0014-0.08 inch/rev) (54 kinds) | |||||||||
Rapid traverse speed | 5m/min (16.4 ft/min) | |||||||||
Leadscrew size: diameter/ pitch | 40mm/12mm or 40mm 1/2" | |||||||||
CARRIAGE | Cross slide travel | 325mm (12 4/5") | ||||||||
Compound rest travel | 110mm (4 1/3") | |||||||||
Cross-section size of tool shank | 32mm X 32mm | |||||||||
TAILSTOCK | Taper of tailstock sleeve | MT6 | ||||||||
Diameter of tailstock sleeve | 90mm (3 1/2") | |||||||||
Travel of tailstock sleeve | 150mm (5 7/8") | |||||||||
MOTOR | Main motor power | 7. 5kw or 11kw | ||||||||
Cooling bump motor | 0.125kw | |||||||||
Rapid motor | 0.12kw | |||||||||
Center Distance Packing size(L*W*H) | 1000mm 2820X1300X2100mm(111X51X82. 5inch) 1500mm 3320X1300X2100mm(130X51X 82. 5inch) 2000mm 3820X1300X2100mm(150X51X82. 5inch) 3000mm 4820X1300X2100mm(189X51X82. 5inch) 4000mm 5820X1300X2100mm(229X51X82. 5inch) | |||||||||
Center Distance Net weight / gross weight (Kgs) | 1000mm 2900/3500kg 3000/3600kg 3150/3750kg 3450/4050kg 1500mm 3150/3750kg 3250/3850kg 3400/4000kg 3700/4300kg 2000mm 3400/4050kg 3500/4150kg 3650/4300kg 3950/4600kg 3000mm 3800/4450kg 3900/4550kg 4050/4700kg 4350/5000kg 4000mm 4200/4850kg 4300/4950kg 4450/5100kg 4750/5400kg | |||||||||
Standard Accessories: Optional Accessories
1. Centers; 1. Quick change toolpost
2. Steady rest (750mm without this); 2. 2-axis Digital readout
3. Follow rest (750mm without this); 3. 4-jaw chuck
4. Foot plate; 4. Tamping attachment
5. 3-jaw chuck;
6. Leading screw guard; (3000mm without this)
7. Toolpost protection;
8. Chuck protection;
9. Cooling system;
10. Work Lamp.
11. Back guard
1. Centers; 1. Quick change toolpost
2. Steady rest (750mm without this); 2. 2-axis Digital readout
3. Follow rest (750mm without this); 3. 4-jaw chuck
4. Foot plate; 4. Tamping attachment
5. 3-jaw chuck;
6. Leading screw guard; (3000mm without this)
7. Toolpost protection;
8. Chuck protection;
9. Cooling system;
10. Work Lamp.
11. Back guard

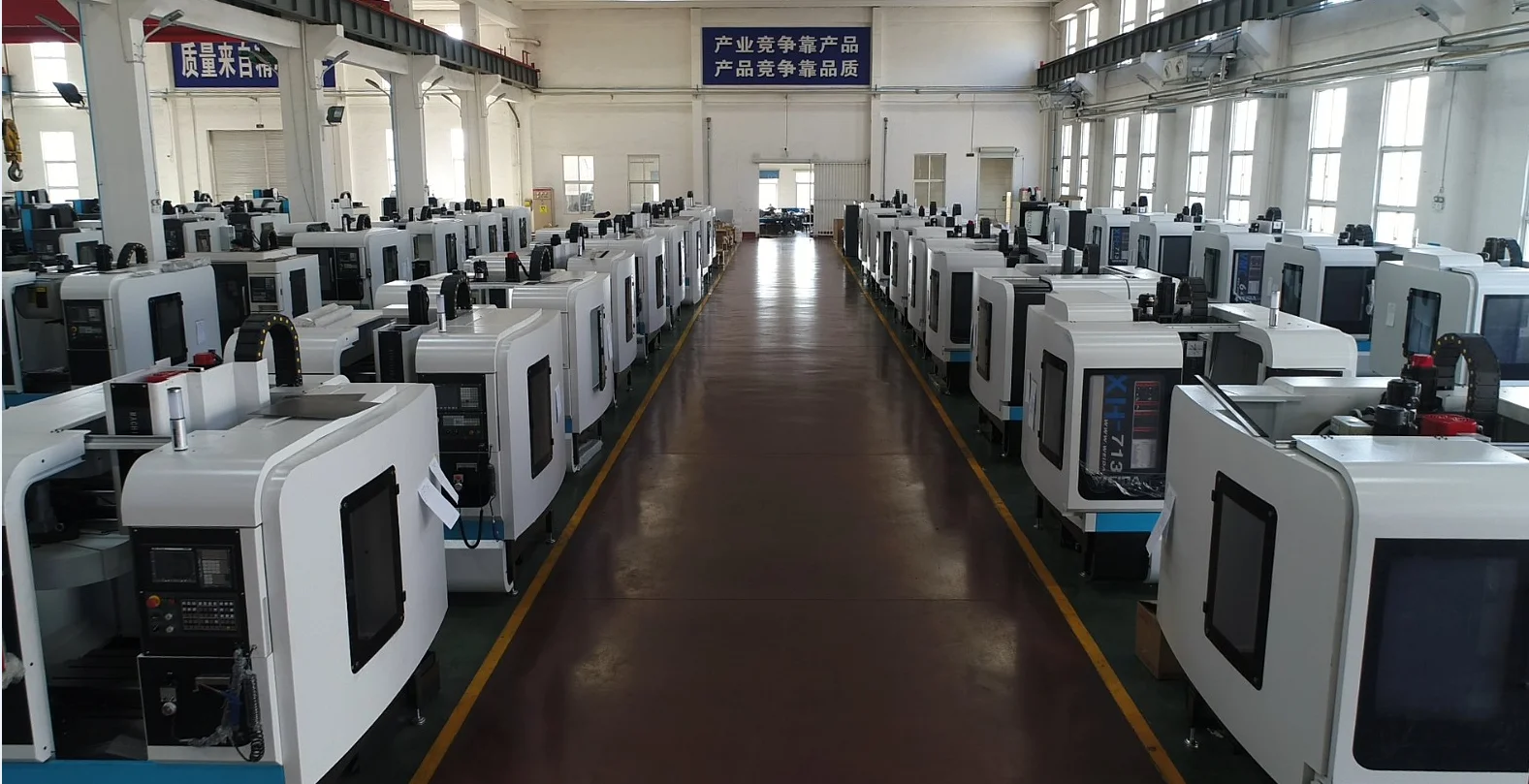

Company Profile
Weifang Runlian Economic and Trade Co., Ltd. was established in 2011, Is a professional domestic high-end machine tool equipment And accessories import and export enterprises,Including metal cutting machine,metal cutting machine tools,Grinding Machine,Grinding tool,Measuring Tool,Machine function parts,numerical control devices (CNC),Metal forming machine, Lubricating grease and mechanical processing technology consulting business.
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
