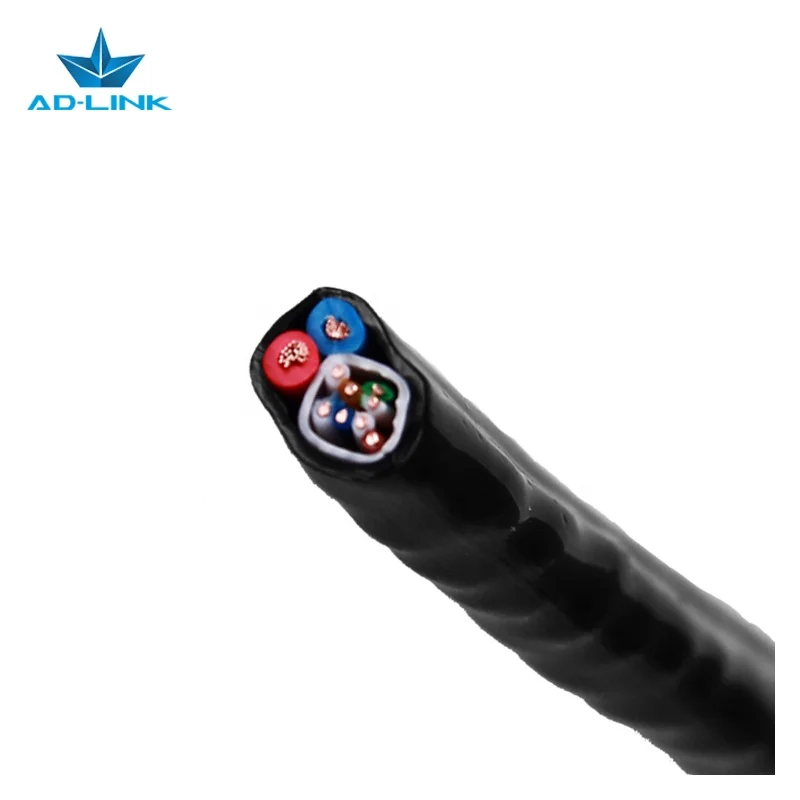

305M CCTV Siamese Cable with Power Cable Wire UTP Cat5e Siamese Cable
- Category: >>>
- Supplier: Guangzhou Ronde Industrial Co. Ltd.
Share on (1600428312979):
Product Overview
Description
Product Description

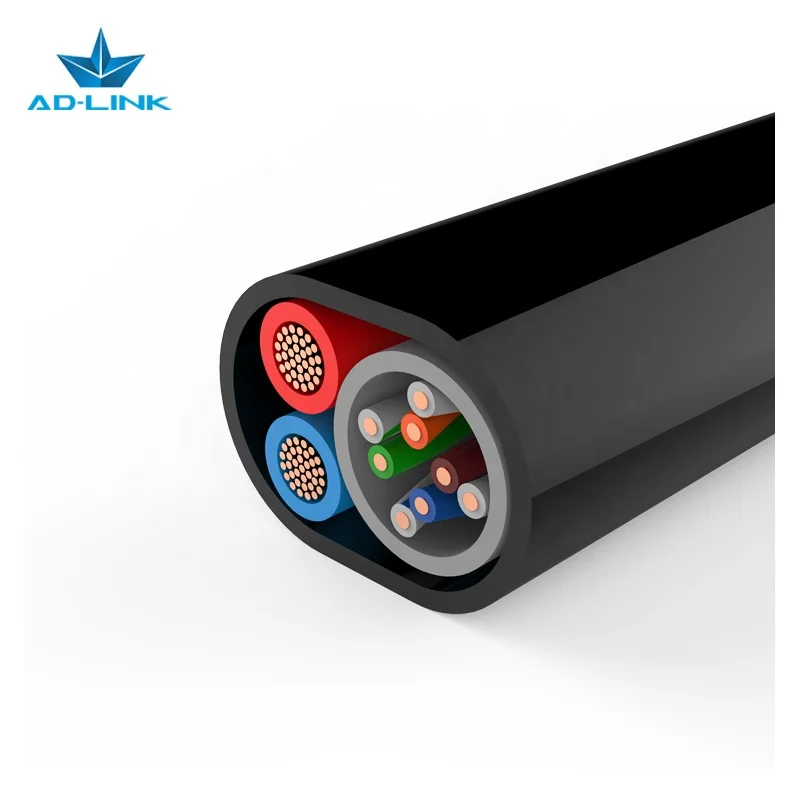

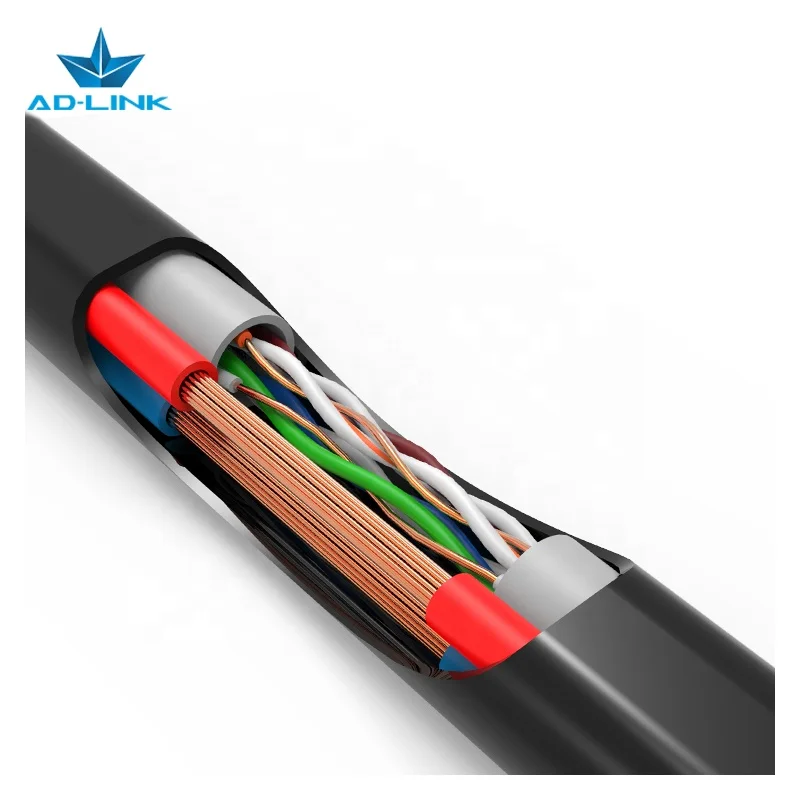

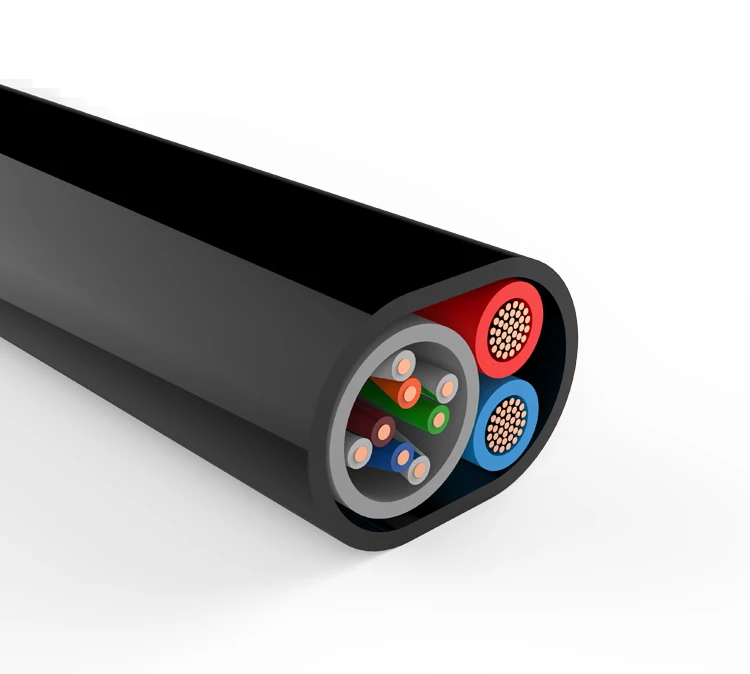

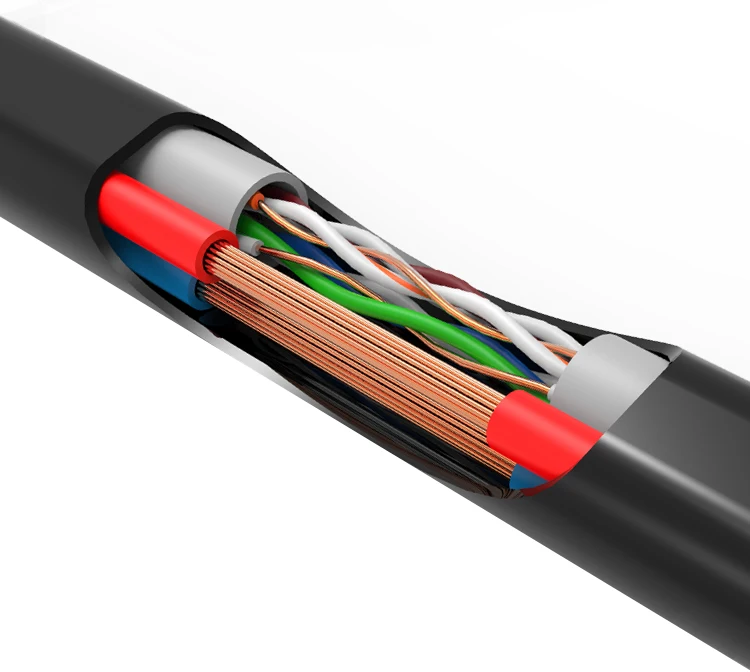

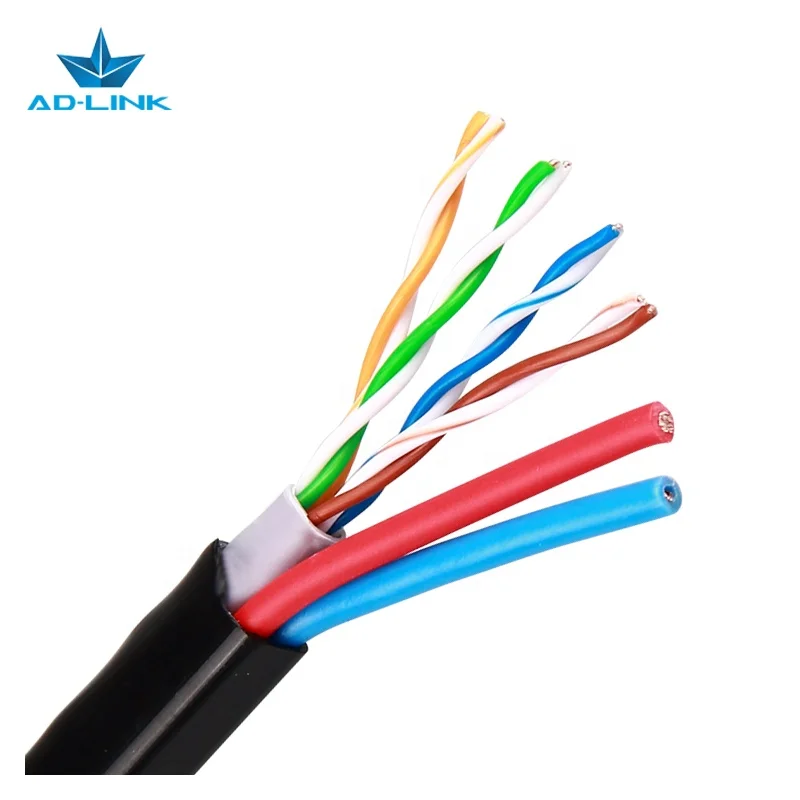

8+2 Siamese Cable
High Speed and Good Quality
Pure and strong copper conductor

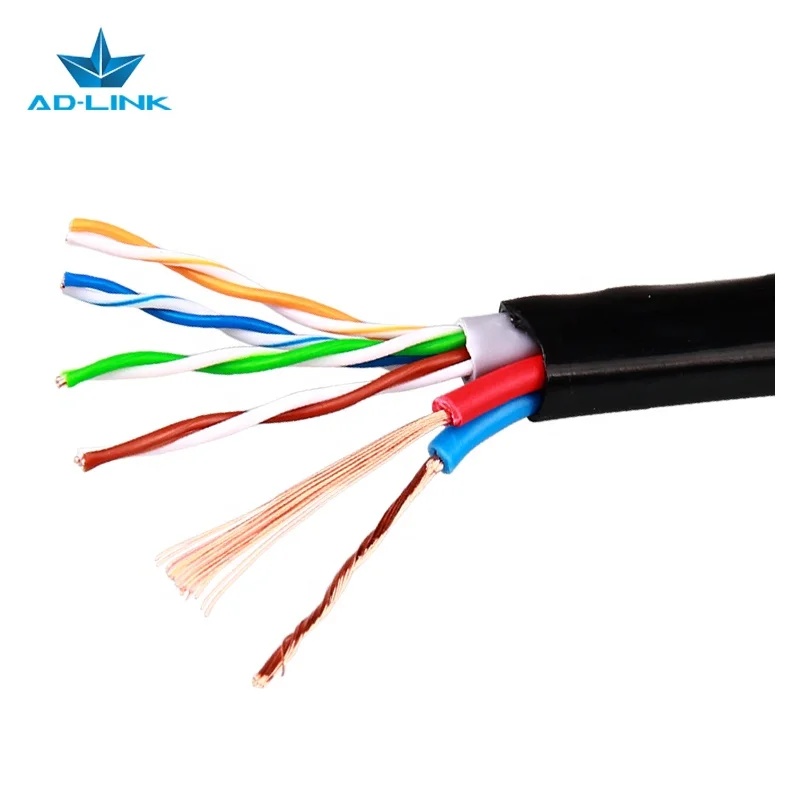

4 Pairs UTP Cat5e Network Cable + 2 Power Cable
New and quality PE jacket
Specification
Model | Model | 8+2 Siamese Cable | |||||||
Product Name | 4 Pairs UTP Cat5e Network Cable +2 Power Cable | ||||||||

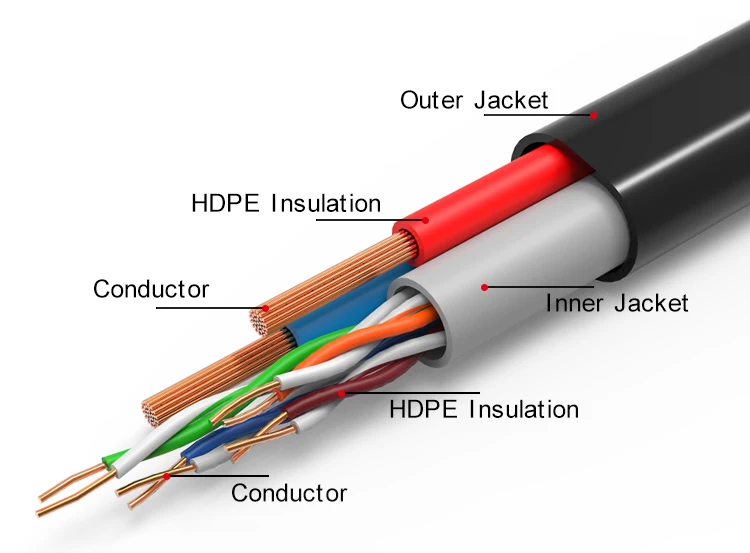

SPECIFICATION (UTP CAT5E 2P) | Conductor Material | BC/CU/CCA (Optional) | |||||||
No.of Conductor | 4 Pairs | ||||||||
Conductor Size | 24AWG, 26AWG (Customized) | ||||||||
Insulation Thickness | 0.2mm±0.02mm | ||||||||
Insulation Material | HDPE | ||||||||
Insulation OD | 0.92±0.02mm | ||||||||
Jacket Thickness | 0.5mm±0.02mm | ||||||||
Jacket Material | PVC | ||||||||
Jacket Color | Grey,blue ,white ,Black (Customized) | ||||||||
SPECIFICATION (RVV CABLE) | Nominal crossing area (mm²) | 2*0.5mm² / 2*0.75mm² | |||||||
Wire Material | BC/CU/CCA (Optional) | ||||||||
Insulation Thickness | 0.6±0.1mm | ||||||||
Jacket Thickness | 0.8mm±0.1mm | ||||||||
Outer Jacket | Application | PE | |||||||
Compressive Strength | Strong | ||||||||
Impedance | (f=1-100MHz)100±15ohm | ||||||||
Tensile Resistance | (max)250N | ||||||||
Rated Transmission Rate（NVP) | 0.72 | ||||||||
Using Environment | Outdoor Waterproof network cable | ||||||||
Printing Words on Cable | Customized | ||||||||
Application | Telecommunication, CCAV, CCTV camera | ||||||||
