agricultural 32mm pe hose micro spray tube laser irrigation tape rain horses irrigation pipe spayers
- Category: >>>
- Supplier: Juancheng County Yibiyuan Water-Saving Equipment Technology Co. Ltd.
Share on (1600428356946):
Product Overview
Description
Product Description

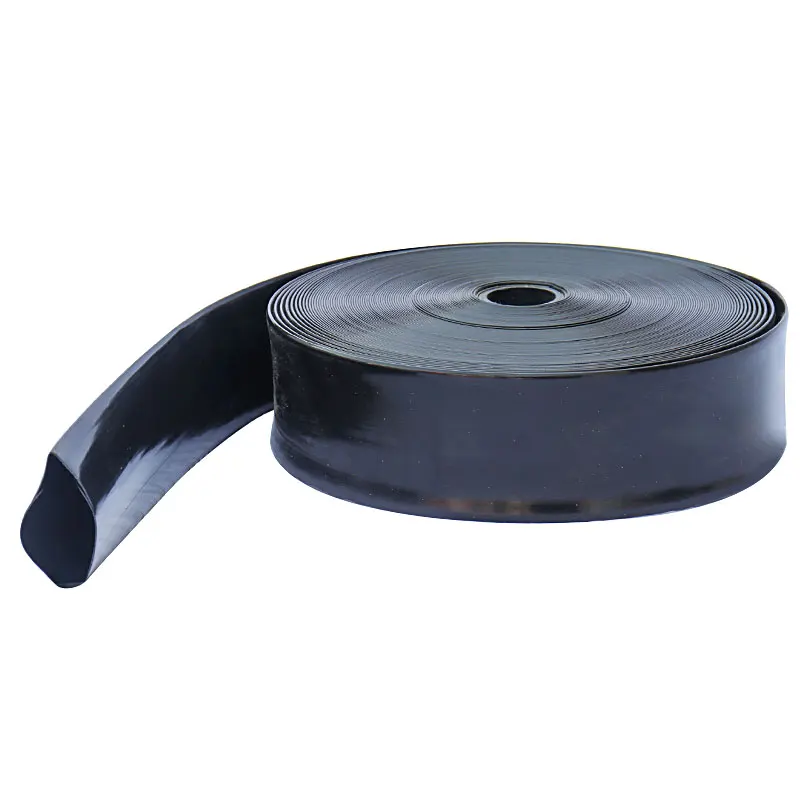

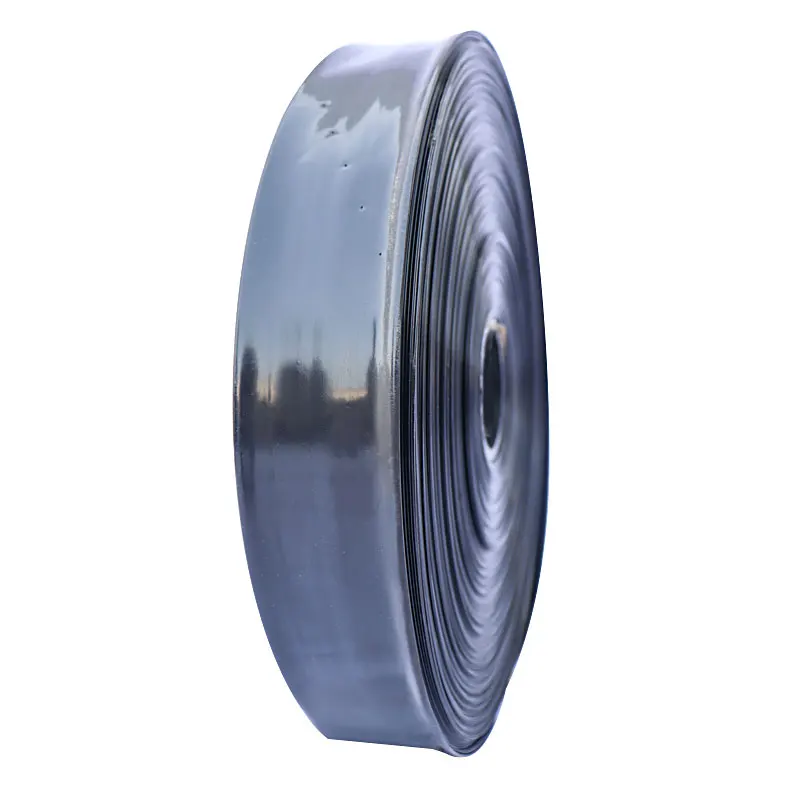

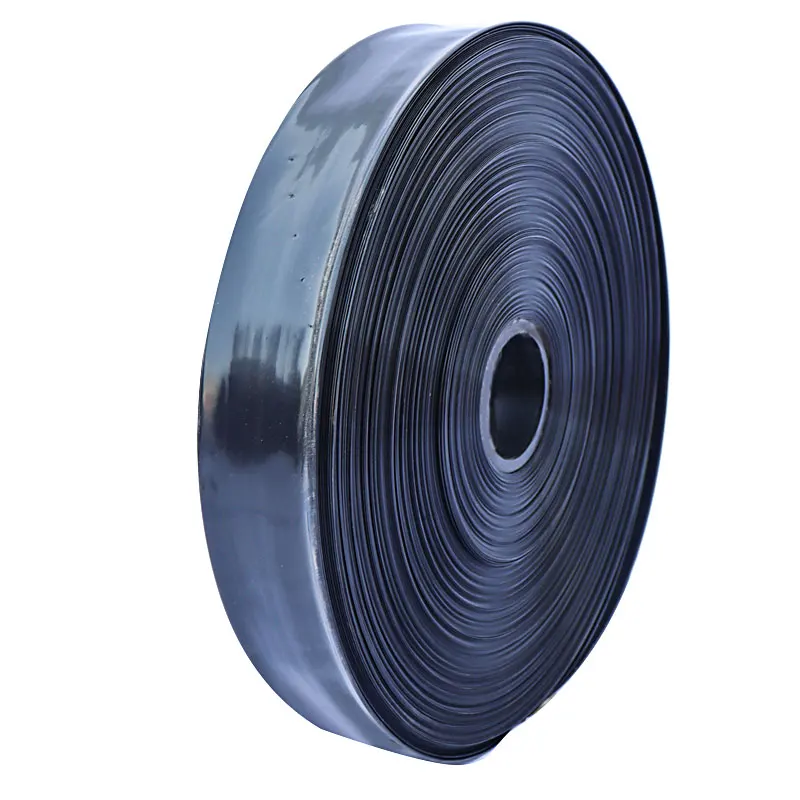

Rain Hose Irrigation System
Irrigation Rain Hose Micro Spray Water Hose Sprinkler Pipe With Holes

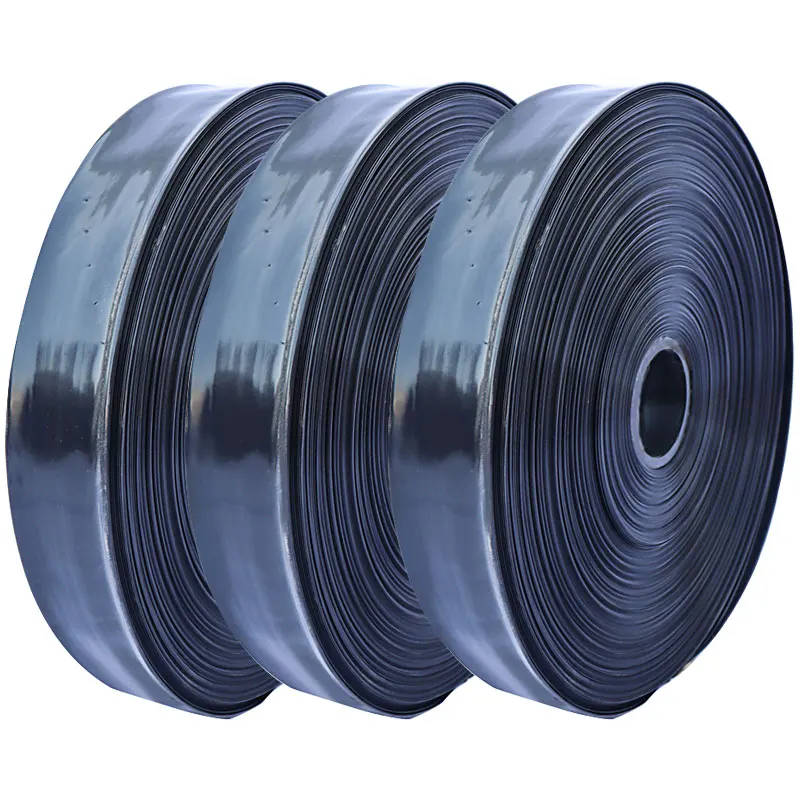

Sprinkler Hose with Holes
1. Product description:

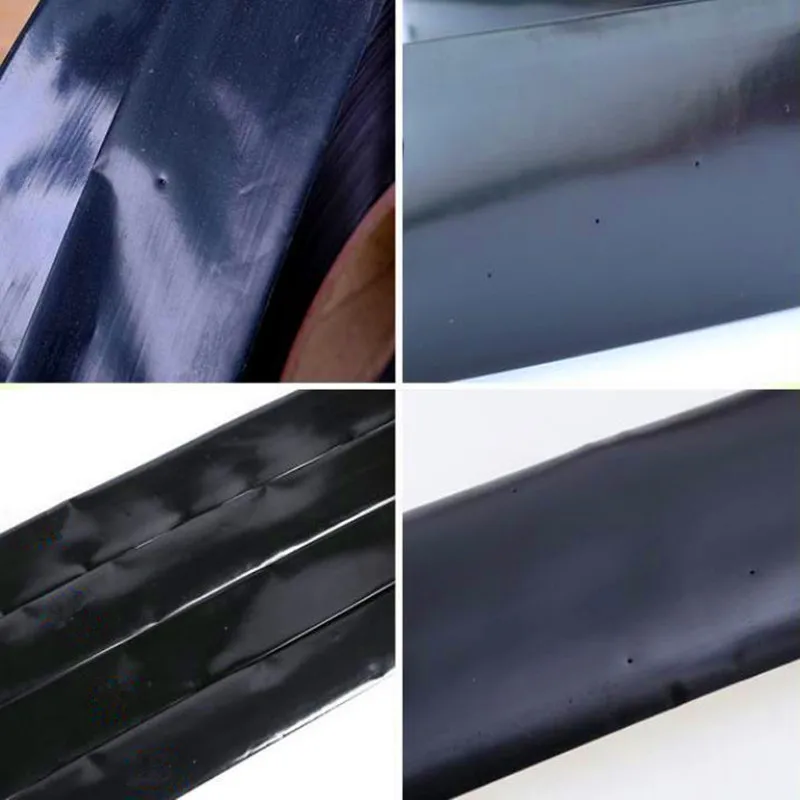

Spraying holes on the sprinkler hoses are precisely puched with laser. Currently, 3-hole, 5-hole and 7-hole per set are available,

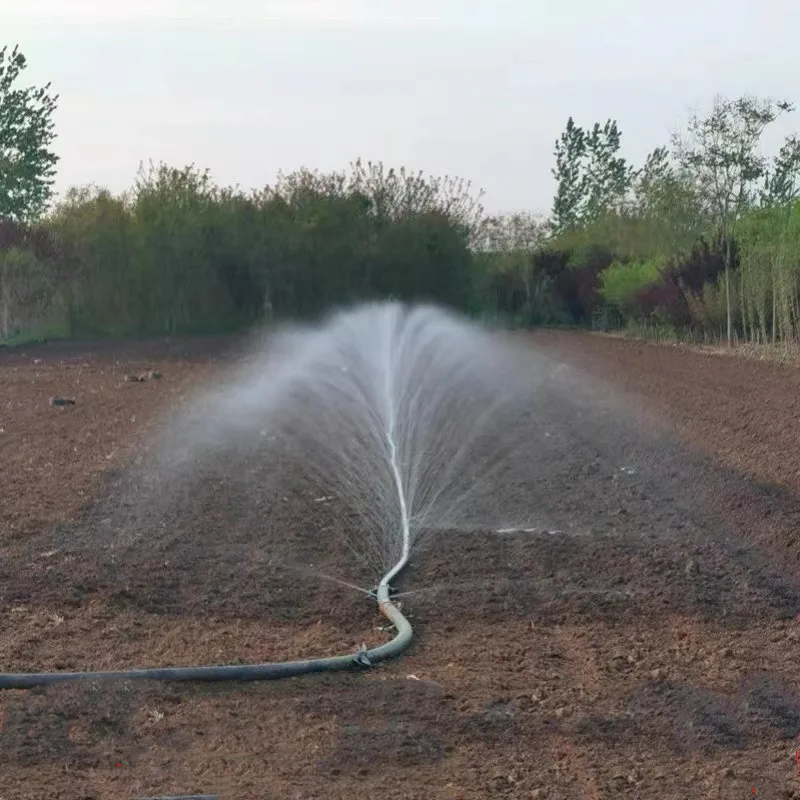

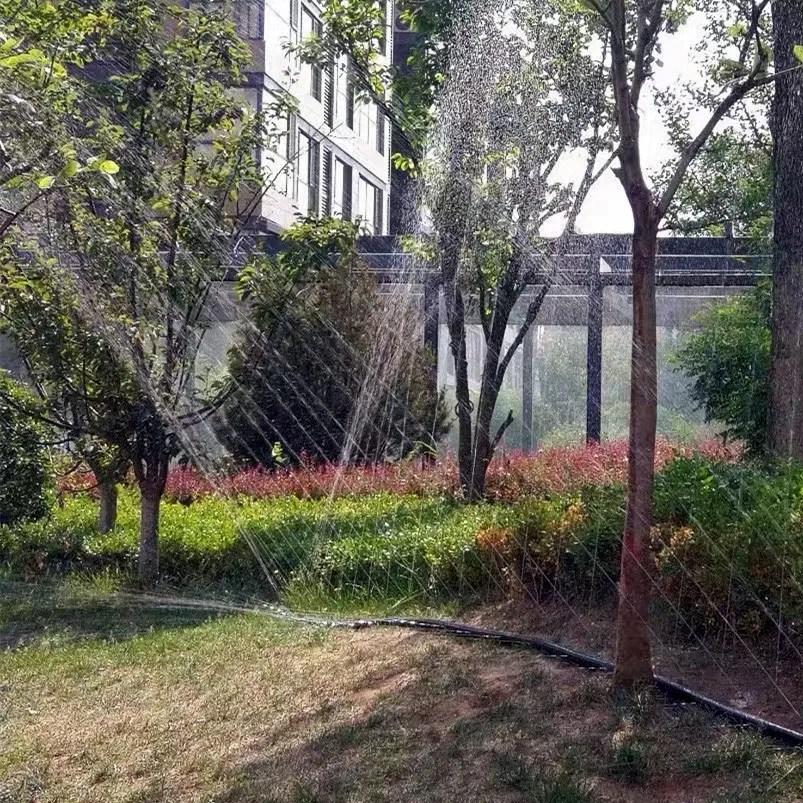

varying with hose diameter. Depending on the water pressure and hose diameter, sprinkler hoses with holes can water about 2~12
meters wide along the hose. Also, you can easily adjust the spray radius by turning down the water pressure.
1. Product description:
Spraying holes on the sprinkler hoses are precisely puched with laser. Currently, 3-hole, 5-hole and 7-hole per set are available,
varying with hose diameter. Depending on the water pressure and hose diameter, sprinkler hoses with holes can water about 2~12
meters wide along the hose. Also, you can easily adjust the spray radius by turning down the water pressure.
Width (mm) | Dia (mm) | Wall thick (mm) | Roll Weight (kg) | Roll Length (m) |
35 | 22 | 0.18 | 10.5 | 1000 |
45 | 28 | 0.18 | 13.5 | 1000 |
50 | 32 | 0.20 | 20 | 1000 |
65 | 40 | 0.23 | 5 | 200*5 |
80 | 50 | 0.30 | 5 | 100*4 |
100 | 63 | 0.30 | 6 | 100*3 |
Products Features
Excellent emission uniformity and anti-clogging property.
100% PE raw material ,anti-UV,anti-corrosion,and durability .
Extruded with dripper inside,light weight and packed by roll,good for transportation.
Suitable for large farm application.

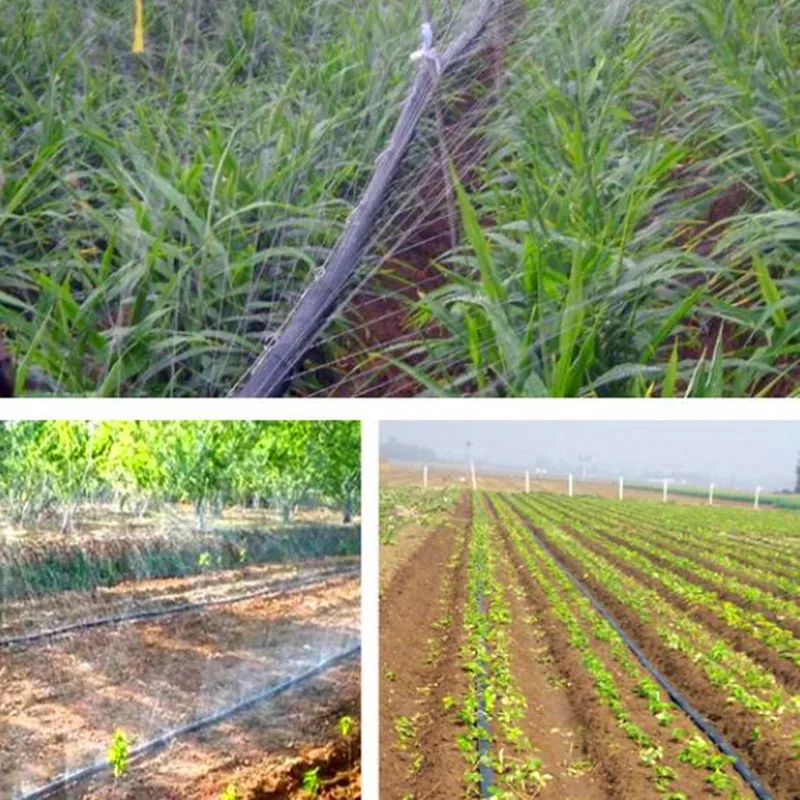

Precision performance Cv ≤ 5%.Drip tape can be installed easily either above or below ground. It is designed for use in vegetable gardens, narrow rows of vegetation, and for row crops. Most often, a vegetable garden or vegetable crops are planted in parallel rows. This makes the layout of a drip tape very easy.
To successfully use drip tape for seed germination, the soil type, the drip tape outlet spacing, and the depth and spacing between the drip tape laterals should be determined first. The drip tape must be close enough to the surface and the drip outlets must be in close enough spacing to germinate the seeds. For example, drip tape 4 to 5 inches deep was successfully used to germinate onion seeds in silt loam soil, while drip tape with 12 inch spacing failed to uniformly germinate the same crop.
When using a drip tape system, the right amount of water must be applied. If more water is applied than the plants need, most of the benefits that the drip tape system provides will be negated. The soil will be excessively wet, promoting disease, weed growth, and nitrate leaching.
Option one for large coils: Mount the drip tape spool on a stand at the end of the row, tie the stand to the ground and pull the drip tape close to the ground.
Step 1: Install a drip zone or control valve that includes remote control valve or battery operated controller, filter, pressure
regulator, and pipe adapter to PVC or poly tubing. We highly recommend using a 10 to 15 PSI pressure regulator.
Step 2: Lay out the main lateral or supply line, PVC pipe, or poly tubing perpendicular to the rows.
Step 3: Place the drip tape at the layout or spacing selected (see the two options suggested above).
Spacing suggestions: Lay out the drip tape at the center of the vegetable row with one line per row, or one line between every two rows if the bed is less than 2' wide.
Excellent emission uniformity and anti-clogging property.
100% PE raw material ,anti-UV,anti-corrosion,and durability .
Extruded with dripper inside,light weight and packed by roll,good for transportation.
Suitable for large farm application.
Precision performance Cv ≤ 5%.Drip tape can be installed easily either above or below ground. It is designed for use in vegetable gardens, narrow rows of vegetation, and for row crops. Most often, a vegetable garden or vegetable crops are planted in parallel rows. This makes the layout of a drip tape very easy.
To successfully use drip tape for seed germination, the soil type, the drip tape outlet spacing, and the depth and spacing between the drip tape laterals should be determined first. The drip tape must be close enough to the surface and the drip outlets must be in close enough spacing to germinate the seeds. For example, drip tape 4 to 5 inches deep was successfully used to germinate onion seeds in silt loam soil, while drip tape with 12 inch spacing failed to uniformly germinate the same crop.
When using a drip tape system, the right amount of water must be applied. If more water is applied than the plants need, most of the benefits that the drip tape system provides will be negated. The soil will be excessively wet, promoting disease, weed growth, and nitrate leaching.
Option one for large coils: Mount the drip tape spool on a stand at the end of the row, tie the stand to the ground and pull the drip tape close to the ground.
Step 1: Install a drip zone or control valve that includes remote control valve or battery operated controller, filter, pressure
regulator, and pipe adapter to PVC or poly tubing. We highly recommend using a 10 to 15 PSI pressure regulator.
Step 2: Lay out the main lateral or supply line, PVC pipe, or poly tubing perpendicular to the rows.
Step 3: Place the drip tape at the layout or spacing selected (see the two options suggested above).
Spacing suggestions: Lay out the drip tape at the center of the vegetable row with one line per row, or one line between every two rows if the bed is less than 2' wide.
Related Products
Our Advantages
Company Profile
Shandong Yibiyuan Water-saving Irrigation Technology Co., Ltd. is a comprehensive professional enterprise integrating the research, development, production, operation and technical services of plastic pipe, pipe fittings, sprinkling irrigation, drip irrigation, filter, fertilizer applicator, air inlet and vent valve, built-in drip irrigation pipe, cut-off valve, constant-pressure frequency-conversion control equipment, pressure compensation emitter, drip tip, current stabilizer, drip irrigation tape and other water-saving irrigation equipment. The company covers an area of 15,000 square meters, with a construction area of 5,000 square meters, and has a total investment of 3 million yuan. It has more than 100 employees, including 50 employees with college degree or above, 20 engineering technicians above intermediate level and 8 senior engineers. The company produces and sells 5,000 tons of water-saving irrigation equipment annually. On the basis of introducing advanced technology at home and abroad, through extensive contact and cooperation with China Agricultural University, Irrigation Research Institute of the Ministry of Water Resources and other scientific research institutions and engineering companies, as well as continuous efforts of our own, Yibiyuan water-saving irrigation equipment has been leading in technology and quality, which is at the leading level in domestic similar products. The company has a complete range of products, high quality and perfect service, which are well received by users all over the world.
Product packaging
Usually the packaging is PE bag and standard export carton, to better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer?
A: Yes, Yibiyuan is a leading manufacturer of irrigation and hydroponics products located in China.
Q: What is your minimum order quantity?
A: The MOQ for sprinkler hose is 1000 meters.
Q: What are your payment terms?
A: Generally, we accept T/T payment, 30% in advance and the rest before shipment. Please contact your sale representatives for details.
Q: What's the lead time of the sprinkler hose with holes?
A: The lead time is about 7~15 days.
Q: I haven't done business with you before, how can I trust your company?
A: You can watch the video introduction verified by the world-leading inspection company Intertek. Or assign your agent to visit our factory personally.
Q: What's your shipment terms?
A: We generally go FOB Qingdao or Ex Works. You can talk to your sales rep for other options.
Q: Can you send me some samples before the mass order?
A: Yes, we're glad to offer you some sprinkler hose samples, though you need to cover the shipping cost.
A: Yes, Yibiyuan is a leading manufacturer of irrigation and hydroponics products located in China.
Q: What is your minimum order quantity?
A: The MOQ for sprinkler hose is 1000 meters.
Q: What are your payment terms?
A: Generally, we accept T/T payment, 30% in advance and the rest before shipment. Please contact your sale representatives for details.
Q: What's the lead time of the sprinkler hose with holes?
A: The lead time is about 7~15 days.
Q: I haven't done business with you before, how can I trust your company?
A: You can watch the video introduction verified by the world-leading inspection company Intertek. Or assign your agent to visit our factory personally.
Q: What's your shipment terms?
A: We generally go FOB Qingdao or Ex Works. You can talk to your sales rep for other options.
Q: Can you send me some samples before the mass order?
A: Yes, we're glad to offer you some sprinkler hose samples, though you need to cover the shipping cost.
