Industrial automatic dry laminating machine for sheet material paper BOPP film laminator
- Category: >>>
- Supplier: Ruian Aote Packaging Machinery Co. Ltd.
Share on (1600428387526):
Product Overview
Description
Product Description

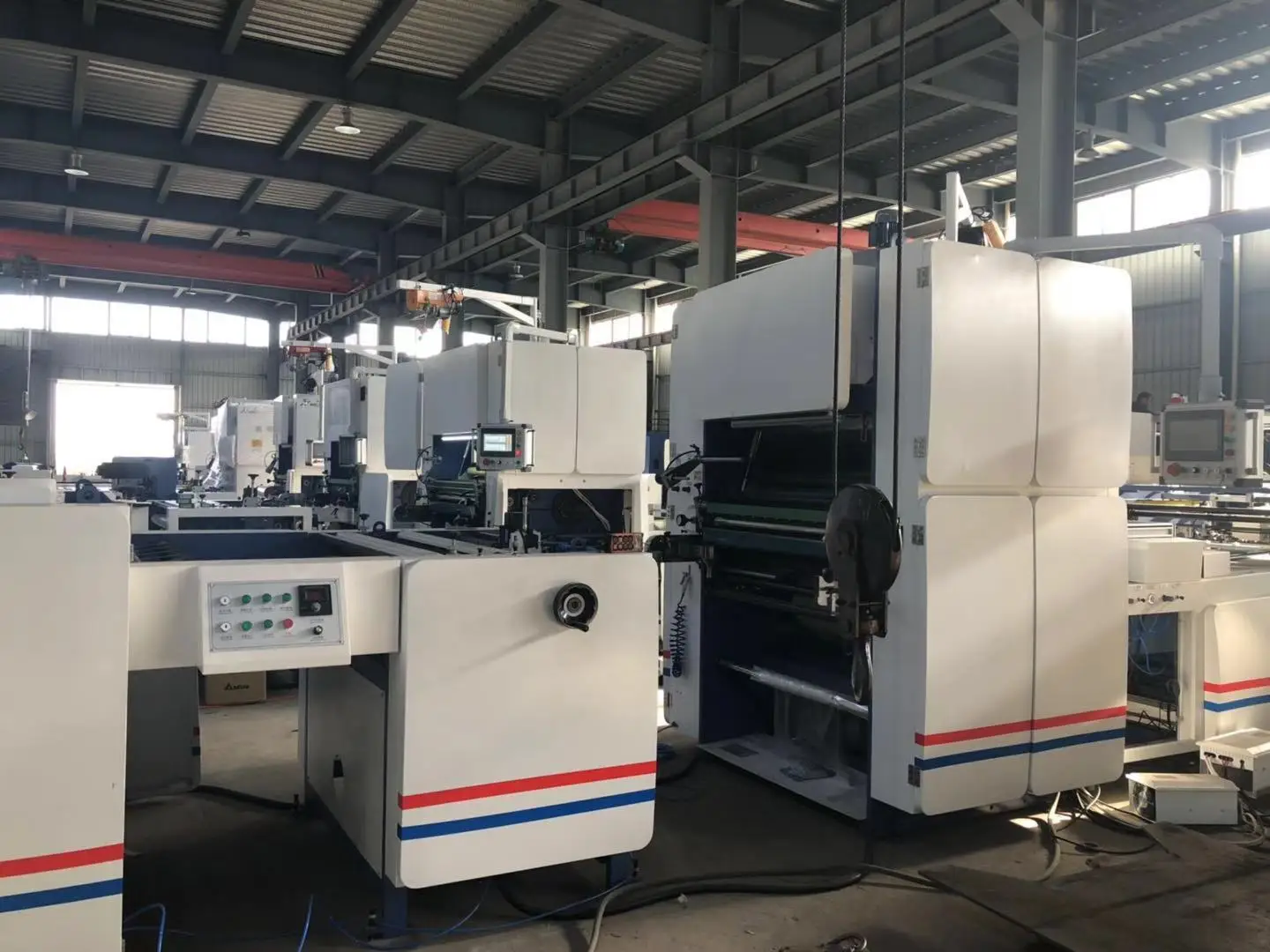

QLFM-1100 fully automatic vertical lamination machine is designed for waterbased glue and thermal lamination multi-functions.Features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, touch screen easy to operate.
Lamination Usage
Paper box
Gift box, shoe box, food box, medicine box, express box...
Paper bag
Gift bag, shopping bag, food bag, eco-friendly bag...
Packaging paper
Gift packaging paper, book cover packaging paper...
Book
Poster, magazine, picture, calendar, catalog, leaflet...
Card
Business card, greeting card, post card, advertisement card...
Label
Clothes label, drink label, food label, sticker...
Product Paramenters
Model | QLFM-1100 |
Max. Paper Size | 1000x1050mm |
Min. Paper Size | 285x350mm |
Recommended Paper Thickness | 100~500gsm |

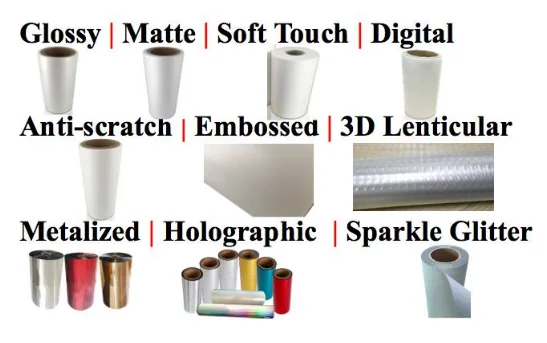

Recommended Film Thickness | 8~25micron |
Max. Laminating Speed | 80m/min |
Voltage | 380V 50HZ |
Total Power | 65kw |
Working Power | 25~45kw |
Lap Accuracy | ±2mm |
Regular Pressure | 5~15Mpa |
Height of Feeder Pile | 1000mm |
Height of Stacker Pile | 1000mm |
Dimension(L*W*H) | 9600x2600x2700mm |
Packaging Size(L*W*H) (Wooden Pallet) (40GP Container) | 1850x2100x2200(Feeder Unit) 2360x2200x2550(Lamination Unit) 2200x2100x1850(Cutting Unit) 2200x2040x2200(Stacker Unit) |
Total Weight | 9500kg |
Details
1. Feeder Part
Adopt high speed offset feeder and chain drive non-stop pre-stacking system, can feed sheets up to 100 m/min,
smoothly without stop, obviously increase the efficience.
2. Delivery Platform
Equipped with high accuracy front lay and pneumatic side lay regulator, accurate position, can deliver sheets in high speed without curvature.
3. Hot Powder Cleaning (Optional)
Cleaning printing powder, especially for dark color paper, improve the laminating performance.
4. Lamination Main Part
Adopt 800mm diameter big mirror heating roller, equipped with electromagnetic heating system, high heating speed and performance,at the same time the heat cycle system and hot air cycle system can save much energy.
400mm diameter mirror laminating roller, also equipped with electromagnetic heating system, cooperate with 300mm big rubber roller to insure laminating performance.
5. Glue Coating Part
Adopt high accuracy glue coating regulator, can control a erasing knife to adjust coating thickness easily and accurately, save much glue consumption. Mirror coating roller ensure the glue is even.
Air shaft with dividing ruler, can adjust the position of film roll accurately, easy to load film. The tension of film is
adjusted accurately by the tension controller.
adjusted accurately by the tension controller.
222
Equipped with 10 inches colorful touch screen and man-machine control panel, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.
5. Slitting Part
High speed chain knife slitting, designed for PET and thin foil, can slit most material of film perfectly. Easy to adjust by inputting data to the setting panel.
Disc knife, coordinate with pneumatic pull and separating system, can slit BOPP and OPP film perfectly.(If you use PET or thin foil, we have chain knife slitting machine optional)
6. Stacker Part
Automatic stacker, stack sheets in 3 directions fast, makes sheets pile aligned, convenient to transport and ready for next process.
Related Products
Part of Configurations
Touch Screen | Chinese Taiwan Weinview |
Encoder | Japan Omron |
Inverter | China Kewo |
AC Contactor | France Schneider |
Intermediate Relay | France Schneider |
Push Button Switch | China Yijia |
Small broken Fuser | China Chint |
Programming Controller | Chinese Taiwan Delta |
Servo Drive | Chinese Taiwan Delta |
Motor 5.5KW | China Dongfang |
Electromagnetic Auxiliary Heating System | China Shenzhen |
Converters | France Schneider |
Digital Control Devices | Chinese Taiwan Delta |
Packing&Shipping
Regularly adopts moisture-proof and shock-proof fumigation-free strong wooden box packaging which is suitable for long-distance road transportation and various types of weather condition.
Company Introduction
Ruian Aote Packaging Machinery Co, Ltd. processes near twenty years of experience in manufacturing lamination machine of post-press equipment. Our strength in researching, designing, manufacturing and servicing process has developed us as one of top professional company in China. Our strong technical force, high-quality products, "Aoli" trademark and perfect after-sales service have won the trust of users at home and abroad.
FAQ
1. What's your delivery time?
Regularly within 30 days upon production schedule after receving payment of deposit
2. After-sale service and warranty?
We provide 1 year warranty period. During the period, we supply the spare parts in free for replacement in case of any quality problem. And you will enjoy life time technical support by our professional after-sales team.
3. Do you have engineer available for installation, training and test to my factory?
Don’t worry, we have installation service. All the machines have been adjusted and tested well in our workshop before delivery. If you require, our engineer will come to your factory for technical support. But you shall pay extra installation cost upon final confirmation.
4. Any certifications？
Yes all the machines have passed ISO9001 and CE certification. And we have patents about chain knife, heating roller and powder cleaning.
We have been rated as "Reliable Products", "Honoring Contract, Keeping Promises” , "Enterprise Integrity", "AAA grade credit enterprise" by our government.
