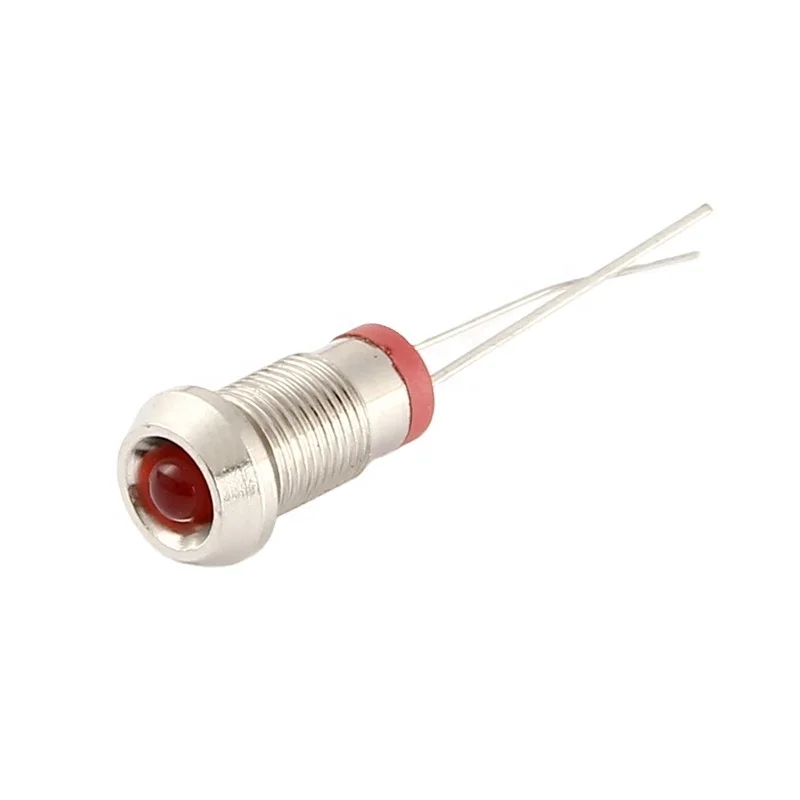

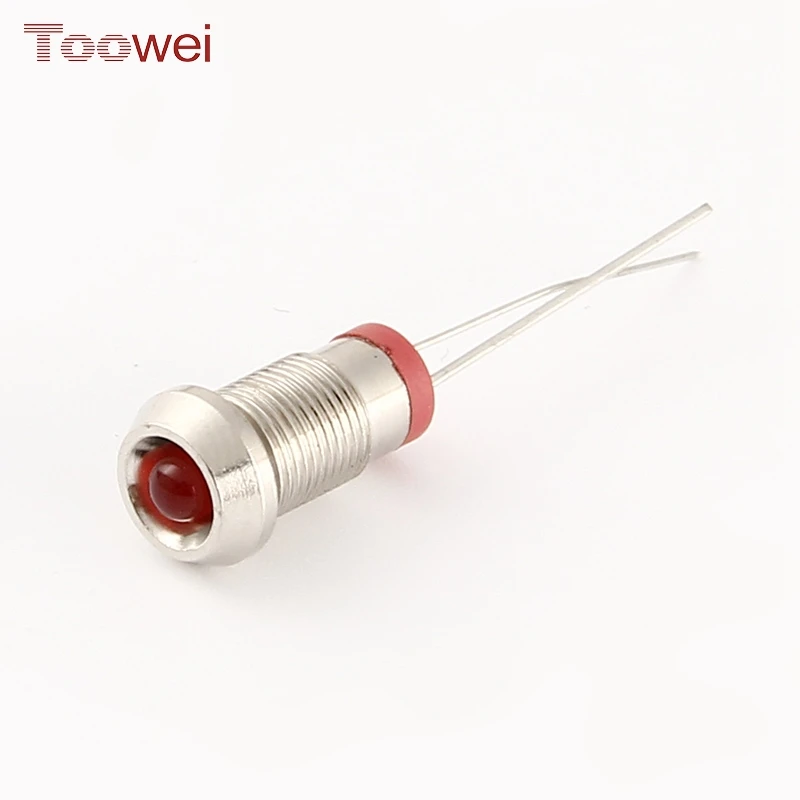

6mm 8mm 12mm 16mm IP67 Waterproof Metal LED Indicator Lamp Light
- Category: >>>
- Supplier: Zhejiang Toowei Electronics Co. Ltd.
Share on (1600428405467):
Product Overview
Description
Products Description
1. Rating Current:20mA ; Rating voltage: 2.4v-220v
2. 500VAC/Min between pins and housing . Insulation resistance ≥100M Ω
3. Withstand voltage： 1000-1500V 50/60Hz min Leakage current: 3mA
4. Bright nickel plating on the outer surface of the casing
5. Waterproof degree: IP67
6. Environment temperature: -25 ~ 85 ℃
7. Light bulb: 8mm
2. 500VAC/Min between pins and housing . Insulation resistance ≥100M Ω
3. Withstand voltage： 1000-1500V 50/60Hz min Leakage current: 3mA
4. Bright nickel plating on the outer surface of the casing
5. Waterproof degree: IP67
6. Environment temperature: -25 ~ 85 ℃
7. Light bulb: 8mm
Light colour: Green
8. Use life: ≥ 50,000 hours ( weeken by 30% after half a year of use )
9.Wiring methode: Red line, green line represent red and green lights, black is public line (negative electrode)
10. Installation size: 12mm
8. Use life: ≥ 50,000 hours ( weeken by 30% after half a year of use )
9.Wiring methode: Red line, green line represent red and green lights, black is public line (negative electrode)
10. Installation size: 12mm
Certifications
Product Parameter
Sea port | shanghai |
Supply Capacity | 100000 pcs/month |
Packing | Carton |
color | Red, Green, Yellow, Blue, White |
Logistics model | Express delivery By sea Land transportation air transport |
