Земляный погрузчик 6 тонн, 6 т, строительное оборудование 5 тонн с колесным погрузчиком и джойстиком
- Category: Loaders >>>
- Supplier: Shandong besla import and Export Co. Ltd
Share on (1600428439869):
Product Overview
Description

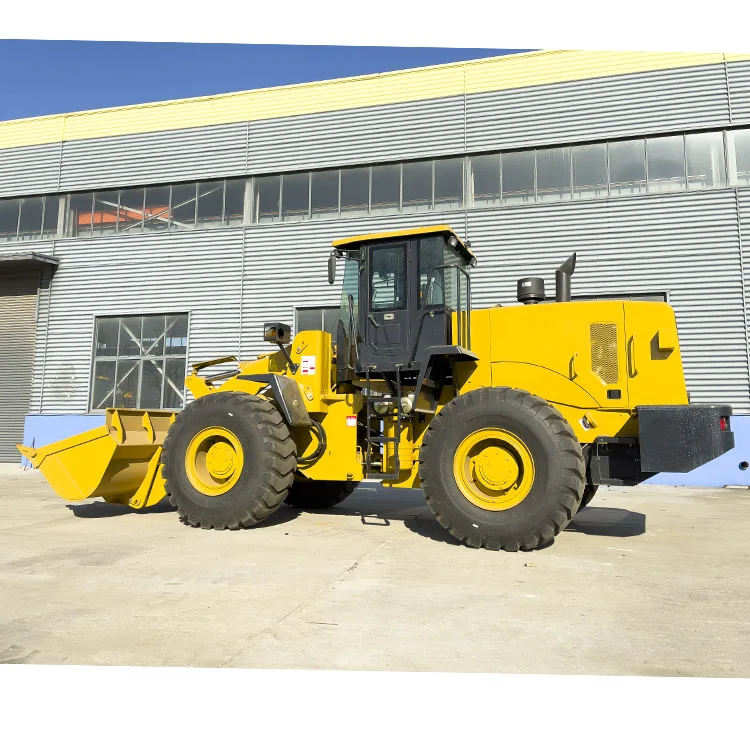

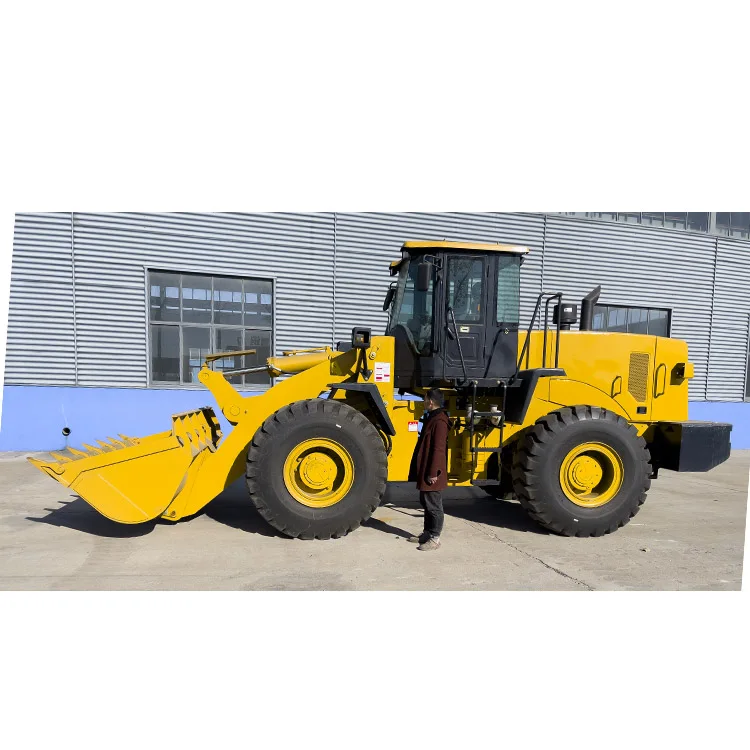

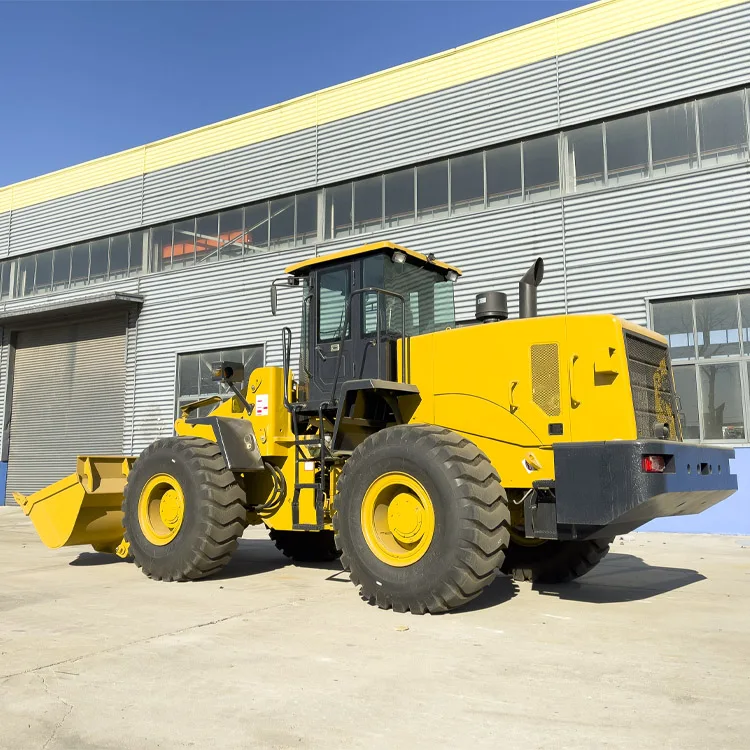

ZL50 5 Ton Wheel loader
ZL50 is suitable for bulk materials, with short base, high cost performance. The entire machine is of large breakout force,small turning radius, high operating efficiency, flexible to operate and is widely used in harbor, building site, aggregate plant,timber yard and etc.
FEATURES AT A GLANCE
1. Operator Comfort and Safety
2. Adjustable seat, and ergonomically designed placement of instruments.
3. Comfortable A/C and heated operator environment.Two mechanical lever controls.

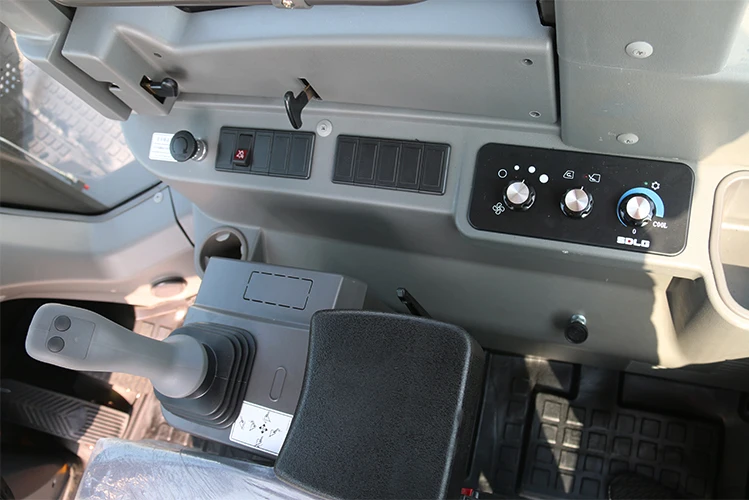

4. Optional pilot control.Convenient detachable cab.
5. UV resistance glass. Cigarette lighter works as electrical outlet.
6. Easy to Maintain
7. Power cut-off function prevents damage to drive components.
8. Double sealed O-rings used in Hydraulic system.
9. Stress analysis tested to strengthen weak points.
10. Sub frame and rear axle swingable by 11 degrees .
11. Front frame box structure highly torsion and damage resistant.
2. Adjustable seat, and ergonomically designed placement of instruments.
3. Comfortable A/C and heated operator environment.Two mechanical lever controls.
4. Optional pilot control.Convenient detachable cab.
5. UV resistance glass. Cigarette lighter works as electrical outlet.
6. Easy to Maintain
7. Power cut-off function prevents damage to drive components.
8. Double sealed O-rings used in Hydraulic system.
9. Stress analysis tested to strengthen weak points.
10. Sub frame and rear axle swingable by 11 degrees .
11. Front frame box structure highly torsion and damage resistant.
Front elevation
Back elevation
lift elevation
PRODUCT SPECIFICATIONS
Overall dimension | ||
L*W*H | 8280*3024*3380mm | |
Wheel base | 3300mm | |
Min. ground clearance | 420mm | |
Max. dumping height | 3100mm | |
Lifting height | 4170mm | |
Dumping distance | 1120mm | |
Dumping angle | 45 | |
wheel tread | 2190mm | |
steering angle | 38 | |
horizontal crossing radius | 6870mm | |
Min. turning radius | 5890mm | |
Overall parameters | ||
Backet capacity | 3.2m3 | |
Rated load | 5400kg | |
operating weight | 17250kg | |
Max. tractive force | 165kN | |
Max. breakout force | 175kN | |
Tipping load | 110kN | |
Engine | ||
Model | WD10G220E23 | |
Type | Inline, watercooled, dry cylinder liner, direct injection | |
Rated power | 162kW | |
Rated speed | 2000r/min | |
Engine displacement | 9726ml | |
Max. torque | 980N.m | |
Emission standard | GB 20891-2007(China Phase II) | |
Min. fuel-consume ratio | 215g/kw.h | |
Transmission system | ||
Torgue converter | single-stage four-element double-turbine hydraulic torque converter | |
Transmission type | Planetary power shift | |
Gears | Forward 2 reverse 1 | |
Hydraulic system of working device | ||
Type | Pilot control | |
total time | 10s | |
Brake system | ||
Service brake type | Air over hydraulic disc type | |
Parking brake type | Electric pneumatic internal expansion shoe type | |
Steering system | ||
Type | Load sensing full hydraulic articulated steering | |
System pressure | 16 Mpa | |
Fill capacity | ||
Fuel | 300L | |
Hydraulic oil | 240L | |
Engine | 20L | |
Transmission | 45L | |
Drive axle | Forward 30L+ reverse 30L | |
Braking system | 4L | |
PRODUCT CONFIGURATION

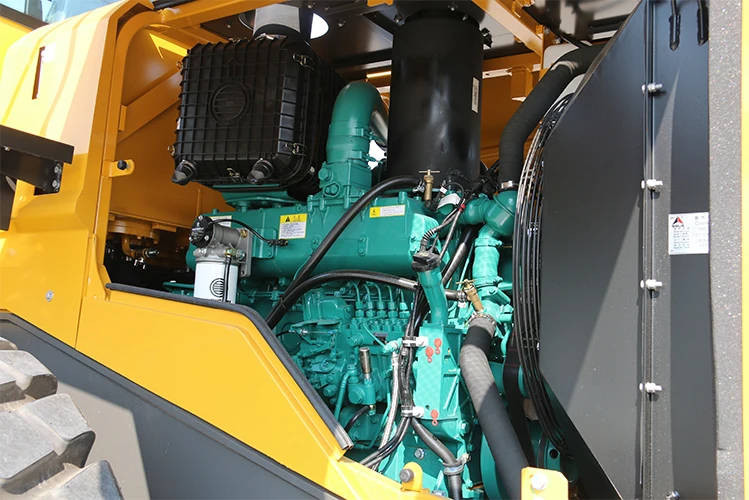

Weichai high power engine

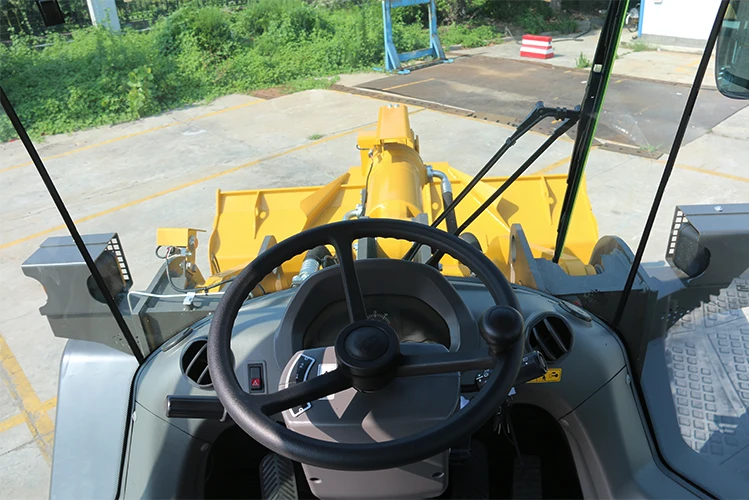

new cab with a large space
18 PR Nylon with standard rim
SHANDONG BESLA MACHINERY CO.,LTD.
Our company is located in Laizhou City, Shandong Province, in the center of the machinery industry. Our company has more than 12 years of experience in the field of loaders and forklifts manufacturing.
