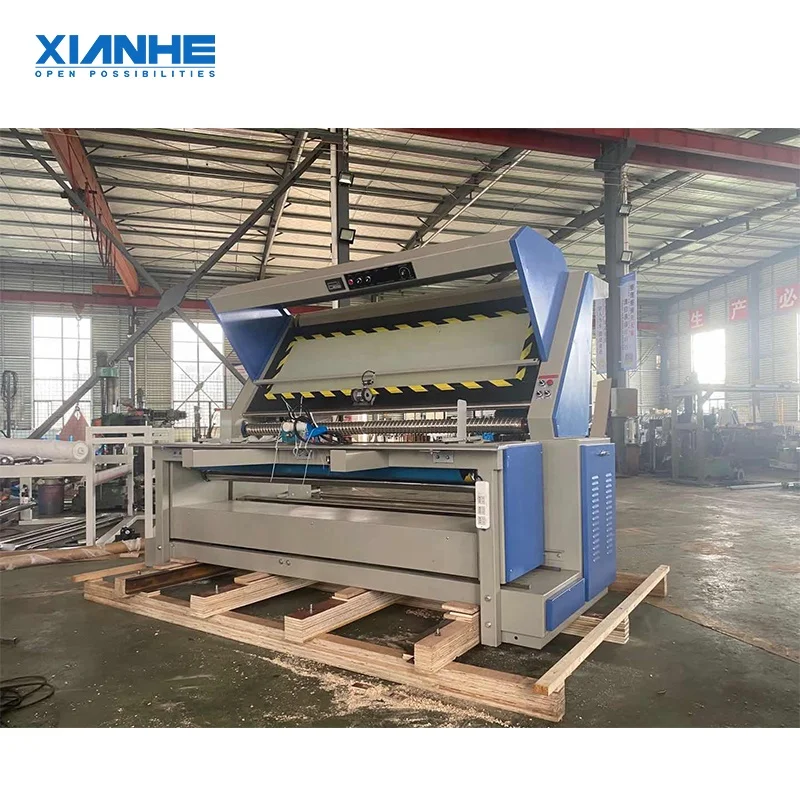

Fabric material roll inspection and rewinding fully automatic machine

Product Overview

Description

Product Description

The machine is used for the inspection and rolling of finished products.It is also suitable for the winding of laminated materials.The width of machine can be added according to the needs of customers, so as to get requested width.
Features:
It uses box iron frame and integrates rolling and inspection.
1.Compact structure, simple operation, small sized and high availability. It is good in quality and beautiful in design.
2. It can use frequency control or adjustable-speed motor to regulate speed within a certain limits. It features easy operation. The computer controlled timing is conducive to site management as it can read the length of time.
3. Customers may choose: Infrared ray photo electricity edging control, hydraulic edging adjustment system with difference smaller than 5 mm. in all shapes.

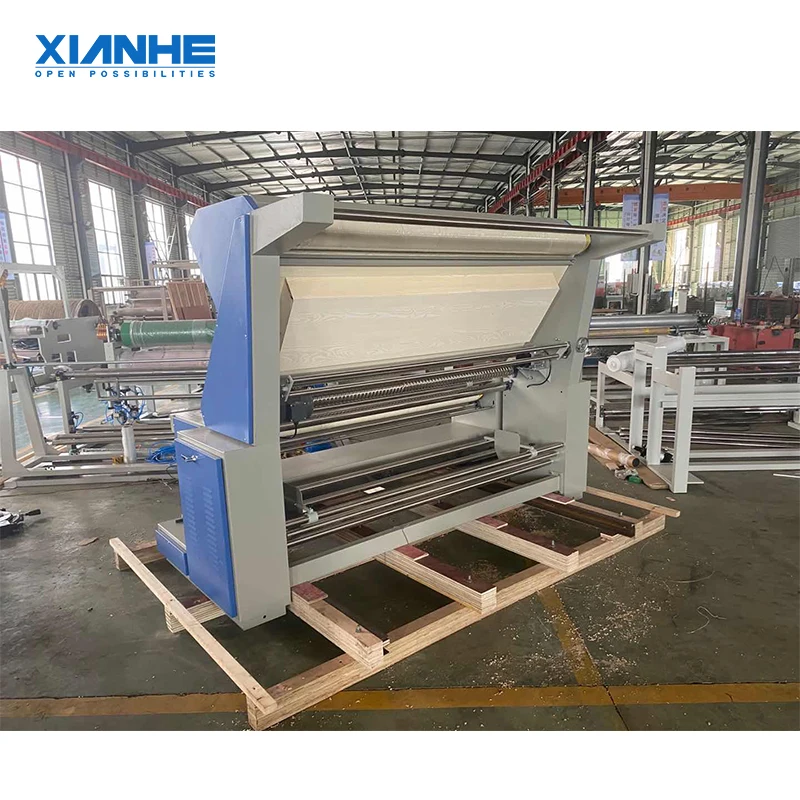

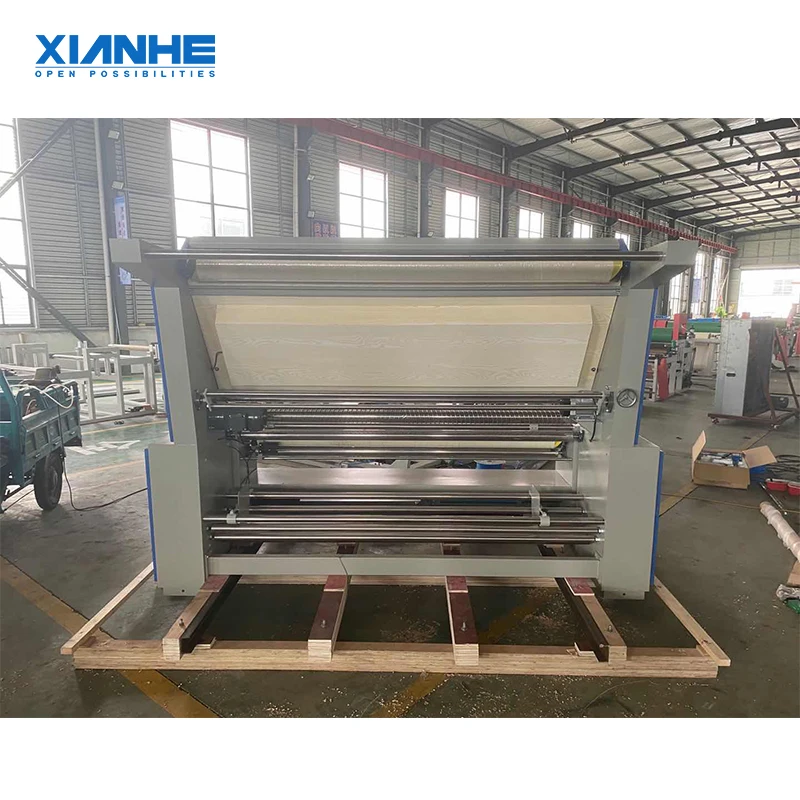

Details Images

Size Information



Working width	1800mm or as customized
Max. material width	within 1600mm or as customized
Inspecting speed	0-80m/min
Dimension(L*W*H)	About 2000mm*1200mm*800mm
Voltage	380V/220V
Power	About 3kw
Weight	About 700kg
Max. winding diameter	380mm
Warranty	1 year
Rectifying type	Hydraulic
Divation correction accuracy	±3mm
