wiring diagram pa 200 pa500 pa800 pa1000 100kg 1000kg mini electric hoist
- Category: >>>
- Supplier: Henan Tianqiao Heavy Machinery Co. Ltd.
Share on (1600428446511):
Product Overview
Description
Product Description

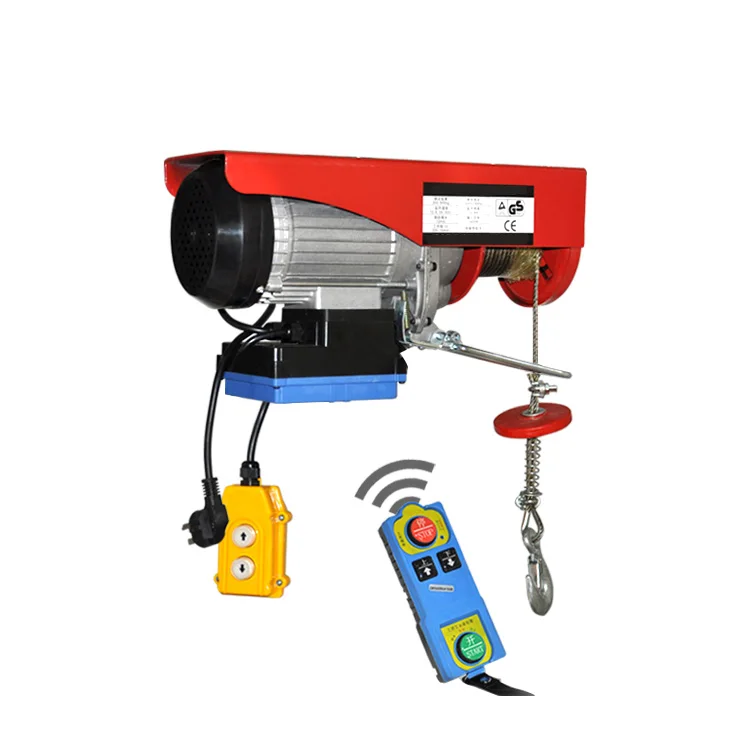

Wireless and wired dual-purpose (wireless needs to be purchased separately)
All button contacts adopt silver dots, which is more durable and safer
All button contacts adopt silver dots, which is more durable and safer
Features:
1. Adopt urgent stop switch and reinforced breaking switch with position limit. Protection class up to IP54, with thermal protection device.
2. Lifting hook can rotate 360 degree
3. Designed for one-handed operation, small size, and single-phase power as a power source.
4. Drop-forged, heat-treated suspension hook and load hook mounted on swivel steel balls with safety latches.
5. Motor insulation is B, magnetic single-phase. Double hook use, single hook use
6. Caged roller bearings on drum center shaft
7. Mini electric hoist speed can reach 10m/min, the initial design rope length is 12 meters (longer can be customized), greatly increases the lifting weight of the mini electric hoist.
8. It can be applied in all kinds of locations in industry, business, handicraft industry and service industry not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane.
| Model PA200 | Model PA300 | ||||||
| Rope Type | Single rope | Double rope |  | Rope Type | Single rope | Double rope |
Wire rope length | 12m | 6m | Wire rope length | 12m | 6m | ||
Lifting speed | 12m/min | 6m/min | Lifting speed | 12m/min | 6m/min | ||
Lifting capacity | 100kg | 200kg | Lifting capacity | 150kg | 300kg | ||
Motor power | 510w | Motor power | 600w | ||||
Starting capacitance | 16uf | Starting capacitance | 20uf | ||||
Wire rope diameter | 3mm | Wire rope diameter | 3mm | ||||
Net weight | 10kg | Net weight | 11kg | ||||
Continuous working time | 30 Minutes | Continuous working time | 30 Minutes | ||||
| With sports car specifications | 0.5T (optional) | With sports car specifications | 0.5T (optional) | ||||
| Model PA400 | Model PA600 | ||||||
 | Rope Type | Single rope | Double rope |  | Rope Type | Single rope | Double rope |
| Wire rope length | 12m | 6m | Wire rope length | 12m | 6m | ||
| Lifting speed | 12m/min | 6m/min | Lifting speed | 12m/min | 6m/min | ||
| Lifting capacity | 200kg | 400kg | Lifting capacity | 300kg | 600kg | ||
| Motor power | 980w | Motor power | 1400w | ||||
| Starting capacitance | 30uf | Starting capacitance | 40uf | ||||
| Wire rope diameter | 5mm | Wire rope diameter | 5.2mm | ||||
| Net weight | 15.8kg | Net weight | 17kg | ||||
| Continuous working time | 1-2 hours | Continuous working time | 2-3 hours | ||||
| With sports car specifications | 0.5T (optional) | With sports car specifications | 1 ton 6 wheels | ||||
| Model PA800 | Model PA1000 | ||||||
 | Rope Type | Single rope | Double rope |  | Rope Type | Single rope | Double rope |
| Wire rope length | 12m | 6m | Wire rope length | 12m | 6m | ||
| Lifting speed | 12m/min | 6m/min | Lifting speed | 12m/min | 6m/min | ||
| Lifting capacity | 400kg | 600kg | Lifting capacity | 500kg | 1000kg | ||
| Motor power | 1800w | Motor power | 2200w | ||||
| Starting capacitance | 50uf | Starting capacitance | 70uf | ||||
| Wire rope diameter | 5.2mm | Wire rope diameter | 6.2mm | ||||
| Net weight | 20kg | Net weight | 29.4kg | ||||
| Continuous working time | 3-4 hours | Continuous working time | 3-4 hours | ||||
| With sports car specifications | 1 ton 6 wheels | With sports car specifications | 1 ton 6 wheels | ||||
Application:
It is widely used in production lines, assembly lines, assembly machines, logistics and transportation of modern industries such as machinery manufacturing, electronics, automobile, shipbuilding, workpiece assembly and high-tech industrial zones. Only when working in warehouses, docks, batching, hanging baskets and workplaces with narrow space can its quality be highlighted.
Installation steps:
