DF4 10 Hydraulic Press Makiga fully Automatic Clay Earth Interlocking Brick Making Machine For Sale China
- Category: >>>
- Supplier: Shandong Weida Construction Machinery Co. Ltd.
Share on (1600428456132):
Product Overview
Description
Product Description
Mud Compressed Soil Block Machine Full Set qtc4-10 Automatic Cement Interlocking Clay Brick Production Line Making Machine
1 PLC controlled,which can be easily automatic operated
2,Two brick would be made in less than 10 sedonds.
3,By adjusting the screws,brick height can be changed.
4,Mould can be changed according to cusmer's requirements.
5,High productivity.11520 -15000 bricks of 300x150x100mm in 8 hours.
6,Double oil cylinder makes the brick much more strong
2,Two brick would be made in less than 10 sedonds.
3,By adjusting the screws,brick height can be changed.
4,Mould can be changed according to cusmer's requirements.
5,High productivity.11520 -15000 bricks of 300x150x100mm in 8 hours.
6,Double oil cylinder makes the brick much more strong
Main Parts
Name | QTC4-10 Interlocking brick machine |
Dimension | 1800x1500x2380mm |
Power | 15 kw |
Molding time | 7-10 s |
Pressure | 16-22 mpa |
Total weight | 1600 kgs |
Voltage | 220/380/415/440 and others as design |
shaping method | hydraulic pressure |
Name | JQ 500 mixer |
Output capacity | 500L |
Input capacity | 800L |
Capacity | 20m³/h |
Weight | 1000KG |
Dimension | 1500X1500X1400MM |
Power | 11kw |
belt conveyor | ||
complete line need 4 belt conveyor | ||
belt 6m | from mixer to block machine | |
belt 3.5m | from soil to crusher, from crusher to sieve,from sieve to mixer. | |
width | 500mm | |
Length | 6000/3500MM | |
soil screen /Sieve | ||
Power | 1.5kw | |
capacity | 480 kgs/ hour | |
rated power | 220v-440v | |
size | diameter :500mm | |
total weight | 300 kgs | |
Name: soil crusher | wd-4 stacker | |
electricity | 220v-440v | |
motor | 3 kw | |
Capacity | 500 kgs/hour | |
Weight | 200kg | |
Dimension | 1100x1100x1400mm | |
Capacity
1 using common clay /Soil / laterite (red soil) /mud /earth as raw materials, they are cheap and easy to get .
2 brick with special interlocking(male and female) design,convenient for building and strong structure when in villa building.
3 the brick no need fire, so no pullute the air, eco bricks, good friendly for enviroments.
4 big cylinder Hydraulic pressing, making strong high density of clay interlocking bricks.
5 Original south africa machine design
2 brick with special interlocking(male and female) design,convenient for building and strong structure when in villa building.
3 the brick no need fire, so no pullute the air, eco bricks, good friendly for enviroments.
4 big cylinder Hydraulic pressing, making strong high density of clay interlocking bricks.
5 Original south africa machine design

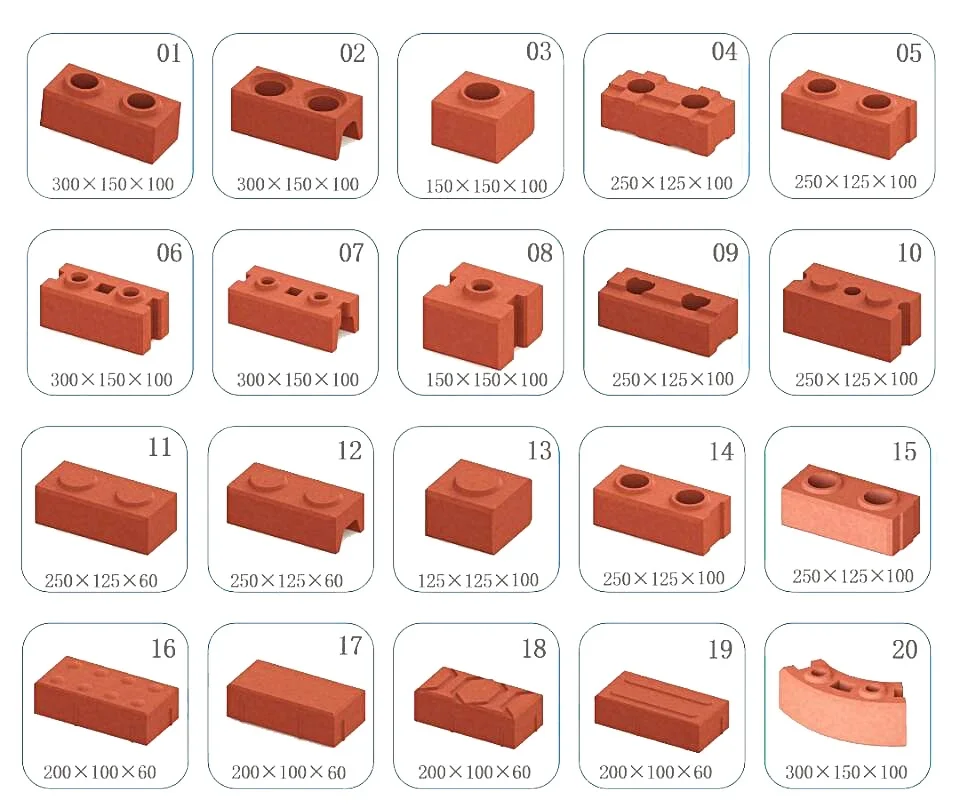

size(LXWXH) | pcs/mould | Pcs/hour | Pcs/8 hour |
300X150X100MM | 4 | 1440 | 11520 |
150x150x100mm | 8 | 2880 | 23040 |
200x160x65mm | 4 | 1440 | 11520 |

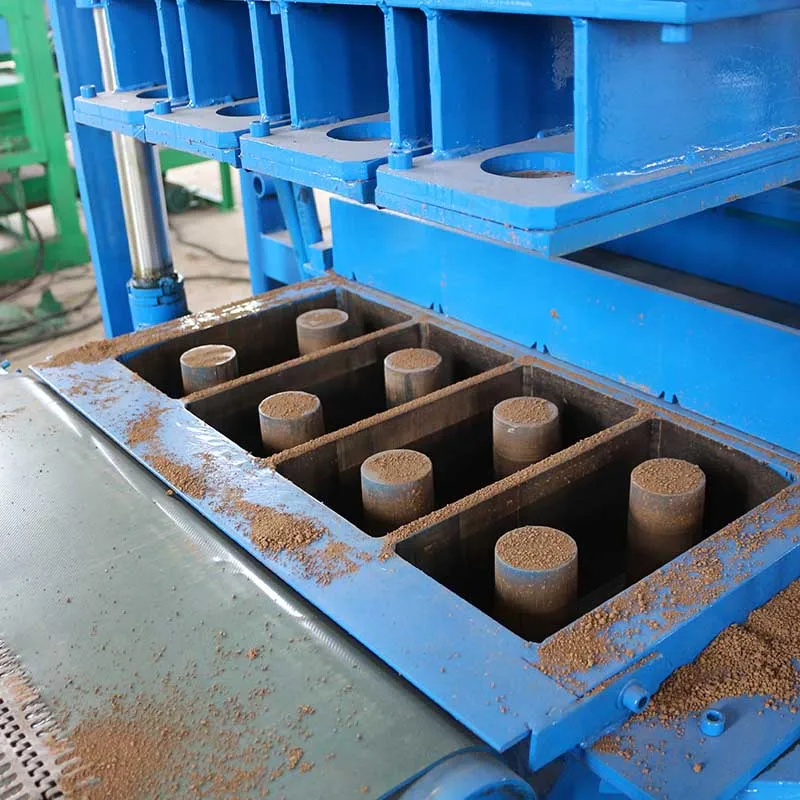

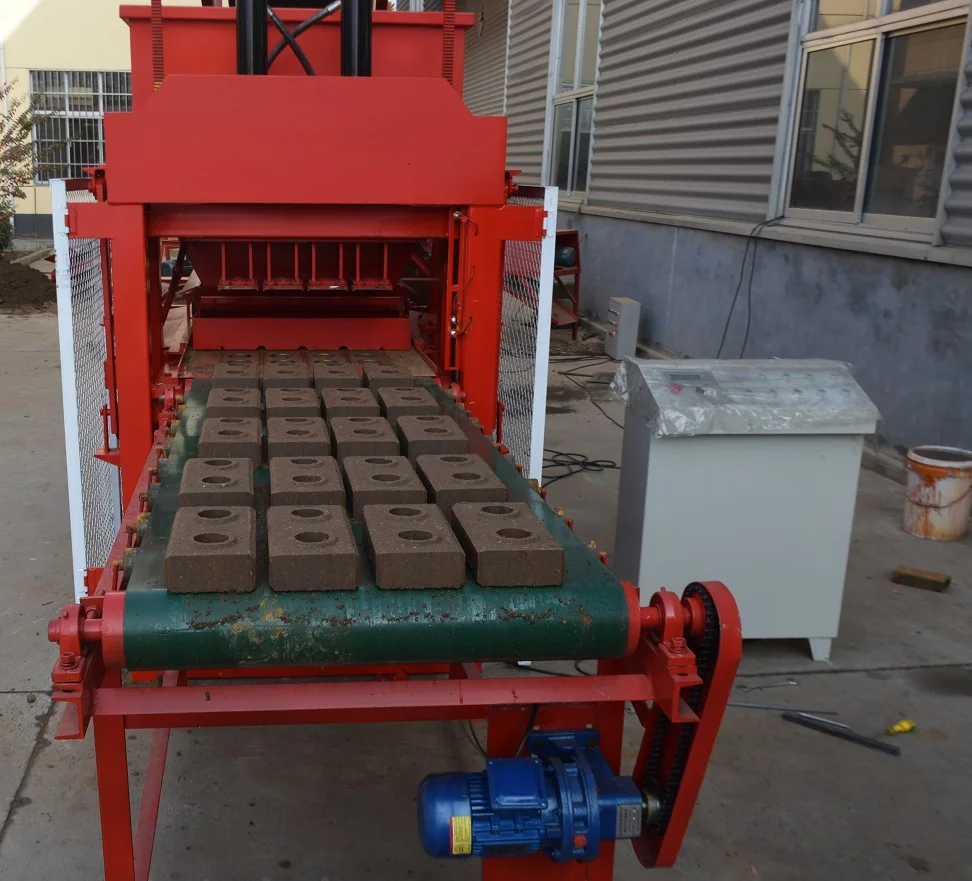

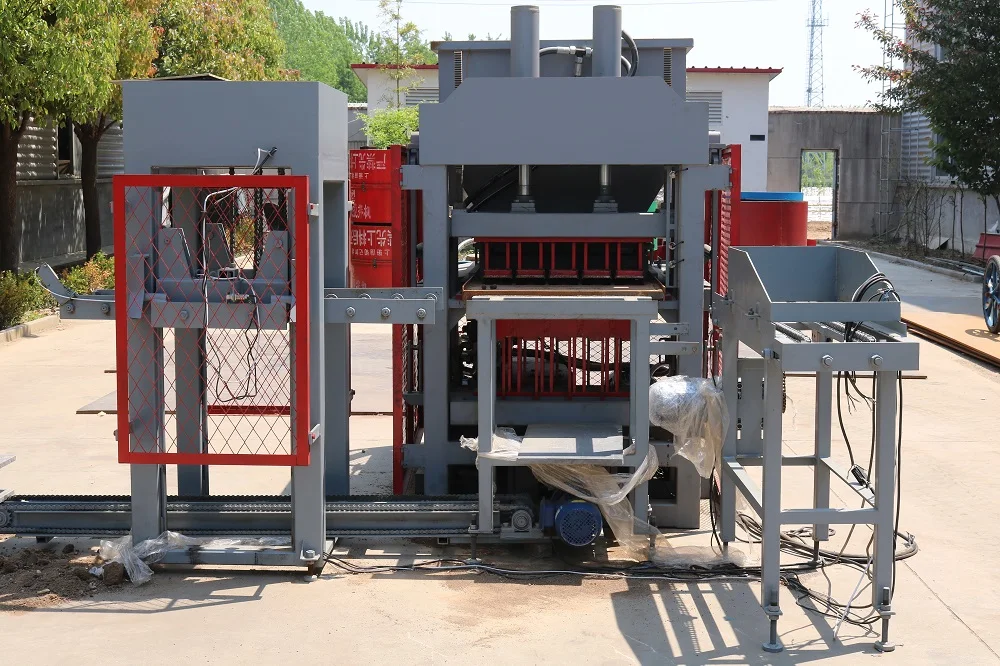

Details Images

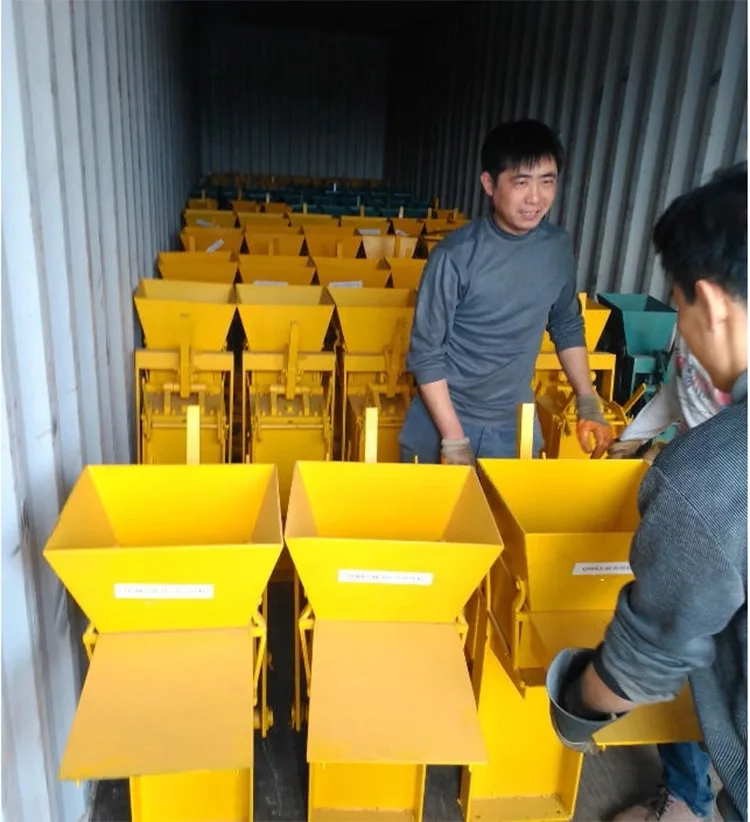

Packing and delivery

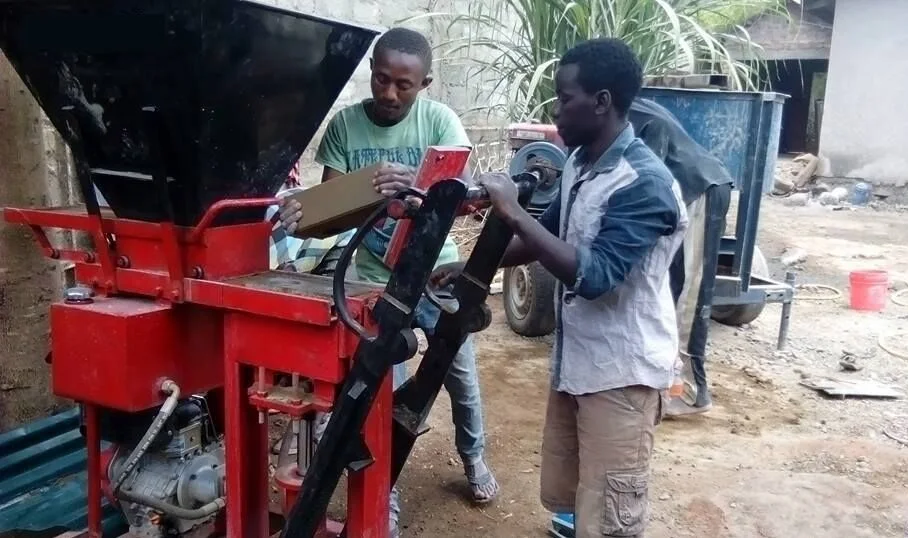

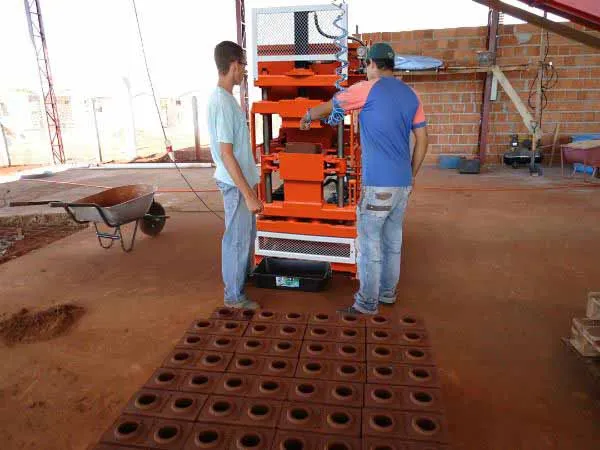

With Client

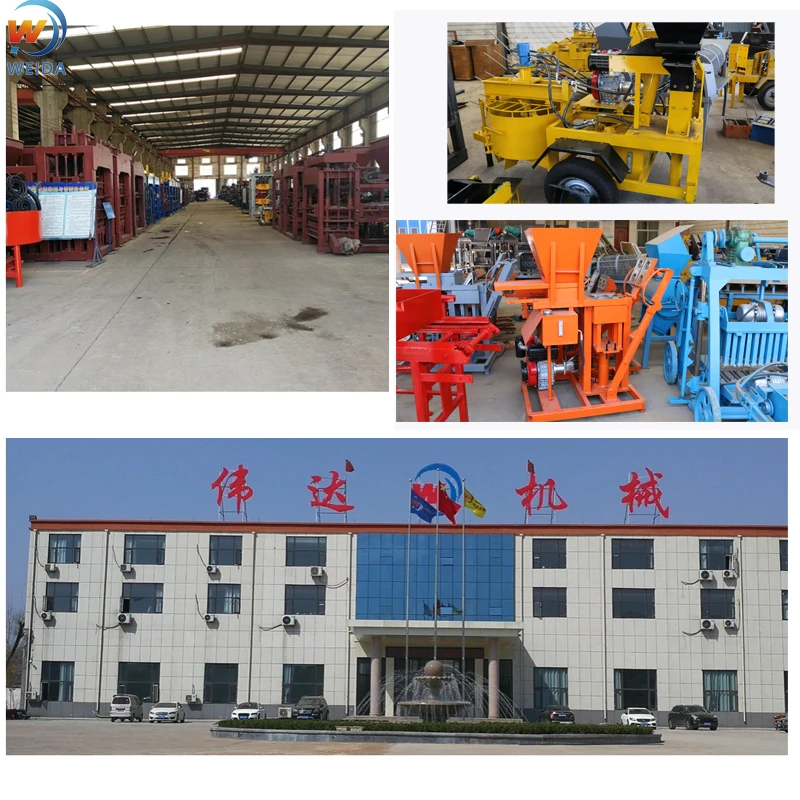

Company Introduction
Shandong Weida Construction Machinery CO., Ltd
which located in Linyi City, Shandong Province,China.With RMB 16 million investment and 53,000 square meters area,
We are always developing good and realiable interlocking clay brick machinery, Automatic block brick making machine machinery, AAC block machine...etc with other Construction machinery with international standards to meet clients demands(people-oriented,leading technology, winning quality, and serving user)
We had exported to more than 100 countries.We have more than 60 technician to ensure superior installations and after sale service to assist clients to install the machine and perfrom the proper training abroad.
We warmly welcome customers from all over the world come to visit our factory and discusslong term cooperation.we are 24 hours service on you! Thank you !
which located in Linyi City, Shandong Province,China.With RMB 16 million investment and 53,000 square meters area,
We are always developing good and realiable interlocking clay brick machinery, Automatic block brick making machine machinery, AAC block machine...etc with other Construction machinery with international standards to meet clients demands(people-oriented,leading technology, winning quality, and serving user)
We had exported to more than 100 countries.We have more than 60 technician to ensure superior installations and after sale service to assist clients to install the machine and perfrom the proper training abroad.
We warmly welcome customers from all over the world come to visit our factory and discusslong term cooperation.we are 24 hours service on you! Thank you !
