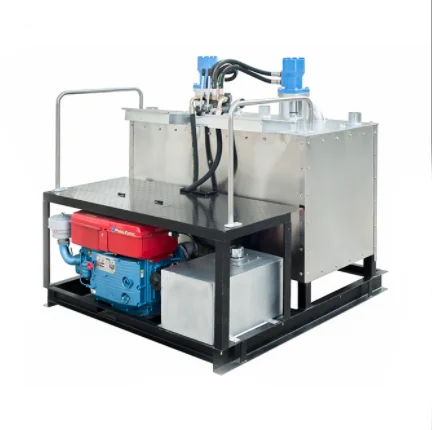

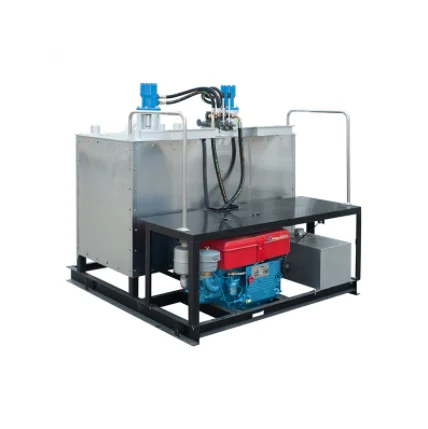

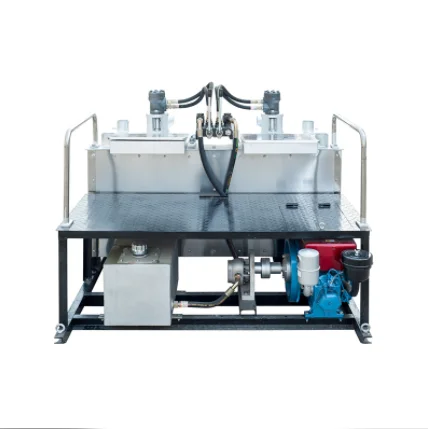

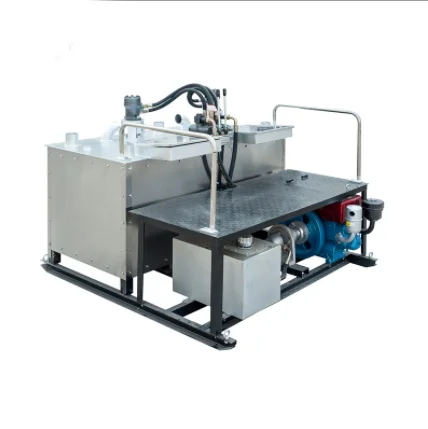

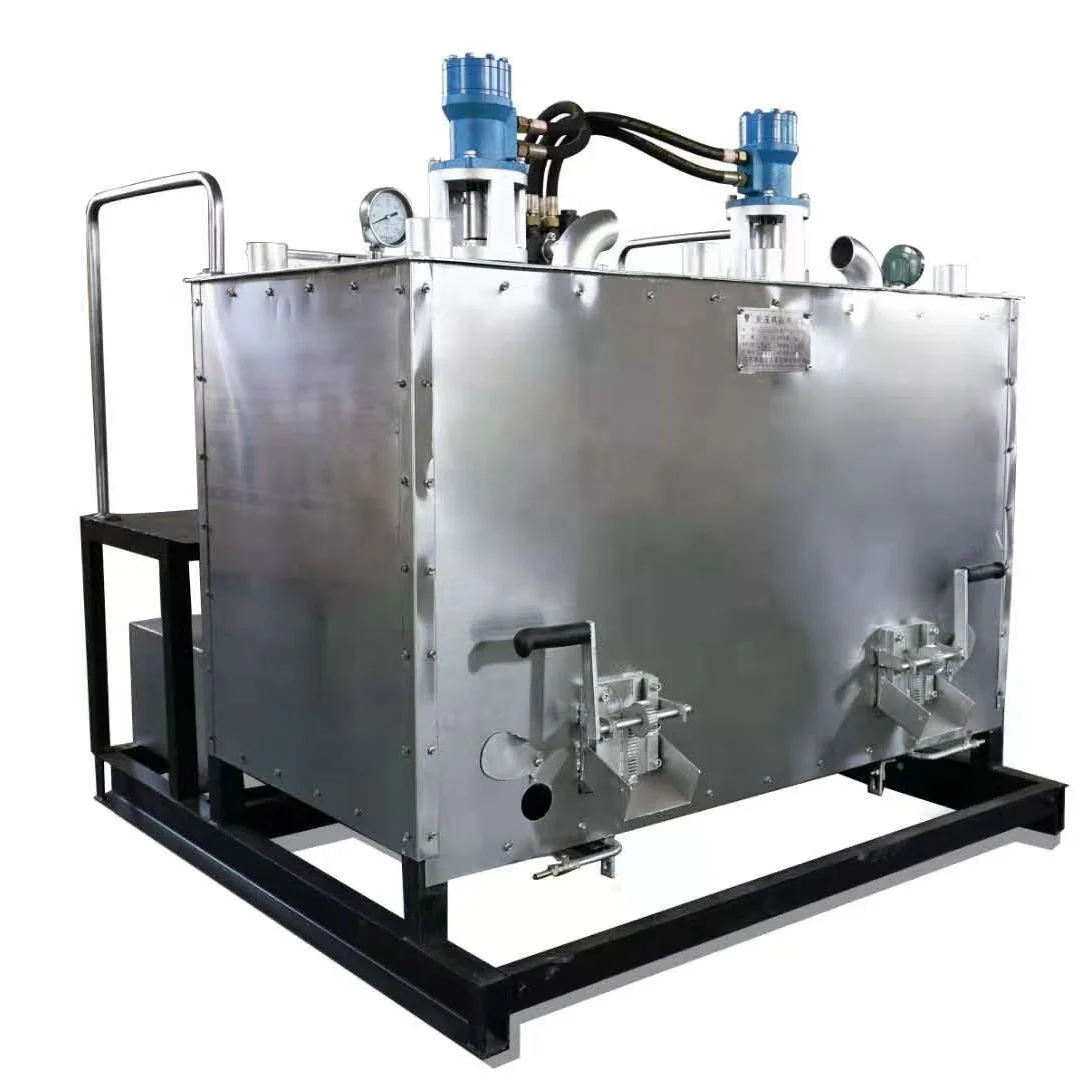

1200/800 Factory Hot sales Hydraulic Double Cylinder Thermoplastic Preheater for road marking
- Category: >>>
- Supplier: Jiangsu Daoying Highway Engineering Equipment Co. Ltd.
Share on (1600428472077):
Product Overview
Description
Jiangsu Road Win Road Facility Co.,Ltd. is a professional enterprise which engaged in researching,manufacturing and selling a full set of road line marking equipment.
Our enterprise is aiming to providing the best quality,most scientific and most efficient road facilities to our clients all over the world.
Our company keep on the concept of innovation,excellent quality and perfect service,also we have been devoting ourselves to making a big contribution to the field of transportation infrastructure construction.
Our company’s mission is to be number one of our industry,with the core value of fighting against impossible,and holding the enterprise’s spirit that is to regard honesty and trustworthiness as the root,to win by quality,and finally to become most valuable enterprise in the world.
Specification | |
Hydraulic double cylinder thermoplastic preheater is one of the primary equipment of road marking construction.Multipath integration hydraulic transmission and infinitely variable speeds design which can generate powerful torque,to ensure that the machine can operate smoothly under heavy load.also it can stir forward and reverse.It equipped with stainless steel energy-efficient burner with the advantages of high efficiency,save time and energy,easy operation and simple maintenance. | |
Engine: | 15PS electric strat water-cooled diesel engine (LXD1200B: 16PS electric start air-cooled diesel engine) |
Stirring system: | Hydraulic stirring system with protective device, can stir clockwise or anti-clockwise. |
hydraulic motor Flow Rate: | 5.0L/min |
Paint tank capacity: | 600KG×2 |
Paint tank: | Made of boiler iron(LXD1200B: Made of special stainless steel ) |
Heating mode: | LPG(gas tank suggest 50KG) ,Direct injection energy-efficient burner |
Hydraulic oil tank: | 70L |
Thermometer: | Each container is equipped with thermometer with heating resistance and shock resistance. |
Operation Control: | The manual dual control valves respectively control two stirrers in the two cylinders. |
Heat preservation: | Double layer heat insulating material is fixed between inner container and outer layer |
Ventilating exhaust system: | Suction-type chimneys at the top of cylinder |
Discharge Outlet: | Lockable discharge trough and the close inter meshing type discharge system. |
Structure: | Frame structure,Integrative welded structure with high stength,heating resistance and oxidation resistance. |
Heating temperature: | 0~300℃ |
Size and Weight: | 1900×1660×1630mm 900KG |
Main Features of LXD Hydraulic Double Cylinder Thermoplastic Preheater
1) Advanced heating, heat preservation, ignition and temperature control not only achieve a great performance of fast melting material, high quality melt and good insulation, but also improve the convenience and safety of the operation greatly.
2) Simplify hydraulic stepless transmission design for easy operation and maintenance; moreover, the protection device prevents the equipment from damage due to the incorrect or rough operation.
3) Unique feeding mechanism design to avoid happening of bad feeding such as missing,blocking, hard operation or easy damage;
4) The inside structure of the equipment is processed by hot galvanizing for anticorrosion. External with 304 stainless steel or high temperature resistant surface coating let the equipment solid, durable and good looking.
