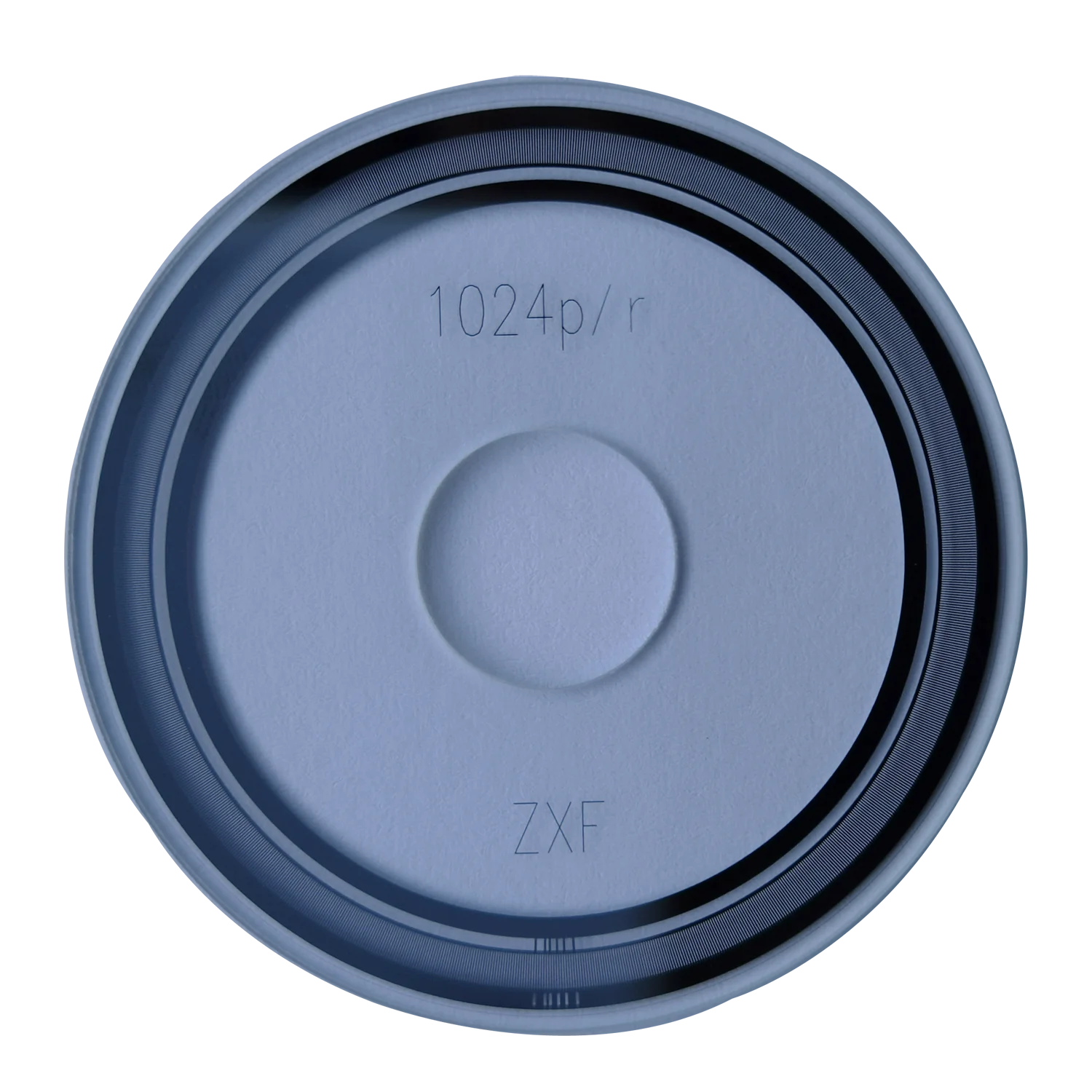

ZXF 1024PPR Optical code disk for CNC machine tools and robots rotary encoder

The optical code disc is made of optical glass and is also called a optical encoder. There are many concentric code tracks engraved on it, and each code track has light-transmitting and opaque parts arranged according to a certain rule. It is a patterned glass disc. The pattern on the disc is composed of a series of transparent areas and opaque areas alternately forming a disc or strip. When used with brushes and circuits, it can form a rotary encoder to convert optical signals into digital electrical signals. The optical encoder can be used to accurately measure the angle (or angular displacement).

The photoelectric code disc goniometer is a common instrument that uses the photoelectric code disc to accurately measure the angle.
According to its encoding method, the photoelectric code disc is divided into three methods: binary, decimal and cyclic code

Photoelectric code discs have been widely used in the fields of CNC machine tools, servo motors, robots, rotary machinery, transmission machinery, instrumentation and office equipment, automatic control technology and detection and sensing technology, and the application fields are constantly expanding.

ROUNDSS encoder specializes in speed and position sensors for extreme applications. Serving the industrial, military, aerospace and off-highway markets, ROUNDSS encoder provides an extensive range of products from standard rotary encoder to completely customized solutions for any challenging application. Backed by over 10 years of experience, Roundss designs encoders that offer uncompromising quality, performance, and reliability. The comprehensive product line includes optical and magnetic encoders, string potentiometers (draw wire sensor), manual pulse generator,handwheel units, rotary band switches,couplings. Specialized products for extreme applications include those for extended operating temperatures, high shock and vibration, wet and dirty operations and products certified for hazardous area use.

Roundss encoder upholds a standard of excellence in our products, customer service experience, and commitment to being a global leader in speed and position sensor technology.

1. The questions about the encoder will be answered within 24 hours.

2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.

3. We can offer the information of dealer in your market if you want to contact them directly.

4. Update the procession of manufacturing.

5. Warranty 18 months: Free replacement of defective products within 18 months.

Q1:What's the MOQ?

A: MOQ: 1 pc

Q2:How to place the order?

A: Please contact with our sales to get the detail datasheet and confirm the part number of the encoder you need, then you can place the order online or underline.

Q3:What's the payment term?

A: We can accept T/T, Western Union and PayPal. Also the online order is more convenient, as we have USD43000 trade assurance, it can by paid by credit card.

Q4:What's the lead time?

A: Standard encoder within 7 working days. Customized encoder need extra 2 weeks.

Q5:How to send the encoder ?

A: By express, like DHL, FedEx, TNT, UPS, EMS, etc. If you need, we can also arrange the shippment by air and by sea.

Q6: What's certificate do you have for encoder?

A: We have CE, ISO9001:2008 and RoHS certificate.

Q7: Can I get a customized encoder?

A: OEM, ODM service are available.

Q8:Can I have a sample encoder for testing?

A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample

Q9:How can i get the after-service?

A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay. For our range hood motors it is lifelong maintenance.

Q10:Do you have inspection procedures for encoder ?

A:100% self-inspection before packing

Q11:Can I have a visit to your factory before the order?

A: Sure,welcome to visit our factory.

Here is our factory address: No.1666, Ya’an Road, Beihu District, Chanchun, China

We can pick you up in the airport.
