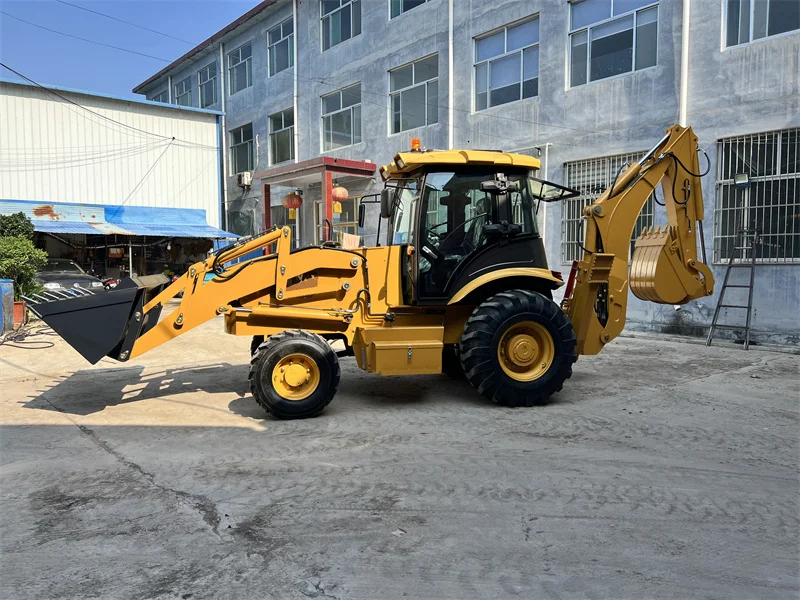

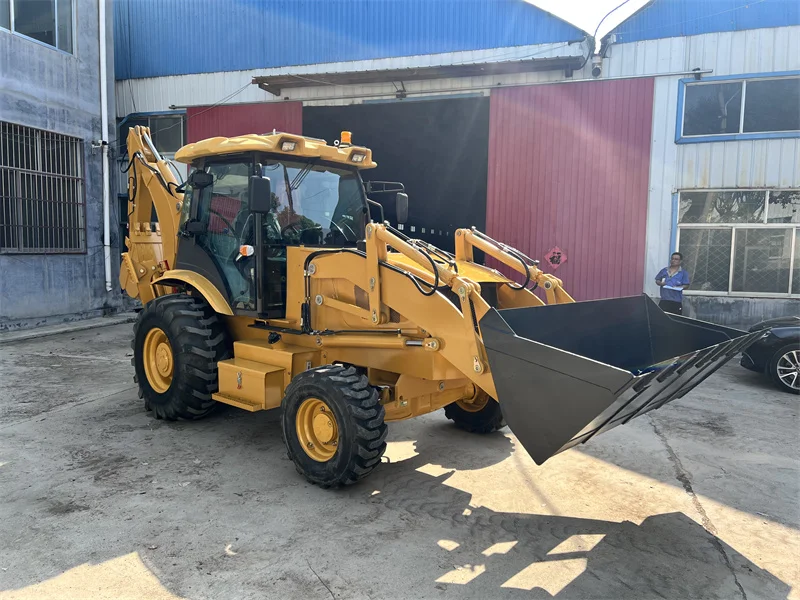

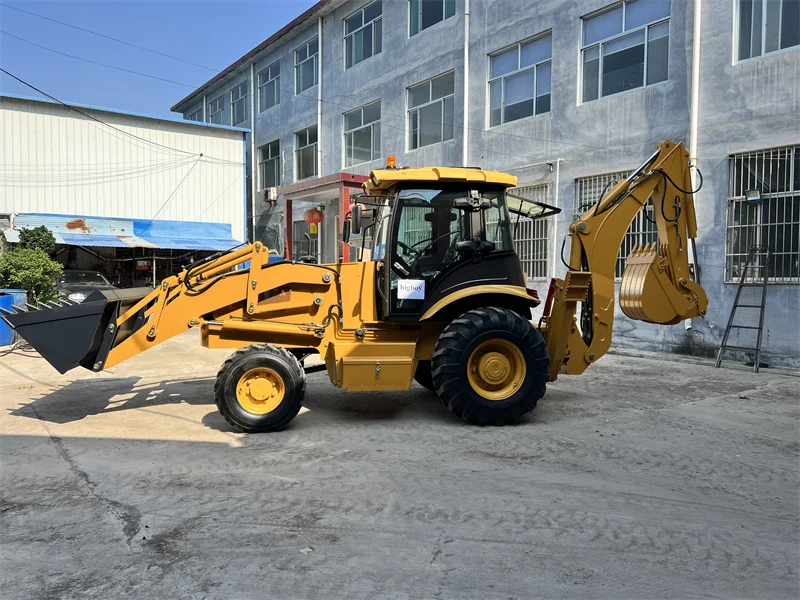

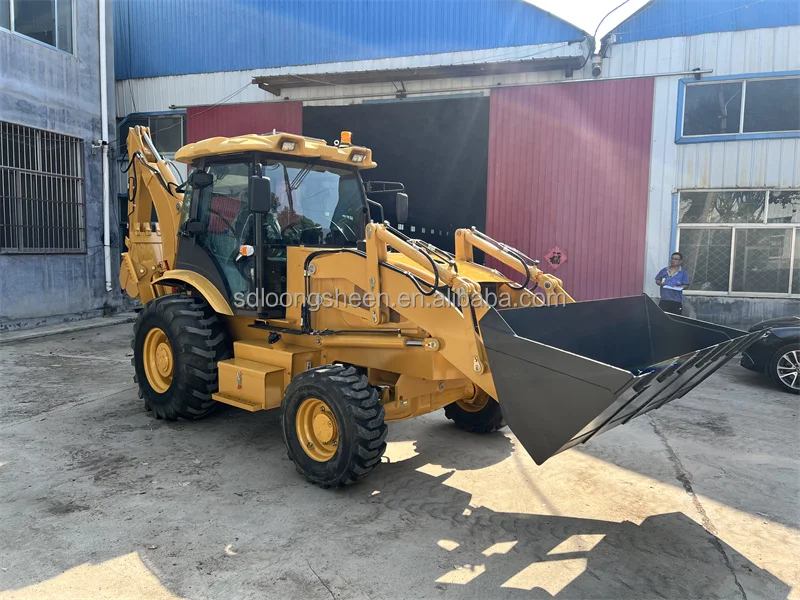

full hydraulic chinese backhoe loader new tractor loader for sale with A/C cabin

Share on (1600428518552):


Price:$22,000.00 - $30,000.00

Quantity:


Product Overview

Description



backhoe loader with snow plow for sale
Main fature
1-The use of high-reliability hydraulic torque converter and Gearbox to provide super power,
aggravated the smooth and high reliability of the dedicated bridge walking
2-Combine the excavator and the loader into one, and one
machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.
3-Mining, loading function all lead control, light and flexible, high operating efficiency.
4.-Humanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving.
5-Excavate the lateral sliding mechanism device to make the excavation operation more extensive and more efficient.
6-The design of the front flip cover greatly improves the maintenance of the entire machine.
7-A variety of accessories can be selected to complete a
variety of construction operations. For use in municipal administration, construction, water Conservancy, highways, tap water,
power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying,
landscaping and other operations



Product Description








Specification


388 backhoe loader with snow plow for sale
Transport Dimension
Overall Operating Weight
8200KG
mm L*W*H
6230×2365×3752
Wheel base
2200mm
Min. Ground Clearance
300mm
Bucket Capacity
1.0m3
Breakout Force
38KN
Loading Lifting Capacity
2500KG
Bucket Dumping Height
2650mm
Bucket Dumping Distance
1025mm
Digging Depth
52mm
Backhoe Capacity
0.3 m3
Max. Digging Depth
4085mm
Swing Angle of Excavator Grab
190o
Max. Pulling Force
39KN
Engine
Model
Famous brand
Type
turbocharging four-stroke
Cylinder-Inside Diameter*Stroke
4—105
Rated Power
75KW/100HP
Rated Speed
2400r/min
Min. Fuel Consumption
235g/kw.h
Max.Torque
310NM
Displacement
4.3L
Steering System
Model of Steering Device
BZZ5-250
Steering Angle
±36 o
Min. turning radius
6581mm
Pressure of the system
12Mpa
Axle
Manufacturer
Feicheng Axle Factory
Main Transmission Type
Double Reduction
Final Reducer
Single Stage Final Reducer
Rated Loader of Axle
4/18.5t
Transmission System
Torque Converter
Model
YJ280
Type
Single-stage Three Elements
Max. Efficiency
84.40%
Inlet Pressure
0.4Mpa—0.55 Mpa
Outlet Pressure
1.2Mpa—1.5 Mpa
Cooling Method
Oil-cooling Pressure Circulation
Gearbox
Type
Fixed Shaft Power Transmission
Oil Pressure of Clutch
1373Kpa—1569 Kpa
Gears
Two Gears Ahead, Two Gears Astern
Max.Speed
22Km/h
Tyre
Model
14-17.5/19.5L-24
Pressure of Front wheel
0.22 Mpa
Pressure of Back Wheel
0.22 Mpa
Brake System
Service Brake
Air Over Oil Caliper Brake
External Type
Self-regulation
Self-balance
Emergency Brake
Operation Power Implementing brake
Manual Operation Power Terminating Brake
Hydraulic System
Digging Power of Excavator Grab
46.5KN
Digging Power of Dipper
31KN
Bucket Lifting Time
5.4S
Bucket Lowering Time
3.1S
Bucket Discharge Time
2.0S

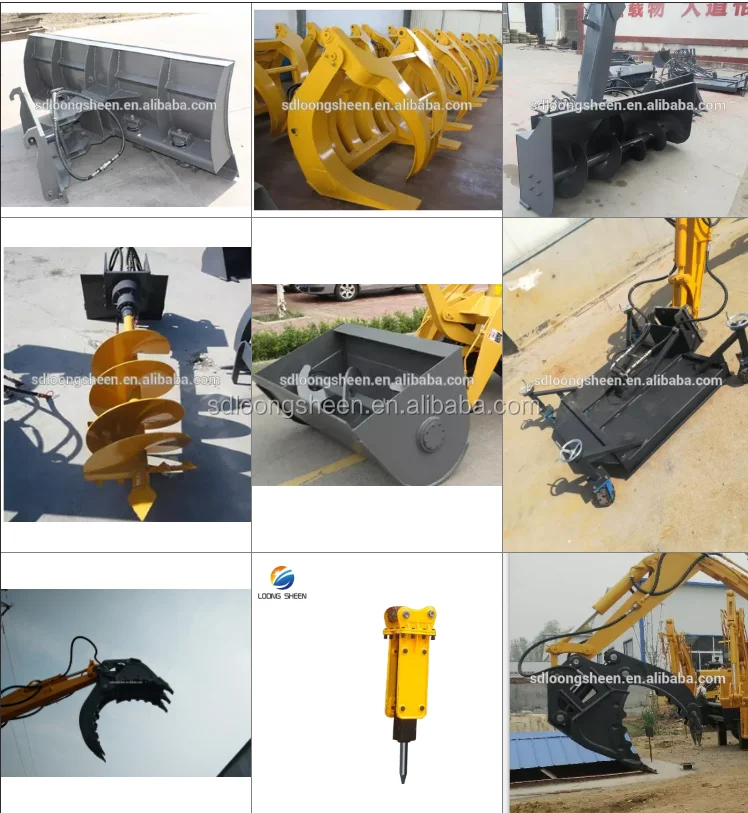

Availiable attachmets

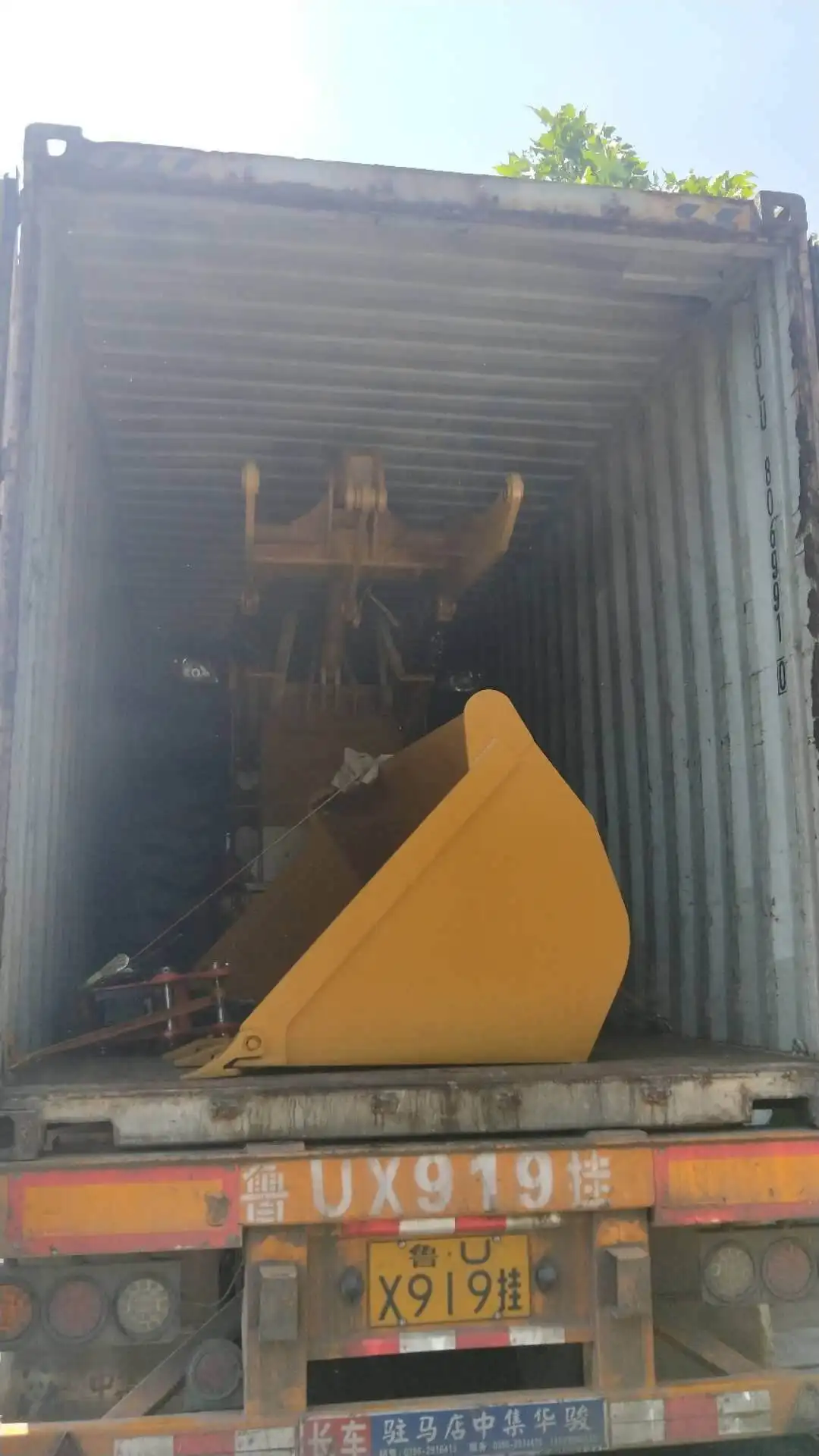

Packing & Delivery





1 units in 40HQ

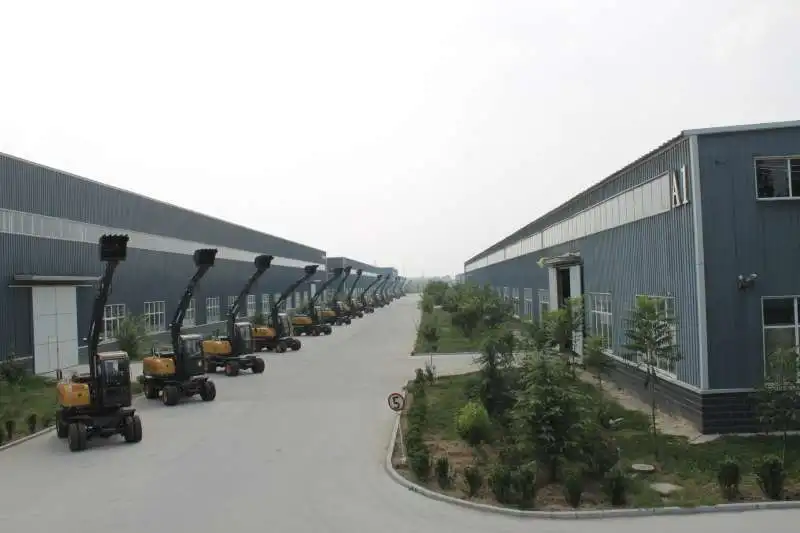

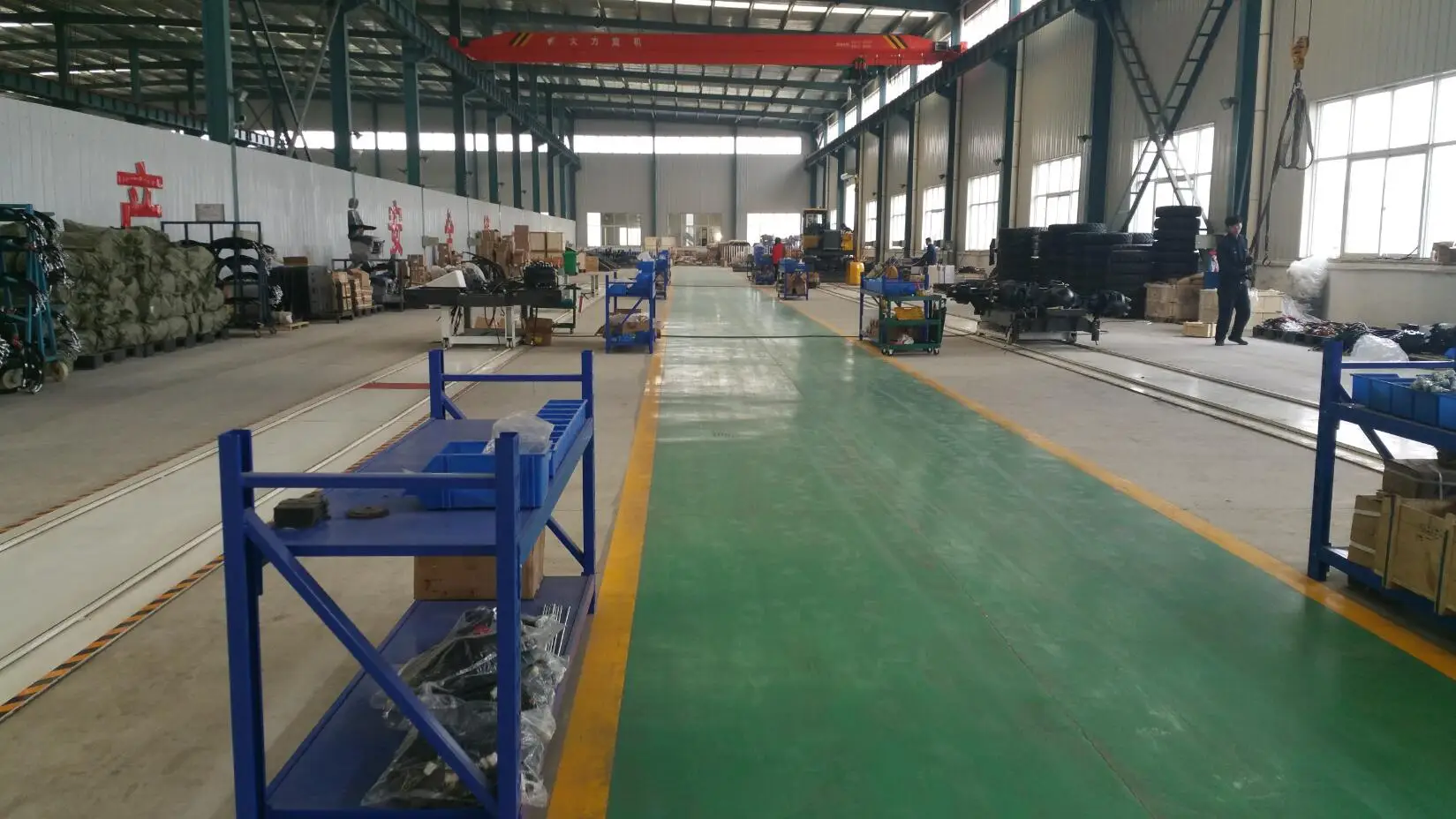

Company Profile




Shandong Loongsheen Import&Export Co.,Ltd is a professional heavy machines manufacturer and exporter concerned with the design, development and production kinds of machines.For example truck crane , excavator, road roller , skid steer loader and so on. We are located in Jining City of Shandong province, with convenient transportation access. Covering an area of 6,000 square meters, we now have over 600 employees and an annual sales figure that exceeds USD 8-15 million.

Five years professional experience in international trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers.
A well educated and friendly sales team with international vision, members of which can speak fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc;
Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price;
Excellent logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world.
Comprehensive after-sales service, including one year warranty, spare parts supply, installment and maintenance, and training.
An expertly managed ERP system and a well coordinated quality control system to satisfy various client requirements.

All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. We are currently exporting 30%-50% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 certification. As a result of our high quality products and outstanding customer service, we have gained a global sales network in many countries.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future. We sincerely hope to cooperate, develop together and build a good future with you. Loongsheen is your best choice for kinds of machinery in China.


Our Services


1. 24Hours after-sales service by email or phone.
2. 100% Response rate.
3. Our customer-oriented sales and technical team are always at your service
4. OEM Service available
5. Warranty: 12 months warranty , beyond the warranty period, all spare parts offered to you with our cost price (not including freight).We are a production factory of excavators, especially focusing on micro mini excavators. We are famous for high-quality earth-moving machinery . If you have any questions about mini diggers and excavator machine and accessories, please do not hesitate to contact us immediately.
