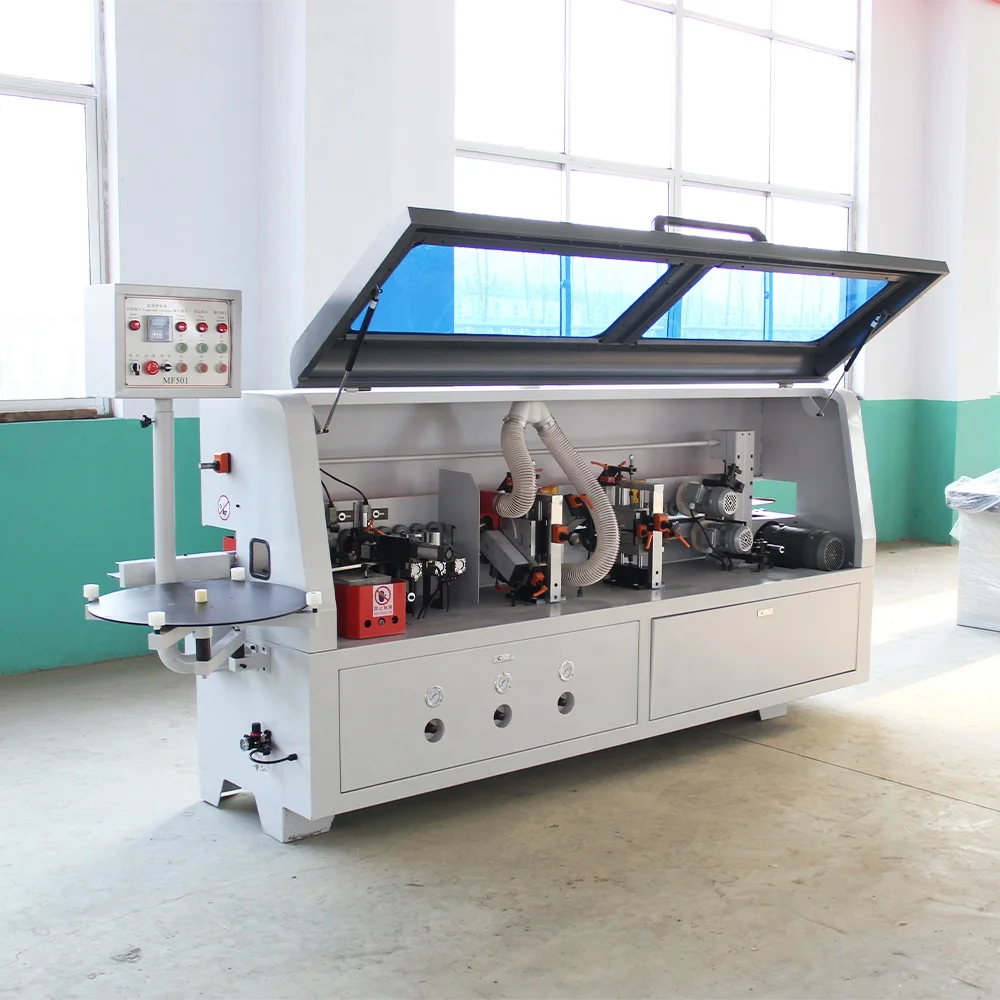

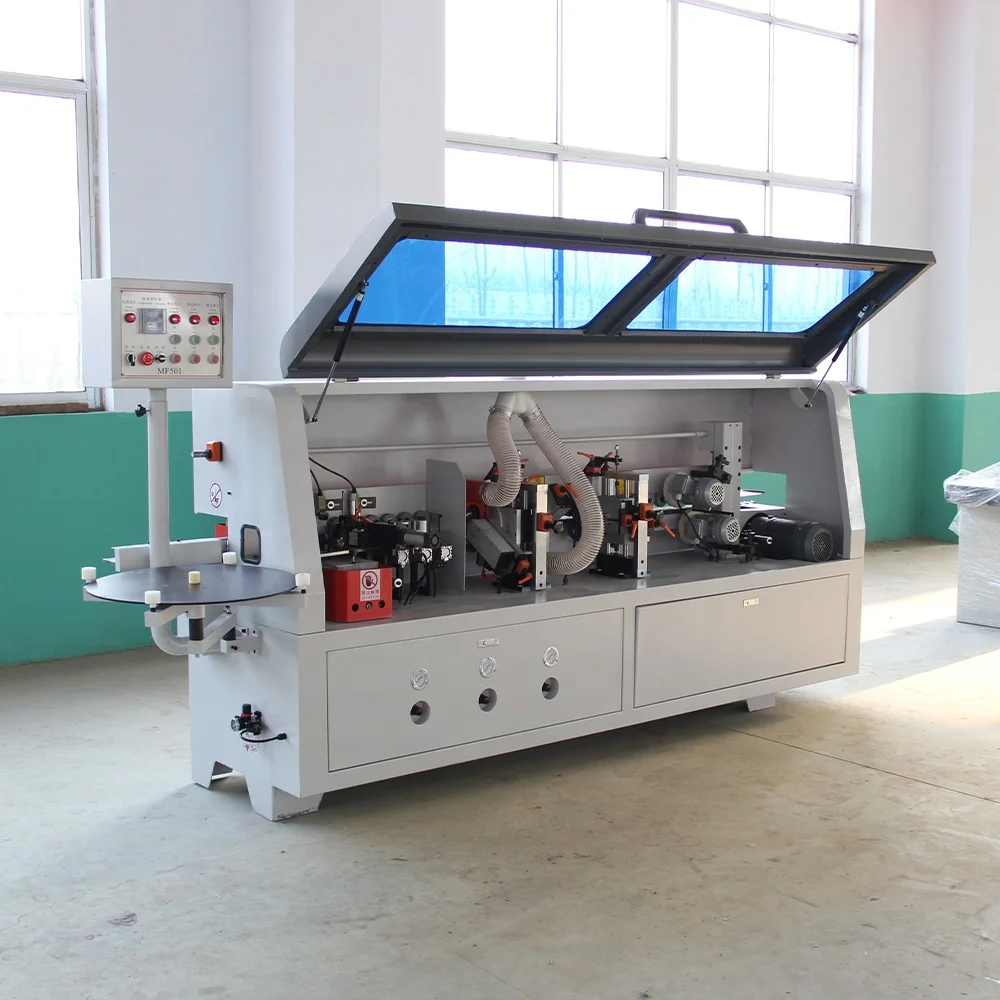

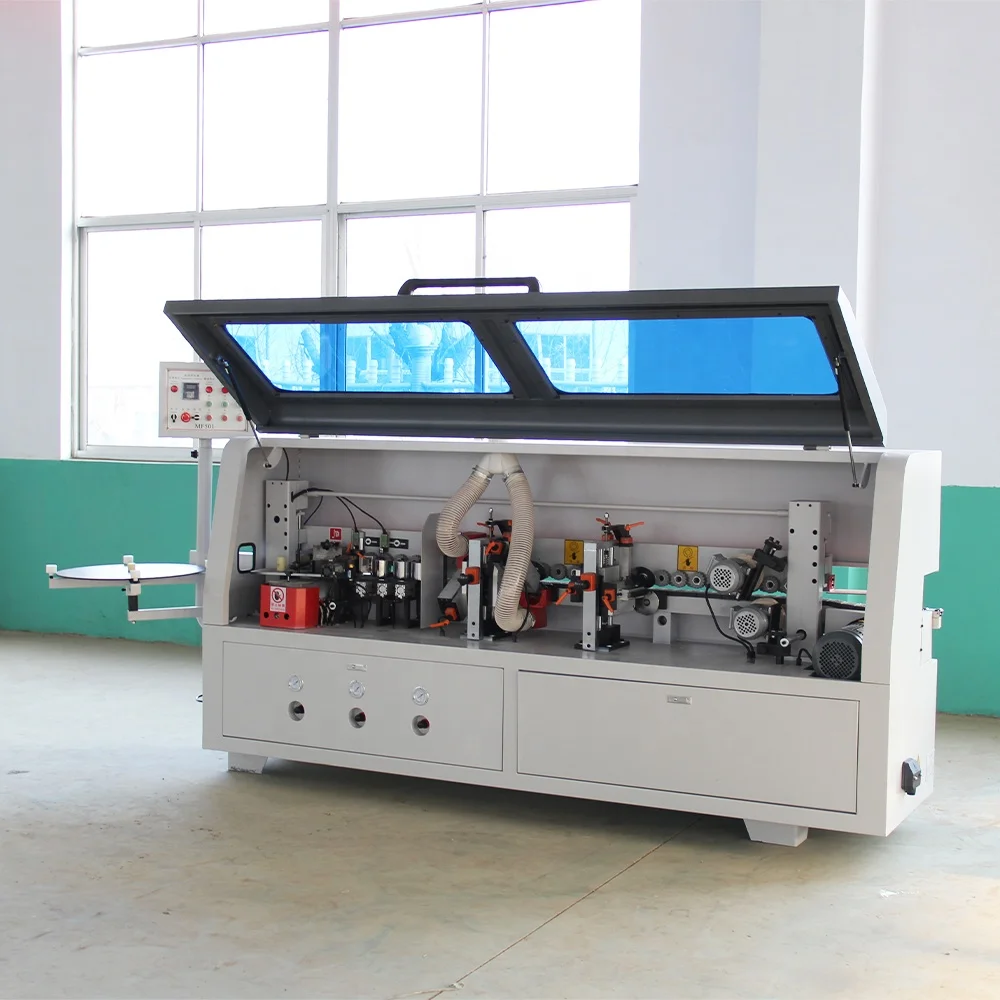

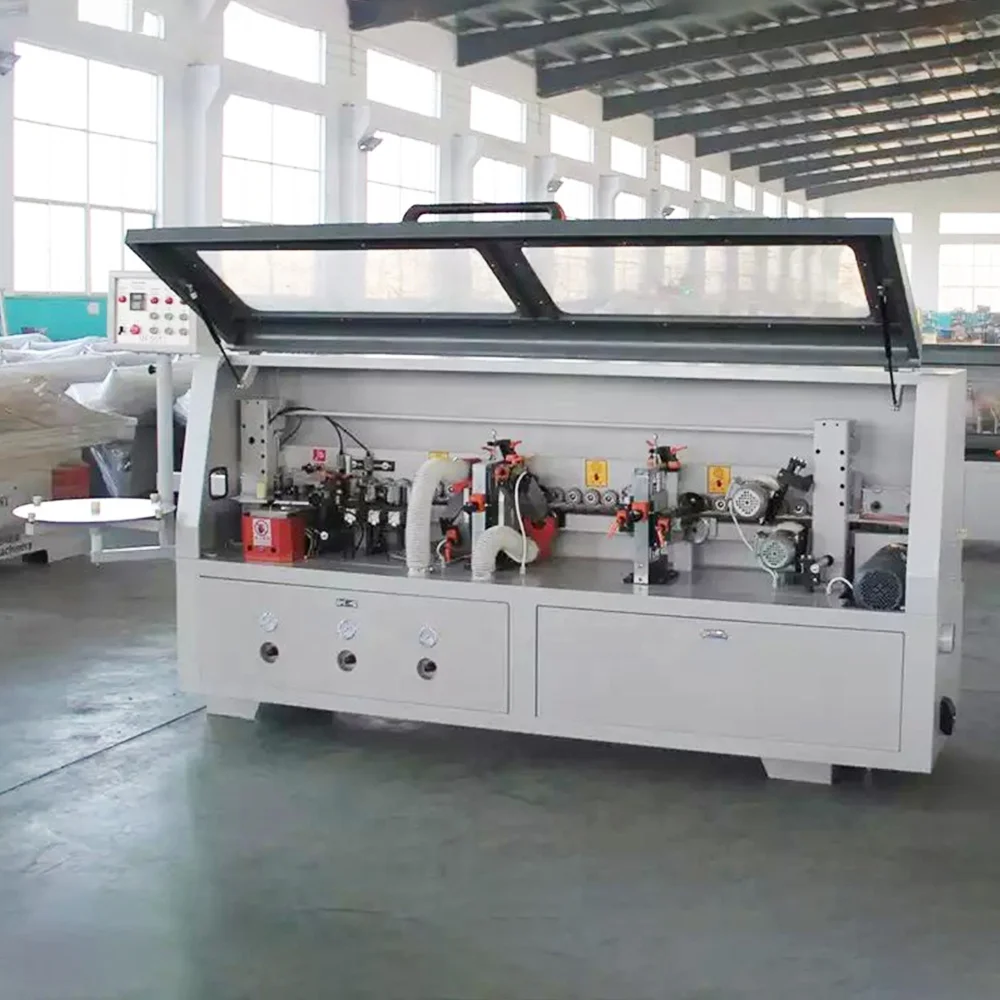

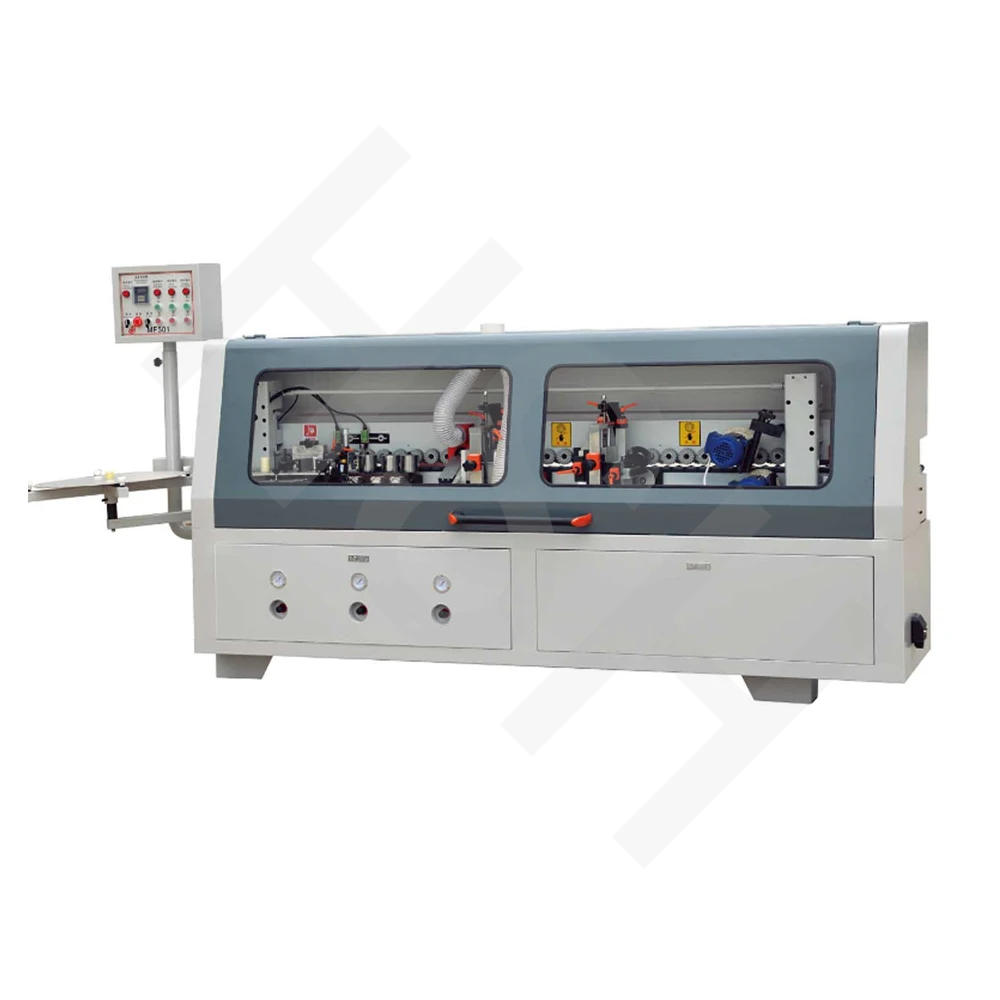

Manufacturer Economical Structure Semi Automatic Edge Bander for Wood
- Category: >>>
- Supplier: Qingdao Hongshenghong Machinery Co. Ltd.
Share on (1600428525594):
Product Overview
Description
Economically Automatic Edge Banding Machine
Product Paramenters
Model | HSH501 |
Rolling edge-enveloping belt thickness | 0.4~3mm |
Rolling edge-enveloping belt height | 13~60mm |
Workpiece thickness | 10~55mm |
Minimum width | 150mm |
Minimum length | 160mm |
Delivery speed of workpiece | 11.4m/min |
Air pressure | 0.7Mpa |
Edge-removing equipment motor | 0.75*2kW 12000rpm |
Polish equipment motor | 180W*2 1400rpm |
Heater | 1.5kW |
Feeding panels motor | 1.5kw 1400rpm |
Rubber axle motor | 0.37kW |
Total power capacity | 5.53kW |
Machine tool dimension | 3200*900*1700mm |
Net mass | 1000kg |

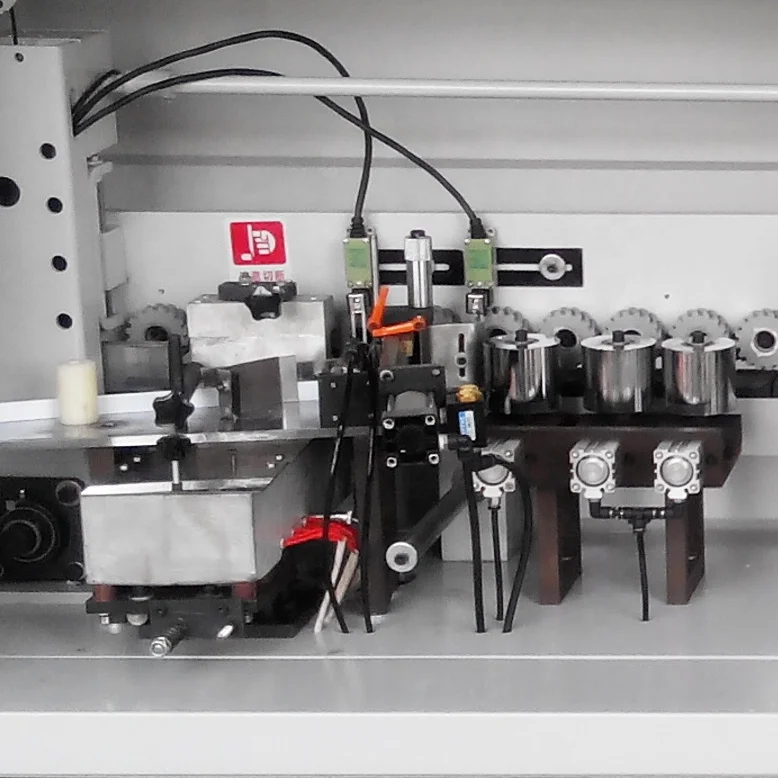

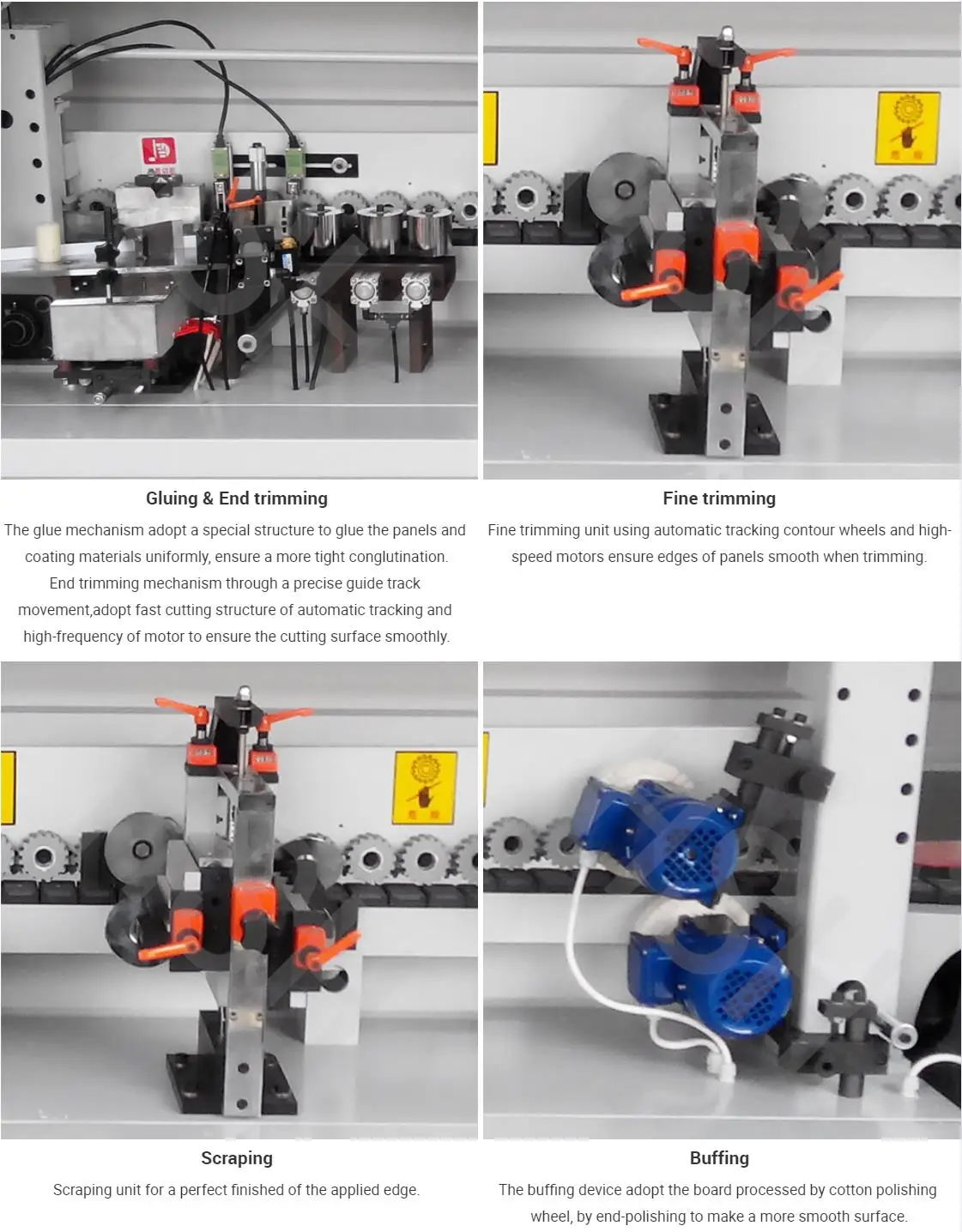

Inner structure
Samples After Processing
Similar Products

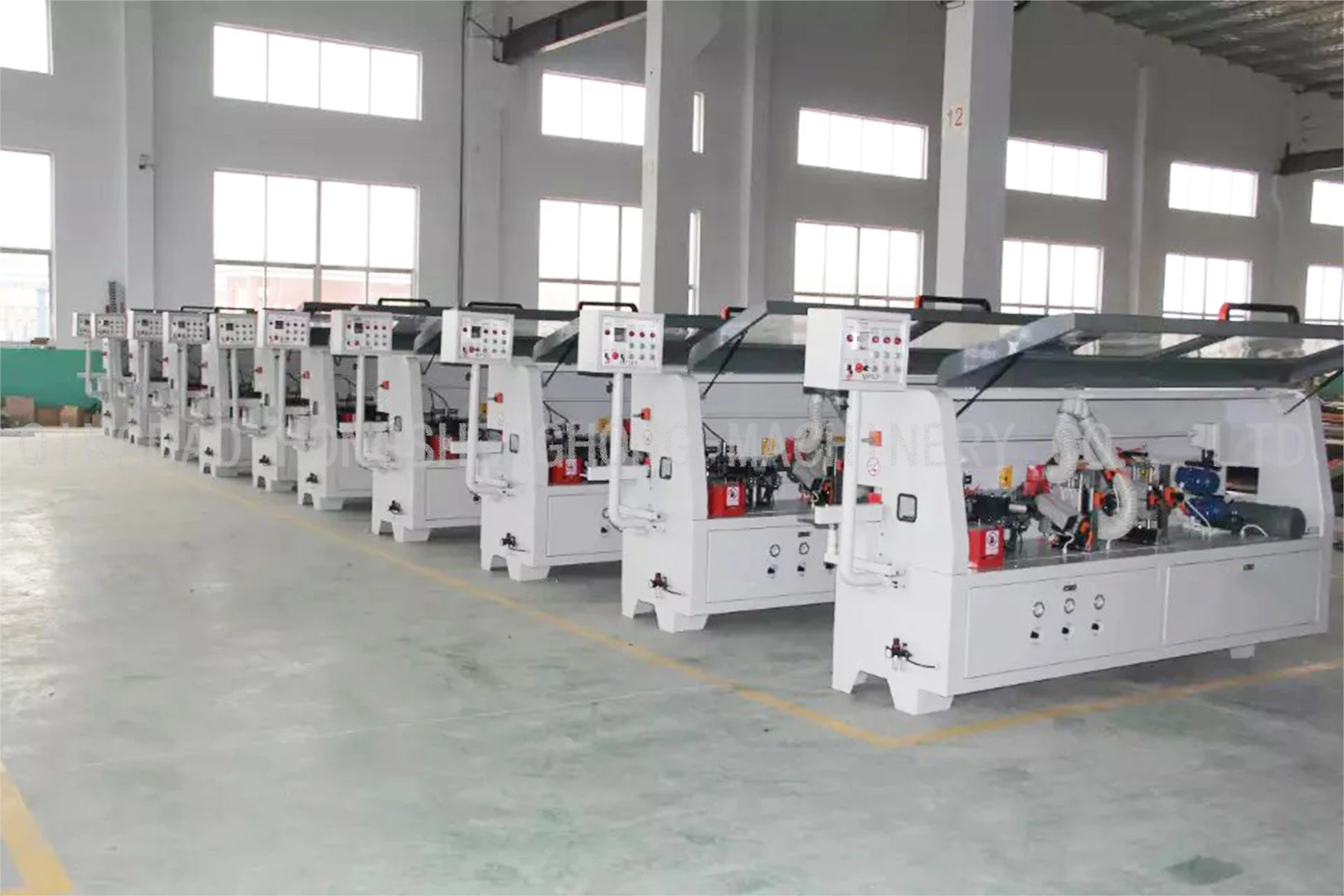

Workshop showing
After sale service
Pre-sale service.
(1) Provide the free consultation of equipment.
(2) Provide the standard device and the flow chart.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
Service during the sales.
(1) Inspect the machine before leaving the factory.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
After sale service.
(1) 24 hours online service.
(2) Provide the VIDEO with install and debug the equipment.
(2) Provide the VIDEO with install and debug the equipment.
(3) Provide technical exchanging.
