Changzhou HuaEn Garment Machinery Factory
Changzhou HuaEn Garment Machinery Factory is located in Xuejia Town, Xinbei District, Changzhou City. It covers an area of more than 17 acres and has a building area of over 10,000 square meters. It is acomprehensive enterprise integrating design, development, manufacturing and trade. It specializes in producing and manufacturing all kinds of multifunctional folding machines. We have a high-quality, young and innovative research team, based on high starting point, high standards, abide by customer satisfaction, and create excellent business philosophy, providing services from sample to mass production. A rapid response mechanism has been established to continuously meet customer needs.
We totally have model ZJ-217, ZJ-416, ZJ-516, HE-202, HE-217-T, ZJ-316D, ZJ-816 fabric pleating machine (smocking pleater machine).

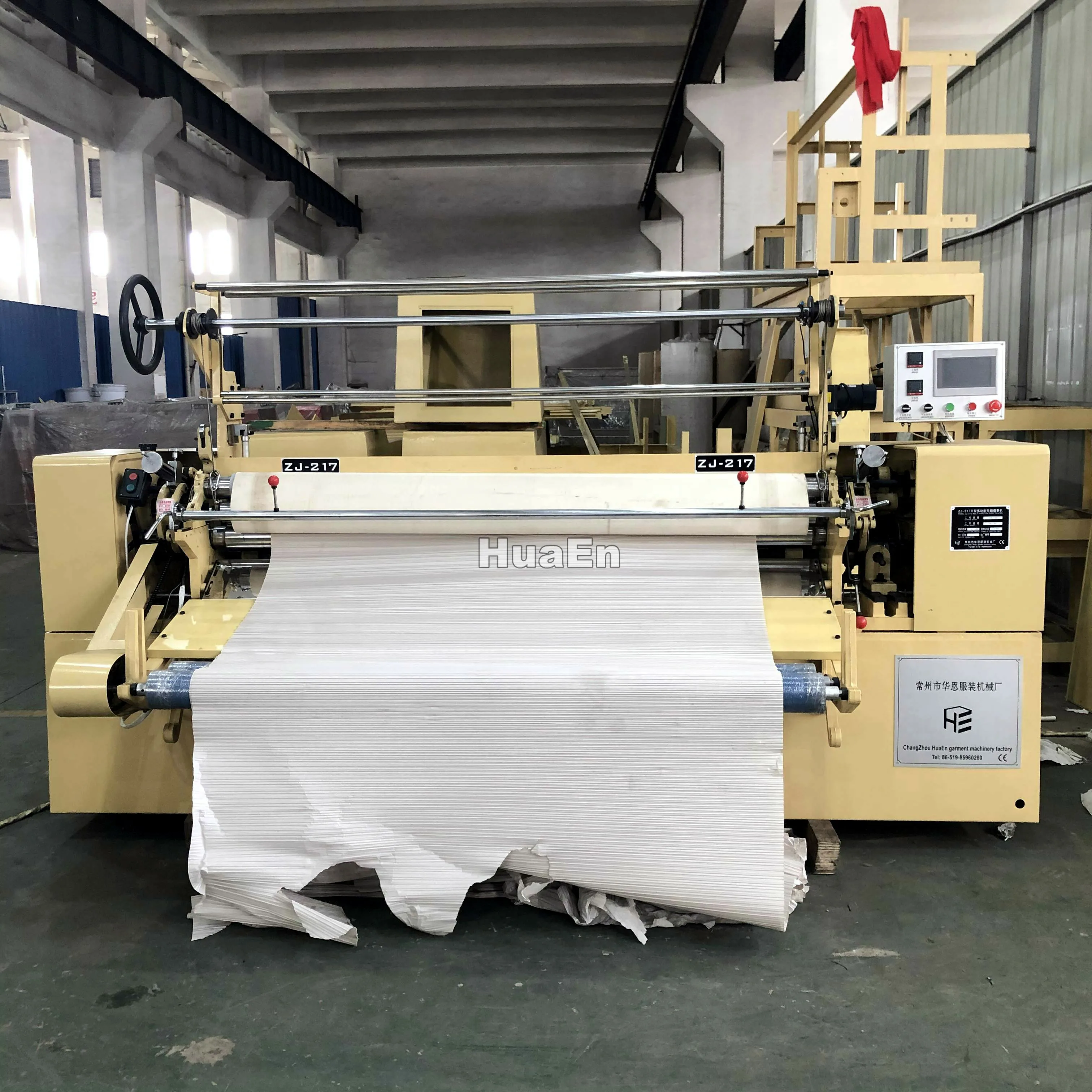

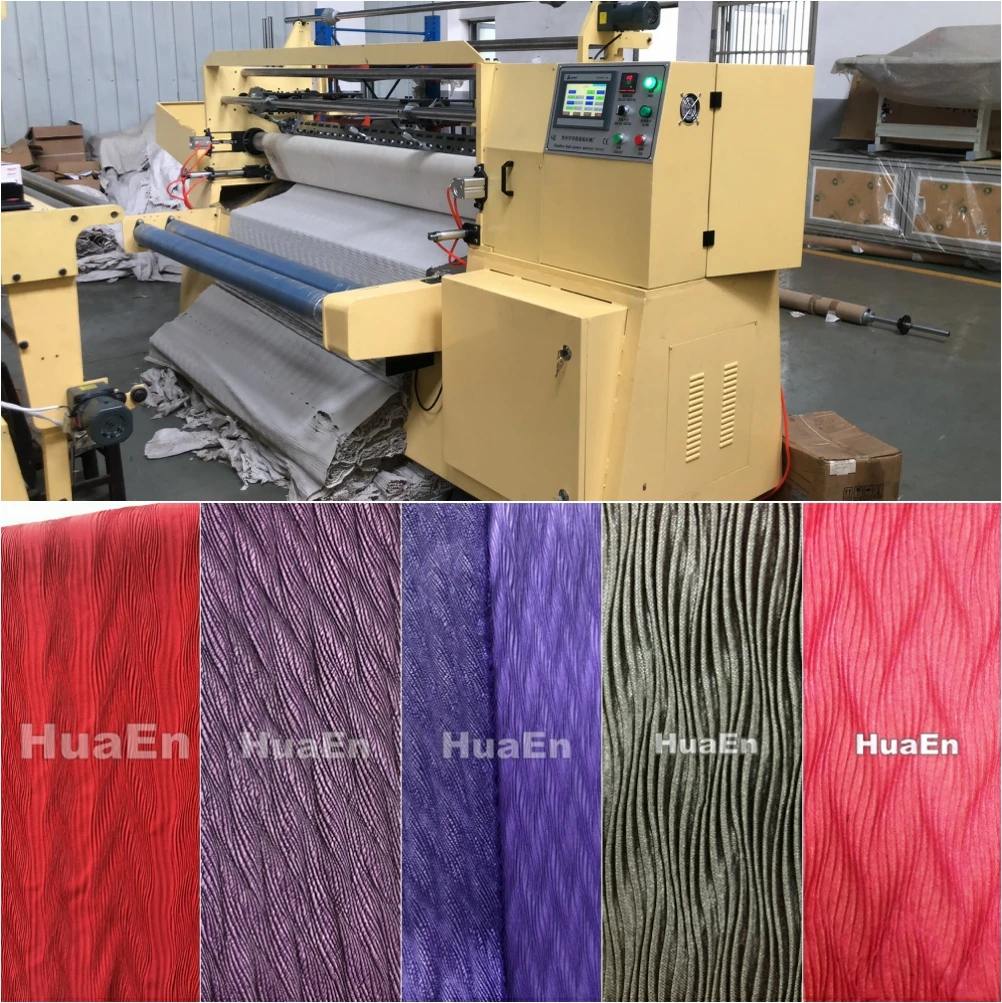

►ZJ-217 (smocking pleater machine) is the most functional machine and possible to equipped with computer and pneumatic system, and it is fixed with the most knife types.
To produce bamboo leaf pattern, box pleat pattern, side pleat pattern, wave pleat pattern individually, users just need change knife to achieve it.
►ZJ-316D (smocking pleater machine) knife moves leftwards and rightwards. And, knife is custom made

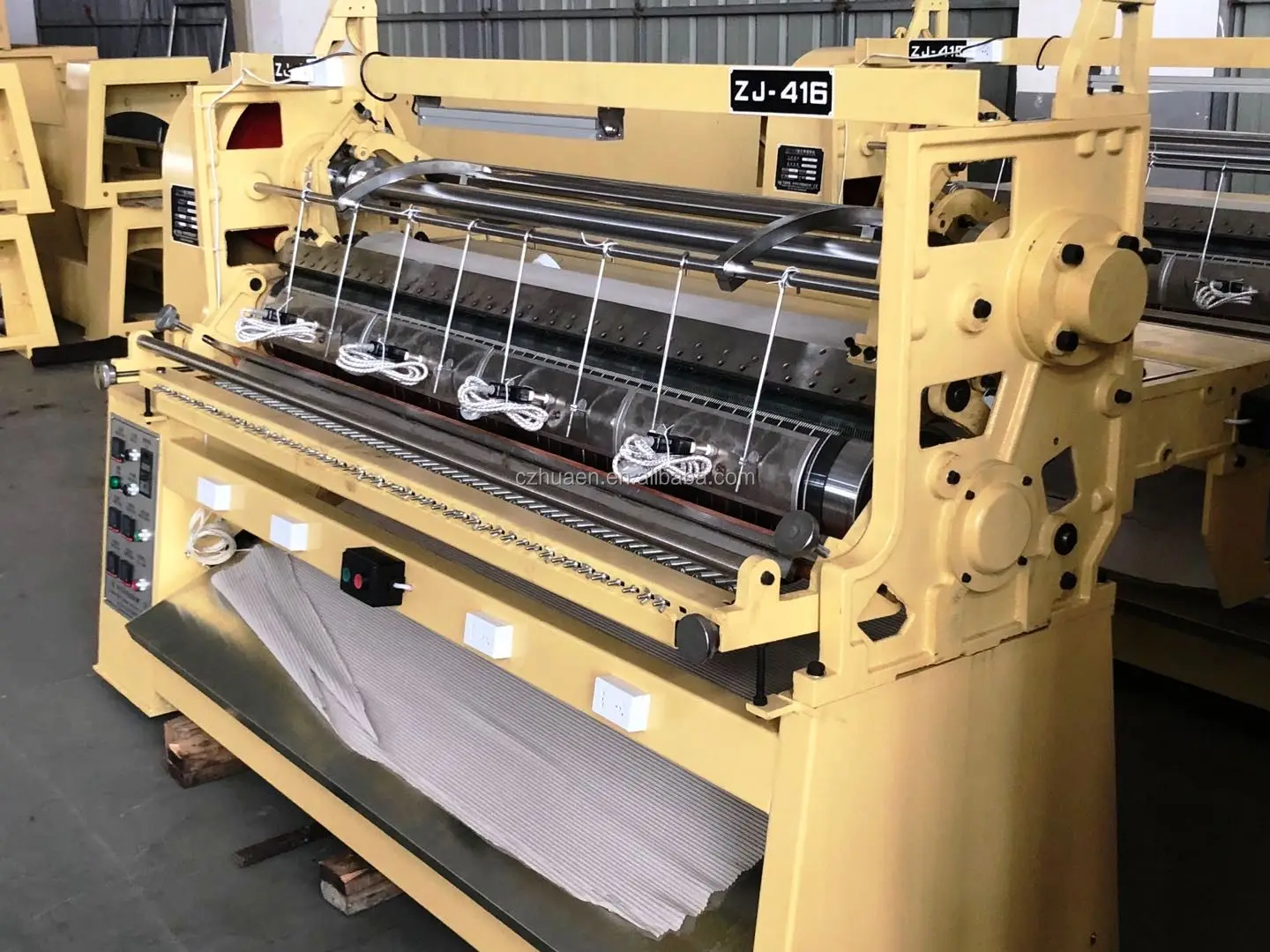

►ZJ-416 (smocking pleater machine) pleats single vertical pattern, which is called by toothpick pleat. It is fixed with only steel belt and steel comb.

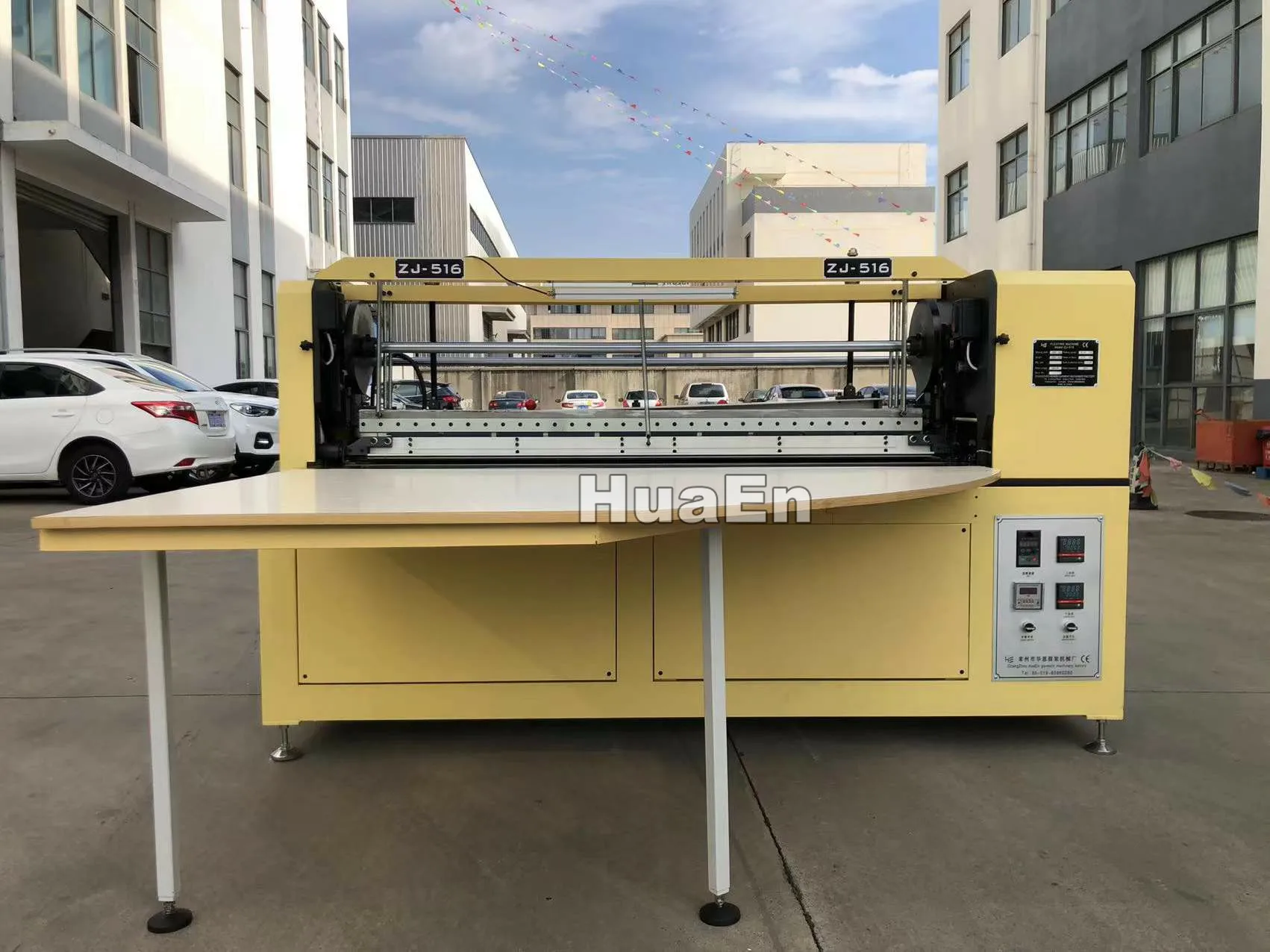

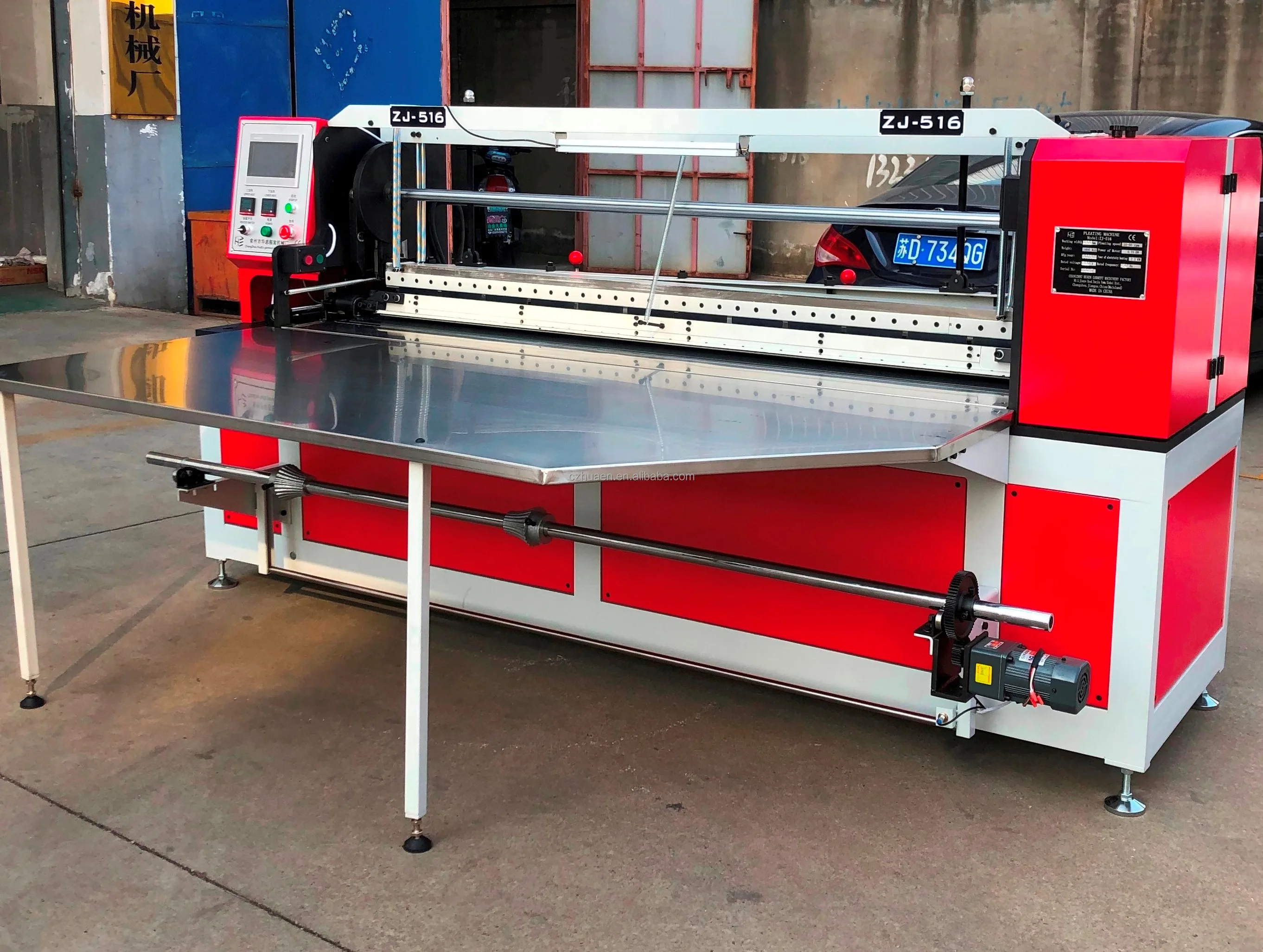

►ZJ-516 (smocking pleater machine) pleats accordion but is merely applicable for sun-ray fabric piece / panel.

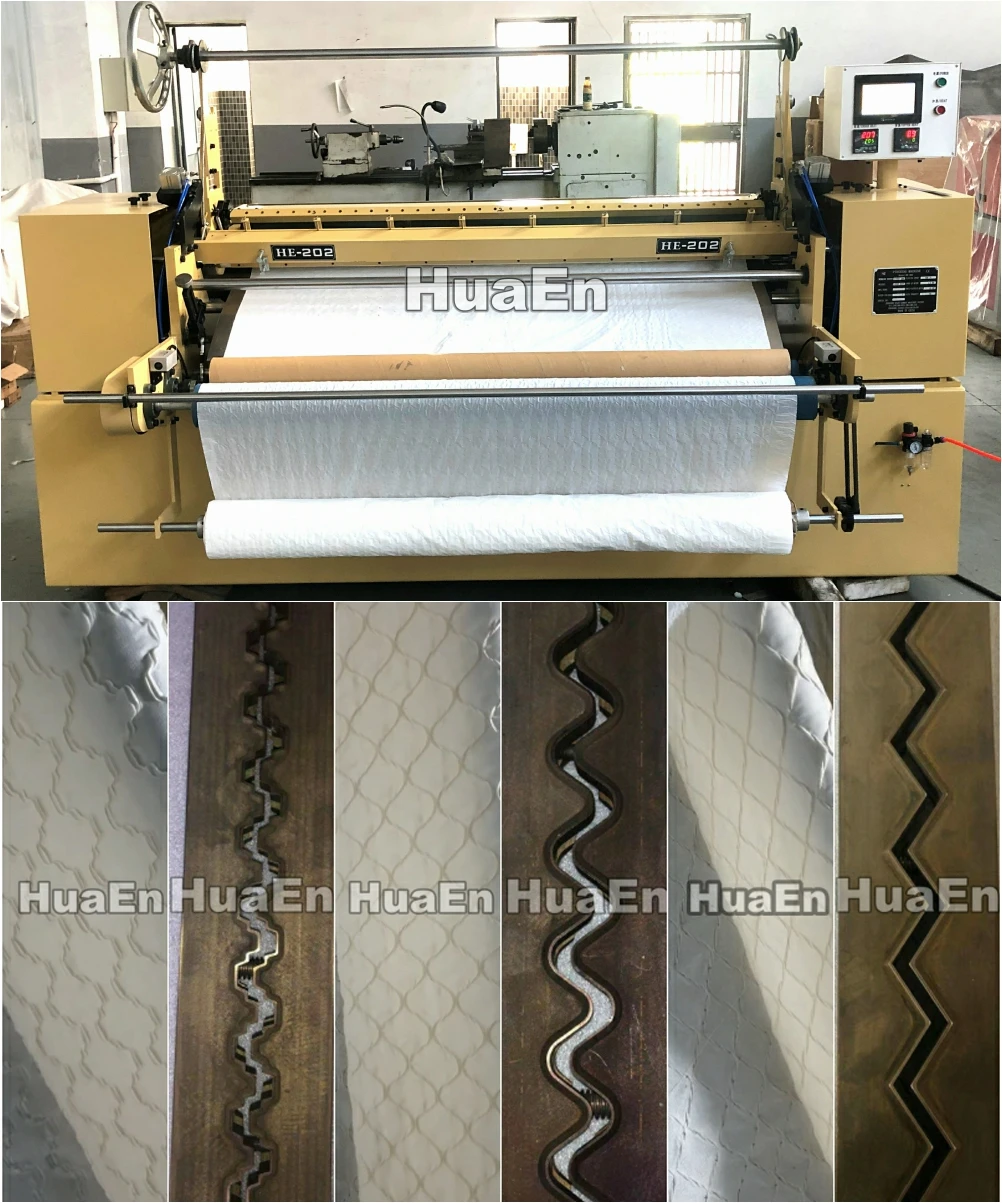

►HE-202 pinch pleating machine
►HE-217-T jacquard machine

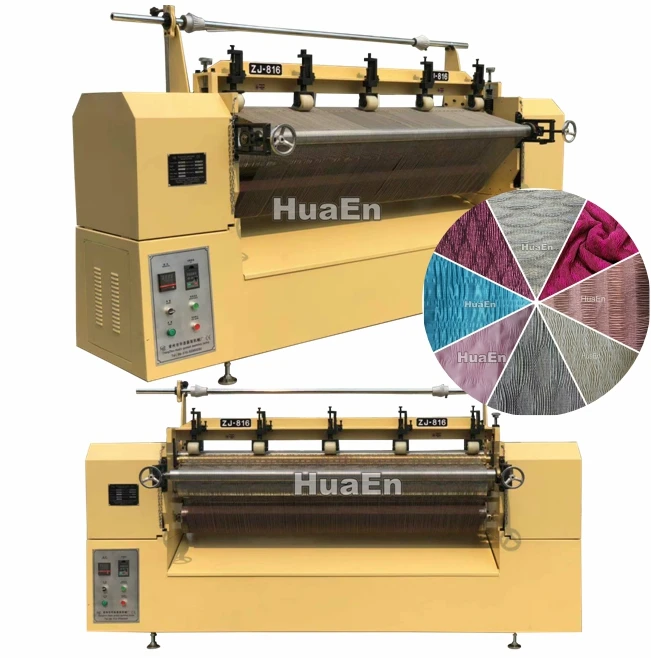

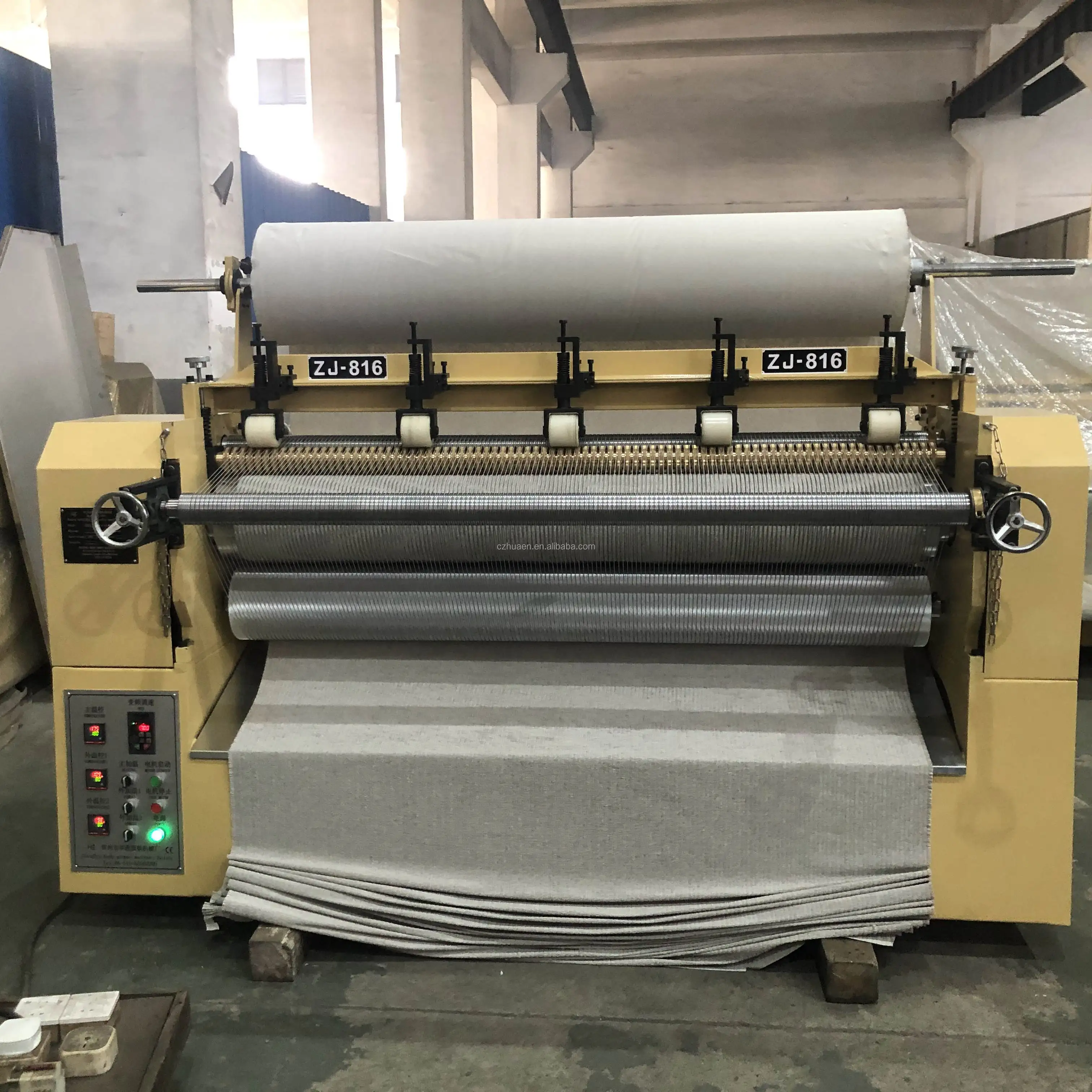

►ZJ-816 (smocking pleater machine) isn't so prevalent like the above models, it is kind of shrinking pleating. Its feature is Roller type decides pleat pattern. Please vide our product ZJ-816 machine separately.

►HE-217-B for big box pleats and big knife pleats for school uniform








Pleat Patterns






Certifications




Product Paramenters


Model-1
ZJ-217
without computer
Fantasy pleating
ZJ-217
with computer
Fantasy pleating
ZJ-416
Crystal pleating
Specification
Max. pleating width: 1700mm
Max. speed: 20-150pleat/minutes
Consumption 1: wool felt / canvas
Consumption 2: paper
Pleat width: 1mm-60mm
Pleat depth: 2mm-30mm
Motor power: 1.1kW
Heating power: 1.1kW*9
Size: 3200*1650*1750mm
Packing size: 3400*1140*2000mm
Net weight: 1300kgs
Gross weight: 1650kgs
Max. pleating width: 1700mm
Max. speed: 20-150pleat/minutes
Consumption 1: wool felt / canvas
Consumption 2: paperas
Pleat width: 1mm-60mm
Pleat depth: 2mm-30mm
Motor power: 1.1kW
Heating power: 1.1kW*9
Size: 3200*1650*1750mm
Packing size: 3400*1140*2000mm
Net weight: 1300kgs
Gross weight: 1650kgs
Compressed air: needed
Max. pleating width: 1600-1700mm
Max. pleating speed: 200m/h
Pleat height: 2mm-8mm
Consumption: paper
Motor power: 1.1kW
Heating power: 1.5kW*6 + 0.5kW*4
Size: 2600*1450*1600mm
Packing size: 2600*1140*1800mm
Net weight: 1000kgs
Gross weight: 1250kgs
Quantity of pleat patterns
Basic 3.
3 knives included
Basic 3.
3 knives included
1 or 2
Pleat pattern
Wavy, flat(straight), and bamboo leaf are the basic
Wavy, flat(straight), and bamboo leaf are the basic
Tiny vertical
(Toothstick)
Paper needed
Upper and lower
30g/m2 smooth & 48g/m2 friction paper
Fabric is sandwiched
Upper and lower
30g/m2 smooth & 48g/m2 friction paper
Fabric is sandwiched
Upper and lower
48g/m2 friction paper
Fabric is sandwiched
Key part
Knife
Knife
Steel comb
Possible to customize?
Yes
One knife, one type
Yes
One knife, one type
NO
Pleating in roll or piece
Both piece and roll
Both piece and roll
Both piece and roll




Model
ZJ-516
without computer
Sunray pleating
ZJ-516
with computer
Sunray & Blind pleating
ZJ-816
Ruffles
Specification
Max. folding width: 1600mm
Pleat size: 0.5cm-5cm
Consumption: paper
Motor power: 1.1kW
Heating power: 1.2kW*6
Size: 2600*1400*1600mm
Packing size:2600*1140*1800mm
Net weight: 800kgs
Gross weight: 1000kgs
Max. Press width: 1600mm
Pleat size: 0.5cm-5cm
Consumption: paper
Motor power: 0.75kW+60W
Servo motor power: 0.75kW*2
Heating power: 1.2kW*6
Size: 2600*1400*1600mm
Packing size: 2600*1140*1800mm
Net weight: 800kgs
Gross weight: 1000kgs
Max. pleating width: 1600mm
Max. pleating speed: 200m/h
Consumption: paper
Motor power: 1.1kW
Heating power: 10kW
Size: 2600*1450*1650mm
Packing size: 2600*1140*1800mm
Net weight: 1000kgs
Gross weight: 1250kgs
Quantity of pleat patterns
1
>3
Single
1 roller included
Pleat pattern
Vertical Sunrise
Vertical Sunrise and accordion
Wavy or Ruffle are basic
Paper needed
Depends on fabric
30g/m2 smooth paper
Depends on fabric
30g/m2 smooth paper
Upper and lower
48g/m2 friction paper
Fabric is sandwiched
Key part
Knife
Knife
Roller/cylinder
Possible to customize?
NO
NO
Yes
One roller, one type
Pleating in roll or piece
Only piece
Both piece and roll
Both piece and roll




Model
HE-202
Pinch machine
HE-217-T
Jacquard machine
ZJ-316D
Specification
Max. pleating width: 1700mm
Pleating speed: min.40m/h
Motor power: 1.5kW
Heating power: 3kW*3
Size: 2800x1400x1850mm
Packing size: 2900x1500x2100mm
Net weight: 1250kgs
Gross weight: 1450kgs
Compressed air: needed
Max. pleating width: 1700mm
Max. pleating speed: 20-80 pleats/minute
Pleat depth: 2-5mm
Motor power: 1.5kW
Heating power: 1.1kW*9
Qty. of piston: 100 pcs
Knife thickness: 2mm
Size: 3*1.5*1.8m
Packing size: 3.1*1.55*2m
Net weight: 1700kgs
Gross weight: 2000kgs
Compressed air: needed
Max. pleating width: 1600mm
Max. pleating speed: 100m/h
Consumption 1: wool felt
Consumption 2: paper
Pleat width: 1mm-100mm
Motor power: 1.5kW+1.1kW
Heating power: 10kW
Heating agent: oil
Size: 3150*1600*1800mm
Packing size: 3300*1150*2000mm
Net weight: 1350kgs
Gross weight: 1650kgs
Compressed air: needed
Quantity of pleat patterns
3 moulds included
100 pcs of knives included
Basic 3.
3 knives included
Pleat pattern
Please see below knife
Please see below knife
Please see below knife
Paper needed
Lower paper needed only
30g/m2 friction paper.
Less gsm is better
Depends on fabric
30g/m2 smooth paper
Depends on fabric
36g/m2 friction paper
Key part
Moulds
Knife
Knife
Possible to customize?
Yes
One mould, one type
Yes
One knife, one type
Pleating in roll or piece
Both piece and roll
Both piece and roll
Both piece and roll
