Wholesale Hydraulic Machine Suction Filter Cartridge Screen Oil Filter Element Oil Filter Making Machine
- Category: >>>
- Supplier: Ningbo Beilun District Yongcheng Machine Tool Accessories Factory
Share on (1600428580977):
Product Overview
Description
Products Description
Introduction:
1. This product is composed of aluminum alloy shell, filter element, self-sealing valve and filter element pollution blocking indicator. It can be directly installed on the side plate of the fuel tank, which is easy to install and reliable in connection. When installing, the filter should be fully immersed below the oil level.
2. This series of products are equipped with a manual self-sealing valve. When cleaning or replacing the filter element, you can manually close the self-sealing valve (counterclockwise) so that the oil in the tank will not flow to the outside. And when the filter element of this product is blocked by contaminants and the vacuum degree of the oil outlet is -0.018MPa, the signal alarm will be sent out, or the power supply will be cut off directly. There are four types of transmitters, you can choose one of them.
3. The product is also equipped with a strong magnet in the filter element, which can effectively adsorb the metal iron molecular particles in the hydraulic oil to ensure the quality of the hydraulic oil, reduce the wear of the equipment, and extend the service life.
4. Matters needing attention: If the self-sealing valve is not fully opened, do not start the oil pump. When the signal is sent out, the filter element should be cleaned or replaced in time to prevent the oil pump from vacuuming and other failures.
2. This series of products are equipped with a manual self-sealing valve. When cleaning or replacing the filter element, you can manually close the self-sealing valve (counterclockwise) so that the oil in the tank will not flow to the outside. And when the filter element of this product is blocked by contaminants and the vacuum degree of the oil outlet is -0.018MPa, the signal alarm will be sent out, or the power supply will be cut off directly. There are four types of transmitters, you can choose one of them.
3. The product is also equipped with a strong magnet in the filter element, which can effectively adsorb the metal iron molecular particles in the hydraulic oil to ensure the quality of the hydraulic oil, reduce the wear of the equipment, and extend the service life.
4. Matters needing attention: If the self-sealing valve is not fully opened, do not start the oil pump. When the signal is sent out, the filter element should be cleaned or replaced in time to prevent the oil pump from vacuuming and other failures.

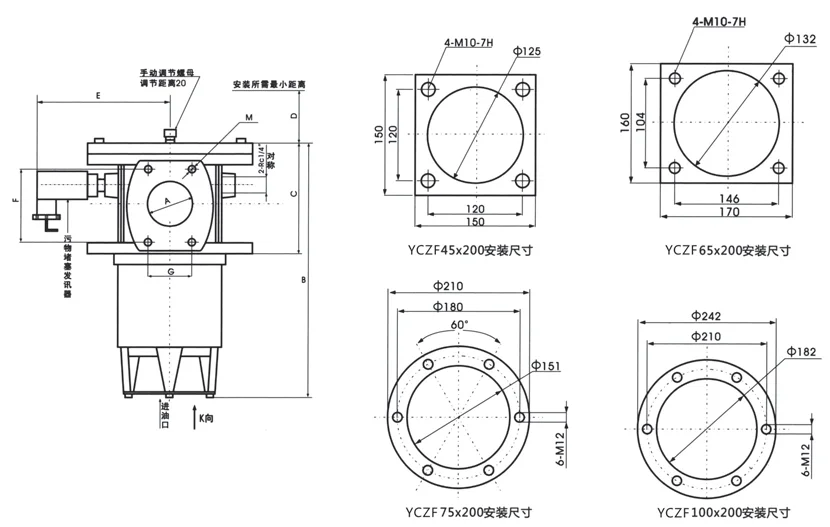

Installation and External Dimensions
Product Specifications
Model number | Oil outlet size A | B | C | D | E | Oil viscosity | Flow rate (L/min) | F | G |
YCZF45X200 | 1 1/2"SAE | 301 | 116 | 260 | 135 | 30# | 180 | 35.17 | 69.85 |
46# | 160 | ||||||||
68# | 140 | ||||||||
YCZF65X200 | 2 1/2"SAE | 301 | 136 | 260 | 150 | 30# | 380 | 88.9 | 50.8 |
46# | 300 | ||||||||
68# | 260 | ||||||||
YCZF75X200 | 3"SAE | 301 | 206 | 260 | 170 | 30# | 520 | 106 | 62 |
46# | 480 | ||||||||
68# | 380 | ||||||||
YCZF100X200 | 4"SAE | 298 | 216 | 260 | 190 | 30# | 650 | 130 | 78 |
46# | 580 | ||||||||
68# | 480 |
