Product Overview
Description
Products Description
1.Overview

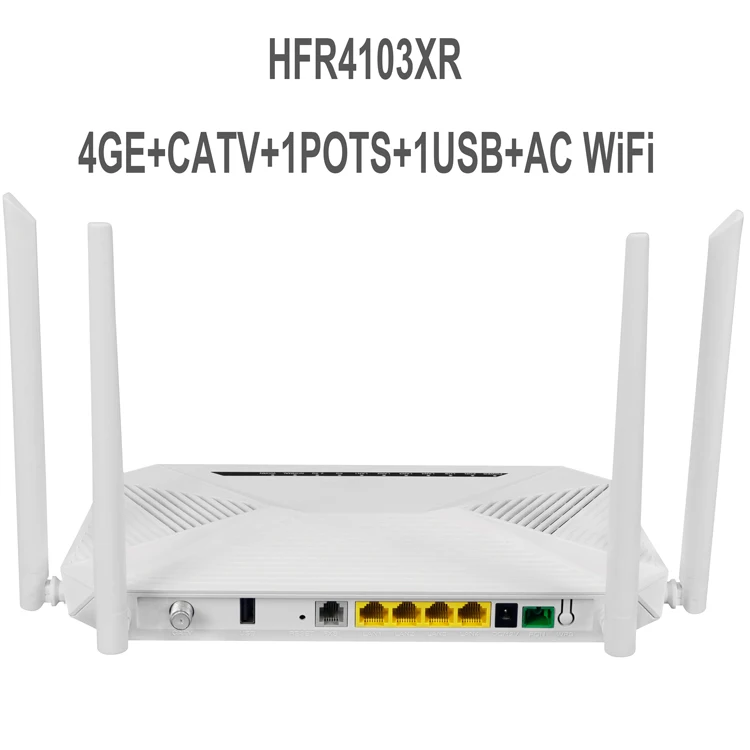

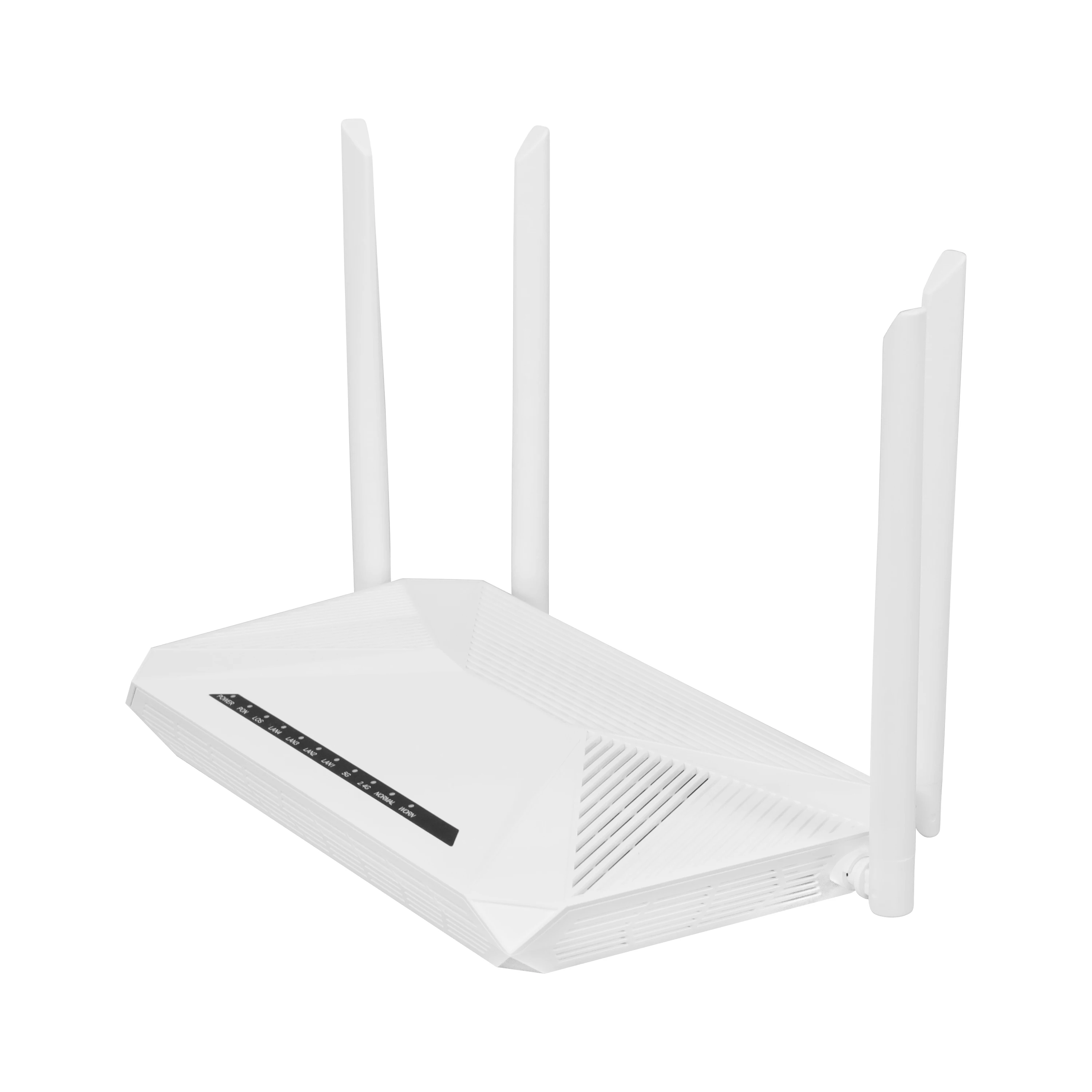

HFR4103XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access .
HFR4103XR is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
HFR4103XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
HFR4103XR is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
HFR4103XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
Support EPON/GPON mode and switch mode automatically
Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
Support IPv4 and IPv6 Dual mode

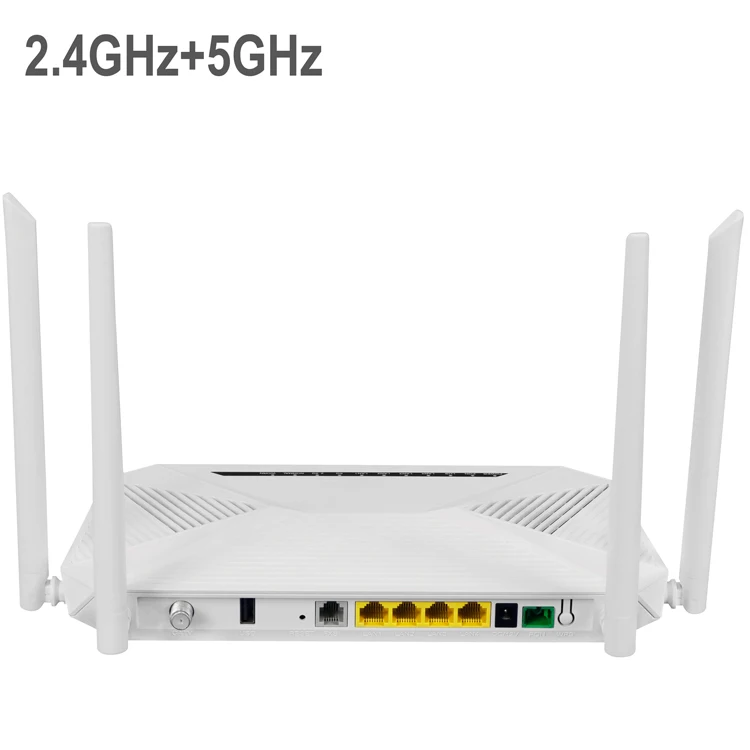

Support 2.4G&5.8G WIFI and Multiple SSID
Support SIP Proctol for Voip Service
Support CATV interface for Video Service and remote control by Major OLT
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system
Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
Support IPv4 and IPv6 Dual mode
Support 2.4G&5.8G WIFI and Multiple SSID
Support SIP Proctol for Voip Service
Support CATV interface for Video Service and remote control by Major OLT
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system
Version & Firmware
All ONU products are Global Version with English Firmware and English Package Box.

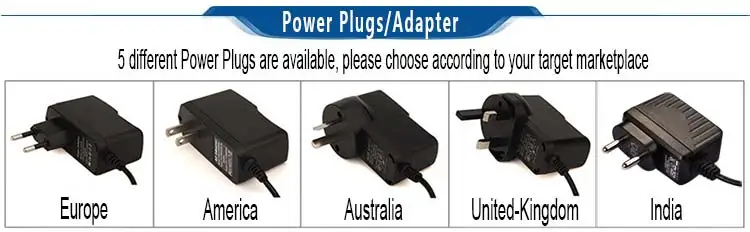

Power Plugs
we can provide Power Plug with Europe Standard, America Standard, Australia Standard, United-Kingdom Standard and India Standard, please choose according to your target marketplace.

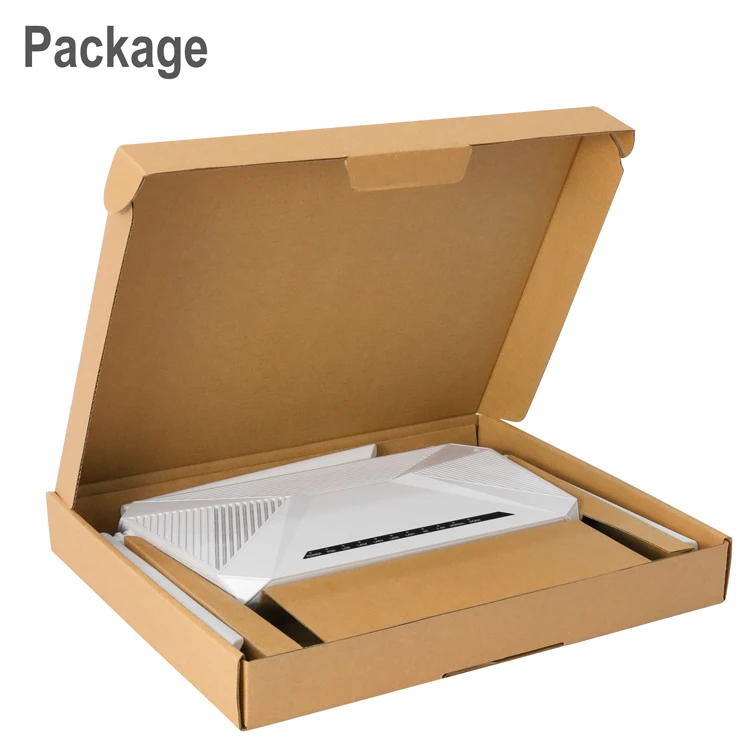

Package Box
Size: CM
Weight: KG
Carton
Size : 58*58*28CM
Weight: 13KG
QTY/CTN: 20pcs
QTY/CTN: 20pcs
Product Paramenters
Technical item | Details |
PON Interface | 1 GPON BoB（Class B+/Class C+） |
Transmission distance: 20KM | |
Optical Interface | SC/UPC Connector |
Flash | SPI NAND Flash 128MB |
LAN Interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
Wireless | Compliant with IEEE802.11b/g/n,ac |
2.4G Operating frequency:2.400-2.4835GHz | |
5.8G Operating frequency:5.150-5.825GHz | |
2.4G 2*2 MIMO, rate up to 300Mbps | |
5.8G 2*2 MIMO ,rate up to 867Mbps | |
4 external antennas 5dBi | |
Support Multiple SSID | |

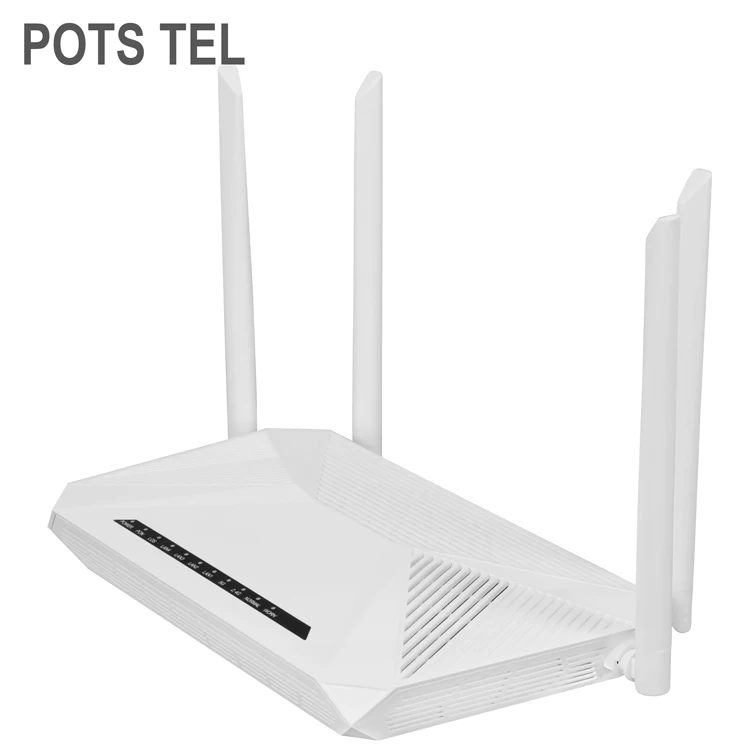

POTS interface | FXS, RJ11 connector |
Support: G.711/G.723/G.726/G.729 codec | |
Support: T.30/T.38/G.711 Fax mode, DTMF Relay | |
CATV Interface | RF, WDM, optical power : +2~-15dBm |
Optical reflection loss: ≥45dB | |
Optical receiving wavelength: 1550±10nm | |
RF frequency range: 47~1000MHz, RF output impedance: 75Ω | |
RF output level: 78dBuV | |
AGC range: -13~+1dBm | |
MER: ≥32dB@-15dBm | |
USB | Standard USB2.0 |
LED | 11 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G Worn、 Normal(CATV) |
Operating Condition | Temperature: 0℃~+50℃ |
Humidity: 10%～90%（non-condensing） | |
Storing Condition | Temperature: -30℃~+60℃ |
Humidity: 10%~90%（non-condensing） | |
Power Supply | DC 12V/1A |
Power Consumption | ≤6W |
Dimension | 260mm×158mm×192mm（L×W×H） |
Net Weight | 0.35Kg |
Recommend Products
Company Profile

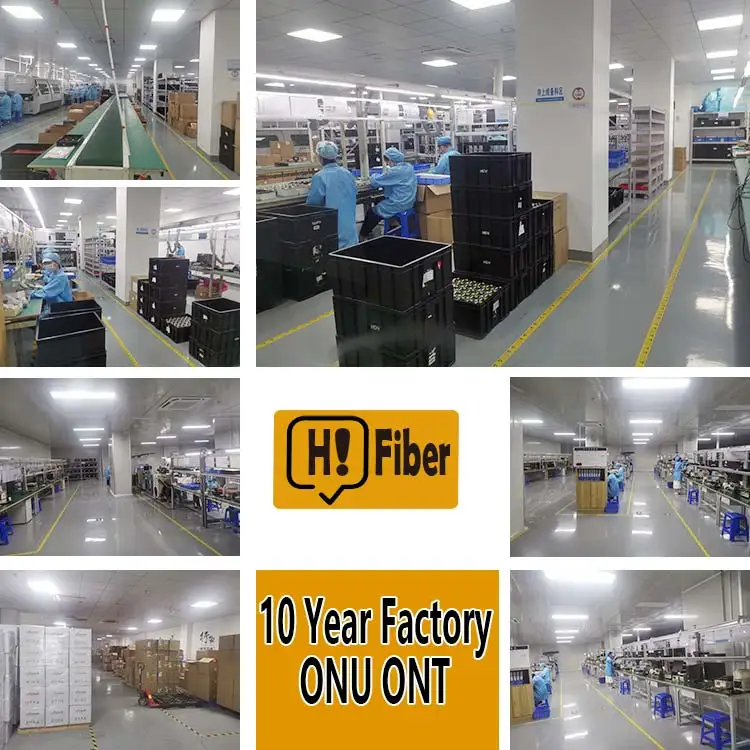

Shenzhen Hi-Fiber Electronic Co.,Ltd was established in 2019,it's branch company of ONU Factory, which located in Shenzhen China. Main products are GPON ONU, EPON ONU, WiFi Router, CPE Router, Outdoor Router.

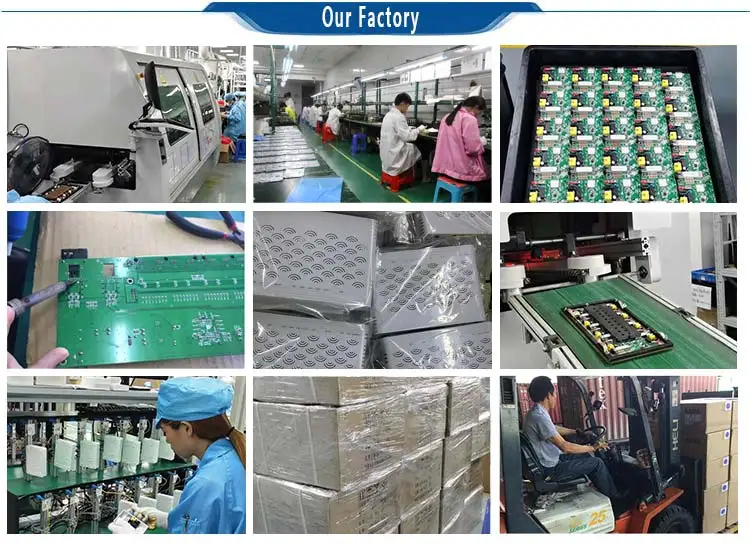

We have 380 recycling outlets for Optical Network Terminal in China, and we can collect all ONU models. Our factory has 10 years of experience in producing ONU and Routers. The factory has 100 workers. Our customers are mainly from South America, Asia, Australia and Europe.
We have 380 recycling outlets for Optical Network Terminal in China, and we can collect all ONU models. Our factory has 10 years of experience in producing ONU and Routers. The factory has 100 workers. Our customers are mainly from South America, Asia, Australia and Europe.
Each product has strict QC testing to ensure a 100% qualified. According to customer requirements, we can provide Products with Brand New packaging box / Product Only / Customize LOGO .
We cooperate with many freight forwarders to deliver the goods safely to your country.
