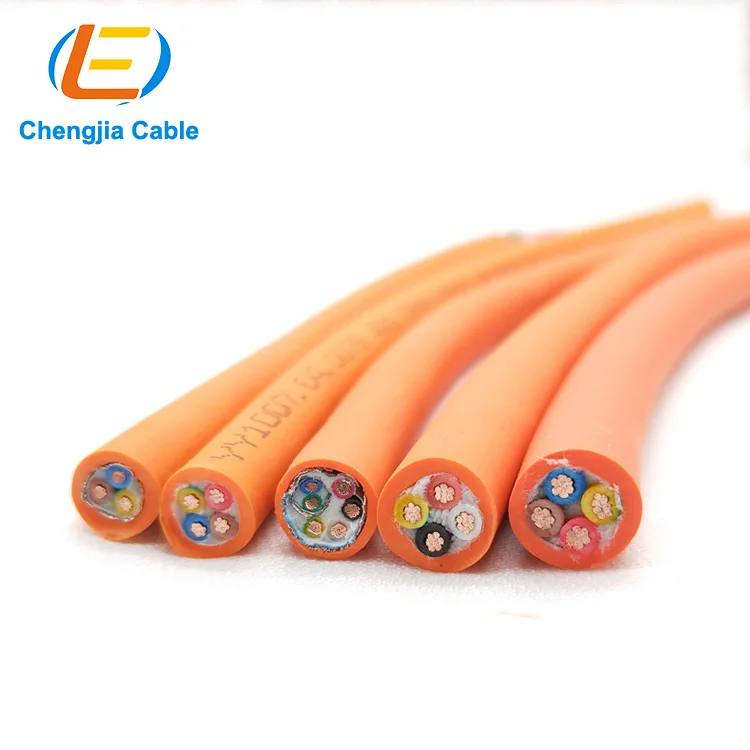

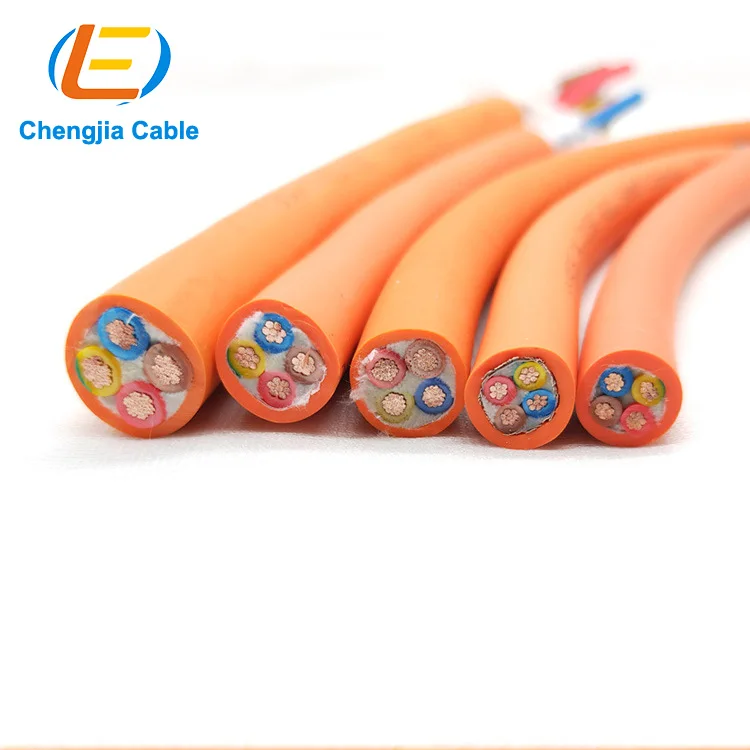

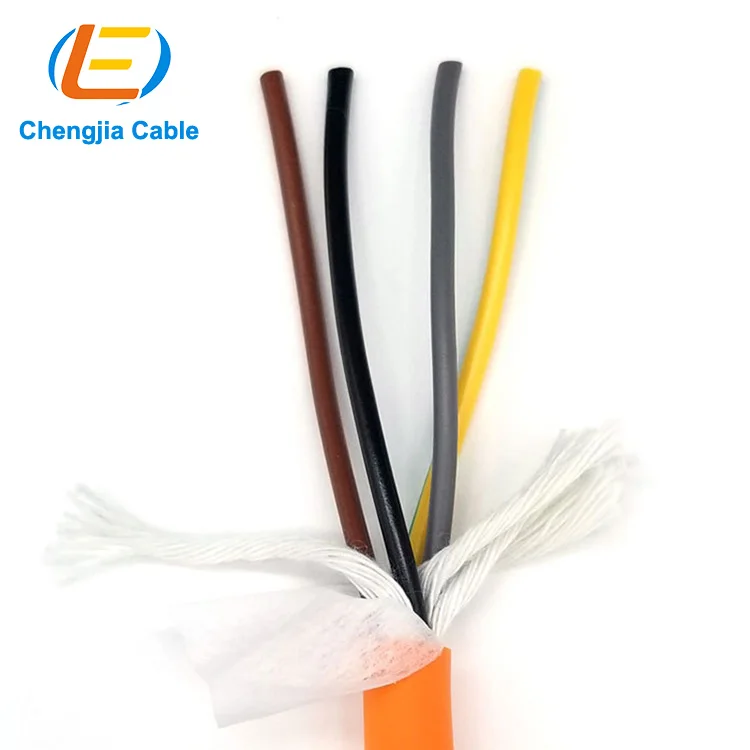

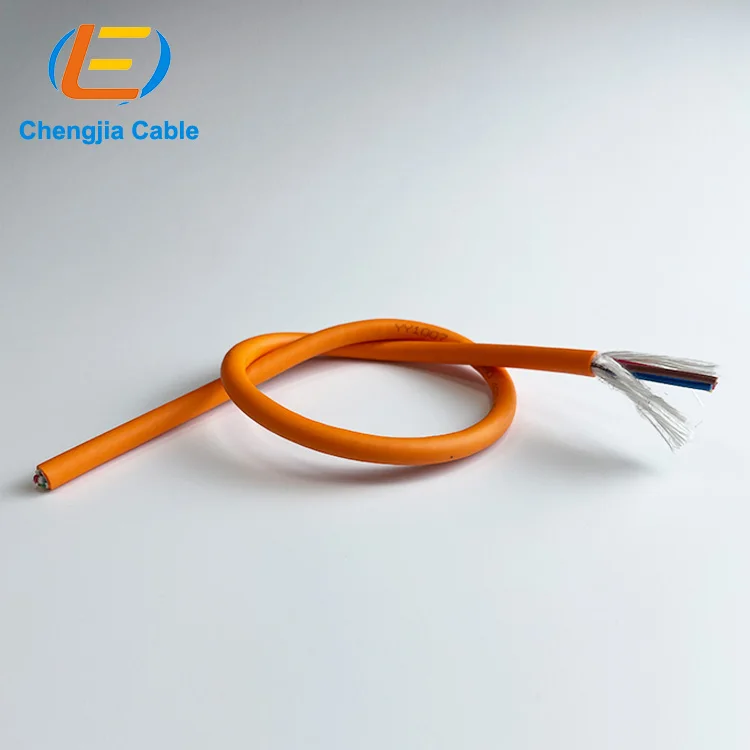

For Drag Chain System Control And Power Cable Water Resistance Pvc Cable Tracking
- Category: >>>
- Supplier: Guangzhou Chengjia Wire&Cable Co. Ltd.
Share on (1600428602837):
Product Overview
Description
TRVV Cable 4 Core 1.5MM 2.5MM 4MM 6MM 6MM PVC insulated cable Flexible control power cables
Products Description
Applicable to various non-standard intelligent equipment such as machine tools, industrial wood machinery, mask machines, manipulators, non-standard automation, laser equipment, stamping lines, robots, dispensers, etc.

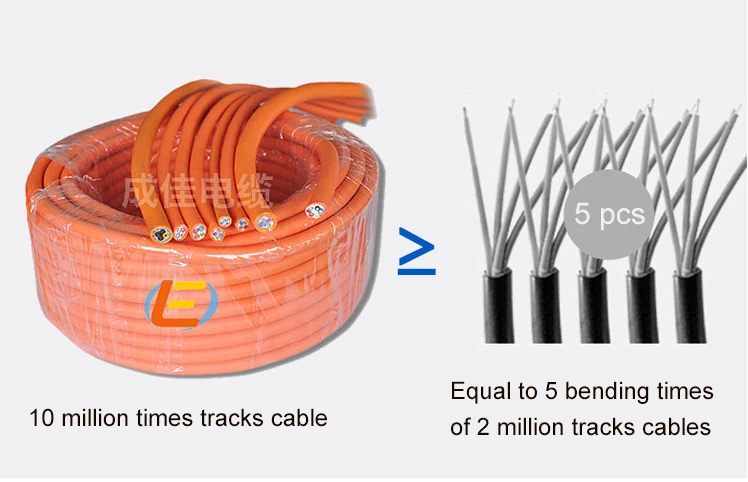

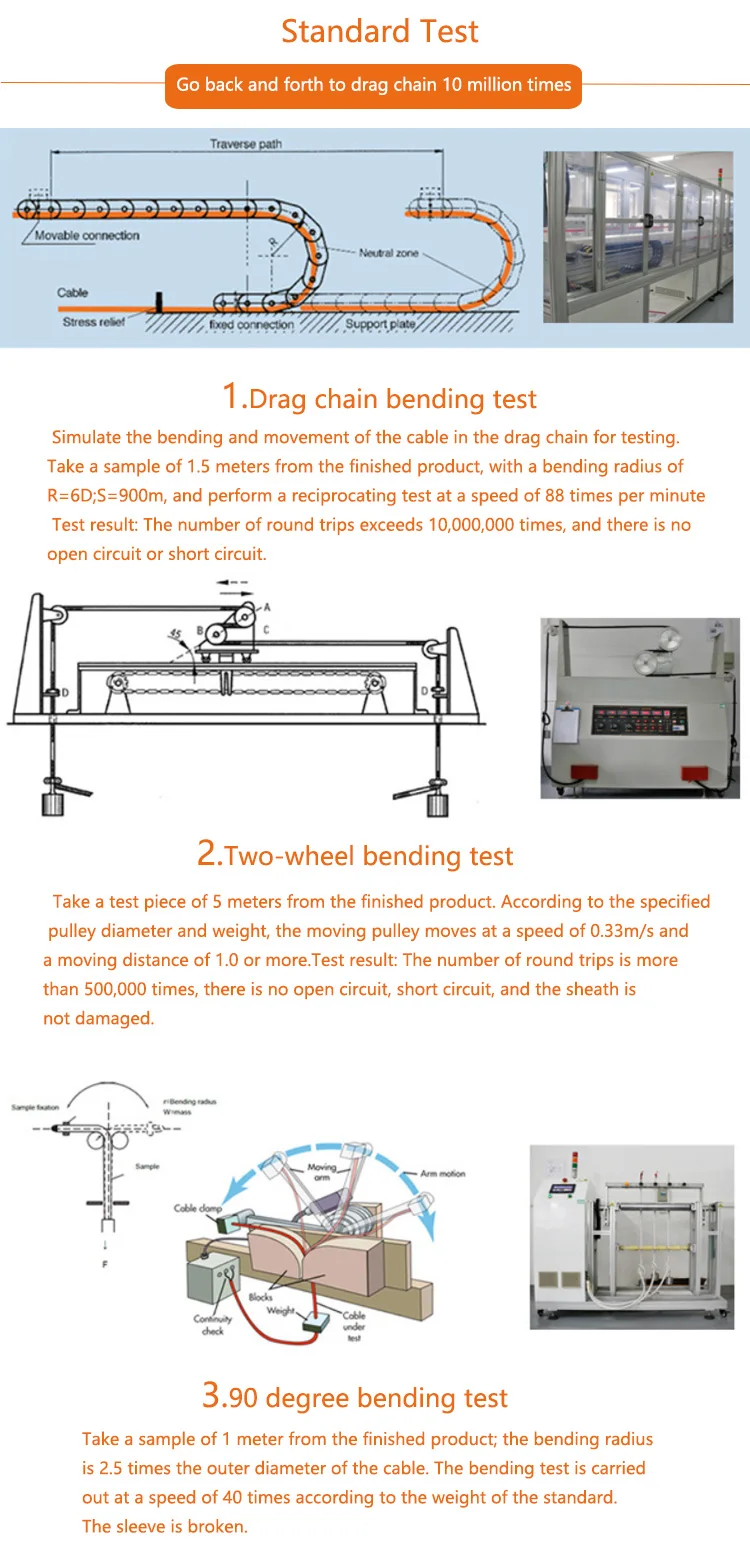

Withstand long-term acceleration, deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability.
Withstand long-term acceleration, deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability.
Product Feature
Technical Parameter
Conductor stranding | Stranding of multiple ultra-fine copper wires meets the standard of VDE0295, category 6, column 4 | ||||||
Insulation resistance | minimum 20 M Ohm x Km | ||||||
Insulation material | Modified PVC | ||||||
Temperature range: | Mobile installation -5°C to +70°c Fixed installation -15°C to +80°c | ||||||
Core recognition | Color core | ||||||
Outer sheath | Modified PVC mate | ||||||
Color | black (other colors can be customized) | ||||||
Bending radius | Mobile installation 6×cable diameter Fixed installation 4x cable diameter | ||||||
Nominal voltage | Uo/U 300/500 V | ||||||
Test voltage | 2000 V | ||||||
Application: | It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servo encoders/motors, drag chain systems, laser equipment, electrical cabinets, industrial imaging and other fields. | ||||||

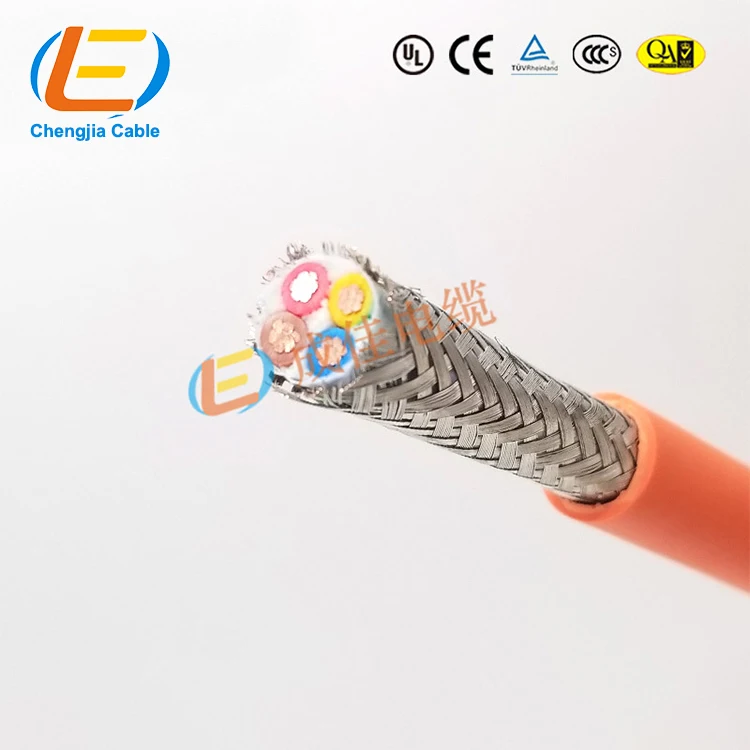

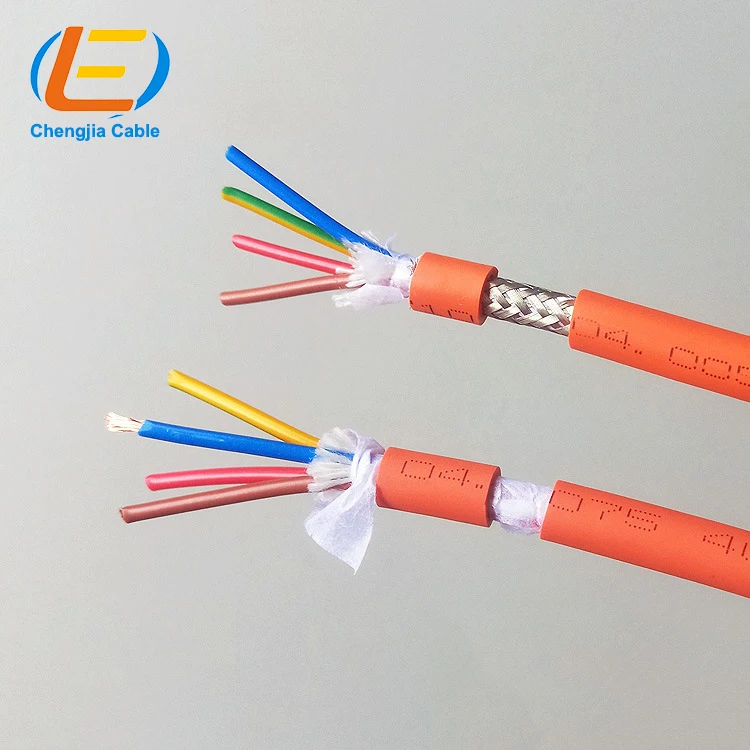

Cable Structure

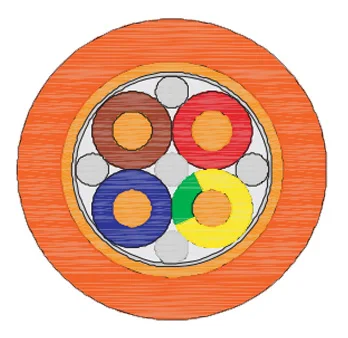

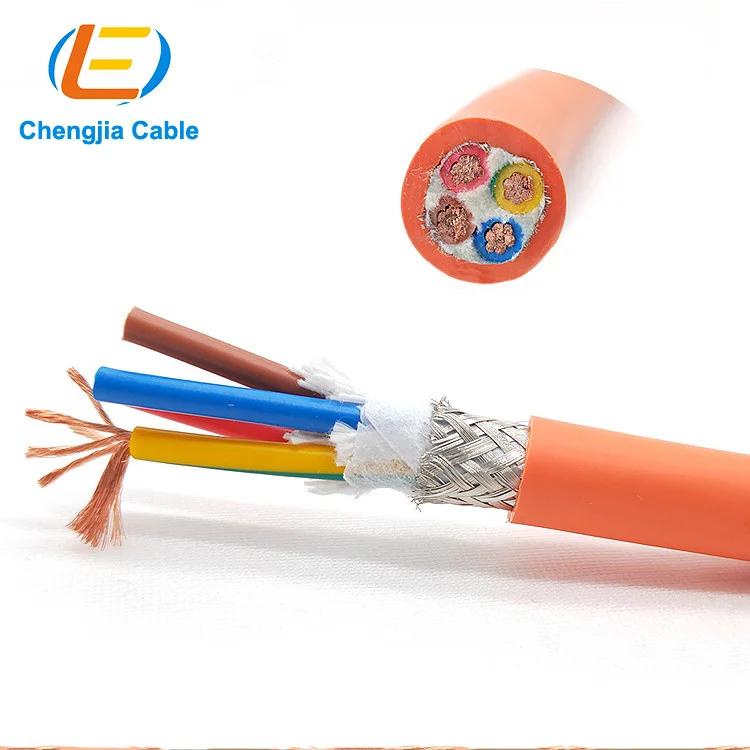

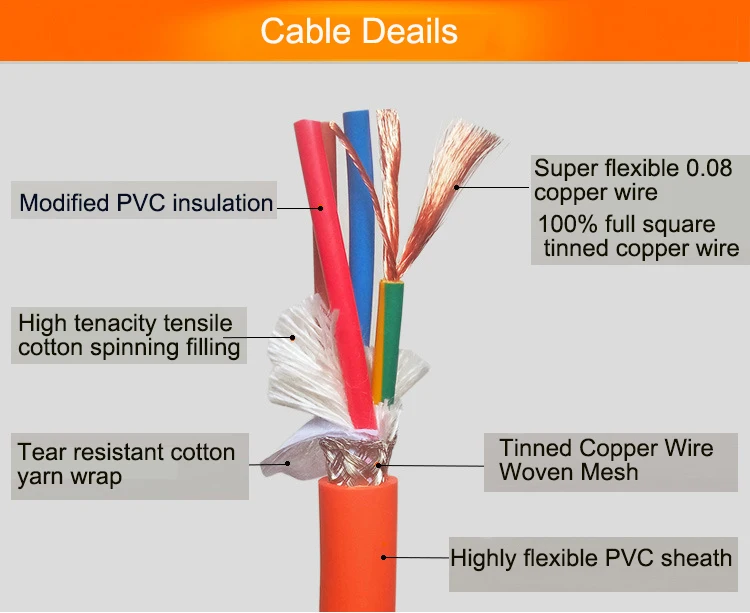

Power Cable Structure
1. Bare copper conductor, ultra-fine copper wire
Complies with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification
4. The wire core adopts the best pitch stratified stranded with yellow-green grounding wire (3 cores and above)

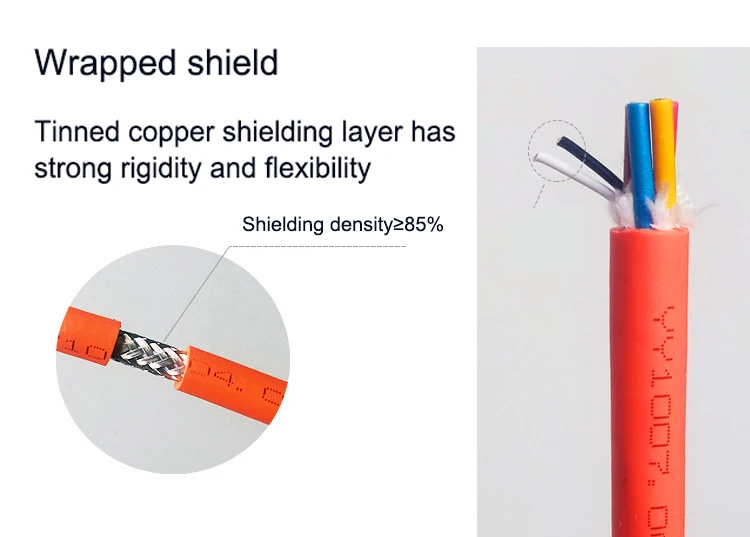

5. Improved tinned copper wire braided shield has a minimum coverage of 85%
6. Special PVC outer sheath
7. Orange (RAL 2003) matte
Complies with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification
4. The wire core adopts the best pitch stratified stranded with yellow-green grounding wire (3 cores and above)
5. Improved tinned copper wire braided shield has a minimum coverage of 85%
6. Special PVC outer sheath
7. Orange (RAL 2003) matte
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | 20℃ Conductor DC resistance Ω/km | |||||
1 | YY1008.04.0050 | 4G0.5 | 7.5 | Orange | 39 | |||||
2 | YY1008.04.0075 | 4G0.75 | 8.2 | Orange | 26 | |||||
3 | YY1008.04.0100 | 4G1.0 | 9 | Orange | 19.5 | |||||
4 | YY1008.04.0150 | 4G1.5 | 10 | Orange | 13.3 | |||||
5 | YY1008.04.0250 | 4G2.5 | 12.2 | Orange | 7.98 | |||||
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters | ||||||||||

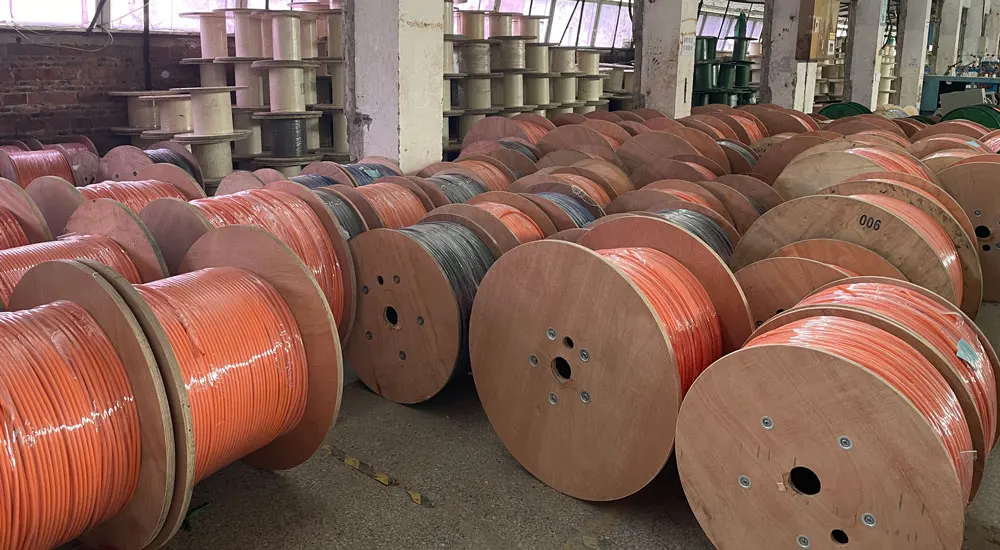

Company Profile
Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
