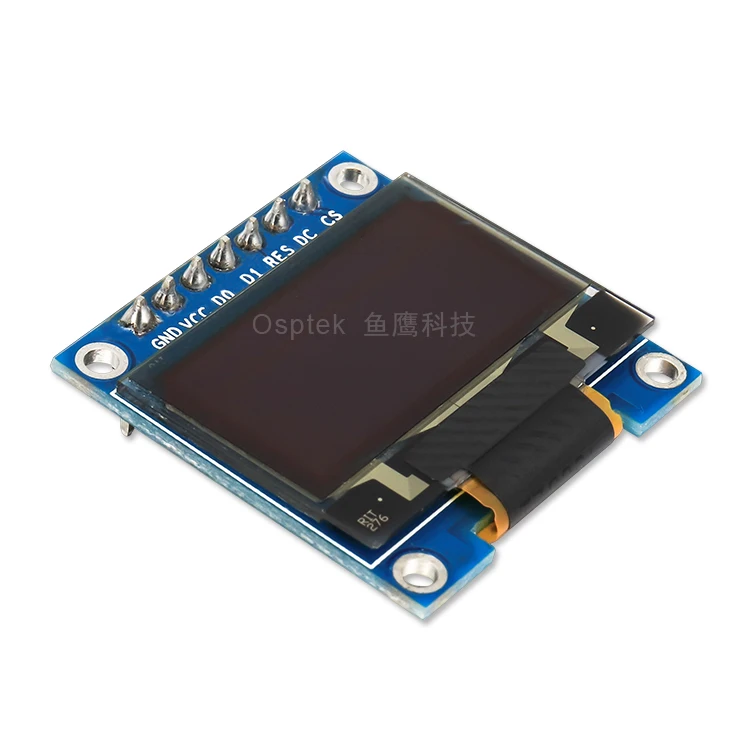

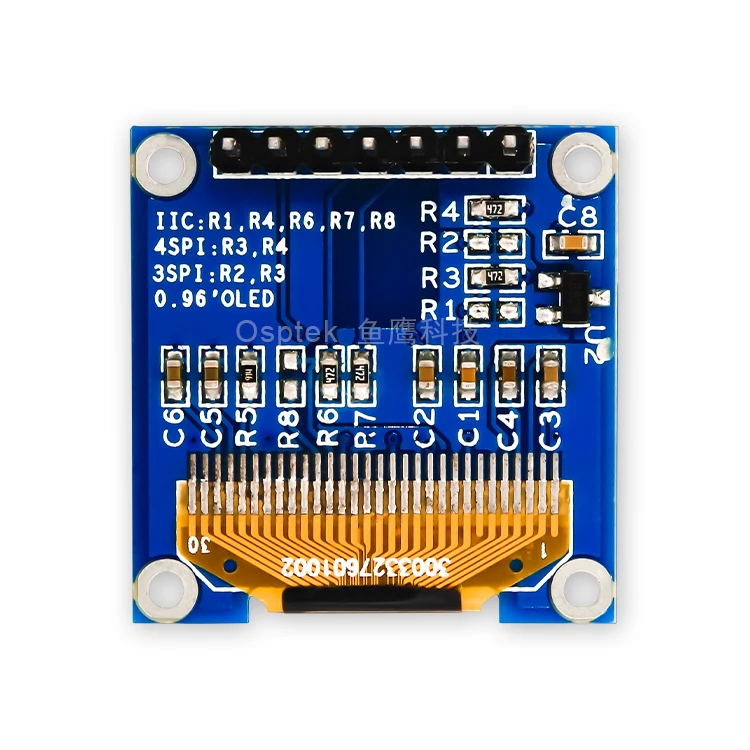

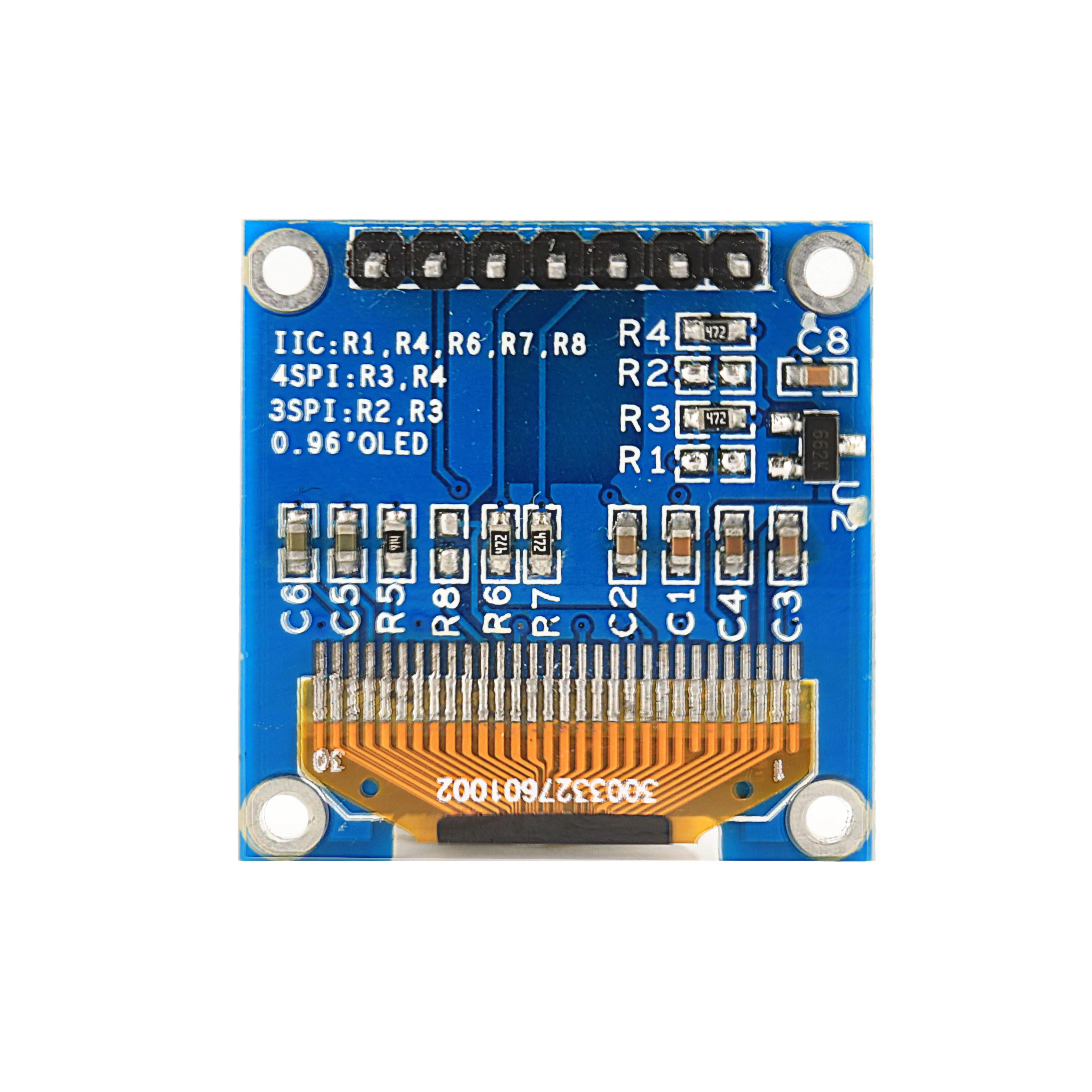

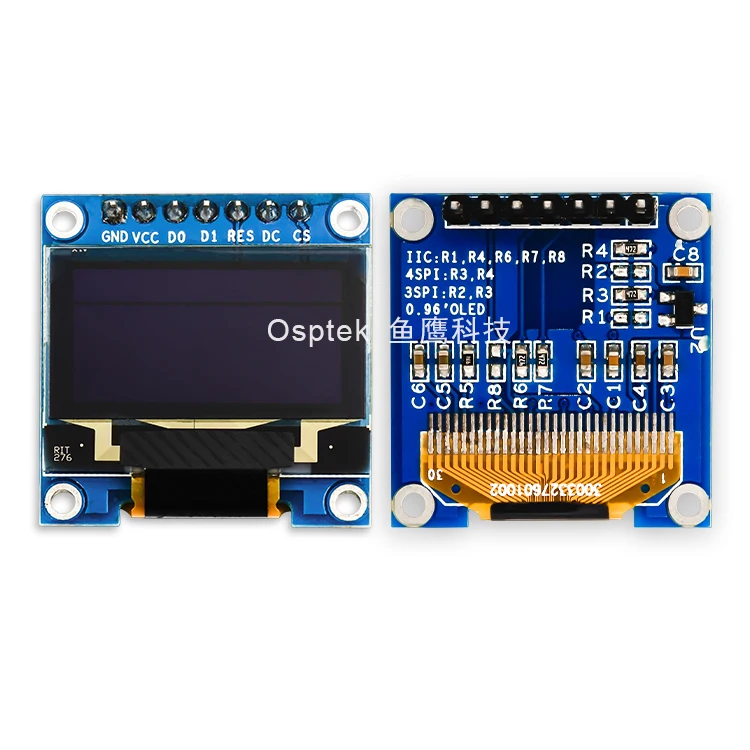

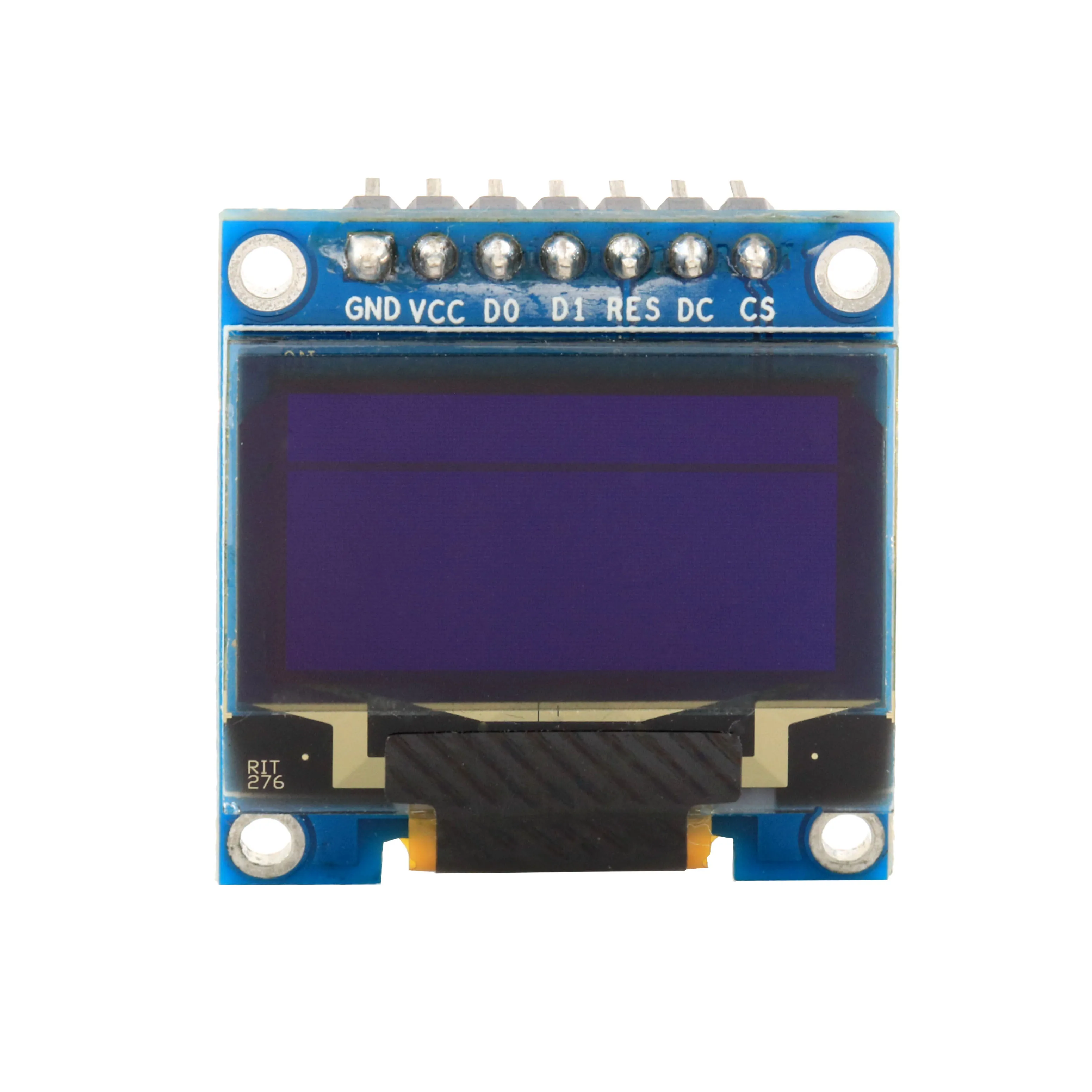

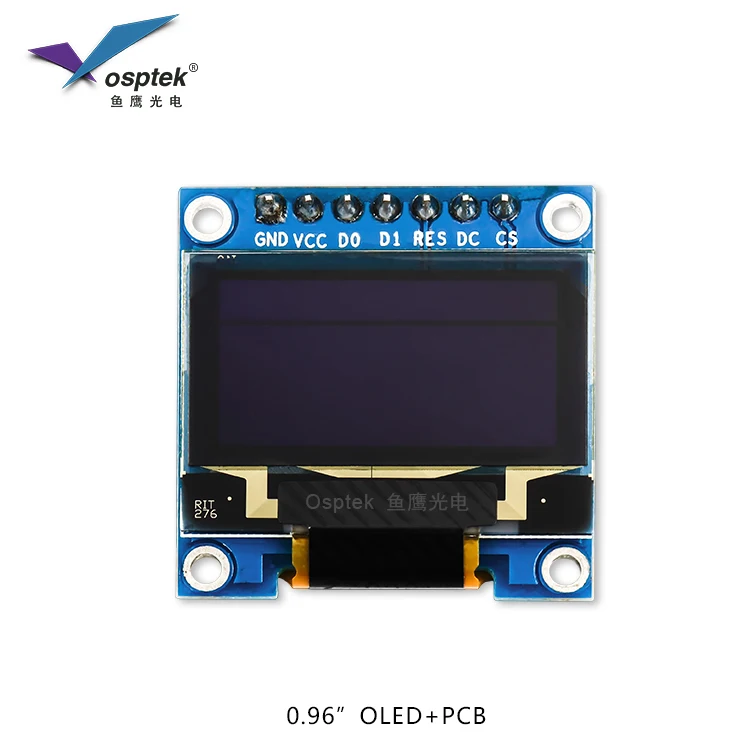

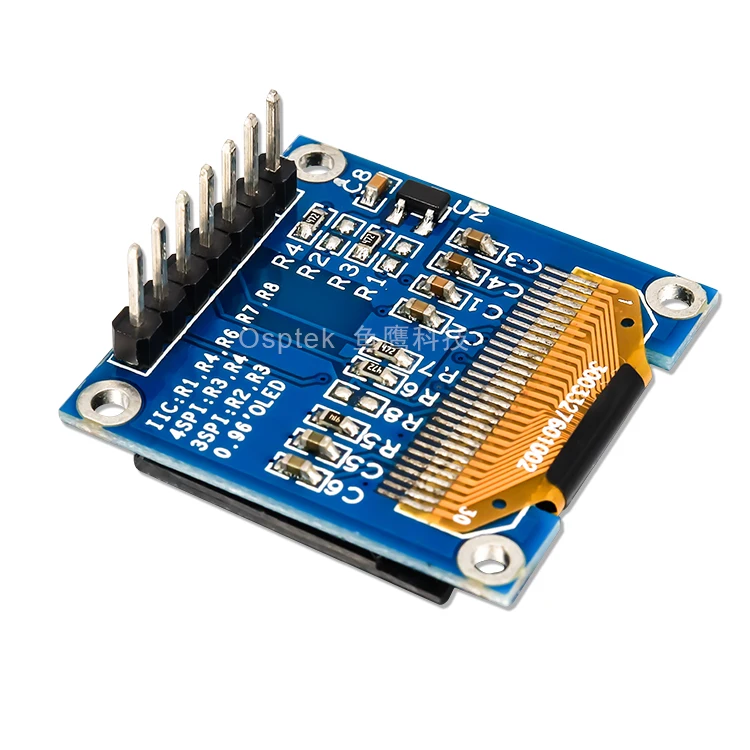

0.96 Inch White/Blue/Y&B Color OLED Display Module with 128x64 Dot SSD1306 Driver 7 Pins PCB Borad
- Category: >>>
- Supplier: Shenzhen Osprey Optoelectronics Technology Co. Ltd.
Share on (1600428602888):
Product Overview
Description
Product Description
NO | ITEM | SPCIFICATION | UNIT |
1 | Dot Matrix | 128(W)x64(H) | dot |
2 | Dot Size | 0.154 (W) x 0.154 (H) | mm² |
3 | Dot Pitch | 0.17 (W) x 0.17 (H) | mm² |
4 | Aperture Rate | 78 | % |

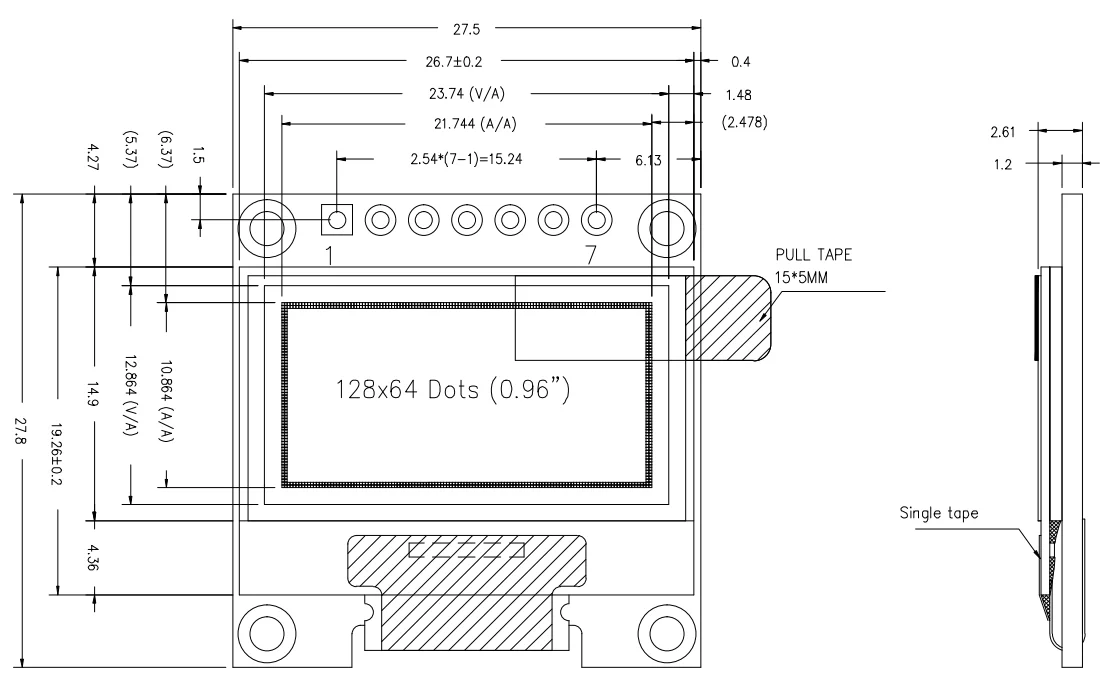

5 | Active Area | 21.744 (W) x 10.864(H) | mm² |
6 | Panel Size | 26.7(W) x 19.26 (H) x1.41(T) | mm² |
7 | Panel Thickness | 1.21 ± 0.1 | mm |
8 | Diagonal A/A size | 0.96 | inch |
9 | Operating Temperature | -40 to 70 | °C |
10 | Module Weight | TBD | gram |

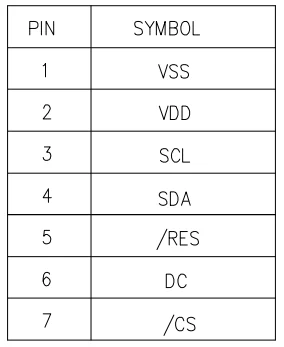

3.PIN ASSIGNMENTS
Application
Product Process
Company Profile
Packing & Delivery
FAQ
A:PO is placed by clients → PI is issued by Osptek → Payment by clients → Lead time is confirmed by
Osptek → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days
Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Osptek confirm if have questions
→ Sales rep issue RMA No to clients if confirmed by QA → Return to Osptek → Formal
report after goods received by Osptek → Clients confim the analysis report → Proceeding
as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
7.Q:Custom
A: You could let us know the concrete requirements then we will design and confirm with you.
