Product Overview
Description
Product Overview

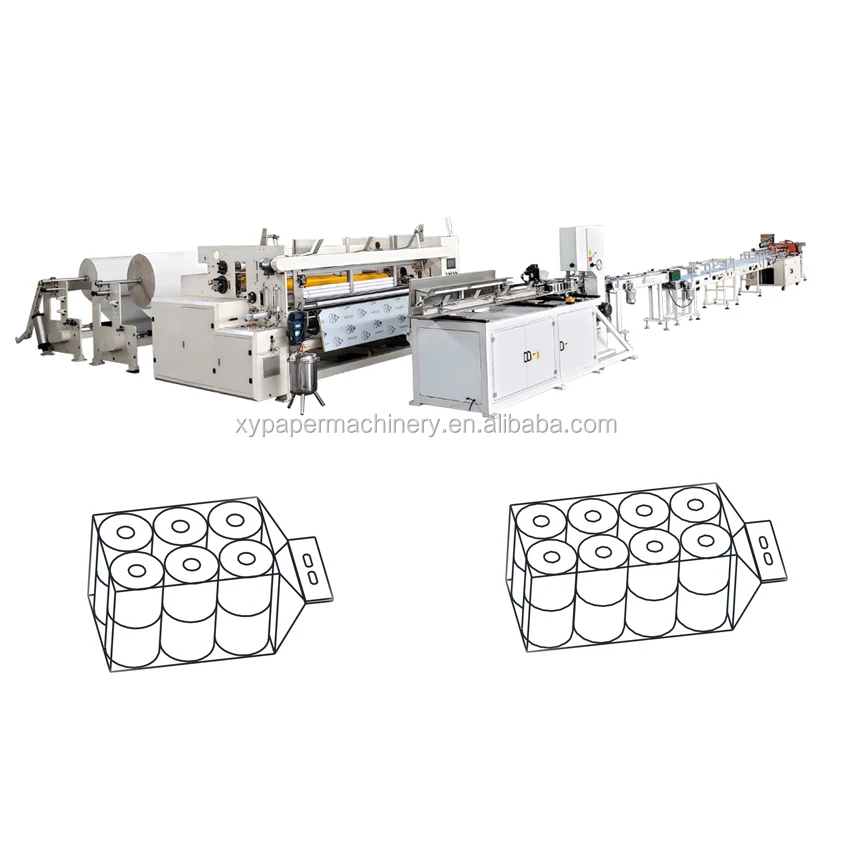

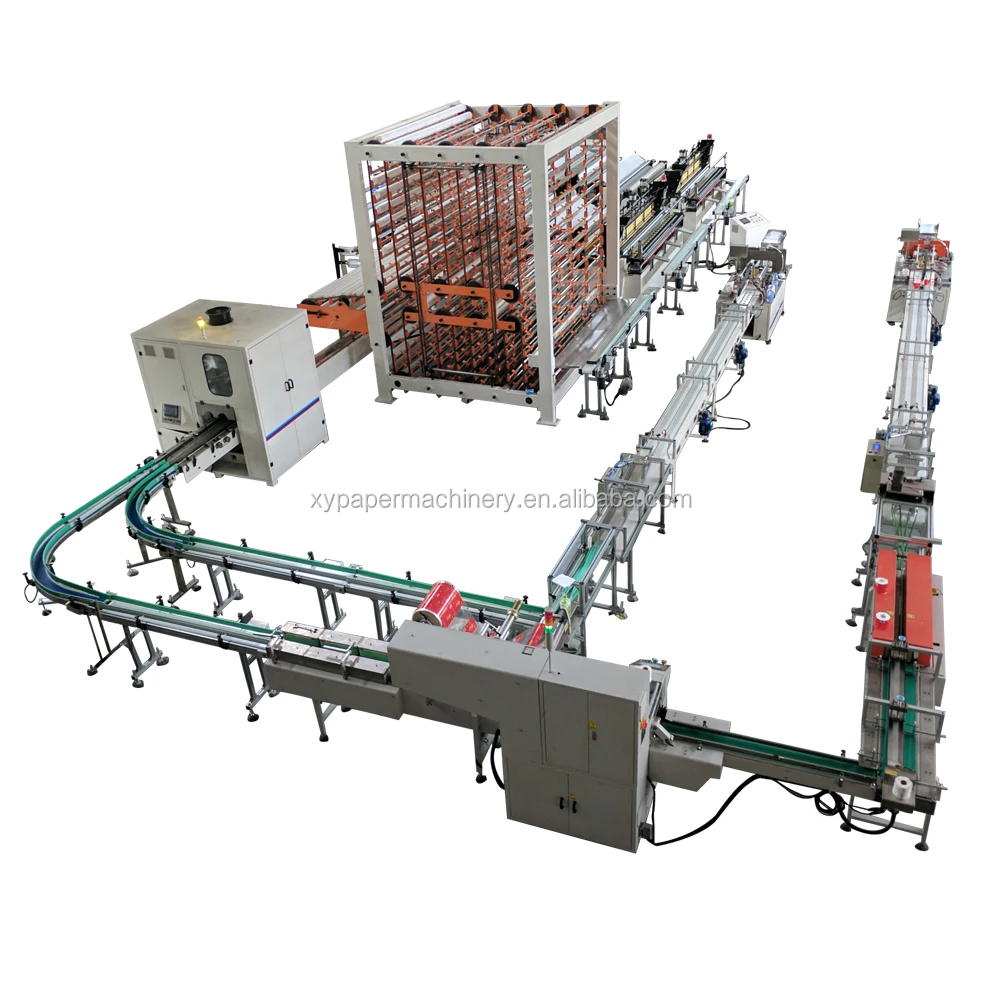

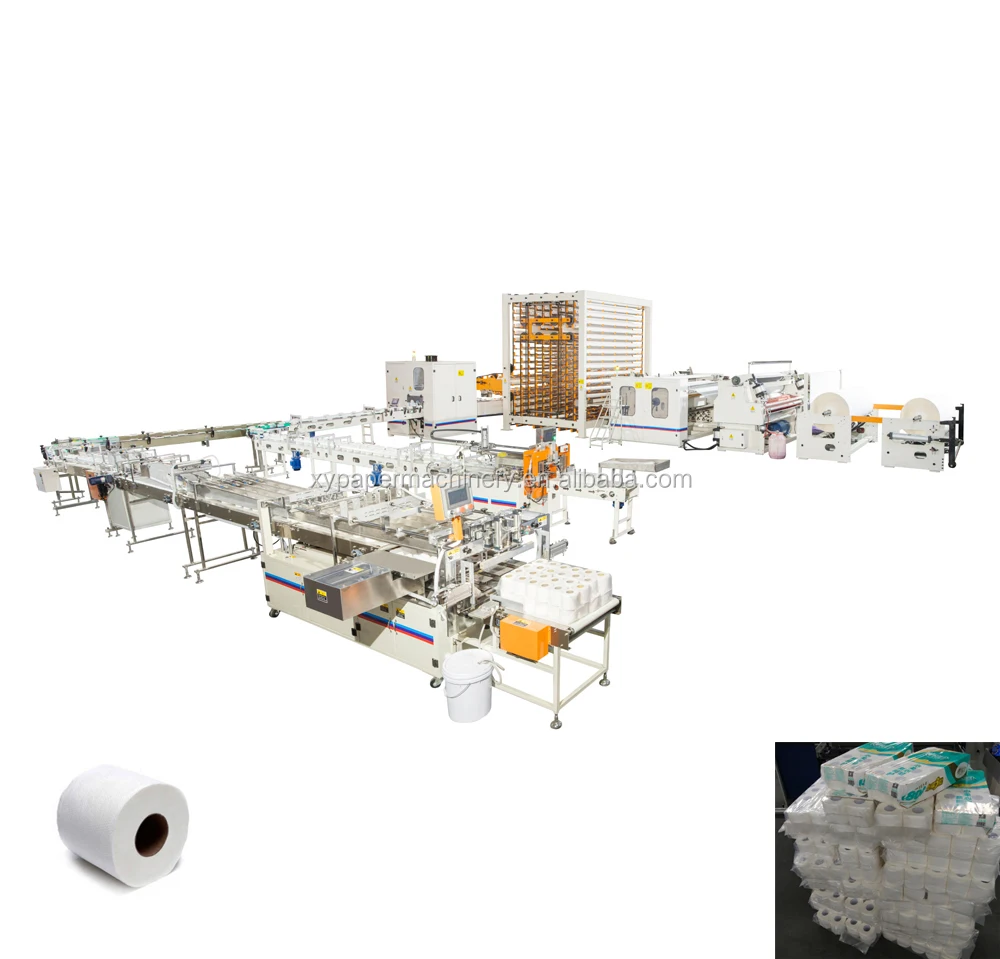

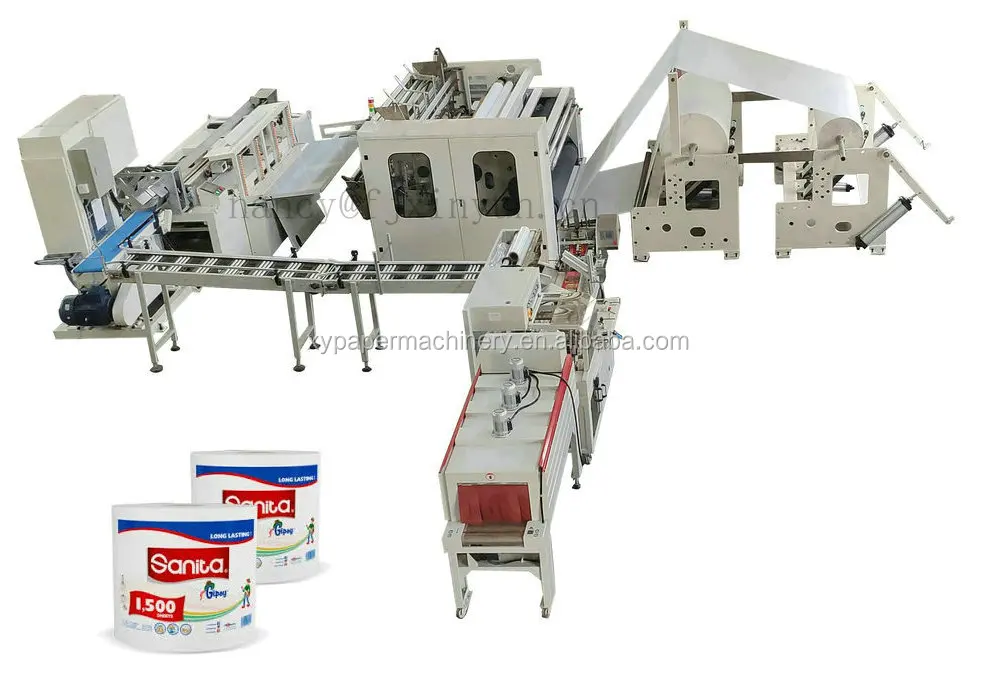

High Speed Toilet Roll Paper and Kitchen Towel Production Line
XY-TQ-A-D
Outline:
It is consisted with rewinding machine ,cutting machine and packing machine.
1.Rewinding machine, it can produce toilet paper, kitchen towel and maxi roll JRT jumbo roll from 90-280mm rewinding diameter.
2. Cuting machine, customers can choose cuting machines according to their requiremens, as following , double chanmels cuting machine, small toilet paper band saw cuting machine, maxi roll paper cutting machine (90-280mm).
3. Packing machine, customers can choose- packing machines according to their requirements, automaric singleroll packing machine, semi auto packing machine or automatic packing machine.
(Everything is customized by customer's request)
It is consisted with rewinding machine ,cutting machine and packing machine.
1.Rewinding machine, it can produce toilet paper, kitchen towel and maxi roll JRT jumbo roll from 90-280mm rewinding diameter.
2. Cuting machine, customers can choose cuting machines according to their requiremens, as following , double chanmels cuting machine, small toilet paper band saw cuting machine, maxi roll paper cutting machine (90-280mm).
3. Packing machine, customers can choose- packing machines according to their requirements, automaric singleroll packing machine, semi auto packing machine or automatic packing machine.
(Everything is customized by customer's request)
VIDEO LINK : https://youtu.be/tjvL8DIP5f8

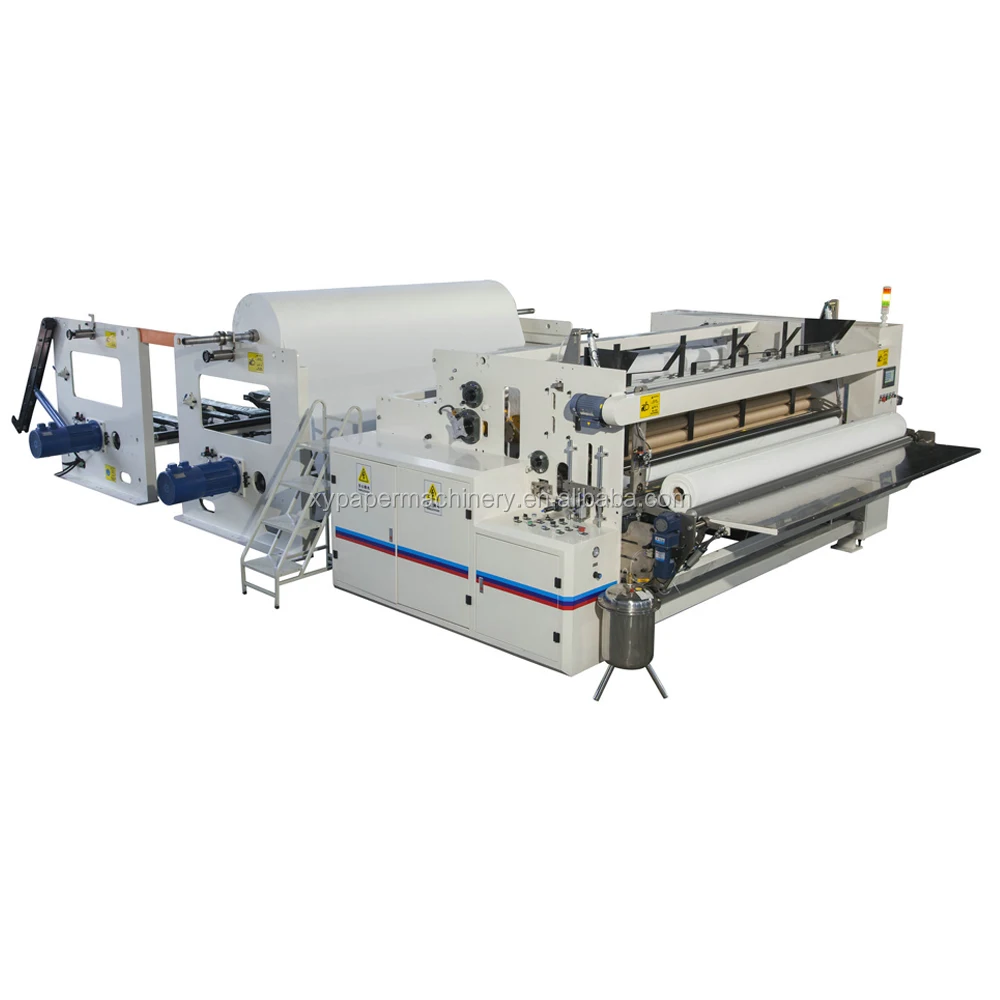

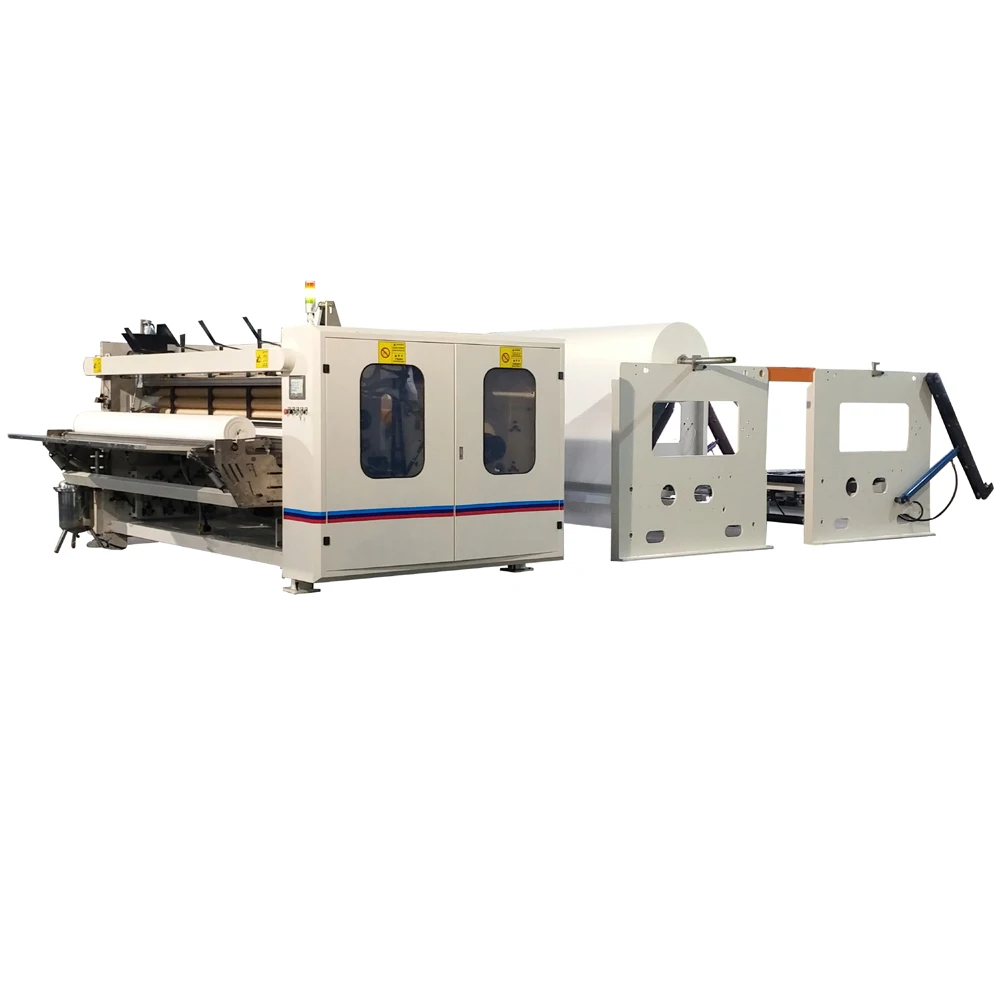

XY-TQ-2800B Wall Type Automatic Rewinding Machine
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Model | XY-TQ-2800B Wall Type Automatic Toilet Paper Rewinding Machine |
Jumbo Roll Width | 2800mm (Other size can be specified) |
Jumbo Roll Diameter | Φ1100mm(Other size can be specified) |
Jumbo Roll Inner Core Diameter | 3inches(76.2mm) (Other size can be specified) |
Perforation Distance | 4 anvil Blades（115mm）(Other size can be specified) |
Finished Product Diameter | Φ80~φ140mm |
Finished Product Inner Core Diameter | φ38~φ76mm |
Production Speed | 0~230m/min |
Program Controller | PLC(Delta) |
Jumbo roll paper stand | 1 or 3 Stands（Need to be specified） |
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user） |
Main Power | 14KW |
Overall Dimension(L*W*H) | 7000*4000*1900mm |
Weight | About 7T |
Jumbo Roll Layers | 1 or 3 Stands(Need to can be specified) |
Edge-Line Embossing(can be specified) | Steel to steel (Pneumatic Control) |
Embossment (can be specified) | Picture one with one set embossing roller, steel to rubber.( Double set embossing roller is optional.) |
Voltage | 380V 50HZ |

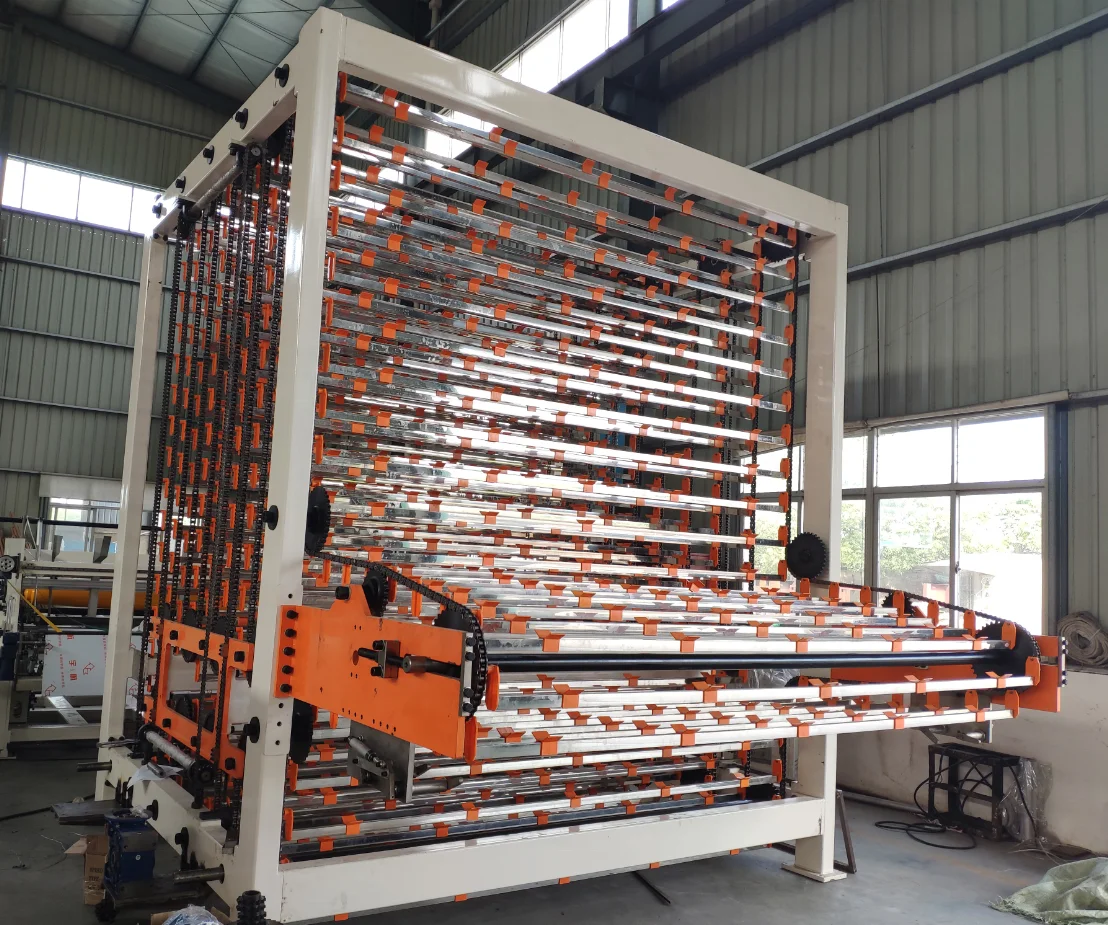

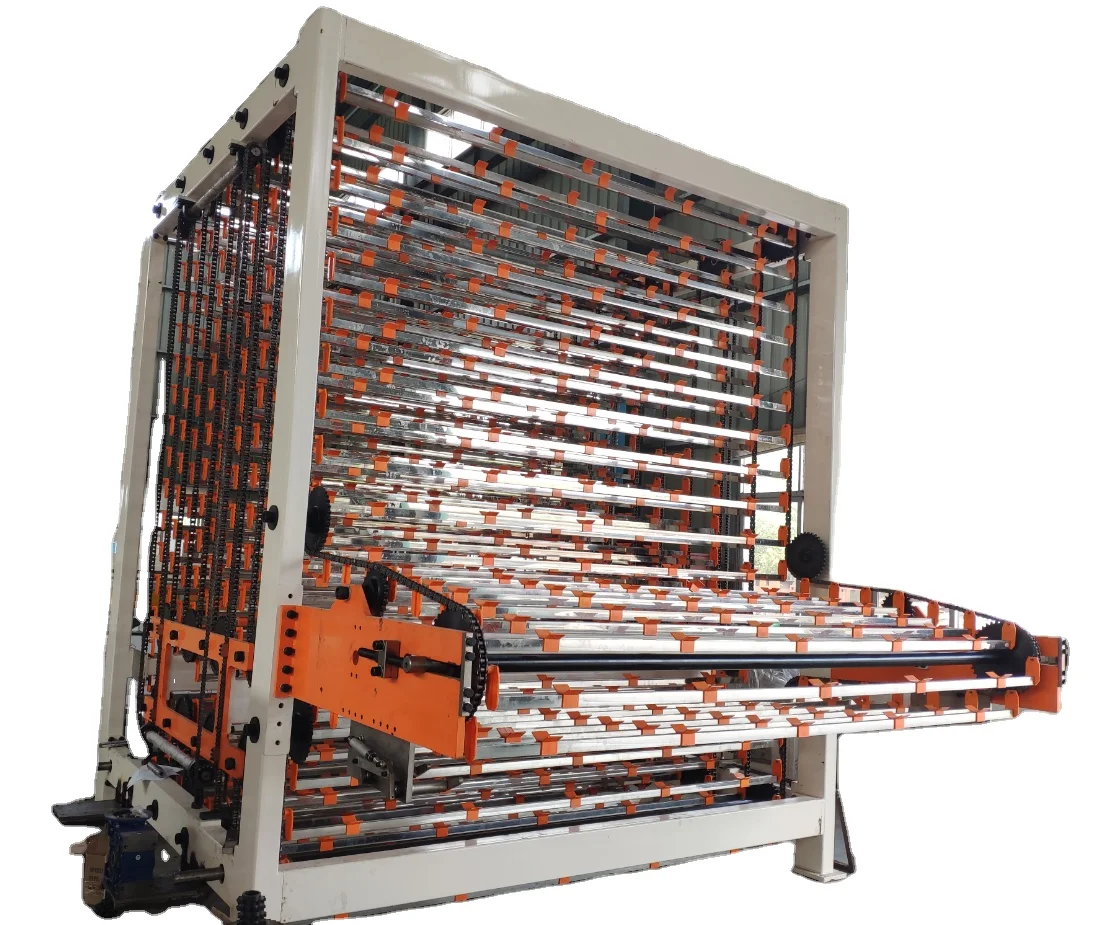

XY-203 Log Accumulator
Machine Model | XY-203 Log Accumulator |
Log Width | 1750~2800mm(Other size can be specified) |
Log Diameter | Φ95mm~Φ140mm |
Log Standings | 150-160Logs |
Accumulate speed | 20 logs/min |
Log Qty | 60 logs(need to be ordered) |
Overall Dimensions | 4000*3000*5500mm |
Programming Controller | PLC(Delta) |

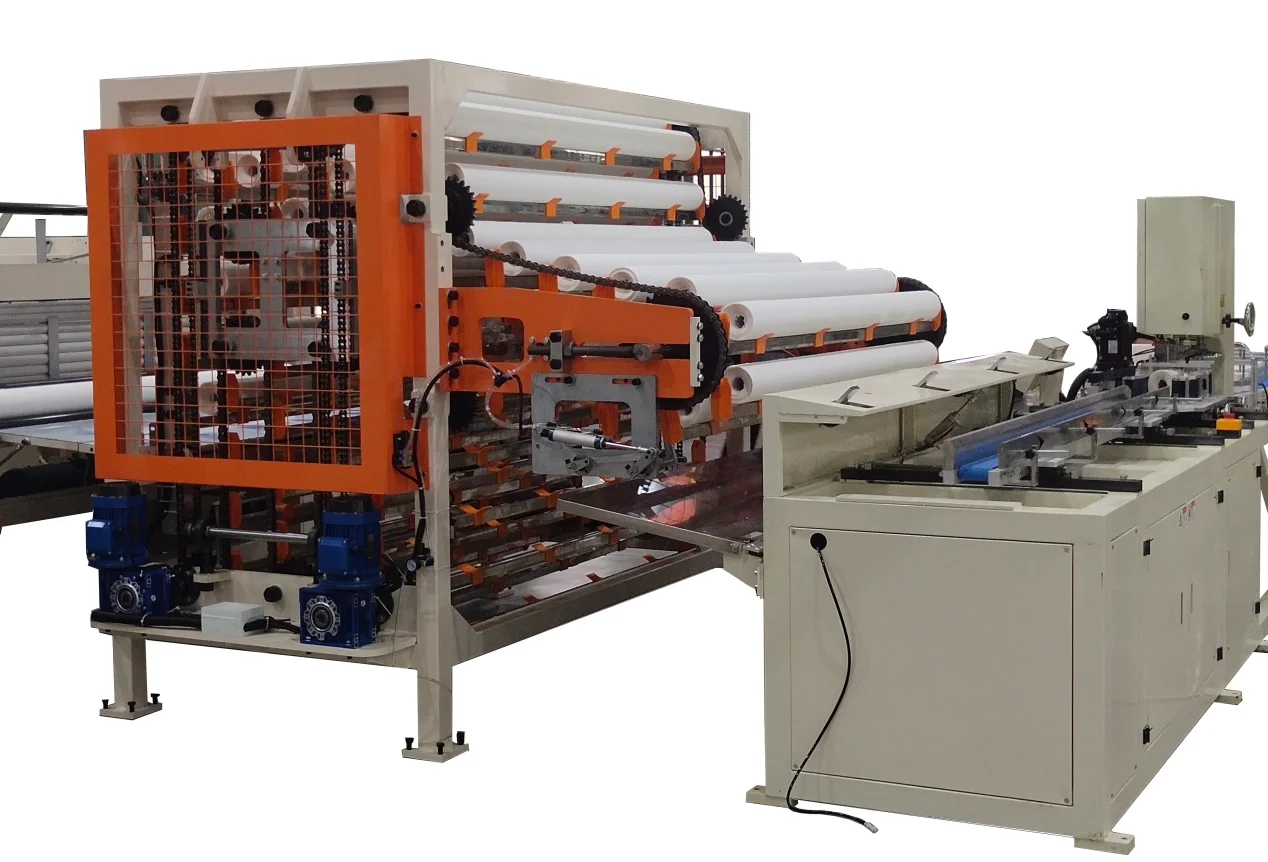

XY-63 Log Accumulator
63 type toilet paper roll storage rack
Max.63 Logs

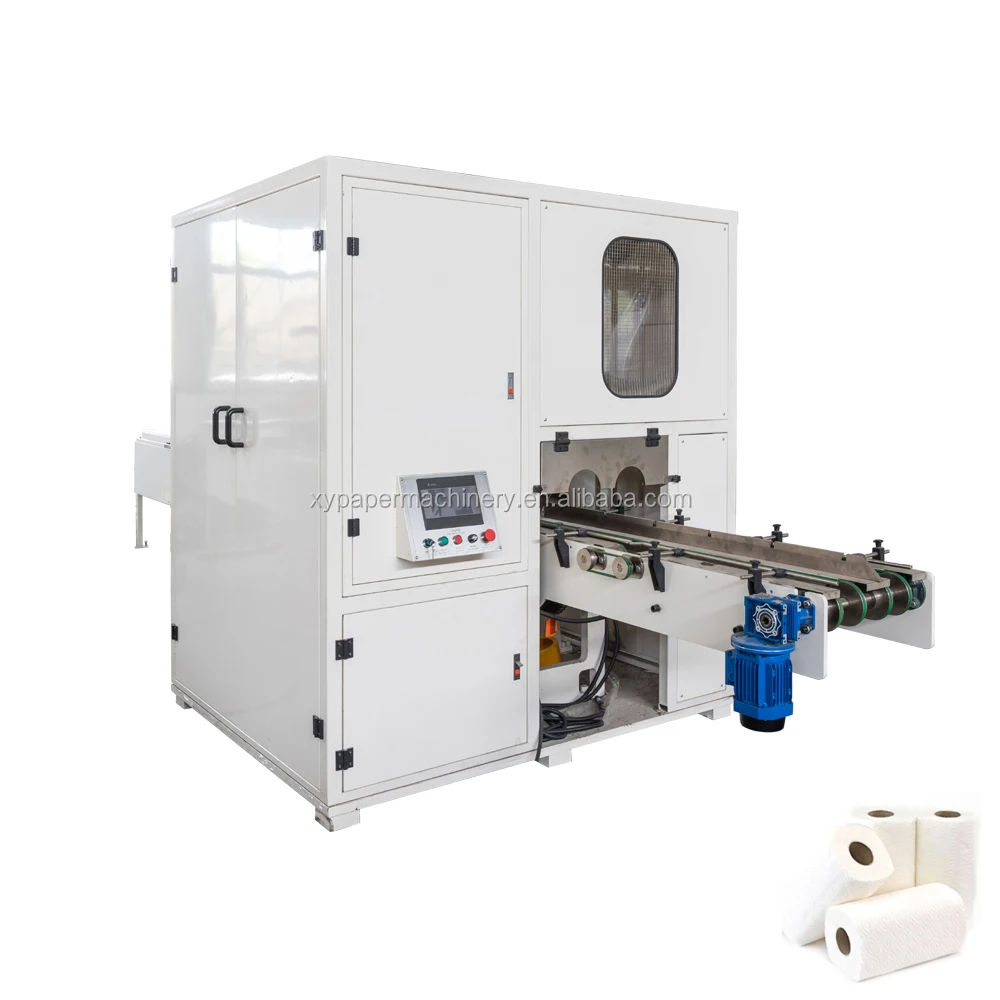

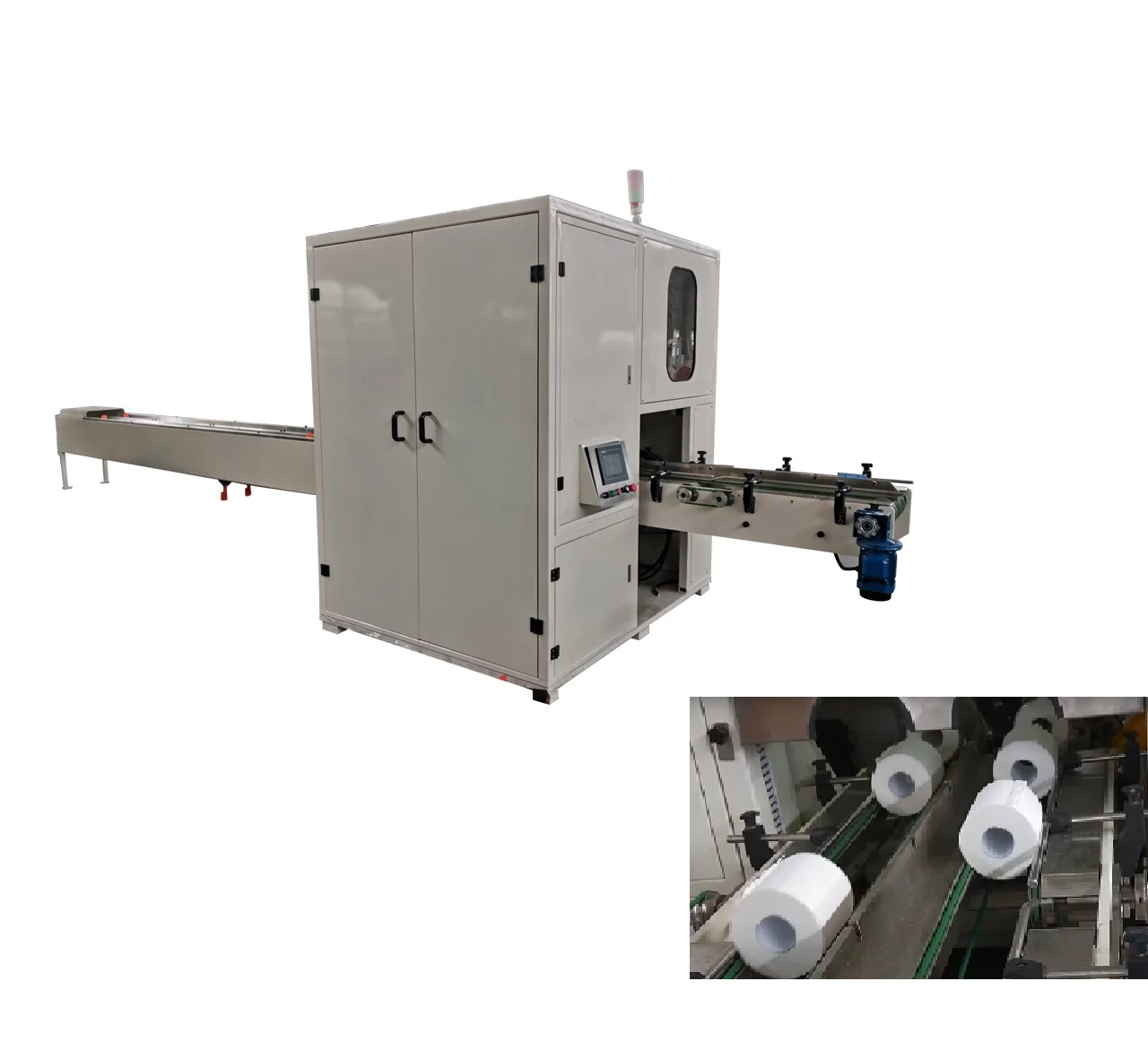

XY-AI-280 Full Automatic Double Channel Log Saw
XY-TQ-280 Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it’s with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.
Video Link: https://youtu.be/IoQ7rGc9was
Video Link: https://youtu.be/2q_TrgkGFPw
Video Link: https://youtu.be/IoQ7rGc9was
Video Link: https://youtu.be/2q_TrgkGFPw
Model | XY-AI-280 Log Saw Machine(Double Channel) |
Jumbo Roll Width | 1750~2800mm (Other size can be specified) |
Jumbo Roll Diameter | Φ105~φ115mm(Other size can be specified) |
Design Speed | 150Cuts/min |
Stable Speed | 100Cuts/min |
Grinding System | Pneumatic Sharpen, grinding time can be set |
Driving System | Delta/Mitsubishi Servo Motor |
Power | 11KW |
Overall Dimension | 6500*2500*2000mm (Other size depends on model and configuration) |
Blade Diameter | φ610*4.7mm |
Voltage | 380V 50HZ |
Weight | About 4.5T |

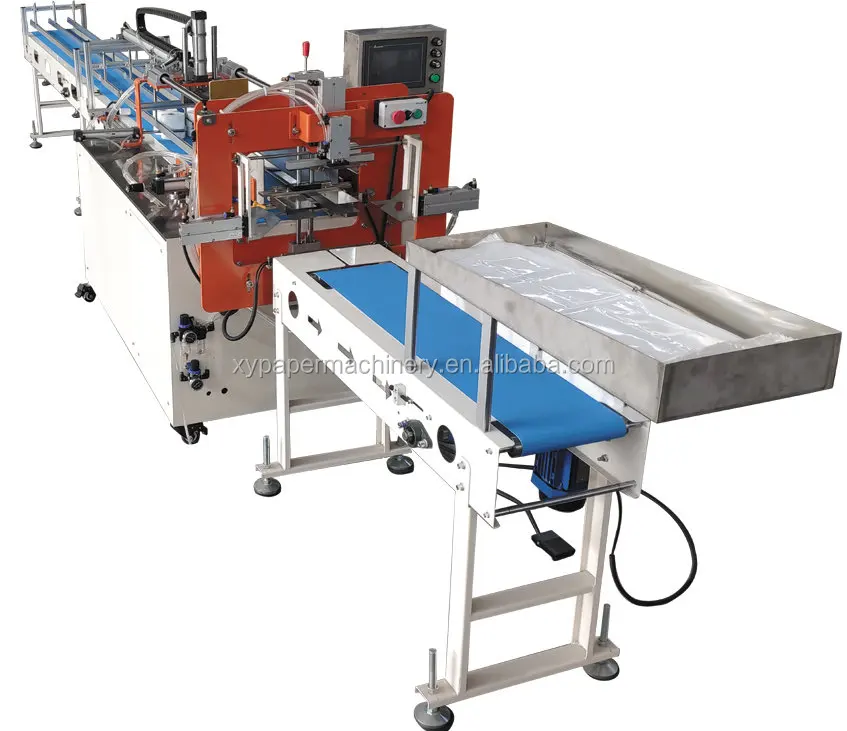

XY-AI-398A
Semi automatic multi rolls toilet paper packing machine
1. Multi function: automatic conveying, single head operation, automatic feeding, automatic sealing, automatic countering.
2. Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient. The machine use the servo motor to push the products to the bags,
it causes to locating the products more accurately.
3. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyer can be connected with automatic toilet roll packing machine with conveyer. This allows the machine have high capacity and therefore to save the labor and reduce production cost.
4. Capacity: 8-12 bundling bag/min, 1 labor only to pack.
5. Suitable for core or coreless toilet roll. The machine cannot proofread color code automatically.
6. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily& efficiently, and therefore this makes our machine have long life.
2. Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient. The machine use the servo motor to push the products to the bags,
it causes to locating the products more accurately.
3. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyer can be connected with automatic toilet roll packing machine with conveyer. This allows the machine have high capacity and therefore to save the labor and reduce production cost.
4. Capacity: 8-12 bundling bag/min, 1 labor only to pack.
5. Suitable for core or coreless toilet roll. The machine cannot proofread color code automatically.
6. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily& efficiently, and therefore this makes our machine have long life.
Model | XY-AI-398A |
Air supply | 0.6Mpa |
Power supply | 4Kw 220V 50HZ |
Speed | 8-12 bundling bag/min |
Single roll size | Diameter：Ø90-120mm Height:90-140mm |
Bundling Size | L(360-650)*W(180-240)*H(90-140)mm |
Machine size | L5000*W1000*H1500mm |

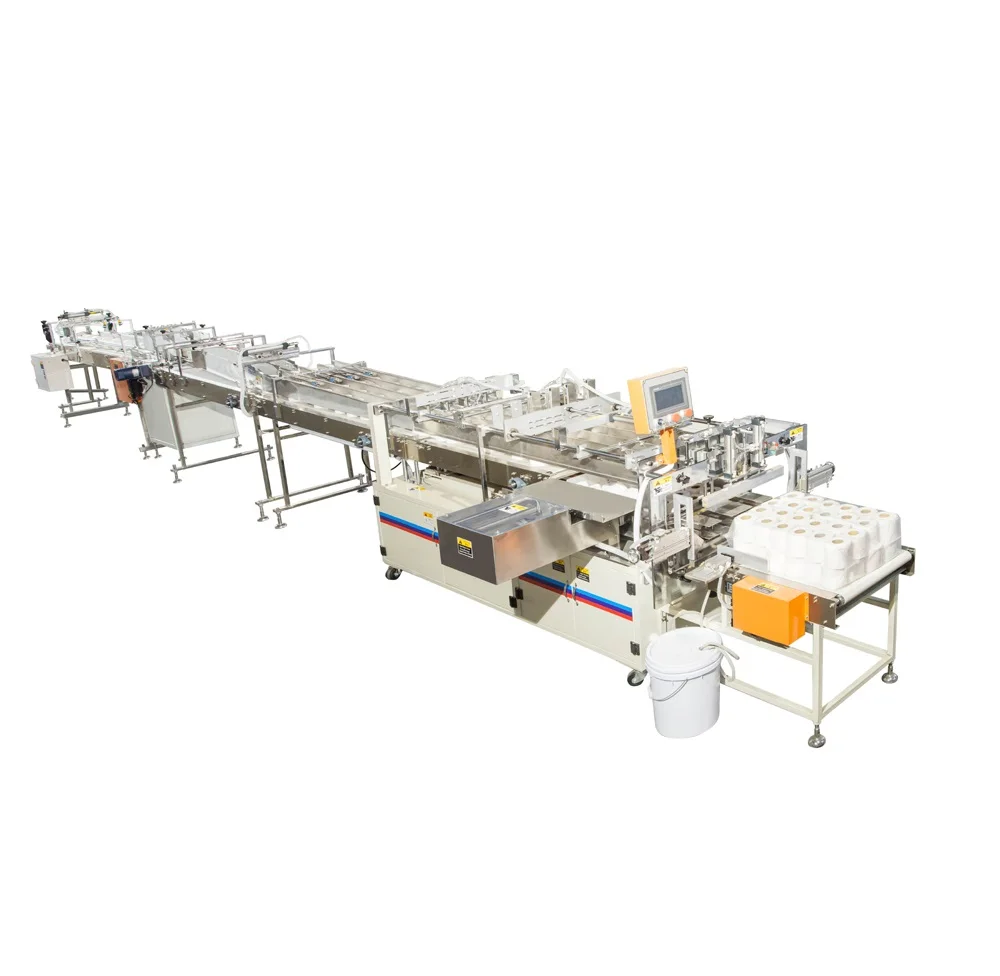

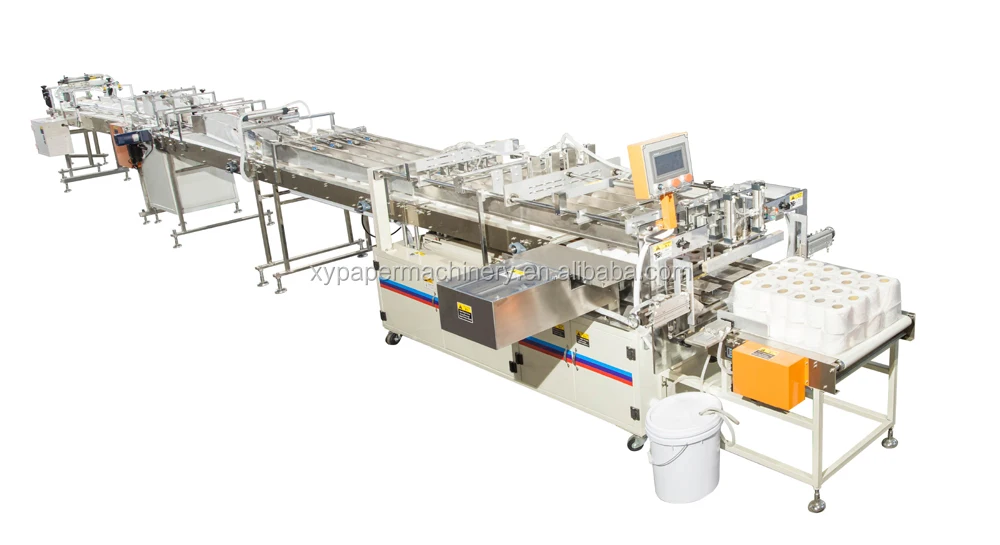

XY-AI-398E
Low price toilet paper packing machine(2 LANE, 2 LAYER)
Characteristics

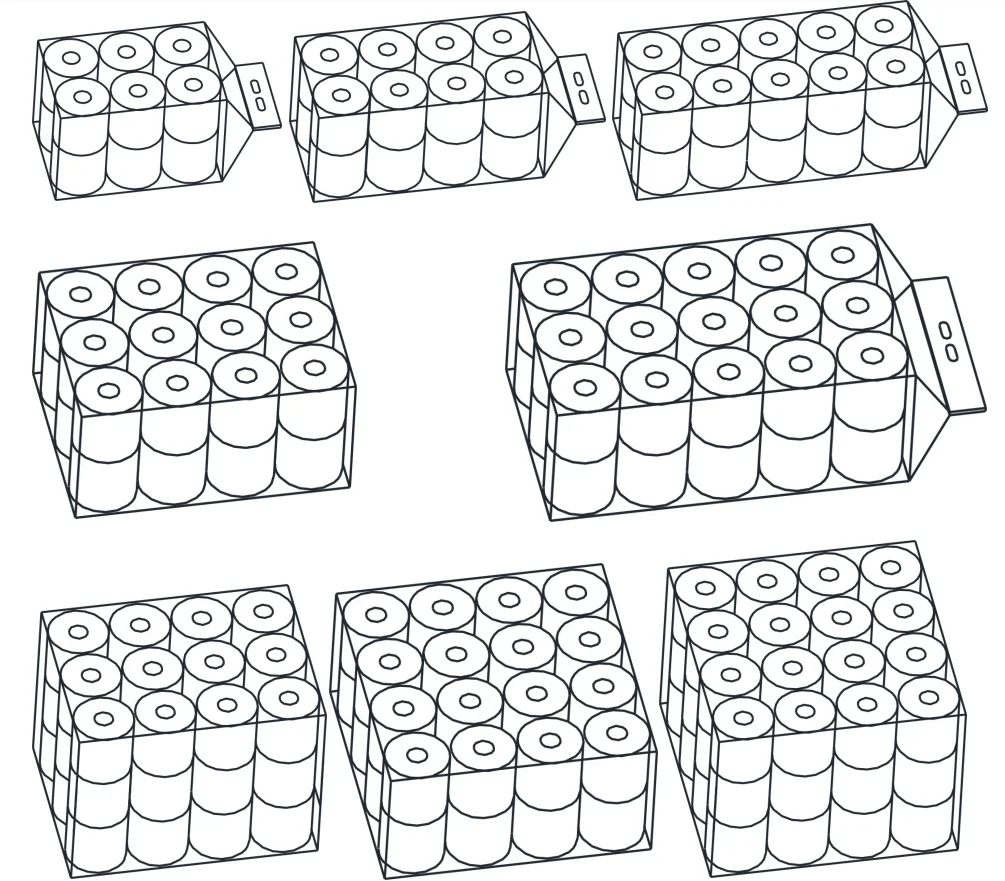

1. Suitable for packing bundling toile roll with 2 lane and 2 layer, can pack 8,12,16,20,24 toilet rolls in 1 bundling bag.
2. Can connect with log saw, band saw or single roll wrapping machine to form an automatic production line.
3. Multi function: automatic feeding, automatic sealing, automatic countering.
4. Adopting the advanced PLC computer programming control, touch screen and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient.
5. Packing and sealing are pretty and tidy.
6. Easily change to different product size by adjusting hand wheels which adjust easily and simply.
7. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily& efficiently, and therefore this makes machine have long life.
1. Suitable for packing bundling toile roll with 2 lane and 2 layer, can pack 8,12,16,20,24 toilet rolls in 1 bundling bag.
2. Can connect with log saw, band saw or single roll wrapping machine to form an automatic production line.
3. Multi function: automatic feeding, automatic sealing, automatic countering.
4. Adopting the advanced PLC computer programming control, touch screen and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient.
5. Packing and sealing are pretty and tidy.
6. Easily change to different product size by adjusting hand wheels which adjust easily and simply.
7. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily& efficiently, and therefore this makes machine have long life.
Model | XY-AI-398E |
Packing single roll quantity | 8,12,16,20,24 rolls/bundling bag |
Speed | 4-6 bag/min |
Power Supply | 2.5 Kw 220V 50HZ |
Air Supply | 0．6MPA |
Single roll size | Diameter：Ø90-120mm Height:90-100mm |
Bundling size | L(360-660)*W(180-240)*H（180-200)mm |
Machine size | L4500*W1600*H1500 |
Machine weight | 650KG |
Similar Products
XY-TQ-A-G
Fully Automatic Toilet Paper Production Line
This production line consists of Fully Automatic Rewinding Machine, automatic band saw machine and semi automatic bundle packing machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hygienic paper products.
Video Link：
Video Link：
https://youtu.be/hS3l-dom3Ug
XY-TQ-A-H
Automatic Toilet Paper Production Line
This production line consists of Wall Type Automatic Rewinding Machine, Band saw cutting machine and automatic shrink packing machine From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll paper products.
https://youtu.be/g2gOHgBC2PE
https://youtu.be/4fTG0Rv3jB4
https://youtu.be/g2gOHgBC2PE
https://youtu.be/4fTG0Rv3jB4
XY-TQ-A-B
Full automatic wallboard type color glue lamination kitchen towel/toilet paper
production line
This production line consists of Fully Automatic Rewinding Machine/Color Glue Lamination. Log Saw Machine，Automatic Single Rolls Packing Machine and bundle packing machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hygienic paper products.

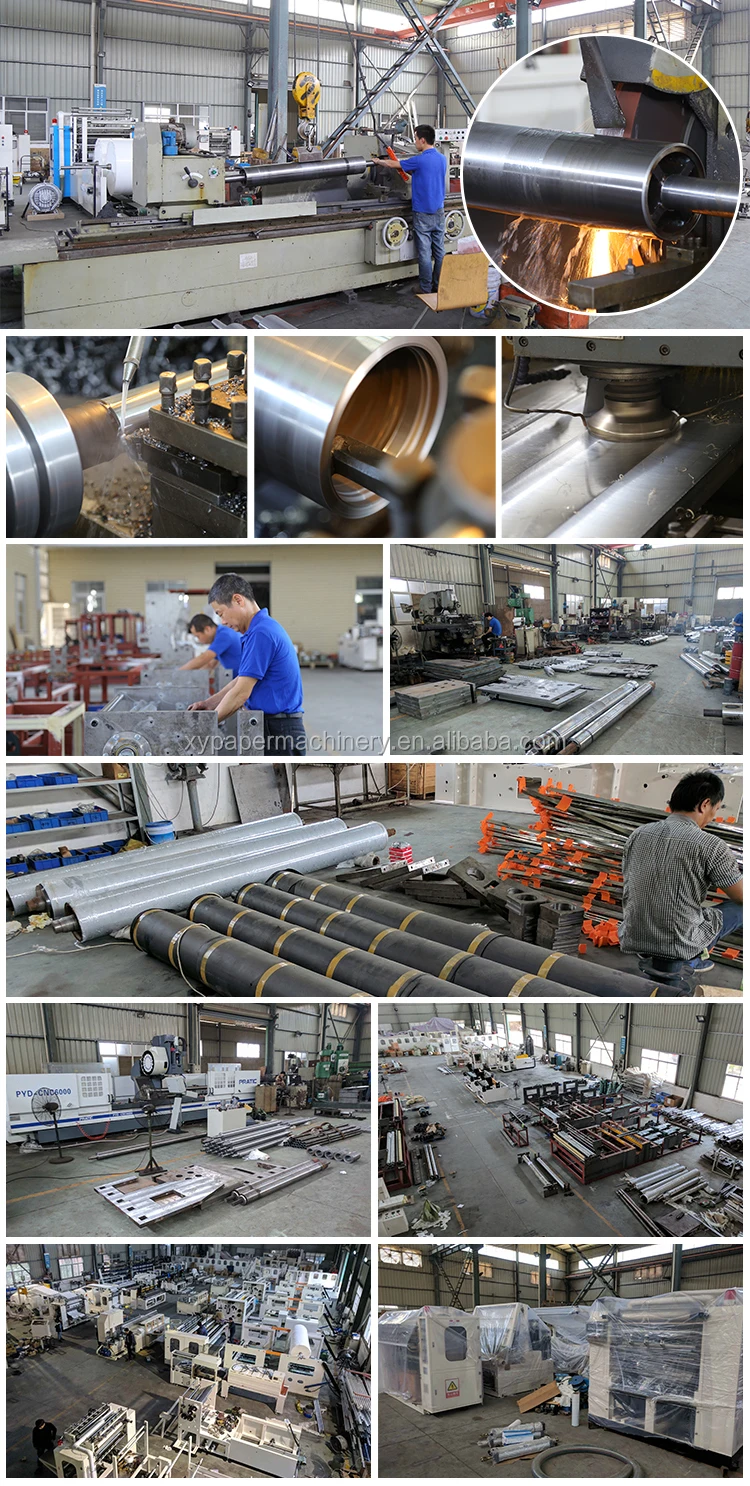

Workshop
