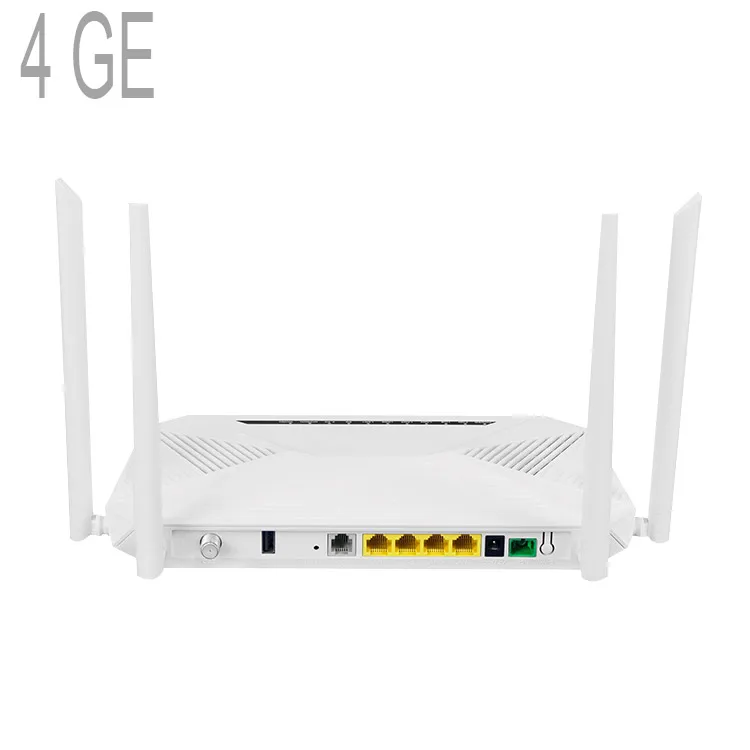

FTTH XPON ONU Cdata Ethernet XGSPON EPON GPON ONT SFP 4103XR 1USB 1POTS Private Mode 4 Ports Dual PON 4GE AC ONU VOIP
- Category: >>>
- Supplier: Shenzhen East Smart Technology Co. Ltd.
Share on (1600428634057):
Product Overview
Description
Products Description
1.Overview

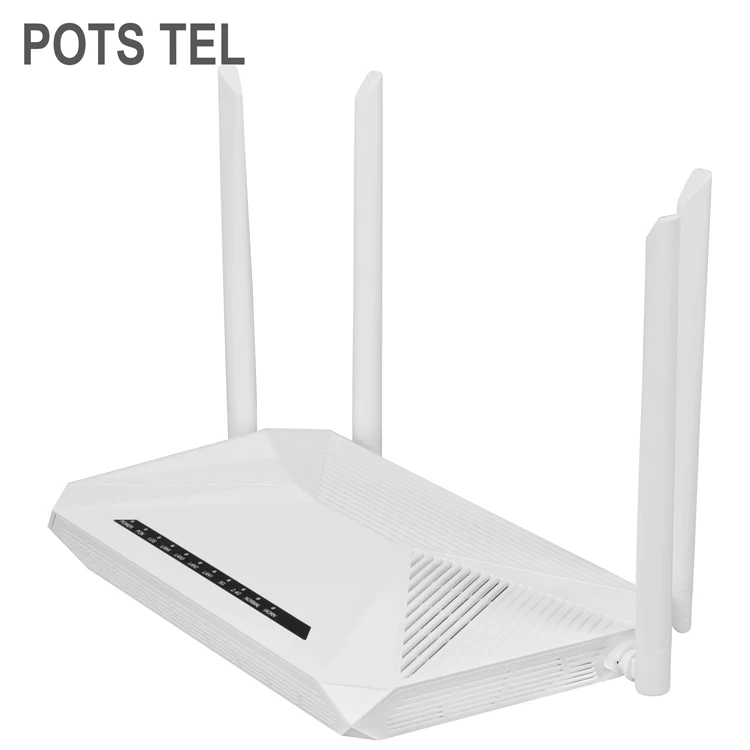

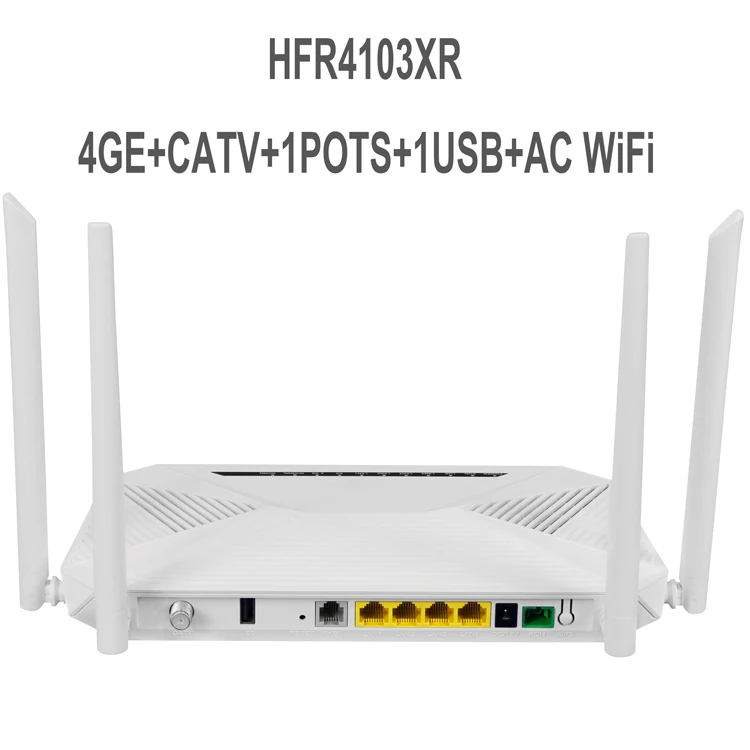

HFR4103XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access .
HFR4103XR is based on mature and stable, cost-effective XPON technology. It could switch automatically into
EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
HFR4103XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
Support EPON/GPON mode and switch mode automatically
Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
Support IPv4 and IPv6 Dual mode Support 2.4G&5.8G WIFI and Multiple SSID
Support SIP Proctol for Voip Service Support CATV interface for Video
Service and remote control by Major OLT Support LAN IP and DHCP Server configuration
Service and remote control by Major OLT Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance Specialized design for system breakdown prevention to maintain stable system
Version & Firmware
All ONU products are Global Version with English Firmware, English Package Box.
Power Plugs / Adapter
we can provide Power Plug with Europe Standard, America Standard, Australia Standard, United-Kingdom Standard and India Standard, please choose according to your target marketplace.

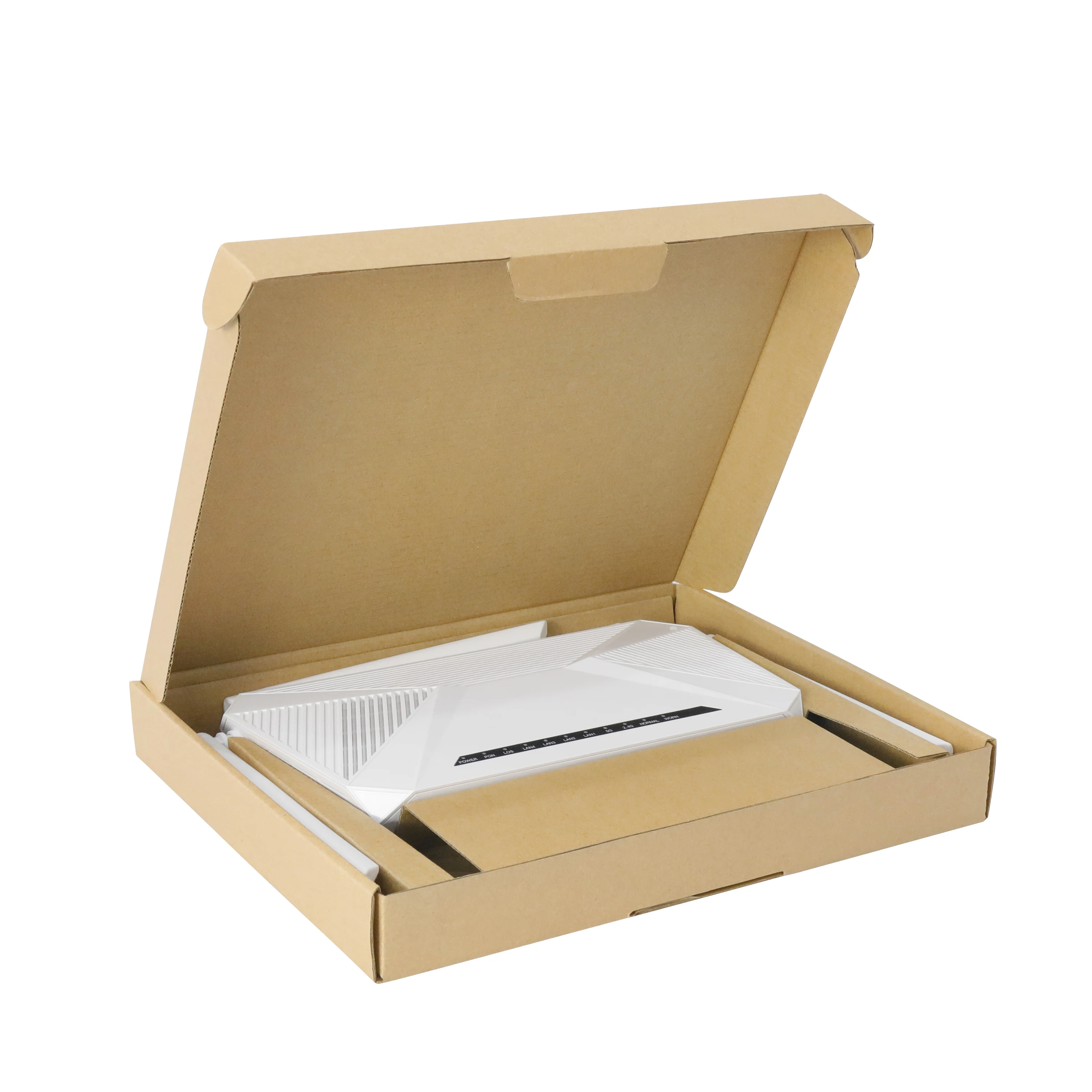

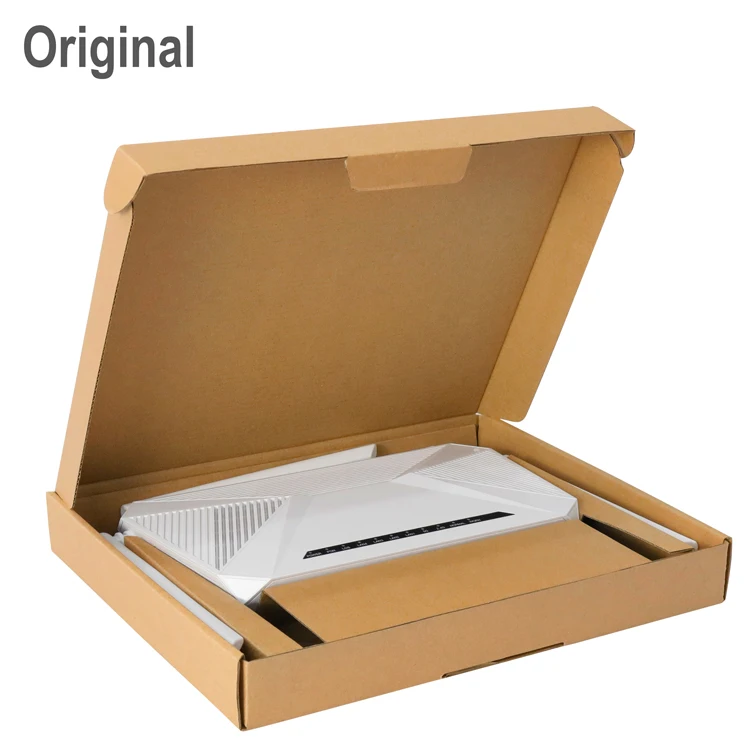

Package Box
Size: CM
Weight: KG
Carton
Size : CM
Weight: KG
QTY/CTN: pcs
Product Paramenters
Technical item | Details |
PON Interface | 1 GPON BoB（Class B+/Class C+） |
Transmission distance: 20KM | |
Optical Interface | SC/UPC Connector |
Flash | SPI NAND Flash 128MB |
LAN Interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
Wireless | Compliant with IEEE802.11b/g/n,ac |
2.4G Operating frequency:2.400-2.4835GHz | |
5.8G Operating frequency:5.150-5.825GHz | |
2.4G 2*2 MIMO, rate up to 300Mbps | |
5.8G 2*2 MIMO ,rate up to 867Mbps | |
4 external antennas 5dBi | |
Support Multiple SSID | |
CATV Interface | RF, WDM, optical power : +2~-15dBm |
Optical reflection loss: ≥45dB | |
Optical receiving wavelength: 1550±10nm | |
RF frequency range: 47~1000MHz, RF output impedance: 75Ω | |
RF output level: 78dBuV | |
Operating Condition | Temperature: 0℃~+50℃ |
Humidity: 10%～90%（non-condensing） | |
Storing Condition | Temperature: -30℃~+60℃ |
Humidity: 10%~90%（non-condensing） | |
Power Supply | DC 12V/1A |
Power Consumption | ≤6W |
Dimension | 260mm×158mm×192mm（L×W×H） |
Net Weight | 0.35Kg |
