Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
4 color paper roll to roll sticker flexo printing press machine
- Category: >>>
- Supplier: Hangzhou Depai Machinery Co. Ltd.
Share on (1600428648304):
Product Overview
Description
Product Description

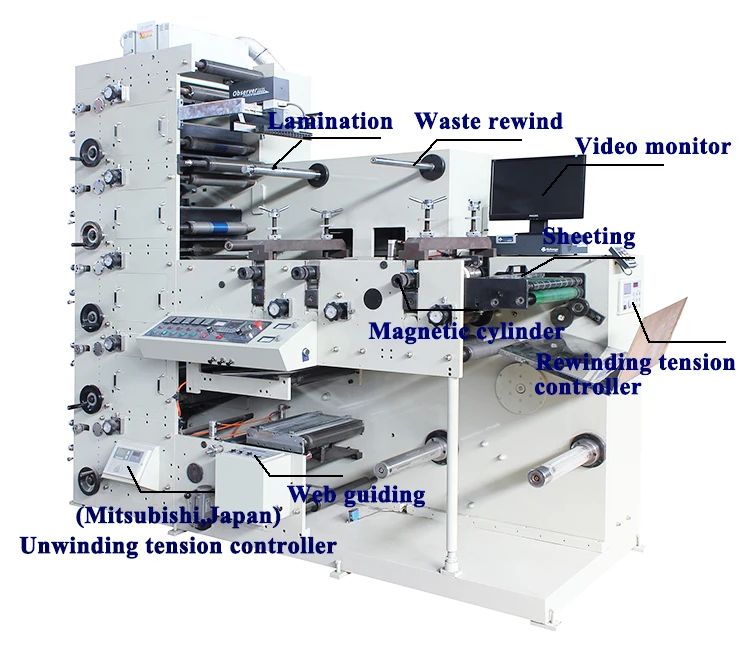

High quality 4 color label Flexo Printer Machine for adhesive label and film
Description
The machine can finish material-feeding,printing, varnish, drying, laminating, rewinding and die-cutting in one process is an
ideal machine for printing note and top-grade adhesive label.
ideal machine for printing note and top-grade adhesive label.
Suitable Material
1.10 Micron Film To 400 Micron Board
2.Plastic Film
3.Aluminium Foil
4.Tissue paper
5.Self adhesive paper
6.Vinyls/PVC
7.Carton weight board
1.10 Micron Film To 400 Micron Board
2.Plastic Film
3.Aluminium Foil
4.Tissue paper
5.Self adhesive paper
6.Vinyls/PVC
7.Carton weight board
Feature
1. The flexo printing machine adopts the anilox rollers to spread ink.

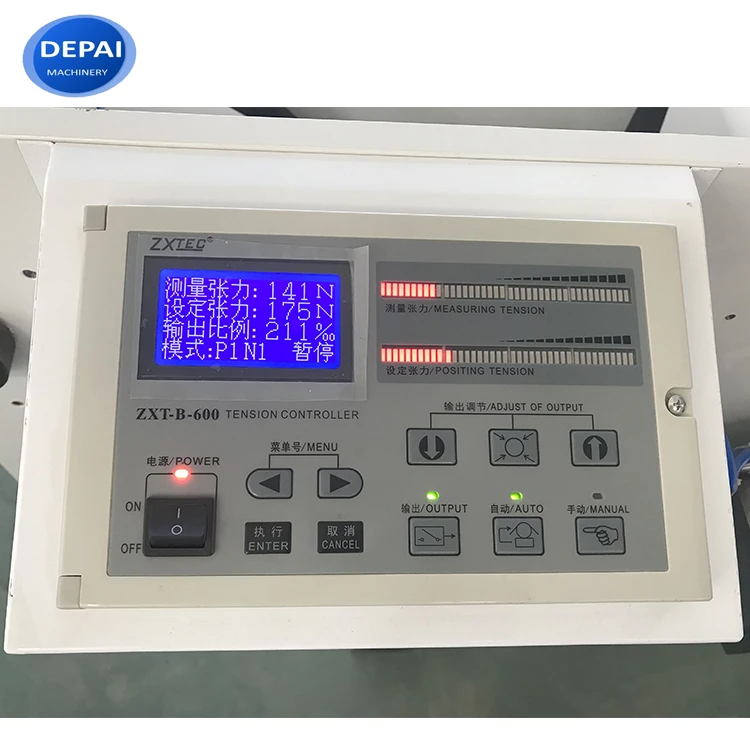

2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake, clutch. (for by the automatic tension controller of mitsubishi, made in Japan).
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
1. The flexo printing machine adopts the anilox rollers to spread ink.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake, clutch. (for by the automatic tension controller of mitsubishi, made in Japan).
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
Specification
Model | DP-FPL320-5 | DP-FPL-480-5 |
Printing Color Station | 5 colors | 5 colors |
Max. Web Width | 320mm | 480mm |
Max. Effective Width | 310mm | 450mm |
Max. Diameter of Roller Material | 600mm | 800mm |
Printing Girth | 175-380mm | 180-580mm |
Printing Speed | 5-60m /min | 5-60m/min |
Plate Thickness (Both side adhesive tape included) | 1.70mm | 1.70mm |
Plate mounting tape | 0.38mm | 0.38mm |
Diameter of air shaft | 150mm | 150mm |
Precision of chromatography | ±0.1mm | ±0.1mm |
Total Power | 10.5kw | 10.5kw |
Machine Weight | 2100*1100*2600mm | 2300x1260x2700mm |
Overall Dimension | 2600kgs | 3500kgs |
Voltage | 380V 50HZ 3 Phase | 380V 50HZ 3 Phase |
Machine Details

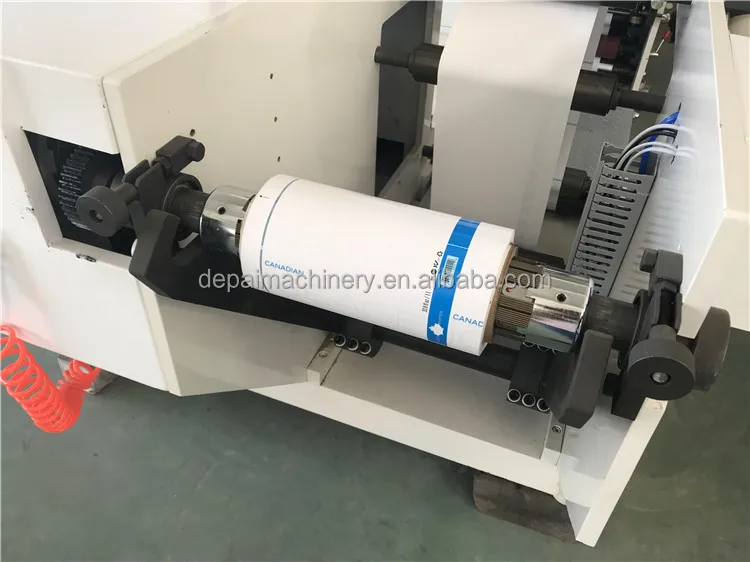

Unwind
- Max unwind material diameter: 600mm
- With Magnetic brake

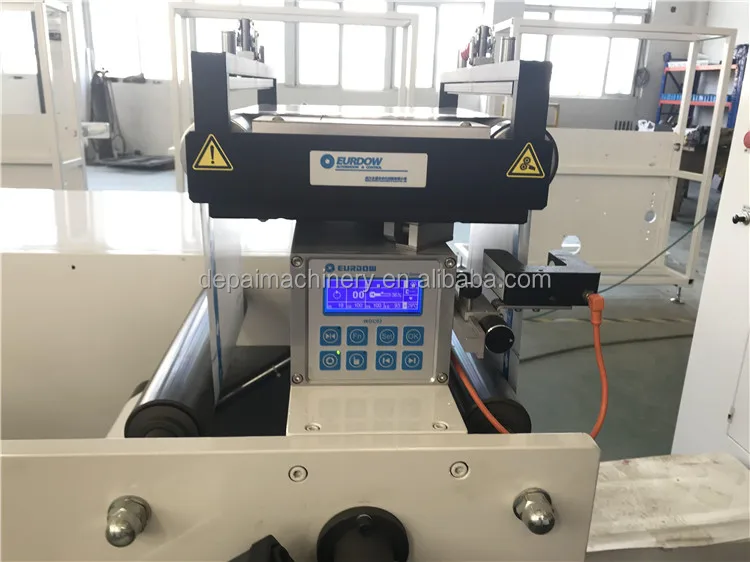

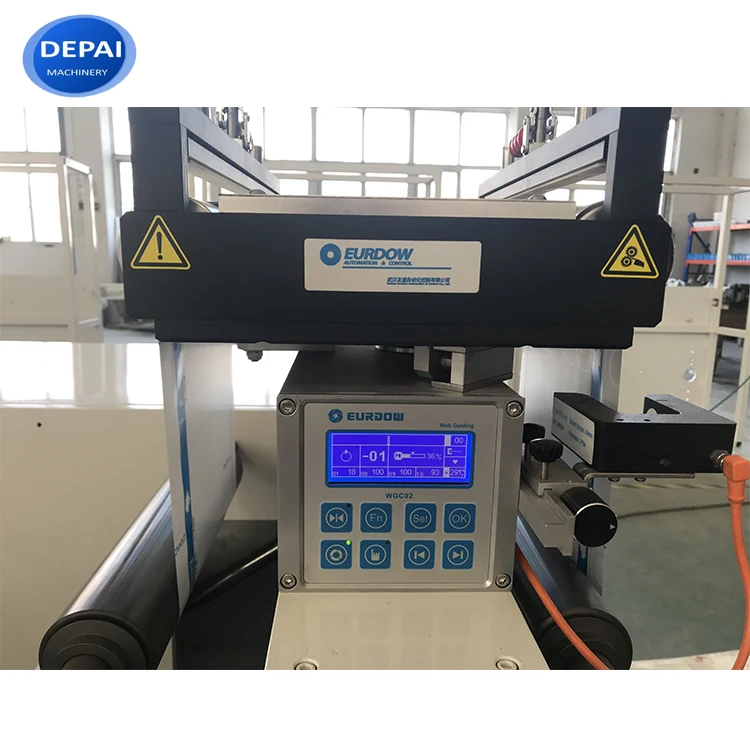

Web Guide System
Detection mode: Edge checking
Control paper move straightly.

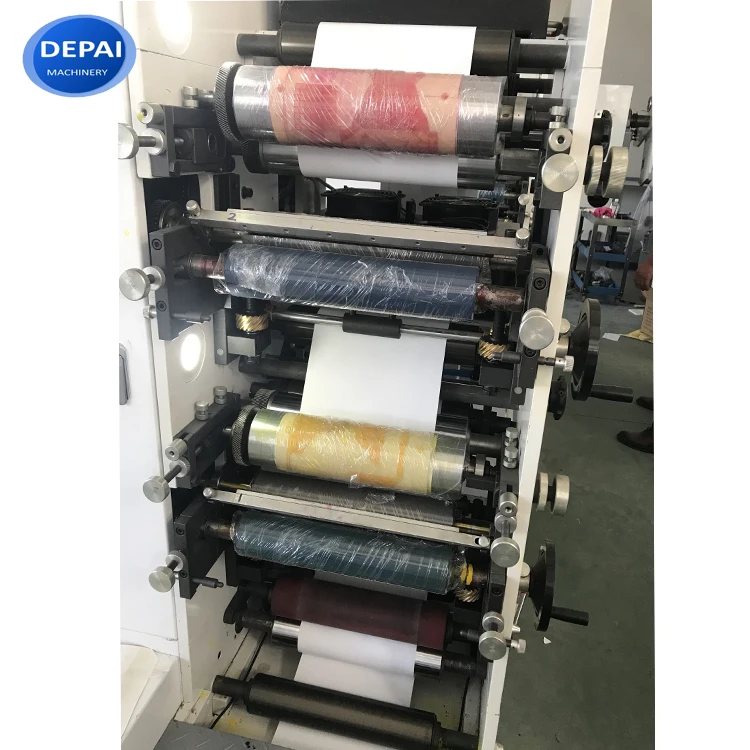

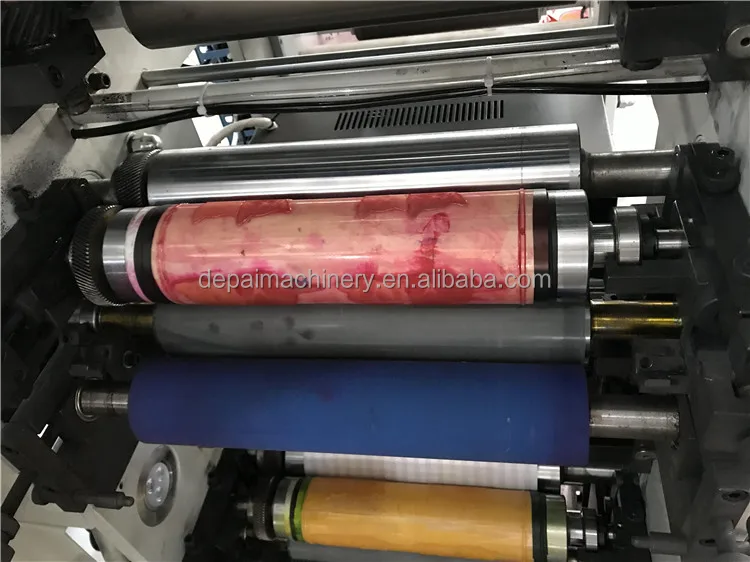

Flexo Printing Unit
- Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Container.
- Helical Gear
- Helical Gear
IR Drying System
Infrared Heating Drying Unit--- 1 unit / each color station
1 pcs IR lamp each IR heating unit
1 pcs IR lamp each IR heating unit

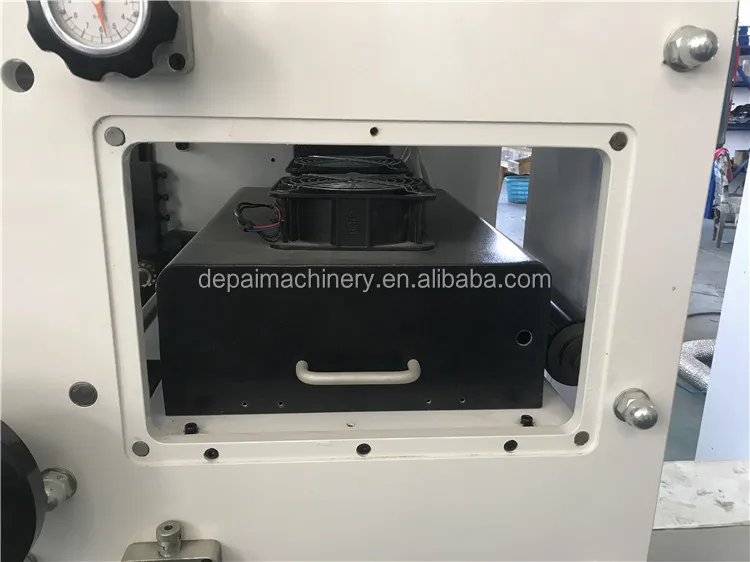

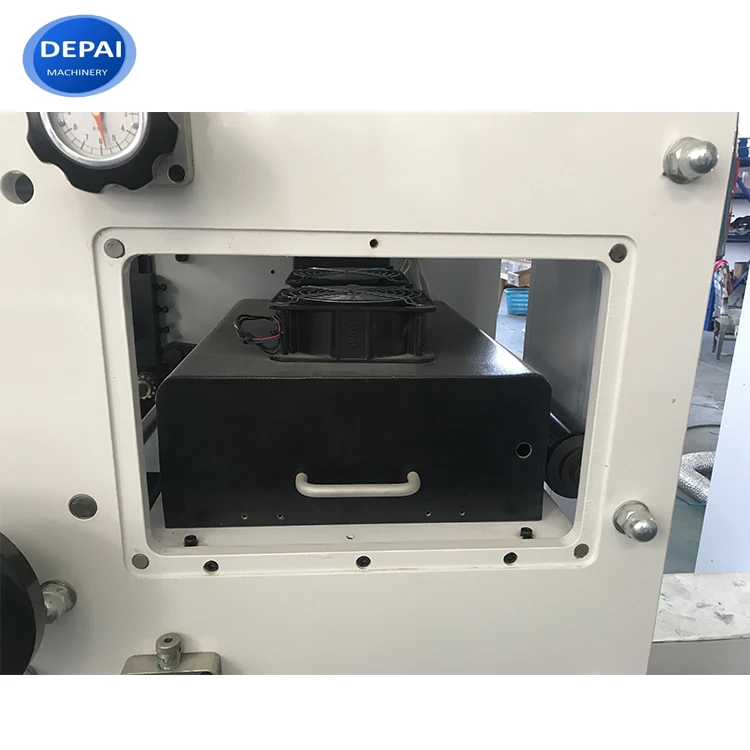

UV Dryer
The supporting equipment of the printing equipment can provide the efficiency and effect of the finished printing products.
Suitable for plastic film production.
Die Cutting Unit
Rotary die cutting.
Magnetic cylinder need to be customized according to your label size
Flexible dies can be customized according to your demand
Magnetic cylinder need to be customized according to your label size
Flexible dies can be customized according to your demand

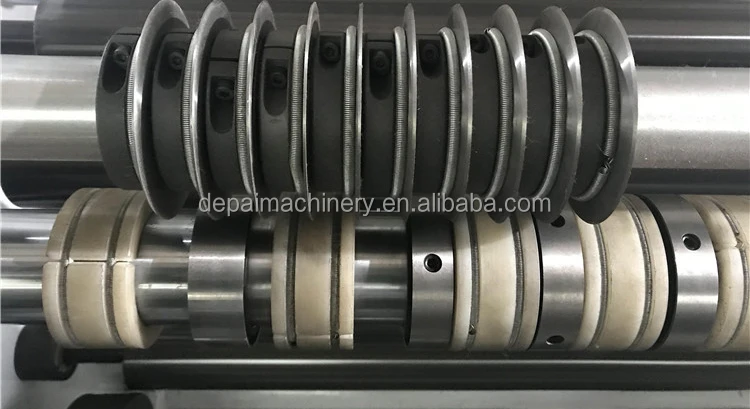

Slitting Unit

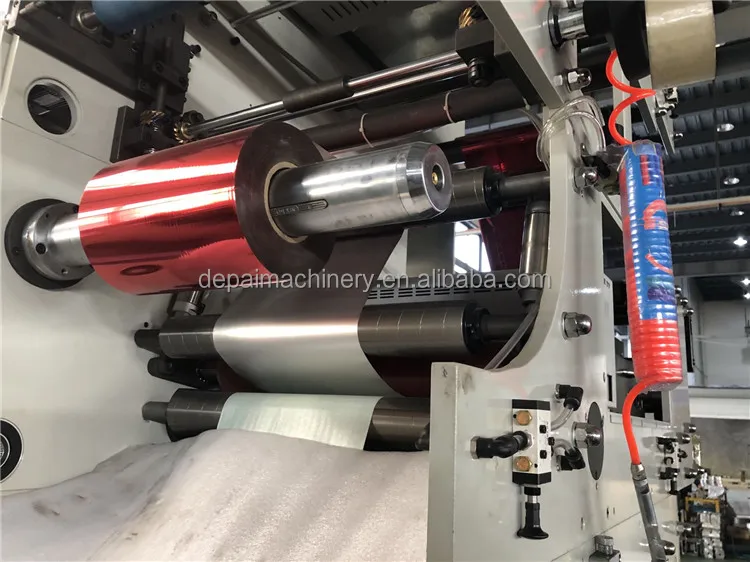

Cold Stamping

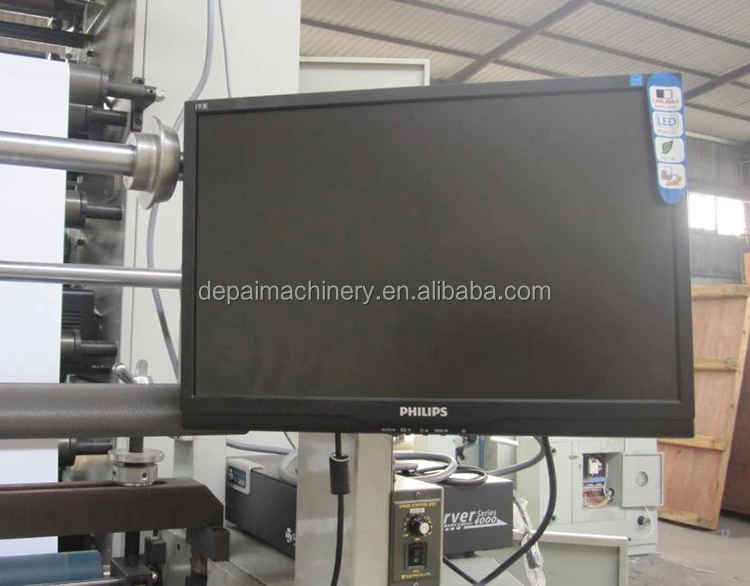

Video Inspecting System

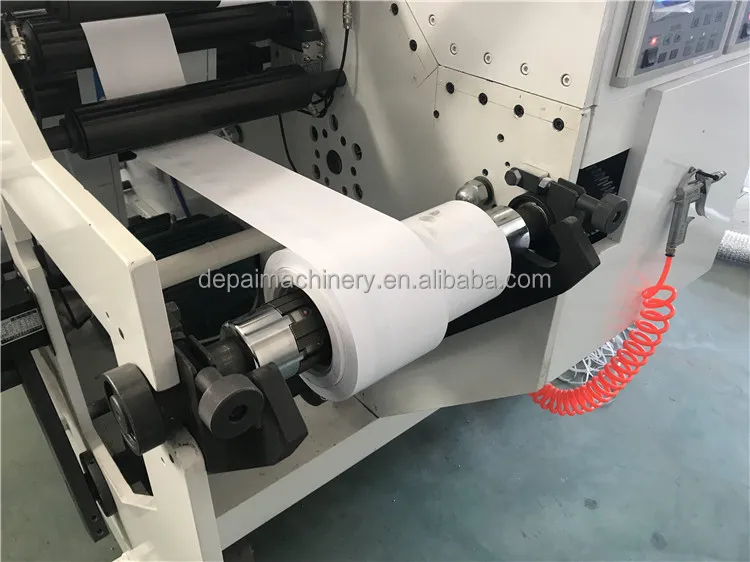

Rewind
Max rewinding material diameter: 600mm
Magnetic clutch

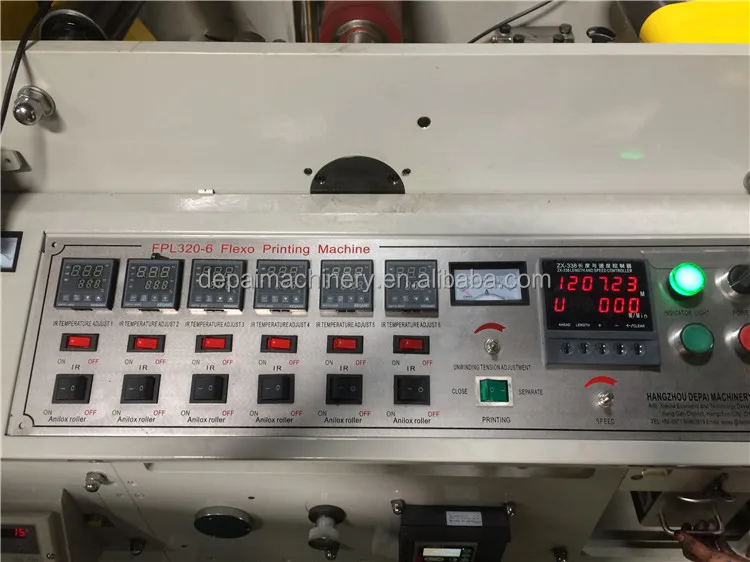

Panel

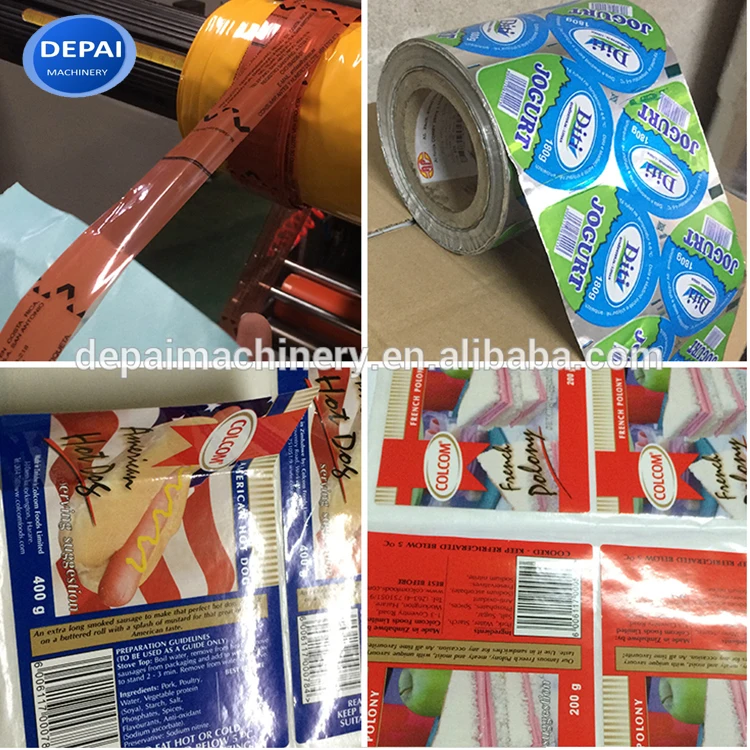

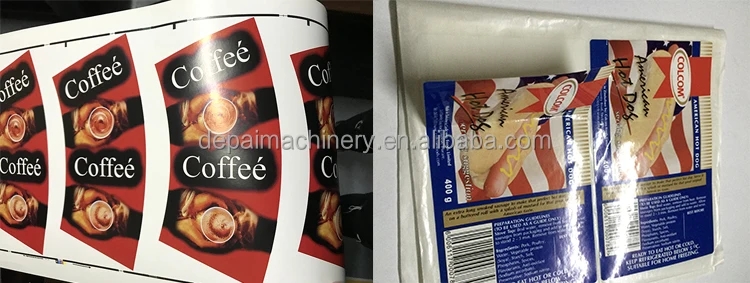

Samples

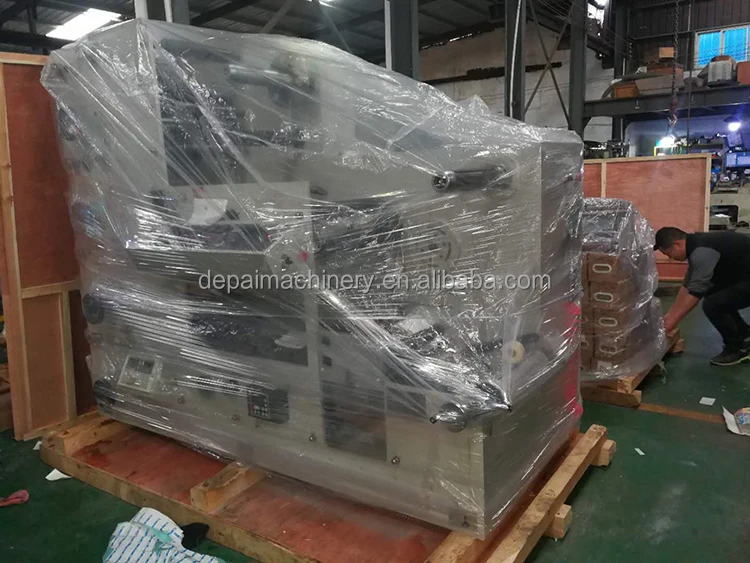

Packing & Delivery
Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Company Profile
HANGZHOU DEPAI MACHINERY Co.,Ltd is professional manufacturer of flexographic printing machine for more than 20 years. The company is located in HANGZHOU, capital of Zhejiang province, with excellent geographical location and convenient transportation.
Furthermore, the company owns a professional after-sales service team who can provide customers with comprehensive solutions and technical support.
Furthermore, the company owns a professional after-sales service team who can provide customers with comprehensive solutions and technical support.
