Battery Management System(bms) 15S 48V 100A Li ion BMS LiFePO4 RS232 RS485 SMBUS UART BT For Golf Cart
- Category: >>>
- Supplier: Shenzhen Smartec Technology Co. Ltd.
Share on (1600428667708):
Product Overview
Description
Specification
SmarTEC Battery Management System (BMS)
A battery management system (BMS) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and / or balancing it. A BMS may monitor the state of the battery as represented by various items, such as:
Voltage: total voltage, or voltages of individual cells
Temperature: average temperature, or temperatures of individual cells
State of charge (SOC) or depth of discharge (DOD): to indicate the charge level of the battery
State of health (SOH), a variously-defined measurement of the overall condition of the battery
Current: current in or out of the battery
SmarTEC has our own factory to design and manufacture high quality PCM and BMS for all types Lithium battery packs. We test each PCM BMS before shipping and promise it is functional and safe. If you have any question in using PCM, please feel free to contact us
Voltage: total voltage, or voltages of individual cells
Temperature: average temperature, or temperatures of individual cells
State of charge (SOC) or depth of discharge (DOD): to indicate the charge level of the battery
State of health (SOH), a variously-defined measurement of the overall condition of the battery
Current: current in or out of the battery
SmarTEC has our own factory to design and manufacture high quality PCM and BMS for all types Lithium battery packs. We test each PCM BMS before shipping and promise it is functional and safe. If you have any question in using PCM, please feel free to contact us
item | Parameters |
Brand Name | SmarTEC |
Model Number | PCM--L15S100-G30 |
Communication Interface | SMBUS/RS232/RS485/UART/Blue-tooth |
Size | L240*W120*T12mm |
Applied for | 10-15S lithium ion or LiFepo4 battery |
Maximal continuous Discharging current | 100A |
Charging&discharging port | Common |
Balancing Function | YES (4.2V for li-ion (NMC) and 3.6V for LiFepo4) |
Battery type | LiFePO4 & Li-ION(NMC) |
Nominal Voltage | LiFepo4 3.2V/Cell; Li-ion 3.6/3.7V/Cell; |
Charging Voltage | LiFepo4 DC:3.6V/Cell; Li-ion DC:4.2V/Cell; |
High/Low cutoff voltage | 3.9V/2.0V for LiFePO4; 4.25V/2.5V for li-ion /li-po battery ( Adjustable ) |
Temperature protection | 60 degree for cell ,90 degree for BMS |

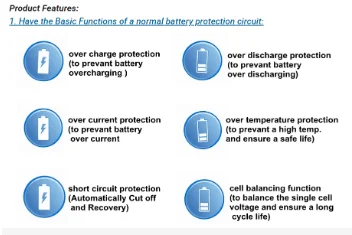

Protective function | Over charge/discharge/current/temperature/short circuit Protection |
Temperature | Operating -40~+85℃; Storage'-40~+125℃ |
Testing Service | 100% E-testing |
Package | Anti-static Bubble Bag |
Need detailed Datasheet or Specification, please feel free to contact us. |
How to connect
Host PC software
1. With communication toll EV2400 or EV2300
2. Connect the battery terminals of GND、SMBC、SMBD with data cable to the above tool interface GND、SMBC、SMBD，then connect The tool with USB data cable to PC (Note: do not connect P+ of the battery
when communicating with upper computer) as figure1
when communicating with upper computer) as figure1
3.Open host computer software of TI “Battery Management Studio”
Note: The above three kinds of communication tools with SMBUS can not be used at the same time. If two of them are used at the same time, SMBUS communication might be interrupted resulting in the loss of data.
