Multi apartment tuya villa doorphone intercom with wifi video interphone security intercom system
- Category: >>>
- Supplier: Guangzhou Paili Technology Co. Ltd.
Share on (1600428672245):
Product Overview
Description
Product Description

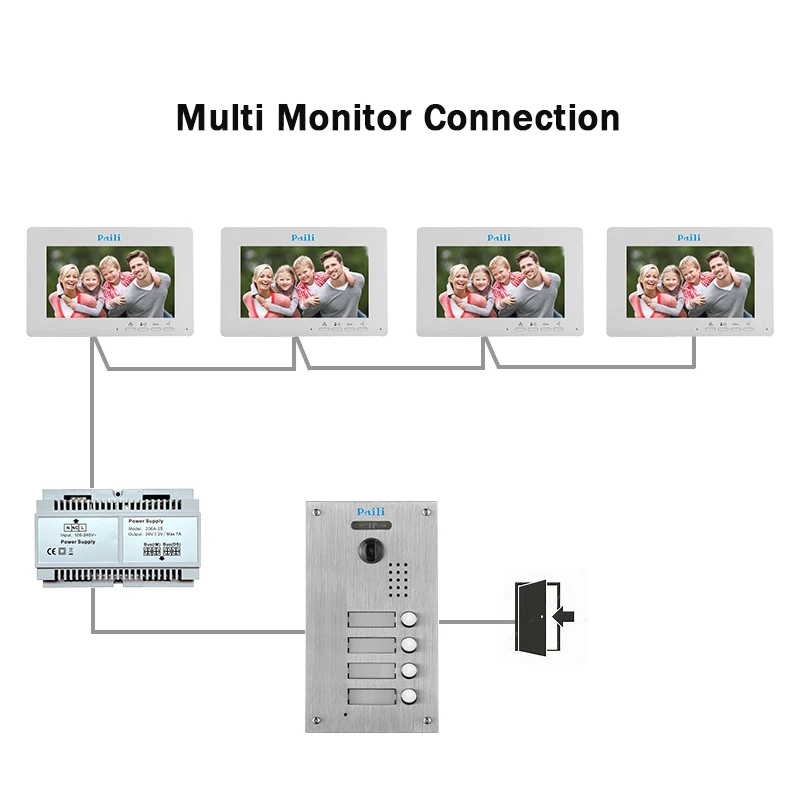

The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity,
central power supply. Use Plug -in connectors and DIP switchers for rapid installation.Integrated Multi functions with simple
operation makes the system more attractive, Flexible cable connection to wire, support in -out, branching and mixed mode.Dual
intercom communication between indoor units;inner picture memory and extended SD card recording, CCTV camera integrated, call
transfer via IP module to mobile phone.
central power supply. Use Plug -in connectors and DIP switchers for rapid installation.Integrated Multi functions with simple
operation makes the system more attractive, Flexible cable connection to wire, support in -out, branching and mixed mode.Dual
intercom communication between indoor units;inner picture memory and extended SD card recording, CCTV camera integrated, call
transfer via IP module to mobile phone.

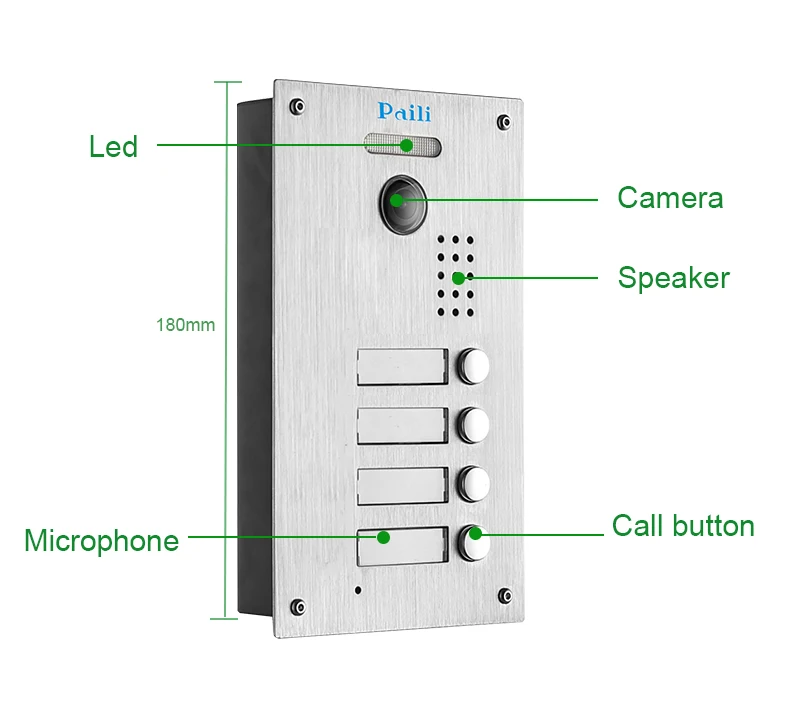

Outdoor Unit | Model | PL738-8buttons for 8apartments/units |
Camera Sensor | CMOS, 2.0MP | |
View Angle | HD night and day vision wide angle 170° | |
Material | Waterproof & Vandalproof Stainless Steel Cover | |
Installation: | Flush、surface mounted | |
Power output | DC 24V(supplied by power supply) | |
Power input | AC 100V-240V 50 Hz/60 Hz | |
Operation Temp | -40℃ +50℃ | |
Basic functions | infrared night-vision outdoor station | |
Visitors Calls and leave a message | ||
Answering the visitors call from installed monitor | ||
Volume, brightness & contrast adjustable | ||
With adapter and cable, users could install it by themsel |

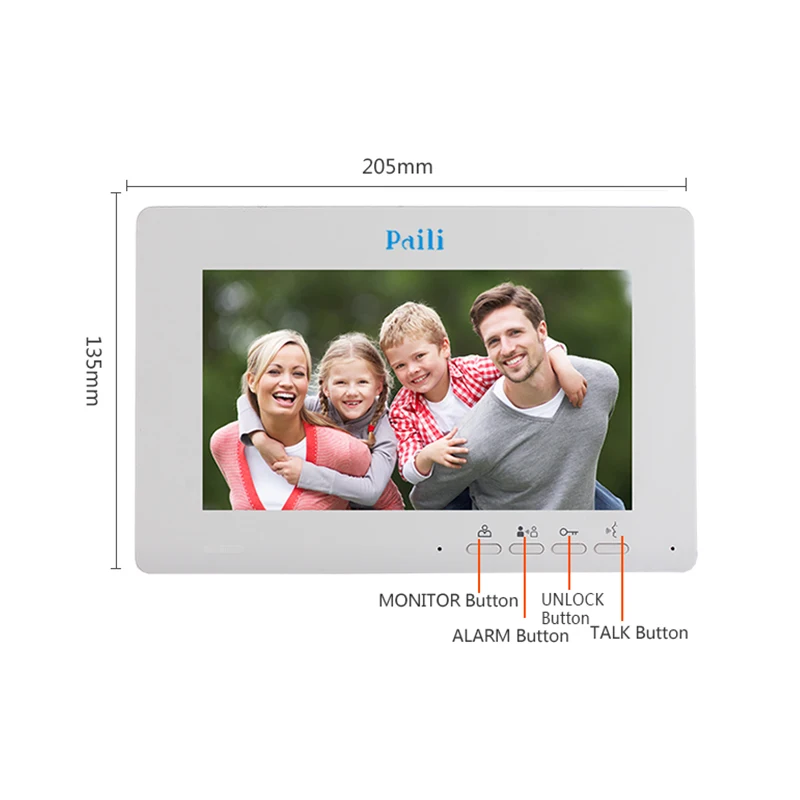

Indoor Monitor | Model | PL806 |
Screen | 7 inch color digital TFT screen | |
Resolution | 800*480 pixels | |
Color | White | |
Power supply | DC 24V | |
Power consumption | Standby 15mA, working 400mA | |
Working temperature | -10ºC ~ 45ºC | |
Wiring | 2 wire (Non-polarity) | |
Installation | Surface mounting | |
Panel | Full Glass Panel | |
Button | Touch Button With Blue Backlit | |
Dimension | 205*135*25mm |
