Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00

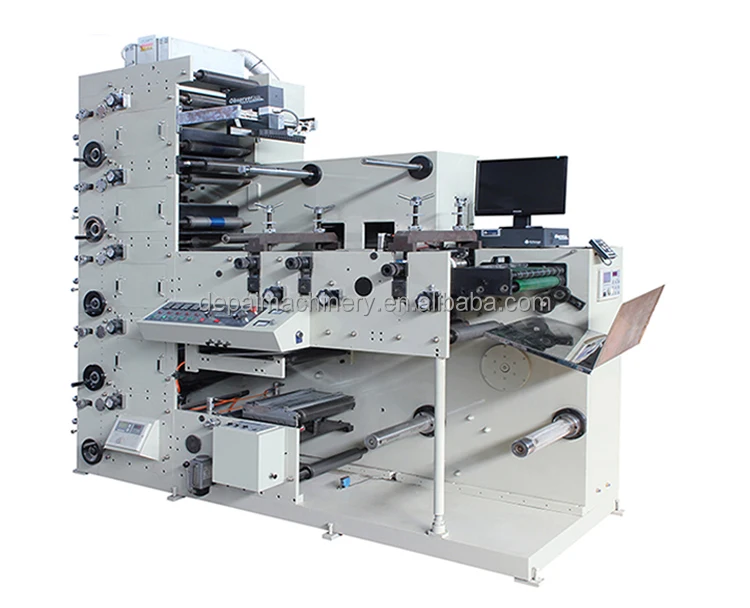

4 color plastic film roll to roll flexo flexographic label printing machine
- Category: >>>
- Supplier: Hangzhou Depai Machinery Co. Ltd.
Share on (1600428674682):
Product Overview
Description
4 color plastic film roll to roll flexo flexographic label printing machine
Flexographic printing machinery is a spectacular blend of letterpress and rotogravure printing, employing relief plates made up of flexible rubber or photo-polymer plates. Flexographic printing press comprises four rollers such as ink roller, meter roller, plate cylinder, and impression cylinder.
Specification
Characteristics
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Each printing unit adopts 360 .plate-adjustment.
3. Three die-cutting stations,the first and second die-cutting station can do double sides working,the third die-cutting station can be used of sheeter.
4. Computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position.(standard configuration)
5. After sheeting in the third die-cutting station,conveyor belt can output the products orderly.(option)
6. Unwinding and rewinding tension are auto-controlled by magnetic powder,two rewinders is possible in this machine.
7. Video inspecting system is an option,it can watch the printing quality when in high speed.
8. The ink rolleres will be separated from the printing roller,and keep running when the machine stops.
9. Main machine inverter is imported.
10. The machine can finish material-feeding.printing,varnishing,drying,laminating,die-cuting,rewinding and sheeter in one process.It is an ideal machine for printing note and top-grade adhesive label.
2. Each printing unit adopts 360 .plate-adjustment.
3. Three die-cutting stations,the first and second die-cutting station can do double sides working,the third die-cutting station can be used of sheeter.
4. Computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position.(standard configuration)
5. After sheeting in the third die-cutting station,conveyor belt can output the products orderly.(option)
6. Unwinding and rewinding tension are auto-controlled by magnetic powder,two rewinders is possible in this machine.
7. Video inspecting system is an option,it can watch the printing quality when in high speed.
8. The ink rolleres will be separated from the printing roller,and keep running when the machine stops.
9. Main machine inverter is imported.
10. The machine can finish material-feeding.printing,varnishing,drying,laminating,die-cuting,rewinding and sheeter in one process.It is an ideal machine for printing note and top-grade adhesive label.
Model | DP-P-320 | DP-P-450 |
Printing speed | 60m/min | 60m/min |
Printing colour | 1-8 colors | 1-8 colors |
Max.Web width | 320mm | 450mm |
Max.Printing width | 320mm | 450mm |
Max.Unwinding diameter | 800mm | 800mm |
Max.Rewinding diameter | 600mm | 600mm |
Printing girth | 175-380mm | 175-380mm |
Precision of overprint | ±0.10mm | ±0.10mm |
Total power | 10.5KW | 15KW |
Machine Details

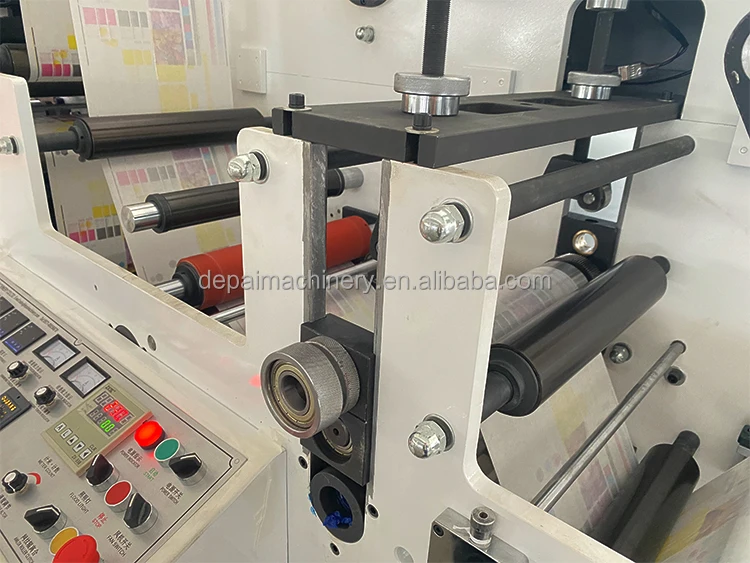

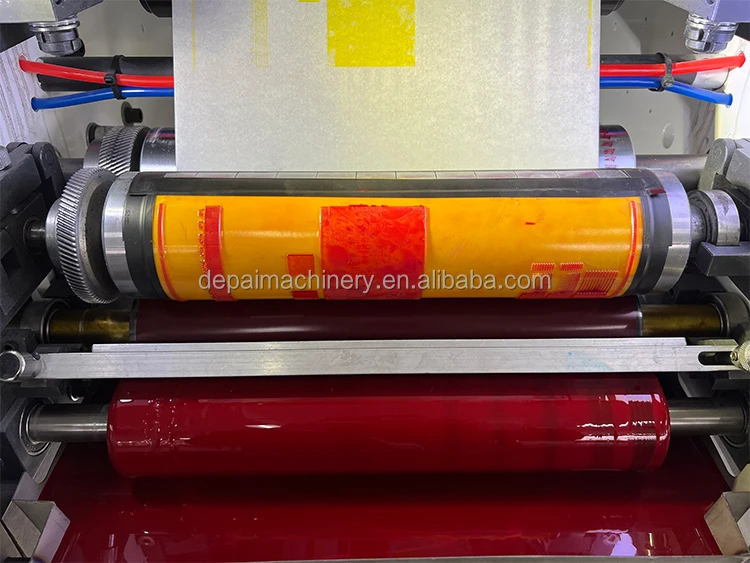

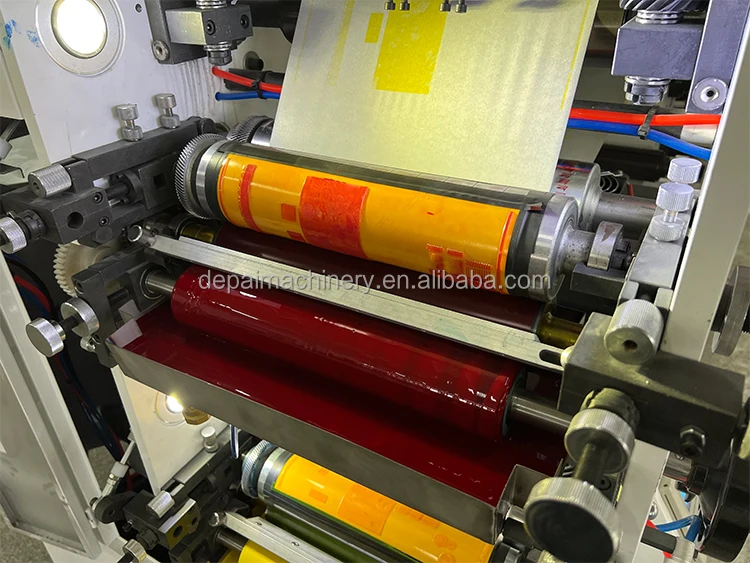

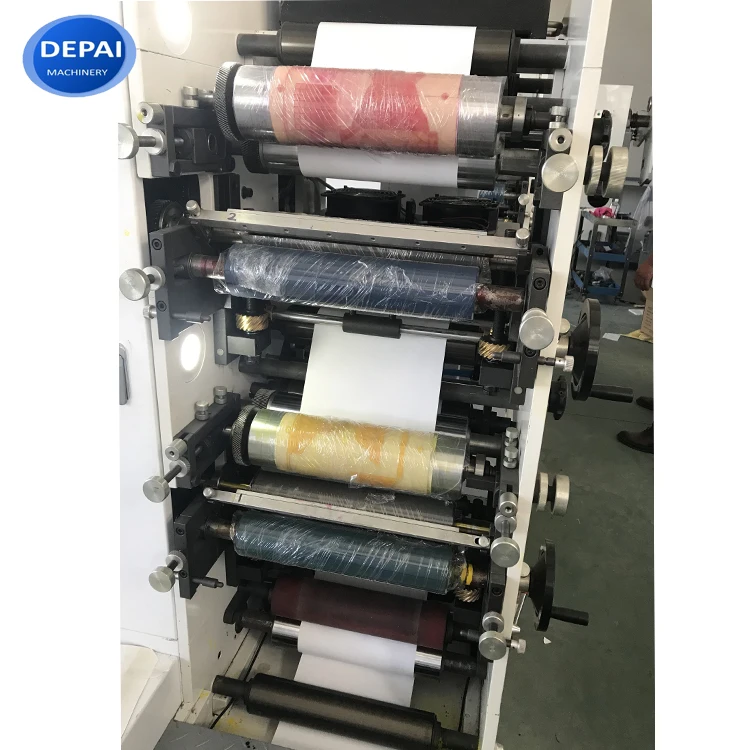

Printing color unit
• Anilox cylinder pneumatic clutch
• Ceramic anilox roller---one set (1 pcs) or as your require
• Printing cylinder---one set (1 pcs) or as your require
• Single side doctor blade
• Manual vertical and horizontal roller controllers(details is in the following main part, printing device)
• Ceramic anilox roller---one set (1 pcs) or as your require
• Printing cylinder---one set (1 pcs) or as your require
• Single side doctor blade
• Manual vertical and horizontal roller controllers(details is in the following main part, printing device)

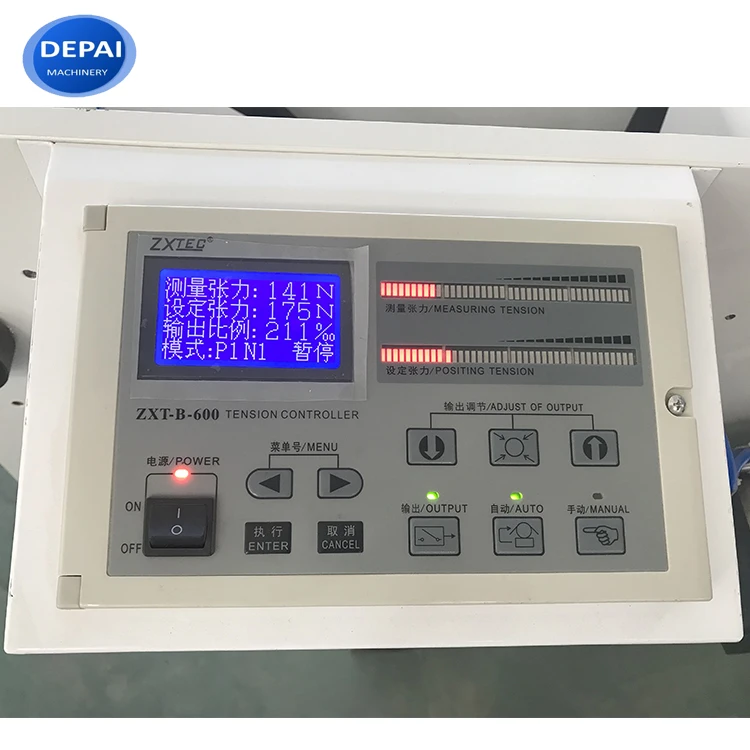

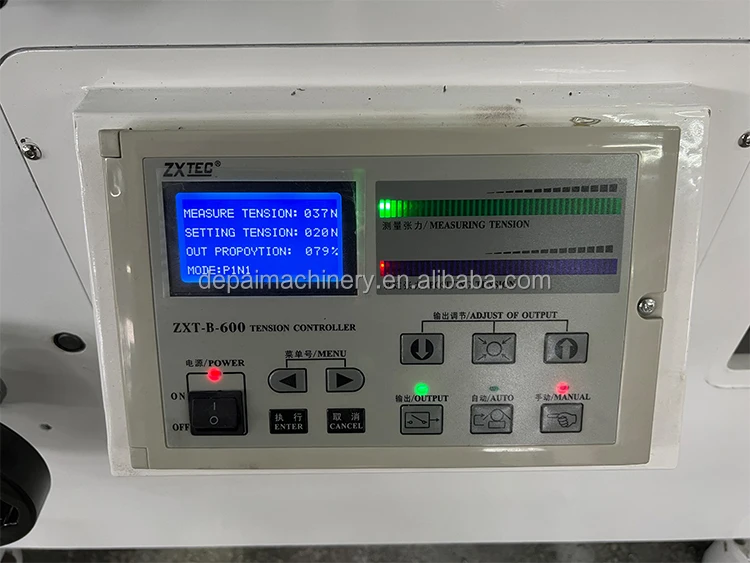

Automatic tension controller
The tension controller is an automatic control system that realizes constant tension or taper tension control. Its function is mainly to realize the synchronization between the rollers and the uniform control of winding and unwinding.

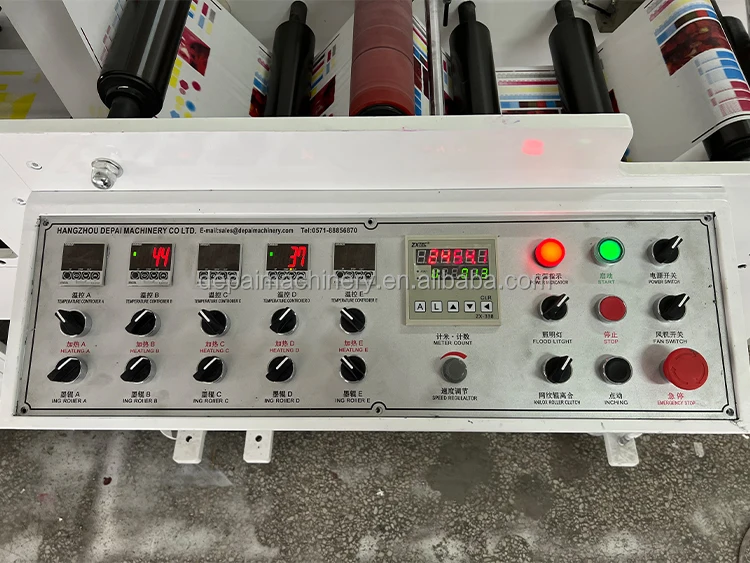

Control panel
For operate the machine.

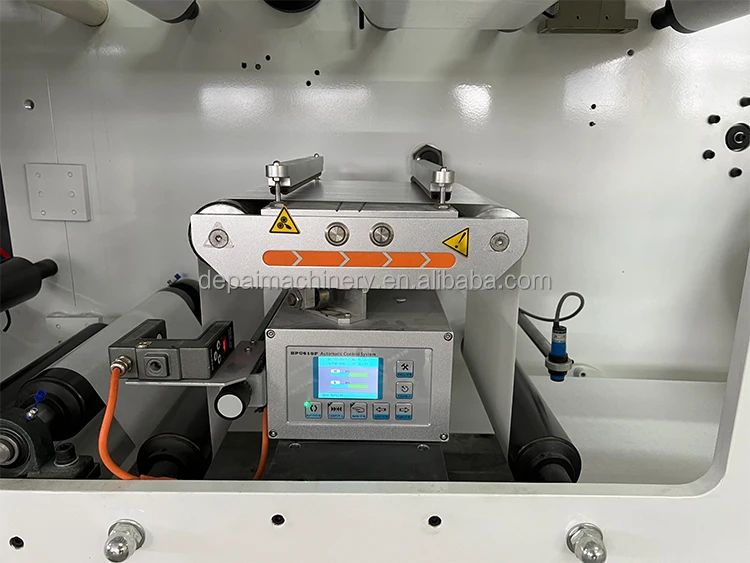

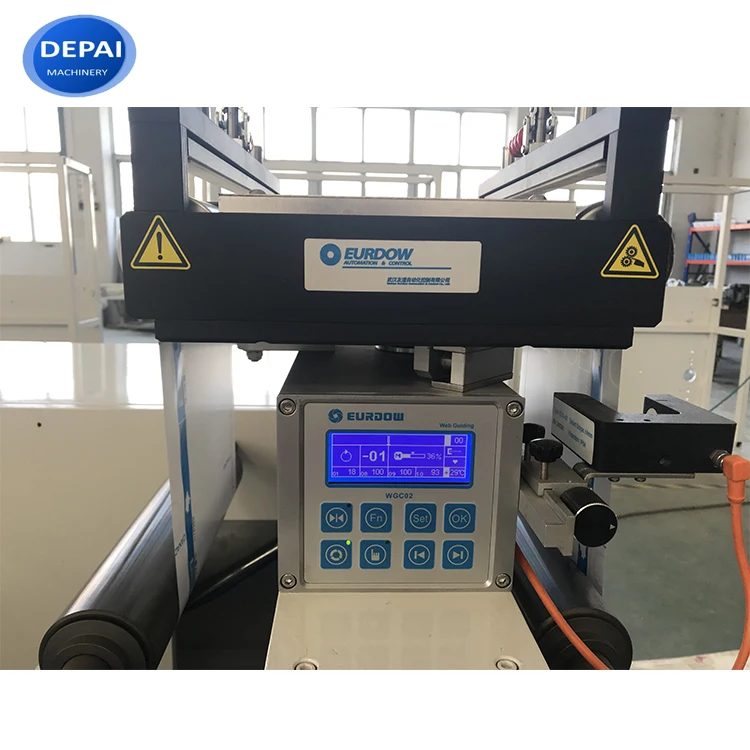

Auto web guiding system
• One set of paper binding table
• Electronic paper web guide traction device, there was a small offset paper web movement, the system can accurately continuously revised.
• Electronic paper web guide traction device, there was a small offset paper web movement, the system can accurately continuously revised.

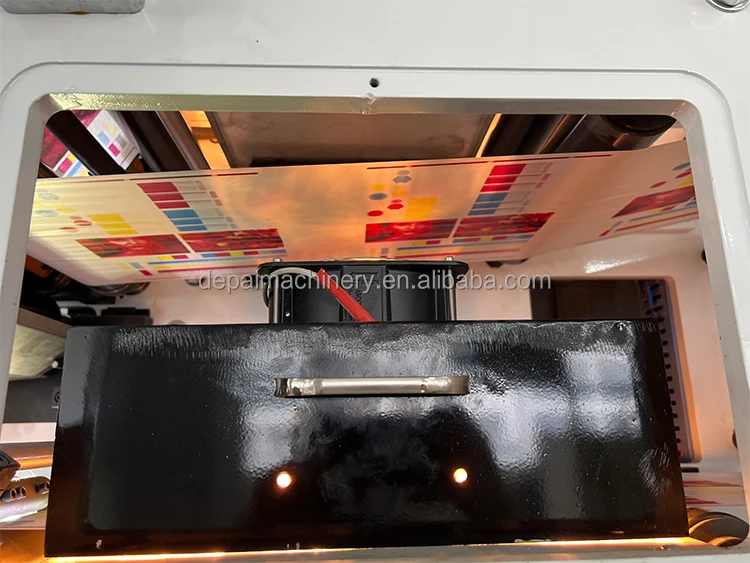

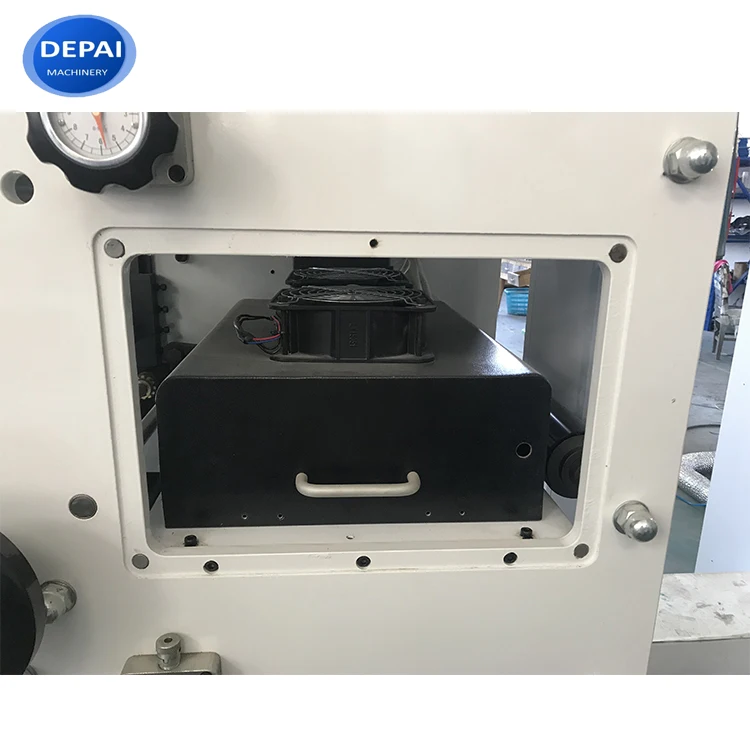

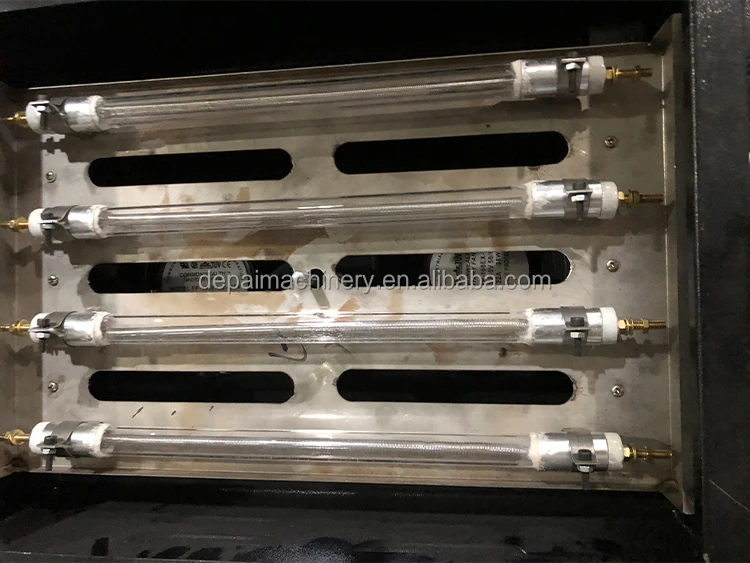

IR Drying system
• Infrared Heating Drying Unit--- 1 unit / each color station
• 1 pcs IR lamp each IR heating unit
• 1 pcs IR lamp each IR heating unit
Optional Parts

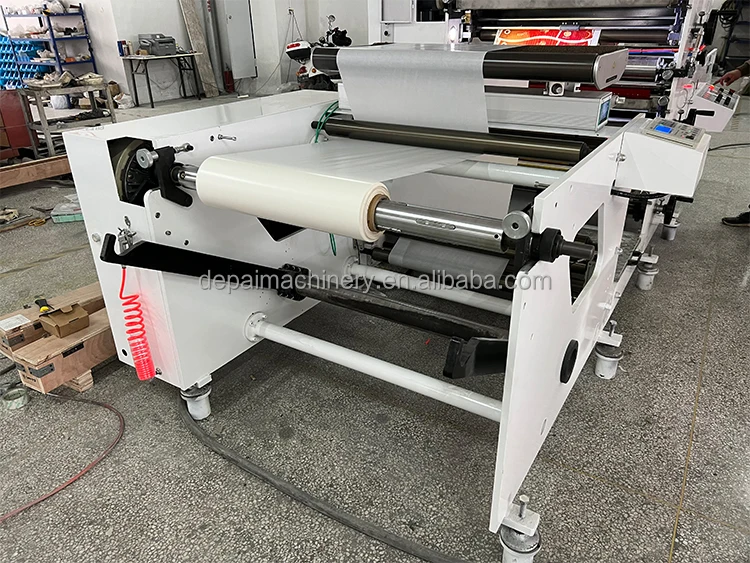

Independent unwinding track
For loading jumbo rolls with large diameter size and weight.
Laminating
A transparent plastic film is applied to the surface of the printed matter through hot pressing to protect and increase gloss.
Corona Treater
When printing plastic film materials, static electricity can be eliminated and printing quality can be improved.

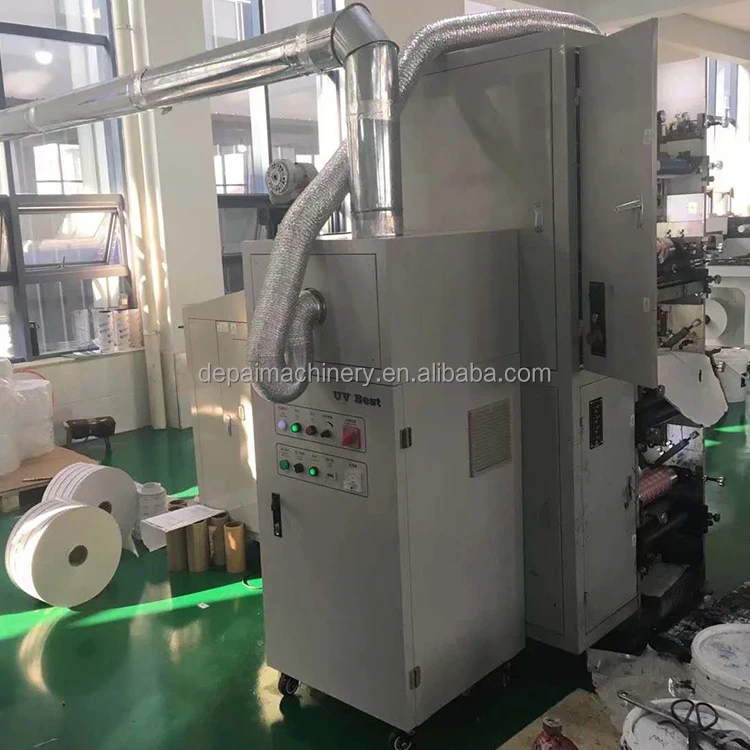

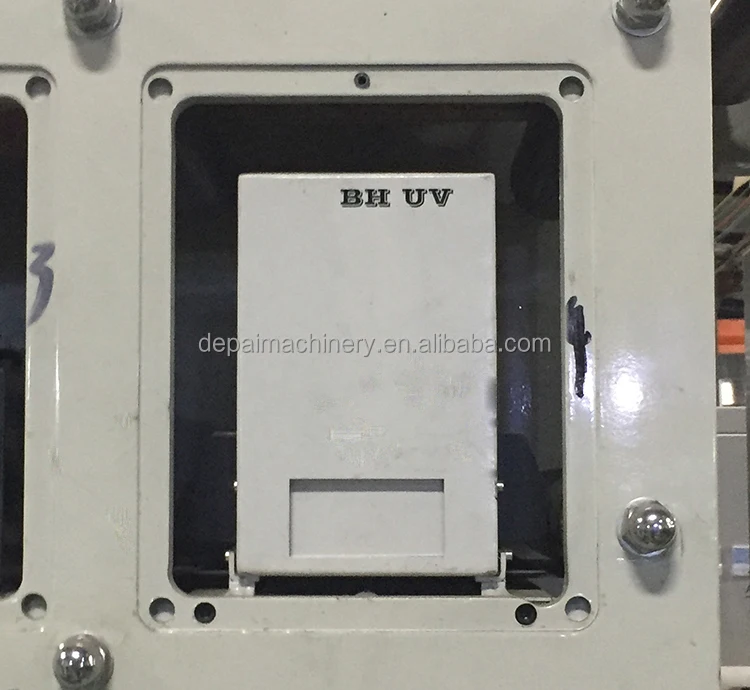

UV dryer
UV printing is a printing process that uses ultraviolet light to dry and cure inks. It is necessary to match the ink containing a photosensitizer with a UV curing lamp. Very high gloss effect, sometimes also has a comprehensive effect of anti-scratch and anti-scratch performance. It has high surface resistance (anti-friction and scratching), especially for packaging and publication covers.

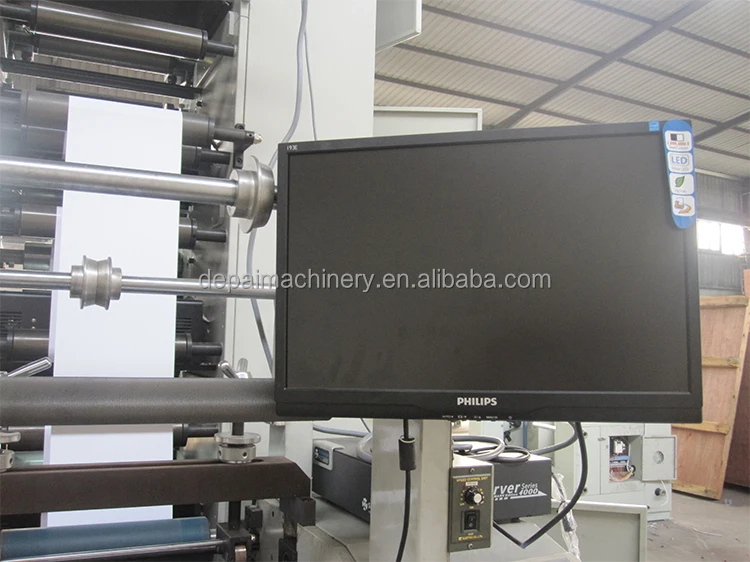

Video Inspecting System
By video inspecting system, the machine can regulate and horizontal register without stopping, it improves the printing quality and increases the producing capacity.
Rotary cutting station
Can die cutting the labels into different shapes with customized cutters. 1-3 die cutting stations can be added.
Slitting unit
Cutting the large jumbo rolls into small width rolls.
Cold Stamping

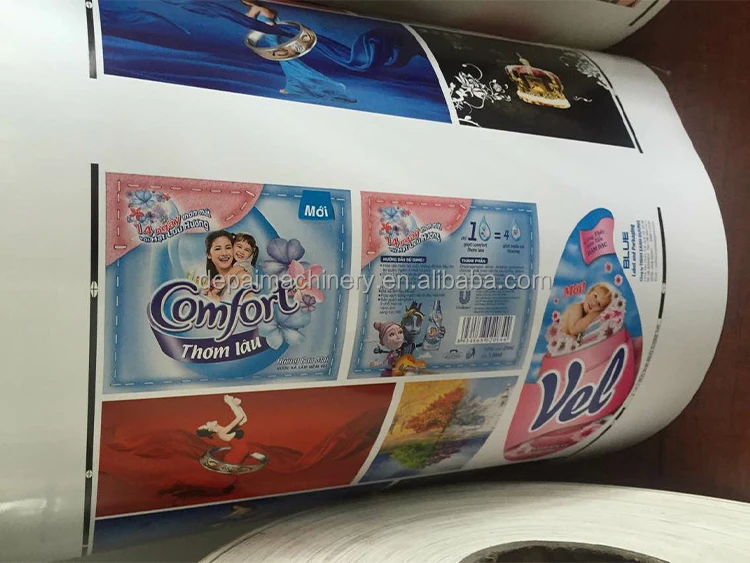

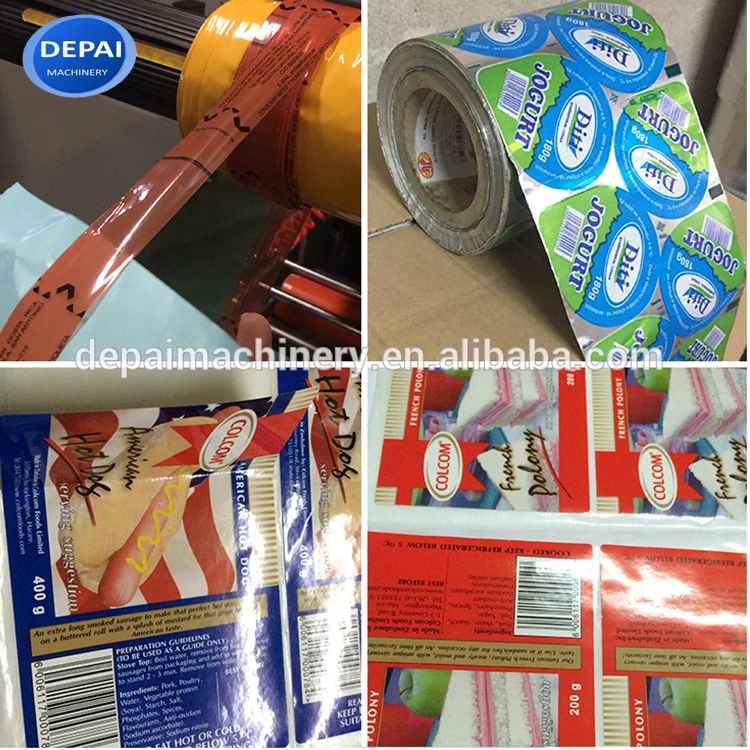

Samples
Suitable Material: Self Adhesive paper, Self -Adhesive Film , Laminating Film, Paper, Opp, Alumium, CPP, PET.
Company Profile

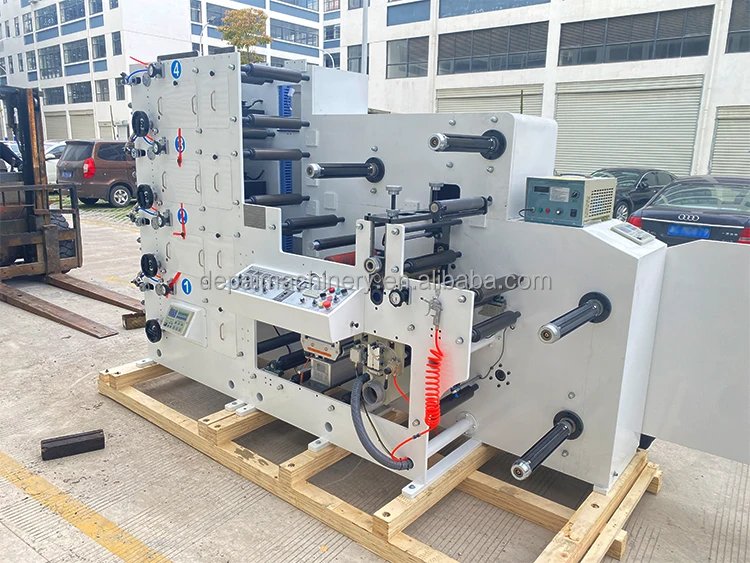

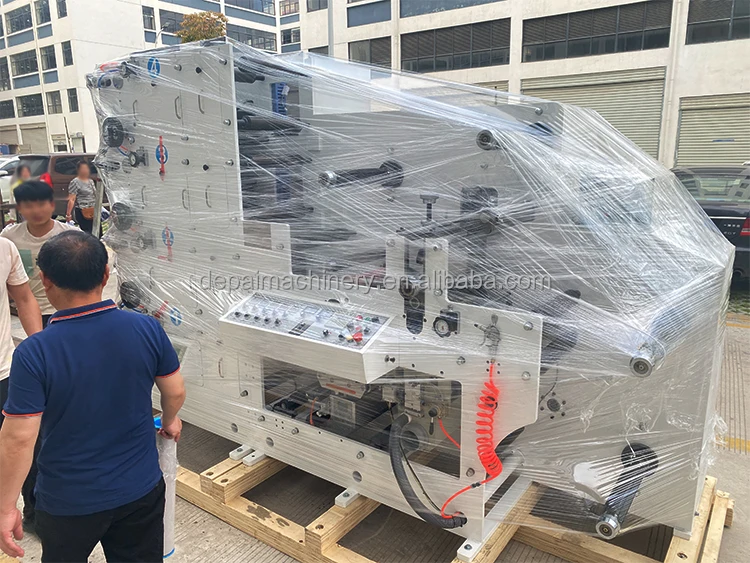

Machine Packaging
FAQ
1. Q: Are you trading company?
A: We are the professional manufacture for printing machines.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
3. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
3. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
4. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
