HQJ 1400D Double roll A3 A4 office print paper sheet cutting and auto conveyor machine

Product Overview

Description

HQJ-1400D Double roll A3 A4 office print paper sheet cutting and auto conveyor machine

1.Use:
This machine is suitable for cutting various large paper materials such as paper, white paper, self-adhesive paper, kraft paper, coated paper, paper-plastic composite, color printing composite, etc. It is widely used in paper products processing industry, printing and packaging industry, etc.

2.Feature

1)It adopts servo motor for controlling constant-length cutting.

2)It adopts PLC control, contact screen operation

3)It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise.

4)This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste

5)It can be cut vertically ,adopt blower fan to get rid of waste

6)Hot oil heating roll.

3.Main Technical Specification:

Model	HQJ-1100D	HQJ-1400D
Max. Unwind diameter	1400mm	1400mm
Max. cutting width	1100mm	1400mm
Cutting length	400-1200mm	400-1200mm
Cutting precision	±0.2mm	±0.2mm
Cutting speed	10-200cuts/min.	10-200cuts/min.
Max.stack height	1200mm	1200mm
Power	11KW	13KW
Suitable Power supply	380v/50hz	380v/50hz
Weight	4000kg	5500KG
Machine dimension	10500×2000×1800mm	10500×2200×1800mm

4.Detail picture display

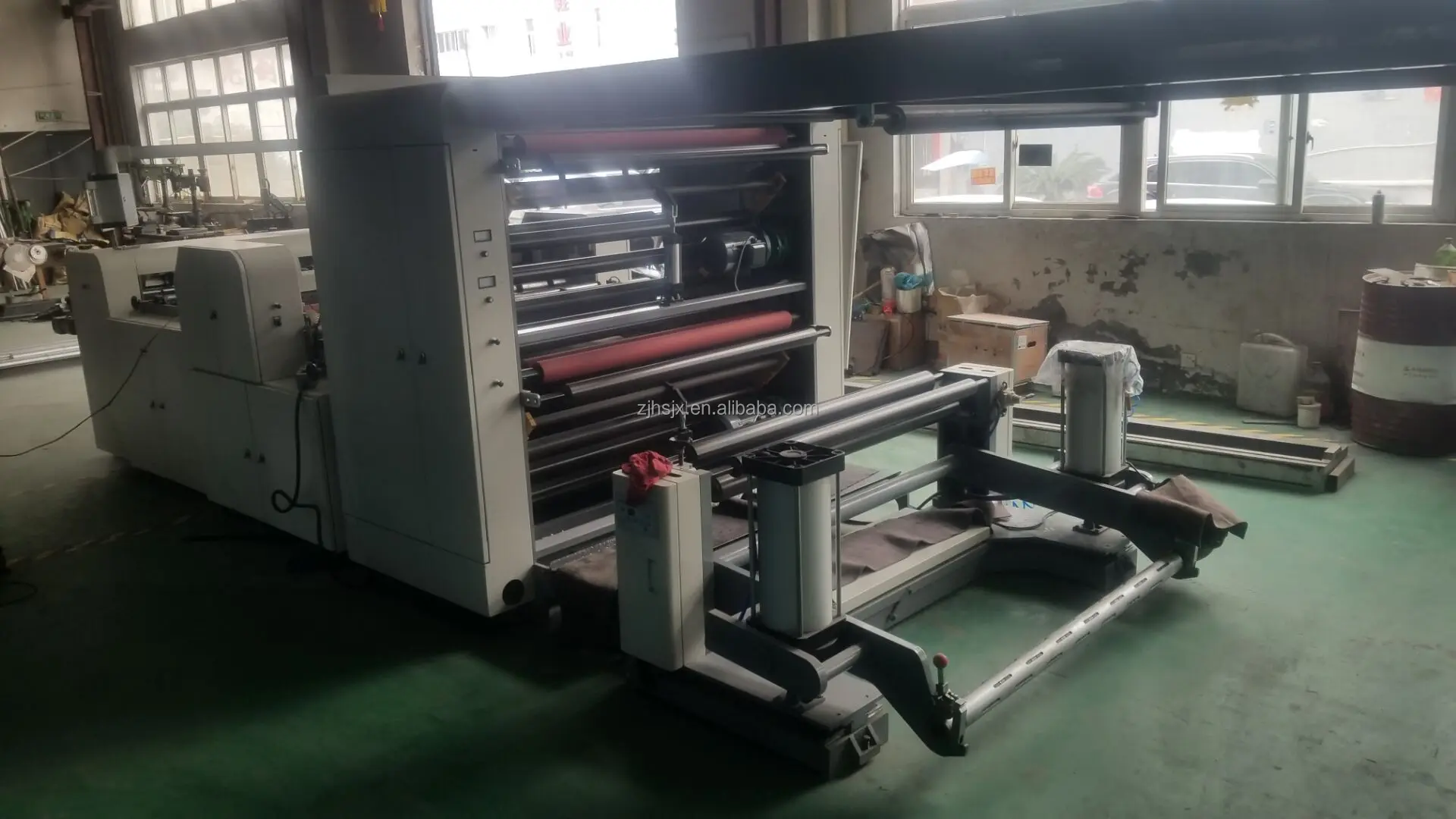

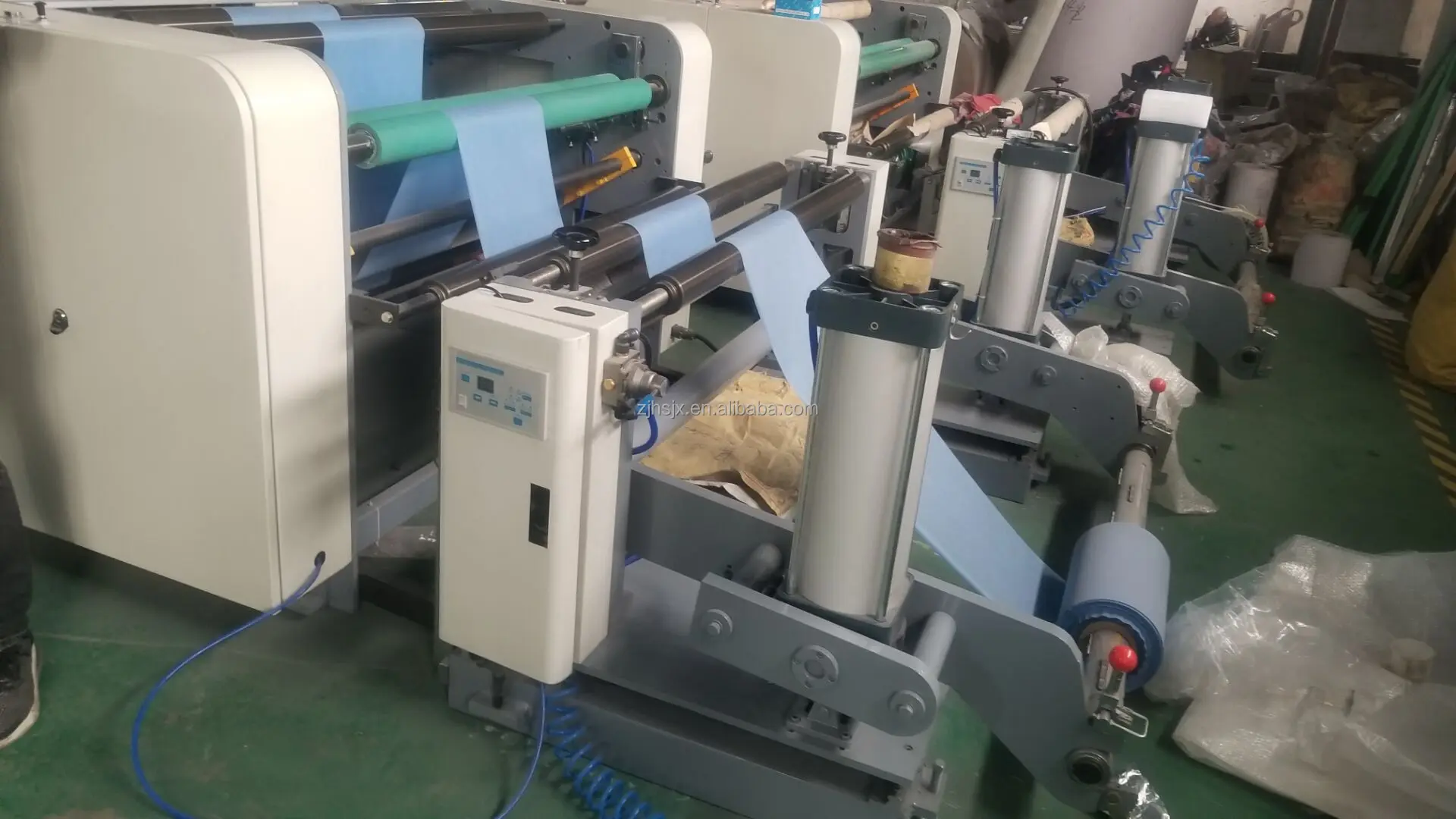

2 roll feeding

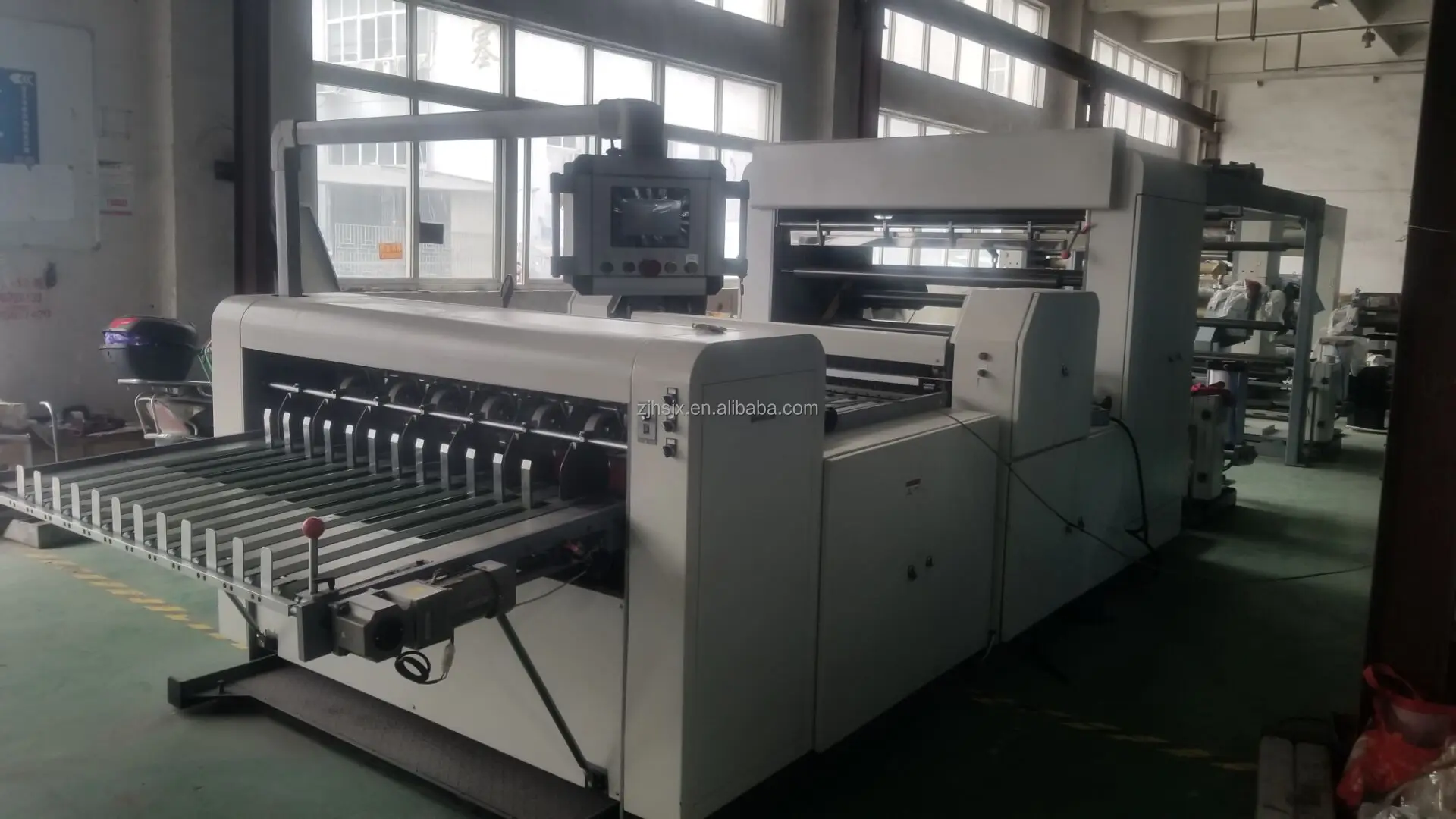

2)front view



3)side view

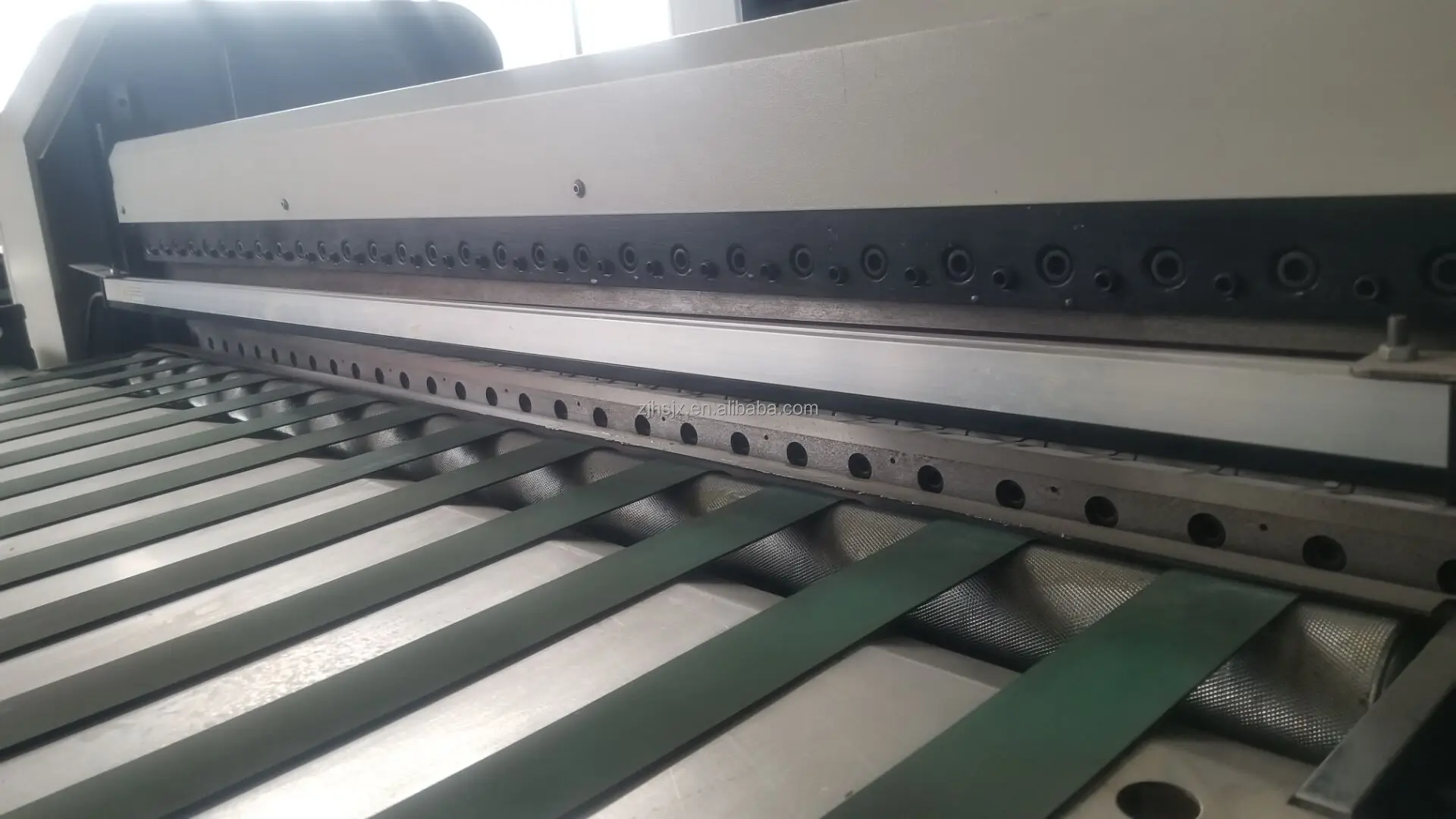

4)auto belt

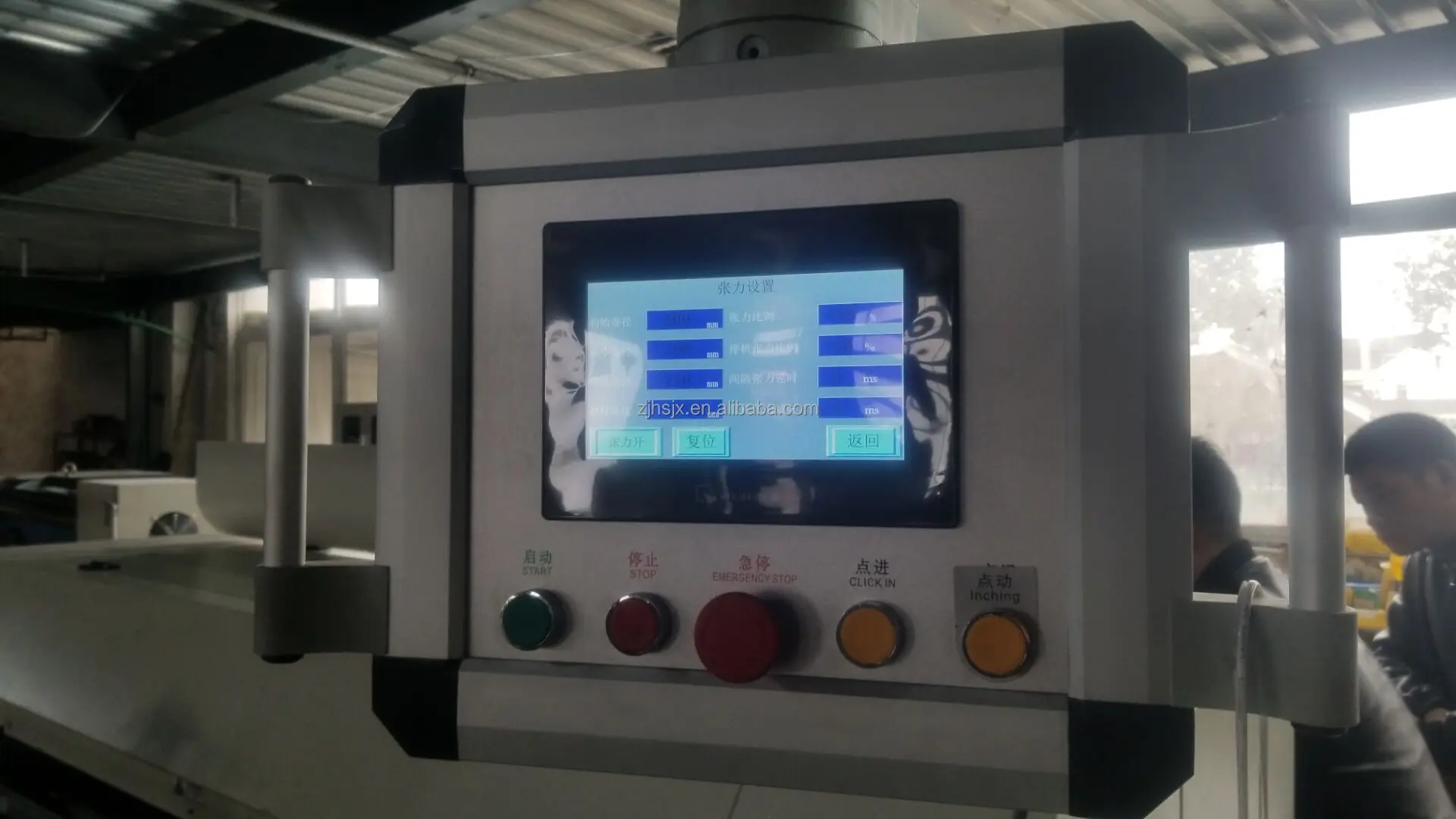

5)PLC TOUCH SCREEN

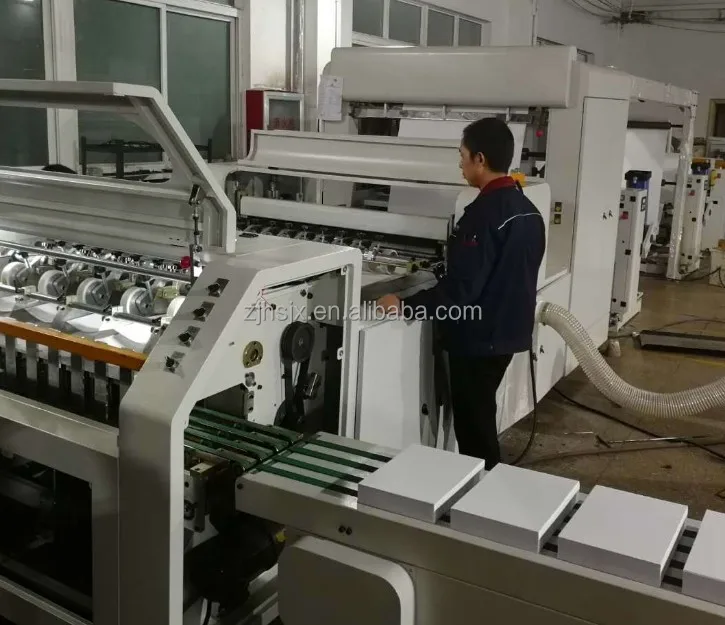

6)auto CONVEYOR BELT
