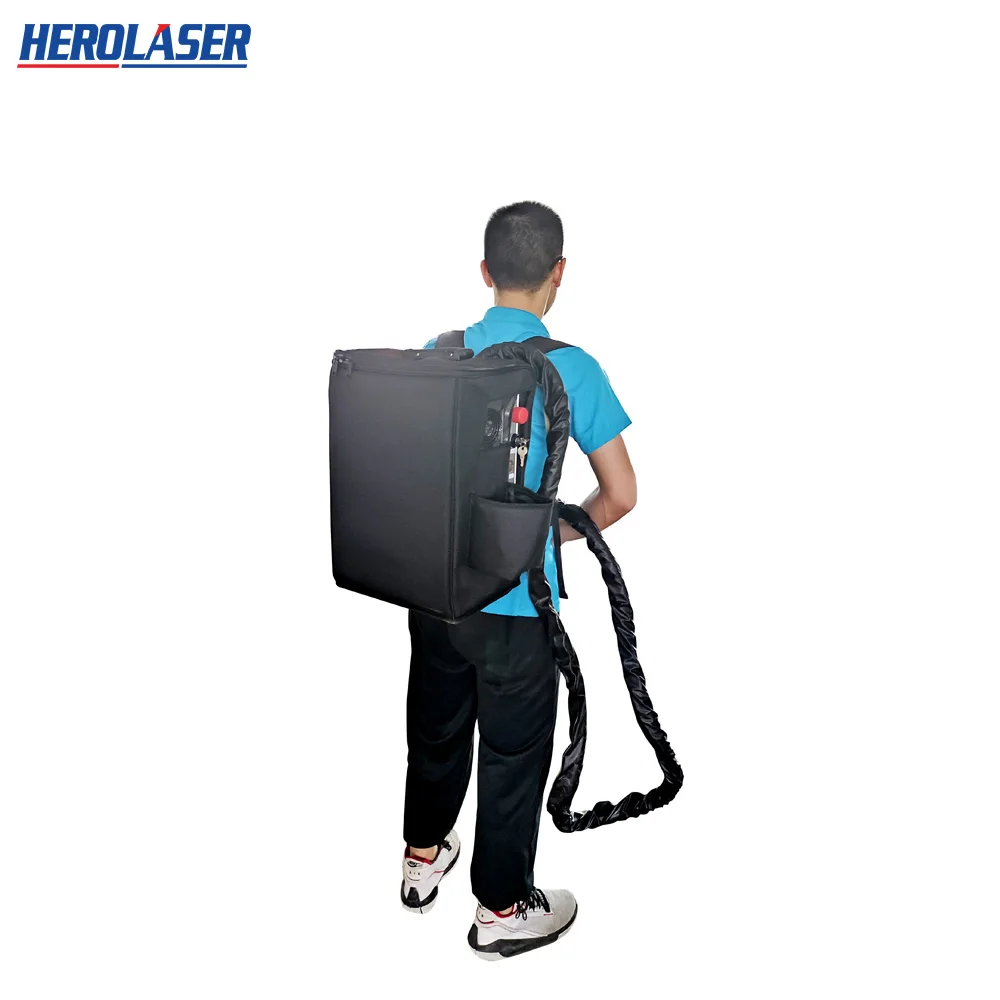

30W 50W 100W portable backpack laser cleaning machine for Welding spot thin rust removal
- Category: >>>
- Supplier: Shenzhen Herolaser Equipment Co. Ltd.
Share on (1600428690838):
Product Overview
Description
Product Description
Product Introduction

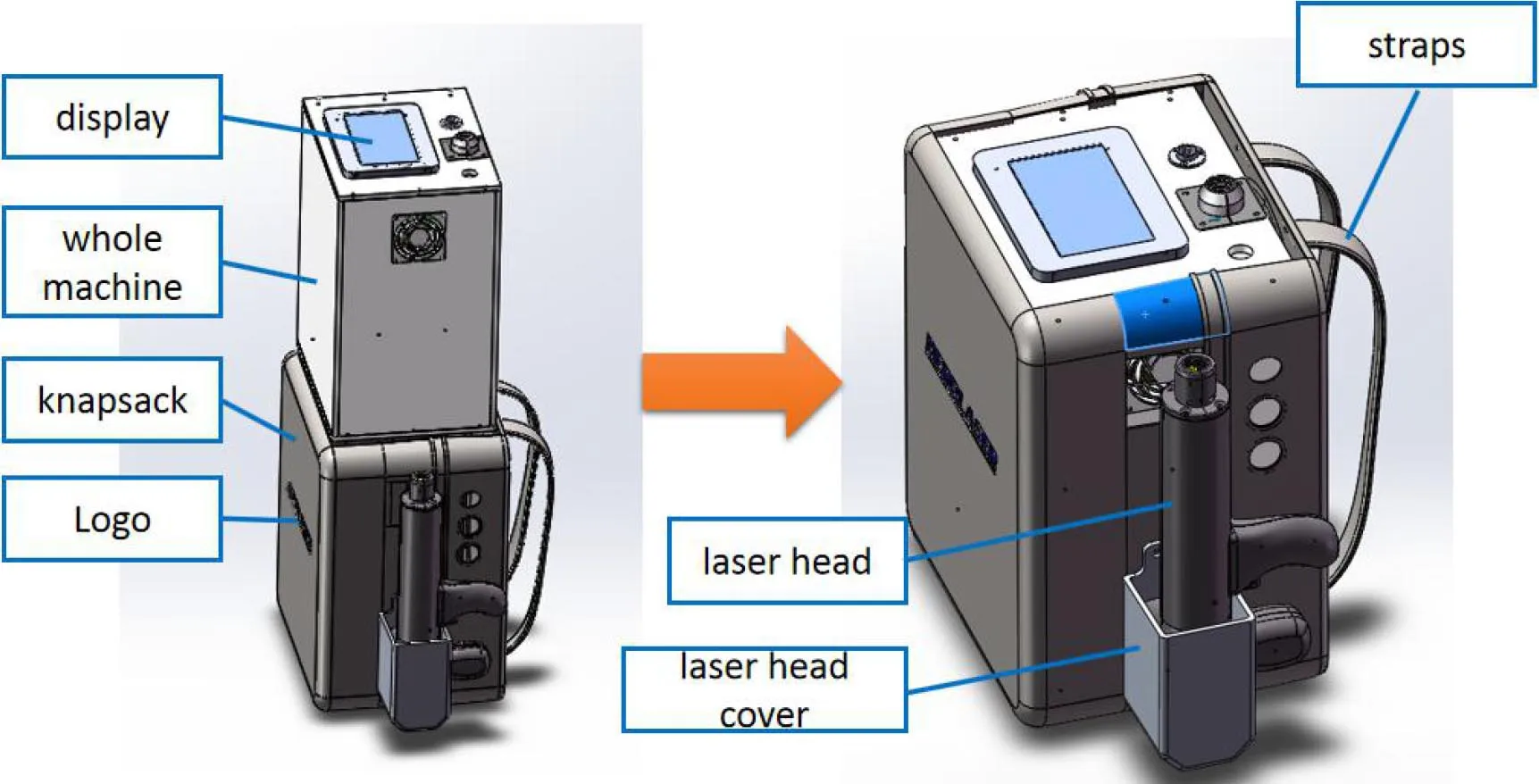

The portable backpack laser cleaning machine is an integration equipment integrating laser, optics, machinery, electronics, and computer technologies. It uses a high-energy and high density laser beam to irradiate the surface of the workpiece to make the surface stain, rust or coating inmediately evaporate or peeling off, so as to achieve the process of cleaning, which can meet the laser cleaning processes such as stain descalling , rust removal, paint removal, metal coating removal, organic film removal
Feature

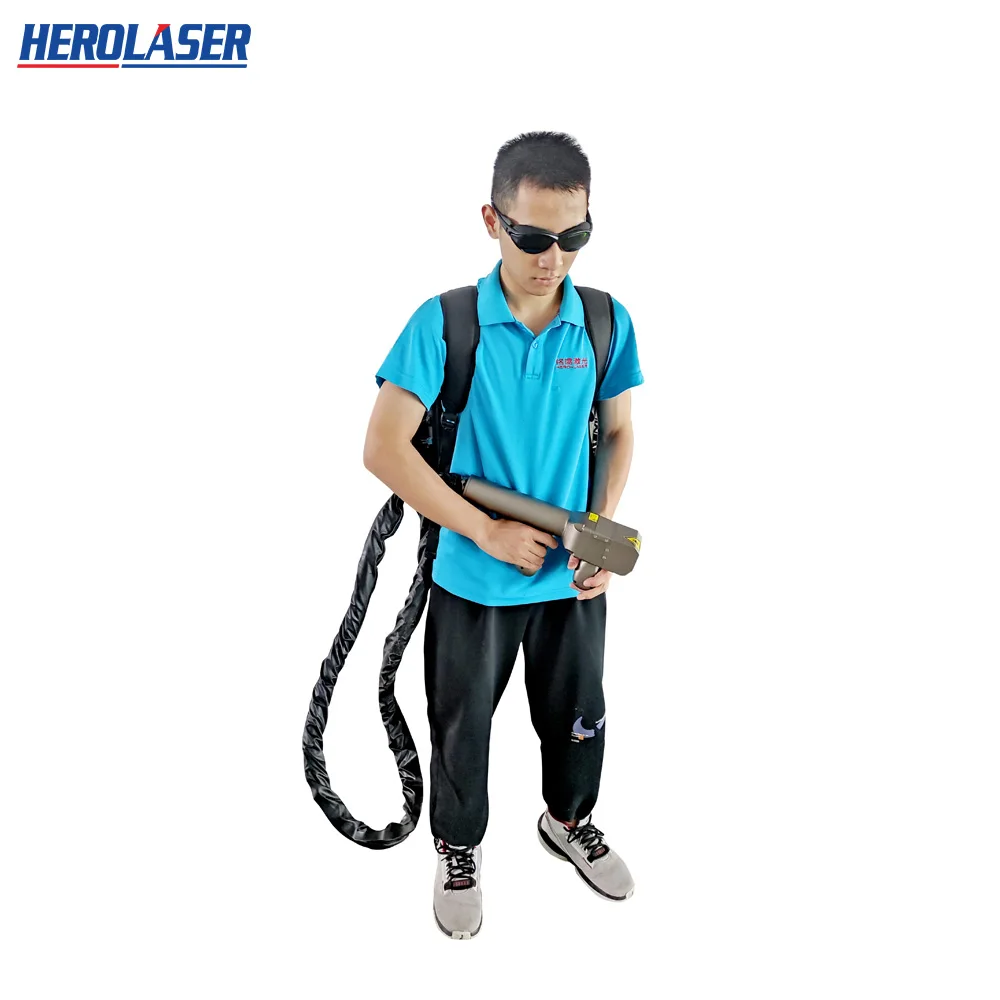

1. The structure is compact, wearable, ergonomic, and can be operated by one person;
2. Laser cleaning efficiency is high, saving time;
3. Non-contact cleaning which basically does not damage the substrate of based materials;
4. No need to use any chemical cleaning fluid, no consumables, safe and environmentally friendly;
5. Interchangeable field lens can change the focus depth , So the laser working area is wider;
6.The operation is simple, the volume is small, the cleaning effect for the welding spot is clean and beautiful, it can realized the selective cleaning in precise position and precise size .
2. Laser cleaning efficiency is high, saving time;
3. Non-contact cleaning which basically does not damage the substrate of based materials;
4. No need to use any chemical cleaning fluid, no consumables, safe and environmentally friendly;
5. Interchangeable field lens can change the focus depth , So the laser working area is wider;
6.The operation is simple, the volume is small, the cleaning effect for the welding spot is clean and beautiful, it can realized the selective cleaning in precise position and precise size .

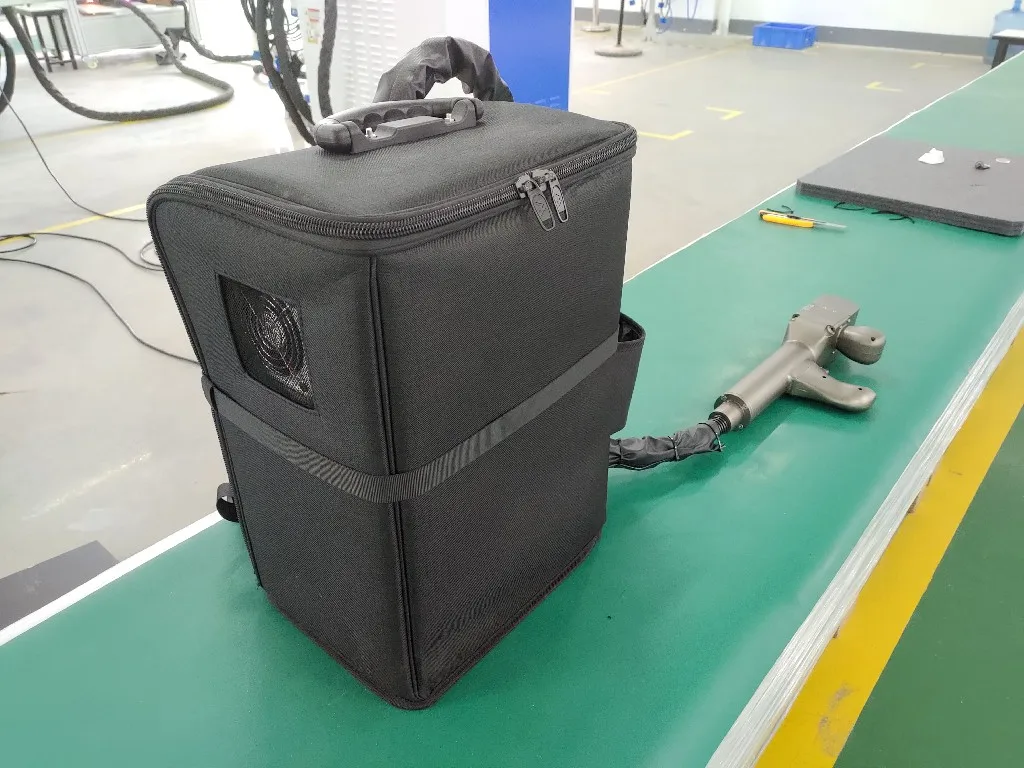

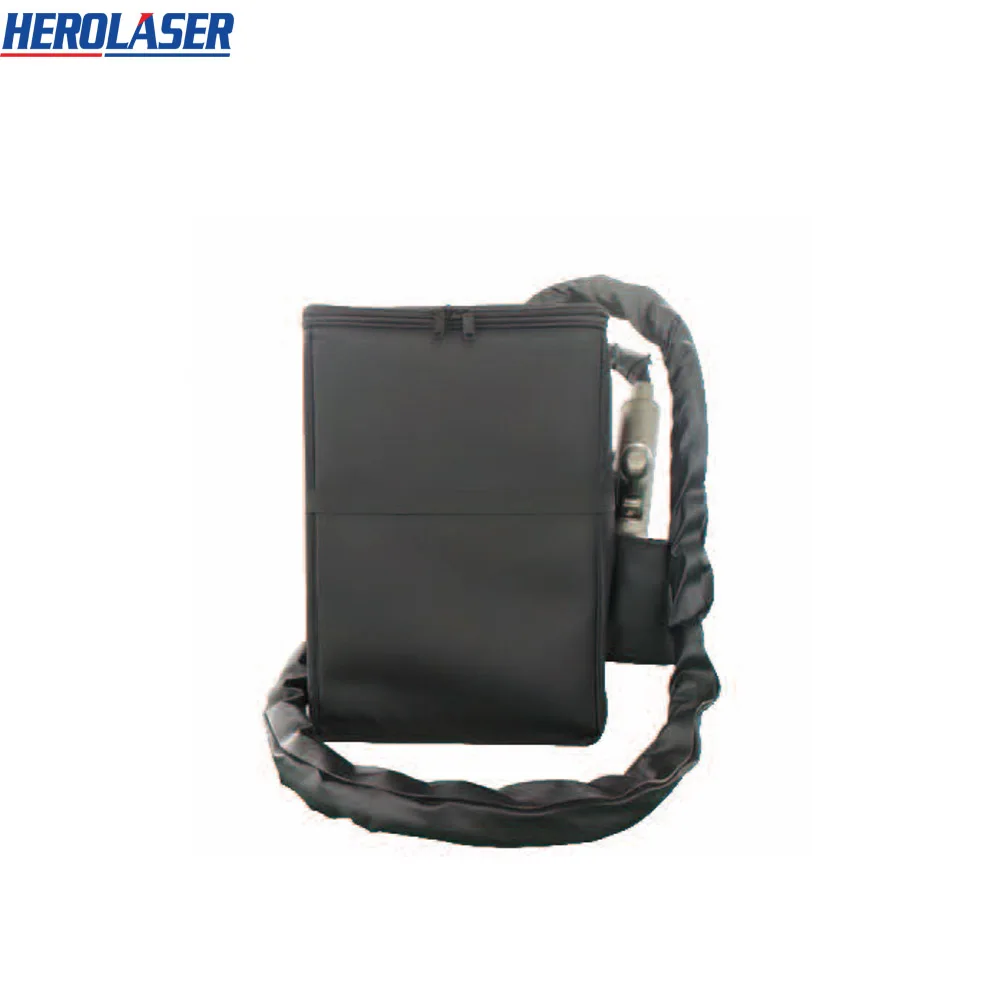

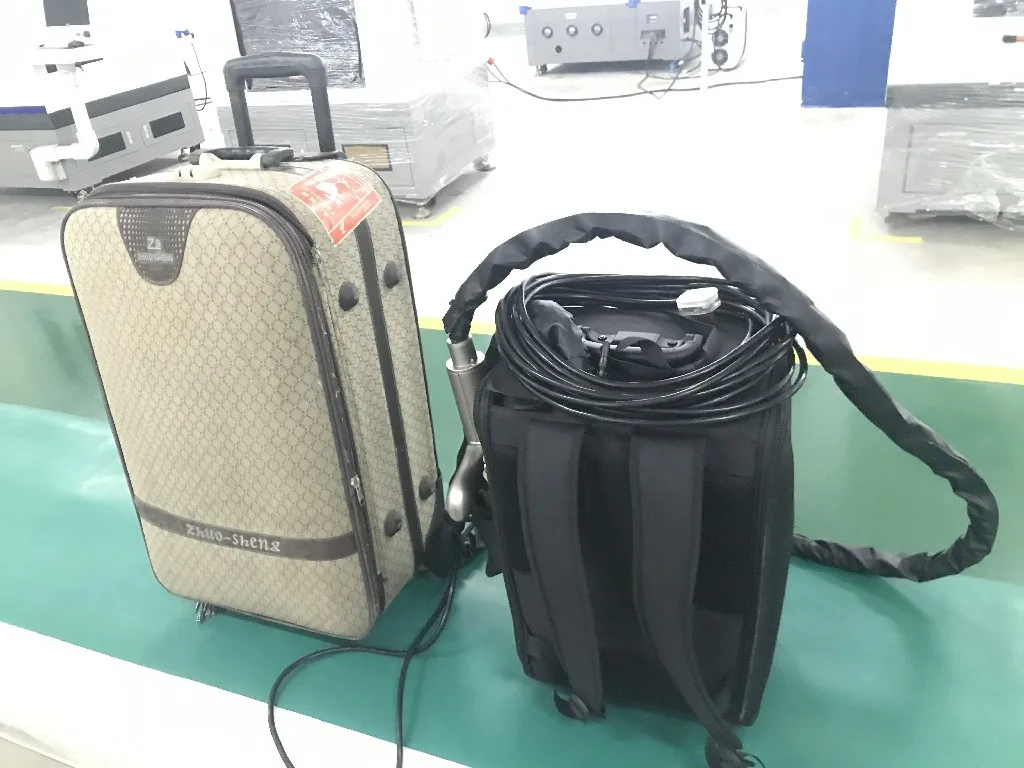

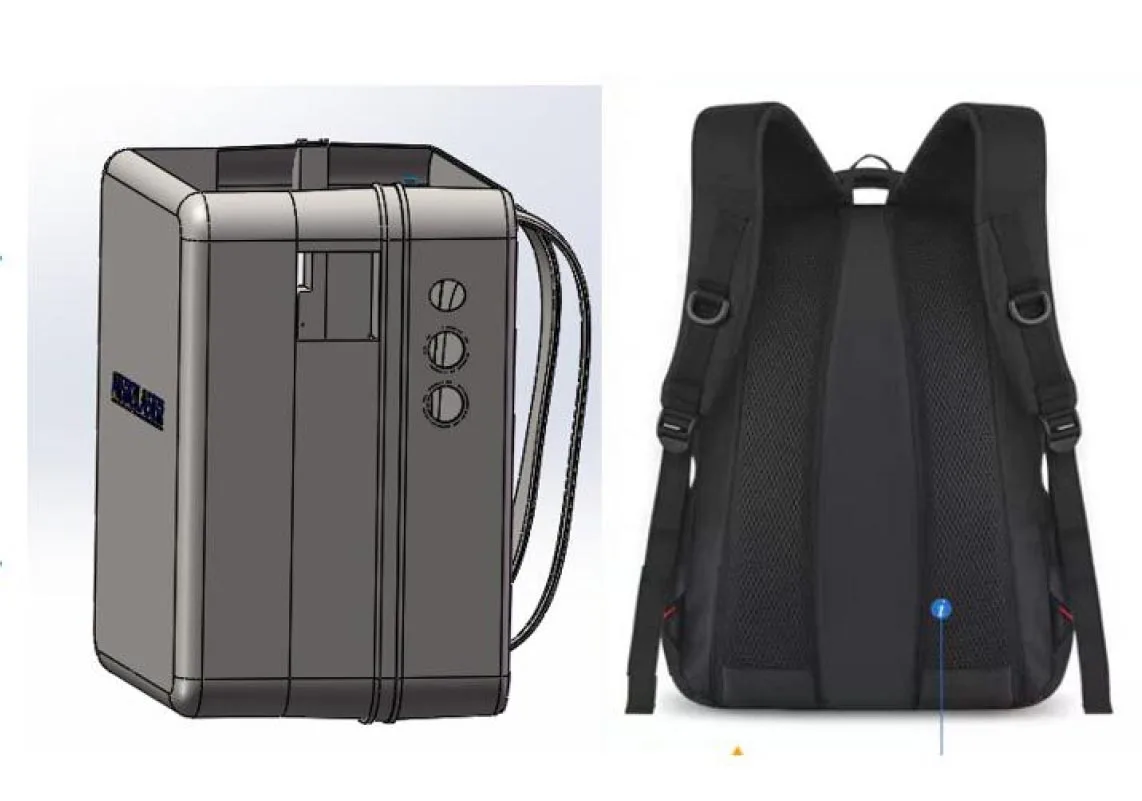

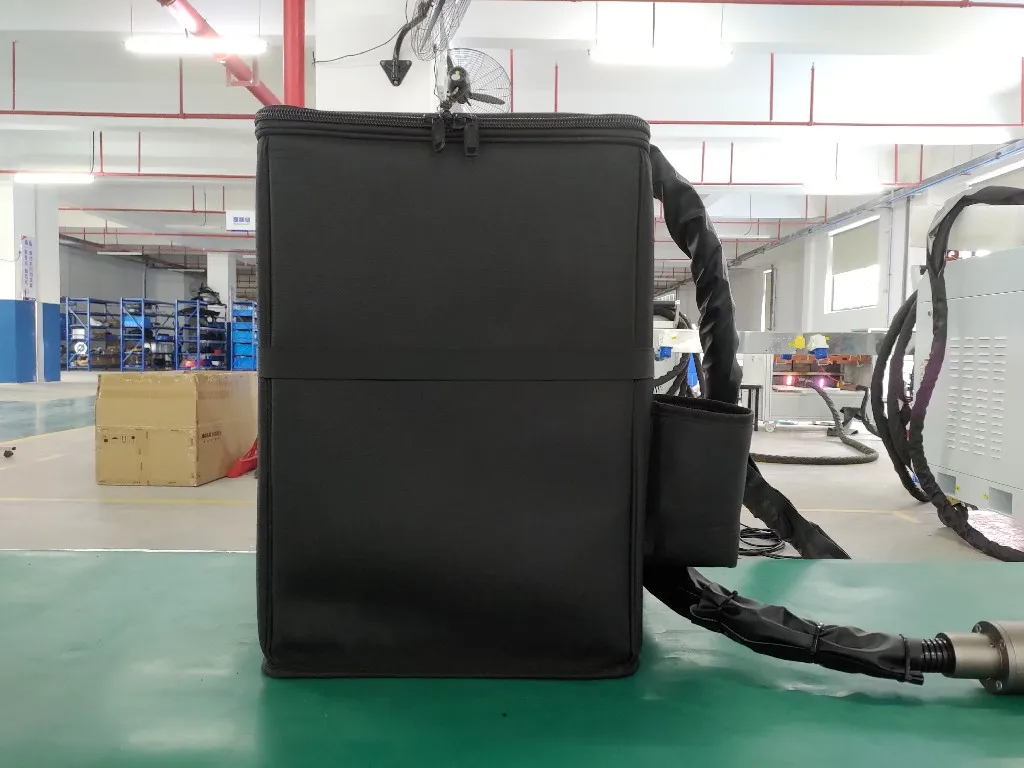

Customized double-shoulder bag style with laser cleaning equipment size, using polyester fabric. Purpose 1: To reduce the load-bearing capacity of the operator;
Purpose 2: To make the foam contact with the back of the operator more comfortable when the operator is working on the equipment

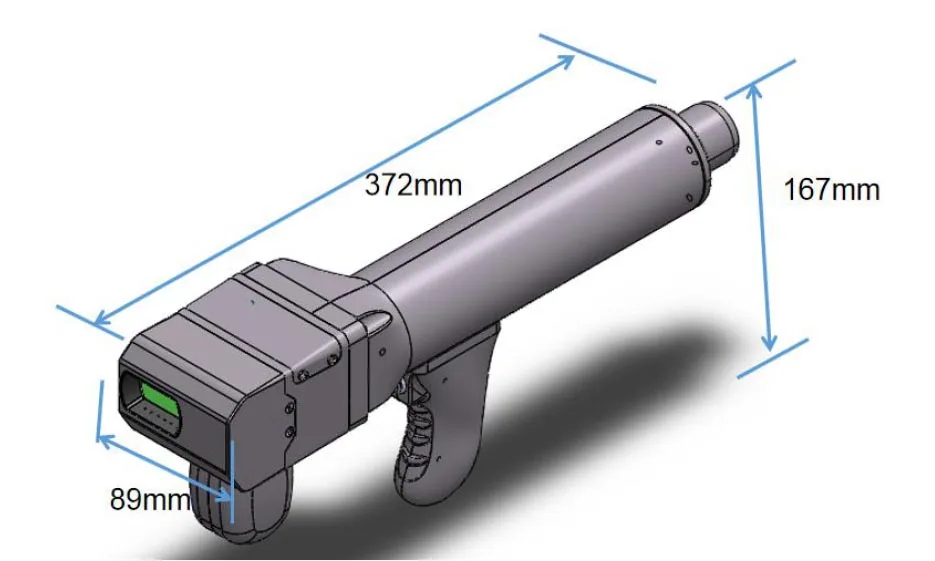

The matching laser cleaning gun is customized by Herolaser , High stability and practicality, small size and light weight,standard version 1.6kg/Min version 1.0kg

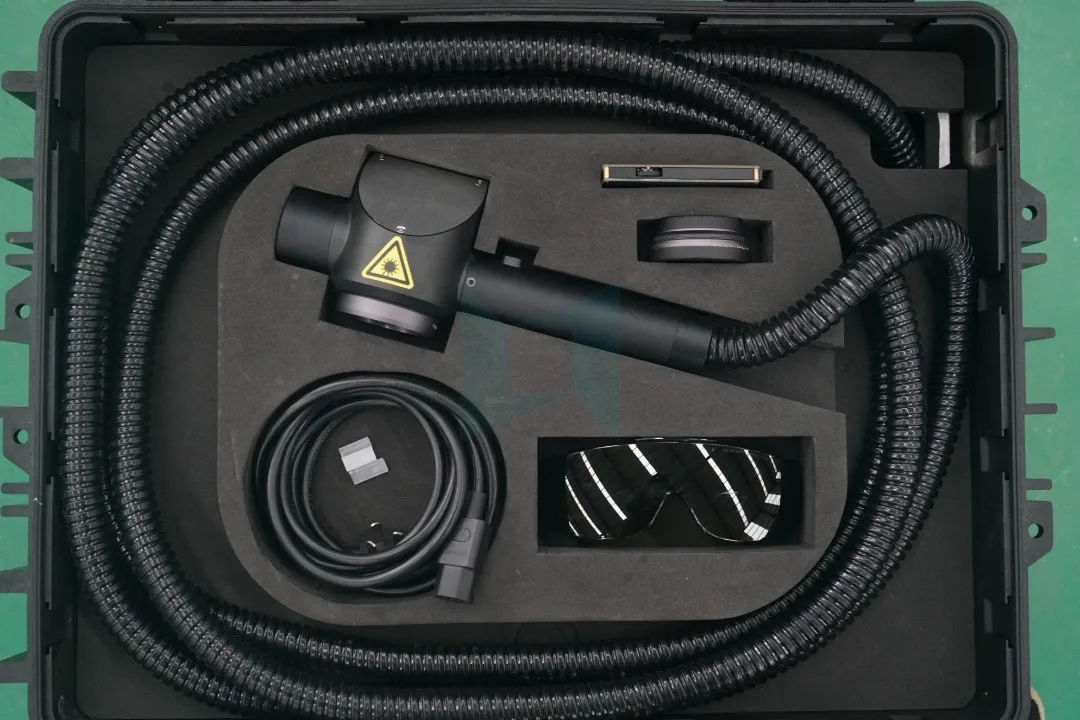

Spare Parts
Techical Specification
| Item | Parameter |
| Power Rate(W) | 100 |
| Model Code | ML-QF-SS-SC-IW100 |
| Laser source type /wavelength(nm) | Fiber Laser/1064 |
| Laser Frequency range(KHz) | 20-200 |
| Laser Pulse width(ns) | 100 |
| Cooling way | Wind cooling |

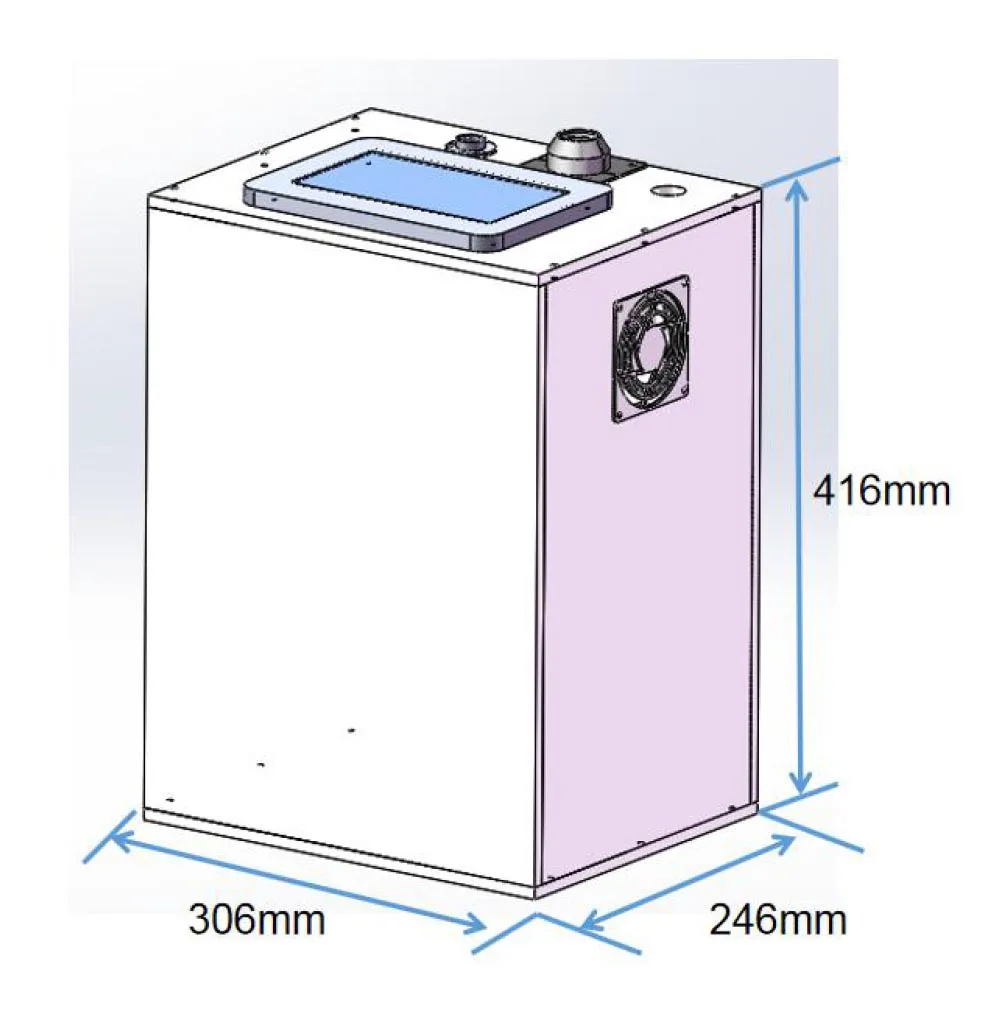

| Dimension(mm) | 400x302x219 |
| Total Weight(Kg) | 22 |
| General Power(W) | 800 |
| Optical Length (m) | ≤3 |
| Scan width(mm) | ≤80 |
| Auxiliary gas | Compressed air/Nitrogen |
| Air pressure(MPa) | 0.2-0.5 |
| Working environment temperature(℃) | 5-40 |
Application Industry
Used in materials such as stainless steel, rubber mold plastics, and various metals. Used in iron and steel metallurgy, non-ferrous metals, automobiles and parts, aerospace, military electronics, precision instrumentation, machinery manufacturing, molds, hardware tools, integrated circuits, sheet metal, advertising, craft gifts and other industries.

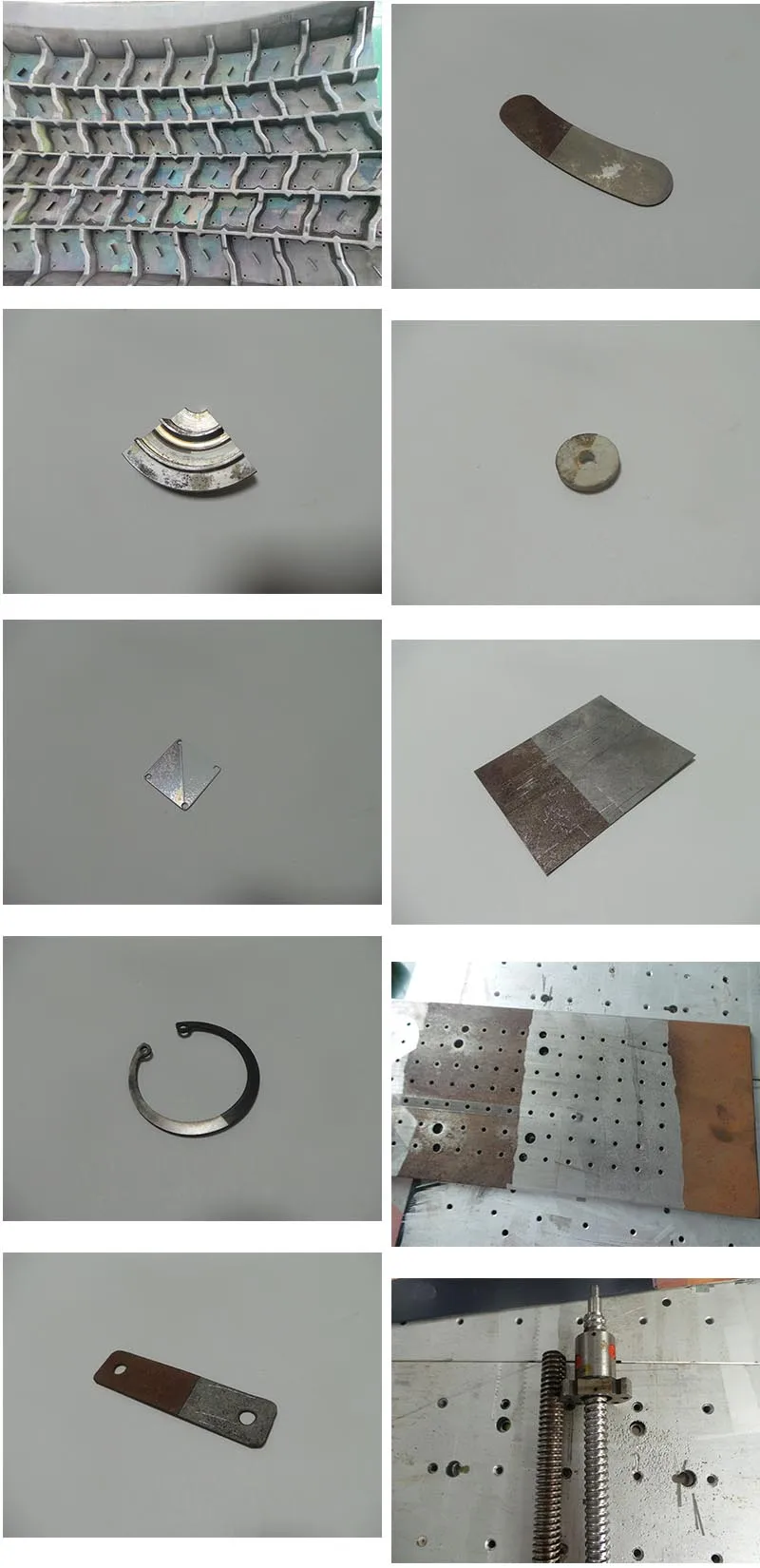

Samples Show
