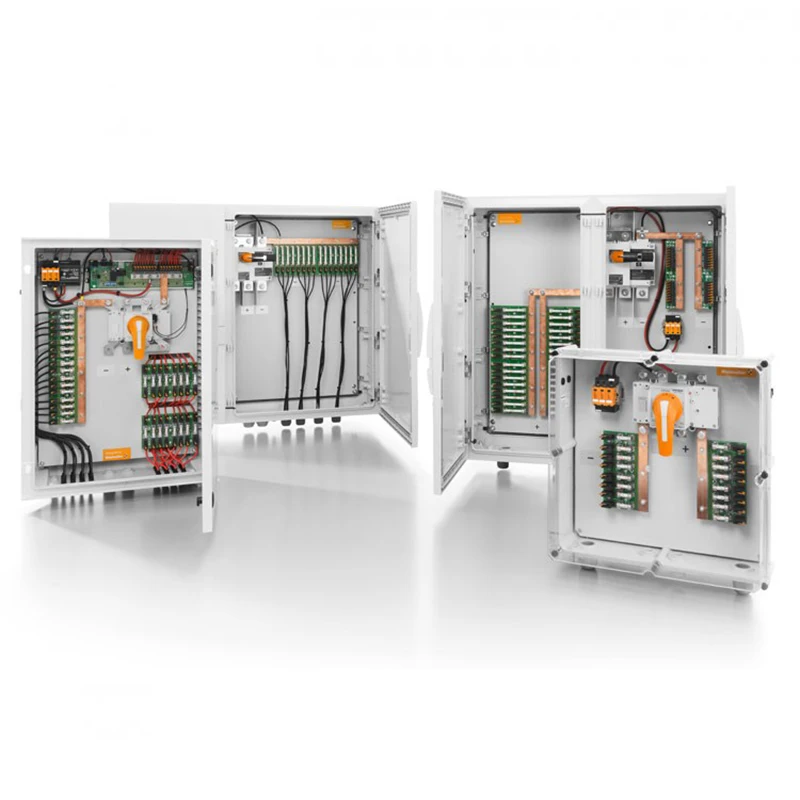

10 input 1output combiner box Solar String Waterproof Pv Monitor Array Dc Isolation
- Category: >>>
- Supplier: Abel Energy Sourcing Company
Share on (1600428691428):
Product Overview
Description
Description of PV combiner box

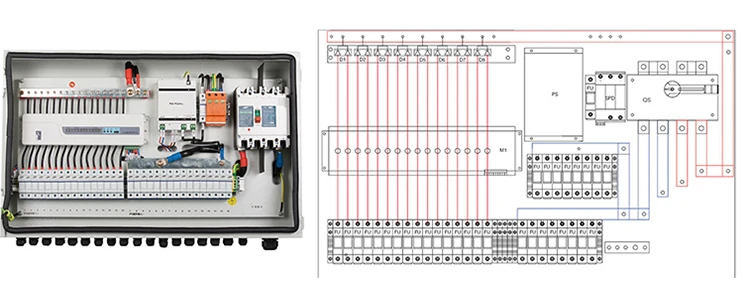

16/1 PV combiner box bus synthetic DC input of 16 PV components to 1 output. Each channel is with a fuse. Output side is equipped
with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter.
Realize lightning protecion, short circuit protection and grounding protection. PV combiner box divided into two types:
intrlligent box and non-intelligent box . Intelligent PV combiner box is equipped with monitoring unit, then detect input current
of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output
voltage and so on.
Design and configuration strictly accordance with the "Technical specification for photovoltaic junction equipment" CGC/GF
037:2014.
Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
The product adopts outdoor wall mounted type, which adapt to the harsh environment. In addition to the core components, the other
can be customized by users requirements.
with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter.
Realize lightning protecion, short circuit protection and grounding protection. PV combiner box divided into two types:
intrlligent box and non-intelligent box . Intelligent PV combiner box is equipped with monitoring unit, then detect input current
of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output
voltage and so on.
Design and configuration strictly accordance with the "Technical specification for photovoltaic junction equipment" CGC/GF
037:2014.
Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
The product adopts outdoor wall mounted type, which adapt to the harsh environment. In addition to the core components, the other
can be customized by users requirements.

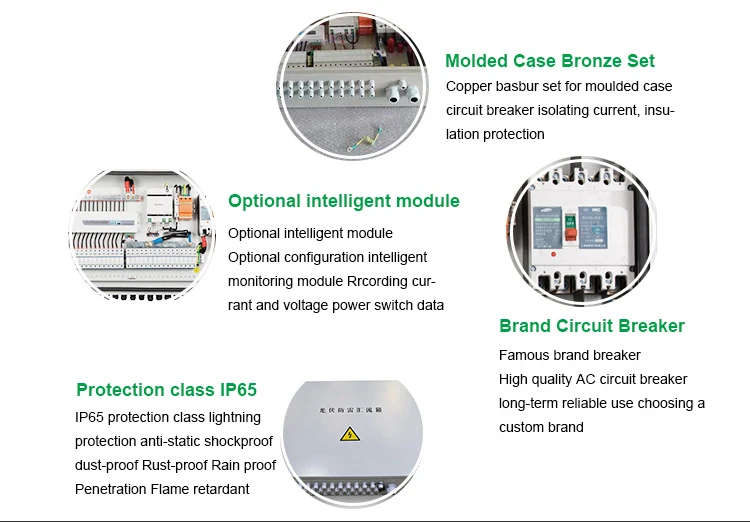

Advantage of PV combiner box
♦High reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
♦Strong adaptability
IP65 desigh,waterproof,anti dust and anti ularaviolet.
Strict test for high and low temperature,used widely/
The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.
♦Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules.
Current rating of the photovoltaic fuse, cicuit breaker, load isolation switch is modified.
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
♦Strong adaptability
IP65 desigh,waterproof,anti dust and anti ularaviolet.
Strict test for high and low temperature,used widely/
The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.
♦Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules.
Current rating of the photovoltaic fuse, cicuit breaker, load isolation switch is modified.

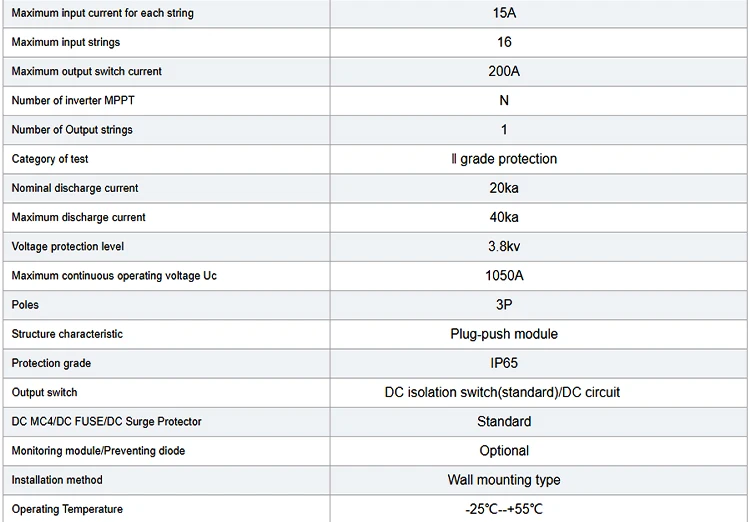

Products Description
Model | Optional Size( L*W*H) | |
EA-43 | 400*300*210MM | |
EA-54 | 500*400*210MM | |
EA-55 | 500*500*210MM | |
EA-64 | 600*400*210MM | |
EA-65 | 600*500*210MM | |
EA-75 | 700*500*210MM | |
EA-76 | 700*600*210MM | |
EA-86 | 800*600*210MM | |
EA-87 | 800*700*210MM | |
EA-96 | 900*600*210MM | |
EA-97 | 900*700*210MM | |
More Products
FAQ
1.Do your enclosure come with the assembly?
You can choose the empty box or the installation of electrical components, depending on your needs, we can provide.
2. Can I order the cover seperately from the bases?
Yes, you can order boxes and accessories separately, and you can also put forward your customized requirements.
3.How do I order customized enclosures?
The best way is you give us engineering drawings and equipment list, we will arrange engineers to serve you, if there is no drawings, we will also provide solutions for you.
4. What are leading times of orders?
You can choose the empty box or the installation of electrical components, depending on your needs, we can provide.
2. Can I order the cover seperately from the bases?
Yes, you can order boxes and accessories separately, and you can also put forward your customized requirements.
3.How do I order customized enclosures?
The best way is you give us engineering drawings and equipment list, we will arrange engineers to serve you, if there is no drawings, we will also provide solutions for you.
4. What are leading times of orders?
Standard box with deliver within 2days and customized box will cost within 10 days.
5. Ratings & compliance?
5. Ratings & compliance?
NEMA3.13.R3 IP65,IP54 3C CE UL
