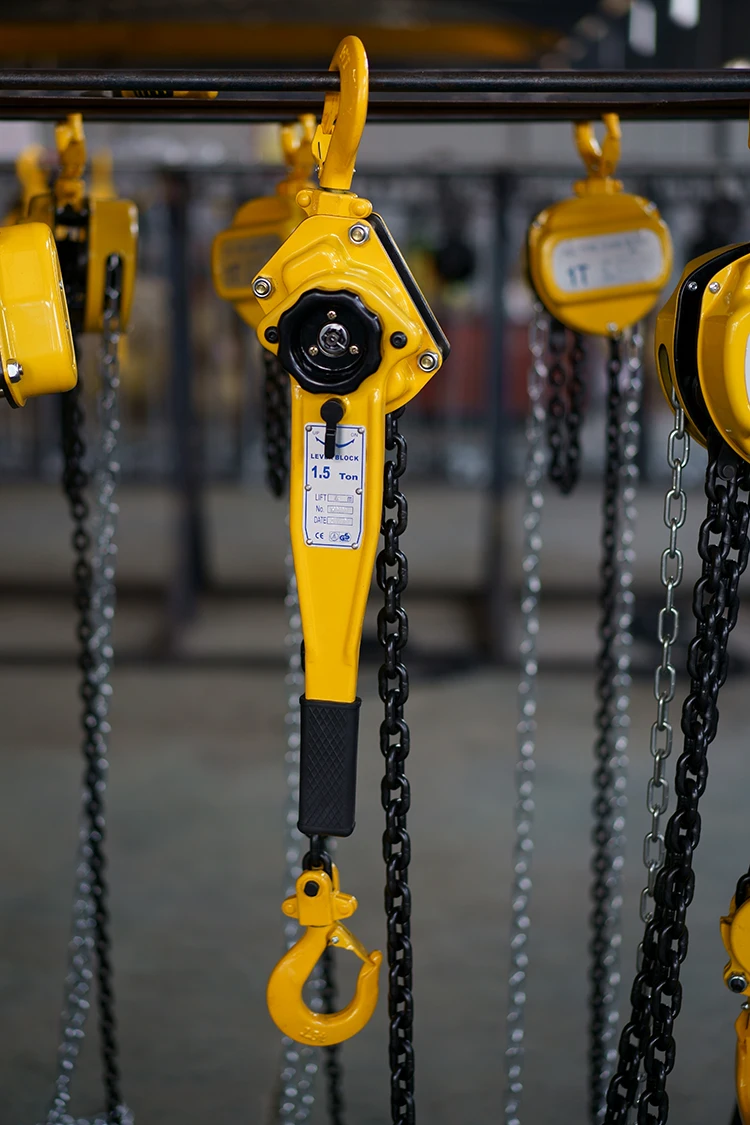

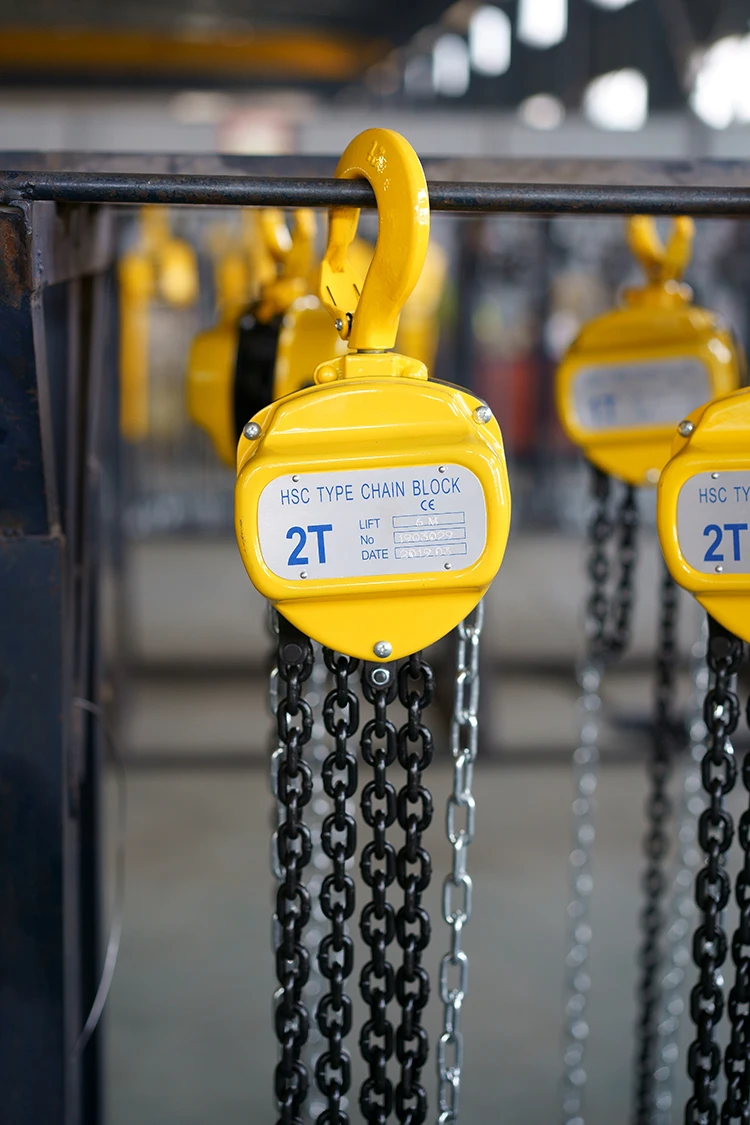

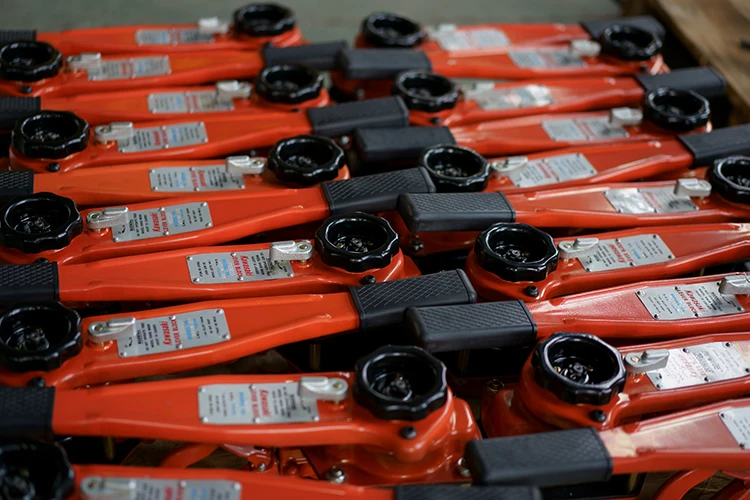

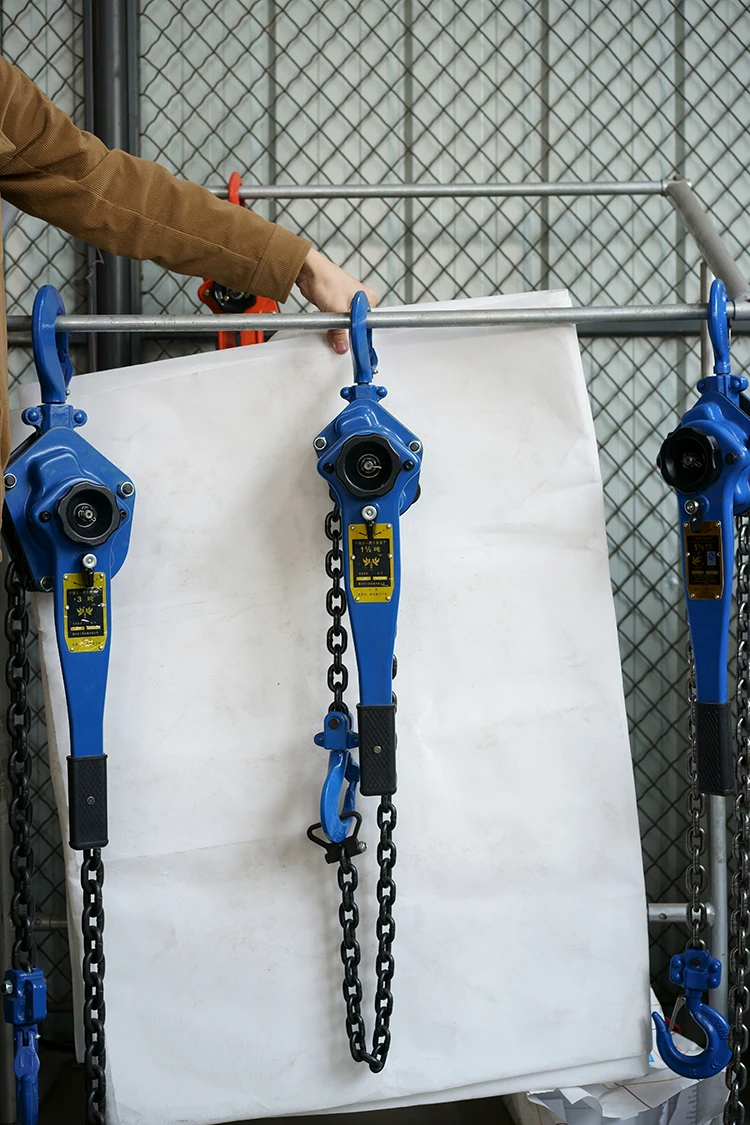

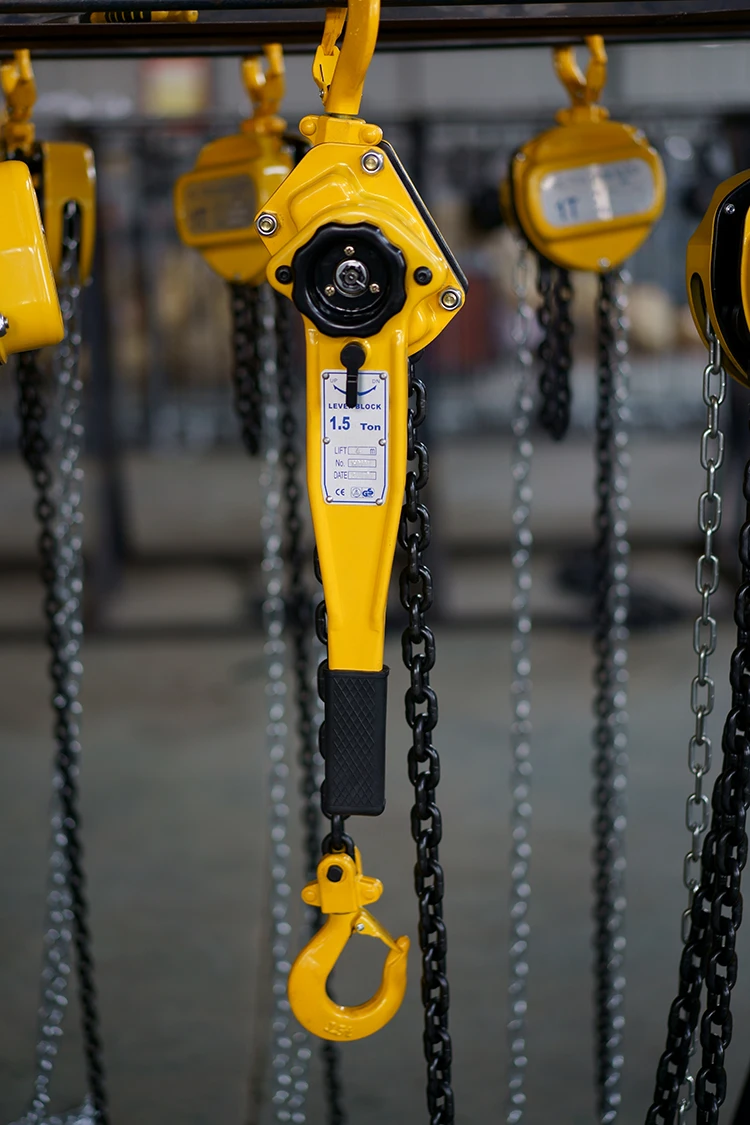

Different capacity ever pulley chain block lever hoist for fixed manual hoist manual control
- Category: >>>
- Supplier: Zhejiang Aiken Machinery Co. Ltd.
Share on (1600428705484):
Product Overview
Description
Model | LH-0.25 | LH-0.5 | LH-0.75 | LH-0.75 | LH-3 | LH-6 | LH-9 | ||
Capacity(t) | 0.25 | 0.5 | 0.75 | 0.75 | 3 | 6 | 9 | ||
Standard lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
Running test load(t) | 0.375 | 0.75 | 1.125 | 1.125 | 4.5 | 7.5 | 11.25 | ||
Effort required to lift max. load(N) | 125 | 100 | 140 | 140 | 320 | 340 | 360 | ||
No. of columns of load chain(mm) | 1 | 1 | 1 | 1 | 1 | 2 | 3 | ||
Load chain dia.(mm) | 4 | 6 | 6 | 6 | 10 | 10 | 10 | ||
A | 75 | 148 | 148 | 148 | 200 | 200 | 200 | ||
B | 90 | 90 | 90 | 90 | 115 | 115 | 115 | ||
C | 100 | 136 | 136 | 136 | 180 | 235 | 320 | ||
D | 18 | 29 | 35 | 35 | 54 | 62 | 85 | ||
H | 215 | 295 | 325 | 325 | 480 | 620 | 700 | ||
L | 157 | 256 | 280 | 280 | 410 | 410 | 410 | ||
Net Weight(kg) | 2.5 | 6 | 7 | 7 | 18 | 28 | 38 | ||
Ectra weight per meter of extra lift (kg) | 0.3 | 0.8 | 0.8 | 0.8 | 2.2 | 4.4 | 6.6 | ||
1.Are you a factory or a trading company? We are manuftuacring factories and trading companies. |
2.What is your payment terms? We can accept T/T,L/C. |
3.What is your MOQ? Our MOQ is 1 sets. |
4.How long is the warranty? The guarantee period for mainframe is one year(excluding the quick wear parts). |
5.Can we print my Logo on the products? Yes, we can.We support OEM. |
