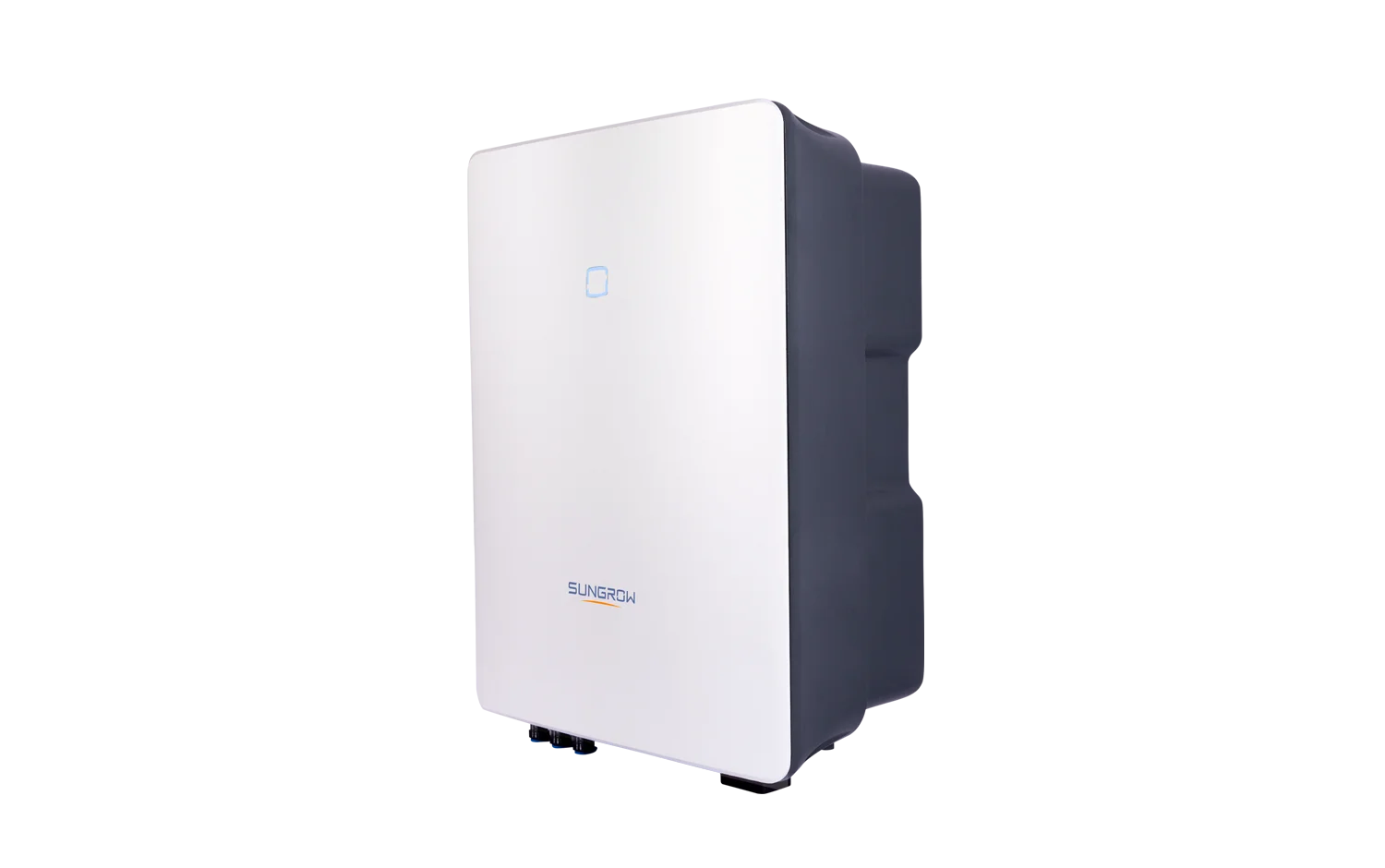

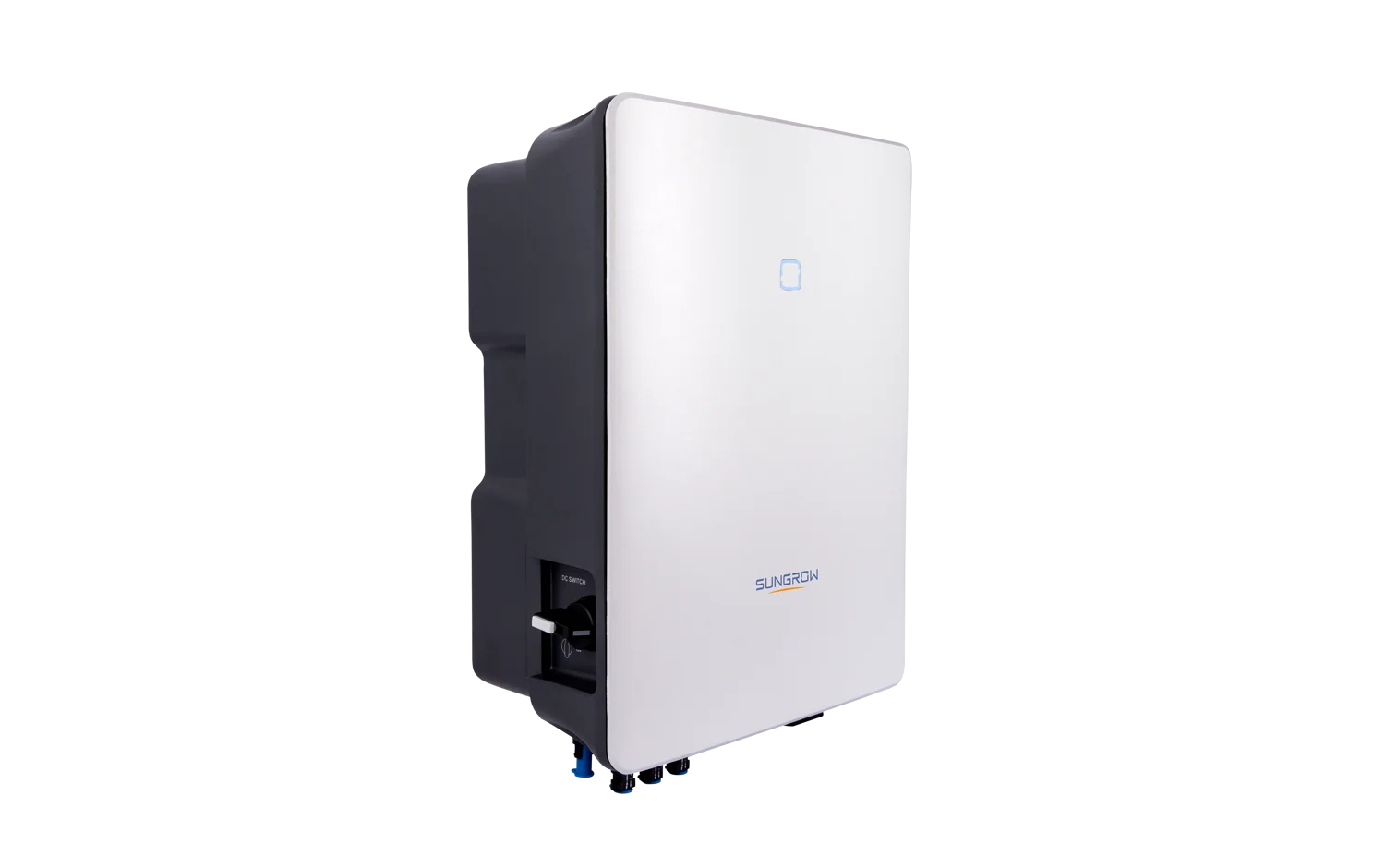

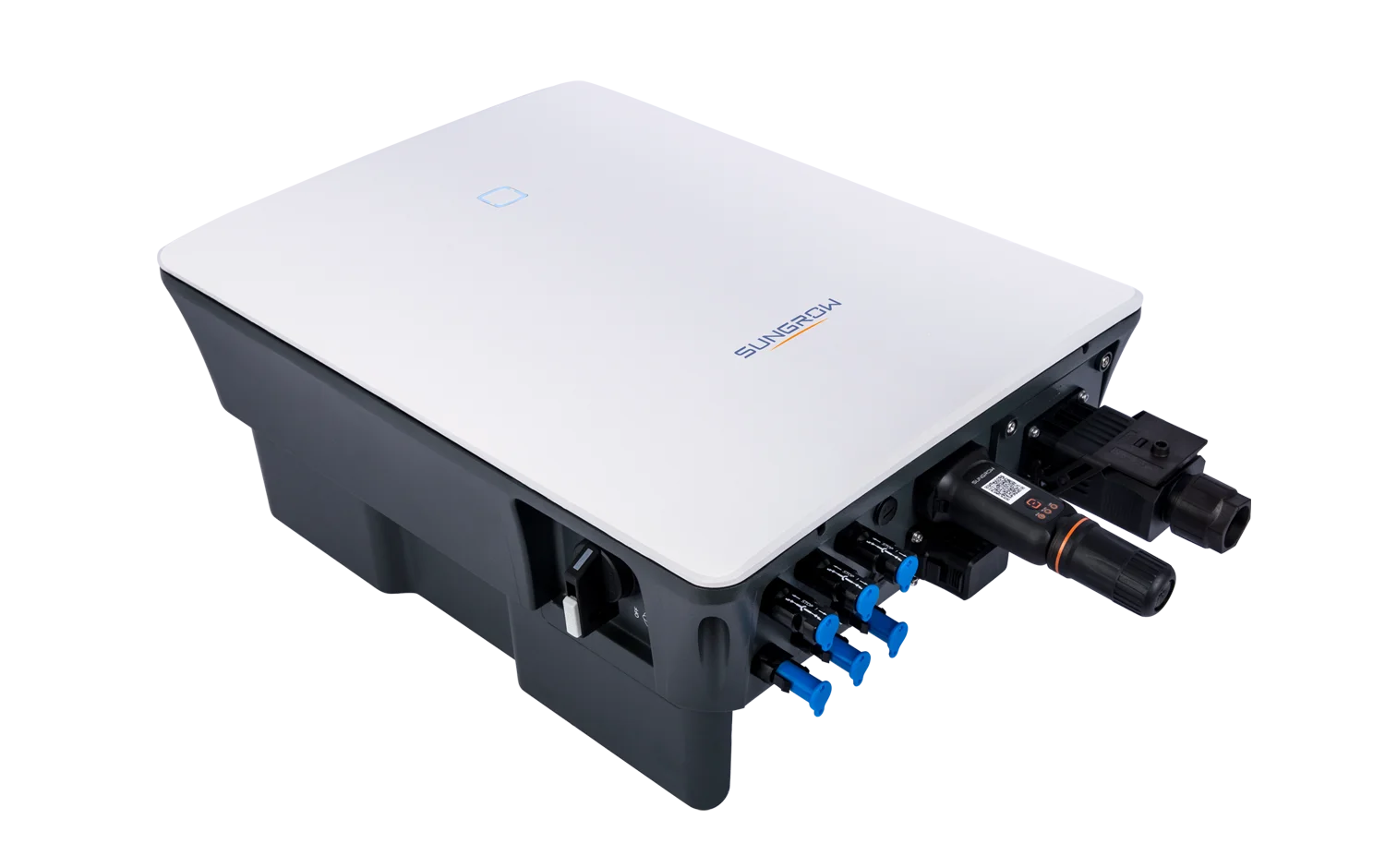

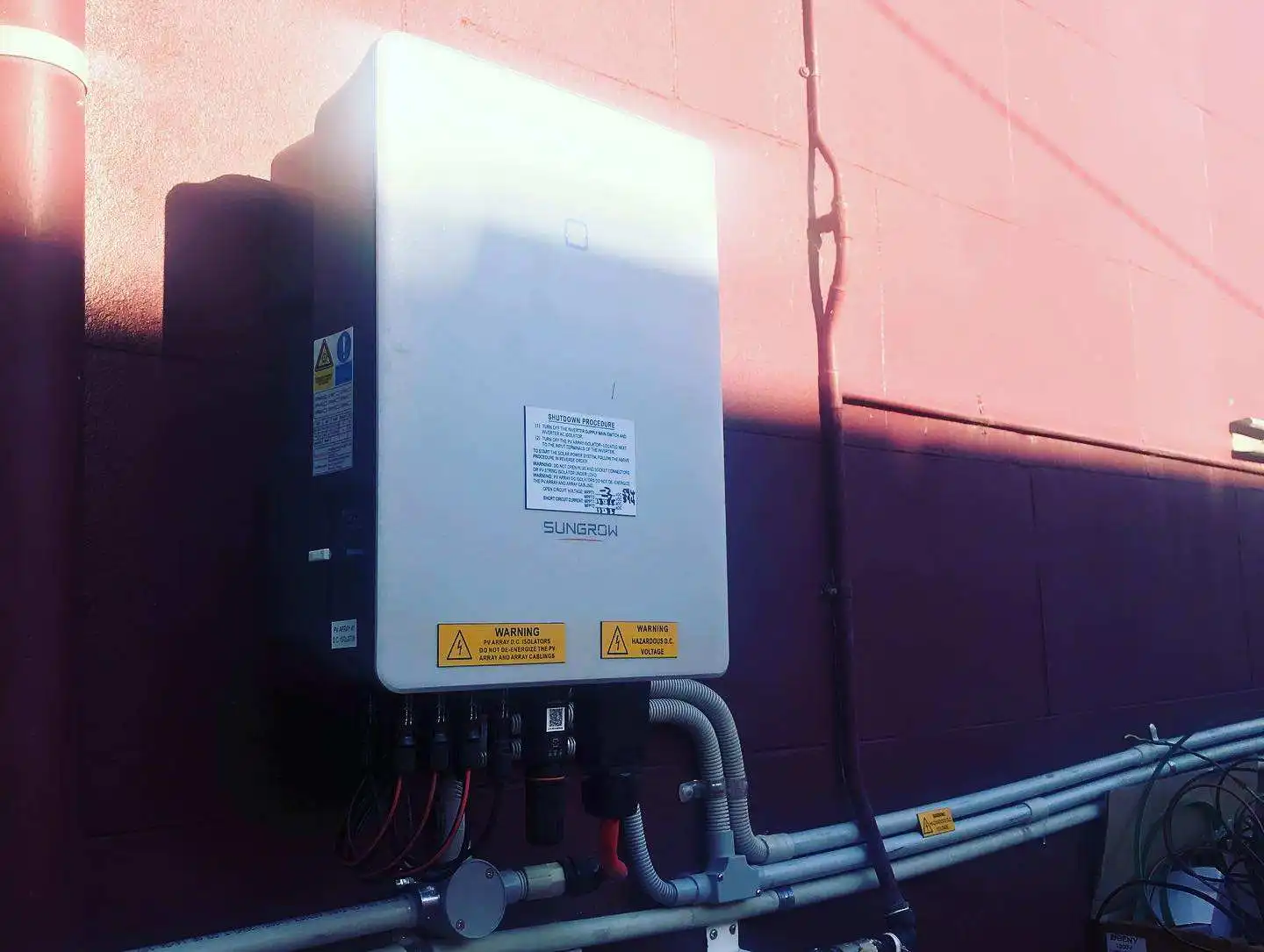

Sungrow inverter 8kw 10kw 12kw 15kw 17kw 20kw solar inverter 10000w 12000w 15000w 20000w SG20RT
- Category: >>>
- Supplier: Xiamen DJSC Energy Technology Co. Ltd.
Share on (1600428713663):
Product Overview
Description
Product Description
Type designation | SG8.0RT-20 | SG10RT-20 | SG12RT-20 | SG15RT-20 | SG17RT-20 | SG20RT-20 | ||||||
Input (DC) | China | |||||||||||
Min. PV input voltage | 1100V | Fujian | ||||||||||
Startup input voltage | 180 V | Sungrow | ||||||||||
Nominal PV input voltage | 600 V | SG10RT-20 | ||||||||||
MPP voltage range | 160V~1000V | 1100v | ||||||||||
No. of independent MPP inputs | 2 | 400v | ||||||||||
No. of independent MPP inputs | 1 / 1 | 1 / 1 | 1 / 1 | 2 / 1 | 2 / 2 | 2 / 2 | ||||||
Max. PV input current | 25A | 25A | 25A | 37.5A | 50A | 50A | ||||||
Max. DC short-circuit current | 32A | 32A | 32A | 48A | 64A | 64A | ||||||
Output (AC) | 370mm*480mm*195mm | |||||||||||
Nominal AC power | 8000W | 10000W | 12000W | 15000W | 17000W | 20000W | ||||||
Max. AC output power | 8800VA | 11000VA | 13200VA | 16500VA | 18700VA | 22000VA | ||||||
Max. AC output current | 13.3A | 16.7A | 20A | 25A | 28.3A | 31.9A | ||||||
Nominal AC voltage | 3 / N / PE, 230/400 V | 5 YEARS | ||||||||||
AC voltage range | 270V~480V | 17kg | ||||||||||
Nominal grid frequency | 50 Hz | Sungrow Inverter | ||||||||||
Power factor at nominal power | > 0.99 | On grid inverter | ||||||||||
Adjustable power factor | 0.8 leading – 0.8 lagging | 2 | ||||||||||
Feed-in phases / connection phases | 3 / 3 | |||||||||||
Efficiency | three phase | |||||||||||
Max. efficiency | 98.5% | 98.5% | 98.5% | 98.6% | 98.6% | 98.6% | ||||||
Euro. efficiency | 98.0 % | 98.1 % | 98.1 % | 98.1 % | 98.2% | 98.2% | ||||||
Protection | LED | |||||||||||
DC reverse connection protection | Yes | |||||||||||
AC short circuit protection | Yes | |||||||||||
Leakage current protection | Yes | |||||||||||
Grid monitoring | Yes | |||||||||||
Ground fault monitoring | Yes | |||||||||||
DC switch | Yes | |||||||||||
PV String current monitoring | Yes | |||||||||||
PID recovery function | Yes | |||||||||||
Overvoltage protection | DC Type II / AC Type II | |||||||||||
General Data | ||||||||||||
Dimensions (W*H*D) | 370*480*195 mm | |||||||||||
Weight | 17 kg | 17 kg | 17 kg | 17 kg | 17 kg | 17 kg | ||||||
Isolation method | Transformless | |||||||||||
Ingress protection rating | IP65 | |||||||||||
Night power consumption | <1W | |||||||||||
Operating ambient temperature range | 25℃~+60℃ | |||||||||||
Allowable relative humidity range | 0 – 100 % | |||||||||||
Cooling method | Smart forced air cooling | |||||||||||
Max. operating altitude | 4000 m (> 2000 m derating) | |||||||||||
Communication | RS485 / Optional: Wi-Fi, Ethernet | |||||||||||
DC connection type | MC4 | |||||||||||
AC connection type | OT or DT | |||||||||||

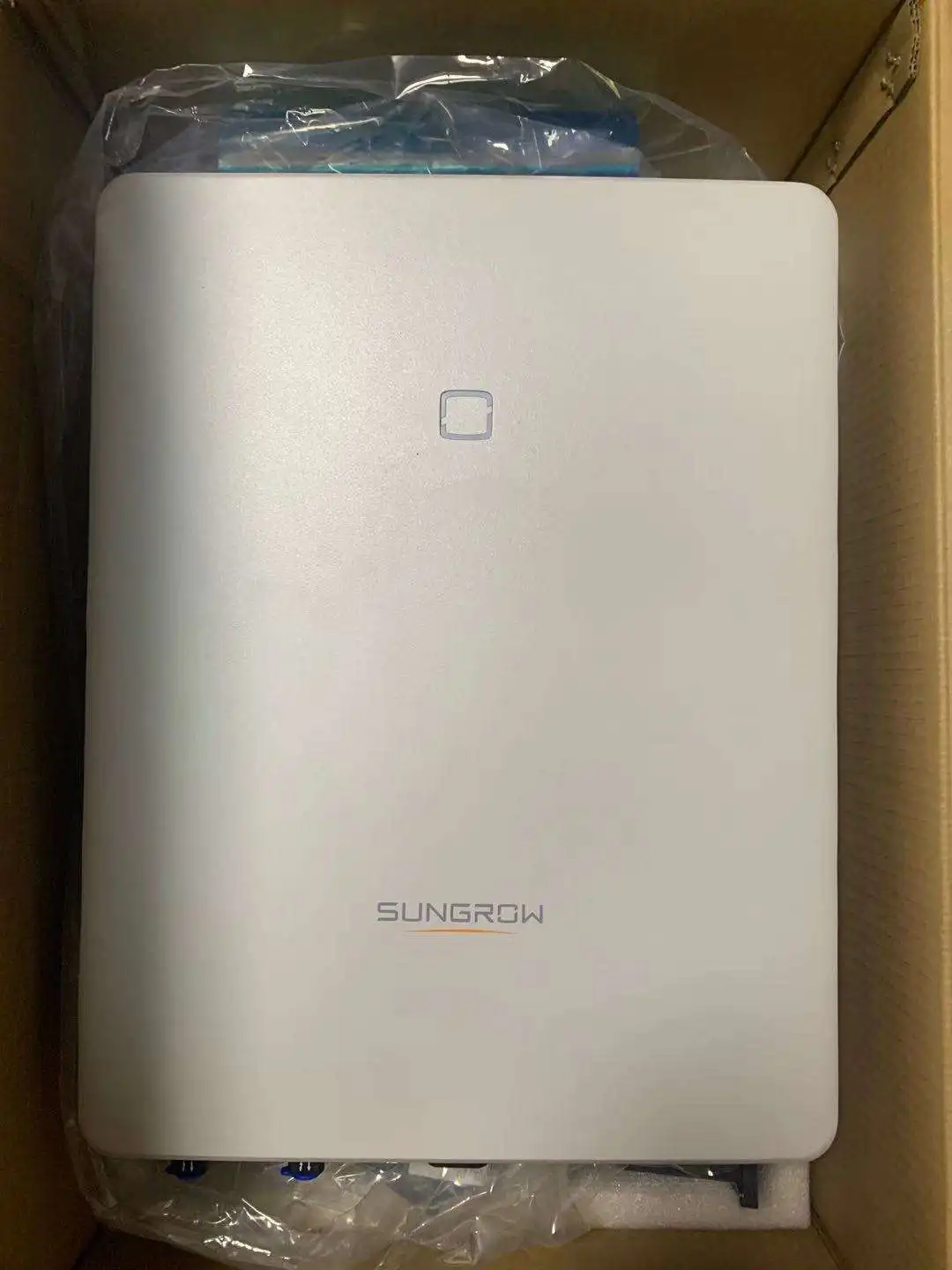

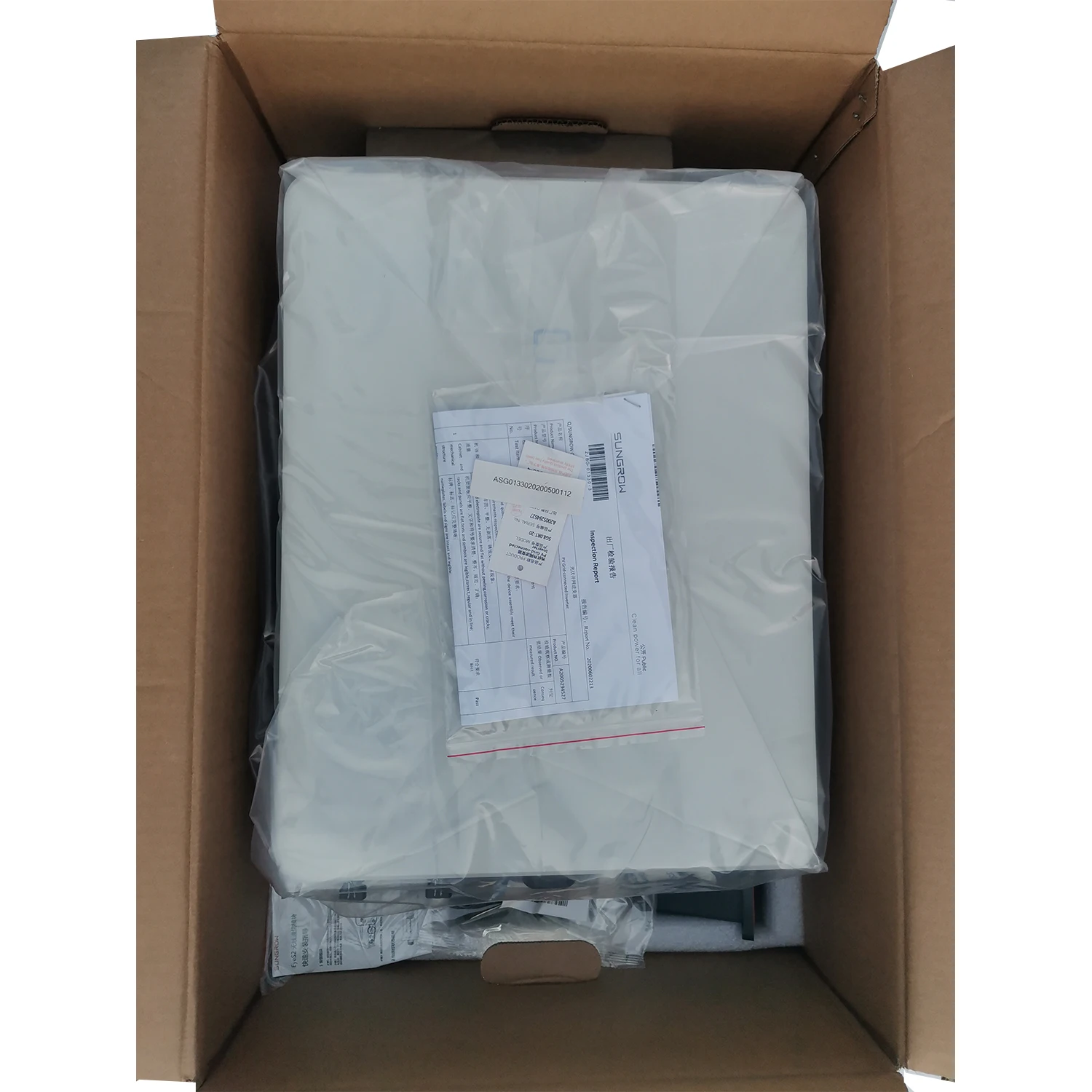

Packing & Delivery
Company Profile
DJSC Solar ,founded by a passionate team with over 35 years experience of solar industry,is committed to bring quickly and professional service to our customers in all aspects of solar products and projects.
DJSC Solar as the top distributor of tier 1 brand solar product including LONGi,Sungrow,Trina,JA,Solis,Growatt,Goodwe,provides not only solar panel ,inverter, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.Customer can enjoy Solar One-Stop Solution here with high performance solar product but competitive cost.
Besides, DJSC solar strong expert technical team can also provide you best solution and after-sales service.In the future,through more localizing operation, we will build up the global sales network organization, to ensure convenient and best products and service for our customers.
DJSC Solar provides an efficient, safe and durable photovoltaic power generation system with customer satisfaction globally and is willing to work with you to illuminate life with sunshine and create a greener, healthier and better future!
DJSC Solar as the top distributor of tier 1 brand solar product including LONGi,Sungrow,Trina,JA,Solis,Growatt,Goodwe,provides not only solar panel ,inverter, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.Customer can enjoy Solar One-Stop Solution here with high performance solar product but competitive cost.
Besides, DJSC solar strong expert technical team can also provide you best solution and after-sales service.In the future,through more localizing operation, we will build up the global sales network organization, to ensure convenient and best products and service for our customers.
DJSC Solar provides an efficient, safe and durable photovoltaic power generation system with customer satisfaction globally and is willing to work with you to illuminate life with sunshine and create a greener, healthier and better future!
FAQ
1. who are we?
We are based in Fujian, China, start from 2019,sell to Southeast Asia(51.58%),Domestic Market(48.15%),Southern Europe(25.00%),Africa(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel/Solar Inverter/Solar Mounting System/Solar Power System
4. why should you buy from us not from other suppliers?
DJSC Solar as the top distributor of tier 1 brand solar product including LONGi,Sungrow,Trina,JA,Solis,Growatt,Goodwe,provides not only solar panel ,inverter, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,DDP,DAF；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Fujian, China, start from 2019,sell to Southeast Asia(51.58%),Domestic Market(48.15%),Southern Europe(25.00%),Africa(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel/Solar Inverter/Solar Mounting System/Solar Power System
4. why should you buy from us not from other suppliers?
DJSC Solar as the top distributor of tier 1 brand solar product including LONGi,Sungrow,Trina,JA,Solis,Growatt,Goodwe,provides not only solar panel ,inverter, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,DDP,DAF；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
