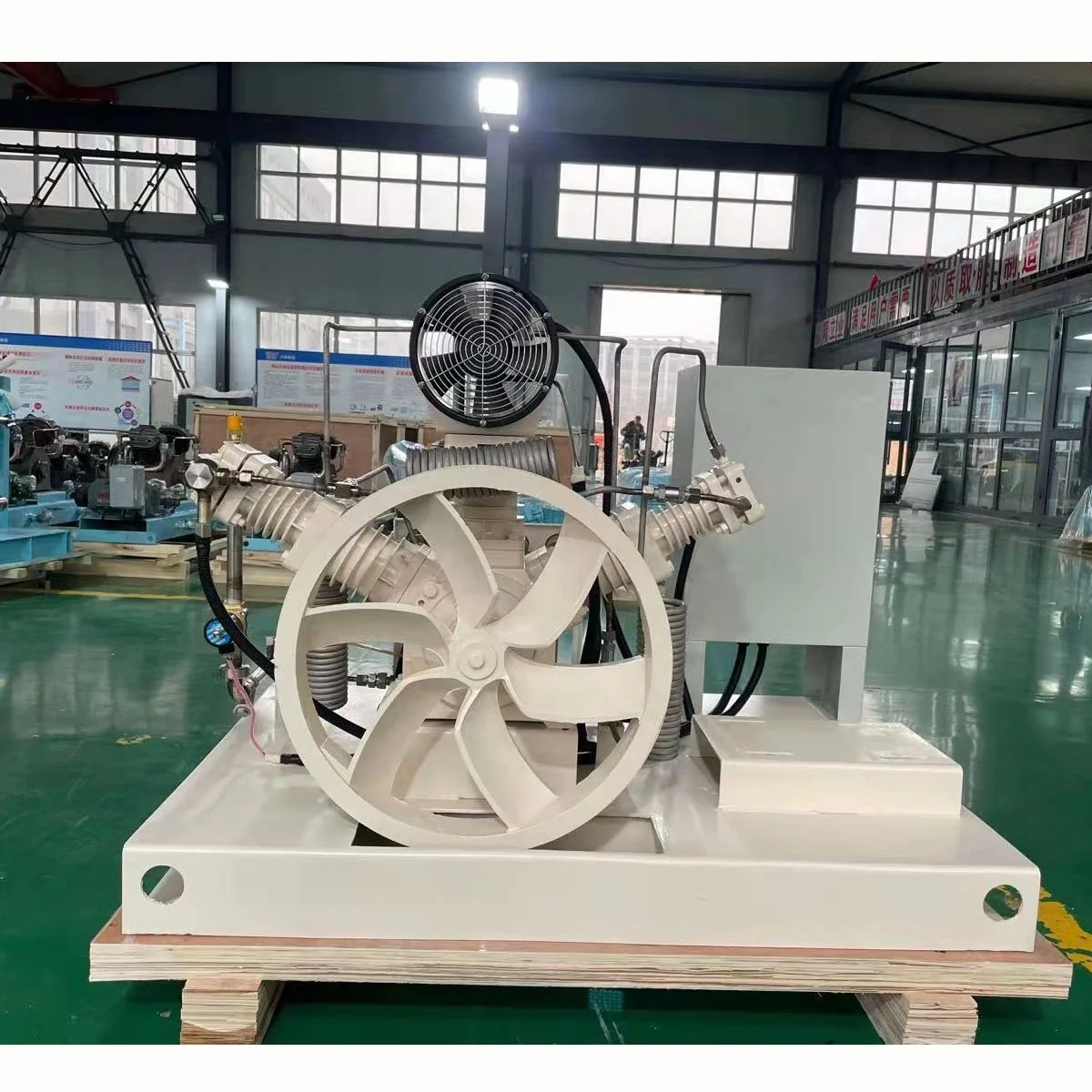

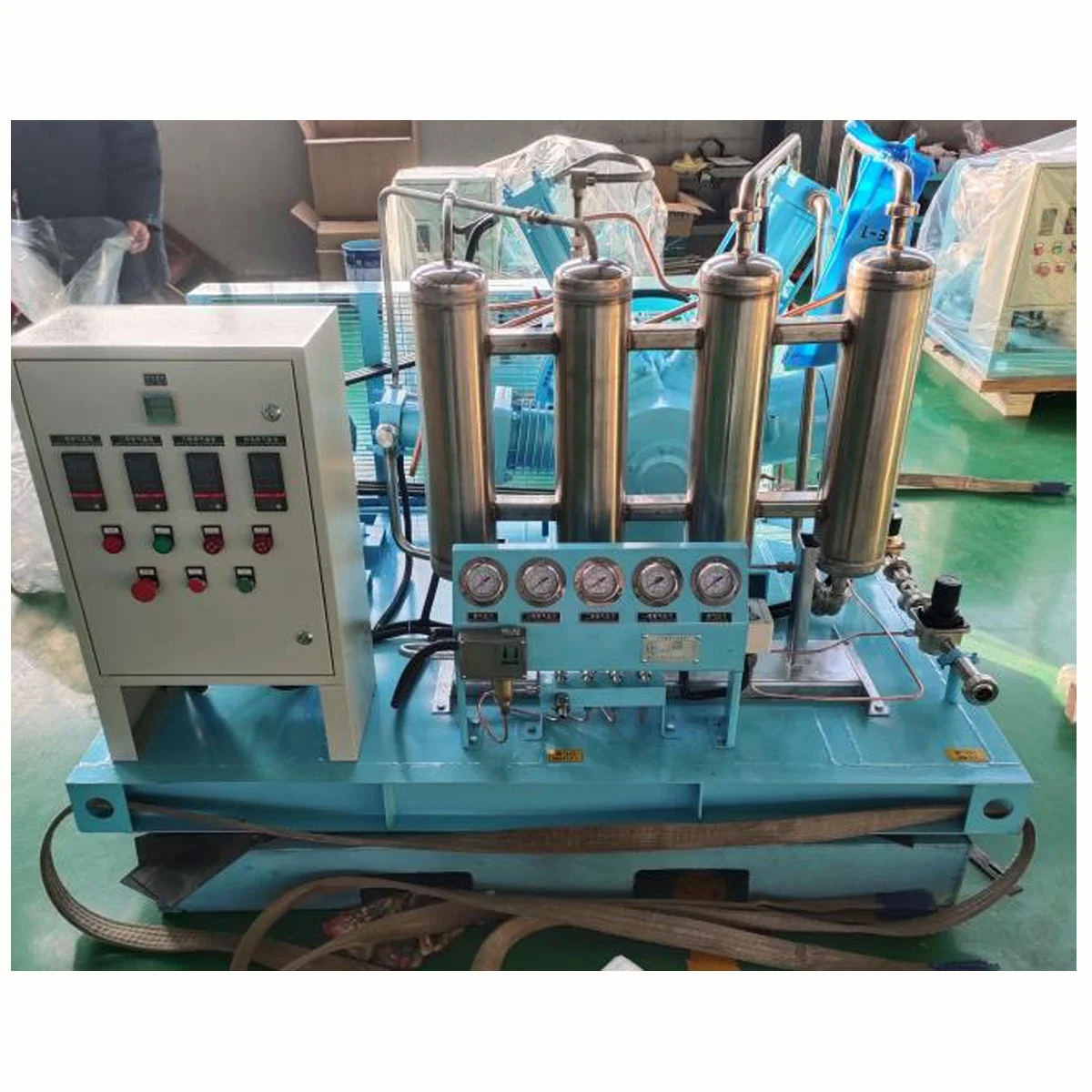

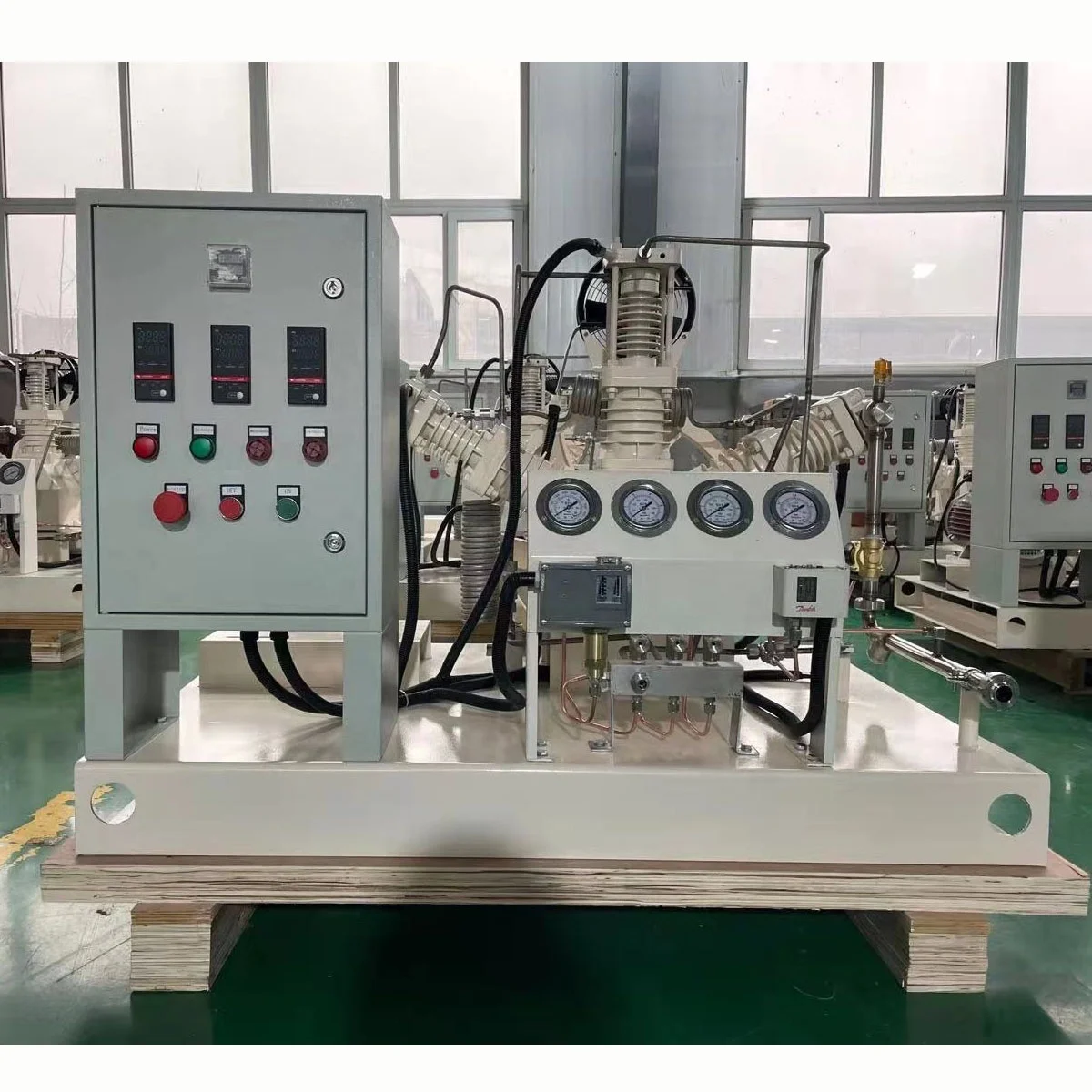

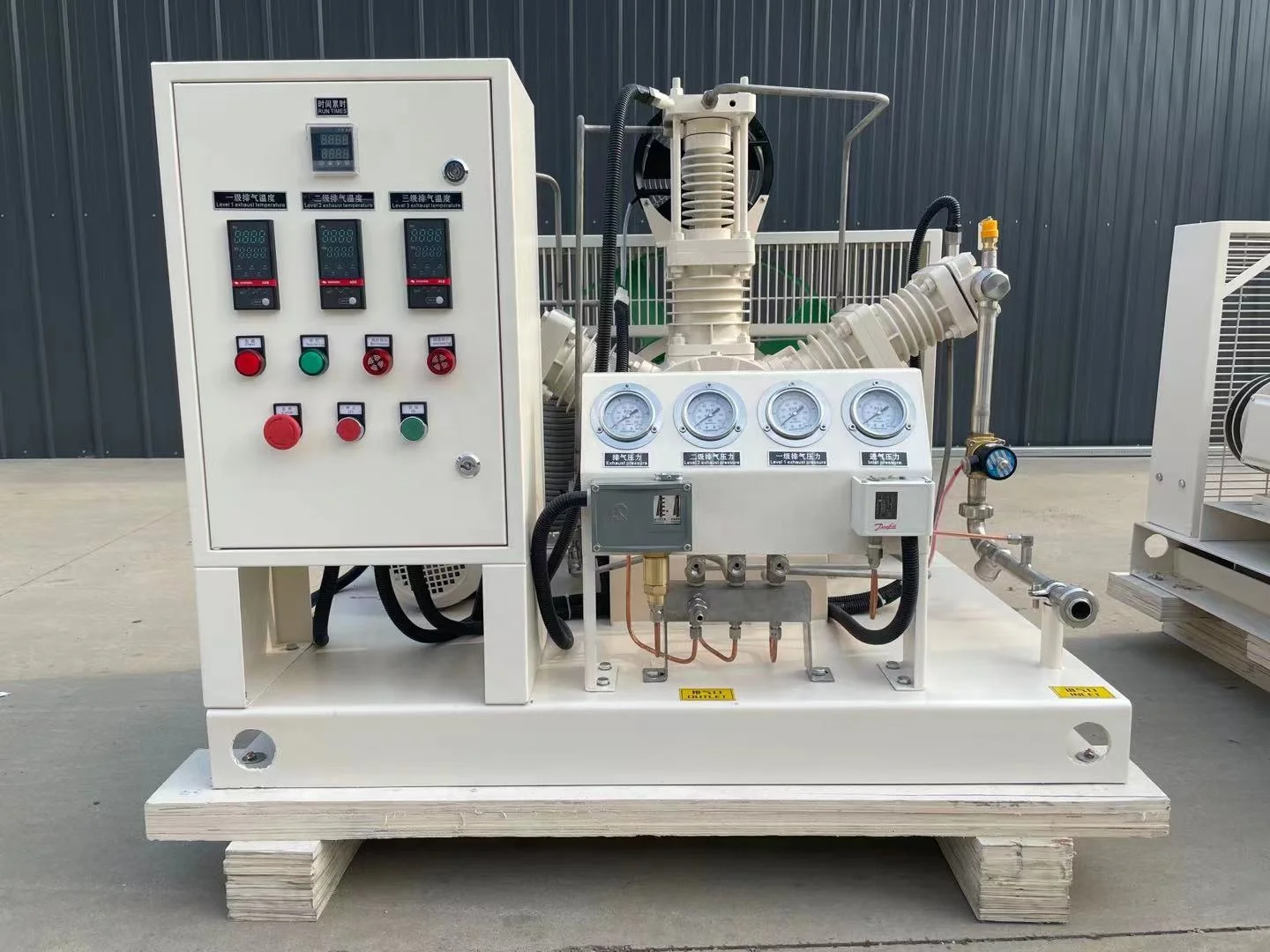

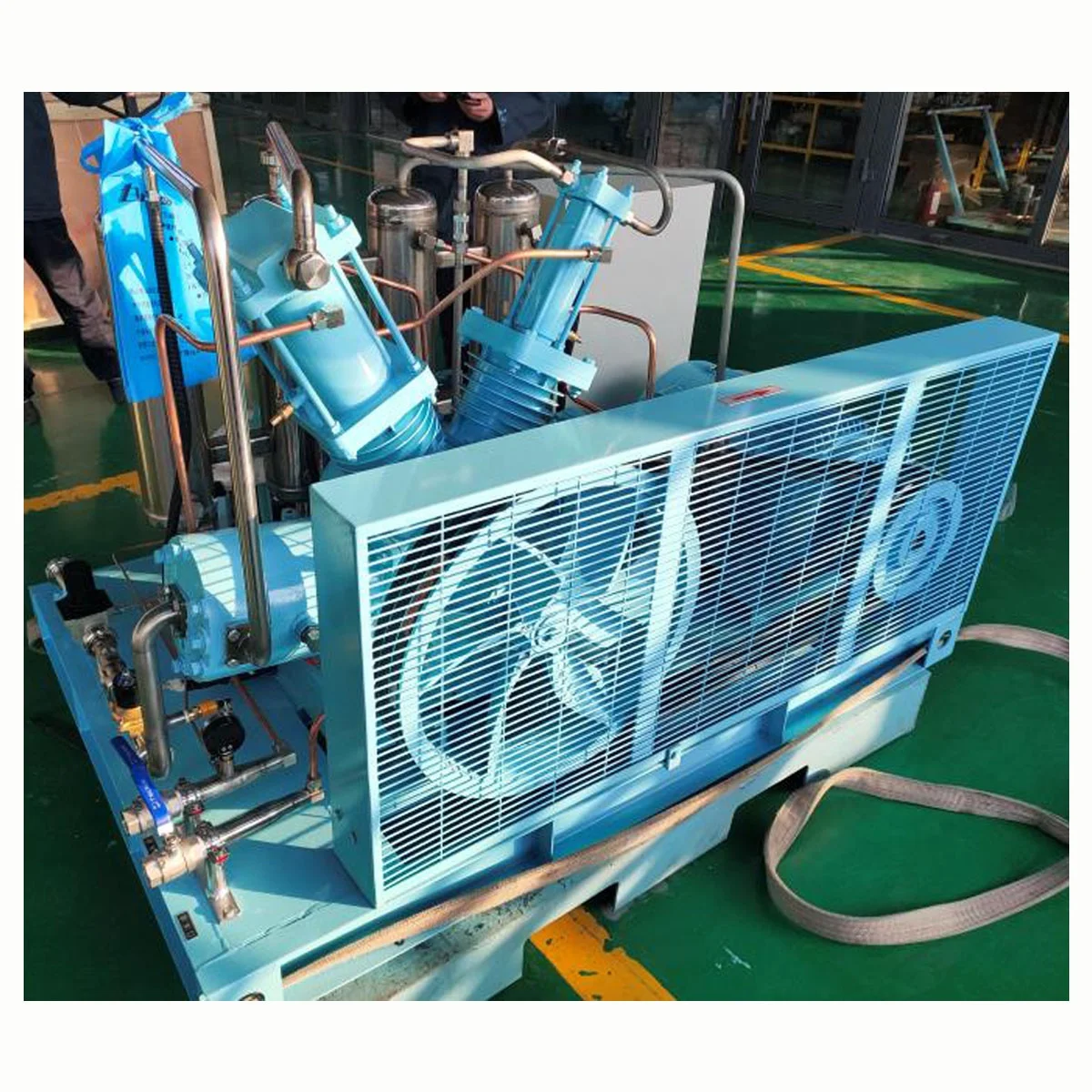

Oxygen Cylinder Filling Compressor for Medical Use

Cape-Golden has extensive experience in the field of Oxygen Cylinder Filling Compressor, which has been manufacturing Oxygen Cylinder Filling Compressor from 1990.

The biggest advantage of Cape-Golden Oxygen Cylinder Filling Compressor is the safety, because we implement the strict quality control procedures. Cape-Golden Oxygen Cylinder Filling Compressor Clean Room handles each part of the Oxygen Cylinder Filling Compressor according to the Chinese compressed gas standard, and records the operation process in details.

Cape-Golden are expertise in selecting materials which are suitable for gas compressors, coupled with the accurate flow estimates towards the whole system, all these make gas compressors are safe and versatile. Medium and low pressure products can be used in VPSA applications in steel mills, paper mills and water mills. The high pressure oxygen booster is suitable for the PSA oxygen filling system.





Technical Feature



Cape-Golden high-pressure oxygen compressor is used to fill the oxygen bottle at a pressure of up to 300bar. The intake air may be aspirated from a pressure swing adsorption machine, liquid oxygen tank, or oxygen cylinder set to low pressure. Cape-Golden oxygen compressor typically have stages 2 to 4 and boost pressure to set values. The compression process is completely oil-free .Mini compressor use grease lubrication, mainframe use pressure lubrication. Lubricating parts are completely isolated from cylinder parts. Many PSA manufacturers use Cape-Golden gas compressor as the connection between their host and cylinder -filling manifolds.

Cape-Golden designs and manufactures oil-free oxygen compressors for a wide range of applications, from oxygen systems in large air separation plants to small oxygen filling bottle systems. These compressors are used in on-site VSA oxygen plants around the world, as well as in hospitals. A small oxygen compressor is used to produce oxygen by itself using PSA. The pressure of the oxygen compressor in the oxygen bottle filling system can be up to 200 bar.





Product Parameter


Medium
Oxygen
QTY
1 Set
Inlet Pressure
4bar
Inlet Temperature
≤ 40ºC
Outlet Pressure
200bar
Outlet Temperature (after cooling)
≤ 50ºC
Flow rate
30 Nm3/h
Piston Stroke
90 mm
Model
GOW-30/4-200
Number of compression stage
4
Instructure
Oil-free Lubrication Vertical
Number of cylinder
4
Rotate Speed of Crank Shaft
200 r/min
Size of inlet/outlet
25,M16X1.5 mm

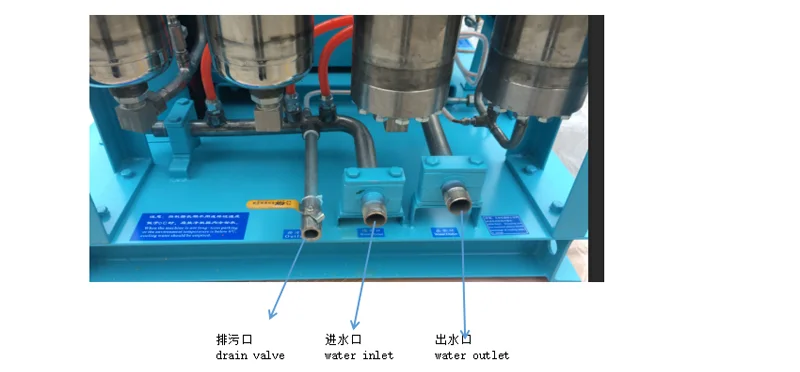

Cooling Way
Air / Water
Rotational speed of motor
730 r/min
Shaft Power
 9.7kw
Weight
960kg
Dimension
1600*950*1500mm
Drive way
belt
Material of main parts(touch with gas)
Cylinder
Stainless carbon
Valve
Stainless carbon
Pipe & Chiller
Stainless carbon

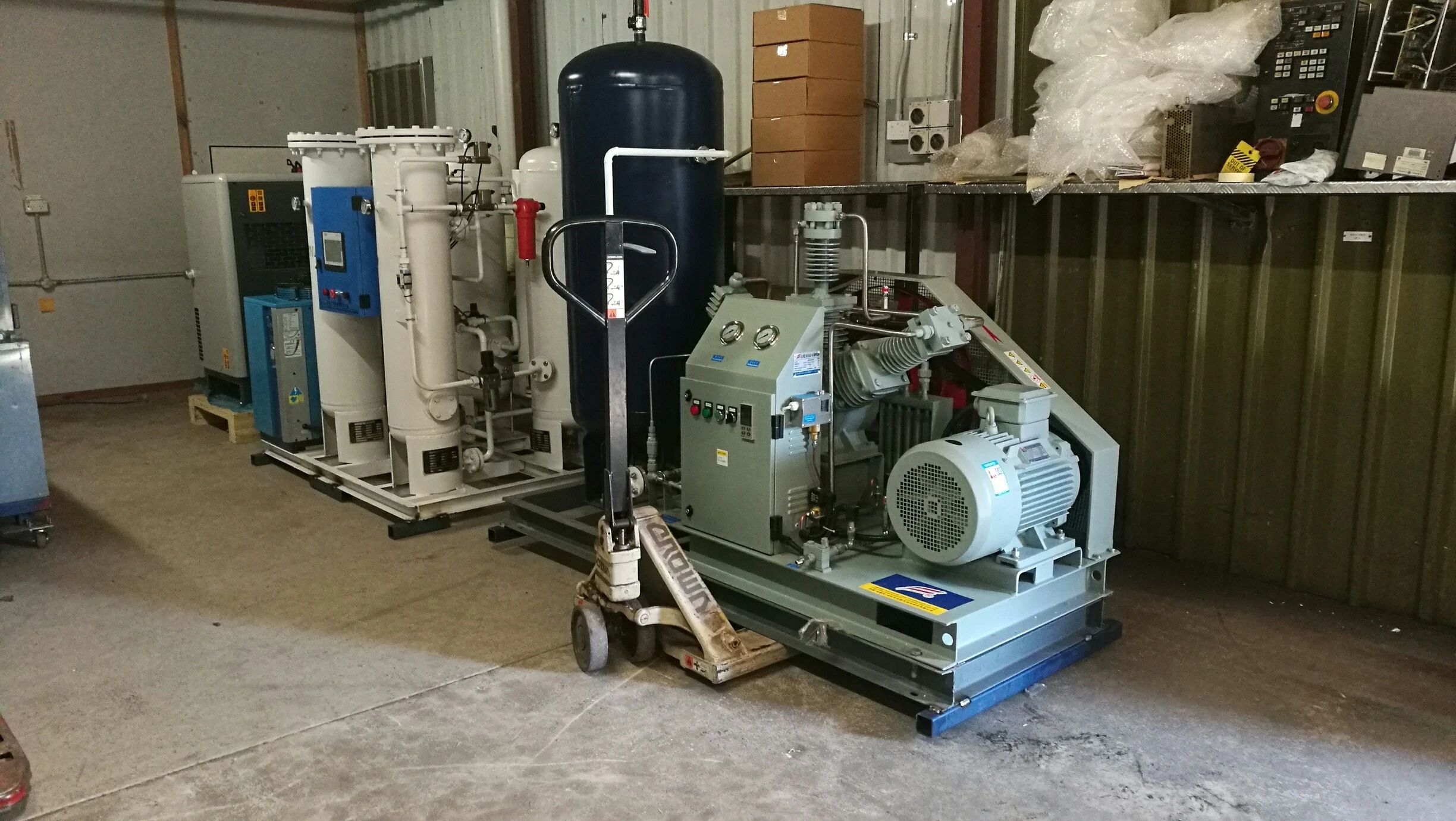

Practical Case
