Automatic V Folding Hand Towel Making Machine,Facial Tissue and Hand Towel paper converting machinery
- Category: >>>
- Supplier: Fujian Xinyun Construction Development Co. Ltd.
Share on (1600428718452):
Product Overview
Description
Product Overview

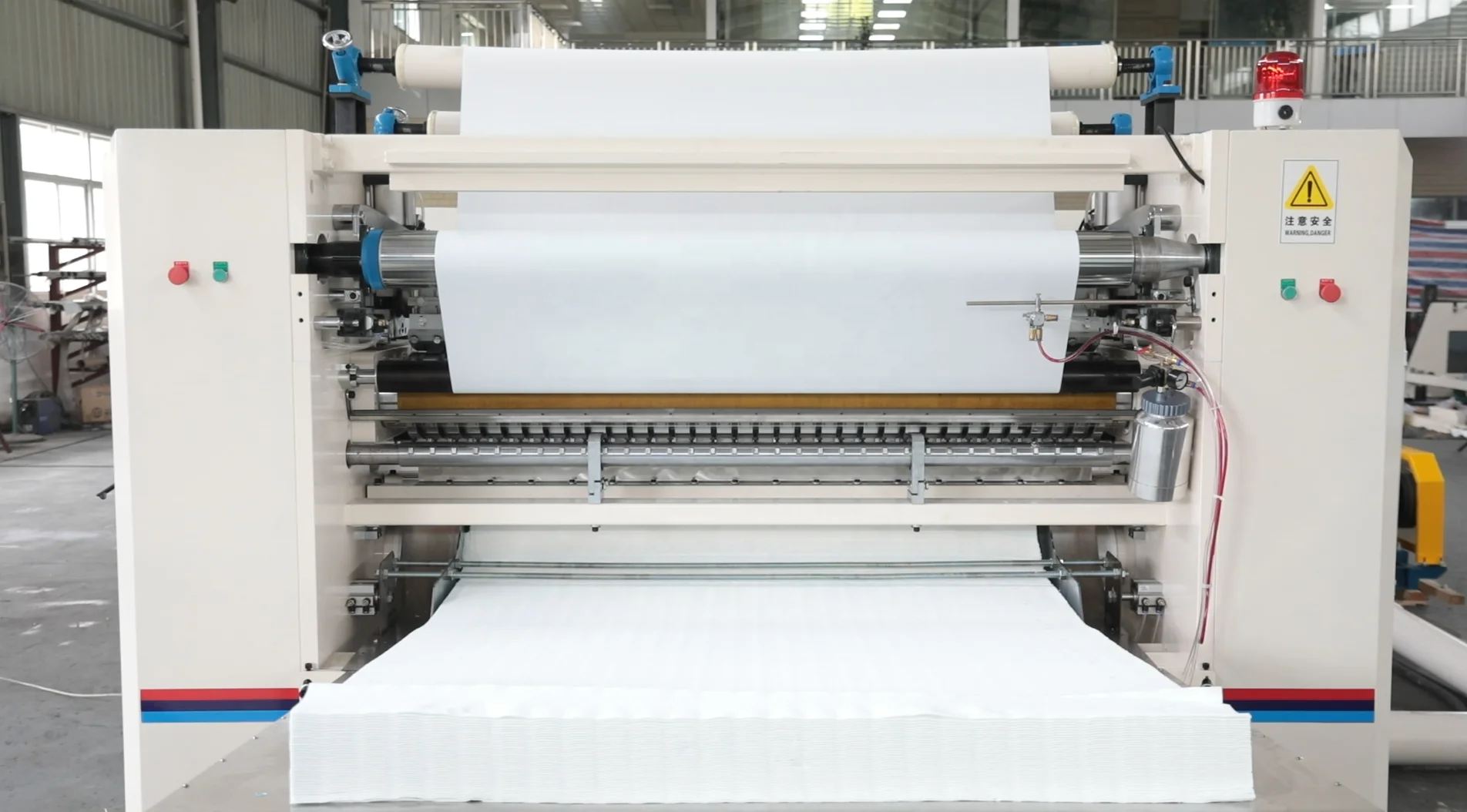

V Folding Hand Towel Machine
XY-BT-288 2L/3L/4L/5L
Outline
V folding hand towel machine process paper material after embossing, cutting off,
inter folding become V fold, The products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.
V folding hand towel machine process paper material after embossing, cutting off,
inter folding become V fold, The products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.
FEATURES AT A GLANCE
Function and characteristics
1. Production speed :（60~100）m/min
2. Embossing unit: Steel to steel
1. Production speed :（60~100）m/min
2. Embossing unit: Steel to steel
embossing unit.
3. Pneumatic broken paper automatic
3. Pneumatic broken paper automatic
separation, convenient wear paper.
4. Using synchronous belt transmission,
4. Using synchronous belt transmission,
transmission ratio is accurate, low noise.
5. Base paper adapt range, 33-45g/m2
5. Base paper adapt range, 33-45g/m2
(single ply)

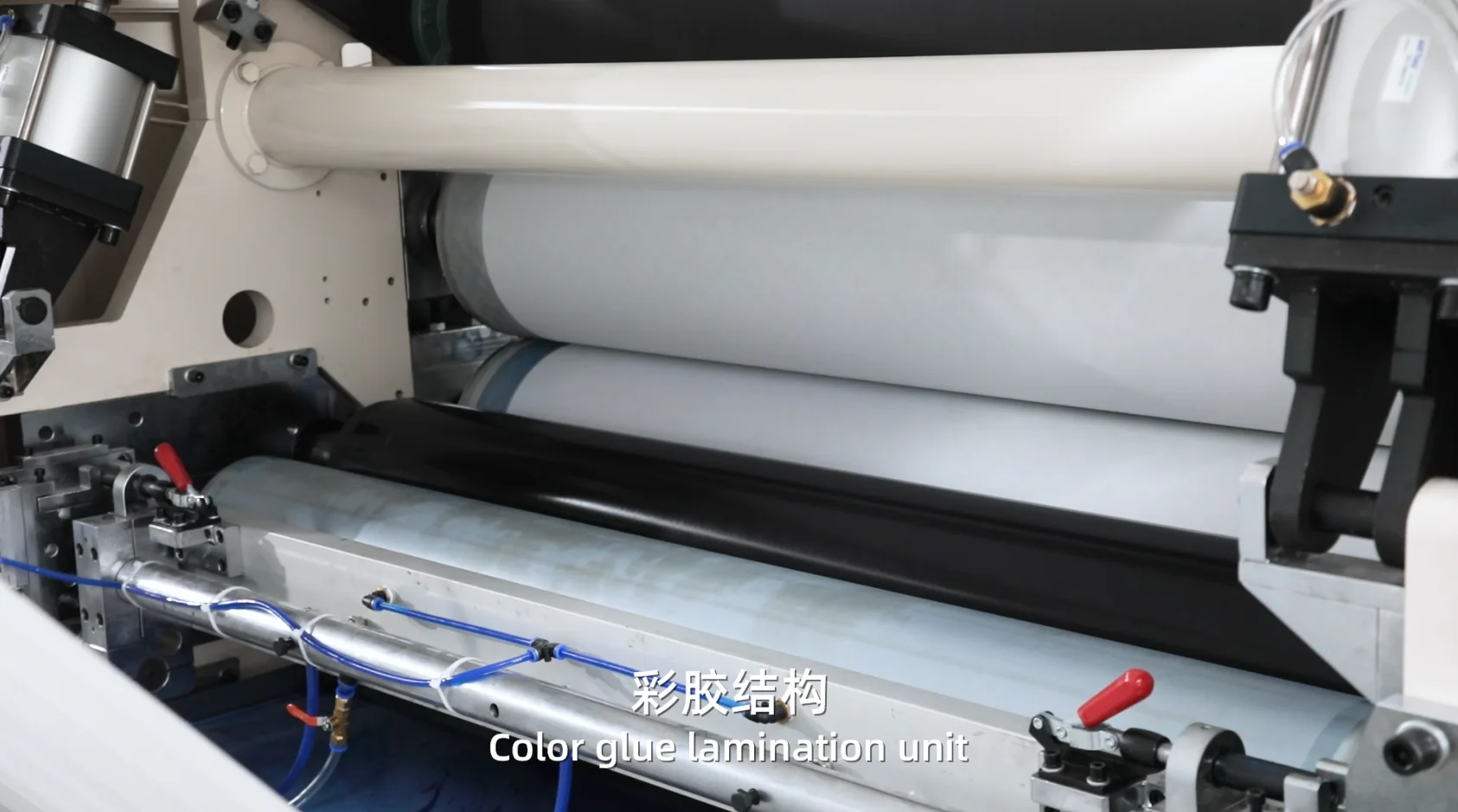

6. To be order two layers glue lamination .
6. To be order two layers glue lamination .
(Optional)
PRODUCT SPECIFICATIONS
Unfold size of finished products | 230*230±2mm (Other sizes are available) |
Folded size of finished products | 76.6*230mm±2mm (Other sizes are available) |

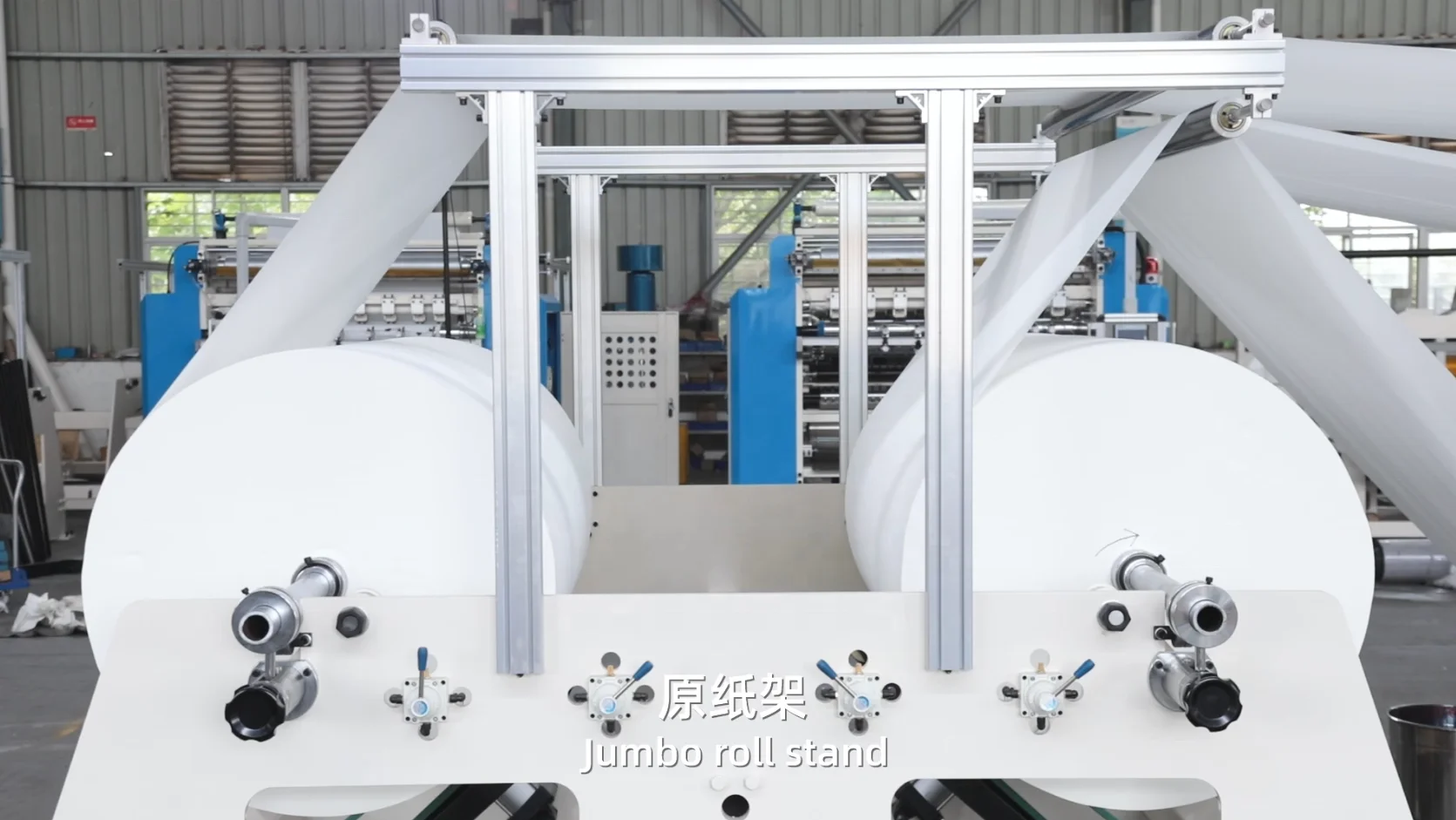

Width of jumbo roll paper | 480 mm / 680 mm / 880 mm / 1080 mm / 1280 mm |
Diameter of jumbo roll inner core | 76.2mm (Other sizes are available) |
Production speed | 0-100m/min (Depending on the machine model ) |
Power | Frequency conversion speed regulator |

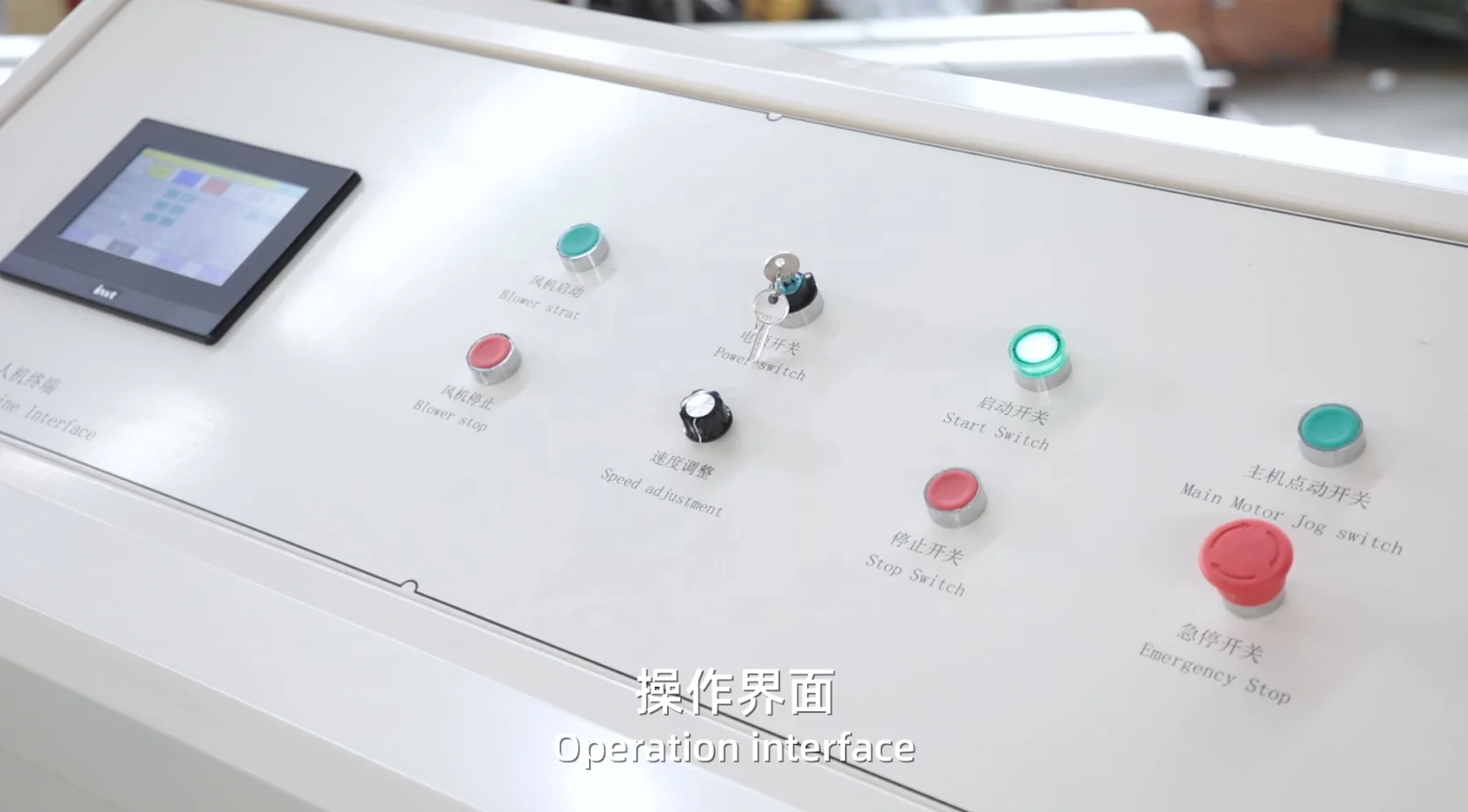

Programmable controller | PLC computer controller |
Folding type | Vacuum suction “ N” fold |
Transmission unit | Timing belt and flat belt |
Counter | Ink marked |

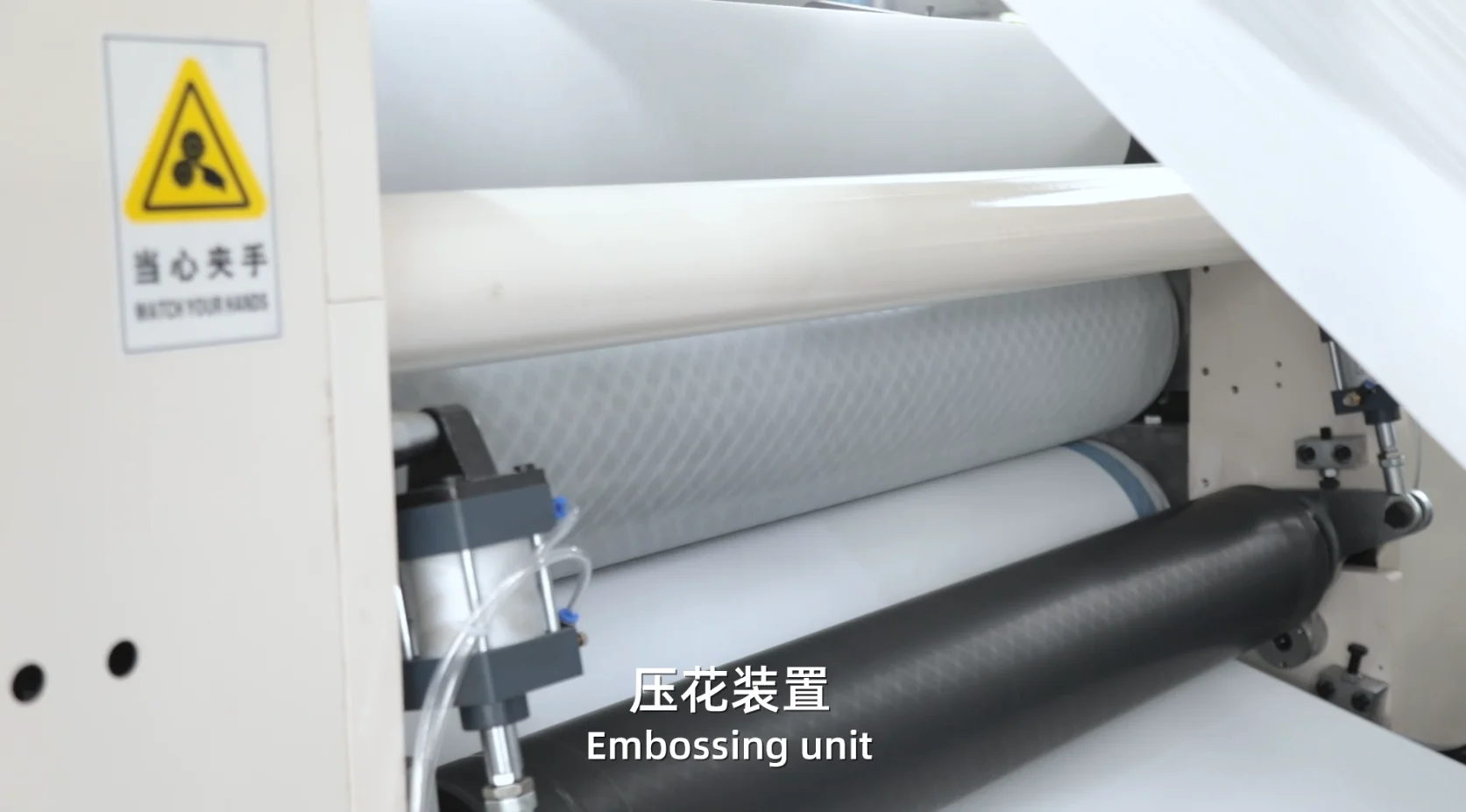

Embossing unit | Steel to steel |
Slitting unit | Pneumatic dot slitting |
Pneumatic system | 3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer) |
Total power | 14KW 18KW 19KW 21KW 24KW (Optional) |
Overall dimension | Depends on Machine Model |
Weight | Depend on the size and configure |
SIMILAR PRODUCTS

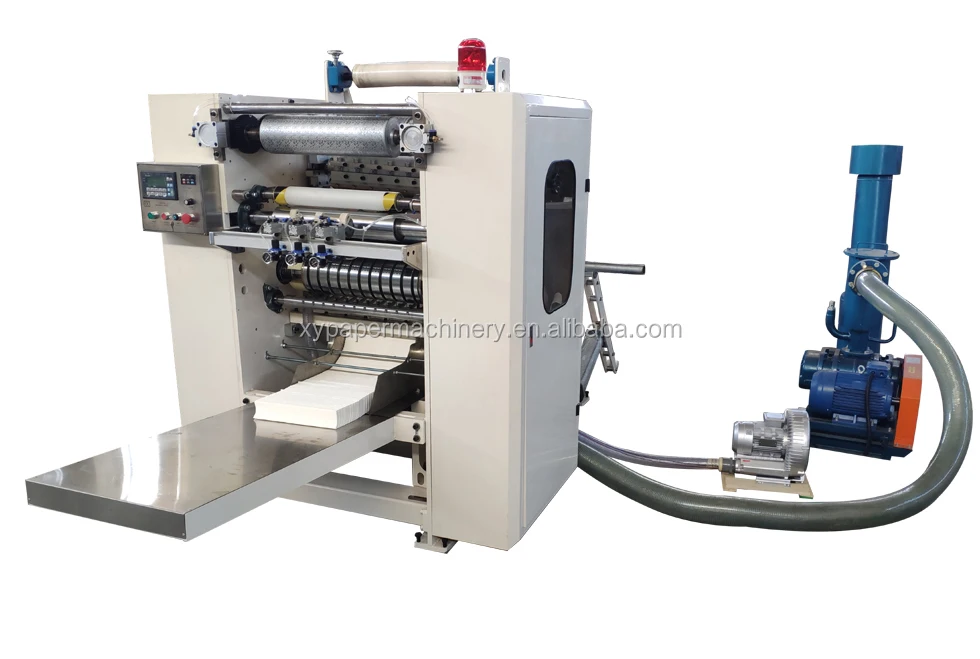

XY-BT-288
V-Folding Hand Towel Machine
XY-GU-20A
Automatic Facial Tissue Making Machine
XY-AI-15

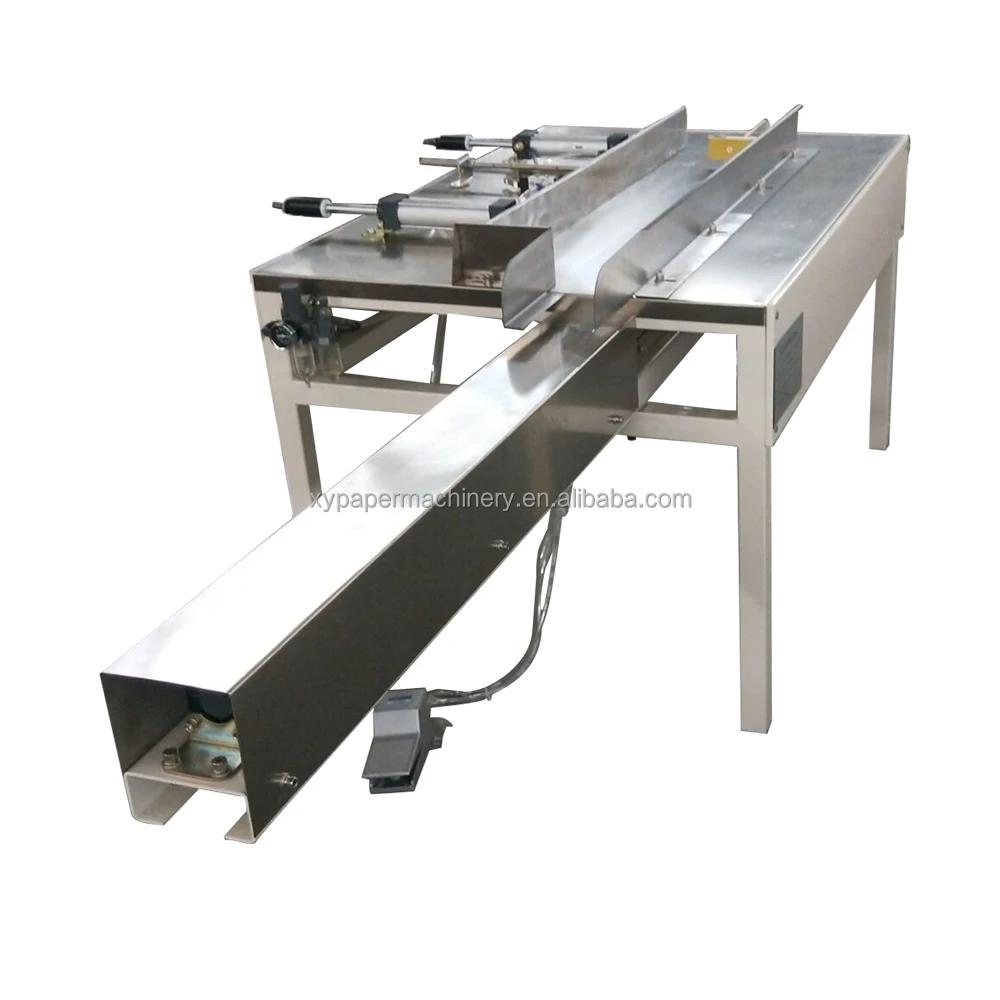

N Folding Hand towel paper bagging machine
Features:
This machine replaces a manual operation.
After bagging, the product is orderly.
Technology Parameter
1. Production Speed: 5-10 bags/min
2. Size of the packing bag(L×W×H mm)：200-1500*60-100*70-80 mm
3.Power supply: 0.5 Kw (220V 50Hz)
4. Air supply: 0.4 Mpa 0.3 m³/min
5. 5. Weight of Equipment: 0.4T
Video Link : https://youtu.be/ySgPwEN353s
This machine replaces a manual operation.
After bagging, the product is orderly.
Technology Parameter
1. Production Speed: 5-10 bags/min
2. Size of the packing bag(L×W×H mm)：200-1500*60-100*70-80 mm
3.Power supply: 0.5 Kw (220V 50Hz)
4. Air supply: 0.4 Mpa 0.3 m³/min
5. 5. Weight of Equipment: 0.4T
Video Link : https://youtu.be/ySgPwEN353s

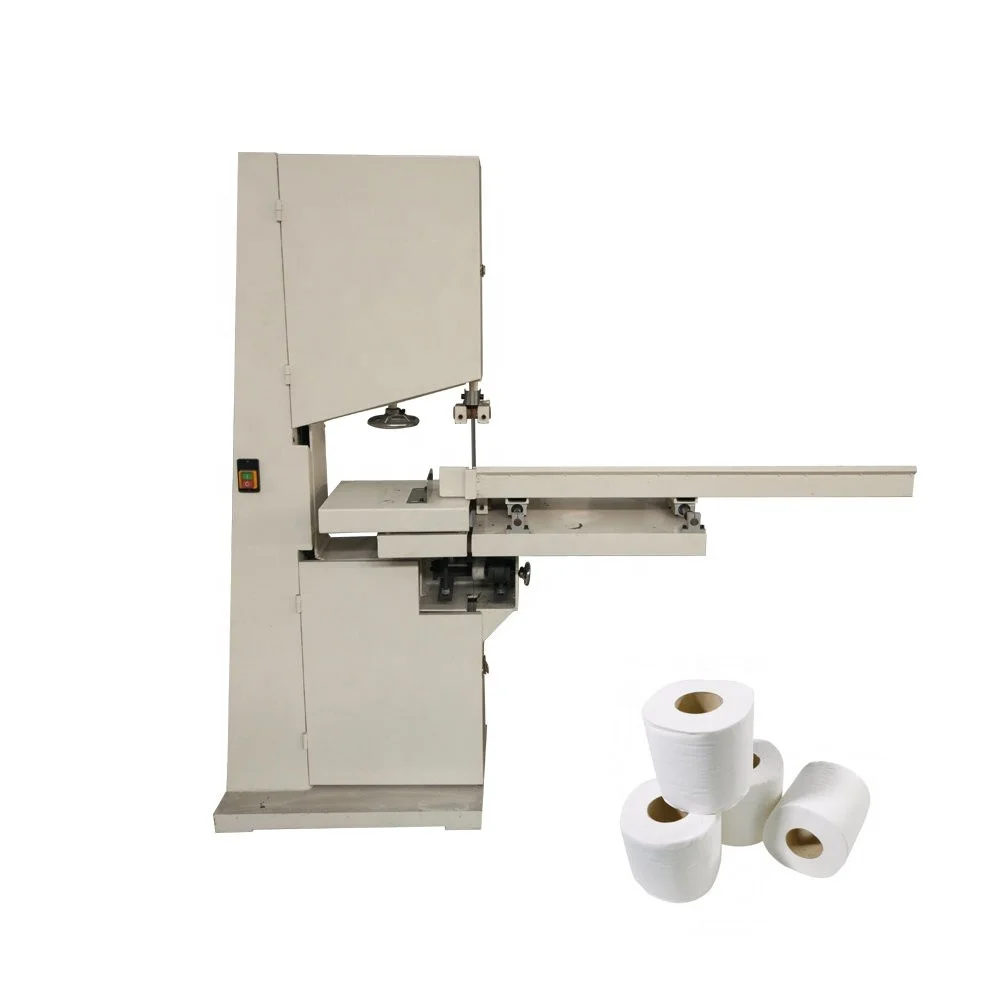

XY-AI-300
Semi auto hand towel
cutting machine
Functions and features
This machine is the equipment for cutting paper.The main function is to cut the rewinded big toilet paper into various kinds of standard small rolls.
The machine is compose with stander , saw blade drive, adjustment, tension , saw blade grind, operation table and hand table. It is enjoy compact structure, stable running and convenient operation .
Main technology parameter:
Power: 2.2KW (380V 50Hz)
Production speed : 10-30 cuts /min
Overall size (m ): 1.6x0.6x1.8 (LxW xH）
Weight: about 0.2 T
Video link : https://youtu.be/gzuVZ2YvGdY
This machine is the equipment for cutting paper.The main function is to cut the rewinded big toilet paper into various kinds of standard small rolls.
The machine is compose with stander , saw blade drive, adjustment, tension , saw blade grind, operation table and hand table. It is enjoy compact structure, stable running and convenient operation .
Main technology parameter:
Power: 2.2KW (380V 50Hz)
Production speed : 10-30 cuts /min
Overall size (m ): 1.6x0.6x1.8 (LxW xH）
Weight: about 0.2 T
Video link : https://youtu.be/gzuVZ2YvGdY
Packing machine

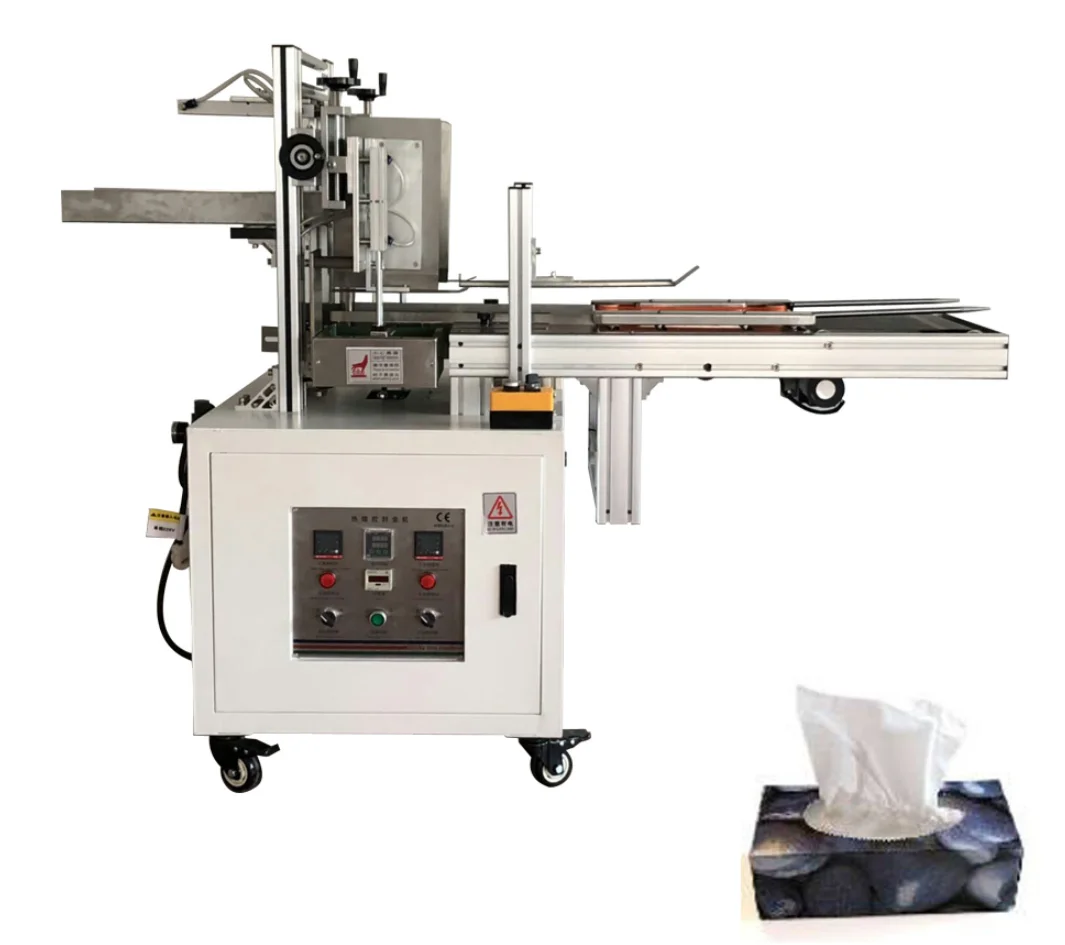

XY-TN-117 Manual facial tissue carton box sealing machine
with conveyor belt
1、Whole machine selection in line with environmental requirements, adjust food-grade standards for the whole appearance of treatment, most of devices adjust stainless steel.
2、The machine transmission part adjust two transmission parts (folder and plane transport), folder is responsible for the carton into the dispensing Department, the plane can be better with the artificial delivery box efficiency, reduce worker’s fatigue;
3、Transition is convenient, fast. The newest model adjust motor automatic adjustment, reducing the difficulty of transfer machine;
4、Fully enclosed structure, the appearance of simple fashion;
5、Optimize power consumption, conform new concept of energy saving;
6、Simple operation, high efficiency, low input costs.
2、The machine transmission part adjust two transmission parts (folder and plane transport), folder is responsible for the carton into the dispensing Department, the plane can be better with the artificial delivery box efficiency, reduce worker’s fatigue;
3、Transition is convenient, fast. The newest model adjust motor automatic adjustment, reducing the difficulty of transfer machine;
4、Fully enclosed structure, the appearance of simple fashion;
5、Optimize power consumption, conform new concept of energy saving;
6、Simple operation, high efficiency, low input costs.
Video link :
https://youtu.be/6I1Rj7FGSgA

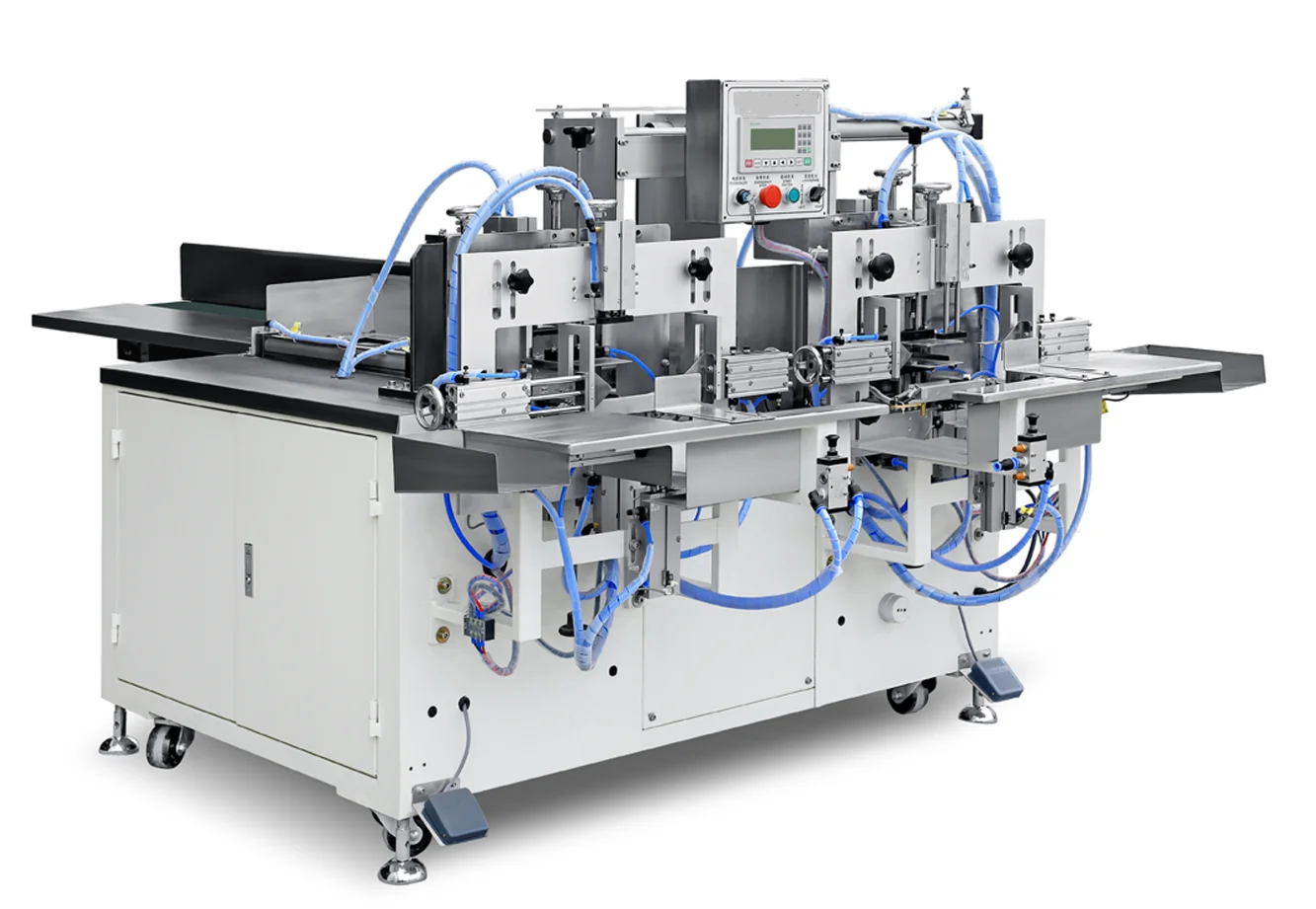

XY-GU-27B Semi automatic
two head tissue paper
packing machine
Outline
This product is used for packing facial tissue and napkin tissue。Place the paper on the loading part insert the Plastic bag into the discharge hole, product automatic loading into bag, meanwhile, automatic folding bag, and sealed and cut.
This product is used for packing facial tissue and napkin tissue。Place the paper on the loading part insert the Plastic bag into the discharge hole, product automatic loading into bag, meanwhile, automatic folding bag, and sealed and cut.
Video link :
https://youtu.be/Dq-4iAHEzmc

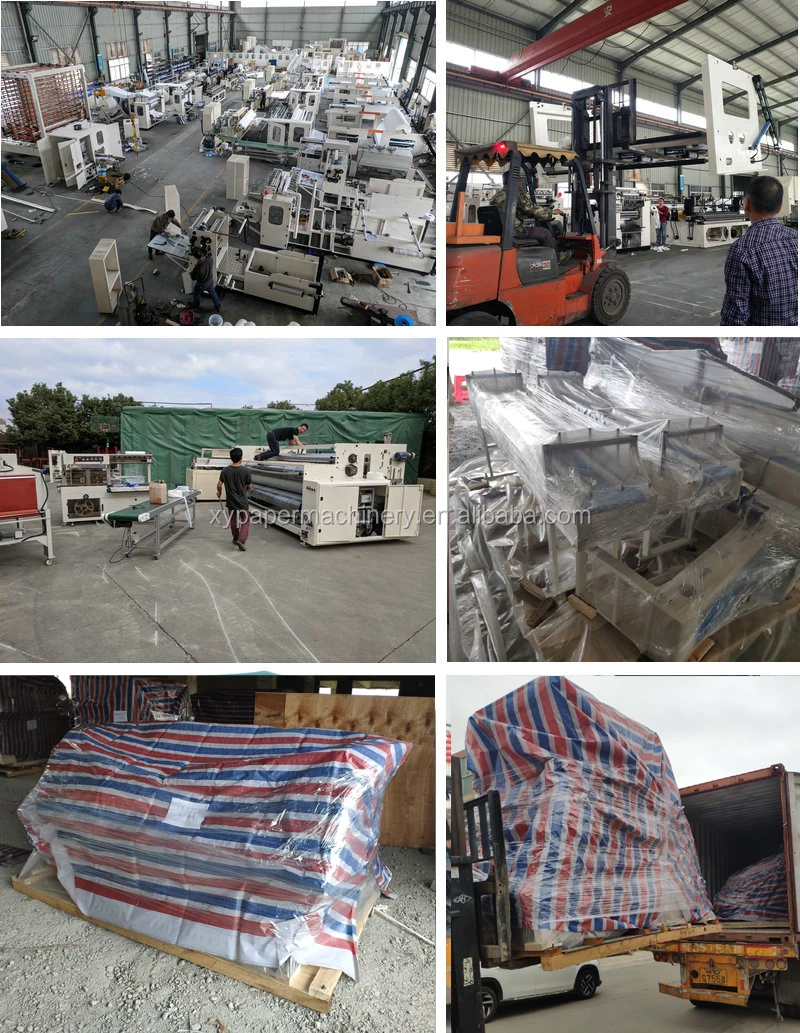

Packing&Delivery

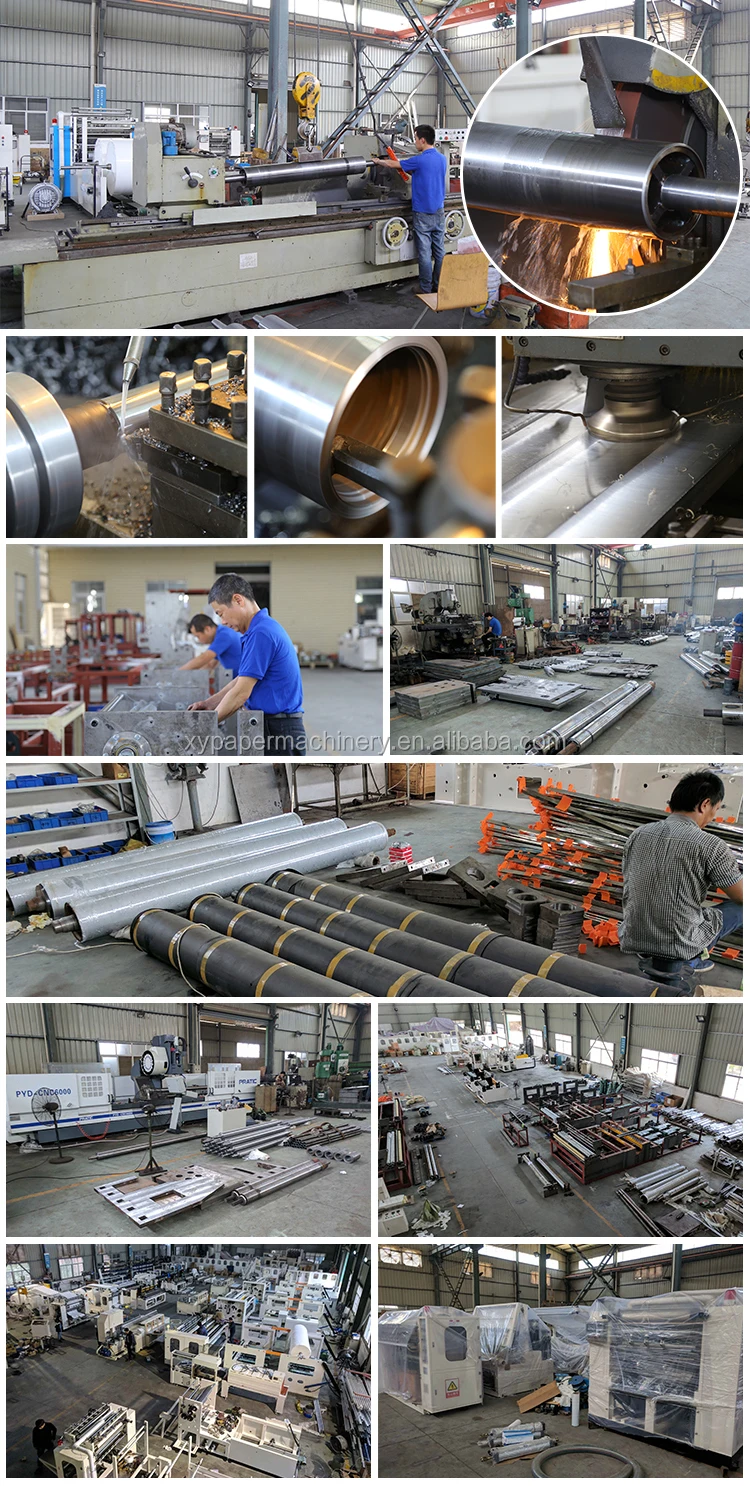

Workshop
