Stainless Steel Rotary Drum Vacuum Filter from Chinese manufacturer

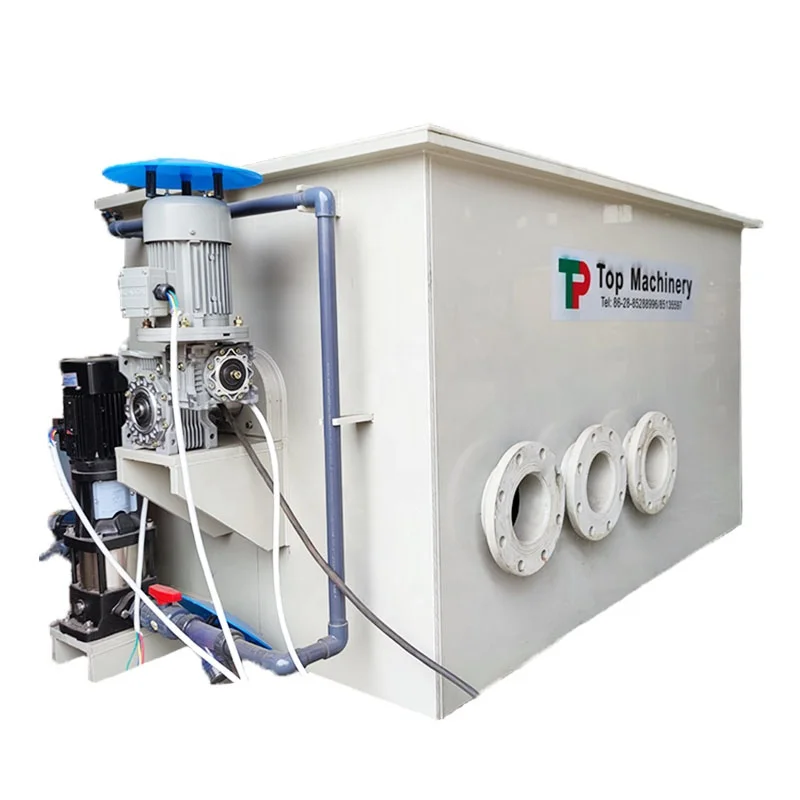

The Stainless Steel Irragation Rotary Drum Filter for waste water is a mechanical, self-cleaning filter that works with gravity to prevent particle fragmentation. The filtering process of Drum Screen Filter is very simple, yet very efficient and reliable due to its overall design and operation. Drum Filters are designed with few moving parts to ensure a long life with low operating/maintenance cost.

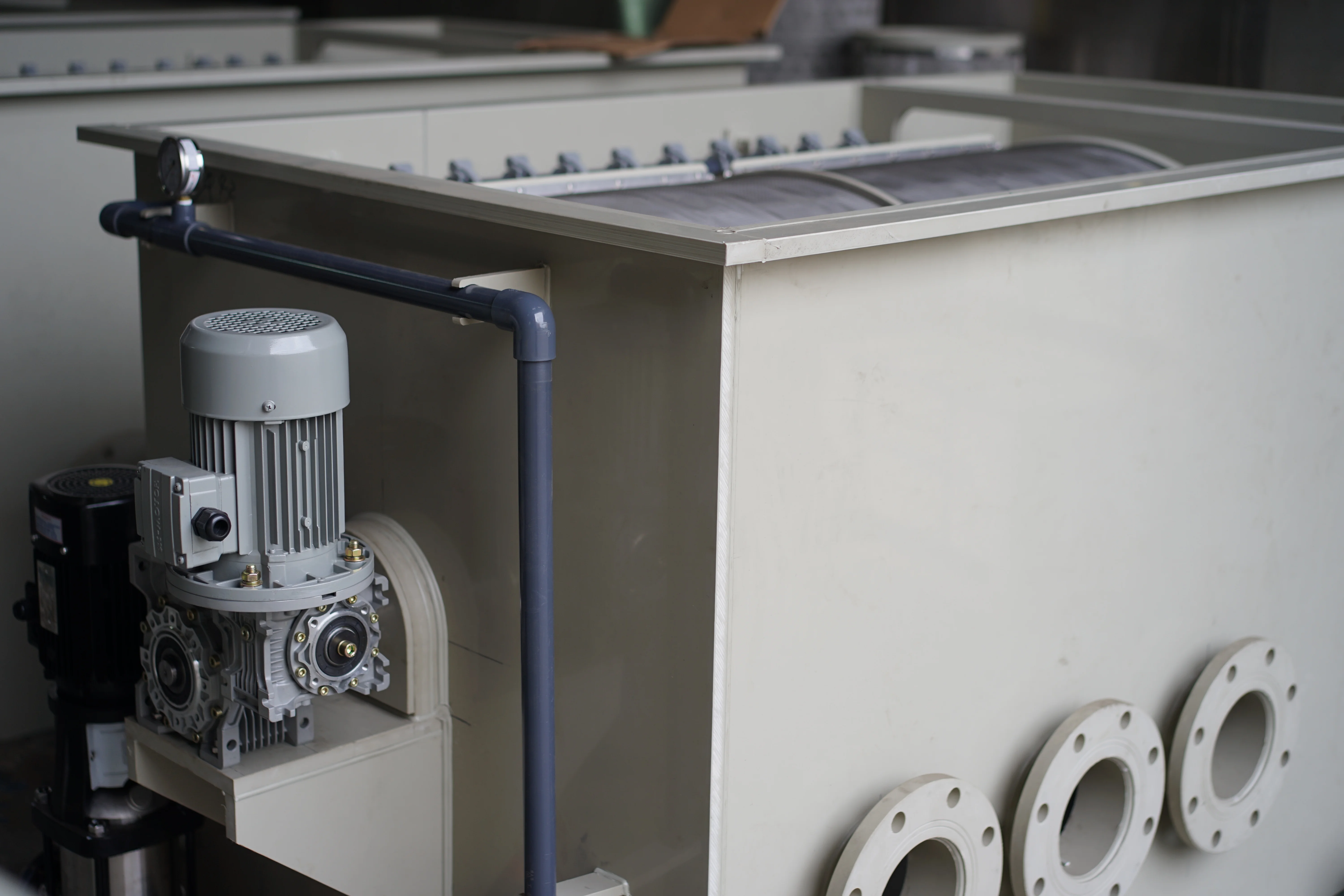

Working Principle The polluted water inputs the drum filter through the water inlet pipes, flows into the boxes, and then into the interior of the filtering drum. The filtering drum is covered with a V-slot micro mesh, all particles bigger than the filter mesh will stay inside the drum filter. The waste particles will slowly block the filter mesh, makes it hard for the water through the mesh, which leads to a lower water level in the clear water chamber of the filter. Once the water level dropped to a minimum level-indicated by sensor-the controller starts the washing process. The process contains the rotation of the filter drum by a geared motor and multiple nozzles spraying water with high pressure to the outside of the filter mesh. The waste clogged the filter mesh is flushed into the waste tray, and then leaves the filter by wastewater discharge through waste outlet.V-slot FeaturesSlot Section The Continuous slot screens are made of V-shape wire or wedge shape wire around an internal array of longitudinal support rods. Each jointpoint of these wire is fusion welded, the V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. Therefore the screen allows water or oil to enter the well freely in ample quantities while keeps the majority of sand and gravel out of the well at the same time. Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow. High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down. High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span. Structure Options V-Shape slots: V-Shape wire gives inwardly widening V-shape slots FeaturesThe Stainless Steel Irragation Rotary Drum Filter have following advanced features: 1. Made for landscape ponds and aquaculture2. Compact structure easy installation3. Filtration capacity: from 16-420 m3 of water per hour4. Self-cleaning and automatic backwash5. High quality and environmentally-friendly materials6. Very low noise7. Gravity& pump mode8. Option for integrated UV lamp with double function9. Easy operation and low maintenance10.Long life time Specifications Operation modePump mode and gravity mode Control unit of this titled rotary drum filter is equipped with two operation modes: gravity mode and pump mode. According to the different needs of customers, the operation mode can be selected conveniently by a switch installed on the control unit box. Packaging & ShippingPlastic film or wooden boxes package or as per customers' requirements. Company InformationTop Machinery is located i Chengdu, being with convenient traffic, developed communication, vast territory and a good space for development. We are professional manufacturer and exporter of accessories for water, oil, gas and environmental industries. The products mainly including filter elements like Johnson screen mesh , water well screen, V shaped wire welded screen pipe, strainer pipe, spiral screen tube, wire-wrap screen pipe, wedge wire screen tube, mine screen mesh, arc screen, flat wedge wire panel, as well as automatic washing filter, backwashing filter, drum filter, ion exchanger, etc. Since the company established, we insist on good quality, making the business range extend continually.All of production lines are provided on a turnkey basis including design, program, installation, commission, and complete technology transfer and personnel training, which are backed by our extensive experience. Complete spare parts/components and engineering services are provided according to customers' requirements. We sincerely hope to establish cooperation with you. We sincerely welcome all clients to contact us for details.topindustry.en.made-in-china.com
Input tube OD
High water lvl H3
Channel depth H2
Waste outlet H1
Min install lengthA
Max water treat m³/h

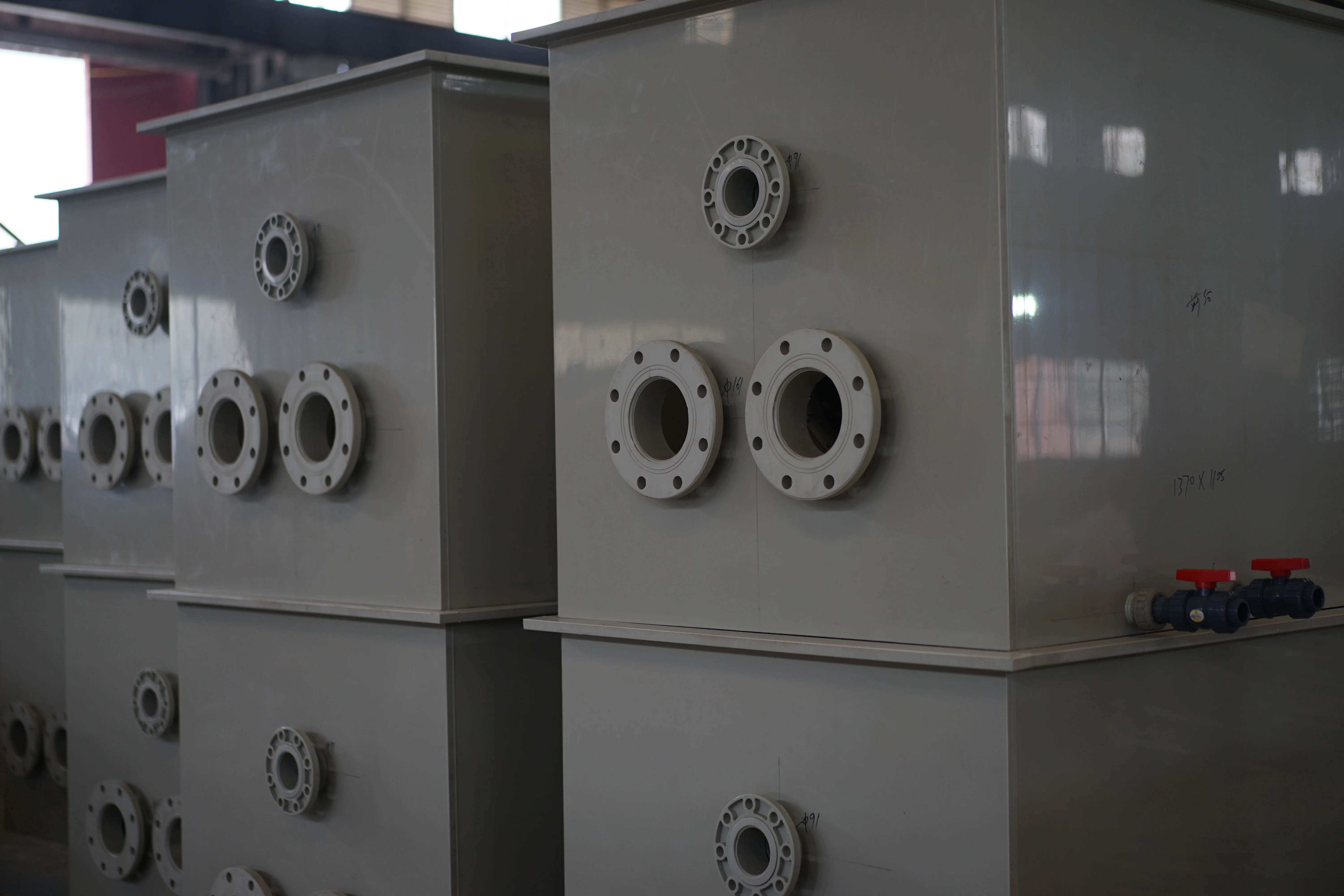

Production Facility:With R&D team, we can design and manufacture the machine according to customer requirements.Client Visit:Welcome to visit our factory anytime. Packaging & Shipping:Wooden Package with high quality to protect your machine.
If you have any question, pls feel free to contact me directly.
