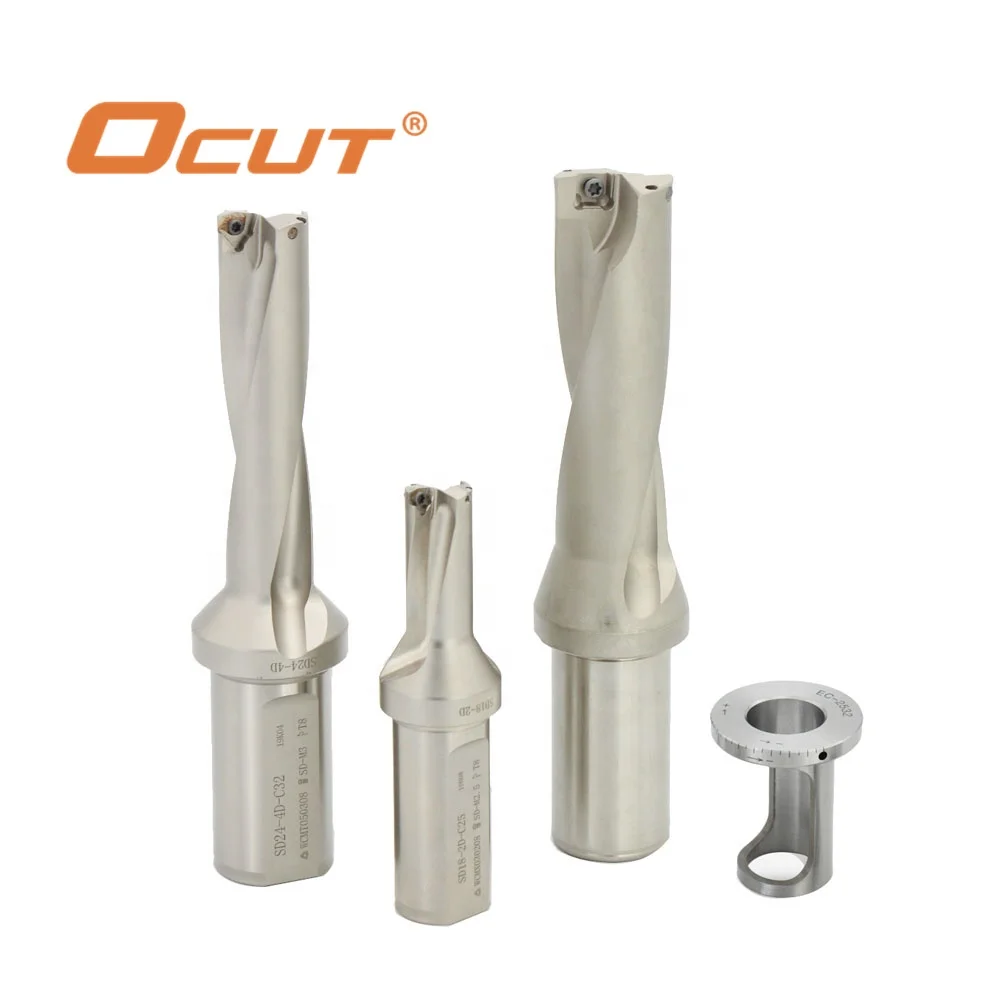

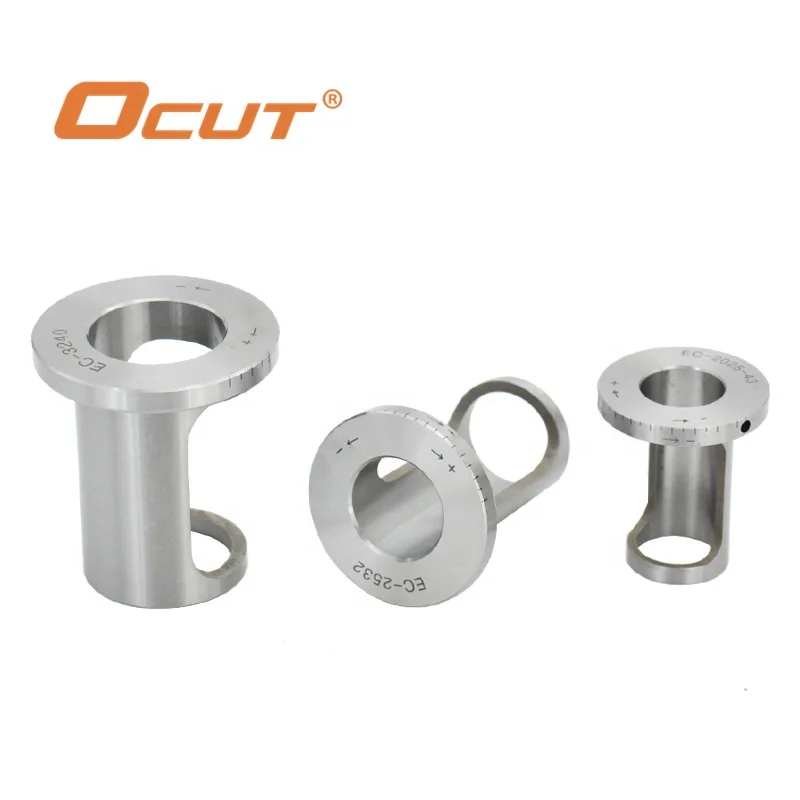

EC Type 2025 2532 3240 Reducing Sleeve Eccentric Sleeves for U Drill EC2025 Quick drilling of reducing sleeve
- Category: >>>
- Supplier: Shandong Oli Machinery Co. Ltd.
Share on (1600428731977):
Product Overview
Description
Products Description
U drill Eccentric Sleeves EC Type 2025 2532 3240 Reducing Sleeve Eccentric Sleeves for U Drill
Installation Notes: | By using the eccentric sleeve, the diameter of the X drill can be achieved |
Size ±0.2MM adjustment. | |
First loosen the two compression screws of the holder, and then rotate the eccentric sleeve, | |
The size of the mark on the scale corresponding to the symbol "+" on the drill bit becomes larger, | |
The size of the mark in the direction corresponding to the symbol "—" on the scale on the drill bit becomes smaller. |

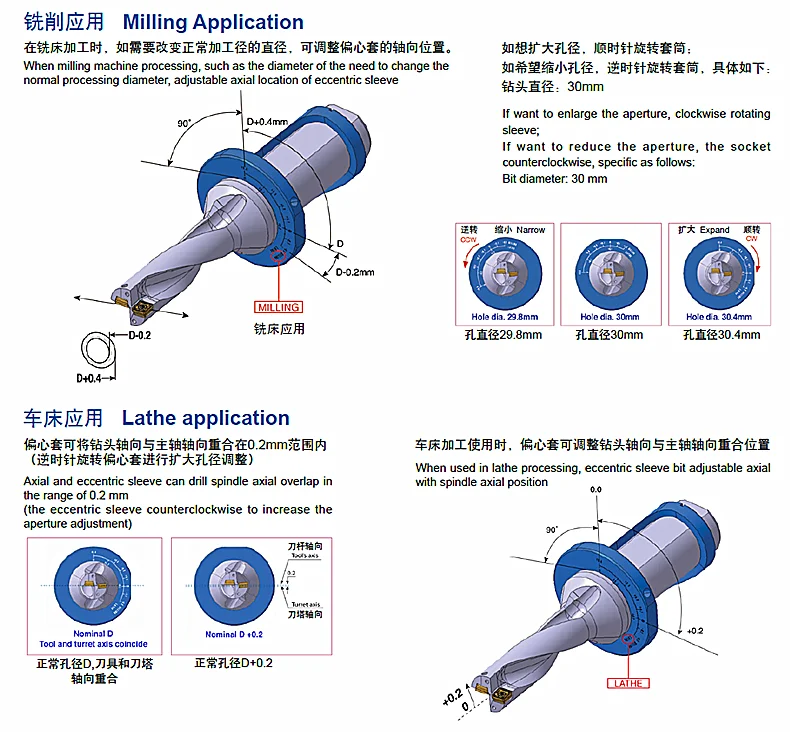

Usage Example
Adjustable tool diameter, saving the types of tools configured
Adjustable range of processing diameter: ±0.2mm

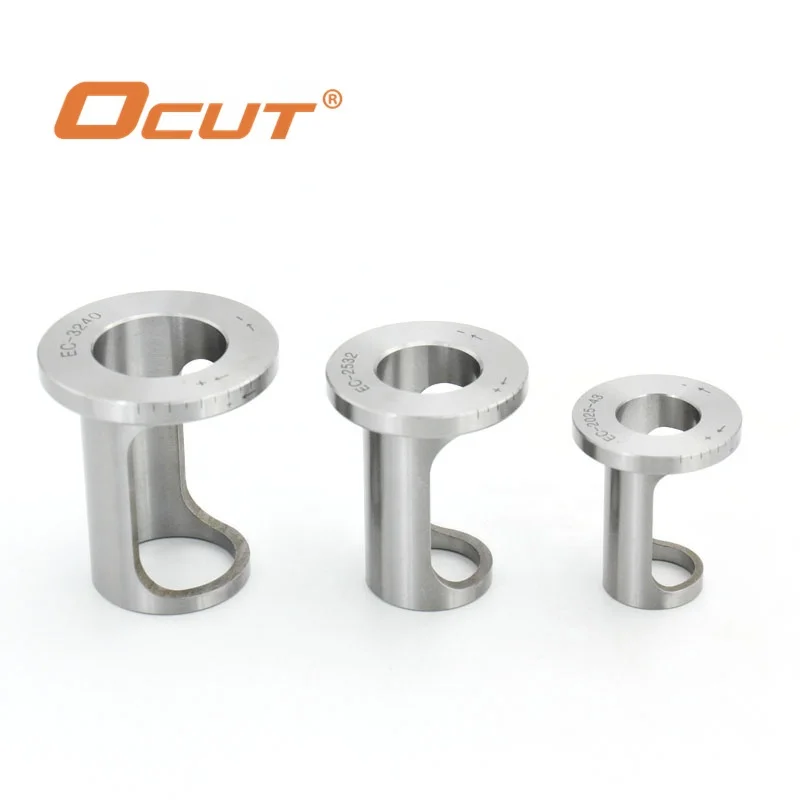

Products Real Shot

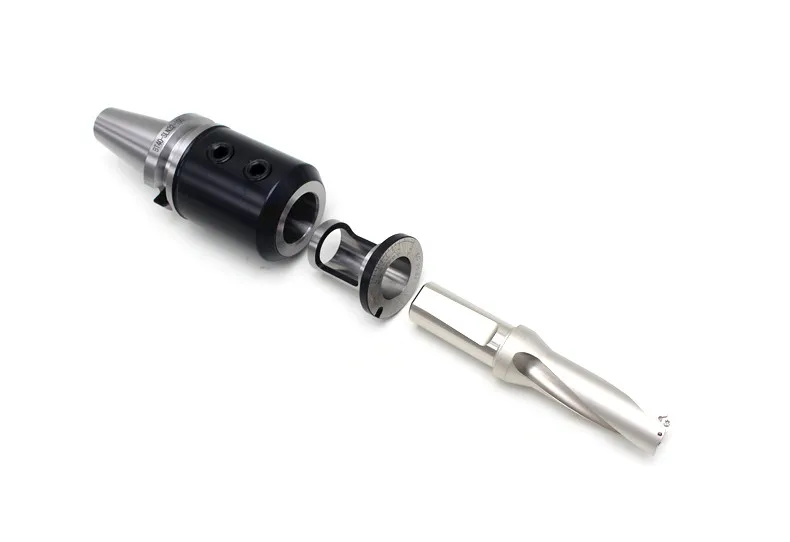

Installation is quick and easy, suitable for side lock oil hole holders of various brands, and has strong versatility.

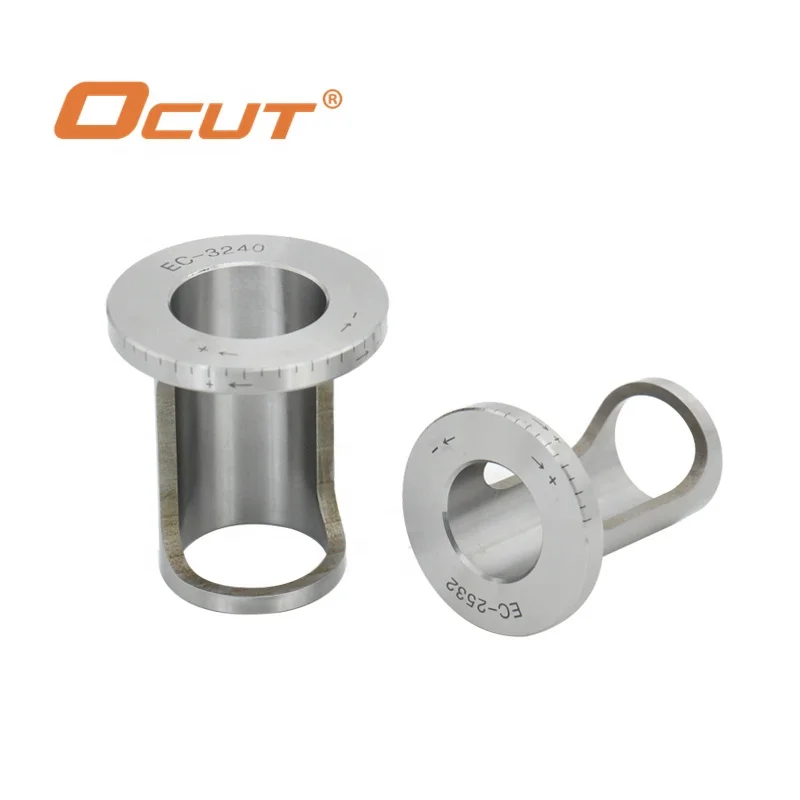

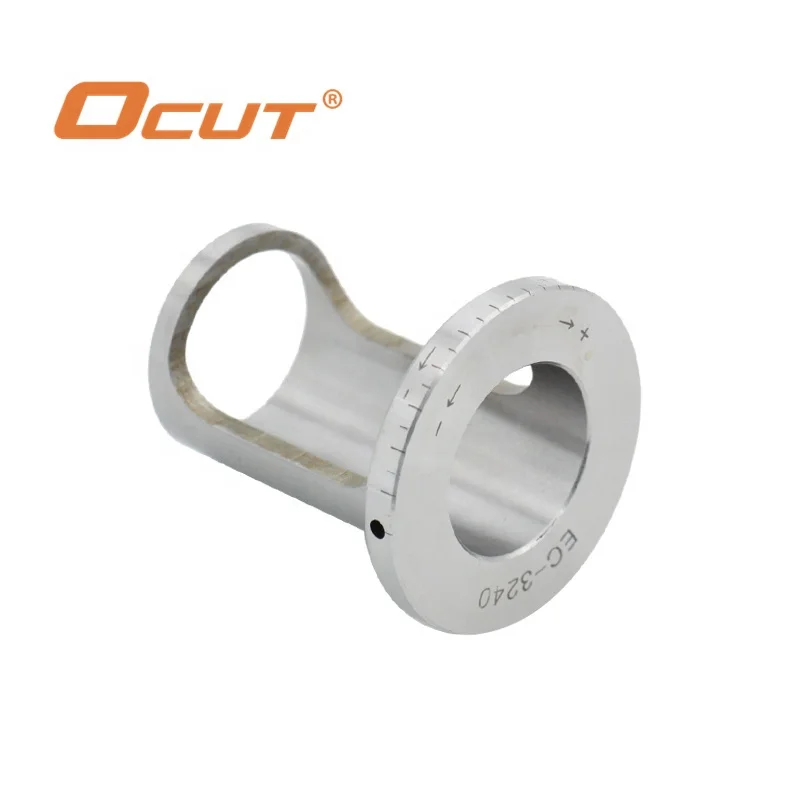

The bottom is marked with a dial with an accuracy of 0.005mm
The hardness is between HRC56-58 degrees
Carburizing is between
0.8-1.2mm.
0.8-1.2mm.
