To solve the PCB heating problem, use the heat conduction phase change material 3W / m.k PCM material
- Category: >>>
- Supplier: Shenzhen Dobon Technology Co. Ltd.
Share on (1600428733052):
Product Overview
Description
Product Description:
XBH-A is a kind of heat conduction filling material that has begun to soften the phase change in 45-55℃. The heat conduction phase change material has the special material of softening microflow after heat absorption and restoring solid state shape after cooling;
XBH-A room temperature is solid flake, beyond the phase transition temperature is fluid, with excellent wettability and compressibility, can be cut into various sizes according to customer requirements, attached to the radiator and power consumption electronic devices.
Fill the gap between heat sources and radiators to minimize thermal resistance;XBH-A has high thermal conductivity, low thermal resistance and excellent reliability.
Specification
| Test item | Unit | Test value | |||
| XBH-A | XBH-B | XBH-P | XBH-Y | ||
| Color | Grey | Black | Pink | Yellow | |
| carrier | ---- | Aluminum foil | ---- | ---- | |
| Thermal impedance | ℃-cm2/W | 0.035~0.005 | 0.035~0.005 | 0.035~0.005 | 0.035~0.005 |
| Thermal conductivity | w/m.k | 2.5 | 3.0 | 1.0 | 1.0 |
| Phase change temp | ℃ | 45~55 | 45~55 | 45~55 | 45~55 |
| Density | g/cm² | 1.2 | 1.2 | 1.3 | 1.35 |
| Thickness | mm | 0.13/0.20 | 0.18/0.25 | 0.13/0.25 | 0.13/0.20 |
| Strong temp | ℃ | <40 | <40 | <45 | <45 |
| Temperature range | ℃ | -45~125 | -45~125 | -45~125 | -45~125 |
| Storage time | Month | 12 | 24 | 12 | 12 |
Product Avantage:
• High thermal conductivity, low impedance.
• Tightly irregular device surfaces.
• Excellent compressibility.
• Excellent wettability.
• Excellent reliability.

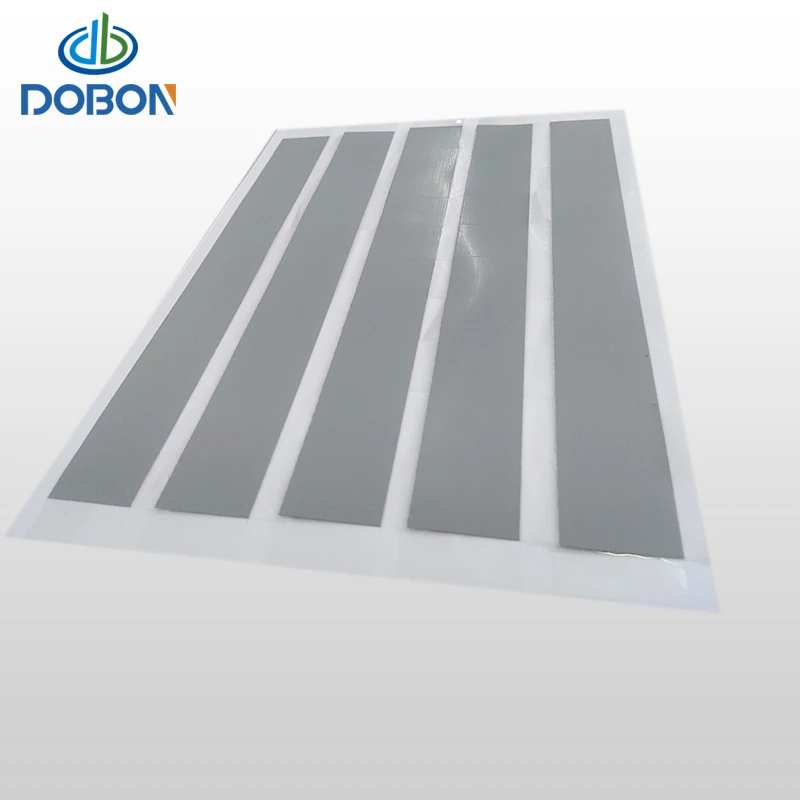

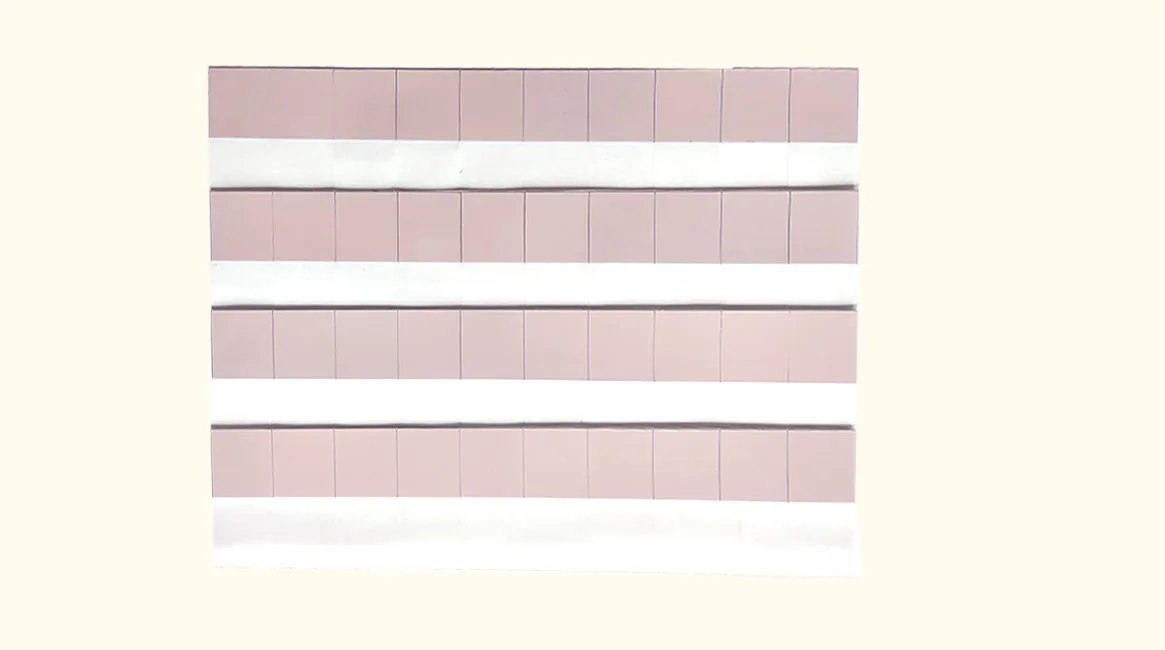

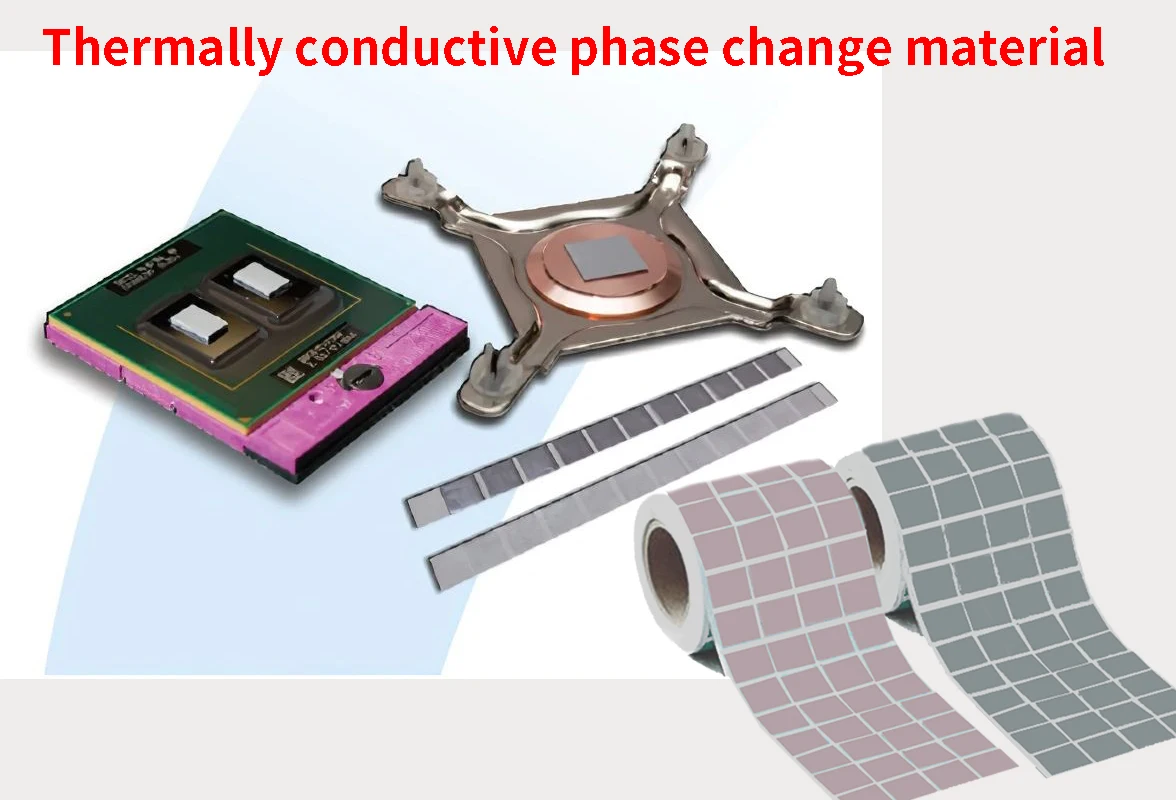

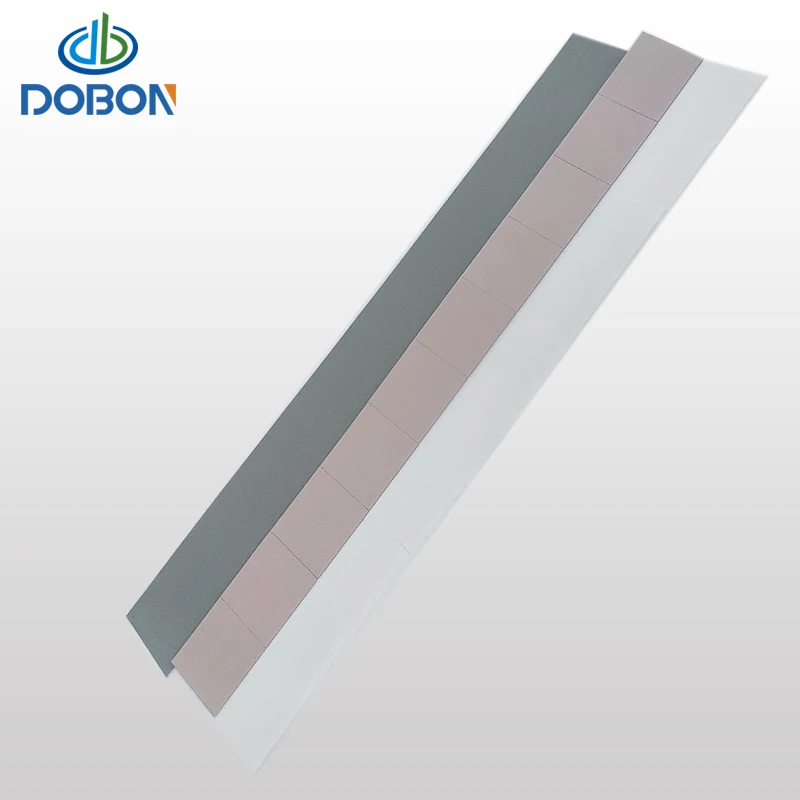

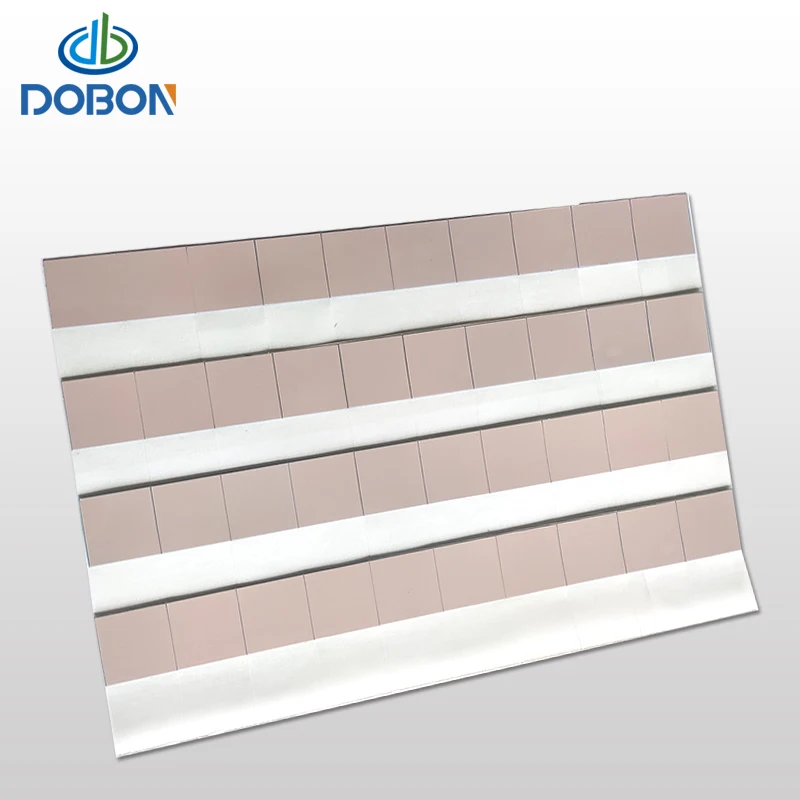

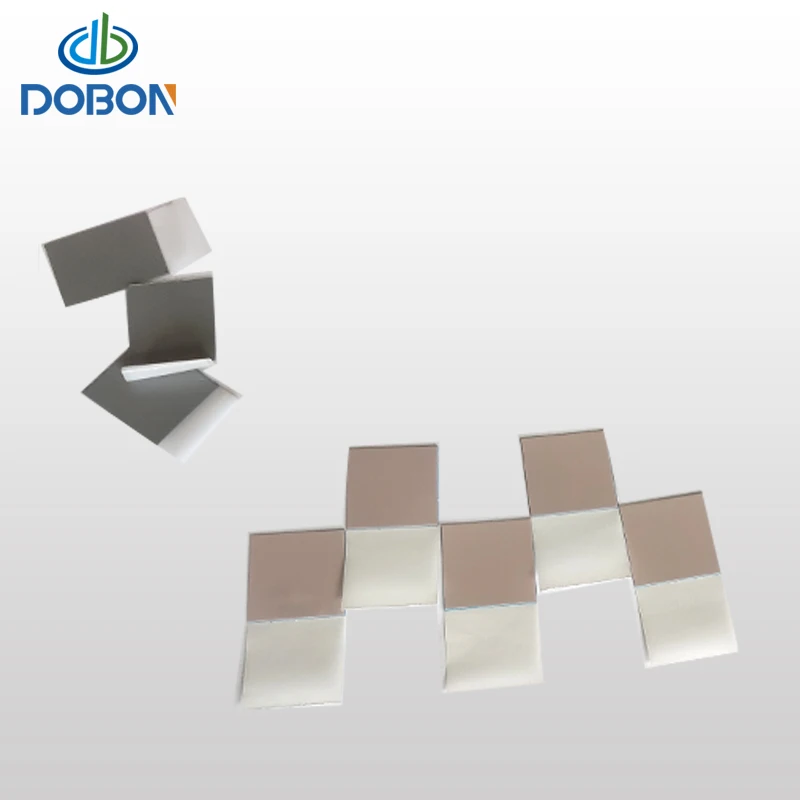

Product Pictures:
Application mode:
1. Fill between the circuit board and thermal slug
2. Fill between IC and thermal slug or the product shell
3. Fill between IC and heat dissipation material ( such as metallic shield)
Product application:
Thermal silicone pad is widely used for all kinds of high power supply, laptop, LED light, smartphone, power battery, electronic industry and so on.
chanpintongyong
Certifications:
Factory show:
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, our factory in Dongguan city, China. Welcome to visit.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free , but not including the shipping cost.
Q: How to customize a sample?
A:If you are ordering a unique sample that we don't have in stock, you need to provide all the details, it will be better if you can send a sample for our evaluation. Customized samples maybe need new molding, which will cost molding fee. We will check your sampling requirements, then issue a sampling P/I. Sampling may take 3-5 days, depending on detailed samples.
Any more questions, please contact us freely.
