Automatic Feeding Car Sticker PVC Foam Board Fabric Cutter Plotter Cutting Machine
- Category: >>>
- Supplier: Zhengzhou Zomagtc Co. Ltd.
Share on (1600428736214):
Product Overview
Description
Product Description
Automatic Photo Album Making Machine 14 In 1 Photo Book Binding Machines Wedding Custom Album Maker
Digital Cutting Plotter Printing Machine For Car Sticker, PVC Board, PU, Cardboard
Automatic Photo Album Making Machine 14 In 1 Photo Book Binding Machines Wedding Custom Album Maker
Cutting Plotter.
Widely used in packaging and signs, including, paper, board, sticker, vinyl and so on. It
is the key equipment for small volume production and sample making. This machine provides perfect solutions for printing.
is the key equipment for small volume production and sample making. This machine provides perfect solutions for printing.
Technical parameters | ZM-AOL6040/6090 |
Effective working area | 600*400mm/ 600*900mm |

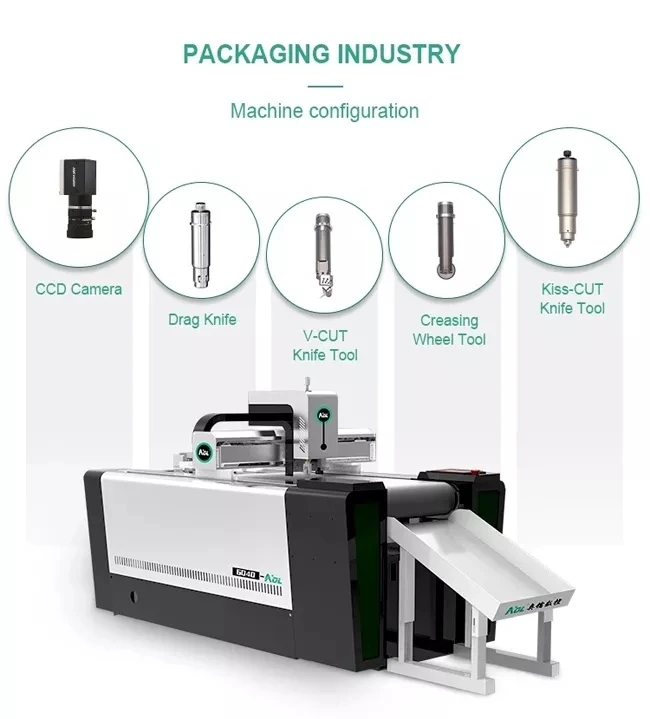

Multi-function cutting head | The combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-cut and laser red light positioning functions, CCD positioning, Camera extract large contour to cut |
Tools | Oscillating knife, Milling tool, pneumatic knife, V-cut, crease wheel, kiss cut, drag knife |
Overall size | 2420*970*1280mm L'W'H |
Weight | 300kg |
Moving speed | 800-1500mm/s |
Repeat precIsion | ±0.05mm |
Interface | Ethernet port |
Control panel | LCD touch screen |
Drive system | Imported servo motor, linear guid, synchronous belt, screw |
Cutting material | Paperboard, grey board, KT board, pvc foam board, honeycomb board, car sticker, lamp piece, PP Adhesive material, printing cloth, banner cloth, all kinds of corrugated board, EPE foam, EVA, PVC board, acrylic board, thick foam and so on |
Instruction system | HP- GL Compatible format |
Rated power | 2. 2KW |
Rated voltage | 220V |
Cutting thickness | ≤50mm(According to different material) |
Material fixed way | Vacuum adsorption |
Auto feeding system | Vacuum sucker adsorpting sheet |
Cutting Plotter
Automatic paper hole punching machine is suitable for punching holes in all kinds of notebook, book and periodicals, calendars paper, tutorial paper in batch, especially for width paper and cardboard .
Automatic paper hole punching machine is suitable for punching holes in all kinds of notebook, book and periodicals, calendars paper, tutorial paper in batch, especially for width paper and cardboard .
Recommend Products
Contact us
If you have any qustion,contact us at any time!
E-mail：Andy@superelec.cn
Tel/Whats App：+86 19137620927
Tel/Whats App：+86 19137620927
Packaging & Shipping
SHIPPING
1.By air, sea or combined transportation.
2.Express via FEDEX, TNT, UPS, DHL, EMS(AS your request)
3.Tracking Number will offer you immediately after delivery
3.Tracking Number will offer you immediately after delivery
4.Shipping cost depends on the shipping method, product quantity,weight, carton size and your area.
PACKAGING
Packaging Details | Stong wooden box package | ||
Port | The main ports in China, depends customers choice | ||
Lead Time | 1 pc | 35 days | |
>1 pcs | To be negotiated | ||
First Step:
Machine packing with wooden base
Second step:
Machine packing with film to water proof
Third step:
Machine packing with wooden case
Fouth step:
Machine with wooden base packing load to container
